2003 HONDA CIVIC COUPE Owners Manual

Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Honda dealer, reset the indicator as
f ollows.Turn of f the engine.

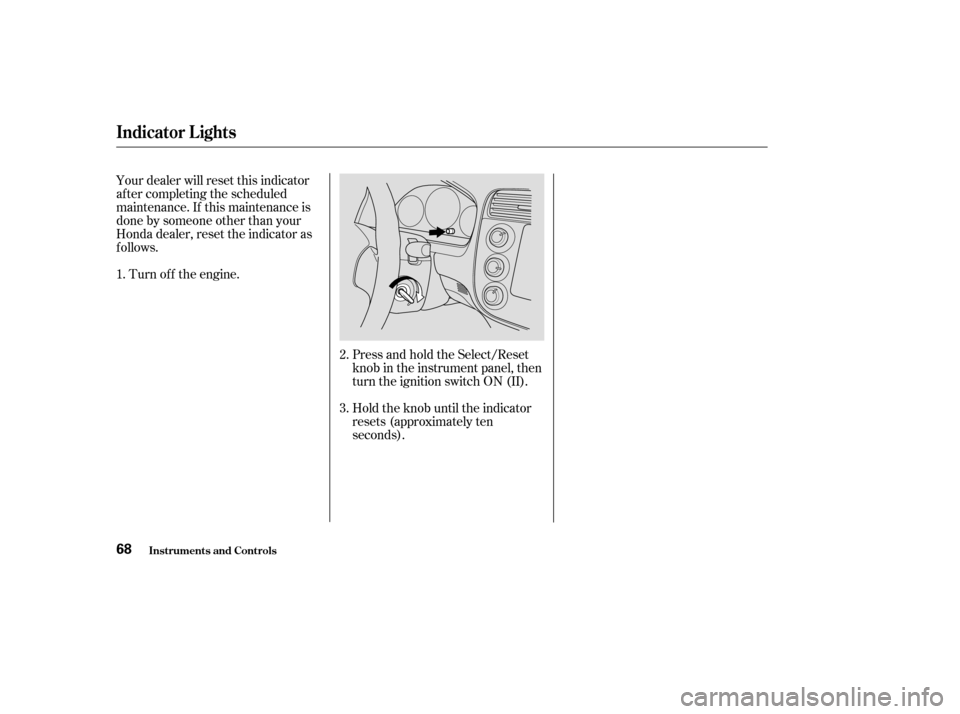

Press and hold the Select/Reset
knob in the instrument panel, then
turn the ignition switch ON (II).
Hold the knob until the indicator
resets (approximately ten
seconds).
1.
2. 3.
Indicator L ights
Inst rument s and Cont rols68
——y

y
(%y
y

This shows your speed in miles per
hour (mph). The smaller inner
numbers are the speed in kilometers
per hour (km/h).This shows your speed in kilometers
per hour (km/h). The smaller inner
numbers are the speed in miles per
hour (mph).The tachometer shows the engine
speed in revolutions per minute
(rpm). To protect the engine f rom
damage, never drive with the
tachometer needle in the red zone.
The odometer shows the total dis-
tance your car has been driven. It
measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
On HX, LX and EX models in the U.S.,
and all models in Canada
U.S. models Canadian models
Speedometer T achometer
Odometer
U.S.:HX,LX,EX,Canada:LX,Si
Gauges
Inst rument s and Cont rols69
TEMPERATURE GAUGE
FUEL GAUGE
ODOMETER/TRIP METER

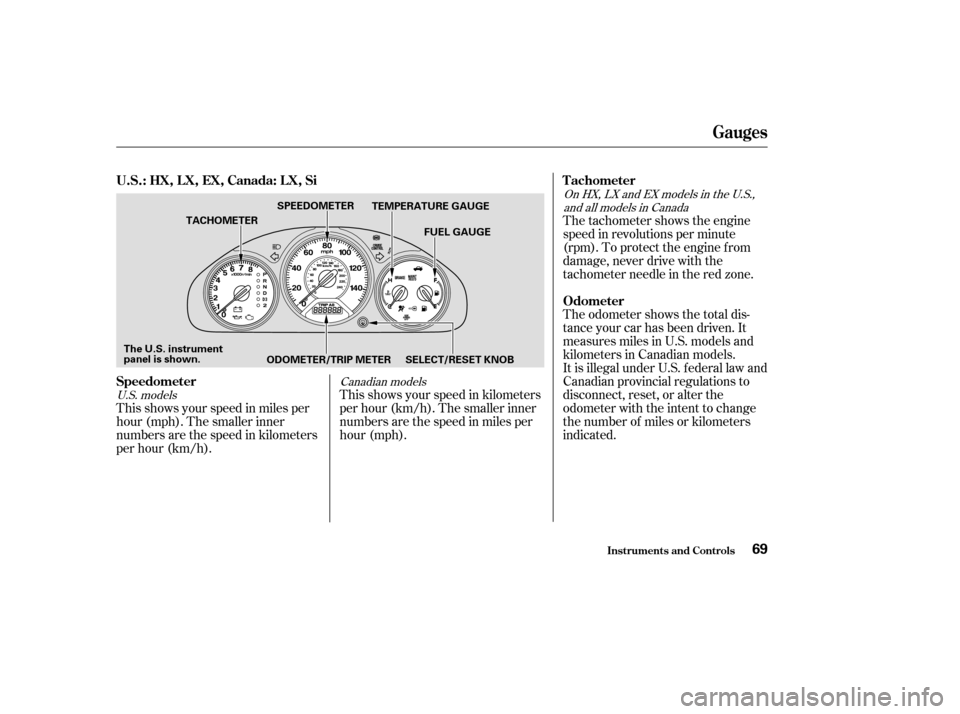

The U.S. instrument
panel is shown. TACHOMETER
SPEEDOMETER
SELECT/RESET KNOB
——y

y
(%yy

This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer by
pressing the Select/Reset knob
repeatedly. Each trip meter works
independently, so you can keep track
of two dif f erent distances.
To reset a trip meter, display it, and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
This shows how much f uel you have.
It is most accurate when the car is on
level ground. It may show slightly
more or less than the actual amount
whenyouaredrivingoncurvyor
hilly roads.The needle returns to the bottom
after you turn off the ignition. The
gauge shows the f uel level reading
immediately af ter you turn the
ignition switch back ON (II).
Trip Meter
Fuel Gauge

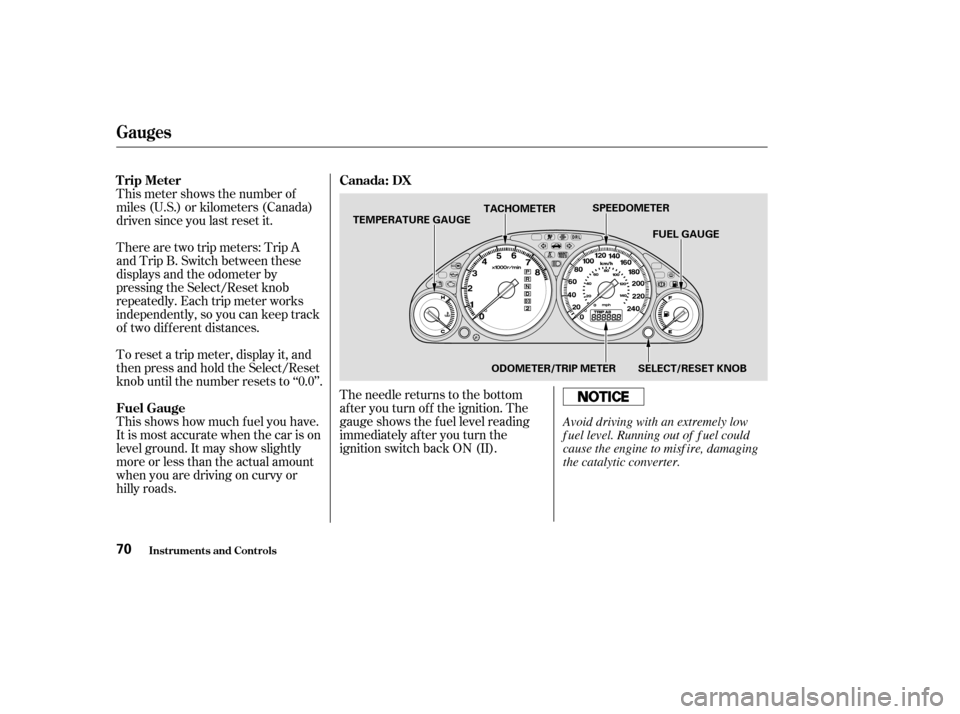

Canada: DX
Gauges
Inst rument s and Cont rols70
ODOMETER/TRIP METER
TEMPERATURE GAUGE
FUEL GAUGE
TACHOMETER
SPEEDOMETER
SELECT/RESET KNOB
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
——y


y
(%yy

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper zone. If it reaches the red
(Hot) mark, pull saf ely to the side of
the road. Turn to page for
instructions and precautions on
checking the engine’s cooling
system.269
Temperature Gauge

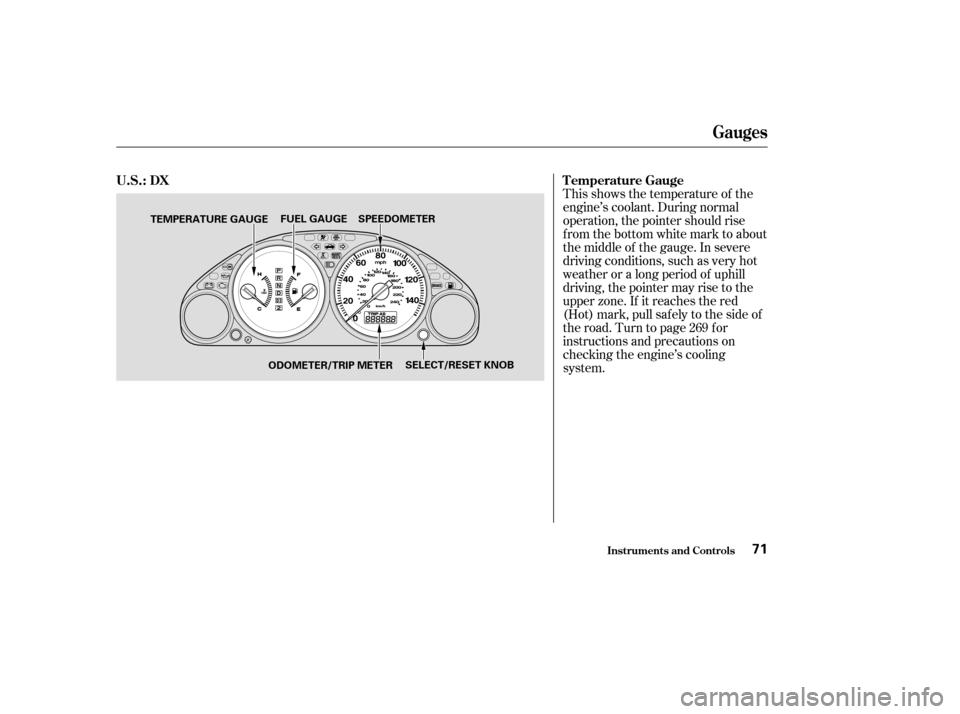

U.S.: DX
Gauges
Inst rument s and Cont rols71
SELECT/RESET KNOB
ODOMETER/TRIP METER FUEL GAUGE SPEEDOMETER
TEMPERATURE GAUGE
——y


y
(%yy

ÎÎ
Thetwoleversonthesteering
column contain controls f or driving
f eatures you use most of ten. The lef t
lever controls the turn signals,
headlights, and high beams. The
right lever controls the windshield
washers and wipers.
The hazard warning lights switch is
on the dashboard between the
center air vents.
The controls under the lef t air vent
are f or the moonroof , mirrors and
cruise control.
The tilt adjustment lever on the
underside of the steering column
allows you to tilt the steering wheel.
To use the horn, press the center
pad of the steering wheel.

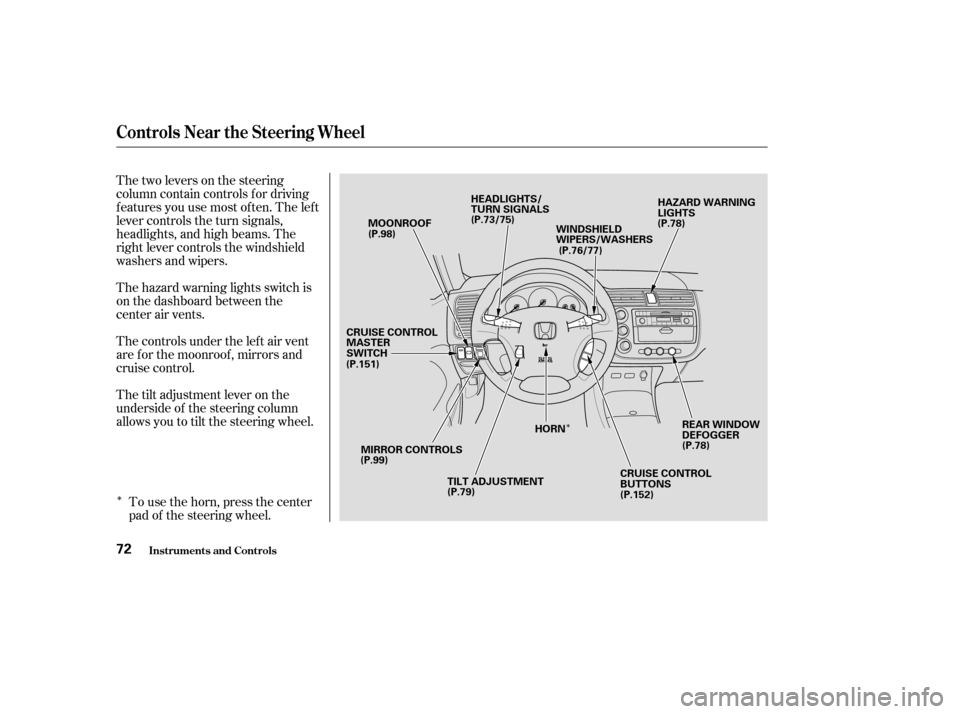

Controls Near the Steering Wheel
Inst rument s and Cont rols72
HEADLIGHTS/
TURN SIGNALS
(P.73/75)
MOONROOF
(P.98)
CRUISE CONTROL
MASTER
SWITCH
(P.151)
(P.99)MIRROR CONTROLS
TILT ADJUSTMENT
(P.79) HORN
CRUISE CONTROL
BUTTONS
(P.152)(P.78)
REAR WINDOW
DEFOGGER
(P.78)
HAZARD WARNING
LIGHTS
WINDSHIELD
WIPERS/WASHERS (P.76/77)
——y

y
(%yy

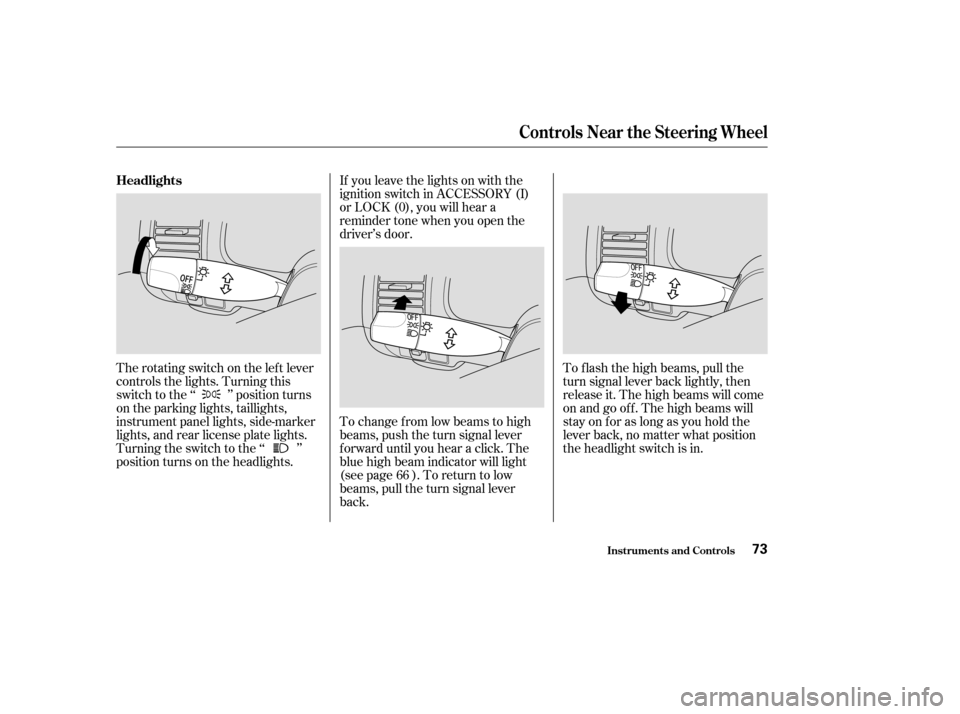

The rotating switch on the lef t lever
controls the lights. Turning this
switch to the ‘‘ ’’ position turns
on the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights.To change f rom low beams to high
beams, push the turn signal lever
f orward until you hear a click. The
blue high beam indicator will light
(see page ). To return to low
beams, pull the turn signal lever
back.
If you leave the lights on with the
ignition switch in ACCESSORY (I)
or LOCK (0), you will hear a
reminder tone when you open the
driver’s door.
To f lash the high beams, pull the
turn signal lever back lightly, then
release it. The high beams will come
on and go of f . The high beams will
stay on f or as long as you hold the
lever back, no matter what position
the headlight switch is in.
66
Headlights
Controls Near the Steering Wheel
Inst rument s and Cont rols73
——y

y
(%yy

Canadian models only
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
of f , even if you set the parking brake.
The headlights revert to normal
operation when you turn them on

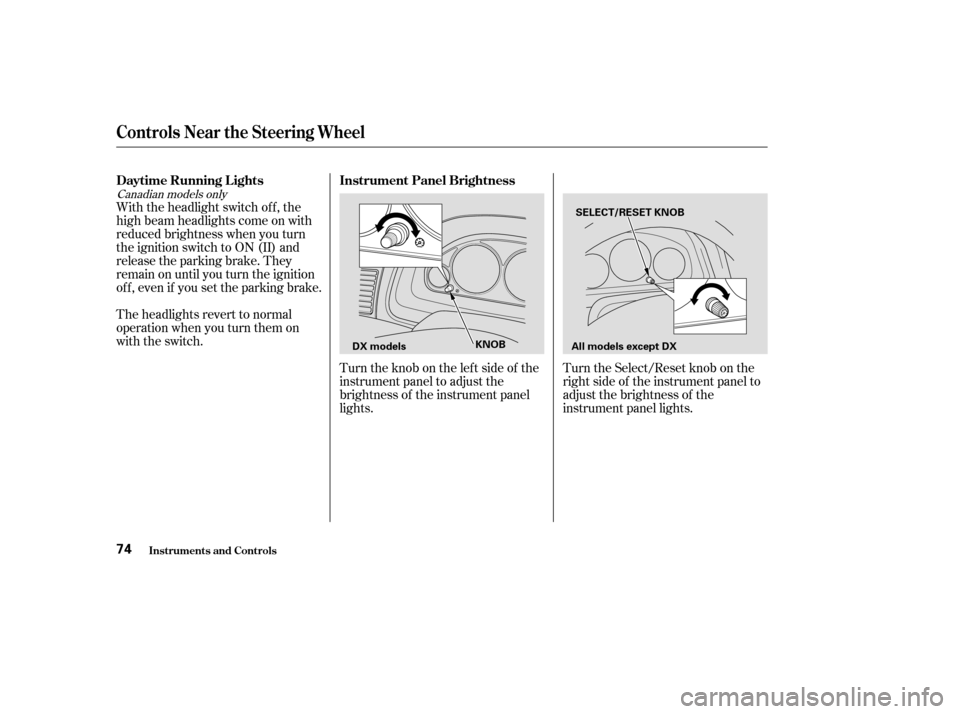

with the switch.Turntheknobontheleftsideof the
instrument panel to adjust the
brightness of the instrument panel
lights.Turn the Select/Reset knob on the
right side of the instrument panel to
adjust the brightness of the
instrument panel lights.
Instrument Panel Brightness
Daytime Running L ights
Controls Near the Steering Wheel
Inst rument s and Cont rols74
SELECT/RESET KNOB
KNOB All models except DX
DX models
——y

y
(%yy

Signal a turn or lane change with this
lever. Push down on the lever to
signal a lef t turn, and up to signal a
right turn. If you push it up or down
all the way, the turn signal continues
to blink even when you release the
lever. It shuts off automatically as
you complete the turn.
Turn the Select/Reset knob to adjust
the instrument panel brightness.
There are six brightness levels.
When you turn the knob, the
odometer/trip meter display
changes to circles that show you the
current level. You will hear a tone
when you reach the maximum or
minimum brightness. The display
returns to the odometer/trip meter
values f ive seconds af ter you stop
adjusting the knob.
The instrument panel dims when the
parking lights or headlights are
turned on. Adjust the brightness to
the desired level with the headlight
switch of f , and also with the
headlight switch on. Both settings
will remain at those levels until you
change them.
To reduce glare at night, the instru-
ment panel illumination dims when
you turn the light switch to or
. Turning the Select/Reset
knob f ully to the right will return the
instrument panel to the brightness
adjusted with the headlight switch
of f and a tone will sound.
CONT INUED
