2003 HONDA CIVIC COUPE Owners Manual

Control L ocations
Inst rument s and Cont rols60
MOONROOF MIRRORCONTROLSHEATING/COOLING CONTROLS
HOOD RELEASE
HANDLE CRUISE CONTROL
BUTTONS
FUEL FILL DOOR RELEASE
A/T model is shown. POWER WINDOW
SWITCHES
POWER DOOR LOCK
SWITCH
(P. 98)
(P. 99)(P. 110)
(P. 152)
(P. 158)
(P. 157)
(P. 96)
CRUISE CONTROL
MASTER SWITCH
(P. 151)
(P. 84)
TRUNK RELEASE(P. 88) DIGITAL CLOCK
(P. 118, 130)
AUDIO SYSTEM
(P.123,135)
——y


y
(%yy

ÎÎCONT INUED
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the
text.
Shif t Lever Position Indicator f or the HX is shown on page 179 .

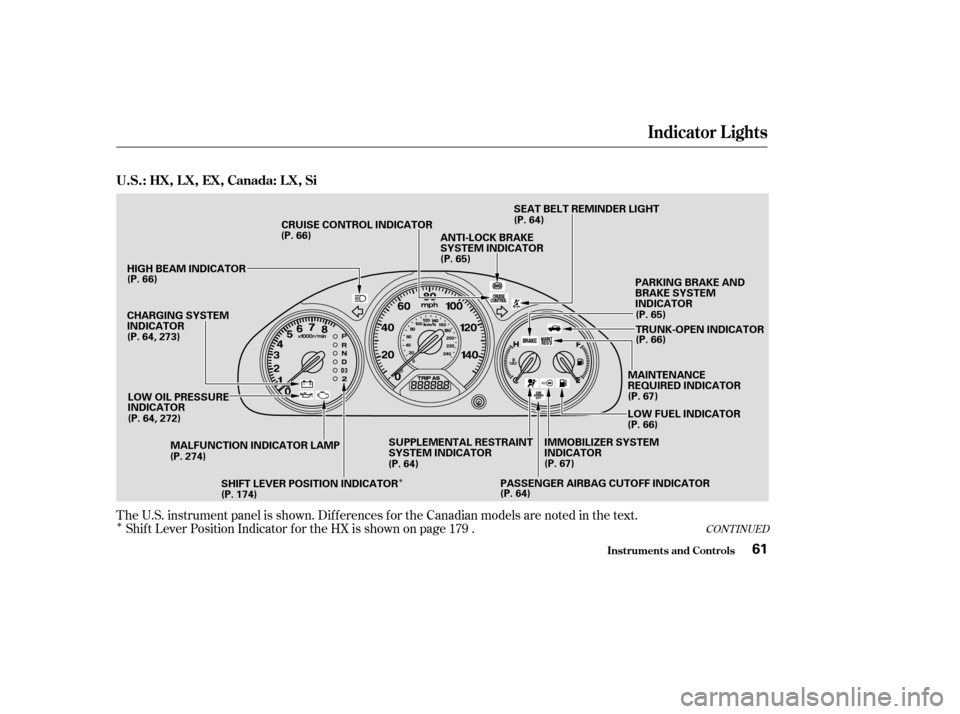

Indicator L ights
Inst rument s and Cont rols
U.S.:HX,LX,EX,Canada:LX,Si
61
(P. 64) (P. 67)IMMOBILIZER SYSTEM
INDICATOR (P. 65)
(P. 65)
(P. 66)
MAINTENANCE
REQUIRED INDICATOR
(P. 67)
(P. 66)
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR (P. 64)
HIGH BEAM INDICATOR
(P. 66)
CHARGING SYSTEM
INDICATOR
LOW OIL PRESSURE
INDICATOR MALFUNCTION INDICATOR LAMP CRUISE CONTROL INDICATOR
(P. 66) SEAT BELT REMINDER LIGHT
TRUNK-OPEN INDICATOR
ANTI-LOCK BRAKE
SYSTEM INDICATOR
(P. 64)
(P. 174) LOW FUEL INDICATORPARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
SHIFT LEVER POSITION INDICATOR
(P. 64, 273)
(P. 64, 272) (P. 274) PASSENGER AIRBAG CUTOFF INDICATOR
——y


y
(%yy

Indicator L ights
Inst rument s and Cont rols
Canada: DX
62
LOW OIL PRESSURE
INDICATORDAYTIME RUNNING
LIGHTS INDICATOR
(P. 64)
(P. 67)
MALFUNCTION INDICATOR LAMP (P. 66)
HIGH BEAM INDICATOR
(P. 64) (P. 67) (P. 65)(P. 66)
WASHER LEVEL
INDICATOR
TRUNK-OPEN INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
CHARGING SYSTEM
INDICATOR SEAT BELT
REMINDER LIGHTMAINTENANCE REQUIRED
INDICATOR PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
(P. 66)
(P. 64)
LOW FUEL INDICATOR
(P. 66)
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
(P. 65)
(P. 64, 272) (P. 64, 273) (P. 274) PASSENGER AIRBAG CUTOFF INDICATOR
——y


y
(%yy

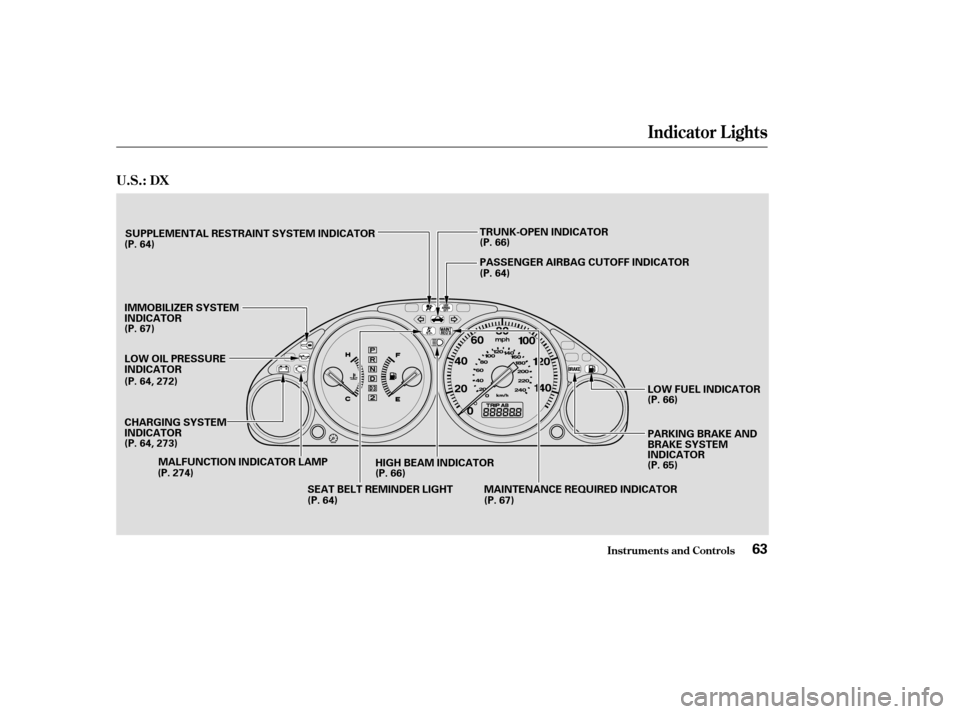

Indicator L ights
Inst rument s and Cont rols
U.S.: DX
63
(P. 64)SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
(P. 67)
LOW OIL PRESSURE
INDICATOR
SEAT BELT REMINDER LIGHT
(P. 64)MAINTENANCE REQUIRED INDICATOR
(P. 67)(P. 65)
(P. 64)
(P. 66)
TRUNK-OPEN INDICATOR
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
HIGH BEAM INDICATOR
(P. 66) LOW FUEL INDICATOR
(P. 66)
CHARGING SYSTEM
INDICATOR
MALFUNCTION INDICATOR LAMP
(P. 64, 272)
(P. 64, 273)
(P. 274) PASSENGER AIRBAG CUTOFF INDICATOR
——y



y
(%yy

The instrument panel has many
indicators to give you important
inf ormation about your car.
This indicator lights when you turn
the ignition switch ON (II). It is a
reminder to you and your passengers
to protect yourselves by f astening
the seat belts. A beeper also sounds
if you have not fastened your seat
belt.
If you do not f asten your seat belt,
the beeper will stop af ter a f ew
seconds but the light stays on until
you do. Both the light and the beeper
stay of f if you f asten your seat belt
bef ore turning on the ignition.This indicator lights when you turn
the ignition switch ON (II). If it
comes on at any other time, it
indicates a potential problem with
your f ront airbags or automatic seat
belt tensioners. On models equipped
with side airbags, this light will also
alert you to a potential problem with
your side airbags or passenger’s side
airbag automatic cutoff system. For
complete inf ormation, see page .
This indicator lights when you turn
the ignition switch ON (II). If it
comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For complete inf ormation, see page
. If this light comes on when the
engine is running, the battery is not
being charged. For complete
inf ormation, see page .
The engine can be severely damaged
if this light f lashes or stays on when
the engine is running. For complete
inf ormation, see page .
52
53 273
272
Only on models equipped with side airbags
Seat Belt Reminder L ight Supplemental Restraint
System Indicator
Charging System
Indicator
L ow Oil Pressure
Indicator
Passenger Airbag Cutof f
Indicator
Indicator L ights
Inst rument s and Cont rols64
——y

y
(%yy

This light has two f unctions:This indicator comes on when you
turn the ignition switch ON (II). It
is a reminder to check the parking
brake. Driving with the parking
brake not f ully released can
damage the brakes and tires.
If the indicator remains lit after
you have f ully released the
parking brake while the engine is
running, or if it comes on while
driving, it can indicate a problem
in the brake system. For complete
inf ormation, see page . This indicator lights when you turn
the ignition switch to ON (II) with
the headlight switch of f and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
This light normally comes on f or a
f ew seconds when you turn the
ignition switch ON (II), and when
the ignition switch is turned to
START (III). If this light comes on at
any other time, there is a problem in
theABS.If thishappens,takethe
cartoyourdealertohaveitchecked.
With the light on, your car still has
normal braking ability but no anti-
lock. For complete inf ormation, see
page .
1. 2.
186
275
Canadian models only
Only on models equipped with ABS (see
page ) 184
CONT INUED
Parking Brake
and Brake
System
Indicator ‘‘Daytime Running
Lights’’ Indicator
Anti-lock Brake System
(A BS) Indicator
Indicator L ights
Inst rument s and Cont rols65
U.S. Canada
——y


y
(%yy

This light comes on with the high
beam headlights. See page for
inf ormation on the headlight
controls.
This lights when you set the cruise
control. See page f or inf ormation
on operating the cruise control.
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
See page .
The lef t or right turn signal light
blinks when you signal a lane change
or turn. If the light does not blink or
blinks rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signaling. This light comes on if the trunk lid is
not closed tightly.
This light comes on as a reminder
that you must ref uel soon.
WhenyouturnontheHazard
Warning switch, both turn signal
lights blink. All turn signals on the
outside of the car should f lash. This light comes on when the
washer f luid level is low. Add washer
f luid when you see this light come on
(see page ).
73
74
151
274
242 213
Only on models equipped with CruiseControl System Canadian models only
High Beam Indicator
Cruise Control Indicator
Malf unction Indicator
Lamp
Turn Signal and
Hazard Warning
Indicators Low Fuel Indicator
Washer Level Indicator
Trunk-open Indicator
Indicator L ights
Inst rument s and Cont rols66
——y


y
(%yy

µ
This indicator comes on f or a f ew
seconds when you turn the ignition
switch ON (II). It will then go of f if
you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0). This indicator reminds you that it is
time to take your car in for
scheduled maintenance.
For the f irst 8,000 miles (12,800 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
two seconds when you turn the
ignition switch to ON (II).Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km) this
indicator will light f or two seconds
when you f irst turn the ignition
switch to ON (II), and then flash for
ten seconds.
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.
Ref er to the Maintenance Schedules
f or Normal and Severe Driving
Conditions on pages .
81 194 198
CONT INUED
Immobilizer System
Indicator
Maintenance Required
Indicator
Indicator L ights
Inst rument s and Cont rols67
