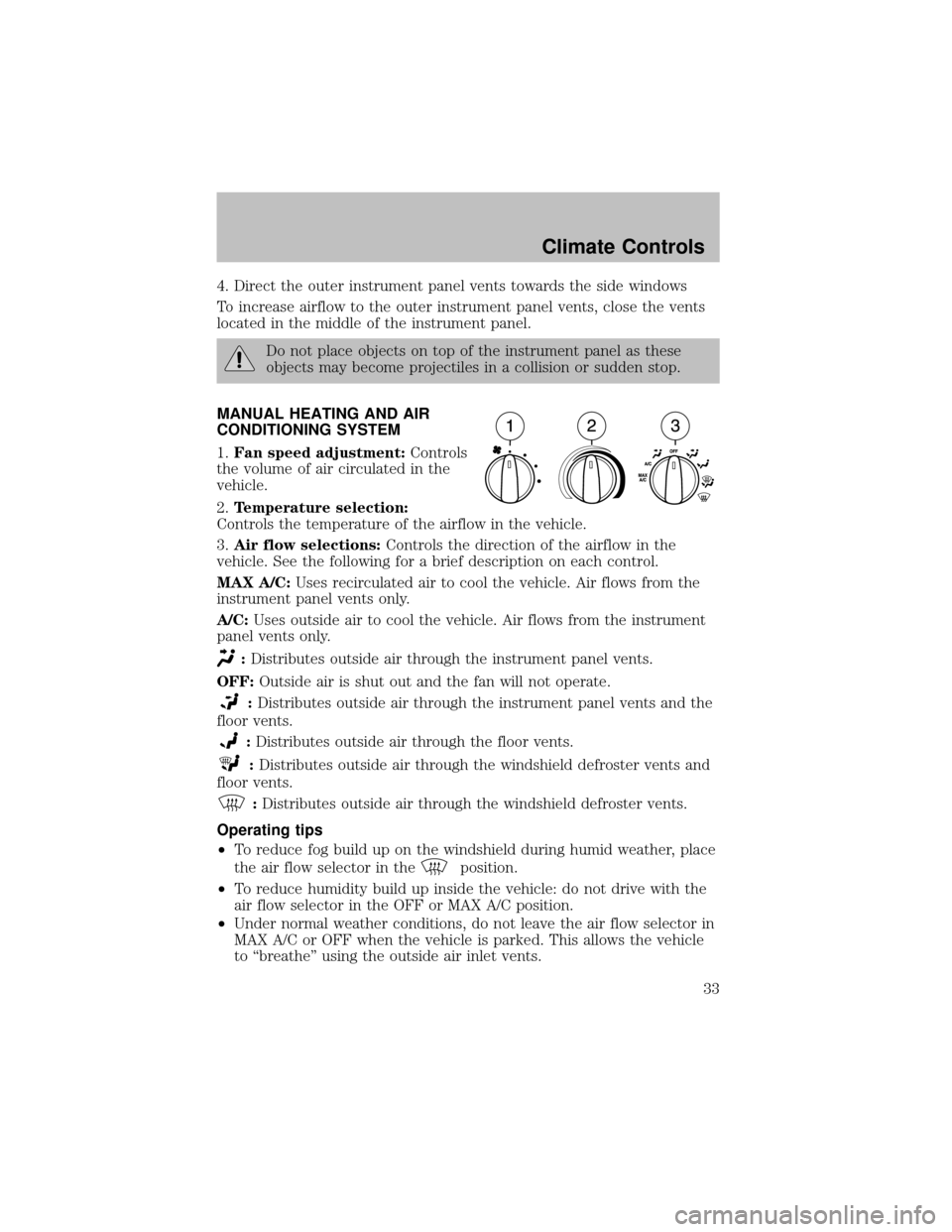

FORD SUPER DUTY 2003 1.G Owners Manual 4. Direct the outer instrument panel vents towards the side windows
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Do not place

Page 34 of 256

FORD SUPER DUTY 2003 1.G Owners Manual •Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove anysnow, ice or leaves from the air intake area at the base of
the windshield.
To aid in s

Page 35 of 256

FORD SUPER DUTY 2003 1.G Owners Manual HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the headlamps on.
Autolamp control (if equipped)
The autolamp system

Page 36 of 256

FORD SUPER DUTY 2003 1.G Owners Manual Foglamp control (if equipped)
The headlamp control also operates
the foglamps. The foglamps can be
turned on onlywhen the headlamp
control is in the
or
position and the high beams are not
turned on.
P

Page 37 of 256

FORD SUPER DUTY 2003 1.G Owners Manual Flash to pass
Pull toward you slightly to activate
and release to deactivate.
PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel and all applicable
switches in the vehicle durin

Page 38 of 256

FORD SUPER DUTY 2003 1.G Owners Manual COURTESY/READING LAMPS (IF EQUIPPED)
The dome lamp lights when the
control is in the DOOR (left)
position, anydoor is open, the
instrument panel switch is pushed
past the detent and when anyof the
rem

Page 39 of 256

FORD SUPER DUTY 2003 1.G Owners Manual Function Number of
bulbsTrade number
Rear fender clearance* 4
(a)
Interior visor lamp (if equipped) 4 194
Rear identification 3 194
All replacement bulbs are clear in color except where noted.
To repl

Page 40 of 256

FORD SUPER DUTY 2003 1.G Owners Manual 2. Remove the two screws and
parking lamp/side marker assembly
bypulling gently
3. Disconnect the electrical
connectors from the parking
lamp/side marker assemblyand
remove.
4. Remove the four bolts a
