8. Install the pin.

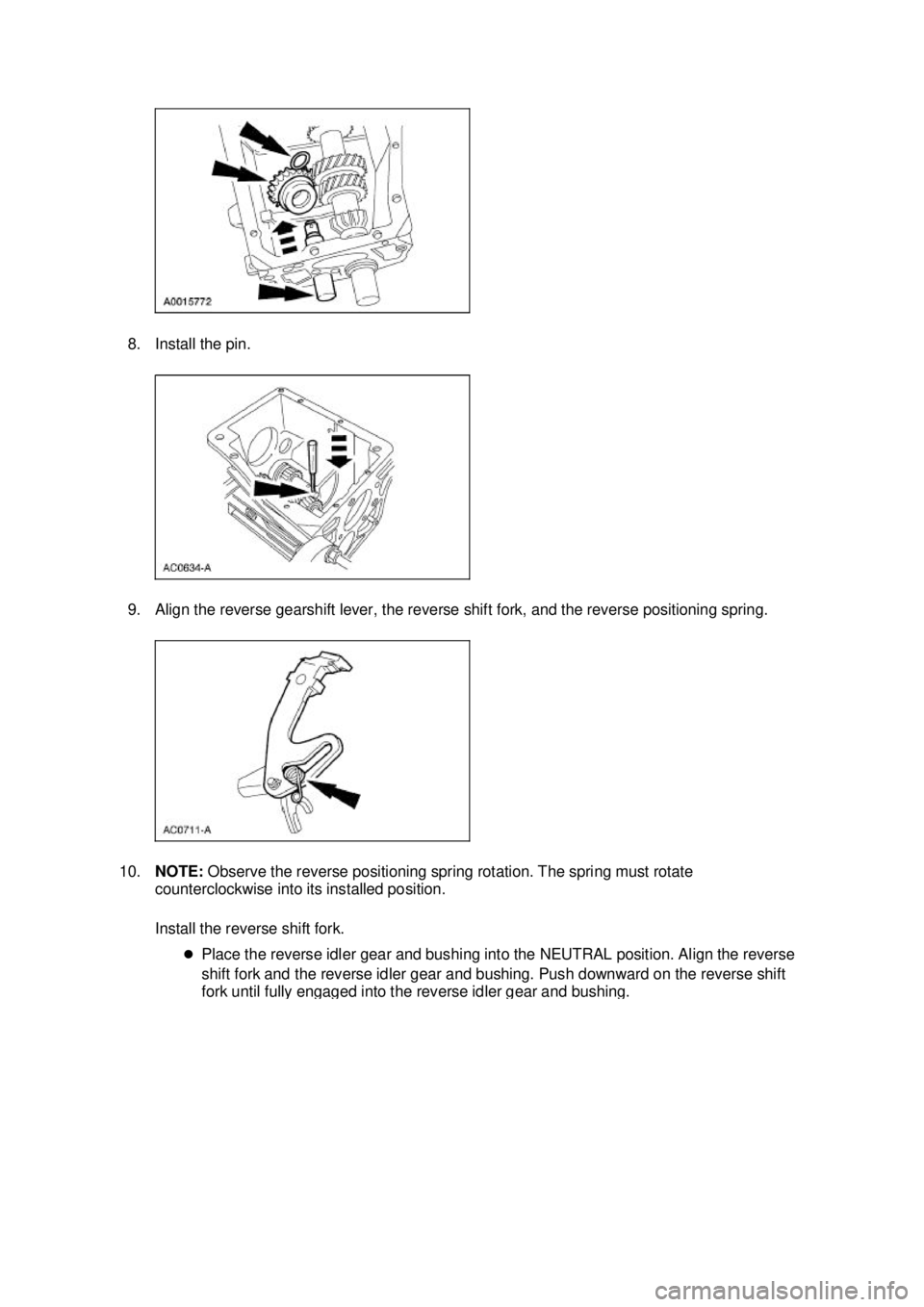

9. Align the reverse gearshift lever, the reverse shift fork, and the reverse positioning spring.
10. NOTE: Observe the reverse positioning spring rotation. The spring must rotate
counterclockwise into its installed position.
Install the reverse shift fork.
zPlace the reverse idler gear and bushing into the NEUTRAL position. Align the reverse
shift fork and the reverse idler gear and bushing. Push downward on the reverse shift fork until fully engaged into the reverse idler gear and bushing. Klj . 4 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

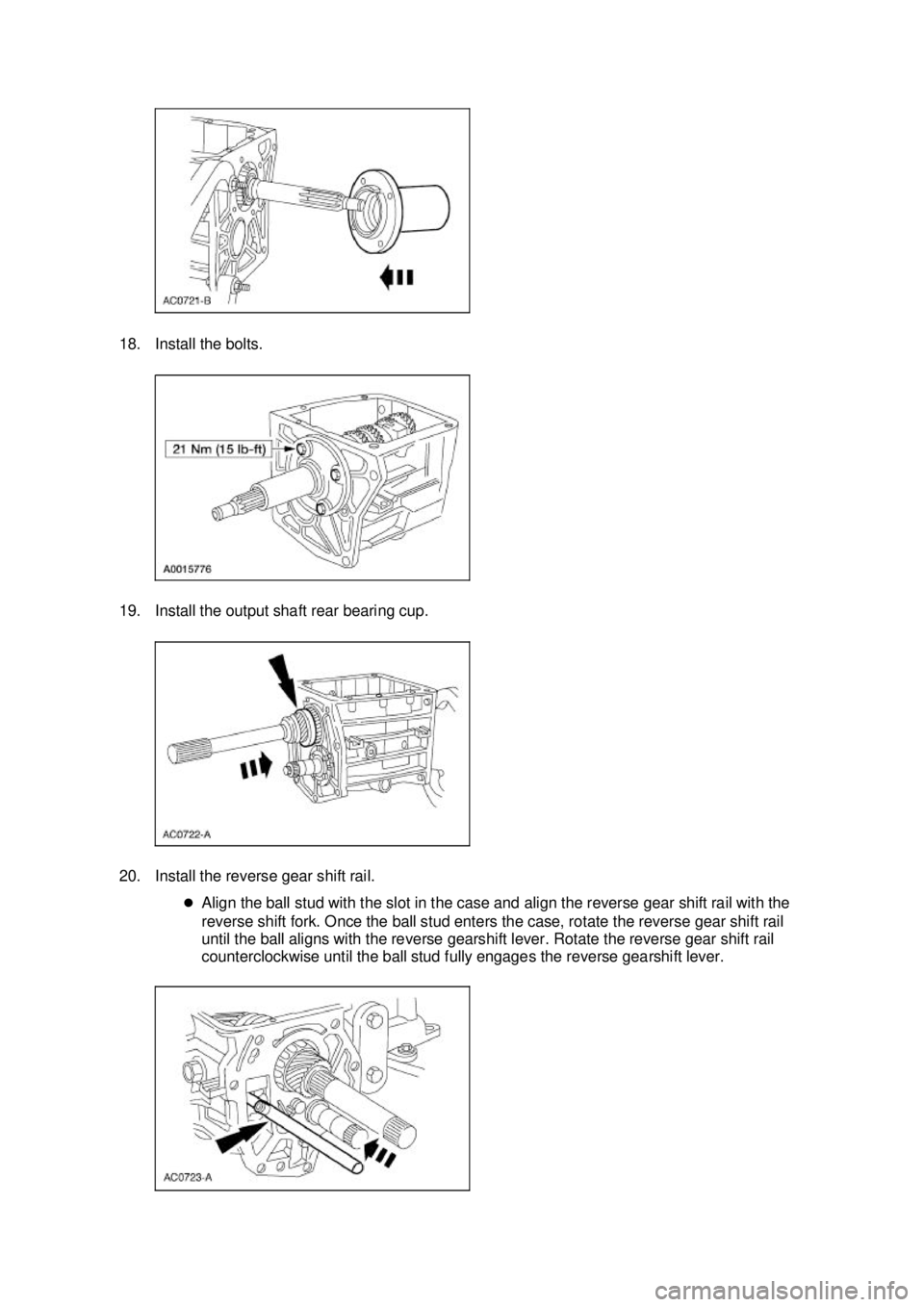

18. Install the bolts.
19. Install the output shaft rear bearing cup.
20. Install the reverse gear shift rail.
zAlign the ball stud with the slot in the case and align the reverse gear shift rail with the
reverse shift fork. Once the ball stud enters the case, rotate the reverse gear shift rail
until the ball aligns with the reverse gearshift lever. Rotate the reverse gear shift rail
counterclockwise until the ball stud fully engages the reverse gearshift lever. Klj . 7 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

12.
WARNING: Make sure protective eye wear is in place.
Clean the housing with solvent and dry with compressed air. Clean and check the sealing
surface for nicks or scratches. Inspect the housing for cracks. zIf the housing is cracked, install a new housing. If the sealing surface has nicks or
scratches, use a soft stone or crocus cloth to remove.
13. Using the special tools, install the mainshaft bearing cup.
14. Using a suitable driver, install the extension housing seal. zInstall the seal with the drain hole at the six o'clock position.
15. To assemble, reverse the disassembly procedure. Klj . 6 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

SPECIFICATIONS
a
Manifold gauge set pressures may vary slightly depending on the distance between the service
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual General Specifications
Item Specification
A/C Compressor
Type FS-
10 swashplate, 5 double- acting pistons Displacement 170 cc (10.4 cu in)
Rotation Clockwise
A/C Pressure Relief Valve
a Open pressures 3,792-
4,137 kPa (550- 600 psi) A/C Pressure Sensor Refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual.
Coolant Hose Lubricant
MERPOL® ESE-
M99B144- B Evaporator Core Orifice
Color Orange
Diameter 1.45 mm (0.057 in)
Magnetic Clutch
Air gap clearance 0.35-
0.75 mm (0.014- 0.030 in) Dual Function Pressure Switch (V8)
a Fan on/open 2,137-
2,344 kPa (310- 340 psi) Fan off/close 1,655-
2,137 kPa (240- 310 psi) Clutch off/open 2,999-
3,275 kPa (435- 475 psi) Clutch on/closed 1,517-
1,931 kPa (220- 280 psi) Pressure Cutoff Switch (V6)
a Open 2,999-
3,275 kPa (435- 475 psi) Close 1,586-
1,999 kPa (230- 290 psi) A/C Cycling Switch Open and Closed Pressures
a Open pressure 145-
159 kPa (21- 23 psi) Close pressure 290 kPa (42 psi)
Refrigerant Lubricant and Capacity
PAG Refrigerant Compressor Oil (R-134a Systems)
F7AZ- 19589- DA (Motorcraft YN-12- C) WSH-
M1C231- B Capacity 254 ml (8.6 oz)
Refrigerant and Capacity
R134a Refrigerant YN-
19 WSH-
M17B19- A Capacity .96 kg (34 oz)
Refrigerant System Cleaner
A/C Systems Flushing Solvent F4AZ-19579-
A — Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES
Manifold Gauge Set Connection
1. Turn both valves on the R- 134a Manifold Gauge Set clockwise to close the low- and high-
pressure hoses to the center manifold and center hose.
2. Remove the A/C charging valve cap (19D702) from the low- pressure service gauge port valve.
3. Remove the A/C charging valve cap from the high- pressure service gauge port valve.
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual Special Tool(s)
R-
134a Manifold Gauge Set
176- R032A or equivalent Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

10. Turn the tool handle clockwise to expand the tool tip inside the shaft seal.
11. Pull the seal from the A/C compressor.
Installation 1. CAUTION: To prevent refrigerant system contamination, do not allow dirt or other
foreign materials to enter the A/C compressor.
Clean the A/C compressor nose area.
2. Place the shaft seal on the special tool. Lubricate the shaft seal and the special tool with PAG oil or equivalent.
3. Position the shaft seal and the special tool over the A/C compressor shaft. Klj . 4 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Instrument Cluster Bulb
Removal and Installation
1. Remove the instrument cluster. For additional information, refer to Section 413 - 01 .

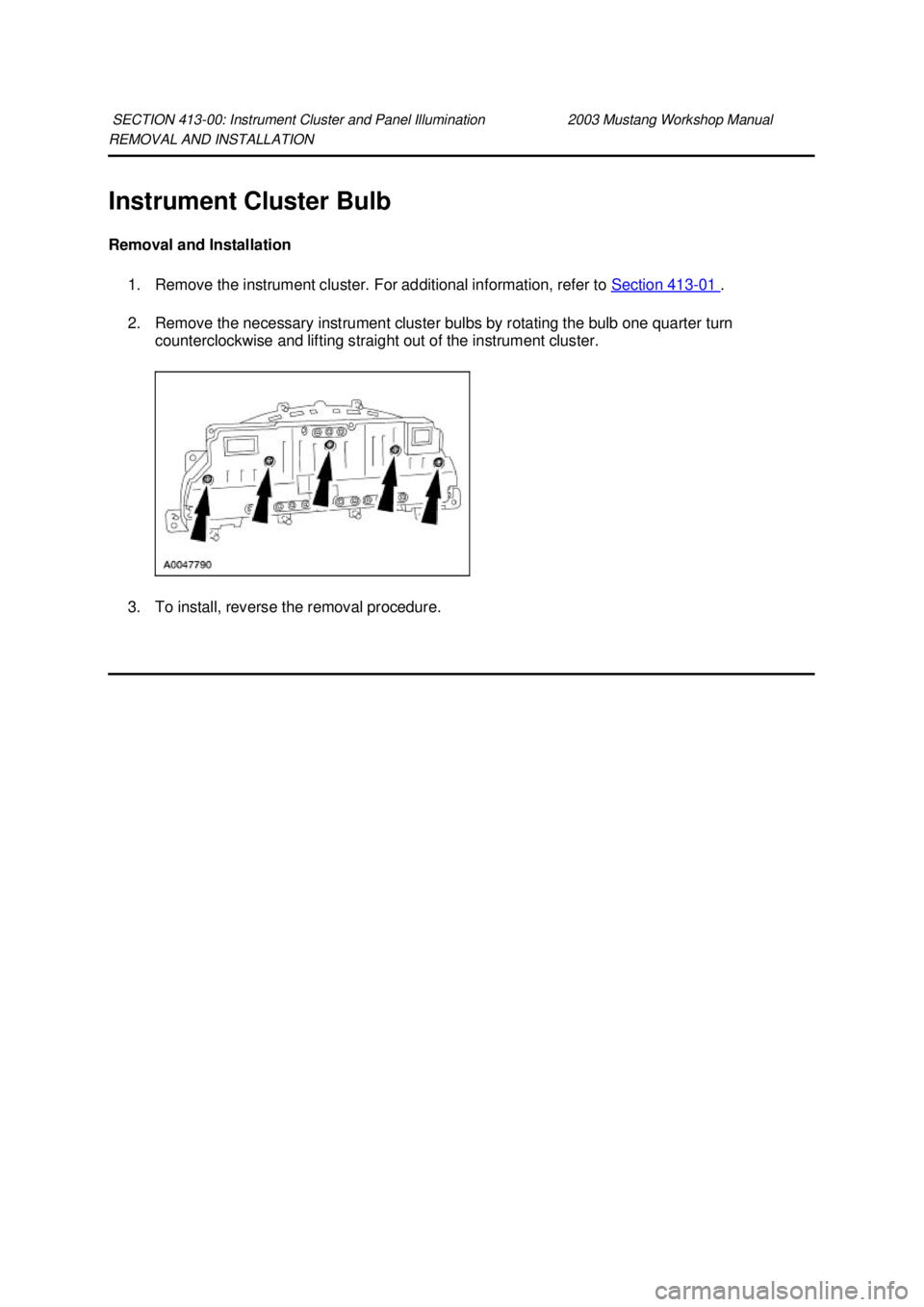

2. Remove the necessary instrument cluster bulbs by rotating the bulb one quarter turn counterclockwise and lifting straight out of the instrument cluster.
3. To install, reverse the removal procedure.
SECTION 413-
00: Instrument Cluster and Panel Illumination 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Warning Indicator Bulb
Removal and Installation
1. Remove the instrument cluster. Refer to Instrument Cluster in this section.

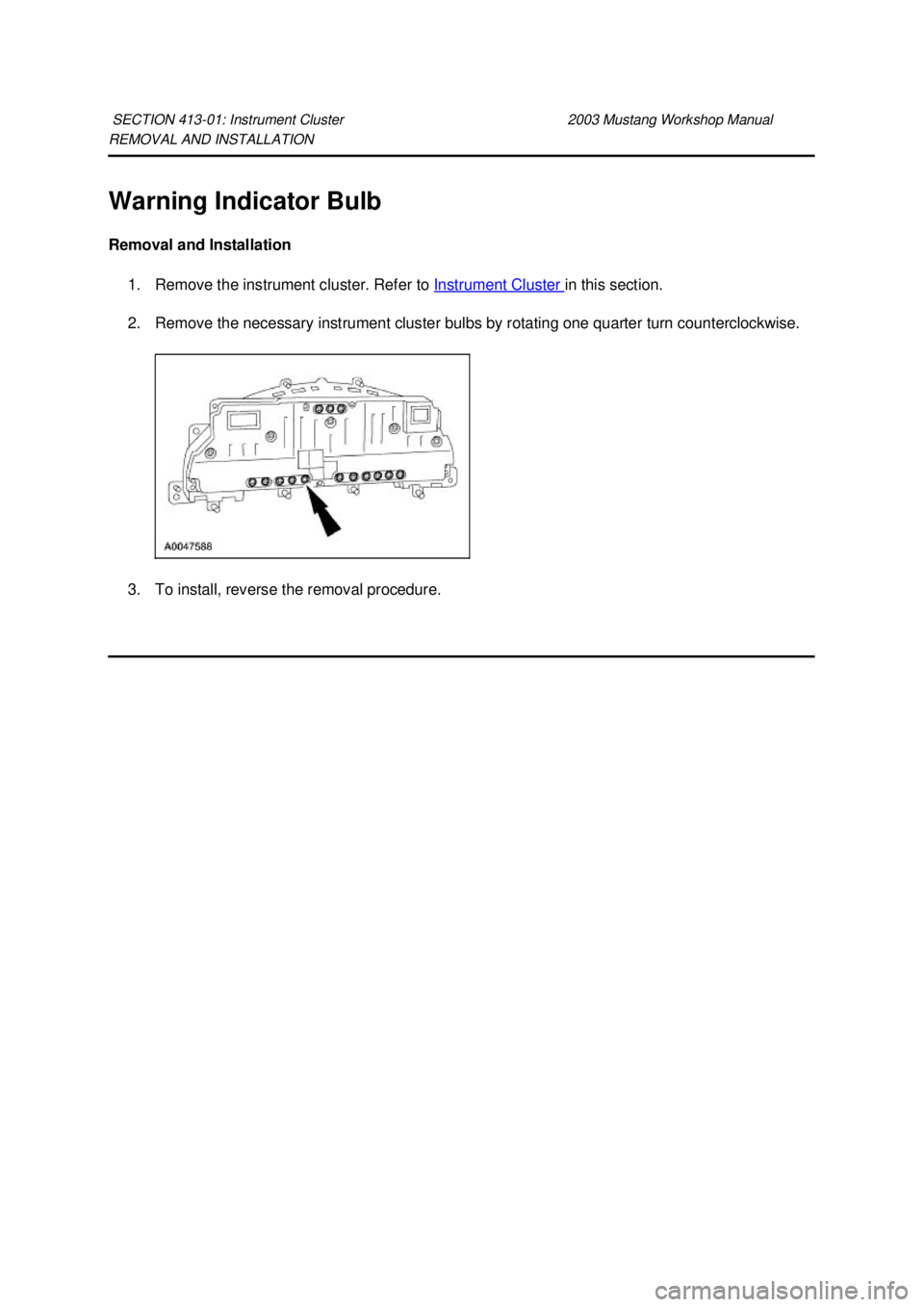

2. Remove the necessary instrument cluster bulbs by rotating one quarter turn counterclockwise.
3. To install, reverse the removal procedure.
SECTION 413-
01: Instrument Cluster 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
