2003 FORD MUSTANG heater

Item Part Number Description
1 18A318 Vacuum control motor, panel/defrost door
2 18A478 Panel/defrost door (full vacuum position)
3 — Defrost airflow
4 — Side window demister airflow
5 18B545 Temperature blend door (full heat position)
6 19860 A/C evaporator core
7 19A813 Air inlet door (full vacuum position)
8 — Outside air inlet
9 18A318 Vacuum control motor—
air inlet door 10 — Recirculated air inlet
11 19805 Blower motor
12 — Vacuum from the engine intake manifold
13 19A563 A/C vacuum check valve
14 19A566 A/C vacuum reservoir tank and bracket
15 19B888 A/C-
heater function selector switch Klj . 3 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Function Selector Switch Vacuum Connector
V=Vacuum
NV=No Vacuum
Inspection and Verification
1. Verify the customer's concern by operating the climate control system to duplicate the condition. 16 18476 Heater core
17 18A559 Panel/floor door (full vacuum position)
18 — Floor airflow
19 18A318 Vacuum control motor—
floor/panel door 20 — Panel vent airflow
Port No. Hose Color Function
1 White Air inlet door
2 Red Panel/floor door
3 Blue Panel/floor door
4 Yellow Panel/defrost door
5 Black Vacuum source
6 — Not used
Function Selector Switch Vacuum Application Chart Switch Port Color Function Function Selector Switch Position
MAX A/C A/C Vent OFF Floor FLR/ DEF Defrost
1 White Recirc/Fresh V NV NV V NV NV NV
2 Red Floor NV NV NV V V NV NV
3 Blue Panel/floor NV NV NV V V V NV
4 Yellow Panel/defrost V V V NV NV NV NV
5 Black Vacuum source V V V V V V V Klj . 4 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Symptom Chart
Condition
Possible Sources Action
z Incorrect/erratic direction
of airflow from outlet(s) z
No vacuum to A/C heater
function switch selector.
z A/C heater function selector
switch leaks vacuum.
z Kinked/pinched vacuum hose.
z Leaking vacuum control
motor.
z Leaking A/C vacuum check
valve.
z Leaking A/C vacuum reservoir
tank and bracket.
z Vacuum actuator arm not
connected to door crank. z
Go To Pinpoint
Test A .
z Insufficient, erratic, or no
heat z
Low engine coolant level.
z Thermostat stuck open.
z Disengaged/damaged
temperature cable. z
Go To Pinpoint
Test B .
z The A/C does not
operate/does not operate
correctly z
CASS strategy failure.
z Open fuses.
z A/C clutch relay.
z Shorted blend door actuator.
z Powertrain control module.
z Circuitry short/open.
z A/C cycling switch damaged.
z A/C system discharged/low
charge.
z Function selector switch
damaged.
z A/C pressure cut-off switch
damaged.
z A/C compressor clutch
damaged. z
Go To Pinpoint
Test C .
z The A/C is always on zCircuitry short/open.
z A/C cycling switch.
z A/C heater function selector
switch.
z Constant control relay
module.
z Incorrect A/C clutch air gap. z
Go To Pinpoint
Test D .
z Insufficient A/C cooling zRestricted A/C evaporator
core orifice.
z Low refrigerant level. z
Go To Pinpoint
Test E .
z No operation in all the
temperature settings z
Damaged blend door actuator
cable.
z Damaged air temperature
control door. z
Go To Pinpoint
Test F .
z The blower motor does
not operate z
Open fuse.
z Circuitry open/shorted.
z Damaged heater blower
motor switch (18578).
z Damaged heater blower
motor switch resistor (18591).
z Damaged blower motor relay.
z Damaged blower motor. z
Go To Pinpoint
Test G .
z The blower motor
operates continuously in z
Circuitry short/open.
z Damaged heater blower z
Go To Pinpoint Klj . 6 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Pinpoint Tests

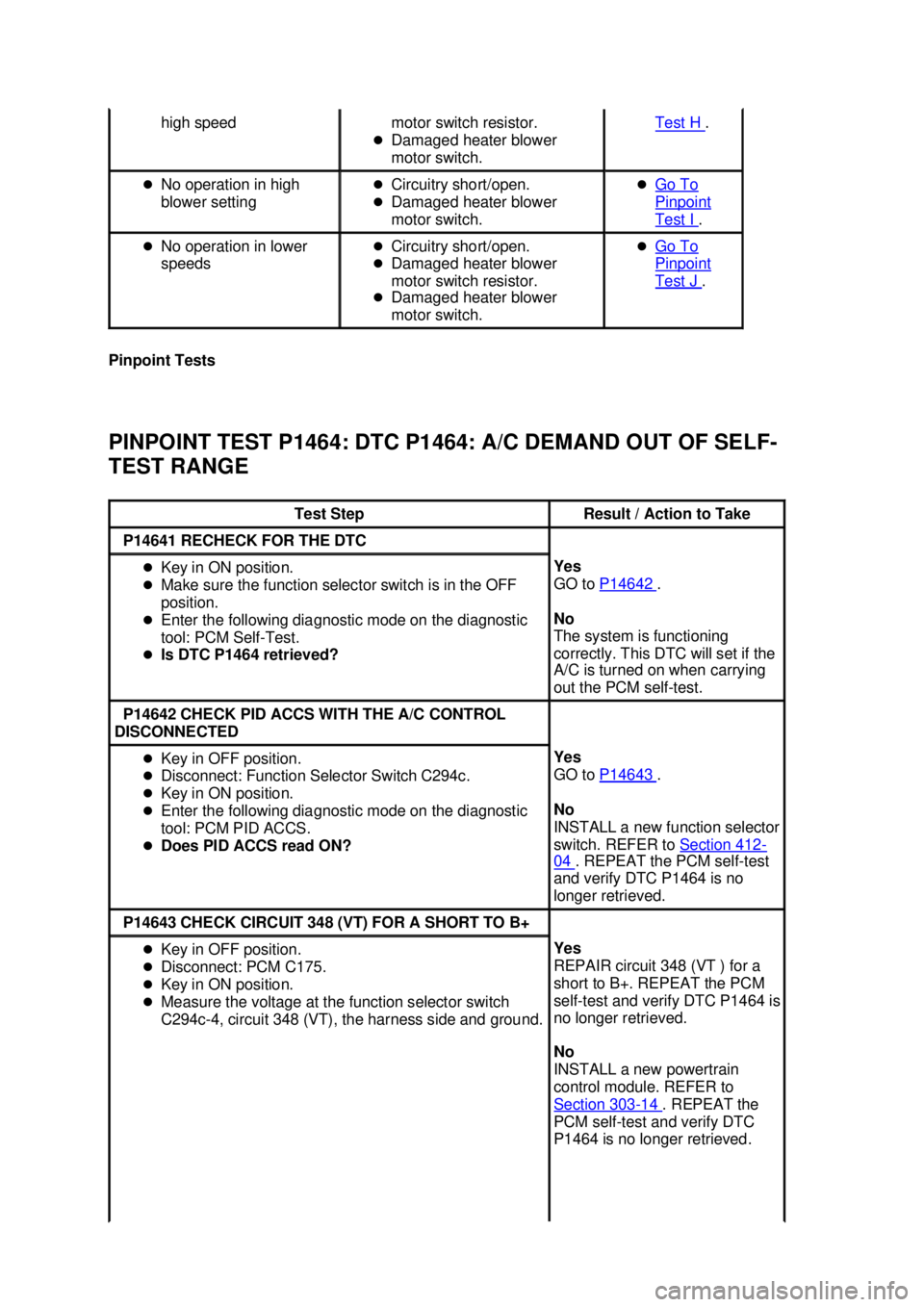

PINPOINT TEST P1464: DTC P1464: A/C DEMAND OUT OF SELF-
TEST RANGE high speed
motor switch resistor.
z Damaged heater blower
motor switch. Test H .
z No operation in high
blower setting z
Circuitry short/open.
z Damaged heater blower
motor switch. z
Go To Pinpoint
Test I .
z No operation in lower
speeds z
Circuitry short/open.
z Damaged heater blower
motor switch resistor.
z Damaged heater blower
motor switch. z
Go To Pinpoint
Test J .
Test Step Result / Action to Take
P14641 RECHECK FOR THE DTC
z
Key in ON position.
z Make sure the function selector switch is in the OFF
position.
z Enter the following diagnostic mode on the diagnostic
tool: PCM Self- Test.
z Is DTC P1464 retrieved? Yes
GO to
P14642 .
No
The system is functioning
correctly. This DTC will set if the
A/C is turned on when carrying
out the PCM self- test. P14642 CHECK PID ACCS WITH THE A/C CONTROL
DISCONNECTED z
Key in OFF position.
z Disconnect: Function Selector Switch C294c.
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic
tool: PCM PID ACCS.
z Does PID ACCS read ON? Yes
GO to
P14643 .
No
INSTALL a new function selector
switch. REFER to Section 412 -
04 . REPEAT the PCM self-test
and verify DTC P1464 is no
longer retrieved. P14643 CHECK CIRCUIT 348 (VT) FOR A SHORT TO B+
z
Key in OFF position.
z Disconnect: PCM C175.
z Key in ON position.
z Measure the voltage at the function selector switch
C294c- 4, circuit 348 (VT), the harness side and ground. Yes
REPAIR circuit 348 (VT ) for a
short to B+. REPEAT the PCM
self-
test and verify DTC P1464 is
no longer retrieved.
No
INSTALL a new powertrain
control module. REFER to
Section 303 - 14 . REPEAT the
PCM self- test and verify DTC
P1464 is no longer retrieved. Klj . 7 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

PINPOINT TEST A: INCORRECT/ERRATIC DIRECTION OF AIRFLOW
FROM OUTLET z
Is there voltage present? Test Step Result / Action to
Take A1 CHECK AIRFLOW FROM DEFROSTER OUTLETS
z
Key in START position.
z Place the heater blower motor switch in the HI position and
rotate the function selector switch to each position.
z Check for correct airflow from each function selector switch
position at engine idle and during engine speed acceleration.
z Is there airflow from defroster outlets under all conditions? Yes
GO to
A2 .
No
If the airflow is from
defroster outlets in all
switch positions only
under engine speed
acceleration, GO to
A19 .
If the airflow is
incorrect under one or
more conditions, GO to
A13 .
If the airflow is correct
under all conditions,
RETURN to the
Symptom Chart. A2 CHECK THE VACUUM SUPPLY HOSE
z
Key in OFF position.
z Verify the vacuum supply hose is connected between the engine
manifold and the A/C vacuum check valve.
z Is the hose connected? Yes
GO to
A3 .
No
RECONNECT the
hose. TEST the system
for normal operation. A3 LEAK CHECK THE VACUUM SUPPLY HOSE Klj . 8 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

PINPOINT TEST B: INSUFFICIENT, ERRATIC, OR NO HEAT z
Does the vacuum control motor hold a vacuum? A20 CHECK THE VACUUM CONTROL MOTOR INSTALLATION
z
Key in OFF position.
z Check the attachment of the vacuum control motor arm to
damper door.
z Is the vacuum control motor arm attached to the door or
door crank arm? Yes
REPAIR or INSTALL a
new damper door.
TEST the system for
normal operation.
No
CONNECT the vacuum
control motor arm to
the door and check
operation. TEST the
system for normal
operation.
Test Step Result / Action to Take
B1 CHECK FOR CORRECT ENGINE COOLANT LEVEL
z
Key in OFF position.
z Check the engine coolant level when hot and cold.
z Is the engine coolant at the correct level (hot/cold) as
indicated on the engine coolant recovery reservoir? Yes
GO to
B2 .
No
GO to B3 .
B2 CHECK FOR HOT WATER TO THE HEATER CORE INLET
HOSE WARNING: The heater core inlet hose will become
too hot to handle and may cause serious burns if the
system is working correctly.
z Key in START position.
z Allow the engine to reach normal operating temperature.
z Feel the heater core inlet hose. Yes
GO to
B4 .
No
TEST the engine cooling
system for correct
operation. REFER to
Section 303 - 03A or
Section 303 - 03B . Klj . 14 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

PINPOINT TEST C: THE A/C DOES NOT OPERATE/DOES NOT
OPERATE CORRECTLY z
Is the heater core inlet hose too hot to handle? B3 CHECK THE ENGINE COOLING SYSTEM INCLUDING
RADIATOR CAP FOR LEAKS z
Fill the engine cooling system to specified level.
z NOTE: It is not necessary to check the components
separately at this time.
z Pressure check the engine cooling system. Refer to Section 303 - 03A or
Section 303 - 03B .
z Does the engine cooling system, including the radiator
cap, hold pressure? Yes
GO to
B4 .
No
Pressure test the heater
core. REFER to
Component Tests, Heater
Core — Pressure Test. B4 CHECK THE HEATER CORE OUTLET HOSE FOR HOT
WATER z
Feel the heater core outlet hose.
z Is the heater core outlet hose cool or cold? Yes
TEST the heater core for a
plugged or partially
plugged condition. REFER
to
Section 303 - 03A or
Section 303 - 03B .
No
GO to Pinpoint Test E .
Test Step Result / Action to Take
C1 CHECK THE PCM PID WACF
z
Connect the diagnostic tool.
z Turn the function selector to the OFF position.
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic
tool:
z Monitor the PCM PID WACF while turning the function
selector.
z Does the PCM PID WACF read YES? Yes
REFER to the Powertrain
Control/Emissions Diagnosis
(PC/ED) manual.
No
GO to
C2 .
C2 CHECK THE PCM PID WACF WITH THE A/C ON
z
Turn the function selector switch to the A/C position.
z Enter the following diagnostic mode on the diagnostic Yes
REFER to the Powertrain Klj . 15 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

PINPOINT TEST H: THE BLOWER MOTOR OPERATES
CONTINUOUSLY IN HIGH SPEED z
Check the resistance between C294a- 3, circuit 1205 (B/K)
harness side and ground.
z Is the resistance less than 5 ohms? Test Step Result / Action to Take
H1 CHECK THE FUNCTION SELECTOR SWITCH
z
Key in ON position.
z Set the blower motor speed to low.
z Check for blower motor operation in each function
selector switch position.
z Does the blower motor operate on high in all of
the function selector positions? Yes
GO to
H2 .
No
If the blower motor operates in the
OFF position, GO to H4 .
H2 CHECK CIRCUIT 261 (OG/BK) FOR A SHORT TO
GROUND z
Key in OFF position.
z Disconnect: A/C Blower Motor C2066.
z Disconnect: Blower Motor Resistor C2185.
z Disconnect: Blower Motor Switch C294a.
z Measure the resistance between C2066 circuit 261
(OG/BK), and ground.
z Is the resistance greater than 10,000 ohms? Yes
GO to
H3 .
No
REPAIR circuit 261 (OG/BK) for a
short to ground. TEST the system
for normal operation. H3 CHECK THE BLOWER MOTOR SWITCH
OPERATION z
Measure the resistance of the blower motor switch.
Refer to the chart shown.
Blower Motor Switch Test Switch
Position Conductivity Between
Terminals Yes
INSTALL a new heater blower
motor switch resistor. REFER to
Section 412
- 04 . TEST the
system for normal operation.
No Klj . 34 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
