2003 FORD MUSTANG heater

PINPOINT TEST I: NO OPERATION IN HIGH BLOWER SETTING z
Is the resistance less than 5 ohms? Low None
Medium/low 2 and 3 only
Medium/high 2, 3 and 4 only
High 1, 2 and 4 only INSTALL a new heater blower
motor switch. REFER to
Section 412 - 04 . TEST the system for
normal operation. H4 CHECK THE FUNCTION SELECT SWITCH FOR A
SHORT TO BATTERY z
Key in OFF position.
z Disconnect: Function Selector Switch C294c.
z Key in ON position.
z Did the blower motor stop operating? Yes
INSTALL a new function selector
switch. REFER to
Section 412 -
04 . TEST the system for normal
operation.
No
REPAIR circuit 249 (DB/LG) for a
short to battery. TEST the system
for normal operation. Test Step Result / Action to Take
I1 CHECK CIRCUIT 261 (OG/BK) FOR AN OPEN CIRCUIT
z
Key in OFF position.
z Disconnect: Blower Motor Switch C294a.
z Key in ON position.
z Turn the function selector switch to the FLOOR position.
z Measure the voltage between blower motor switch C294a,
circuit 261 (OG/BK), harness side and ground.
z Is the voltage greater than 10 volts? Yes
GO to
I2 .
No
REPAIR circuit 261 (OG/BK)
for an open circuit. TEST the
system for normal operation. I2 CHECK CIRCUIT 1205 (BK) FOR AN OPEN Klj . 35 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Heater Core
WARNING: Carbon monoxide gas is colorless, odorless and dangerous. If it is necessary
to operate the engine with the vehicle in a closed area such as a garage, always use an exhaust
collector to vent the exhaust gases outside the closed area. Failure to follow these instructions
may result in personal injury.
1. NOTE: Testing of returned heater cores reveals that a large percentage of heater cores are
good and did not require installation of a new heater core. If a heater core leak is suspected, the
heater core must be tested by following the Plugged Heater Core Component Test before the
Heater Core Pressure Test. Carry out a system inspection by checking the heater system
thoroughly as follows:
Inspect for evidence of coolant leakage at the heater water hose to heater core attachments. A
coolant leak in the heater water hose could follow the heater core tube to the heater core and
appear as a leak in the heater core.
CAUTION: Spring- type clamps are installed as original equipment. Installation and
overtightening of non- specification clamps can cause leakage at the heater water hose
connection and damage the heater core.
2. Check the integrity of the heater water hose clamps.
Heater Core— Plugged
WARNING: The heater core inlet hose will become too hot to handle if the system is
working correctly.
1. Check to see that the engine coolant is at the correct level.
2. Start the engine and turn on the heater.
3. When the engine coolant reaches operating temperature, feel the heater core outlet hose to see if it is hot.
If it is not hot:
zthe heater core may have an air pocket.
z the heater core may be plugged.
z the thermostat is not working correctly.
Heater Core— Pressure Test
Use the radiator/heater core pressure tester to carry out the pressure test. 1. NOTE: Due to space limitations, a bench test may be necessary for pressure testing.
Drain the coolant from the cooling system. For additional information, refer to Section 303 - 03A
or
Section 303 - 03B .
2. Disconnect the heater water hoses from the heater core. For additional information, refer to Klj . 37 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Section 412 - 02 .

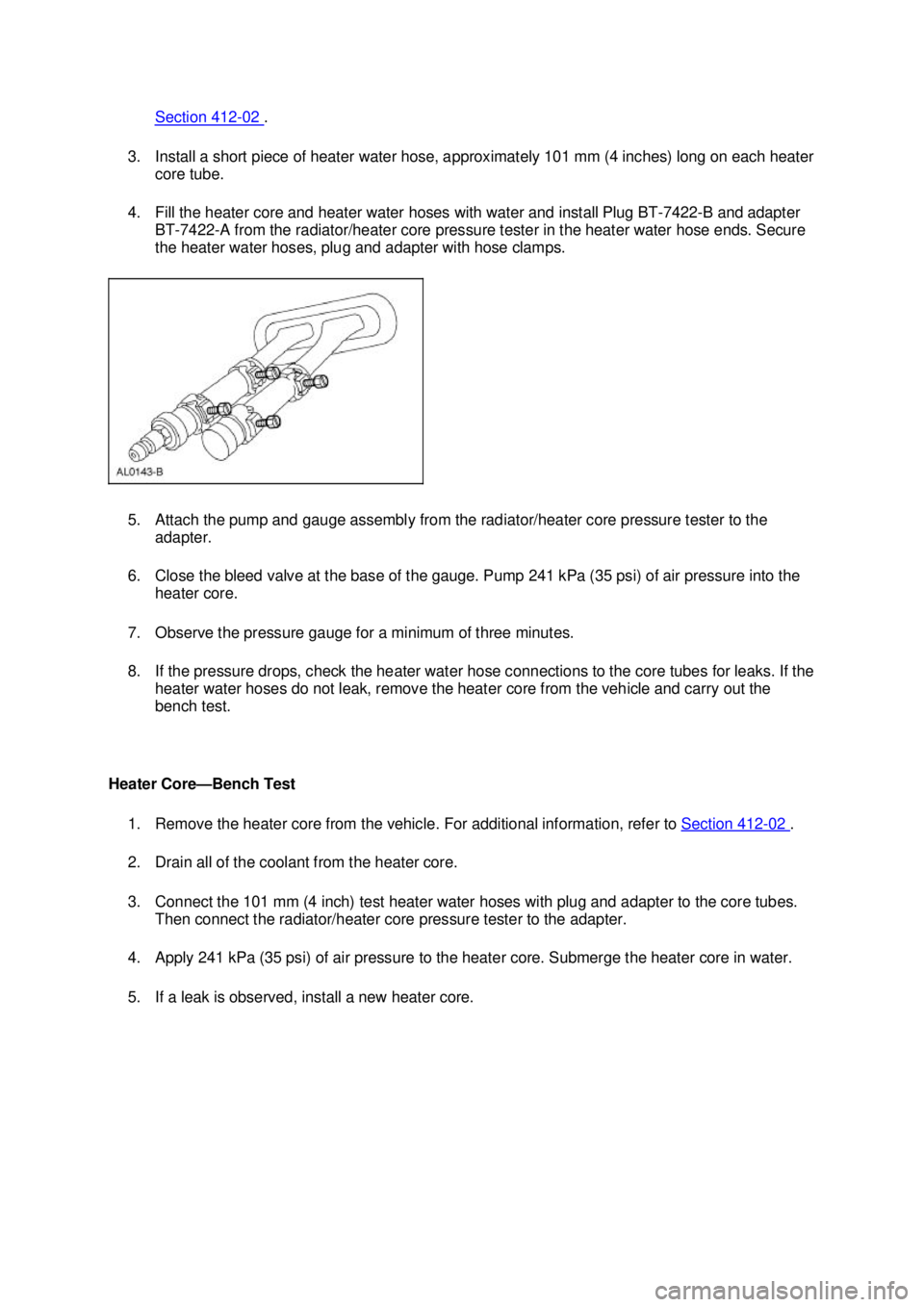

3. Install a short piece of heater water hose, approximately 101 mm (4 inches) long on each heater core tube.
4. Fill the heater core and heater water hoses with water and install Plug BT-7422- B and adapter
BT- 7422- A from the radiator/heater core pressure tester in the heater water hose ends. Secure
the heater water hoses, plug and adapter with hose clamps.
5. Attach the pump and gauge assembly from the radiator/heater core pressure tester to the adapter.
6. Close the bleed valve at the base of the gauge. Pump 241 kPa (35 psi) of air pressure into the heater core.
7. Observe the pressure gauge for a minimum of three minutes.
8. If the pressure drops, check the heater water hose connections to the core tubes for leaks. If the heater water hoses do not leak, remove the heater core from the vehicle and carry out the
bench test.
Heater Core— Bench Test
1. Remove the heater core from the vehicle. For additional information, refer to Section 412 - 02 .
2. Drain all of the coolant from the heater core.
3. Connect the 101 mm (4 inch) test heater water hoses with plug and adapter to the core tubes. Then connect the radiator/heater core pressure tester to the adapter.
4. Apply 241 kPa (35 psi) of air pressure to the heater core. Submerge the heater core in water.
5. If a leak is observed, install a new heater core. Klj . 38 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES
Air Conditioning (A/C) System Check —
Retail Procedure
NOTE: This Retail Procedure is not eligible for claiming on Ford paid repairs (warranty and ESP).
NOTE: The engine should be run at idle for 10 minutes with the air conditioning on and set to MAX A/C
before carrying out this retail procedure.
NOTE: Read and follow all of the Warnings, Cautions and Notes at the beginning of this section before
continuing.
1. Visual inspection
Open the hood and visually inspect the heating and air conditioning systems for the following:
zCoolant reservoir for correct coolant level
z Heater hoses for deterioration or loose connections
z Radiator and condenser for debris or damaged fins restricting airflow, loose mounting or
connections
z Accessory drive belt(s) and cooling fan(s) for wear or physical damage
z Refrigerant lines and connections for physical damage or loose connections
z Compressor for physical damage or loose connections
z Suction accumulator/drier for physical damage or loose connections
z Wiring and connectors for excessive wear, loose or damaged connections, or incorrect
routing
2. A/C refrigerant analysis
zCarry out air conditioning refrigerant analysis. For additional information, refer to
Refrigerant Identification Testing in this section.
z If the refrigerant fails the analysis, discontinue diagnosis and make recommendations for
repairs.
z If the refrigerant passes the analysis, carry out the air conditioning system check.
3. Air conditioning system check
zConnect manifold gauge set or charging station with gauges to refrigerant system.
z With the vehicle in park, parking brake set, thermometer installed in center panel vent,
and air conditioning system on and set to MAX A/C, start the engine.
z Record air refrigerant system pressures while running the engine at 1,500 rpm and allow
engine to return to idle.
z Operate the blower motor in all control positions and check for correct blower speed
changes.
z With the blower motor on HI, operate air discharge mode selector in all positions and
check for correct airflow in each position.
z Operate the temperature blend selector in all positions and check for correct change in
discharge temperature. Check the air discharge temperature with the selector in the
coolest position and the air conditioning on and set to MAX A/C to determine if the air
discharge temperature is acceptable for the current ambient air temperature.
z Carry out the EATC self- test (if applicable).
If the refrigerant system pressures were low, carry out the refrigerant system leak test.
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES
Heater Hose Coupling
Disconnect
CAUTION: Do not attempt to install a new bushing, spacer or O- rings in the heater hose
coupling; damage to the heater hose coupling can result. If the heater hose coupling is the
cause of a coolant leak, the affected heater hose must be replaced as an assembly.
1. WARNING: The engine must be off, fully cool and the cooling system fully
depressurized before attempting to disconnect any heater water hoses. Failure to comply
with this warning can result in serious injury or burns from hot liquid escaping out of the
engine cooling system.
Depressurize the engine cooling system.
2. Push the heater hose toward the tube to fully expose the locking tabs.
3. NOTE: When compressing the white coupling retainer with the special tool, the special tool
must be perpendicular to and on the highest point of the coupling.
NOTE: If the heater hose coupling is accessible, the retainer tabs can be compressed by hand
to disconnect the heater hose.
Push the special tool over the coupling retainer windows to compress the retainer locking tabs.
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual Special Tool(s)
Remover, Heater Hose Inlet
Tube
412-
042 (T85T-18539- AH) Disconnect Tool, Heater Hose
412-
127
Material Item Specification
MERPOL®
—
ESE-
M99B144- B Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

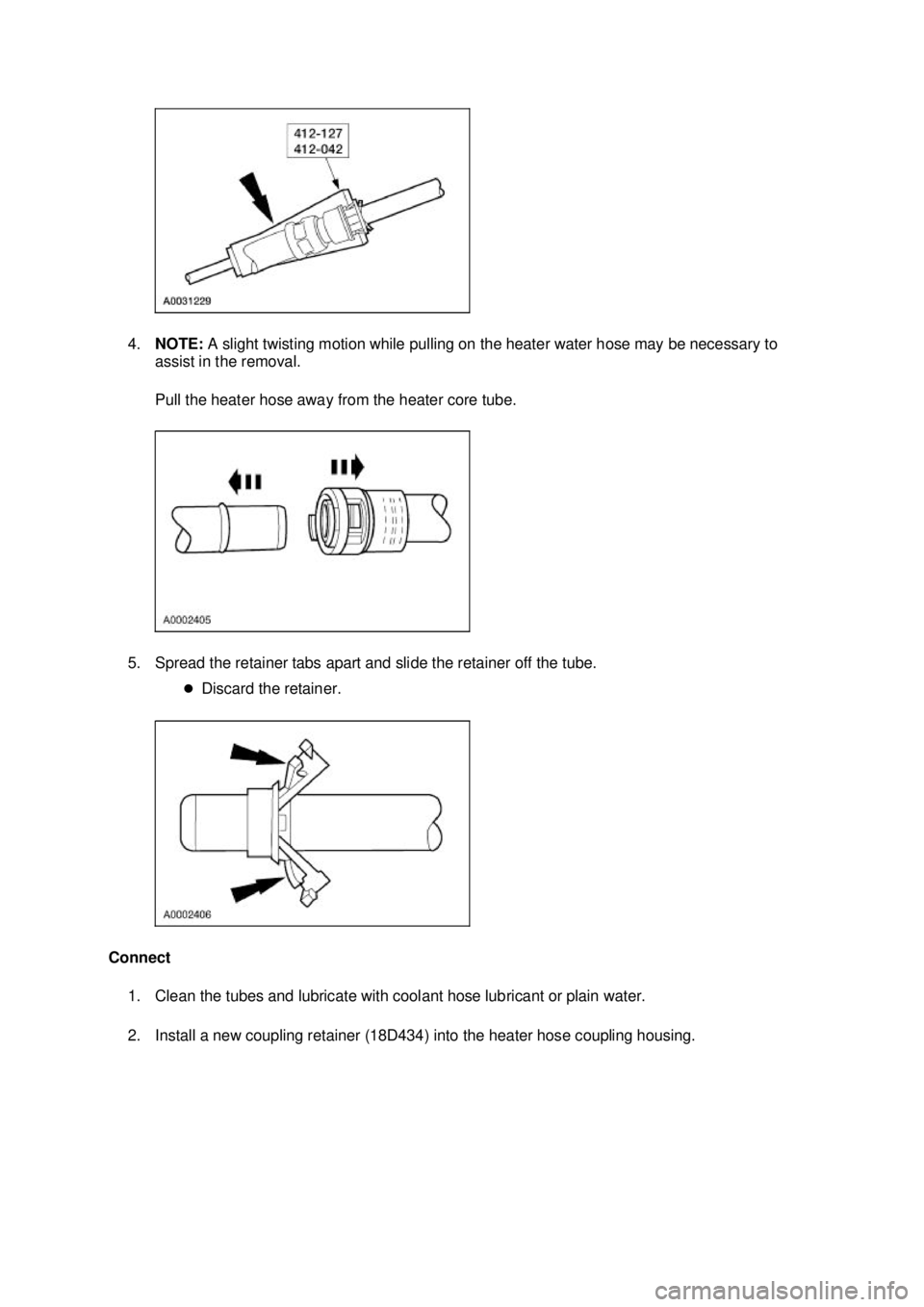

4.
NOTE: A slight twisting motion while pulling on the heater water hose may be necessary to
assist in the removal.
Pull the heater hose away from the heater core tube.
5. Spread the retainer tabs apart and slide the retainer off the tube. zDiscard the retainer.
Connect 1. Clean the tubes and lubricate with coolant hose lubricant or plain water.
2. Install a new coupling retainer (18D434) into the heater hose coupling housing. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

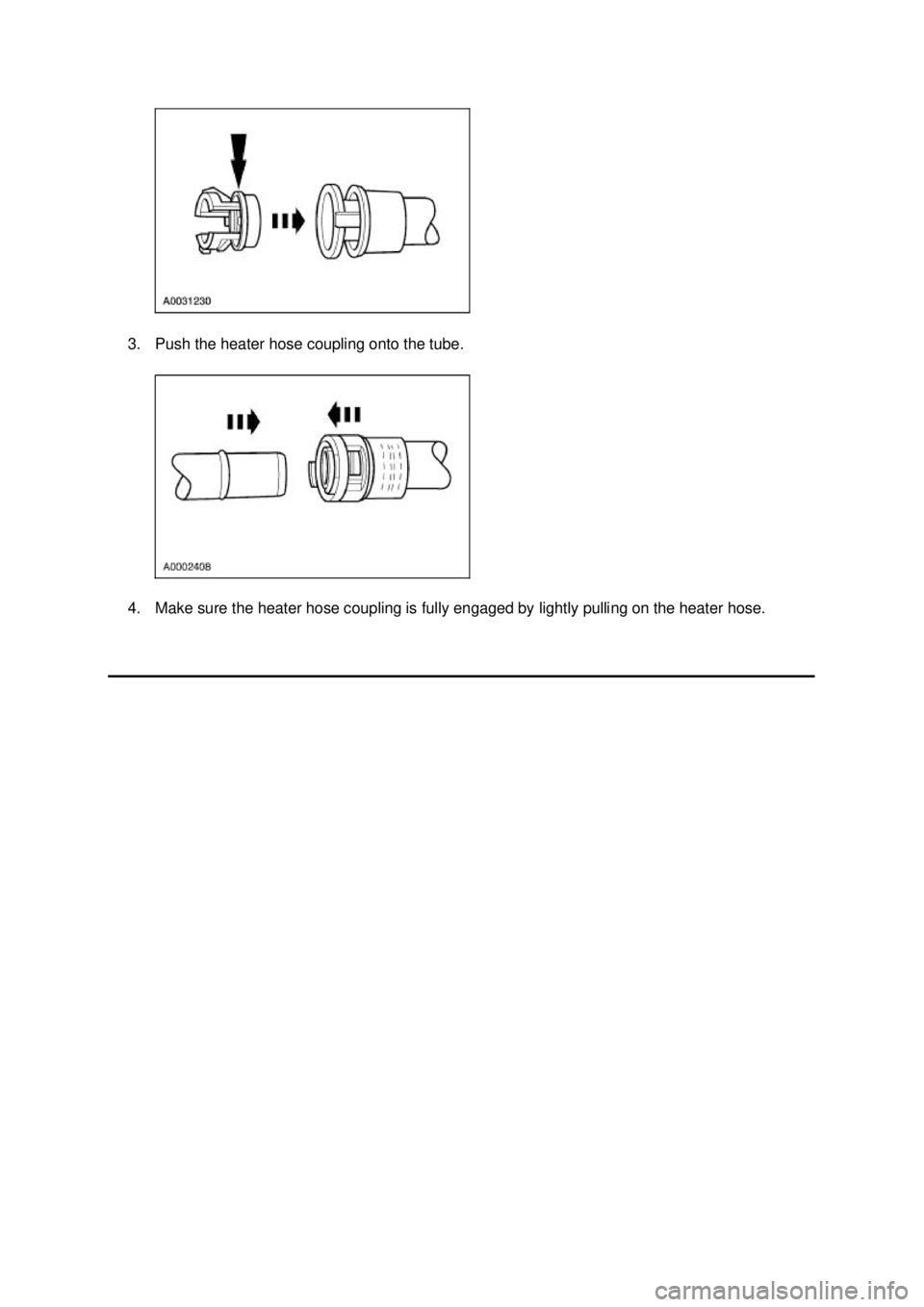

3. Push the heater hose coupling onto the tube.
4. Make sure the heater hose coupling is fully engaged by lightly pulling on the heater hose. Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

DESCRIPTION AND OPERATION

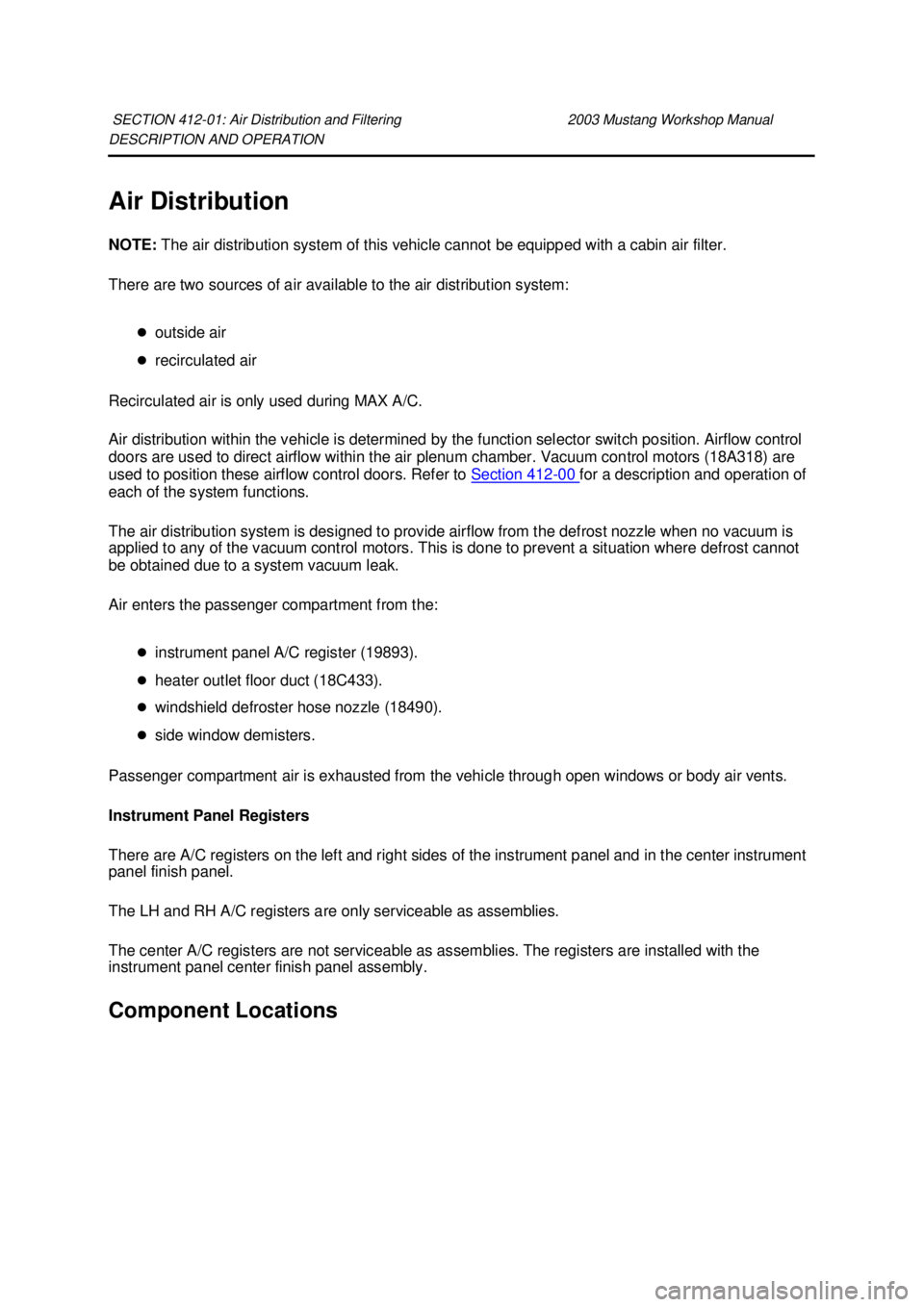

Air Distribution
NOTE:
The air distribution system of this vehicle cannot be equipped with a cabin air filter.
There are two sources of air available to the air distribution system:
zoutside air
z recirculated air
Recirculated air is only used during MAX A/C.
Air distribution within the vehicle is determined by the function selector switch position. Airflow control
doors are used to direct airflow within the air plenum chamber. Vacuum control motors (18A318) are
used to position these airflow control doors. Refer to Section 412 - 00 for a description and operation of
each of the system functions.
The air distribution system is designed to provide airflow from the defrost nozzle when no vacuum is
applied to any of the vacuum control motors. This is done to prevent a situation where defrost cannot
be obtained due to a system vacuum leak.
Air enters the passenger compartment from the:
zinstrument panel A/C register (19893).
z heater outlet floor duct (18C433).
z windshield defroster hose nozzle (18490).
z side window demisters.
Passenger compartment air is exhausted from the vehicle through open windows or body air vents.
Instrument Panel Registers
There are A/C registers on the left and right sides of the instrument panel and in the center instrument
panel finish panel.
The LH and RH A/C registers are only serviceable as assemblies.
The center A/C registers are not serviceable as assemblies. The registers are installed with the
instrument panel center finish panel assembly. Component Locations SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
