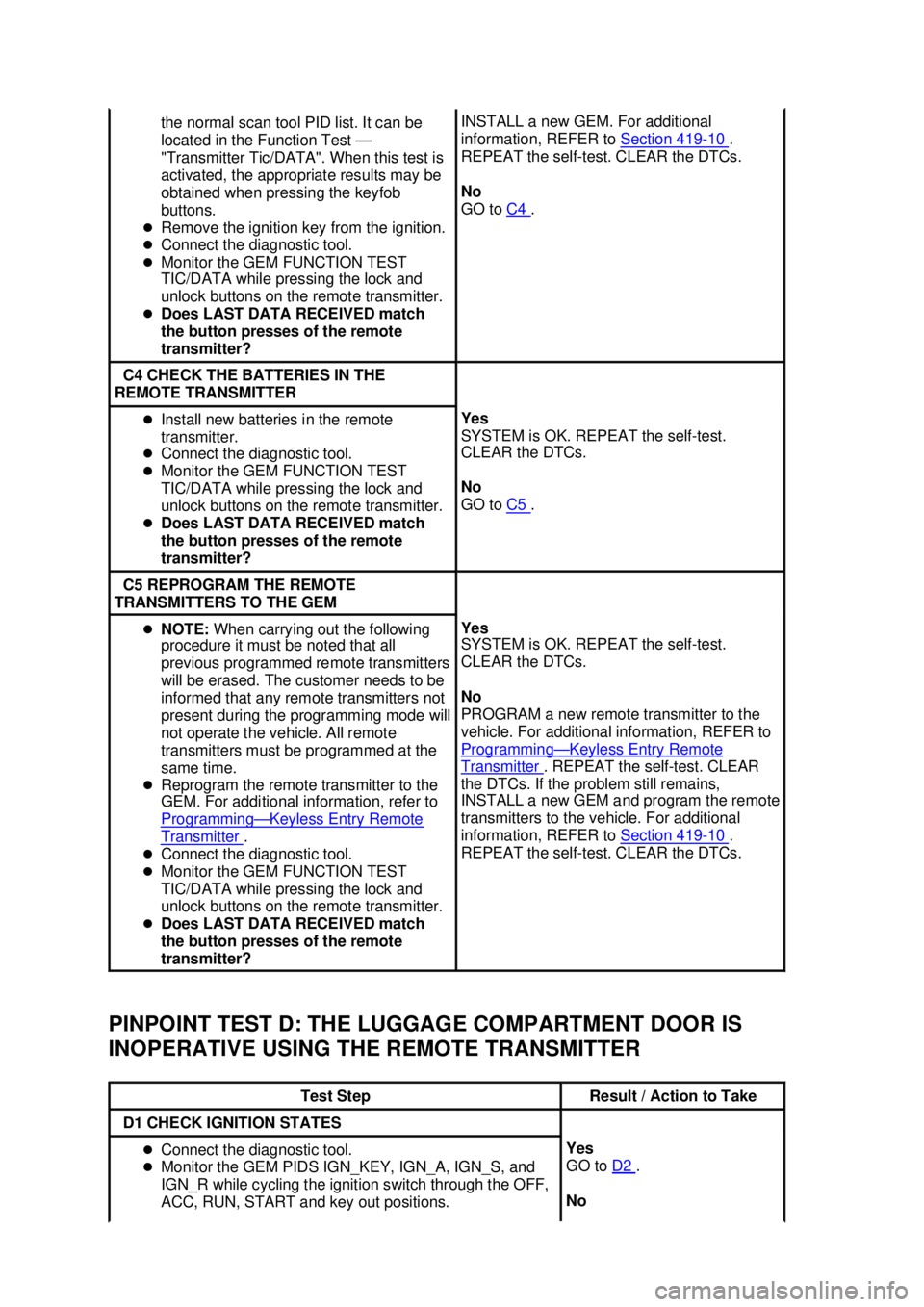

2003 FORD MUSTANG key

PINPOINT TEST D: THE LUGGAGE COMPARTMENT DOOR IS
INOPERATIVE USING THE REMOTE TRANSMITTER the normal scan tool PID list. It can be
located in the Function Test —
"
Transmitter Tic/DATA". When this test is
activated, the appropriate results may be
obtained when pressing the keyfob
buttons.
z Remove the ignition key from the ignition.
z Connect the diagnostic tool.
z Monitor the GEM FUNCTION TEST
TIC/DATA while pressing the lock and
unlock buttons on the remote transmitter.
z Does LAST DATA RECEIVED match
the button presses of the remote
transmitter? INSTALL a new GEM. For additional
information, REFER to
Section 419 - 10 .
REPEAT the self- test. CLEAR the DTCs.
No
GO to C4 .
C4 CHECK THE BATTERIES IN THE
REMOTE TRANSMITTER z
Install new batteries in the remote
transmitter.
z Connect the diagnostic tool.
z Monitor the GEM FUNCTION TEST
TIC/DATA while pressing the lock and
unlock buttons on the remote transmitter.
z Does LAST DATA RECEIVED match
the button presses of the remote
transmitter? Yes
SYSTEM is OK. REPEAT the self-test.
CLEAR the DTCs.
No
GO to
C5 .
C5 REPROGRAM THE REMOTE
TRANSMITTERS TO THE GEM z
NOTE: When carrying out the following
procedure it must be noted that all
previous programmed remote transmitters
will be erased. The customer needs to be
informed that any remote transmitters not
present during the programming mode will
not operate the vehicle. All remote
transmitters must be programmed at the
same time.
z Reprogram the remote transmitter to the
GEM. For additional information, refer to
Programming — Keyless Entry Remote
Transmitter .
z Connect the diagnostic tool.
z Monitor the GEM FUNCTION TEST
TIC/DATA while pressing the lock and
unlock buttons on the remote transmitter.
z Does LAST DATA RECEIVED match
the button presses of the remote
transmitter? Yes
SYSTEM is OK. REPEAT the self-test.
CLEAR the DTCs.
No
PROGRAM a new remote transmitter to the
vehicle. For additional information, REFER to
Programming
— Keyless Entry Remote
Transmitter . REPEAT the self-
test. CLEAR
the DTCs. If the problem still remains,
INSTALL a new GEM and program the remote
transmitters to the vehicle. For additional
information, REFER to Section 419 - 10 .
REPEAT the self- test. CLEAR the DTCs. Test Step Result / Action to Take
D1 CHECK IGNITION STATES
z
Connect the diagnostic tool.
z Monitor the GEM PIDS IGN_KEY, IGN_A, IGN_S, and
IGN_R while cycling the ignition switch through the OFF,
ACC, RUN, START and key out positions. Yes
GO to
D2 .
No Klj . 14 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z
Do the PID values agree with the ignition switch
positions? REFER to
Section 413 - 09 for
key- in-ignition warning chime
concerns. D2 CHECK THE GEM PID LAST DATA RECEIVED FOR
LUGGAGE COMPARTMENT z
Remove the ignition key from the ignition.
z Connect the diagnostic tool.
z Monitor the GEM PID LAST DATA RECEIVED while
pressing and releasing the luggage compartment, panic,
lock, and unlock buttons of the remote transmitter.
z Does LAST DATA RECEIVED match the button
presses of the remote transmitter? Yes
GO to
D5 .
No
GO to D3 .
D3 CHECK THE BATTERIES IN THE REMOTE
TRANSMITTER z
Install new batteries in the remote transmitter.
z Connect the diagnostic tool.
z Monitor the GEM FUNCTION TEST TIC/DATA while
pressing the luggage compartment button on the remote
transmitter.
z Does LAST DATA RECEIVED match the button
presses of the remote transmitter? Yes
SYSTEM is OK. REPEAT the
self-
test. CLEAR the DTCs.
No
GO to D4 .
D4 REPROGRAM THE REMOTE TRANSMITTERS TO THE
GEM z
NOTE: When carrying out the following procedure, it
must be noted that all previous programmed remote
transmitters will be erased. The customer needs to be
informed that any remote transmitters not present during
the programming mode will not operate the vehicle. All
remote transmitters must be programmed at the same
time.
z Reprogram the remote transmitter to the GEM. For
additional information, refer to Programming — Keyless
Entry Remote Transmitter .
z Connect the diagnostic tool.
z Monitor the GEM FUNCTION TEST TIC/DATA while
pressing the lock and unlock buttons on the remote
transmitter.
z Does LAST DATA RECEIVED match the button
presses of the remote transmitter? Yes
SYSTEM is OK. REPEAT the
self-
test. CLEAR the DTCs.
No
PROGRAM a new remote
transmitter to the vehicle. For
additional information, REFER
to Programming — Keyless
Entry Remote Transmitter .
REPEAT the self- test. CLEAR
the DTCs. If the problem still
remains, INSTALL a new GEM
and program the remote
transmitters to the vehicle. For
additional information, REFER
to Section 419 - 10 . REPEAT
the self- test. CLEAR the
DTCs. D5 CHECK THE GEM OUTPUT TO THE LUGGAGE
COMPARTMENT z
Trigger the GEM active command RELEASE to ON and
OFF.
z Did the luggage compartment release? Yes
INSTALL a new GEM. For
additional information, REFER
to
Section 419 - 10 . REPEAT
the self- test. CLEAR the
DTCs.
No
GO to D6 .
D6 CHECK CIRCUIT 931 (OG) FOR OPEN
z
Disconnect: Luggage Compartment Lid Release Relay.
z Measure the voltage between luggage compartment lid
release relay Pin 2, Circuit 931 (OG), harness side and
ground; and between luggage compartment lid release Yes
GO to
D7 .
No Klj . 15 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

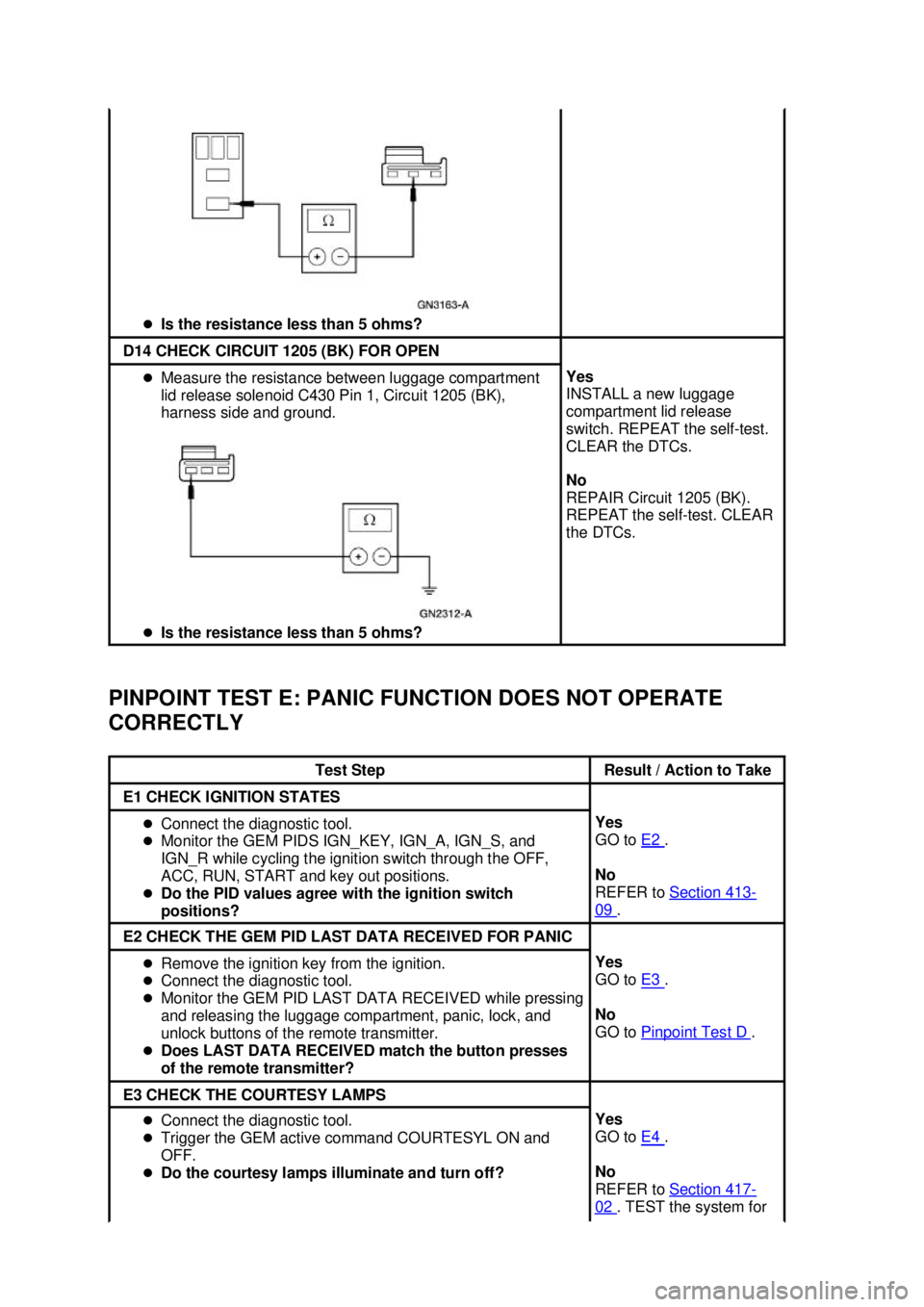

PINPOINT TEST E: PANIC FUNCTION DOES NOT OPERATE
CORRECTLY z
Is the resistance less than 5 ohms? D14 CHECK CIRCUIT 1205 (BK) FOR OPEN
z
Measure the resistance between luggage compartment
lid release solenoid C430 Pin 1, Circuit 1205 (BK),
harness side and ground.
z Is the resistance less than 5 ohms? Yes
INSTALL a new luggage
compartment lid release
switch. REPEAT the self-test.
CLEAR the DTCs.
No
REPAIR Circuit 1205 (BK).
REPEAT the self- test. CLEAR
the DTCs. Test Step Result / Action to Take
E1 CHECK IGNITION STATES
z
Connect the diagnostic tool.
z Monitor the GEM PIDS IGN_KEY, IGN_A, IGN_S, and
IGN_R while cycling the ignition switch through the OFF,
ACC, RUN, START and key out positions.
z Do the PID values agree with the ignition switch
positions? Yes
GO to
E2 .
No
REFER to Section 413 -
09 .
E2 CHECK THE GEM PID LAST DATA RECEIVED FOR PANIC
z
Remove the ignition key from the ignition.
z Connect the diagnostic tool.
z Monitor the GEM PID LAST DATA RECEIVED while pressing
and releasing the luggage compartment, panic, lock, and
unlock buttons of the remote transmitter.
z Does LAST DATA RECEIVED match the button presses
of the remote transmitter? Yes
GO to
E3 .
No
GO to Pinpoint Test D .
E3 CHECK THE COURTESY LAMPS
z
Connect the diagnostic tool.
z Trigger the GEM active command COURTESYL ON and
OFF.
z Do the courtesy lamps illuminate and turn off? Yes
GO to
E4 .
No
REFER to Section 417 -
02 . TEST the system for Klj . 18 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

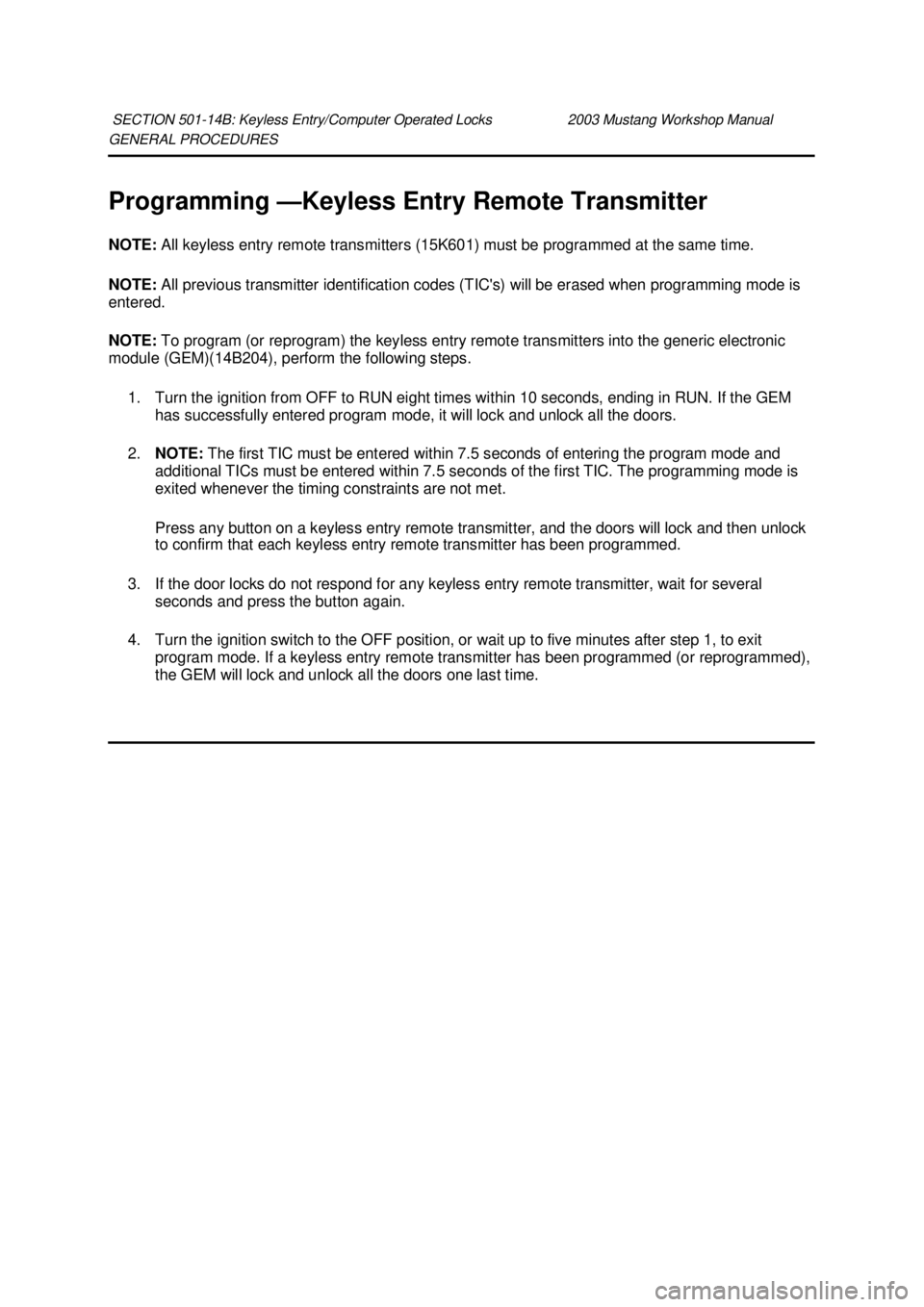

GENERAL PROCEDURES
Programming —Keyless Entry Remote Transmitter
NOTE: All keyless entry remote transmitters (15K601) must be programmed at the same time.
NOTE: All previous transmitter identification codes (TIC's) will be erased when programming mode is
entered.
NOTE: To program (or reprogram) the keyless entry remote transmitters into the generic electronic
module (GEM)(14B204), perform the following steps.
1. Turn the ignition from OFF to RUN eight times within 10 seconds, ending in RUN. If the GEM has successfully entered program mode, it will lock and unlock all the doors.
2. NOTE: The first TIC must be entered within 7.5 seconds of entering the program mode and
additional TICs must be entered within 7.5 seconds of the first TIC. The programming mode is
exited whenever the timing constraints are not met.
Press any button on a keyless entry remote transmitter, and the doors will lock and then unlock
to confirm that each keyless entry remote transmitter has been programmed.
3. If the door locks do not respond for any keyless entry remote transmitter, wait for several seconds and press the button again.
4. Turn the ignition switch to the OFF position, or wait up to five minutes after step 1, to exit program mode. If a keyless entry remote transmitter has been programmed (or reprogrammed),
the GEM will lock and unlock all the doors one last time.
SECTION 501-
14B: Keyless Entry/Computer Operated Locks 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

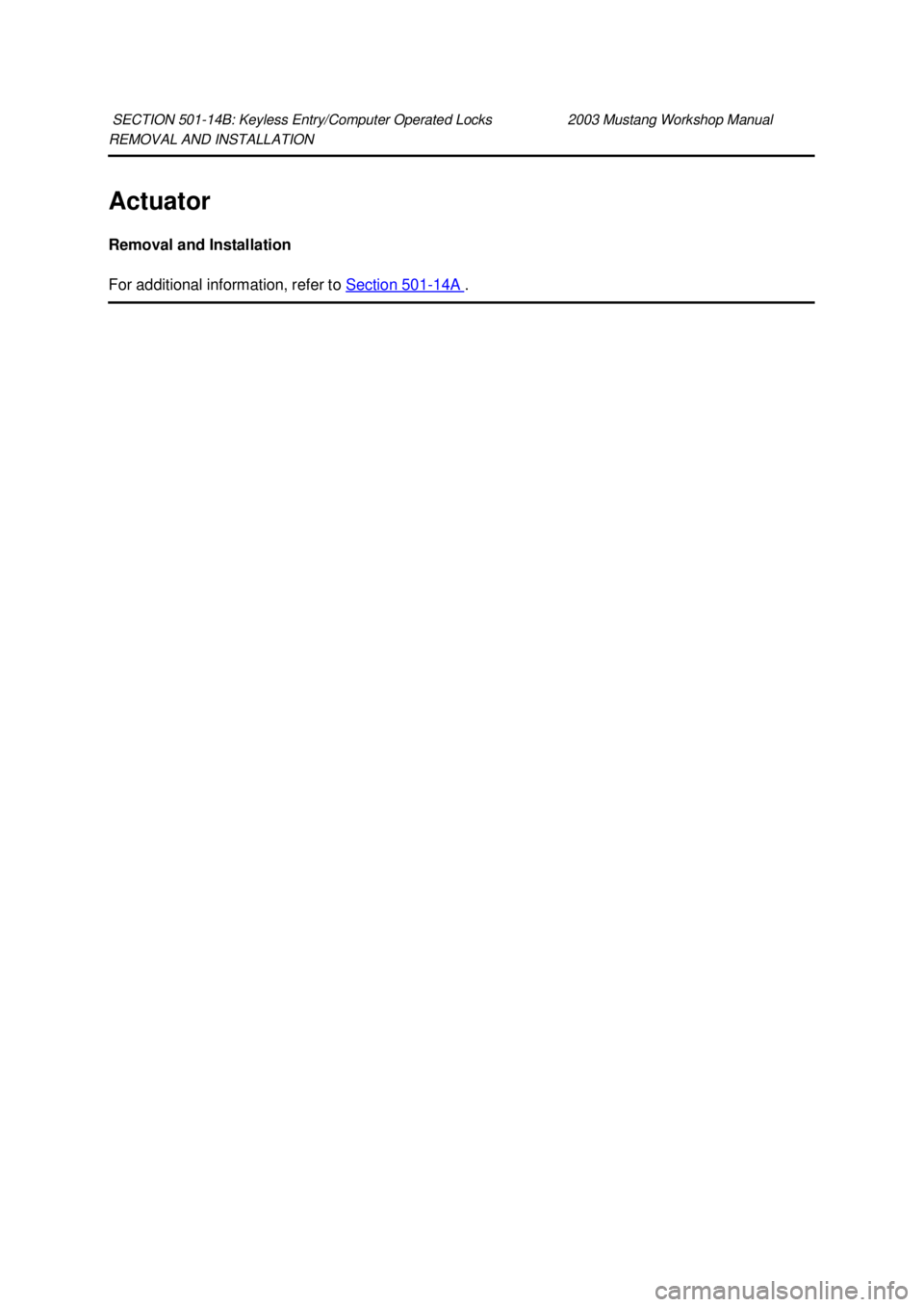

REMOVAL AND INSTALLATION
Actuator
Removal and Installation
For additional information, refer to
Section 501 - 14A .
SECTION 501-
14B: Keyless Entry/Computer Operated Locks 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Module —
Generic Electronic (GEM)
Removal and Installation
For additional information, refer to Section 419 - 10 .
SECTION 501-
14B: Keyless Entry/Computer Operated Locks 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

6. If the DTCs retrieved are related to the concern, go to GEM Diagnostic Trouble Code (DTC)
Index to continue diagnostics.
7. If no DTCs related to the concern are retrieved, proceed to Symptom Chart to continue diagnostics.
GEM Diagnostic Trouble Code (DTC) Index GEM Diagnostic Trouble Code (DTC) Index DTC Description Source Action
B1217 Horn Relay Coil Circuit Failure GEM REFER to
Section 413 - 06 .
B1218 Horn Relay Coil Circuit Short to
Vbatt GEM REFER to
Section 413 - 06 .
B1312 Lamp Headlamp Input Circuit
Short to Battery GEM REFER to
Section 417 - 01 .
B1317 Battery Voltage High GEM REFER to
Section 414 - 00 .
B1318 Battery Voltage Low GEM REFER to
Section 414 - 00 .
B1322 Driver Door Ajar Circuit Short to
Ground GEM REFER to
Section 417 - 02 .
B1330 Passenger Door Ajar Circuit
Short to Ground GEM REFER to
Section 417 - 02 .
B1334 Decklid Ajar Rear Door Circuit
Short to Ground GEM REFER to
Section 417 - 02 .
B1339 Chime Input Request Circuit
Short to Battery (FOJ) GEM REFER to
Section 413 - 09 .
B1340 Chime Input Request Circuit
Short to Ground GEM REFER to
Section 413 - 09 .
B1342 ECU Is Defective GEM CLEAR the DTCs. Retrieve the DTCs. If DTC
B1342 is retrieved, INSTALL a new GEM. REFER to Section 419 - 10 .
B1353 Ignition Key-
In Circuit Open GEM REFER to
Section 413 - 09 .
B1359 Ignition Run/Acc Circuit Failure GEM REFER to
Section 211 - 05 .
B1396 Power Door Lock Circuit Short
to Battery GEM REFER to
Section 501 - 14B .
B1397 Power Door Unlock Circuit
Short to Battery GEM REFER to
Section 501 - 14B .
B1405 Driver Power Window Down
Circuit Short to Battery GEM REFER to
Section 501 - 11 .
B1408 Driver Power Window Up Circuit
Short to Battery GEM REFER to
Section 501 - 11 .
B1410 Driver Power Window Motor
Circuit Failure GEM REFER to
Section 501 - 11 .
B1426 Lamp Safety Belt Circuit Short
to Battery GEM REFER to
Section 413 - 01 .
B1428 Lamp Safety Belt Circuit Failure GEM REFER to
Section 413 - 01 .
B1431 Wiper Brake/Run Relay Circuit
Failure GEM GO to
Pinpoint Test B .
B1432 Wiper Brake/Run Relay Circuit GEM GO to
Pinpoint Test B . Klj . 3 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Tests
CAUTION: Before removing and installing the GEM or its connectors, disconnect the
battery. Failure to follow this caution will result in the GEM storing many erroneous DTCs and it
may exhibit erratic operation after installation.
CAUTION: Be careful when probing the central junction box (CJB), battery junction box
(BJB) or any connectors. Damage will result to the connector receptacle if the probe being
used is too large.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to
these charges, damage may result.
NOTE: If continuous DTCs are recorded and the symptom is not present when carrying out the
pinpoint tests, an intermittent concern may be the cause. Always check for loose connections and
corroded terminals.
NOTE: Complete the entire pinpoint test related to the symptom before installing a new GEM.
PINPOINT TEST A: NO COMMUNICATION WITH THE GENERIC
ELECTRONIC MODULE (GEM) Test Step Result / Action to Take
CAUTION: Use the correct probe adapter(s) when making measurements. Failure to
use the correct probe adapter(s) may damage the connector. A1 CHECK THE GENERIC ELECTRONIC MODULE (GEM)
POWER SUPPLY z
Key in OFF position.
z Disconnect: Generic Electronic Module (GEM) C201a.
z Disconnect: GEM C201b.
z Key in ON position.
z Using the following table. measure the voltage between the
GEM, harness side and ground.
z Are the voltages greater than 10 volts? Connector Pin Circuit
C201a 4 400 (LB/BK)
C201a 1 1006 (DG/WH)
C201b 2 1001 (WH/YE)
C201b 3 193 (YE/LG) Yes
GO to
A2 .
No
REPAIR the circuit(s) in
question. TEST the system
for normal operation. A2 CHECK THE GEM GROUND CIRCUIT 397 (BK/WH) FOR
OPEN z
Key in OFF position.
z Measure the resistance between the GEM C201b pin 4,
circuit 397 (BK/WH), harness side and ground. Yes
GO to
A3 .
No
REPAIR the cirucit(s) in
question. TEST the system Klj . 6 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
