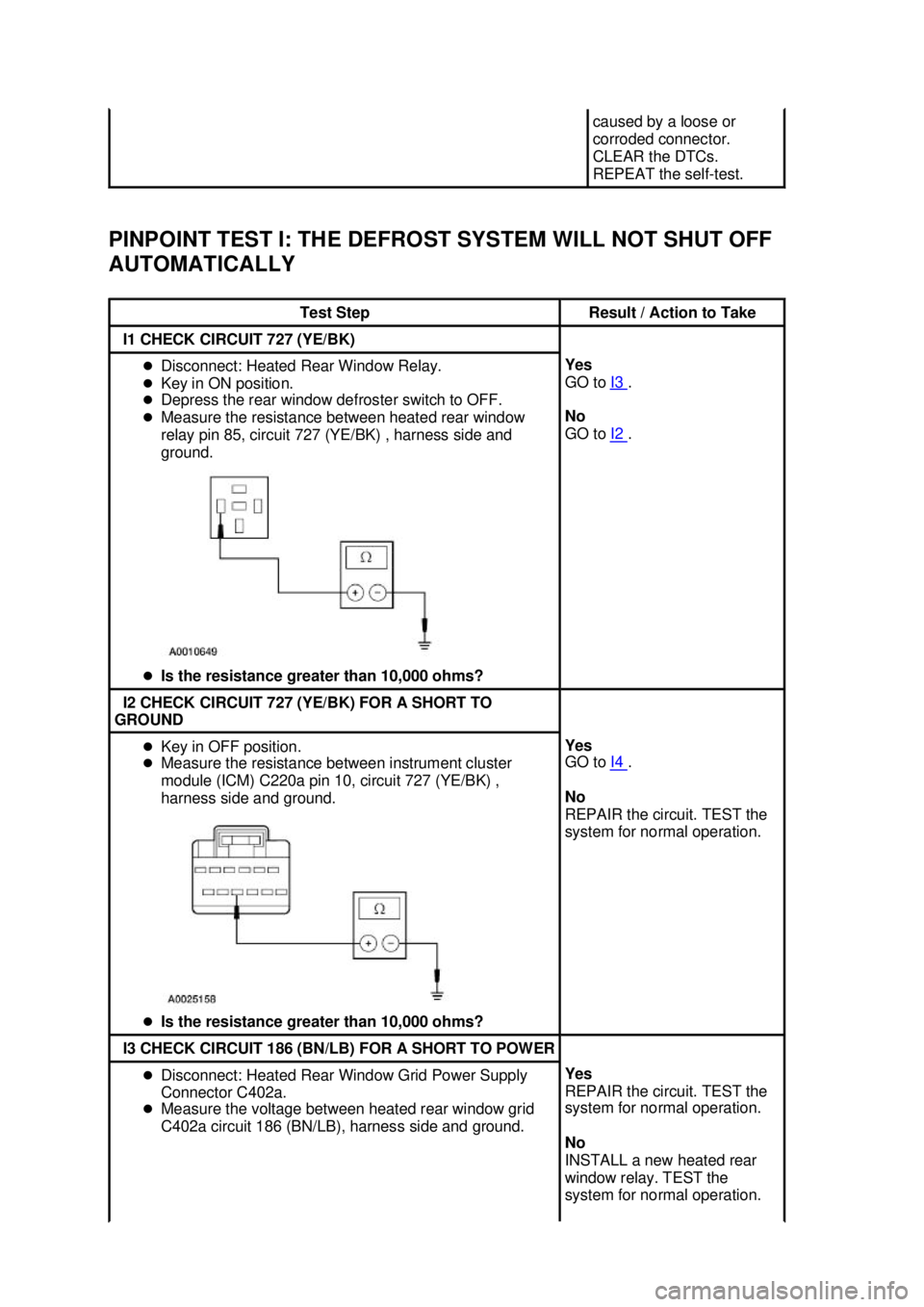

PINPOINT TEST I: THE DEFROST SYSTEM WILL NOT SHUT OFF
AUTOMATICALLY caused by a loose or
corroded connector.
CLEAR the DTCs.
REPEAT the self-
test. Test Step Result / Action to Take
I1 CHECK CIRCUIT 727 (YE/BK)
z
Disconnect: Heated Rear Window Relay.
z Key in ON position.
z Depress the rear window defroster switch to OFF.
z Measure the resistance between heated rear window
relay pin 85, circuit 727 (YE/BK) , harness side and
ground.
z Is the resistance greater than 10,000 ohms? Yes
GO to
I3 .
No
GO to I2 .
I2 CHECK CIRCUIT 727 (YE/BK) FOR A SHORT TO
GROUND z
Key in OFF position.
z Measure the resistance between instrument cluster
module (ICM) C220a pin 10, circuit 727 (YE/BK) ,
harness side and ground.
z Is the resistance greater than 10,000 ohms? Yes
GO to
I4 .
No
REPAIR the circuit. TEST the
system for normal operation. I3 CHECK CIRCUIT 186 (BN/LB) FOR A SHORT TO POWER
z
Disconnect: Heated Rear Window Grid Power Supply
Connector C402a.
z Measure the voltage between heated rear window grid
C402a circuit 186 (BN/LB), harness side and ground. Yes
REPAIR the circuit. TEST the
system for normal operation.
No
INSTALL a new heated rear
window relay. TEST the
system for normal operation. Klj . 30 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION

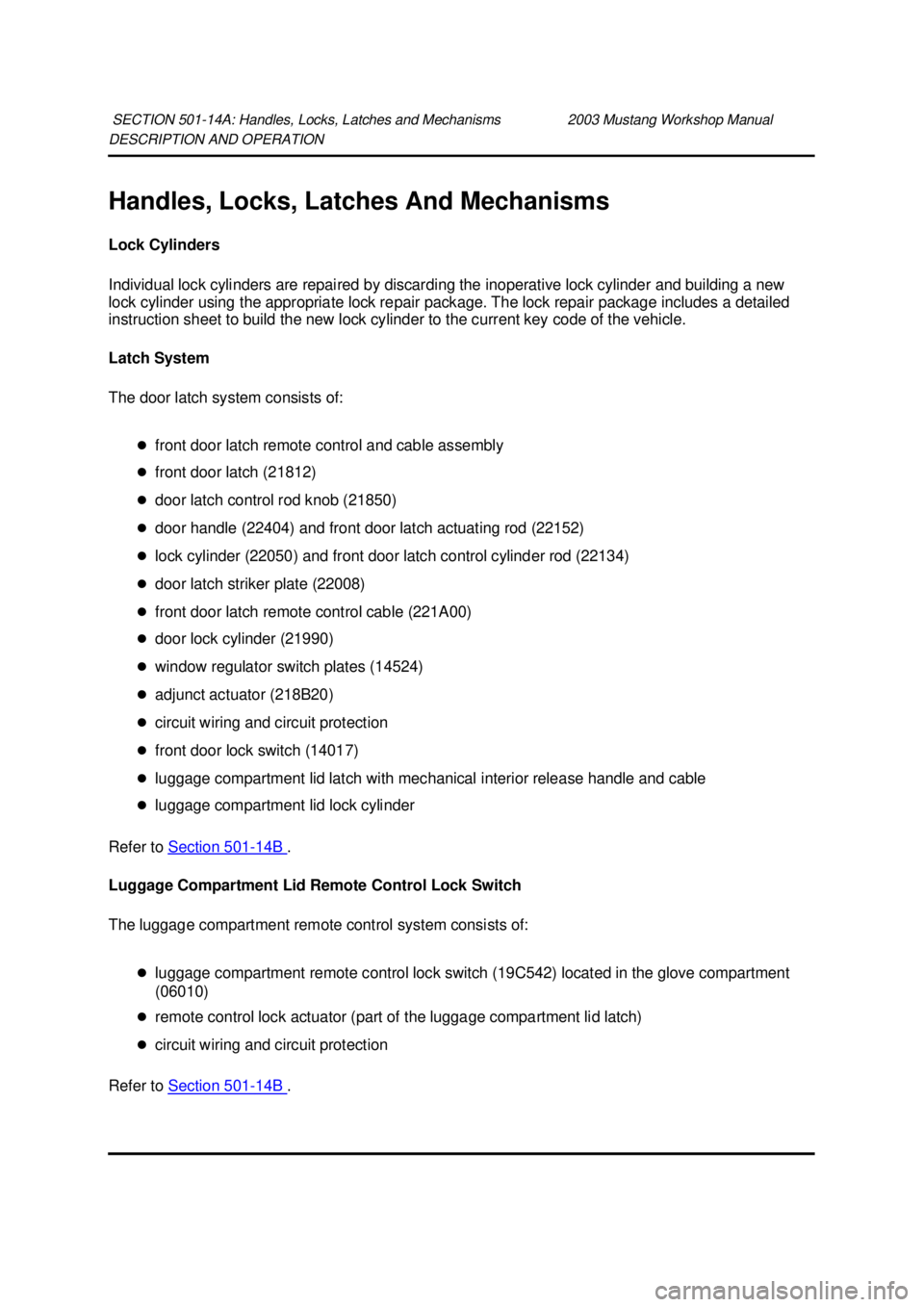

Handles, Locks, Latches And Mechanisms
Lock Cylinders
Individual lock cylinders are repaired by discarding the inoperative lock cylinder and building a new
lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed
instruction sheet to build the new lock cylinder to the current key code of the vehicle.
Latch System
The door latch system consists of:
zfront door latch remote control and cable assembly
z front door latch (21812)
z door latch control rod knob (21850)
z door handle (22404) and front door latch actuating rod (22152)
z lock cylinder (22050) and front door latch control cylinder rod (22134)
z door latch striker plate (22008)
z front door latch remote control cable (221A00)
z door lock cylinder (21990)
z window regulator switch plates (14524)
z adjunct actuator (218B20)
z circuit wiring and circuit protection
z front door lock switch (14017)
z luggage compartment lid latch with mechanical interior release handle and cable
z luggage compartment lid lock cylinder
Refer to Section 501 - 14B .
Luggage Compartment Lid Remote Control Lock Switch
The luggage compartment remote control system consists of:
zluggage compartment remote control lock switch (19C542) located in the glove compartment
(06010)
z remote control lock actuator (part of the luggage compartment lid latch)
z circuit wiring and circuit protection
Refer to Section 501 - 14B .
SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

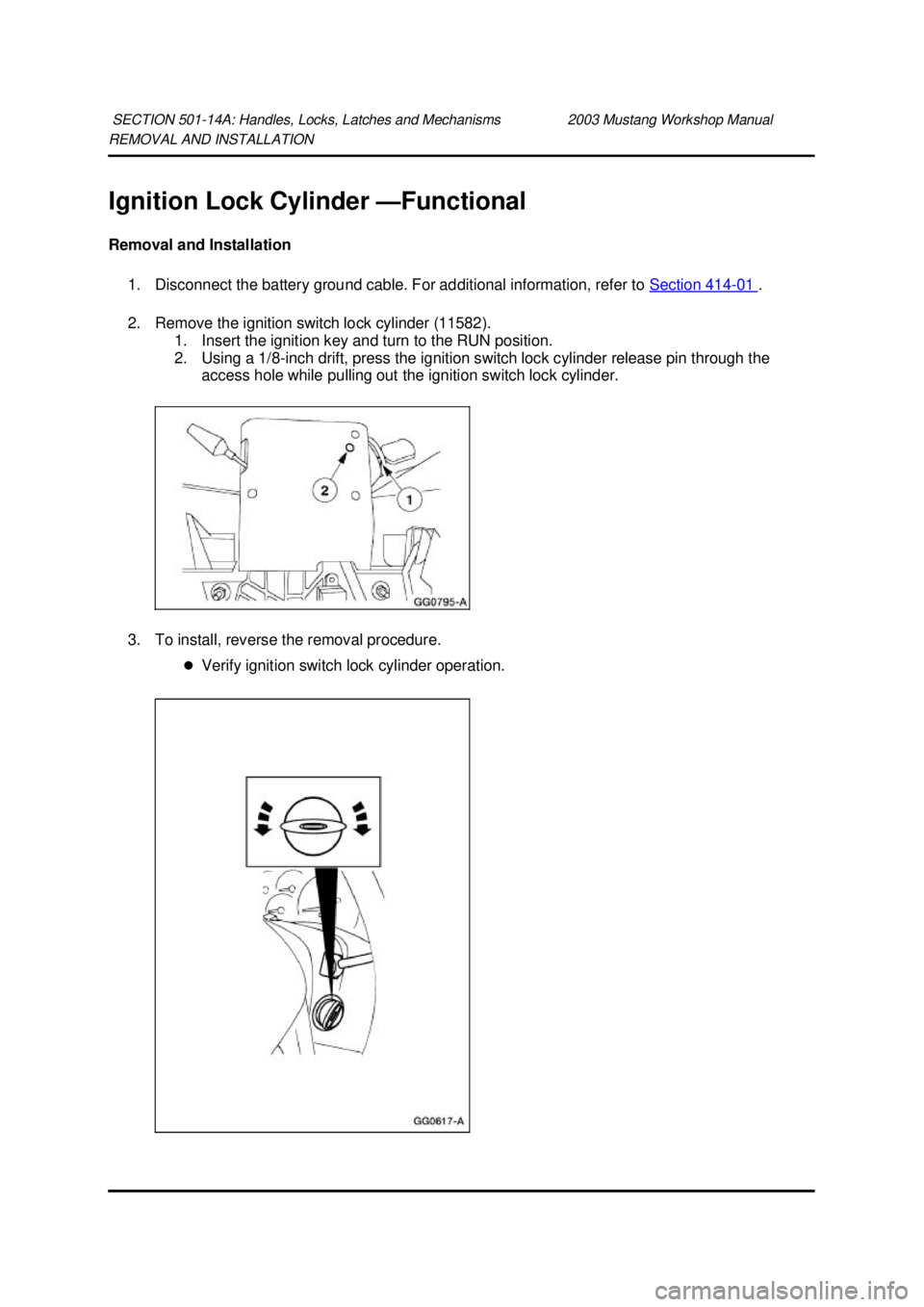

Ignition Lock Cylinder —
Functional
Removal and Installation 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Remove the ignition switch lock cylinder (11582). 1. Insert the ignition key and turn to the RUN position.
2. Using a 1/8- inch drift, press the ignition switch lock cylinder release pin through the
access hole while pulling out the ignition switch lock cylinder.
3. To install, reverse the removal procedure. zVerify ignition switch lock cylinder operation.
SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Ignition Lock Cylinder —
Non-Functional
Removal and Installation 1. NOTE: Make sure the front wheels are in the straight- ahead position.
Disconnect the battery ground cable (14301) and wait at least one minute to allow the depletion
of the restraint system backup power supply. For additional information, refer to Section 414 -
01 .
2. WARNING: To avoid the risk of serious personal injury, read and follow all
warnings, cautions, notes and instructions in the deactivation procedure.
Deactivate the supplemental restraint system (SRS). For additional information, refer to
Supplemental Restraint System (SRS) Deactivation and Reactivation in this section.
3. WARNING: To reduce the risk of serious personal injury, read and follow all
warnings, cautions, notes and instructions in the steering wheel removal and installation
procedure.
Remove the steering wheel assembly. For additional information, refer to Wheel in this section.
4. Twist off the cap from the ignition switch cylinder.
5. NOTE: The lock cylinder is repaired by discarding the inoperative lock cylinder and building a
new lock cylinder using the appropriate lock repair package (F85Z-11582- AA). The lock repair
package includes a detailed instruction sheet to build the new lock cylinder to the current key
code of the vehicle.
SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

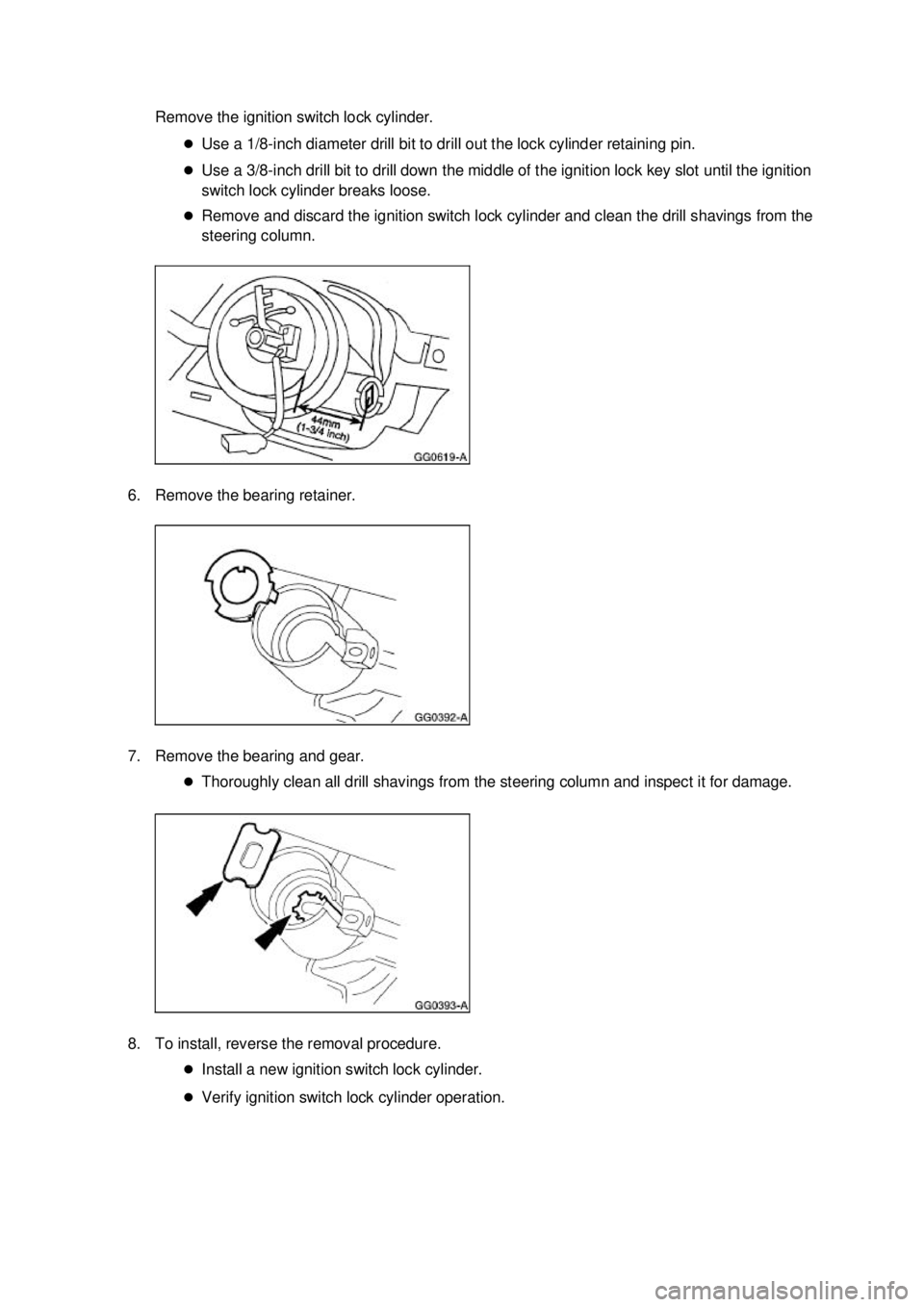

Remove the ignition switch lock cylinder.
zUse a 1/8- inch diameter drill bit to drill out the lock cylinder retaining pin.
z Use a 3/8- inch drill bit to drill down the middle of the ignition lock key slot until the ignition
switch lock cylinder breaks loose.
z Remove and discard the ignition switch lock cylinder and clean the drill shavings from the
steering column.
6. Remove the bearing retainer.
7. Remove the bearing and gear. zThoroughly clean all drill shavings from the steering column and inspect it for damage.
8. To install, reverse the removal procedure. zInstall a new ignition switch lock cylinder.
z Verify ignition switch lock cylinder operation. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

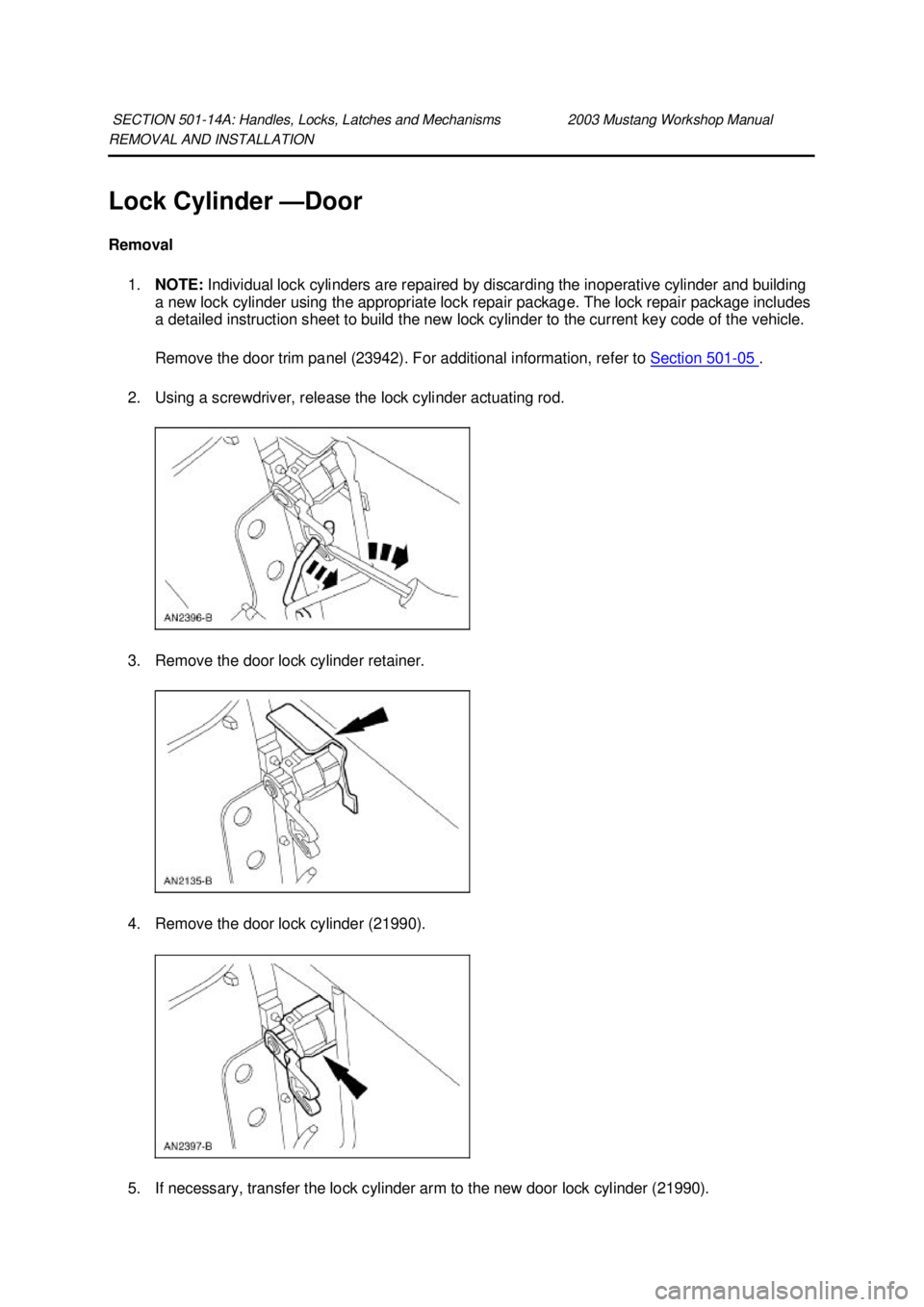

Lock Cylinder —
Door
Removal 1. NOTE: Individual lock cylinders are repaired by discarding the inoperative cylinder and building
a new lock cylinder using the appropriate lock repair package. The lock repair package includes
a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.
Remove the door trim panel (23942). For additional information, refer to Section 501 - 05 .
2. Using a screwdriver, release the lock cylinder actuating rod.
3. Remove the door lock cylinder retainer.
4. Remove the door lock cylinder (21990).
5. If necessary, transfer the lock cylinder arm to the new door lock cylinder (21990).
SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

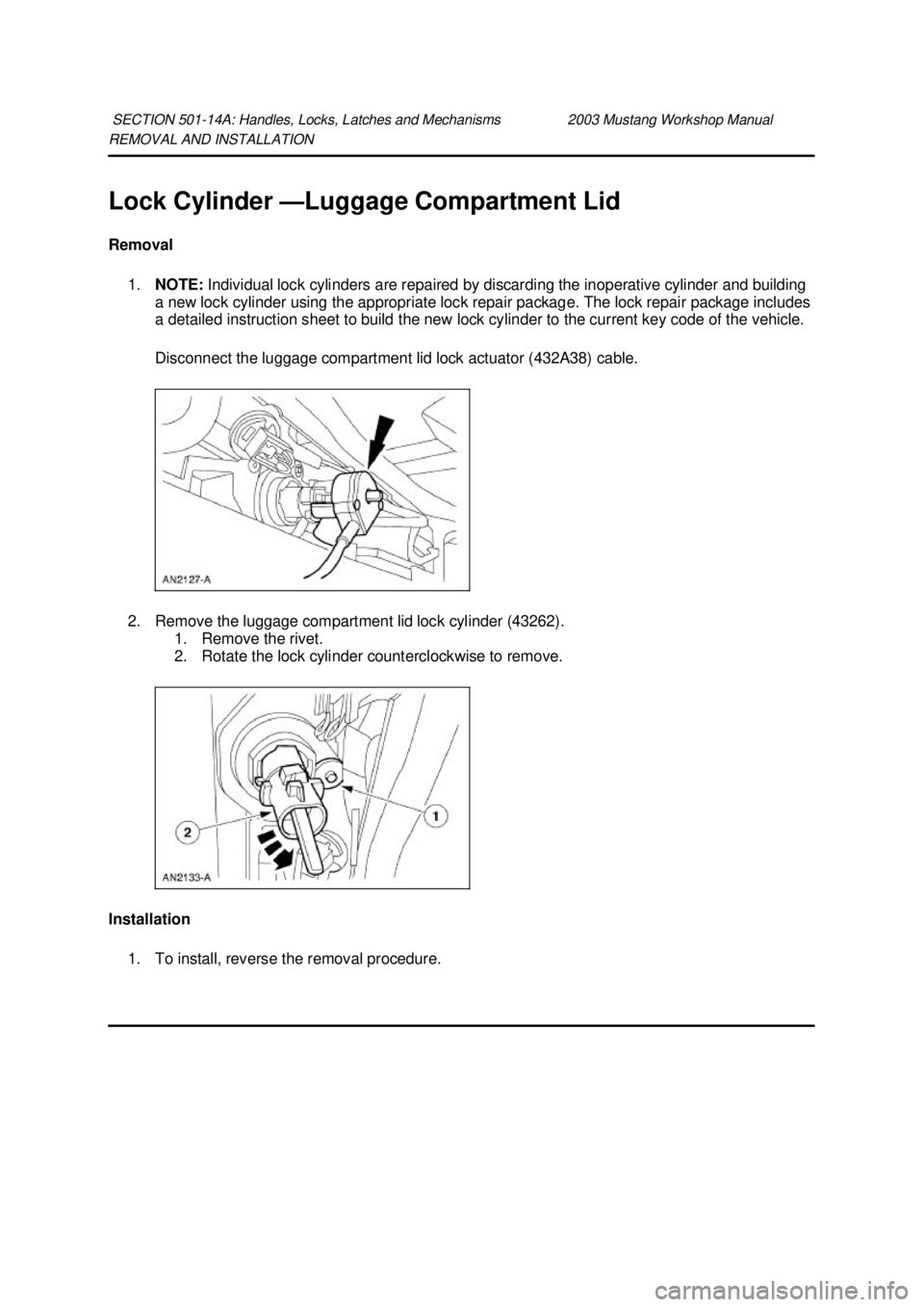

Lock Cylinder —
Luggage Compartment Lid
Removal 1. NOTE: Individual lock cylinders are repaired by discarding the inoperative cylinder and building
a new lock cylinder using the appropriate lock repair package. The lock repair package includes
a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.
Disconnect the luggage compartment lid lock actuator (432A38) cable.
2. Remove the luggage compartment lid lock cylinder (43262). 1. Remove the rivet.
2. Rotate the lock cylinder counterclockwise to remove.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION

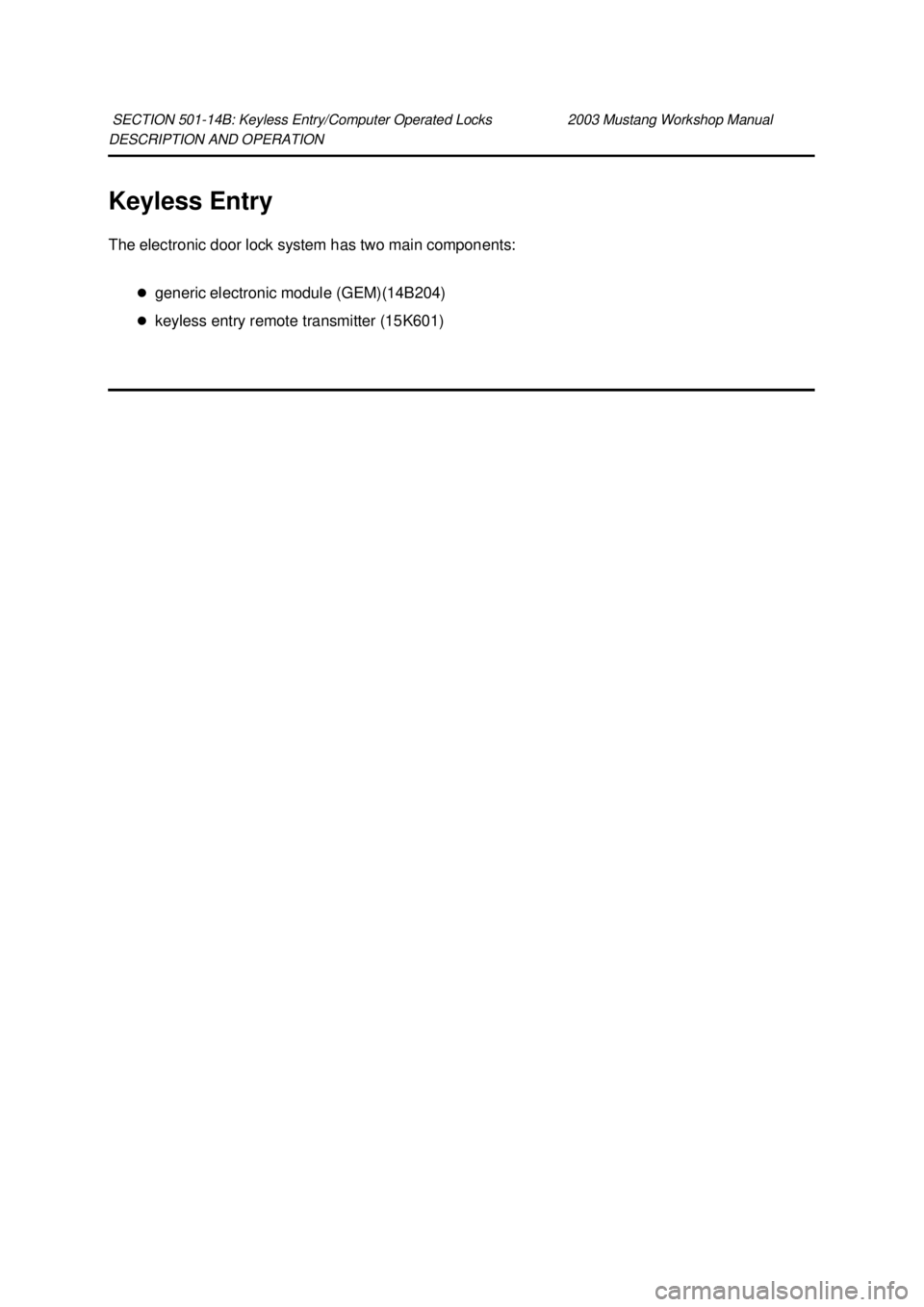

Keyless Entry
The electronic door lock system has two main components:
zgeneric electronic module (GEM)(14B204)
z keyless entry remote transmitter (15K601)
