DIAGNOSIS AND TESTING
Output State Control (OSC) Mode
Output State Control (OSC) allows the technician to take control of certain parameters to function the
transmission. For example, OSC allows the technician to shift the transmission only when he/she
commands a gear change. If the technician commands 1st gear in OSC, the transmission will remain
in 1st gear until the technician commands the next gear. Another example, the technician can
command a shift solenoid to turn on or off when carrying out an electrical circuit check. OSC has two
modes of operation for transmission, the BENCH MODE and the DRIVE MODE. Each
mode/parameter has a unique set of vehicle operating requirements that the technician is required to
meet before being allowed to operate OSC.
NOTE:
To operate OSC the digital transmission range (TR) sensor must be operational. No Diagnostic
Trouble Codes (DTCs) related to the digital TR sensor can be present.
To operate OSC the vehicle speed source must be operational. No diagnostic codes (DTCs) related to
this source can be present. The vehicle speed source can vary depending on vehicle configuration.
Technicians should verify which input source is applicable for their vehicle application. The following
are potential vehicle speed sources:
„anti- lock braking system (ABS)
„ output shaft speed (OSS) sensor
„ vehicle speed sensor
z The vehicle requirements MUST BE MET when SENDING the OSC value. Refer to individual
test modes for vehicle requirements.
z If the vehicle requirements are NOT MET when SENDING the OSC value, an ERROR
MESSAGE will appear. When the ERROR MESSAGE is received, OSC is aborted and must be
restarted.
z If AFTER SENDING an OSC value, and the vehicle requirements are no longer met, the PCM
will cancel the OSC value and NO ERROR message will appear. Once the vehicle requirements
are met again, the PCM will automatically SEND the previous OSC value without any additional
actions required by the service technician.
z The OSC value XXX may be sent anytime to cancel OSC.
Output State Control (OSC) Procedures
zCarry out visual inspection and vehicle preparation as required.
z Select "Vehicle and Engine Selection" menu.
z Select appropriate vehicle and engine.
z Select "Diagnostic Data Link."
z Select "Powertrain Control Module."
z Select "Output Test Mode."
z Select "KOEO On- Demand Self Test and KOER On- Demand Self Tests."
z Carry out test and record DTCs.
z Repair all NON- Transmission DTCs.
z Repair all digital TR Sensor DTCs.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

z
Repair all vehicle speed DTCs.
z Make sure that the vehicle speed sensor and digital TR sensors are functional.
z Select "Active Command Modes."
z Select "Trans - Bench Mode or Trans - Drive Mode."
OSC — Transmission Bench Modes
The following Transmission Bench Modes may be used or required during diagnostics.
SSA, SSB and TCC in BENCH MODE
The BENCH MODE allows the technician to carry out electrical circuit checks on the following
components:
zSSA - activates SSA OFF or ON.
z SSB - activates SSB OFF or ON.
z Transmission converter clutch (TCC) - activates TCC OFF or ON.
OSC "SSA, SSB, TCC" BENCH MODE operates ONLY when:
zthe digital TR sensor is operational and no digital TR sensor DTCs are present.
z the vehicle speed input is operational and no VSS sensor DTCs are present.
z the transmission range selector lever is in P.
z the key is ON.
z the engine is OFF.
OSC Command Values
zOFF - turns solenoid OFF.
z ON - turns solenoid ON.
z XXX - cancels OSC value sent.
z SEND - sends the values to PCM.
BENCH MODE Procedure for SSA, SSB and TCC
Follow operating instructions from the scan tool menu screen:
zSelect "Output State Control."
z Select "Trans - Bench Mode."
z Select "PIDs" to be monitored.
z Monitor all selected PIDs during test.
z Select "Parameters - SSA, SSB or TCC."
z Select "ON" to turn solenoid ON.
z Press "SEND" to send command ON.
z Select "OFF" to turn solenoid OFF.
z Press "SEND" to send command OFF. Klj . 2 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

z
Select "XXX" to cancel at any time.
z Press "SEND."
EPC in BENCH MODE
The BENCH MODE is also used to test the functionality of the transmission's electronic pressure
control. During BENCH MODE, the electronic pressure control (EPC) solenoid can ramp up/down in
increments of 103 kPa (15 psi) from zero to 620 kPa (90 psi) and 620 kPa (90 psi) to zero psi.
The OSC functions for the parameter EPC allows the technician to choose the following options:
zEPC - activates EPC to selected values.
z 00 - sets EPC pressure to 00 kPa (00 psi).
z 15 - sets EPC pressure to 103 kPa (15 psi).
z 30 - sets EPC pressure to 206 kPa (30 psi).
z 45 - sets EPC pressure to 310 kPa (45 psi).
z 60 - sets EPC pressure to 411 kPa (60 psi).
z 75 - sets EPC pressure to 517 kPa (75 psi).
z 90 - sets EPC pressure to 620 kPa (90 psi).
To carry out an EPC BENCH MODE pressure functionality test, install a pressure gauge in the EPC
port. The following requirements are required to carry out this test:
zVSS and digital TR sensor operational
z No VSS and digital TR sensor DTCs
z Transmission range selector lever in P
z Key ON
z Engine ON
z Engine speed at least 1,500 rpm for accurate EPC pressure measurement
To carry out an EPC BENCH MODE solenoid circuit pinpoint test, the following requirements are
required.
zVSS and digital TR sensor operational
z No VSS and digital TR sensor DTCs
z Transmission range selector lever in P
z Key ON
z Engine OFF
OSC Command Values
z00 - sets EPC pressure to 00 kPa (00 psi).
z 15 - sets EPC pressure to 103 kPa (15 psi).
z 30 - sets EPC pressure to 206 kPa (30 psi).
z 45 - sets EPC pressure to 310 kPa (45 psi).
z 60 - sets EPC pressure to 411 kPa (60 psi). Klj . 3 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

z

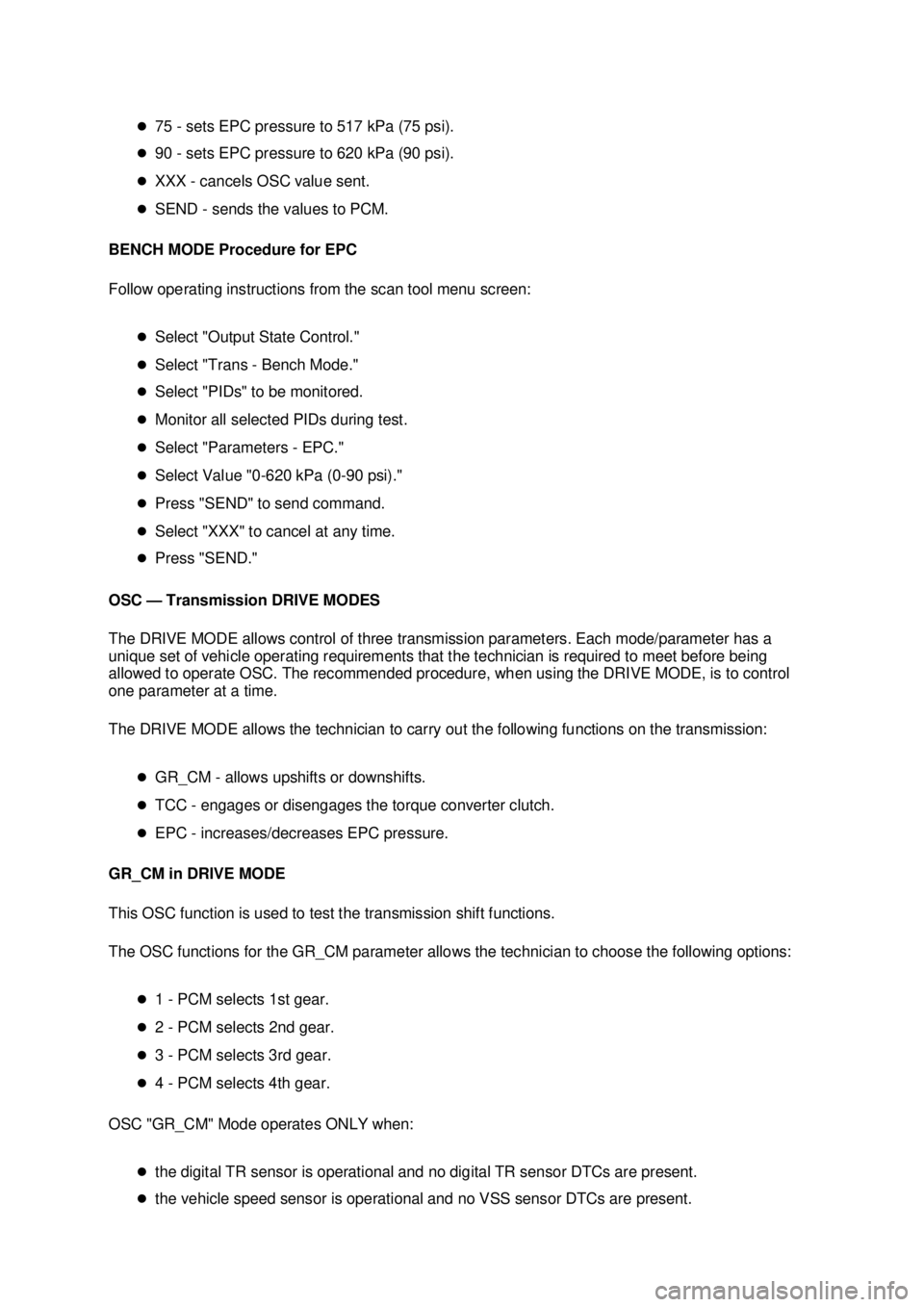

75 - sets EPC pressure to 517 kPa (75 psi).
z 90 - sets EPC pressure to 620 kPa (90 psi).
z XXX - cancels OSC value sent.
z SEND - sends the values to PCM.
BENCH MODE Procedure for EPC
Follow operating instructions from the scan tool menu screen:
zSelect "Output State Control."
z Select "Trans - Bench Mode."
z Select "PIDs" to be monitored.
z Monitor all selected PIDs during test.
z Select "Parameters - EPC."
z Select Value "0- 620 kPa (0-90 psi)."
z Press "SEND" to send command.
z Select "XXX" to cancel at any time.
z Press "SEND."
OSC — Transmission DRIVE MODES
The DRIVE MODE allows control of three transmission parameters. Each mode/parameter has a
unique set of vehicle operating requirements that the technician is required to meet before being
allowed to operate OSC. The recommended procedure, when using the DRIVE MODE, is to control
one parameter at a time.
The DRIVE MODE allows the technician to carry out the following functions on the transmission:
zGR_CM - allows upshifts or downshifts.
z TCC - engages or disengages the torque converter clutch.
z EPC - increases/decreases EPC pressure.
GR_CM in DRIVE MODE
This OSC function is used to test the transmission shift functions.
The OSC functions for the GR_CM parameter allows the technician to choose the following options:
z1 - PCM selects 1st gear.
z 2 - PCM selects 2nd gear.
z 3 - PCM selects 3rd gear.
z 4 - PCM selects 4th gear.
OSC "GR_CM" Mode operates ONLY when:
zthe digital TR sensor is operational and no digital TR sensor DTCs are present.
z the vehicle speed sensor is operational and no VSS sensor DTCs are present. Klj . 4 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

z

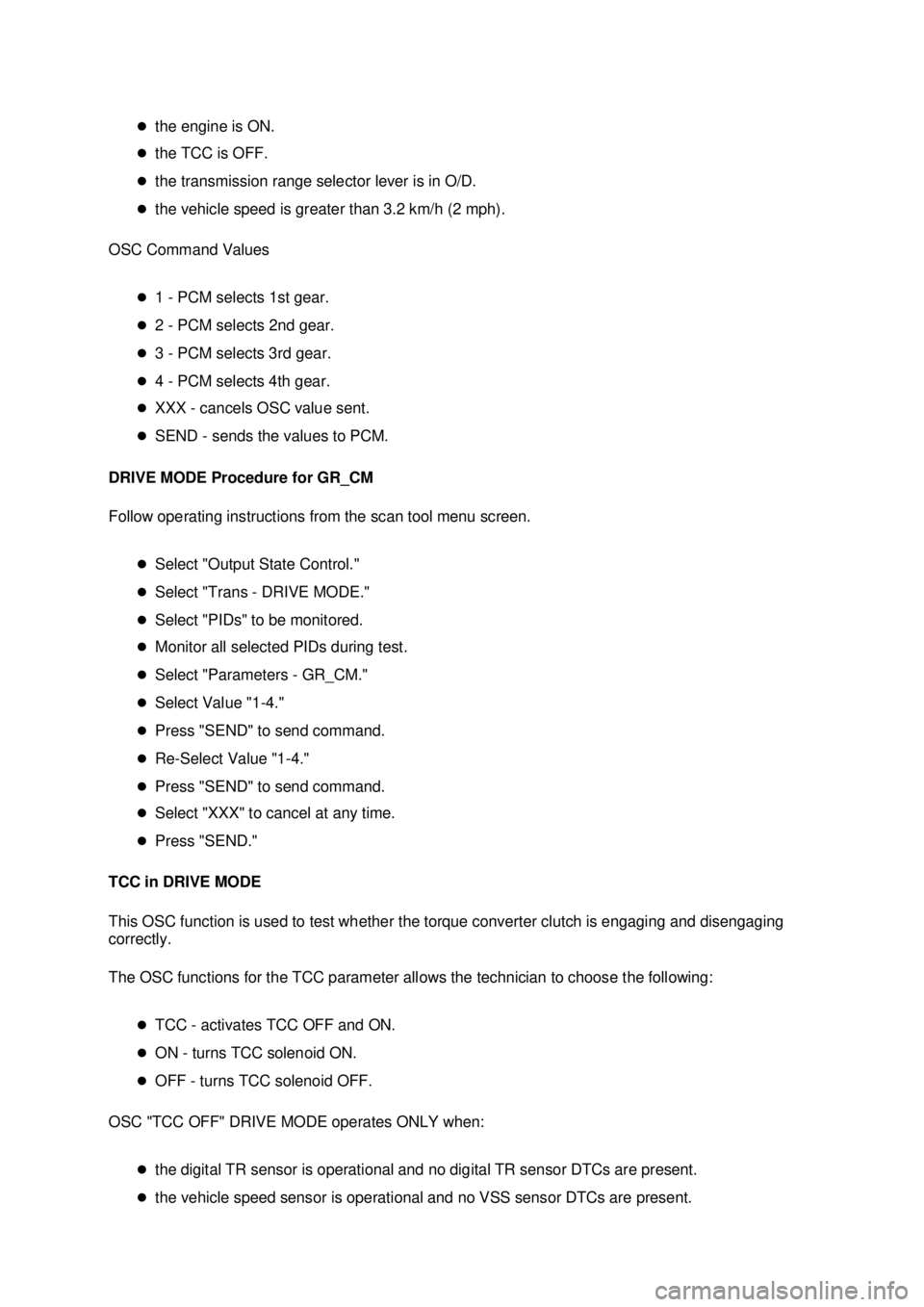

the engine is ON.
z the TCC is OFF.
z the transmission range selector lever is in O/D.
z the vehicle speed is greater than 3.2 km/h (2 mph).
OSC Command Values
z1 - PCM selects 1st gear.
z 2 - PCM selects 2nd gear.
z 3 - PCM selects 3rd gear.
z 4 - PCM selects 4th gear.
z XXX - cancels OSC value sent.
z SEND - sends the values to PCM.
DRIVE MODE Procedure for GR_CM
Follow operating instructions from the scan tool menu screen.
zSelect "Output State Control."
z Select "Trans - DRIVE MODE."
z Select "PIDs" to be monitored.
z Monitor all selected PIDs during test.
z Select "Parameters - GR_CM."
z Select Value "1- 4."
z Press "SEND" to send command.
z Re- Select Value "1- 4."
z Press "SEND" to send command.
z Select "XXX" to cancel at any time.
z Press "SEND."
TCC in DRIVE MODE
This OSC function is used to test whether the torque converter clutch is engaging and disengaging
correctly.
The OSC functions for the TCC parameter allows the technician to choose the following:
zTCC - activates TCC OFF and ON.
z ON - turns TCC solenoid ON.
z OFF - turns TCC solenoid OFF.
OSC "TCC OFF" DRIVE MODE operates ONLY when:
zthe digital TR sensor is operational and no digital TR sensor DTCs are present.
z the vehicle speed sensor is operational and no VSS sensor DTCs are present. Klj . 5 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

z

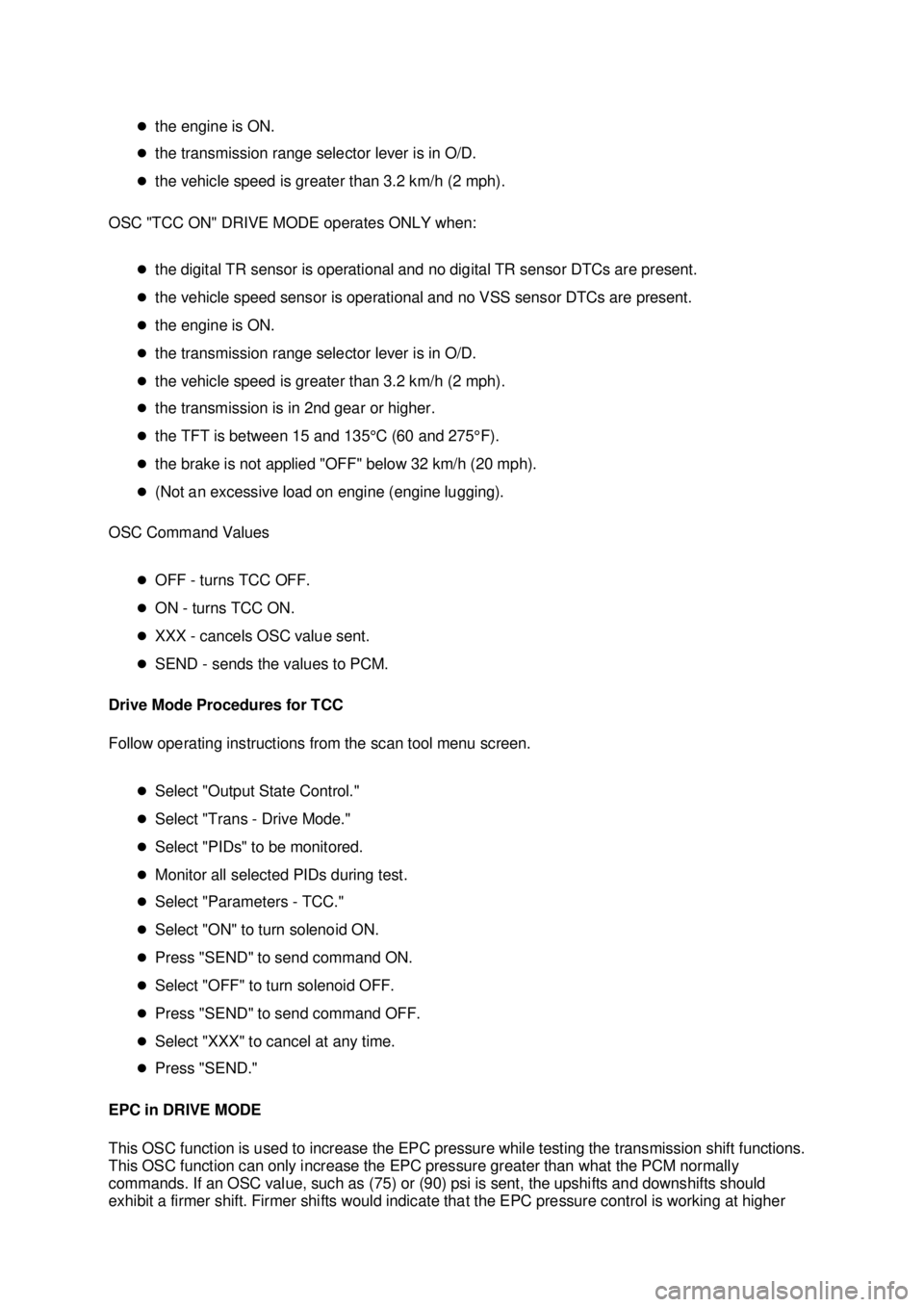

the engine is ON.
z the transmission range selector lever is in O/D.
z the vehicle speed is greater than 3.2 km/h (2 mph).
OSC "TCC ON" DRIVE MODE operates ONLY when:
zthe digital TR sensor is operational and no digital TR sensor DTCs are present.
z the vehicle speed sensor is operational and no VSS sensor DTCs are present.
z the engine is ON.
z the transmission range selector lever is in O/D.
z the vehicle speed is greater than 3.2 km/h (2 mph).
z the transmission is in 2nd gear or higher.
z the TFT is between 15 and 135°C (60 and 275°F).
z the brake is not applied "OFF" below 32 km/h (20 mph).
z (Not an excessive load on engine (engine lugging).
OSC Command Values
zOFF - turns TCC OFF.
z ON - turns TCC ON.
z XXX - cancels OSC value sent.
z SEND - sends the values to PCM.
Drive Mode Procedures for TCC
Follow operating instructions from the scan tool menu screen.
zSelect "Output State Control."
z Select "Trans - Drive Mode."
z Select "PIDs" to be monitored.
z Monitor all selected PIDs during test.
z Select "Parameters - TCC."
z Select "ON" to turn solenoid ON.
z Press "SEND" to send command ON.
z Select "OFF" to turn solenoid OFF.
z Press "SEND" to send command OFF.
z Select "XXX" to cancel at any time.
z Press "SEND."
EPC in DRIVE MODE
This OSC function is used to increase the EPC pressure while testing the transmission shift functions.
This OSC function can only increase the EPC pressure greater than what the PCM normally
commands. If an OSC value, such as (75) or (90) psi is sent, the upshifts and downshifts should
exhibit a firmer shift. Firmer shifts would indicate that the EPC pressure control is working at higher Klj . 6 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

pressures. The best test for the EPC is to use the BENCH MODE and a hydraulic pressure gauge.
Using EPC in the BENCH MODE will confirm that the EPC is working at both the higher and lower
pressures.
The OSC functions for the parameter EPC allows the technician to choose the following options:
zEPC - activates EPC to selected values
z 00 - sets EPC pressure to 00 kPa (00 psi).
z 15 - sets EPC pressure to 103 kPa (15 psi).
z 30 - sets EPC pressure to 206 kPa (30 psi).
z 45 - sets EPC pressure to 310 kPa (45 psi).
z 60 - sets EPC pressure to 411 kPa (60 psi).
z 75 - sets EPC pressure to 517 kPa (75 psi).
z 90 - sets EPC pressure to 620 kPa (90 psi).
OSC "EPC" DRIVE MODE operates ONLY when:
zthe digital TR sensor is operational and no digital TR sensor DTCs are present.
z the vehicle speed sensor is operational and no VSS sensor DTCs are present.
z the transmission range selector lever is in O/D.
z the pressure gauge is installed.
z the key is ON.
z the engine is ON.
z the vehicle speed is greater than 3.2 km/h (2 mph).
z the OSC value for EPC must be greater than what the PCM commands (see EPC PID).
OSC Command Values
z00 - sets EPC pressure to 00 kPa (00 psi).
z 15 - sets EPC pressure to 103 kPa (15 psi).
z 30 - sets EPC pressure to 206 kPa (30 psi).
z 45 - sets EPC pressure to 310 kPa (45 psi).
z 60 - sets EPC pressure to 411 kPa (60 psi).
z 75 - sets EPC pressure to 517 kPa (75 psi).
z 90 - sets EPC pressure to 620 kPa (90 psi).
z XXX - cancels OSC value sent.
z SEND - sends the values to PCM.
DRIVE MODE Procedure for EPC.
Follow operating instructions from the scan tool menu screen.
zSelect "Output State Control."
z Select "Trans - Drive Mode."
z Select "PIDs" to be monitored. Klj . 7 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
