DIAGNOSIS AND TESTING
Transmission Drive Cycle Test
NOTE:
Always drive the vehicle in a safe manner according to driving conditions and obey all traffic
laws.
NOTE: The Transmission Drive Cycle Test must be followed exactly. Malfunctions must occur four
times consecutively for shift error DTC code to be set, and five times consecutively for continuous TCC
code to set.
NOTE: When carrying out the Transmission Drive Cycle Test, refer to the Solenoid Application Chart
for correct solenoid operation.
After carrying out the Quick Test, use the Transmission Drive Cycle Test for checking continuous
codes.
1. Record and then erase Quick Test codes.
2. Warm engine to normal operating temperature.
3. Make sure transmission fluid level is correct.
4. With transmission in OVERDRIVE, moderately accelerate from stop to 80 km/h (50 mph). This allows the transmission to shift into fourth gear. Hold speed and throttle open steady for a
minimum of 15 seconds.
5. With transmission in fourth gear and maintaining steady speed and throttle opening, lightly apply and release brake to operate stoplamps. Then hold speed and throttle steady for a
minimum of five seconds.
6. Brake to a stop and remain stopped for a minimum of 20 seconds.
7. Repeat steps 4 through 6 at least five times.
8. Carry out Quick Test and record continuous DTCs. zIf the DTCs are still present, refer to the Diagnostic Trouble Code Chart. Repair all non
transmission DTCs first as they can directly affect the operation of the transmission.
Repeat the Quick Test and the Road Test to verify the correction. Erase the DTCs, carry
out the Drive Cycle Test and repeat the Quick Test after completing repair on the DTC.
z If the continuous test passes and a concern is still present, refer to Diagnosis By Symptom in this section, OASIS messages, and TSBs for concerns.
After On- Board Diagnostic
NOTE: The vehicle wiring harness, PCM and non- transmission sensors may affect transmission
operations. Repair these concerns first.
After the on- board diagnostic procedures are completed, repair all DTCs.
Begin with non- transmission related DTCs, then repair any transmission related DTCs. Use the
diagnostic trouble code chart for information on condition and symptoms. This chart will be helpful in
referring to the correct manual(s) and aids in diagnosing internal transmission concerns and external
non- transmission inputs. The pinpoint tests are used in diagnosing transmission electrical concerns.
Make sure that the vehicle wiring harness and the PCM are diagnosed as well. The Powertrain SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Control/Emissions Diagnosis (PC/ED) manual will aid in diagnosing non-
transmission electronic
components.

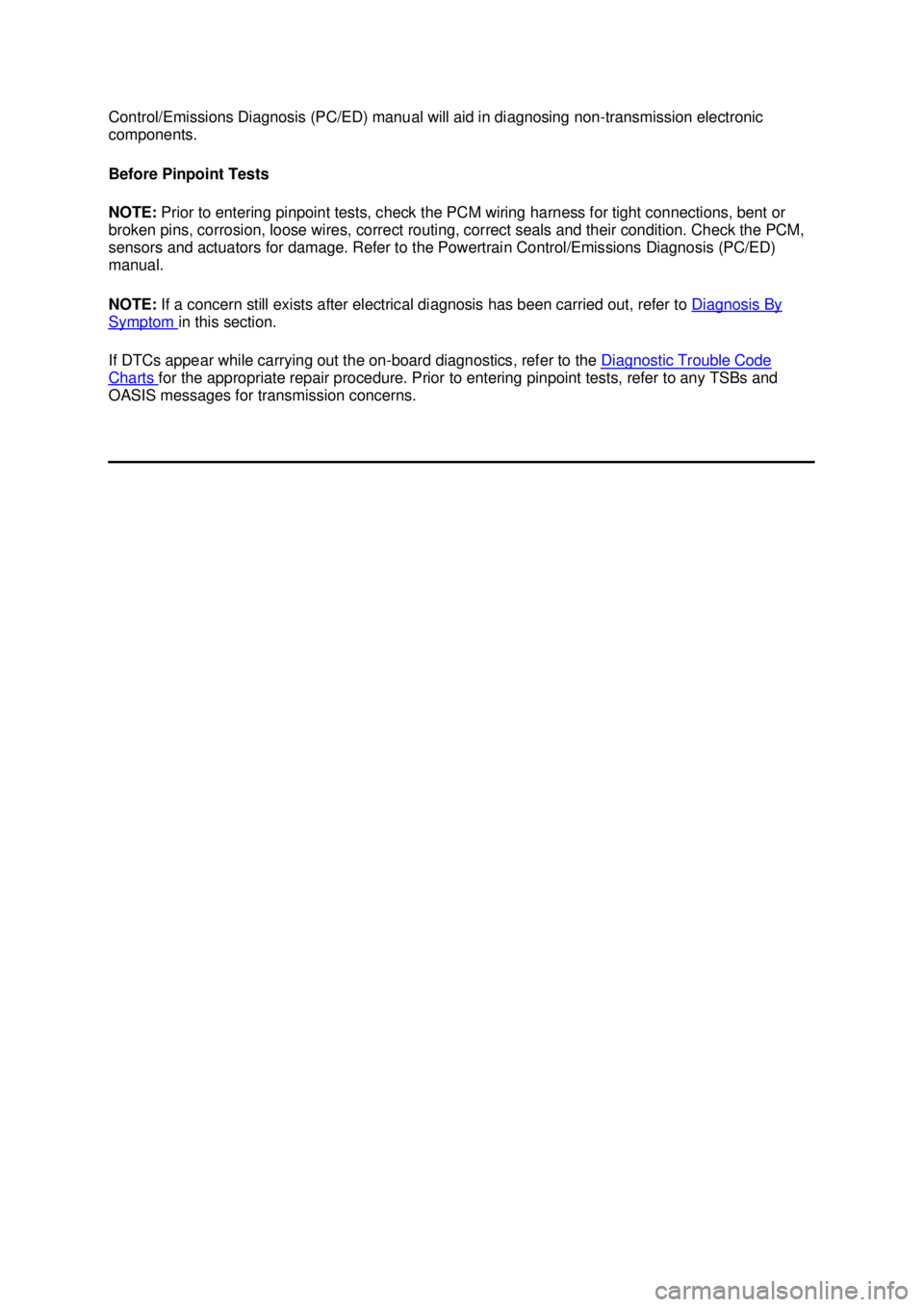

Before Pinpoint Tests
NOTE: Prior to entering pinpoint tests, check the PCM wiring harness for tight connections, bent or
broken pins, corrosion, loose wires, correct routing, correct seals and their condition. Check the PCM,
sensors and actuators for damage. Refer to the Powertrain Control/Emissions Diagnosis (PC/ED)
manual.
NOTE: If a concern still exists after electrical diagnosis has been carried out, refer to Diagnosis By Symptom in this section.
If DTCs appear while carrying out the on- board diagnostics, refer to the Diagnostic Trouble Code Charts for the appropriate repair procedure. Prior to entering pinpoint tests, refer to any TSBs and
OASIS messages for transmission concerns. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

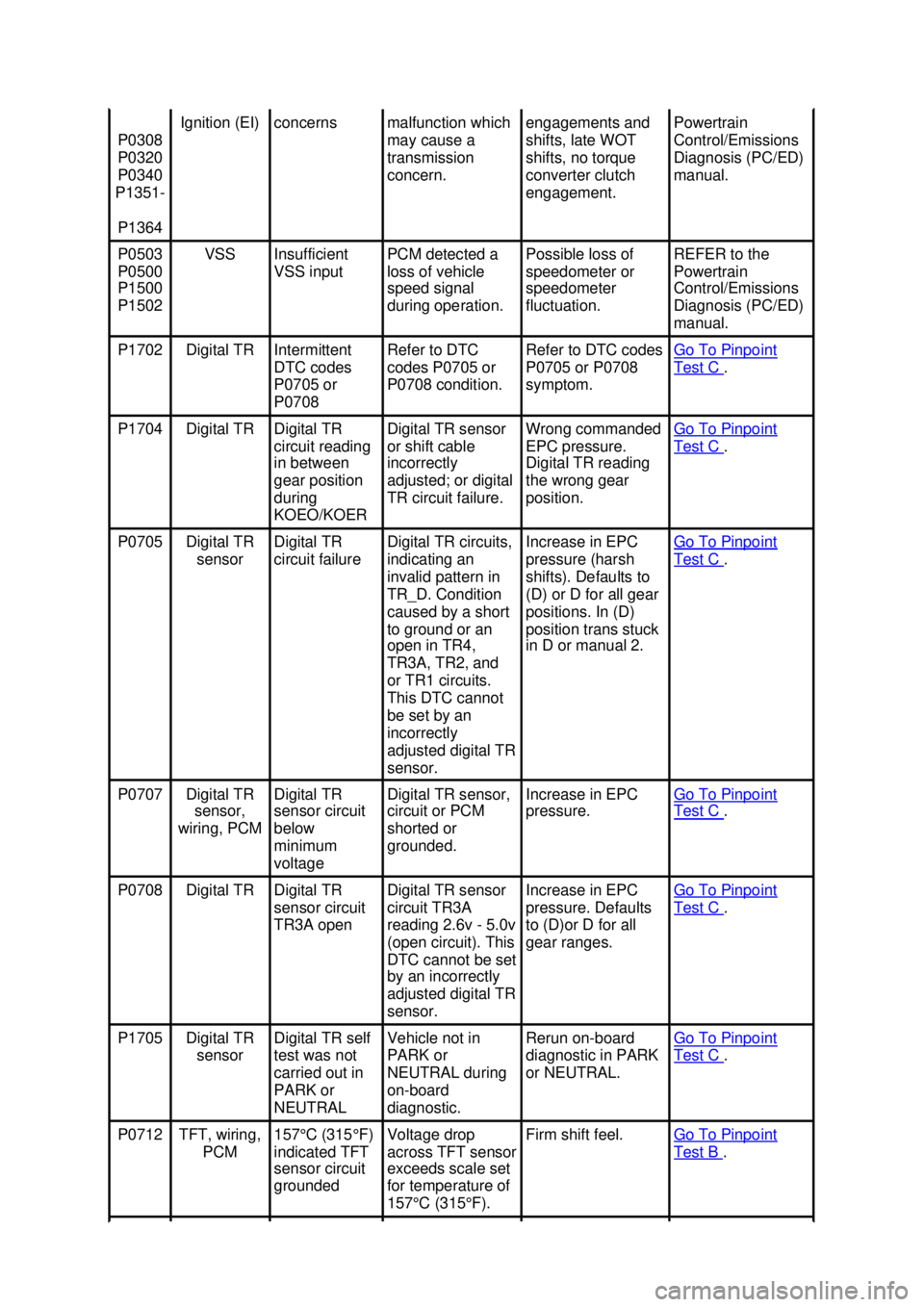

P0308
P0320
P0340
P1351-
P1364 Ignition (EI) concerns malfunction which
may cause a
transmission
concern. engagements and
shifts, late WOT
shifts, no torque
converter clutch
engagement. Powertrain
Control/Emissions
Diagnosis (PC/ED)
manual.
P0503
P0500
P1500
P1502 VSS Insufficient
VSS input PCM detected a
loss of vehicle
speed signal
during operation. Possible loss of
speedometer or
speedometer
fluctuation. REFER to the
Powertrain
Control/Emissions
Diagnosis (PC/ED)
manual.
P1702 Digital TR Intermittent
DTC codes
P0705 or
P0708 Refer to DTC
codes P0705 or
P0708 condition. Refer to DTC codes
P0705 or P0708
symptom. Go To Pinpoint
Test C .
P1704 Digital TR Digital TR
circuit reading
in between
gear position
during
KOEO/KOER Digital TR sensor
or shift cable
incorrectly
adjusted; or digital
TR circuit failure. Wrong commanded
EPC pressure.
Digital TR reading
the wrong gear
position. Go To Pinpoint
Test C .
P0705 Digital TR
sensor Digital TR
circuit failure Digital TR circuits,
indicating an
invalid pattern in
TR_D. Condition
caused by a short
to ground or an
open in TR4,
TR3A, TR2, and
or TR1 circuits.
This DTC cannot
be set by an
incorrectly
adjusted digital TR
sensor. Increase in EPC
pressure (harsh
shifts). Defaults to
(D) or D for all gear
positions. In (D)
position trans stuck
in D or manual 2. Go To Pinpoint
Test C .
P0707 Digital TR
sensor,
wiring, PCM Digital TR
sensor circuit
below
minimum
voltage Digital TR sensor,
circuit or PCM
shorted or
grounded. Increase in EPC
pressure. Go To Pinpoint
Test C .
P0708 Digital TR Digital TR
sensor circuit
TR3A open Digital TR sensor
circuit TR3A
reading 2.6v -
5.0v
(open circuit). This
DTC cannot be set
by an incorrectly
adjusted digital TR
sensor. Increase in EPC
pressure. Defaults
to (D)or D for all
gear ranges. Go To Pinpoint
Test C .
P1705 Digital TR
sensor Digital TR self
test was not
carried out in
PARK or
NEUTRAL Vehicle not in
PARK or
NEUTRAL during
on-
board
diagnostic. Rerun on-
board
diagnostic in PARK
or NEUTRAL. Go To Pinpoint
Test C .
P0712 TFT, wiring,
PCM 157°C (315°F)
indicated TFT
sensor circuit
grounded Voltage drop
across TFT sensor
exceeds scale set
for temperature of
157°C (315°F). Firm shift feel. Go To Pinpoint
Test B . Klj . 2 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

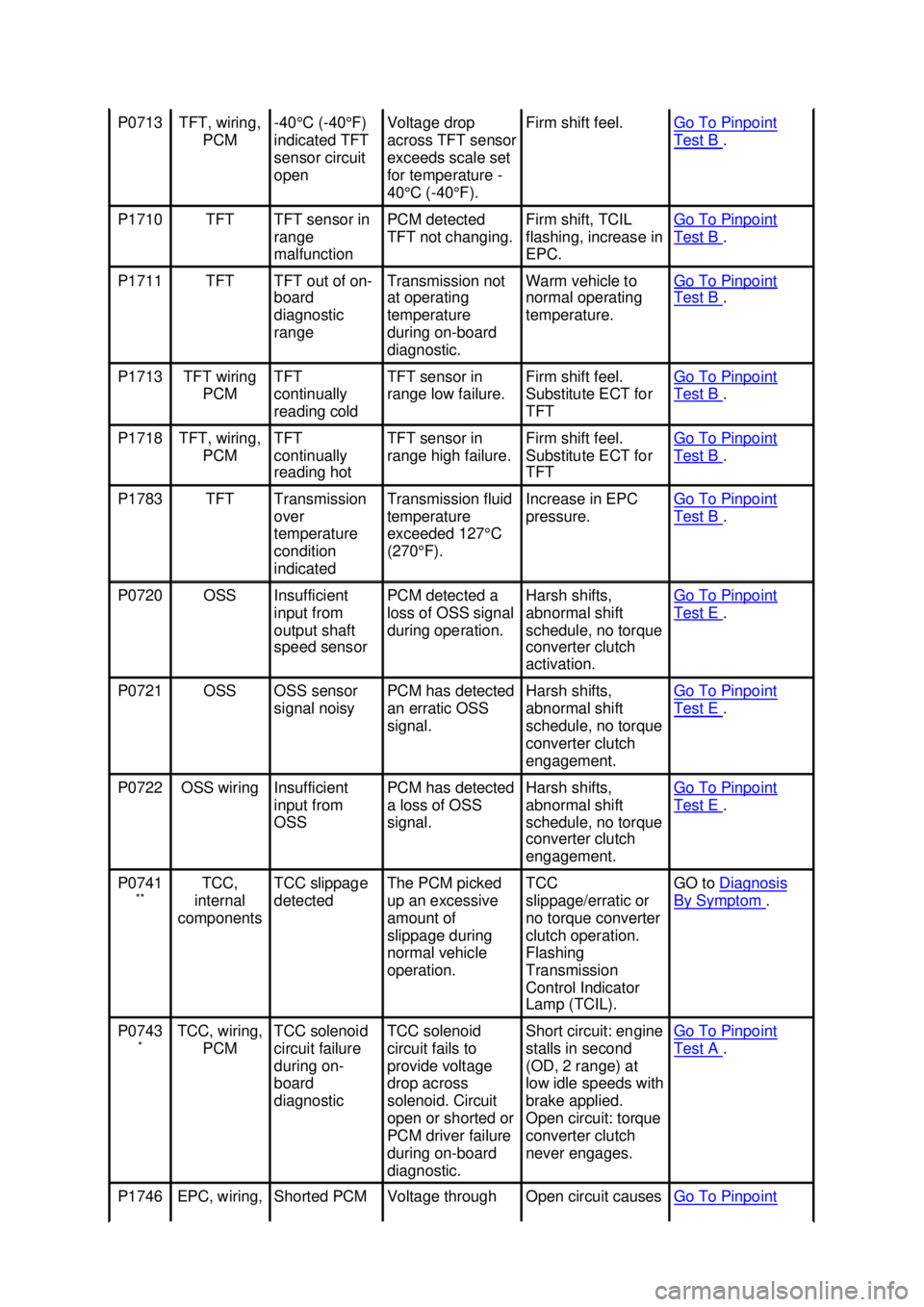

P0713 TFT, wiring,
PCM -40°C (-
40°F)
indicated TFT
sensor circuit
open Voltage drop
across TFT sensor
exceeds scale set
for temperature -
40°C (-
40°F). Firm shift feel. Go To Pinpoint
Test B .
P1710 TFT TFT sensor in
range
malfunction PCM detected
TFT not changing. Firm shift, TCIL
flashing, increase in
EPC. Go To Pinpoint
Test B .
P1711 TFT TFT out of on-
board
diagnostic
range Transmission not
at operating
temperature
during on-
board
diagnostic. Warm vehicle to
normal operating
temperature. Go To Pinpoint
Test B .
P1713 TFT wiring
PCM TFT
continually
reading cold TFT sensor in
range low failure. Firm shift feel.
Substitute ECT for
TFT Go To Pinpoint
Test B .
P1718 TFT, wiring,
PCM TFT
continually
reading hot TFT sensor in
range high failure. Firm shift feel.
Substitute ECT for
TFT Go To Pinpoint
Test B .
P1783 TFT Transmission
over
temperature
condition
indicated Transmission fluid
temperature
exceeded 127°C
(270°F). Increase in EPC
pressure. Go To Pinpoint
Test B .
P0720 OSS Insufficient
input from
output shaft
speed sensor PCM detected a
loss of OSS signal
during operation. Harsh shifts,
abnormal shift
schedule, no torque
converter clutch
activation. Go To Pinpoint
Test E .
P0721 OSS OSS sensor
signal noisy PCM has detected
an erratic OSS
signal. Harsh shifts,
abnormal shift
schedule, no torque
converter clutch
engagement. Go To Pinpoint
Test E .
P0722 OSS wiring Insufficient
input from
OSS PCM has detected
a loss of OSS
signal. Harsh shifts,
abnormal shift
schedule, no torque
converter clutch
engagement. Go To Pinpoint
Test E .
P0741
** TCC,
internal
components TCC slippage
detected The PCM picked
up an excessive
amount of
slippage during
normal vehicle
operation. TCC
slippage/erratic or
no torque converter
clutch operation.
Flashing
Transmission
Control Indicator
Lamp (TCIL). GO to
Diagnosis By Symptom .
P0743
* TCC, wiring,
PCM TCC solenoid
circuit failure
during on-
board
diagnostic TCC solenoid
circuit fails to
provide voltage
drop across
solenoid. Circuit
open or shorted or
PCM driver failure
during on-
board
diagnostic. Short circuit: engine
stalls in second
(OD, 2 range) at
low idle speeds with
brake applied.
Open circuit: torque
converter clutch
never engages. Go To Pinpoint
Test A .
P1746 EPC, wiring, Shorted PCM Voltage through Open circuit causes Go To Pinpoint Klj . 3 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

a
Output circuit check, generated only by electrical symptoms.
b May also be generated by some other non- electric transmission hardware system.
Rotunda Transmission Tester
The Transmission Tester is used to diagnosis the digital transmission range sensor and is used in
conjunction with the pinpoint tests. The tests should be carried out in order. Installing the Transmission
Tester allows separation of the vehicle electronics from transmission electronics; refer to the
Transmission Tester manual for these tests.
zDigital Transmission Range (TR) Sensor Testing components converter
clutch
engagement
error (engine speed
surge) across the
torque converter
clutch. present in 3rd gear.
P1742 TCC,
internal
components TCC solenoid
failed ON TCC solenoid has
failed on by
electric,
mechanical or
hydraulic concern. Harsh shifts. Go To Pinpoint
Test A .
P1743 TCC,
internal
components TCC solenoid
failed ON TCC solenoid has
failed ON by
electric,
mechanical or
hydraulic concern. Harsh shifts. Go To Pinpoint
Test A .
P1744 TCC TCC The PCM picked
up an excessive
amount of TCC
slippage during
normal vehicle
operation. TCC
slippage/erratic or
no torque converter
clutch operation. GO to Diagnosis by
Symptom.
P1767 TCC TCC solenoid
circuit failure
during OBD
Test TCC solenoid
circuit fails to
provide voltage
drop across
solenoid. Circuit
open or shorted or
PCM Driver failure
during OBD Test. Short circuit: engine
stalls in second
(O/D, 2 range) at
low idle speeds with
brake applied.
Open circuit:
Torque Converter
never engages. Go To Pinpoint
Test A .
P1780 TCS TCS not
changing
states TCS not cycled
during self-
test.
TCS circuit open
or shorted. Rerun on-
board
diagnostic and
cycle switch. No
OD cancel when
switch is cycled. REFER to the
Powertrain
Control/Emissions
Diagnosis (PC/ED)
manual.
— TCIL TCIL circuit
failure TCIL circuit open
or shorted. Failed on, OD
cancel mode on. No
flashing TCIL for
EPC failure or
sensor. Failed off,
OD cancel mode
never indicated. No
flashing TCIL for
EPC sensor failure. REFER to the
Powertrain
Control/Emissions
Diagnosis (PC/ED)
manual
P1709 PNP switch PNP switch
out of self-
test
range Vehicle not in
PARK or
NEUTRAL during
on-
board
diagnostic. Rerun on-
board
diagnostic in PARK
or NEUTRAL. Go To Pinpoint
Test C . Klj . 7 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

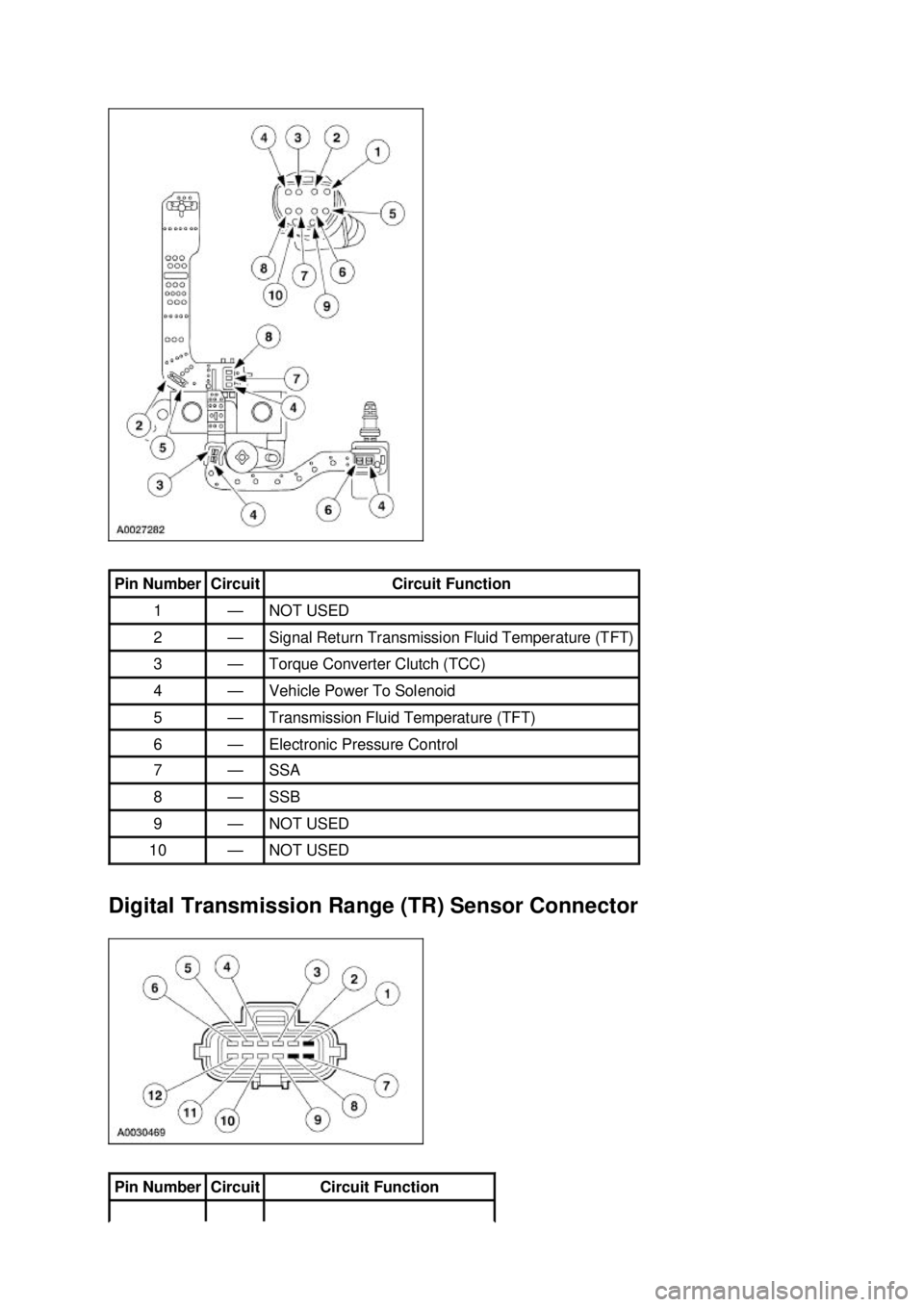

Digital Transmission Range (TR) Sensor Connector Pin Number Circuit Circuit Function
1 — NOT USED
2 — Signal Return Transmission Fluid Temperature (TFT)
3 — Torque Converter Clutch (TCC)
4 — Vehicle Power To Solenoid
5 — Transmission Fluid Temperature (TFT)
6 — Electronic Pressure Control
7 — SSA
8 — SSB
9 — NOT USED
10 — NOT USED
Pin Number Circuit Circuit Function Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Output Shaft Speed (OSS) Sensor Harness Connector 1 — NOT USED
2 — Signal Return
3 — TR3A
4 — TR1
5 — TR2
6 — TR4
7 — NOT USED
8 — NOT USED
9 — Fused Power Feed
10 — Starter Control
11 — Reverse
12 — Starter to Starter Interrupt Relay
Pin Number Circuit Circuit Function
1 — Output Shaft Speed (OSS) Sensor
2 — Signal Return
Digital Transmission Range (TR) Sensor Diagnosis Chart Selector Position PID: TR PID: TR_D PID: TR_V (volts)
TR4 TR3A TR2 TR1 TR3A (PCM Pin 64 to sigrtn)
PARK P/N 0 0 0 0 0.0 Volts
In Between REV 0 1 0 0 1.3 -
1.8 Volts REVERSE REV 1 1 0 0 1.3 -
1.8 Volts In Between REV 0 1 0 0 1.3 -
1.8 Volts NEUTRAL NTRL 0 1 1 0 1.3 -
1.8 Volts In Between
O/D
a 1 1 1 0 1.3 -
1.8 Volts OVERDRIVE
O/D
a 1 1 1 1 1.3 -
1.8 Volts In Between Man 2 1 0 1 1 0.0 Volts Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

a

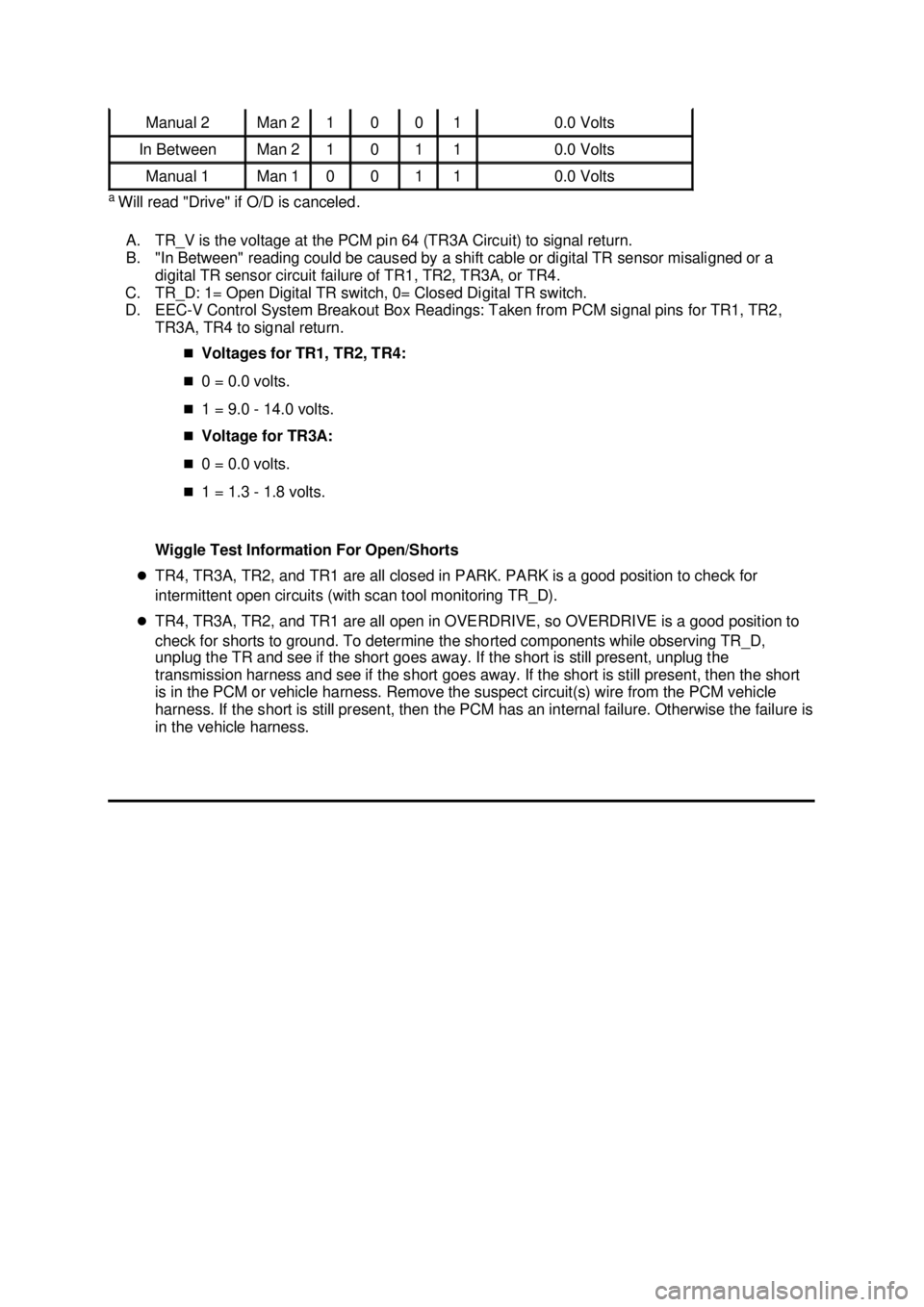

Will read "Drive" if O/D is canceled.
A. TR_V is the voltage at the PCM pin 64 (TR3A Circuit) to signal return.
B. "In Between" reading could be caused by a shift cable or digital TR sensor misaligned or a digital TR sensor circuit failure of TR1, TR2, TR3A, or TR4.
C. TR_D: 1= Open Digital TR switch, 0= Closed Digital TR switch.
D. EEC- V Control System Breakout Box Readings: Taken from PCM signal pins for TR1, TR2,
TR3A, TR4 to signal return.
„Voltages for TR1, TR2, TR4:
„ 0 = 0.0 volts.
„ 1 = 9.0 - 14.0 volts.
„ Voltage for TR3A:
„ 0 = 0.0 volts.
„ 1 = 1.3 - 1.8 volts.
Wiggle Test Information For Open/Shorts
z TR4, TR3A, TR2, and TR1 are all closed in PARK. PARK is a good position to check for
intermittent open circuits (with scan tool monitoring TR_D).
z TR4, TR3A, TR2, and TR1 are all open in OVERDRIVE, so OVERDRIVE is a good position to
check for shorts to ground. To determine the shorted components while observing TR_D,
unplug the TR and see if the short goes away. If the short is still present, unplug the
transmission harness and see if the short goes away. If the short is still present, then the short
is in the PCM or vehicle harness. Remove the suspect circuit(s) wire from the PCM vehicle
harness. If the short is still present, then the PCM has an internal failure. Otherwise the failure is
in the vehicle harness. Manual 2 Man 2 1 0 0 1 0.0 Volts
In Between Man 2 1 0 1 1 0.0 Volts
Manual 1 Man 1 0 0 1 1 0.0 Volts Klj . 4 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
