2003 FORD MUSTANG automatic transmission fluid

DIAGNOSIS AND TESTING
Transmission Drive Cycle Test
NOTE:
Always drive the vehicle in a safe manner according to driving conditions and obey all traffic
laws.
NOTE: The Transmission Drive Cycle Test must be followed exactly. Malfunctions must occur four
times consecutively for shift error DTC code to be set, and five times consecutively for continuous TCC
code to set.
NOTE: When carrying out the Transmission Drive Cycle Test, refer to the Solenoid Application Chart
for correct solenoid operation.
After carrying out the Quick Test, use the Transmission Drive Cycle Test for checking continuous
codes.
1. Record and then erase Quick Test codes.
2. Warm engine to normal operating temperature.
3. Make sure transmission fluid level is correct.
4. With transmission in OVERDRIVE, moderately accelerate from stop to 80 km/h (50 mph). This allows the transmission to shift into fourth gear. Hold speed and throttle open steady for a
minimum of 15 seconds.
5. With transmission in fourth gear and maintaining steady speed and throttle opening, lightly apply and release brake to operate stoplamps. Then hold speed and throttle steady for a
minimum of five seconds.
6. Brake to a stop and remain stopped for a minimum of 20 seconds.
7. Repeat steps 4 through 6 at least five times.
8. Carry out Quick Test and record continuous DTCs. zIf the DTCs are still present, refer to the Diagnostic Trouble Code Chart. Repair all non
transmission DTCs first as they can directly affect the operation of the transmission.
Repeat the Quick Test and the Road Test to verify the correction. Erase the DTCs, carry
out the Drive Cycle Test and repeat the Quick Test after completing repair on the DTC.
z If the continuous test passes and a concern is still present, refer to Diagnosis By Symptom in this section, OASIS messages, and TSBs for concerns.
After On- Board Diagnostic
NOTE: The vehicle wiring harness, PCM and non- transmission sensors may affect transmission
operations. Repair these concerns first.
After the on- board diagnostic procedures are completed, repair all DTCs.
Begin with non- transmission related DTCs, then repair any transmission related DTCs. Use the
diagnostic trouble code chart for information on condition and symptoms. This chart will be helpful in
referring to the correct manual(s) and aids in diagnosing internal transmission concerns and external
non- transmission inputs. The pinpoint tests are used in diagnosing transmission electrical concerns.
Make sure that the vehicle wiring harness and the PCM are diagnosed as well. The Powertrain SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DIAGNOSIS AND TESTING

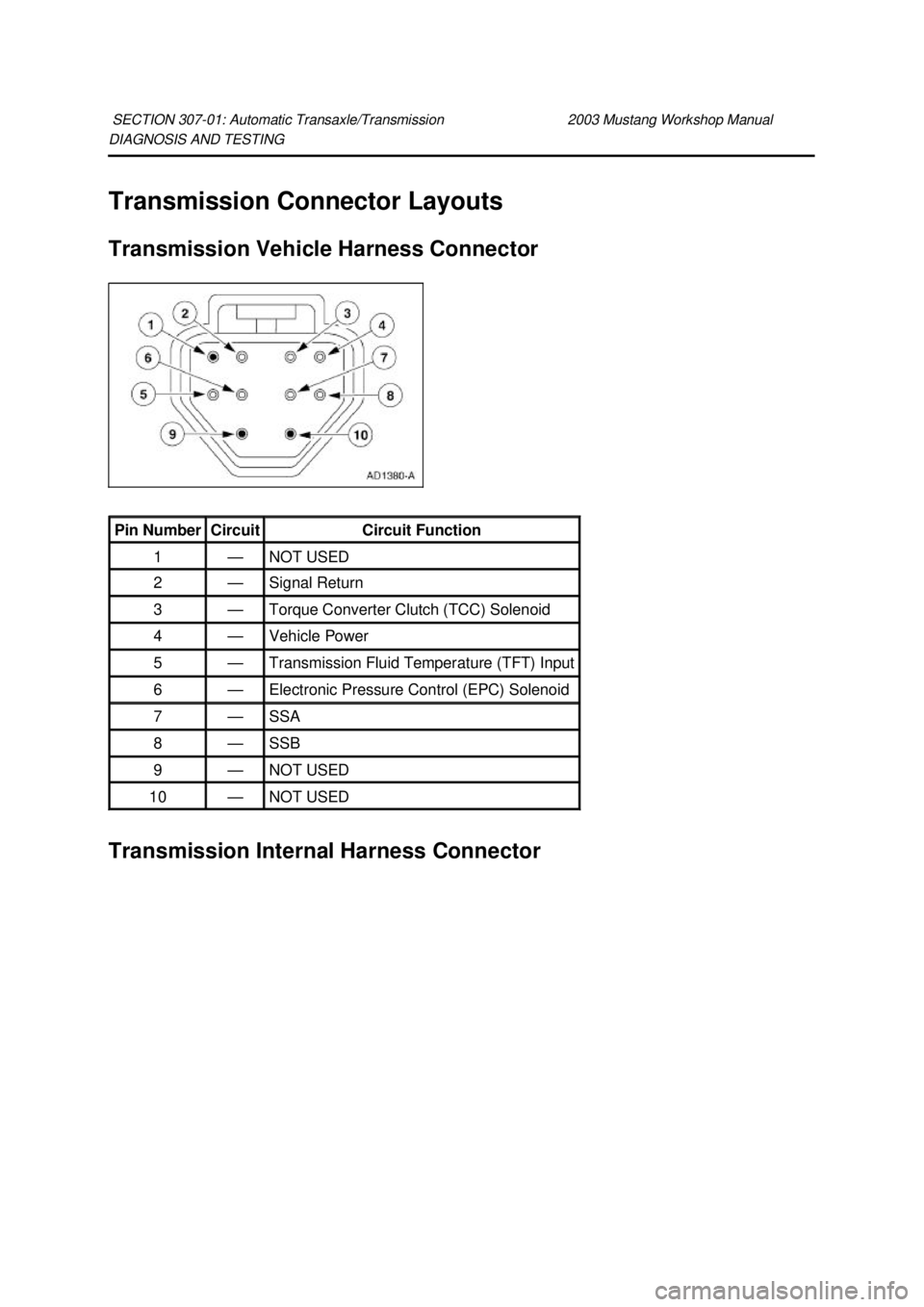

Transmission Connector Layouts
Transmission Vehicle Harness Connector
Transmission Internal Harness Connector SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Pin Number Circuit Circuit Function
1 — NOT USED
2 — Signal Return
3 — Torque Converter Clutch (TCC) Solenoid
4 — Vehicle Power
5 — Transmission Fluid Temperature (TFT) Input
6 — Electronic Pressure Control (EPC) Solenoid
7 — SSA
8 — SSB
9 — NOT USED
10 — NOT USED Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Leakage Inspection
CAUTION: Do not try to stop the fluid leak by increasing the torque beyond specifications.
This may cause damage to the case threads.
Check the fluid filler tube connection at the transmission case. If leakage is found here, install a new
grommet.
Check the VSS plug or VSS sensor O-ring (model dependent). If leakage is found install a new O- ring.
Check fluid lines and fittings between the transmission and the cooler in the radiator tank for
looseness, wear, or damage. If leakage cannot be stopped by tightening a fluid tube nut, install new
parts. When fluid is found leaking between the case and cooler line fitting, check for missing or
damaged O- ring, then tighten the fitting to maximum specification.
If the leak continues, install a new cooler line fitting and tighten to specification. The same procedure
should be followed for fluid leaks between the radiator cooler and the cooler line fittings in this section;
refer to Section 307 - 02 .
Check the engine coolant in the radiator. If transmission fluid is present in the coolant, the cooler in the
radiator is probably leaking.
The cooler can be further checked for leaks by disconnecting the lines for the cooler fittings and
applying no more than 345 kPa (50 psi) air pressure to the fittings. Remove the radiator cap to relieve
the pressure buildup at the exterior of the oil cooler tank. If the cooler is leaking and or will not hold
pressure, install a new cooler.
If leakage is found at the transmission range selector lever, install a new seal.
If leakage is found at the transmission internal harness connector, install a new O- ring. 4R70W External Sealing SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Transmission Fluid Cooler
CAUTION: Whenever a transmission has been disassembled to install new parts, the
cooler bypass valve (CBV), all transmission fluid coolers (in tank and auxiliary) and
transmission fluid cooler lines must be cleaned and backflushed. Use a suitable the torque
converter/fluid cooler cleaner.
NOTE: Cleaning and backflushing the transmission fluid cooling system along with following all the
normal cleaning and inspection procedures in this section during disassembly and reassembly will
keep contamination from reentering the transmission and causing a repeat repair.
When internal wear or damage has occurred in the transmission, metal particles, clutch plate material,
or band material may have been carried into the torque converter and transmission fluid cooler. These
contaminants are a major cause of recurring transmission troubles and must be removed from the
system before the transmission is put back into use.
Transmission Fluid Cooler Flow Test
NOTE: The transmission linkage/cable adjustment, fluid level and line pressure must be within
specification before carrying out this test. Refer to Section 307 - 05 for adjustments.
1. Remove fluid level indicator from fluid filler tube.
2. Place funnel in fluid filler tube.
3. Position the vehicle on a hoist. For additional information, refer to Section 100 - 02 .
4. Remove the cooler return line (top fitting) from the fitting on the transmission case.
5. Connect one end of a hose to the cooler return line and route other end of the hose up to a point where it can be inserted into the funnel at the fluid filler tube.
6. Remove the safety stands and lower the vehicle. Insert end of hose into the funnel.
7. Start the engine and run it at idle with the transmission in NEUTRAL.
8. When fluid flows from the hose in a steady stream, a liberal amount of fluid should be observed. "Liberal" is about 1 liter (1 quart) delivered in 15 seconds. If a liberal flow is observed, the test is
complete.
9. If the flow is not liberal, stop the engine. Disconnect the hose from the cooler return line and connect it to the converter outlet fitting (bottom fitting) on the transmission case.
10. Repeat steps 6 and 7. If flow is now approximately 1 liter (1 quart) in 15 seconds, refer to Transmission Fluid Cooler — Backflushing and Cleaning in this section. If the flow is still not
approximately 1 liter (1 quart) in 15 seconds, repair or install pump and or converter.
For the installation of new transmission fluid cooler or tubes, refer to Section 307 - 02 .
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DIAGNOSIS AND TESTING

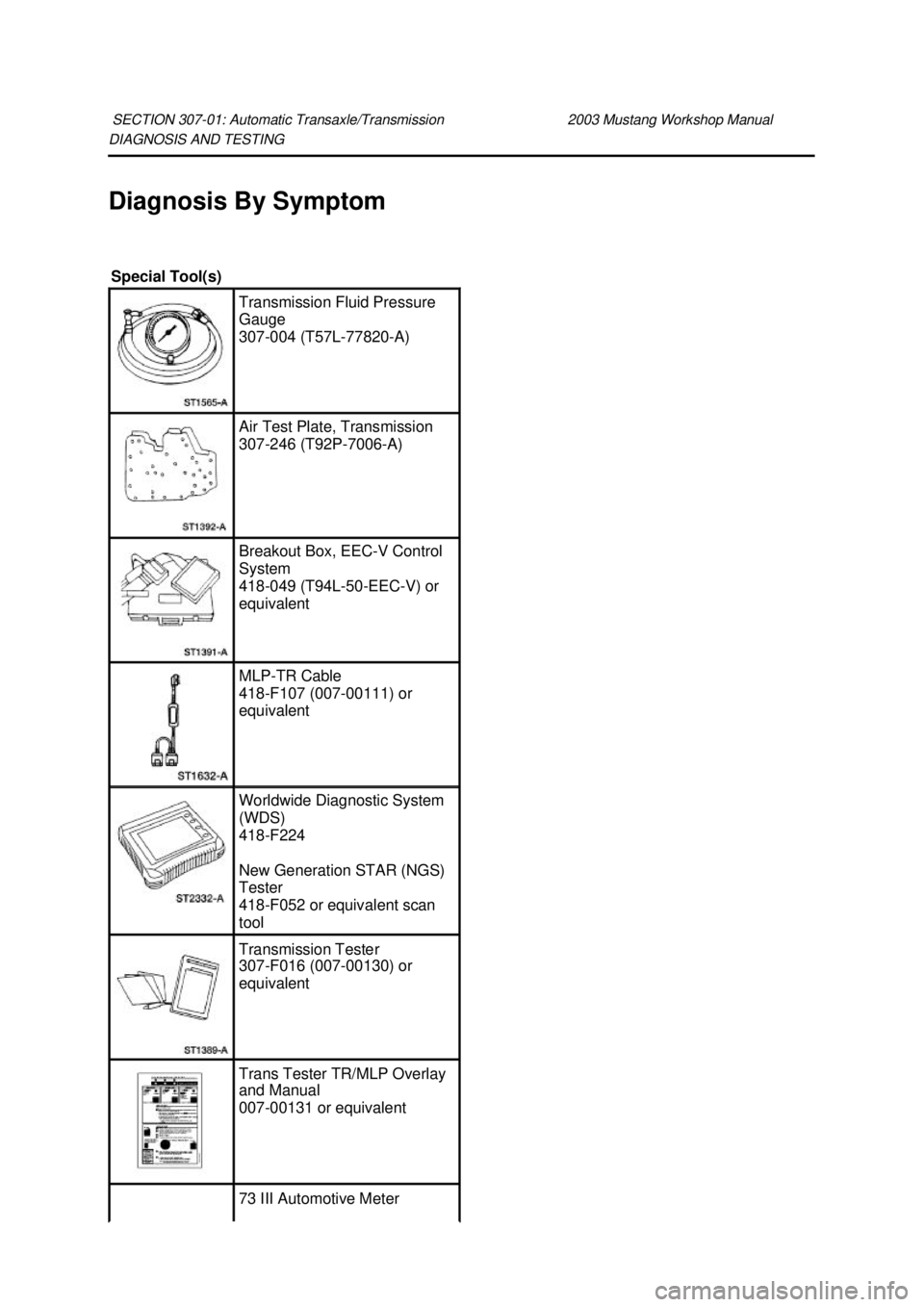

Diagnosis By Symptom
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Transmission Fluid Pressure
Gauge
307-
004 (T57L-77820- A) Air Test Plate, Transmission
307-
246 (T92P-7006- A) Breakout Box, EEC-V Control
System
418- 049 (T94L-50- EEC-V) or
equivalent MLP-
TR Cable
418- F107 (007- 00111) or
equivalent Worldwide Diagnostic System
(WDS)
418-
F224
New Generation STAR (NGS)
Tester
418- F052 or equivalent scan
tool Transmission Tester
307-
F016 (007- 00130) or
equivalent Trans Tester TR/MLP Overlay
and Manual
007-
00131 or equivalent 73 III Automotive Meter Klj . 1 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

GENERAL PROCEDURES
Transmission Fluid Cooler —
Backflushing and Cleaning
1. CAUTION: Do not use any supplemental transmission fluid additives or cleaning
agents. The use of these products could cause internal transmission components to fail;
this will effect the operation of the transmission.
Conduct backflushing with a suitable torque converter/fluid cooler cleaner. Test your equipment
to make sure that a vigorous fluid flow is present before proceeding. Install a new filter in the
flush equipment if flow is weak or contaminated.
2. To aid in attaching the cleaner to the transmission steel cooler lines, connect two additional rubber hoses to the transmission end of the steel transmission cooler lines as described below.
zConnect the cleaner tank pressure line to the steel transmission cooler return line
(longest line).
z Connect a tank return hose to the steel transmission cooler pressure line (shorter line).
Place the outlet end of this hose in the solvent tank reservoir.
3. Turn on solvent pump and allow the solvent to circulate a minimum of 5 minutes (cycling switch on and off will help dislodge contaminants in cooler system).
4. Switch off the solvent pump and disconnect the solvent pressure hose from the transmission cooler return line.
5. Use compressed air to blow out the cooler(s) and lines (blow air into the transmission cooler return line) until all solvent is removed.
6. Remove the rubber return hose from the remaining steel cooler line.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

GENERAL PROCEDURES
Transmission Fluid Drain and Refill
Draining
CAUTION: Always refer to the instructions supplied with the flush and fill machine.
NOTE: Draining fluid from the transmission by removing only the fluid pan is acceptable for vehicles
that do not have a torque converter drain plug, for normal or severe duty fluid maintenance.
NOTE: A new procedure for draining and adding transmission fluid using a suitable transmission flush
and fill machine has been added. The following procedure has different methods for draining and
refilling the listed vehicles:
zAll vehicles using a suitable flush and fill machine.
z Vehicles equipped with a torque converter drain plug.
z Vehicles without a torque converter drain plug.
Use the method that is applicable to your vehicle.
All vehicles using a suitable flush and fill machine 1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to Section 100 - 02 .
2. Use a suitable flush and fill machine to change the fluid.
3. When connecting the flush and fill machine, connect the machine to the fluid cooler tube after the fluid cooler on the cooler return line. This will help remove any foreign material trapped in
the fluid coolers. Refill SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Automatic Transmission Flush
and Fill Machine
211-
00018
Automatic Transmission Flush
and Fill Machine
199- 00010 or equivalent
Material Item Specification
MERCON® V Automatic
Transmission Fluid
XT
-5-QM MERCON®
V Klj . 1 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

4. Use only clean automatic transmission fluid.
5. Once the fluid exchange has been completed, disconnect the flush and fill machine. Reconnect
any disconnected fluid cooler tubes.
6. With the engine running and the transmission at normal operating temperature 66- 77°C (150-
170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed,
add fluid in increments of 0.24- liter (0.5-pint) until the correct level is achieved (fluid should be in
the cross- hatched area of the fluid level indicator).
Draining
Vehicles equipped with a torque converter drain plug 1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to Section 100 - 02 .
2. Loosen the transmission fluid pan bolts and allow the fluid to drain.
3. After the fluid has drained, remove the transmission fluid pan.
4. Do not remove the fluid filter. It is not necessary to change the fluid filter during a normal maintenance fluid change.
5. Remove the torque converter drain plug cover. Klj . 2 ba
