2003 FORD MUSTANG ESP

3.
NOTE: Running this test with the vehicle in gear or with the A/C compressor clutch engaged
(running) will cause incorrect diagnosis.
Place the transmission in PARK (P) or NEUTRAL (N).
4. Start the engine and allow the engine to idle throughout this test. Allow the engine to run for 2 minutes, then record the ECT (4.6L) or CHT (3.8L) voltage. Record the ECT (4.6L) or CHT
(3.8L) voltage every 60 seconds. When the ECT (4.6L) or CHT (3.8L) voltage trend changes
direction or only changes slightly (0.03 volts or less) from the previous reading, record this as
the thermostat opening voltage. Use the voltage and corresponding coolant temperature chart
listed below for 4.6L engines only.
5. If the thermostat opening voltage is greater than 0.75 volts and less than 82°C (180°F), install a new water thermostat.
6. If the thermostat opening voltage is less than 0.75 volts and greater than 82°C (180°F), the water thermostat is good and a new water thermostat should not be installed. GO to Symptom Chart for further instructions.
Thermostat — Mechanical Test
1. Remove the water thermostat.
2. Check the water thermostat for seating. Hold the water thermostat up to a lighted background. Leakage of light around the thermostat valve at room temperature indicates that a new water
thermostat should be installed. Some water thermostats have a small leakage notch at one
location on the perimeter of the thermostat valve, which is considered normal.
3. Immerse the water thermostat in a boiling coolant and water mixture.
4. See the General Specifications chart for water thermostat opening temperatures.
Radiator Leak Test, Removed From the Vehicle CAUTION: Never leak test an aluminum radiator in the same water that copper/brass
radiators are tested in. Flux and caustic cleaners may be present in the cleaning tank and they
will damage aluminum radiators.
NOTE: Always install plugs in the oil cooler fittings before leak- testing or cleaning any radiator.
NOTE: Clean the radiator before leak- testing to avoid contamination of tank. Coolant Temperature °C (°F) ECT (Volts)
22 (71) 3.00
43 (109) 2.01
71 (159) 1.01
82 (180) 0.75
91 (195) 0.059
97 (206) 0.050
105 (221) 0.040 Klj . 9 ba
102003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Supercharger Cooling
CAUTION: Some vehicle cooling systems are filled with Motorcraft Premium Engine
Coolant VC -4-A (in Oregon VC- 5, in Canada CXC- 10) or equivalent meeting Ford specification
ESE- M97B44- A (green color). Others are filled with Motorcraft Premium Gold Engine Coolant
VC -7-A or equivalent meeting Ford specification WSS- M97B51-A1 (yellow color). Always fill the
cooling system with the same coolant that is present in the system. Do not mix coolant types.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
NOTE: The air that is produced from the supercharger is cooled by the intercooler.
Walter C. Avrea, the owner of patents 3,601,181 and RE 27,965, has granted Ford Motor Company
rights with respect to cooling systems covered by these patents.
The cooling system components include the:
zintercooler
z intercooler radiator (8K226)
z pressure relief cap
z degas bottle
z electric water pump (8501)
The degas bottle:
zprovides a location for system fill.
z contains coolant expansion and system pressurization.
z provides air separation during operation.
z replenishes the intercooler coolant to the system.
The intercooler coolant flows:
zfrom the intercooler to the degas bottle.
z from the degas bottle to the water pump.
z from the water pump to the intercooler radiator.
z from the intercooler radiator to the intercooler.
Engine coolant provides freeze protection, boil protection, cooling efficiency and corrosion protection to
the engine and cooling components. In order to obtain these protections, the engine coolant must be
maintained at the correct concentration and fluid level in the degas bottle.
When adding engine coolant, use a 50/50 mixture of engine coolant and clean, drinkable water.
To maintain the integrity of the coolant and the cooling system: SECTION 303-
03B: Supercharger Cooling 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Belt Tensioner, Automatic
Check the automatic drive belt tensioner:
1. With the engine off, check for correct drive belt routing; refer to Accessory Drive . Repair as
necessary.
2. Rotate the drive belt tensioner and check for a binding or frozen condition. Install new components as necessary.
Drive Belt Misalignment
CAUTION: Incorrect drive belt installation will cause excessive drive belt wear and may
cause the drive belt to come off the drive pulleys.
Non- standard drive belts may track differently or incorrectly. If a drive belt tracks incorrectly, install it
with an original equipment drive belt to avoid performance failure or loss of drive belt.
With the engine running, check drive belt tracking. If the (A) edge of the drive belt rides beyond the
edge of the pulleys, noise and premature wear may occur. Make sure the (B) drive belt rides correctly
on the pulley. If a drive belt tracking condition exists, proceed with the following:
zVisually check the drive belt tensioner for damage, especially the mounting pad surface. If the
drive belt tensioner is not installed correctly, the mounting surface pad will be out of position.
This will result in chirp and squeal noises.
z With the engine running, visually observe the grooves in the pulleys (not the pulley flanges or
the pulley forward faces) for excessive wobble. Install new components as necessary.
z Check all accessories, mounting brackets and the drive belt tensioner for any interference that
would prevent the component from mounting correctly. Correct any interference condition and
recheck the drive belt tracking.
z Tighten all accessories, mounting brackets, and drive belt tensioner retaining hardware to
specification. Recheck the drive belt tracking. Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

3. If the concern remains after the inspection, connect the scan tool to the data link connector
(DLC) located beneath the instrument panel and select the vehicle to be tested from the scan
tool menu. If the scan tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
z check the connections to the vehicle.
z check the ignition switch position.
4. If the scan tool still does not communicate with the vehicle, refer to the scan tool manual.
5. Carry out the DATA LINK DIAGNOSTICS test. If the scan tool responds with:
z CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 - 00 .
z NO RESP/NOT EQUIP for PCM, refer to the Powertrain Control/Emissions Diagnosis (PC/ED)
manual.
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs), erase
the continuous DTCs and carry out the PCM KOEO self- test.
6. If the DTCs retrieved are related to the concern, go to the PCM Diagnostic Trouble Code (DTC) Index to continue diagnostics.
7. If the concern remains after the inspection, determine the symptom. GO to Symptom Chart .
PCM Diagnostics Trouble Code (DTC) Index
Symptom Chart z
EVAP lines or hoses
z Vacuum lines or hoses DTC Description Source Action
P0442 Small leak detected in EVAP system
(As small as 1.02 mm [0.040 inch]) PCM Go To Pinpoint Test A .
P0455 Major leak or no flow detected PCM Go To Pinpoint Test B .
P0457 Check for missing or leaking fuel filter
cap PCM Go To Pinpoint Test A .
P1443 Very small or no purge flow detected PCM Go To Pinpoint Test B .
P1450 Excessive vacuum detected in the fuel
tank PCM Go To Pinpoint Test C .
— Any other PCM DTC PCM REFER to the Powertrain
Control/Emissions Diagnosis (PC/ED)
manual.
SYMPTOM CHART Condition
Possible Sources Action
z Hissing sound when
removing fuel cap z
Canister vent solenoid.
z Evaporative emissions
canister.
z Fuel vapor control valve z
Go To Pinpoint Test D . Klj . 4 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

z

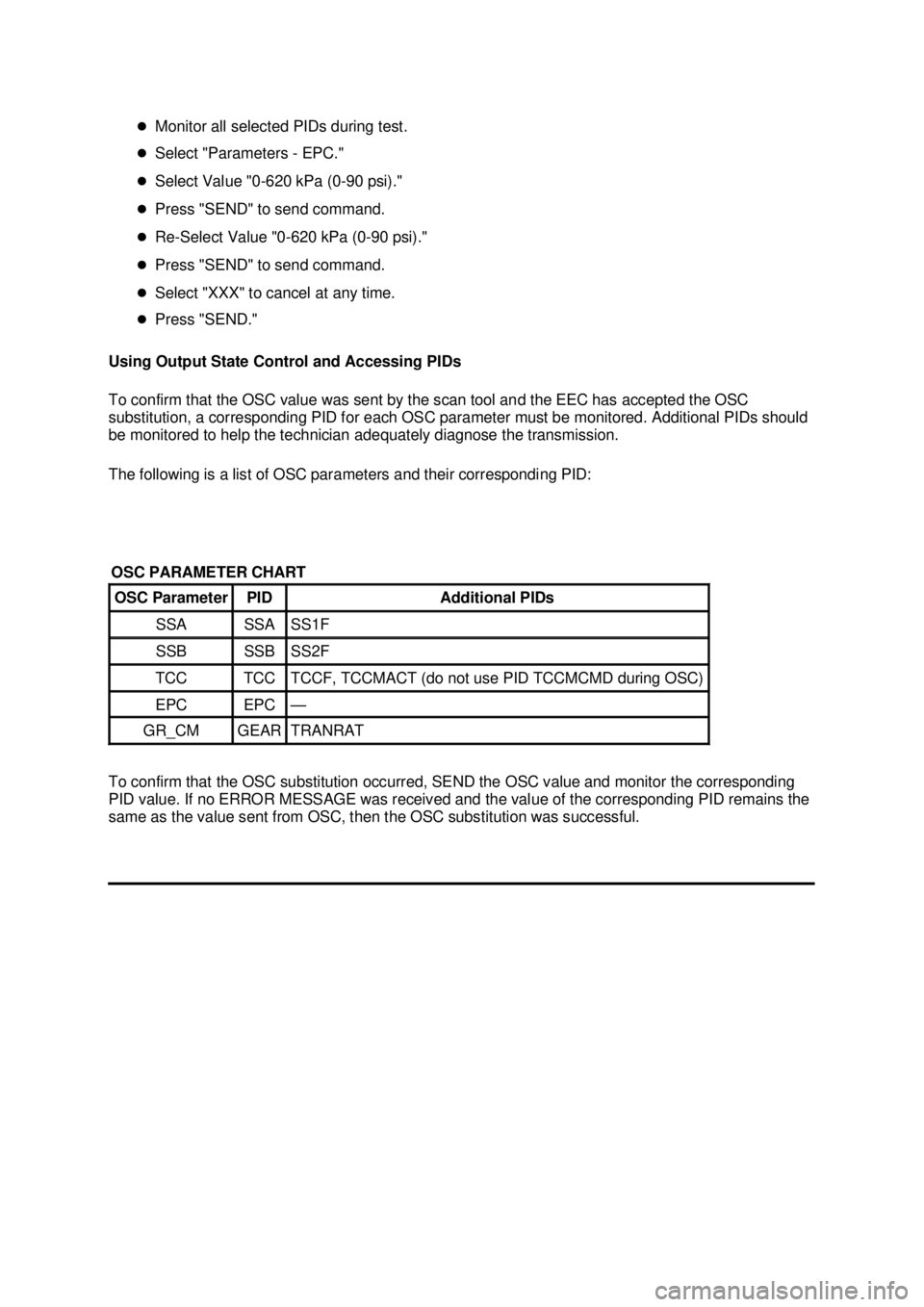

Monitor all selected PIDs during test.
z Select "Parameters - EPC."
z Select Value "0- 620 kPa (0-90 psi)."
z Press "SEND" to send command.
z Re- Select Value "0- 620 kPa (0-90 psi)."
z Press "SEND" to send command.
z Select "XXX" to cancel at any time.
z Press "SEND."
Using Output State Control and Accessing PIDs
To confirm that the OSC value was sent by the scan tool and the EEC has accepted the OSC
substitution, a corresponding PID for each OSC parameter must be monitored. Additional PIDs should
be monitored to help the technician adequately diagnose the transmission.
The following is a list of OSC parameters and their corresponding PID:
To confirm that the OSC substitution occurred, SEND the OSC value and monitor the corresponding
PID value. If no ERROR MESSAGE was received and the value of the corresponding PID remains the
same as the value sent from OSC, then the OSC substitution was successful. OSC PARAMETER CHART OSC Parameter PID Additional PIDs
SSA SSA SS1F
SSB SSB SS2F
TCC TCC TCCF, TCCMACT (do not use PID TCCMCMD during OSC)
EPC EPC —
GR_CM GEAR TRANRAT Klj . 8 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

A no-
drive condition can exist even with correct transmission fluid pressure because of inoperative
clutches or bands. An erratic shift can be located through a series of checks by substituting air
pressure for fluid pressure to determine the location of the malfunction.
Follow the procedure to determine the location of the inoperative clutch or band by introducing air
pressure into the various test plate passages.
NOTE: Use only dry, regulated 276 kPa (40 psi) maximum air pressure.
Apply air to the appropriate passage(s). A dull thud should be felt or heard or movement could be
observed when the clutch component applies. There should be no hissing sound when the component
is applied.
Cover the vent hole in the test plate with a clean, lint- free shop towel to prevent spray when the air is
applied. Plugging the vent hole during testing will result in inaccurate results.
1. Drain transmission fluid and remove the transmission fluid pan.
2. Remove the main control valve body.
3. Install transmission test plate and gasket. Tighten bolts to 10 Nm (89 lb- in).
4. NOTE: Do not apply air to the test plate vent hole.
Apply air to the appropriate clutch port (refer to the Transmission Air Test Plate illustration). A
dull thud may be heard or movement felt when the component is applied or released. If clutch
seals or check balls are leaking a hissing sound may be heard.
If the servos do not operate, disassemble, clean and inspect them to locate the source of the concern.
If air pressure applied to the clutch passages fails to operate a clutch, or operates clutches
simultaneously, inspect the fluid passages in the case.
If air pressure applied to the accumulator fails to operate an accumulator, remove and inspect case
passages and piston.
Clutch Pressure Test
The Clutch Pressure Test will diagnose a low- pressure condition or leakage in a clutch circuit. A
difference of 103 kPa (15 psi) or more between the clutch pressure and line pressure will prevent a
normal shift.
1. CAUTION: Pressure gauges affect the shift quality of the transmission. Care must
be taken not to accelerate or decelerate rapidly. Possible transmission failure can result.
Attach 0- 2068 kPa (0- 300 psi) pressure gauges to the line pressure tap and the appropriate
clutch pressure tap according to Band and Clutch Application Chart A&B. Gauges must be
accurate enough to distinguish a 103 kPa (15 psi) difference. (If this test is done in conjunction
with a control pressure test, pressure gauges will be attached to all pressure taps.) Have
sufficient flexible hose available to read the gauges in the vehicle.
2. Drive the vehicle. When pressure is applied to the clutch, note the difference between the line pressure gauge and the corresponding clutch pressure gauge.
3. If the difference in pressures is less than 103 kPa (15 psi), the corresponding clutch circuit does not have a pressure loss. The gauges on the line pressure tap and appropriate clutch pressure
tap can be switched to confirm that gauge calibration differences are not the cause. Klj . 6 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

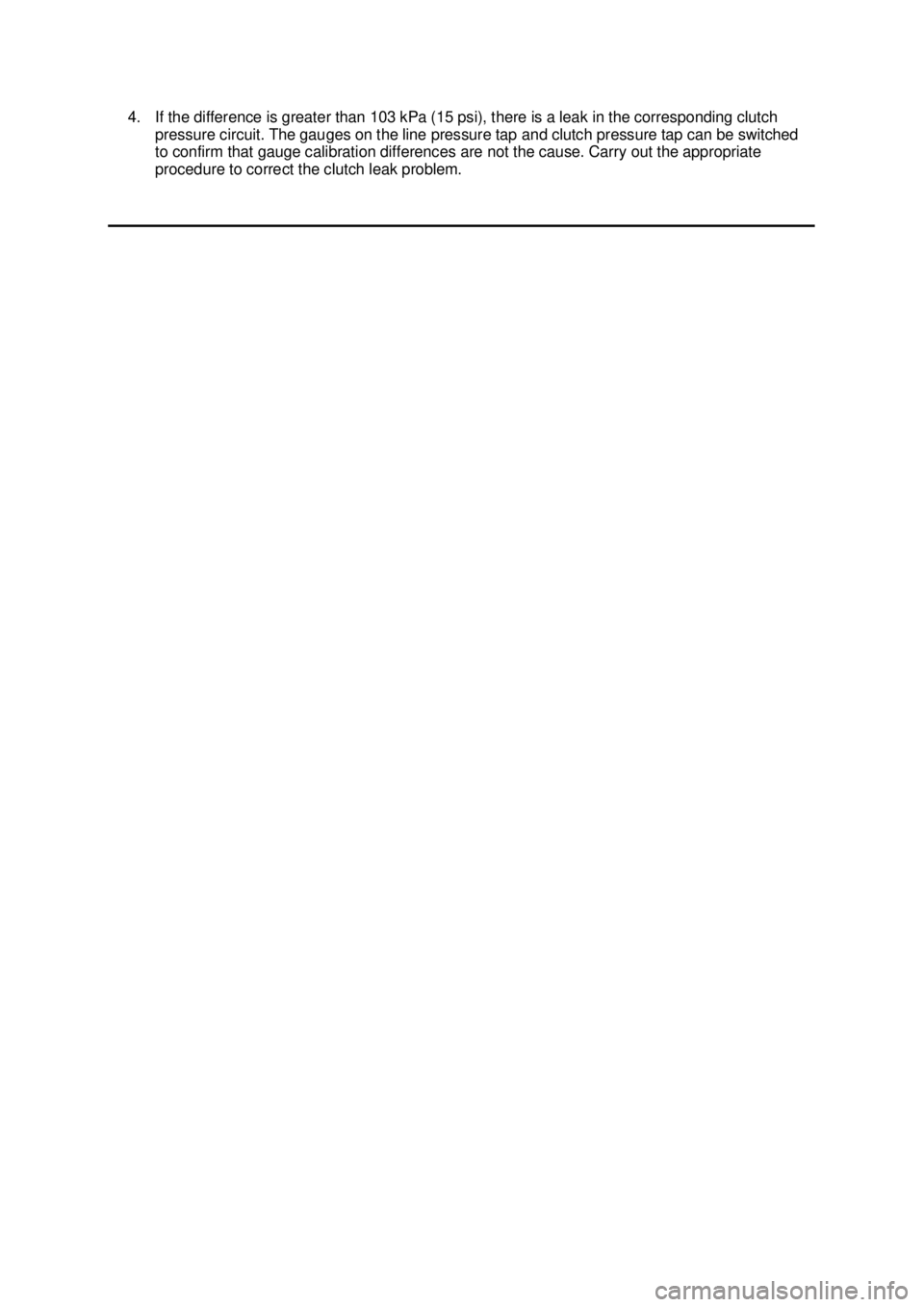

4. If the difference is greater than 103 kPa (15 psi), there is a leak in the corresponding clutch
pressure circuit. The gauges on the line pressure tap and clutch pressure tap can be switched
to confirm that gauge calibration differences are not the cause. Carry out the appropriate
procedure to correct the clutch leak problem. Klj . 7 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

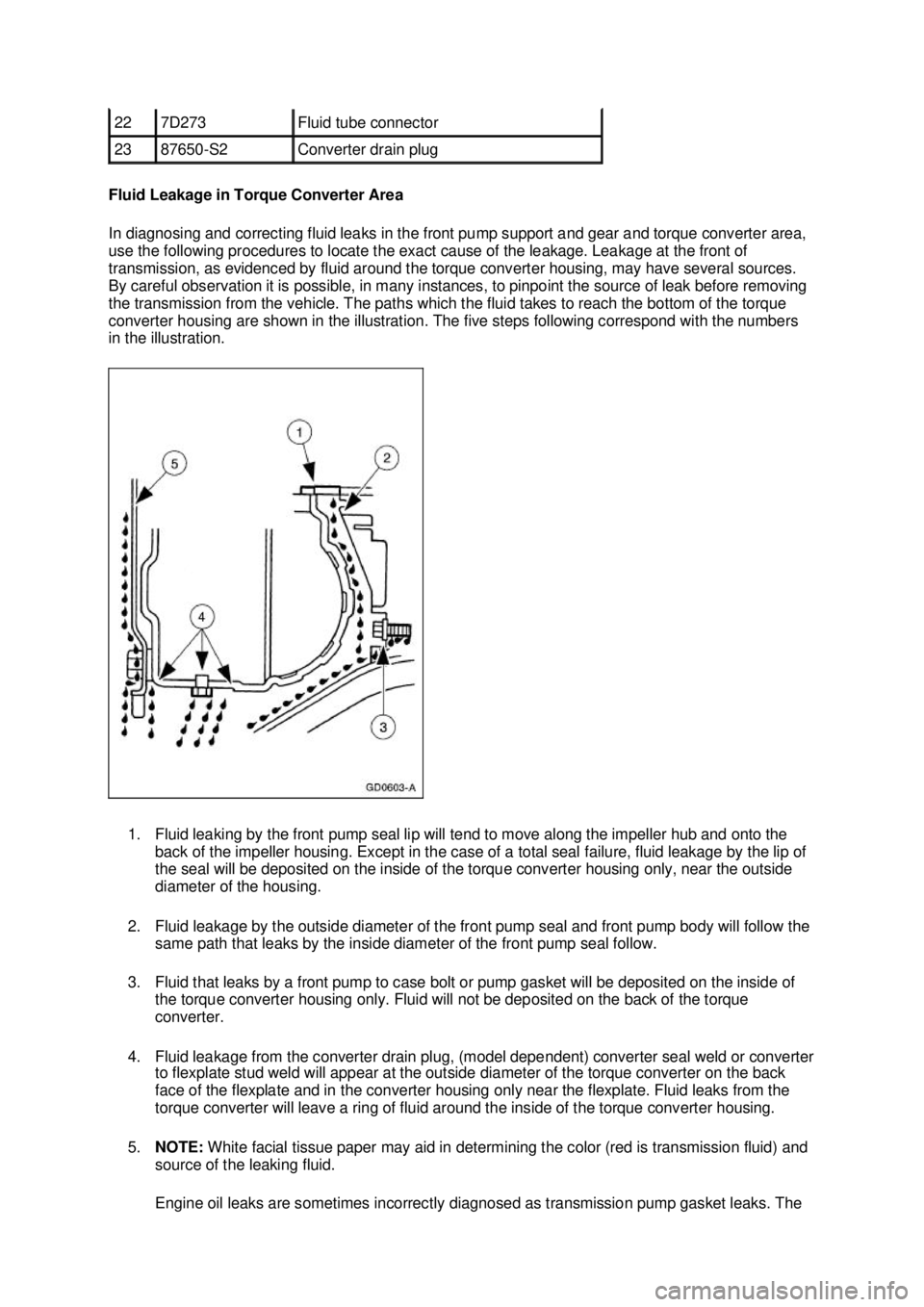

Fluid Leakage in Torque Converter Area
In diagnosing and correcting fluid leaks in the front pump support and gear and torque converter area,
use the following procedures to locate the exact cause of the leakage. Leakage at the front of
transmission, as evidenced by fluid around the torque converter housing, may have several sources.
By careful observation it is possible, in many instances, to pinpoint the source of leak before removing
the transmission from the vehicle. The paths which the fluid takes to reach the bottom of the torque
converter housing are shown in the illustration. The five steps following correspond with the numbers
in the illustration.
1. Fluid leaking by the front pump seal lip will tend to move along the impeller hub and onto the back of the impeller housing. Except in the case of a total seal failure, fluid leakage by the lip of
the seal will be deposited on the inside of the torque converter housing only, near the outside
diameter of the housing.
2. Fluid leakage by the outside diameter of the front pump seal and front pump body will follow the same path that leaks by the inside diameter of the front pump seal follow.
3. Fluid that leaks by a front pump to case bolt or pump gasket will be deposited on the inside of the torque converter housing only. Fluid will not be deposited on the back of the torque
converter.
4. Fluid leakage from the converter drain plug, (model dependent) converter seal weld or converter to flexplate stud weld will appear at the outside diameter of the torque converter on the back
face of the flexplate and in the converter housing only near the flexplate. Fluid leaks from the
torque converter will leave a ring of fluid around the inside of the torque converter housing.
5. NOTE: White facial tissue paper may aid in determining the color (red is transmission fluid) and
source of the leaking fluid.
Engine oil leaks are sometimes incorrectly diagnosed as transmission pump gasket leaks. The 22 7D273 Fluid tube connector
23 87650-S2 Converter drain plug Klj . 3 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
