2003 FORD MUSTANG ESP

X = pressure applied Adjust the digital TR sensor as necessary.
Incorrect Pressures
·
Low reverse clutch pressure,
low reverse band pressure, low
line pressure
z Forward Off, Intermediate
Off, Direct X
z Forward Off, Intermediate
X, Direct Off
z Forward Off, Intermediate
X, Direct X
z Forward X, Intermediate
Off, Direct X
z Forward X, Intermediate X,
Direct Off
z Forward X, Intermediate X,
Direct X
z Forward X, Intermediate
Off, Direct Off ·
Check for which pressures are on and refer to Band/Clutch
Application Chart 601 and corresponding routines.
„ 324, 301
„ 325, 301
„ 323, 324, 325, 301
„ 324
„ 325
„ 323, 324, 325
„ Refer to appropriate mechanical diagnosis. Mechanical
·
Bands, clutches or seals
damaged or worn ·
Refer to Transmission Disassembly and Assembly.
Shift Concerns: No Manual 1st Gear Possible Component Reference/Action
216 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs,
vehicle wiring harnesses, PCM,
shift solenoids, digital TR
sensor ·
Carry out Self- Test. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual for diagnosis
and testing of the Powertrain Control System. Go To Pinpoint Test A or
Go To Pinpoint Test C . Repair as required. Clear
DTCs, road test and repeat Self- Test. 316 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage, Cable, Digital TR
Sensor
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift
cable as necessary. After repairing transmission shift cable,
verify that the digital TR sensor is correctly adjusted. Adjust
the digital TR sensor as necessary. Incorrect Pressures
·
Low reverse clutch pressure,
low reverse band pressure, low
line pressure, low EPC
pressure ·
Check pressure at line and EPC pressure taps; refer to Line
Pressure Chart for specifications. If pressures are low, check
the following components: oil filter and seal assembly, main
controls, reverse clutch assembly and reverse servo
assembly. Fluid Filter and Seal Assembly
·
Plugged or damaged ·
Install a new filter and seal assembly. Klj . 15 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Pinpoint Tests
PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT
RELEASE/LOCK CORRECTLY z
The shift control is
out of correct gear
relationship z
Transmission shift
cable and bracket.
z Retainer bracket.
z Shift control linkage
out of adjustment. z
Go To Pinpoint Test B .
z Transmission range
indicator does not
correspond to the
gear z
Transmission shift
cable bracket. z
TIGHTEN the bolts
holding transmission
shift cable bracket.
z Transmission shift
cable loose from the
transmission
retainer bracket. z
TIGHTEN the bolts.
z Shift linkage. zVERIFY digital
transmission range
(DTR) sensor range for
correct adjustment.
REFER to Section 307 -
01 .
z The Transmission
Control Switch (TCS)
Is Inoperative z
CJB Fuse 28 (15A).
z TCS.
z TCS not cycled
during self- test.
z Powertrain control
module (PCM).
z Circuitry. z
Go To Pinpoint Test C .
z The Transmission
Control Indicator
Lamp (TCIL) Is Not
Operating Correctly z
Bulb.
z Instrument cluster.
z Powertrain control
module. z
REFER to Section 413 -
01 .
z Excessive Shift Effort zTransmission shift
cable. z
INSTALL a new
transmission shift cable.
z Cable bracket. zADJUST the cable.
TIGHTEN the screws.
z Transmission Range
Selector Lever Will
Not Shift z
Transmission shift
cable. z
INSTALL a new
transmission shift cable.
z Broken transmission
shift cable. z
INSTALL a new
transmission shift cable. Test Step Result / Action to Take
A1 TEST THE BRAKE LIGHTS
z
Key in ON position.
z Apply the brake pedal and observe the stoplamps.
z Do the stoplamps illuminate? Yes
GO to
A2 .
No
REFER to Section 417 -Klj . 2 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

z
Other
component
leaking. z
IDENTIFY leaking fluid
as engine, power
steering, or transmission
fluid. REPAIR as
necessary.
z False report. zREMOVE all traces of
lube on the exposed
transmission surfaces.
CHECK the vent for free
breathing. OPERATE
the transmission and
INSPECT for new
leakage. REPAIR as
necessary. REFER to
Section 308 - 03A or
Section 308 - 03B .
z Internal
components. z
INSPECT for leaks at
the input shaft bearing
retainer seal and the
shift rail expansion plug.
REFER to Section 308 -
03A or
Section 308 -
03B . INSPECT for leaks
at the top cover gasket.
INSPECT the case for
sand holes or cracks.
REPAIR or INSTALL a
new case as necessary.
REFER to Section 308 -
03A or
Section 308 -
03B .
z Fill and drain
plugs. z
CHECK fill and drain
plugs and bore threads.
REPAIR as necessary.
TIGHTEN plugs to
specified torque value.
REFER to Section 308 -
03A or
Section 308 -
03B .
z Bearing failure zOther part
failure.
z Raceways or
rollers.
z Lubricant.
z Towing vehicle
further than 80
km (50 miles)
with driveshaft
installed.
Mainshaft
tapered bearing
and needle
caged bearings
are especially
susceptible to
damage. z
REMOVE,
DISASSEMBLE and
CLEAN the
transmission. Inspect for
damaged parts and
install new components
as necessary. (Note:
RESET the bearing
preload if any new
tapered bearings are
installed). REFER to
Section 308 - 03A or
Section 308 - 03B .
z Vibration break-
up of retainer
and brinelling of
races.
z Bearing(s). z
DETERMINE the cause
of vibration and
CORRECT. Otherwise
PROCEED as above. Klj . 6 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES
Disc Check
WARNING: Dust and dirt present on wheel brake and clutch assemblies may contain
asbestos fibers that are hazardous to health when made airborne by cleaning with compressed
air or by dry brushing. Failure to follow these instructions may result in personal injury.
WARNING: Wheel brake assemblies and clutch facings should be cleaned using a vacuum
cleaner recommended for use with asbestos fibers such as the brake automobile brake drum
system with vacuum. Dust and dirt from the vacuum should be disposed of in a manner that
prevents dust exposure such as sealed bags. The bag must be labeled according to OSHA
instructions and the trash hauler notified as to the bag's contents. Failure to follow these
instructions may result in personal injury.
WARNING: If a vacuum suitable for asbestos is not available, cleaning should be done
wet. If dust generation is still possible, technicians should wear government- approved toxic
dust purifying respirators. Failure to follow these instructions may result in personal injury.
WARNING: Grinding or sanding on the brake linings, pads, rotors, drums or clutch
facings should be done only while using correct exhaust- ventilated equipment. Failure to
follow these instructions may result in personal injury.
WARNING: OSHA requires areas where asbestos dust generation is possible to be
isolated and posted with warning signs. Only technicians concerned with carrying out brake or
clutch service should be present in the area. Failure to follow these instructions may result in
personal injury.
1. Check the clutch disc lining surface for hardening or the presence of oil.
2. Check for a worn clutch disc lining. Measure the minimum allowable depth to the rivet heads with a slide caliper.
SECTION 308-
00: Manual Transaxle/Transmission and Clutch — General
Information 2003 Mustang Workshop
Manual Special Tool(s)
Brake/Automobile Brake Drum
System with Vacuum
164-
R3622 or equivalent Dial Indicator/Magnetic Base
100-
D002 (D78P-4201- B) or
equivalent Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Exhaust System
WARNING: The normal operating temperature of the exhaust system is very high. Never
attempt to repair any part of the system until it has cooled. Be especially careful when working
around the three way catalytic converter. The temperature of the three way catalytic converter
rises to a high level after only a few minutes of engine operation.
CAUTION: When repairing exhaust system or removing exhaust components, disconnect
all heated oxygen sensors (HO2S) at the wiring connectors to prevent damage to the heated
oxygen sensors and wiring harness. For additional information, refer to Section 303 - 14 for
location of the heated oxygen sensors.
The exhaust system:
zcontains dual three- way catalytic converters.
z has a crossover pipe downstream of the three way catalytic converters (4.6L).
z has two upstream heated oxygen sensors mounted before the three- way catalytic converters.
z the production muffler and tailpipe assembly is a one- piece design exhaust system.
Exhaust System — 3.8L Exhaust System — 4.6L (2V) SECTION 309-
00: Exhaust System 2003 Mustang Workshop Manual Item Part Number Description
1 5F250 Dual converter assembly
2 5D255 Insulator bracket assembly
3 5A246 Insulator bracket, (tailpipe)
4 5D255 Insulator bracket assembly
5 5232 Muffler Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

2. Inspect to determine if one of the following mechanical or electrical concerns apply:
a A leak in the vacuum control circuit may occur during acceleration (slow leak), at all times
(large leak), or only when specific functions are selected (indicating a leak in that portion of the
circuit). The vacuum hoses used in the passenger compartment control circuit are constructed
from PVC plastic material. The vacuum hoses used in the engine compartment are constructed
of Hytrel® . Because of the materials used, never pinch the vacuum hoses off during diagnosis
to locate a leak. A wood golf tee can be used as a plug when it is necessary to plug one end of
a vacuum hose for leak test purposes.
3. If the inspection reveals obvious concerns that can be readily identified, repair as required.
4. If the concern remains after the inspection, connect the scan tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the scan
tool menu. If the vehicle selection cannot be entered:
zcheck that the program card is correctly installed.
z check the connections to the vehicle.
z check the ignition switch position.
If the scan tool still does not allow the vehicle selection to be entered, refer to the scan tool manual. 5. Carry out the DATA LINK DIAGNOSTIC TEST using the scan tool. If the scan tool responds with:
zCKT 914, CKT 915 or CKT 70 = ALL MODULE NO RESPONSE/NOT EQUIPPED, go to
Communication System Diagnostics in Section 418 - 00 to diagnose network concern.
z If the powertrain control module (PCM) is not listed for a communication concern, turn
the A/C function selector switch to OFF and execute self- test diagnostics for the PCM.
6. If any PCM DTCs are retrieved, and are related to the concern, go to the Powertrain Control Module Diagnostic Trouble Code (DTC) Index to continue diagnostics.
7. If no DTCs related to the concern are retrieved, go to the Symptom Chart to continue diagnostics.
Symptom Chart Visual Inspection Chart Mechanical Electrical
z
Loose, missing or damaged A/C compressor
drive belt.
z Loose or disconnected A/C clutch.
z Loose, misrouted or damaged vacuum lines. a
z Broken or leaking refrigerant lines.
z Broken or leaking vacuum control motor. z
Open fuses.
z Blower motor inoperative.
z A/C compressor inoperative.
z Circuitry open/shorted.
z Disconnected electrical
connectors.
Powertrain Control Module Diagnostic Trouble Code (DTC) Index DTC Description Action
P1460 WOT A/C cutout circuit
malfunction Refer to the Powertrain Control/Emissions Diagnosis
(PC/ED) manual.
P1464 A/C demand out of self-
test
range GO to DTC P1464. Klj . 5 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

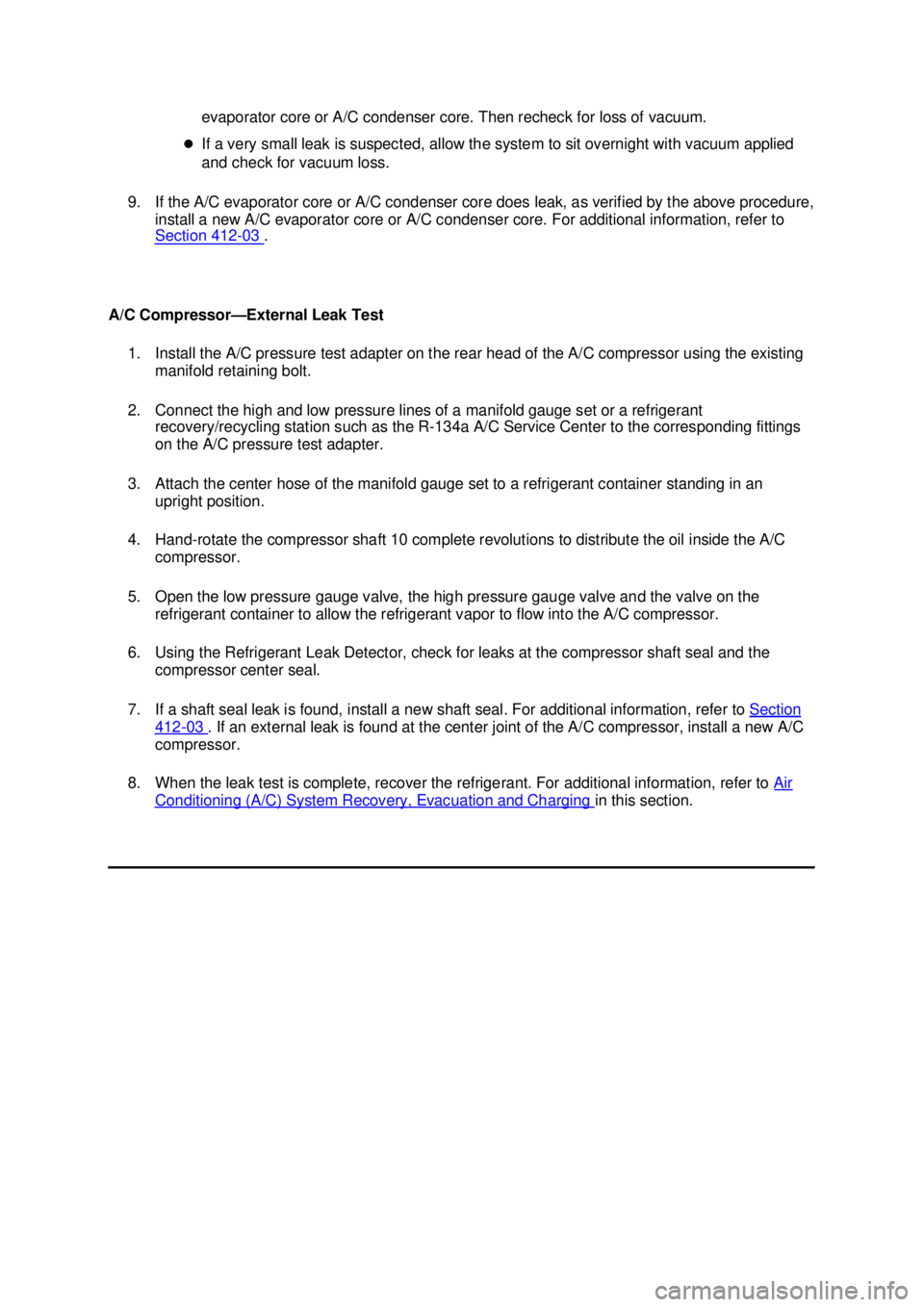

evaporator core or A/C condenser core. Then recheck for loss of vacuum.
z If a very small leak is suspected, allow the system to sit overnight with vacuum applied
and check for vacuum loss.
9. If the A/C evaporator core or A/C condenser core does leak, as verified by the above procedure, install a new A/C evaporator core or A/C condenser core. For additional information, refer to
Section 412 - 03 .
A/C Compressor— External Leak Test
1. Install the A/C pressure test adapter on the rear head of the A/C compressor using the existing manifold retaining bolt.
2. Connect the high and low pressure lines of a manifold gauge set or a refrigerant recovery/recycling station such as the R- 134a A/C Service Center to the corresponding fittings
on the A/C pressure test adapter.
3. Attach the center hose of the manifold gauge set to a refrigerant container standing in an upright position.
4. Hand- rotate the compressor shaft 10 complete revolutions to distribute the oil inside the A/C
compressor.
5. Open the low pressure gauge valve, the high pressure gauge valve and the valve on the refrigerant container to allow the refrigerant vapor to flow into the A/C compressor.
6. Using the Refrigerant Leak Detector, check for leaks at the compressor shaft seal and the compressor center seal.
7. If a shaft seal leak is found, install a new shaft seal. For additional information, refer to Section 412 - 03 . If an external leak is found at the center joint of the A/C compressor, install a new A/C
compressor.
8. When the leak test is complete, recover the refrigerant. For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging in this section. Klj . 40 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES
Air Conditioning (A/C) System Check —
Retail Procedure
NOTE: This Retail Procedure is not eligible for claiming on Ford paid repairs (warranty and ESP).
NOTE: The engine should be run at idle for 10 minutes with the air conditioning on and set to MAX A/C
before carrying out this retail procedure.
NOTE: Read and follow all of the Warnings, Cautions and Notes at the beginning of this section before
continuing.
1. Visual inspection
Open the hood and visually inspect the heating and air conditioning systems for the following:
zCoolant reservoir for correct coolant level
z Heater hoses for deterioration or loose connections
z Radiator and condenser for debris or damaged fins restricting airflow, loose mounting or
connections
z Accessory drive belt(s) and cooling fan(s) for wear or physical damage
z Refrigerant lines and connections for physical damage or loose connections
z Compressor for physical damage or loose connections
z Suction accumulator/drier for physical damage or loose connections
z Wiring and connectors for excessive wear, loose or damaged connections, or incorrect
routing
2. A/C refrigerant analysis
zCarry out air conditioning refrigerant analysis. For additional information, refer to
Refrigerant Identification Testing in this section.
z If the refrigerant fails the analysis, discontinue diagnosis and make recommendations for
repairs.
z If the refrigerant passes the analysis, carry out the air conditioning system check.
3. Air conditioning system check
zConnect manifold gauge set or charging station with gauges to refrigerant system.
z With the vehicle in park, parking brake set, thermometer installed in center panel vent,
and air conditioning system on and set to MAX A/C, start the engine.
z Record air refrigerant system pressures while running the engine at 1,500 rpm and allow
engine to return to idle.
z Operate the blower motor in all control positions and check for correct blower speed
changes.
z With the blower motor on HI, operate air discharge mode selector in all positions and
check for correct airflow in each position.
z Operate the temperature blend selector in all positions and check for correct change in
discharge temperature. Check the air discharge temperature with the selector in the
coolest position and the air conditioning on and set to MAX A/C to determine if the air
discharge temperature is acceptable for the current ambient air temperature.
z Carry out the EATC self- test (if applicable).
If the refrigerant system pressures were low, carry out the refrigerant system leak test.
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
