2003 FORD MUSTANG engine

GENERAL PROCEDURES
Crankshaft End Play
1. Measure the crankshaft end play. Use a Dial Indicator Gauge with Holding Fixture to measure crankshaft end play.
2. Position the crankshaft to the rear of the cylinder block.
3. Zero the indicator.
4. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play. zIf crankshaft end play exceeds specifications, install a new crankshaft thrust washer
(6334) or crankshaft thrust main bearing (6337). Refer to the appropriate section in
Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Special Tool(s)
Dial Indicator Gauge with
Holding Fixture
100-
002 (TOOL- 4201-C) or
equivalent Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Crankshaft Runout
1. NOTE: Crankshaft main bearing journals must be within specifications before checking runout.
Use the Dial Indicator Gauge with Holding Fixture to measure the crankshaft runout. zRefer to the appropriate section in Group 303 for the procedure.
z Rotate the crankshaft and subtract the lowest dial indicator reading from the highest dial
indicator reading to figure the crankshaft runout. If it is out of specification, install new
components as necessary. Refer to the appropriate section in Group 303 for the
procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Special Tool(s)
Dial Indicator Gauge with
Holding Fixture
100-
002 (TOOL- 4201-C) or
equivalent Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES

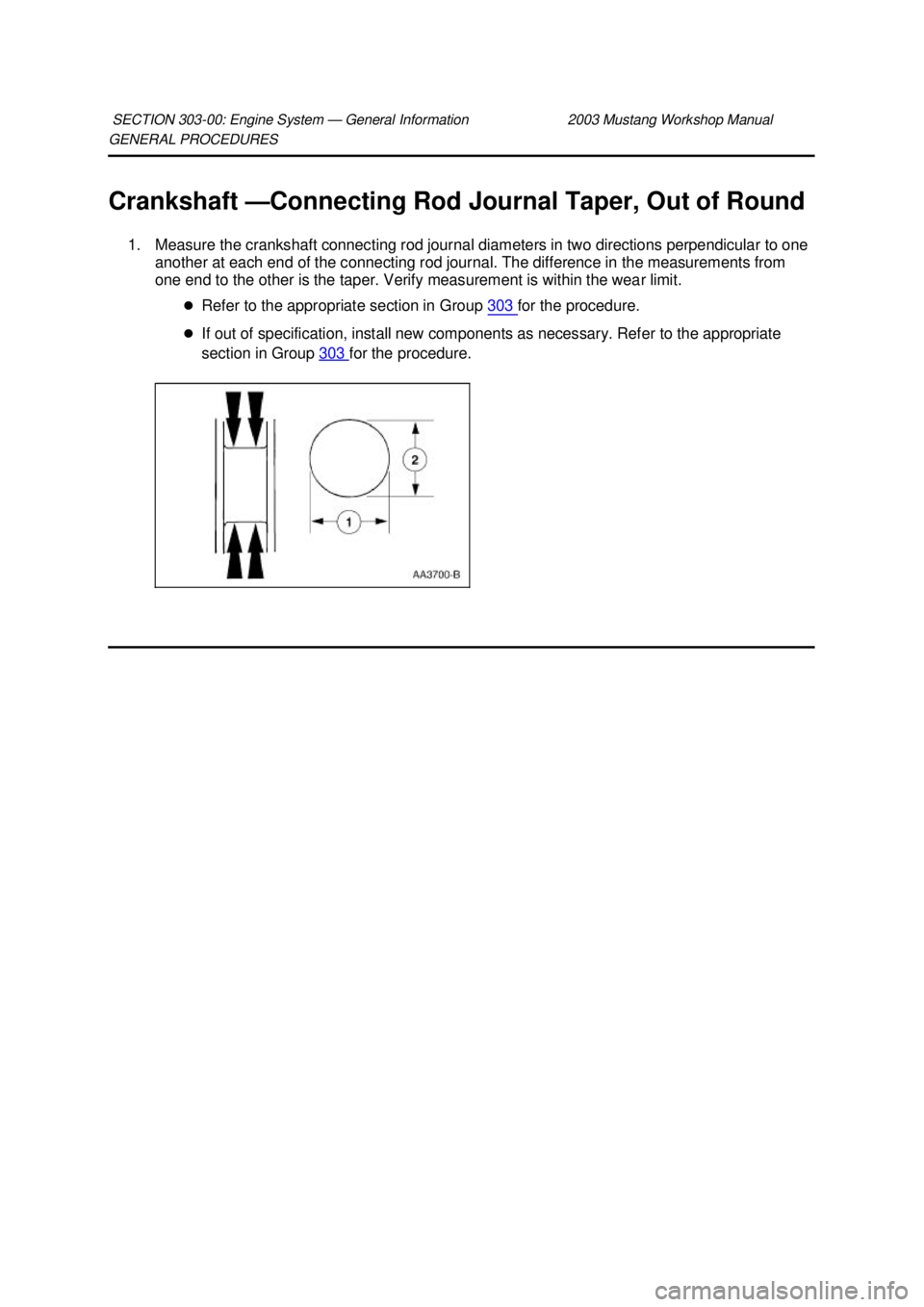

Crankshaft —
Connecting Rod Journal Taper, Out of Round
1. Measure the crankshaft connecting rod journal diameters in two directions perpendicular to one another at each end of the connecting rod journal. The difference in the measurements from
one end to the other is the taper. Verify measurement is within the wear limit.
zRefer to the appropriate section in Group 303 for the procedure.
z If out of specification, install new components as necessary. Refer to the appropriate
section in Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Cylinder Bore —
Taper
1. Measure the cylinder bore at the top, middle, and bottom of piston ring travel in two directions as indicated. Verify the cylinder bore is within the wear limit. The difference indicates the
cylinder bore taper. Bore the cylinder to the next oversize.
zRefer to the appropriate section in Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES

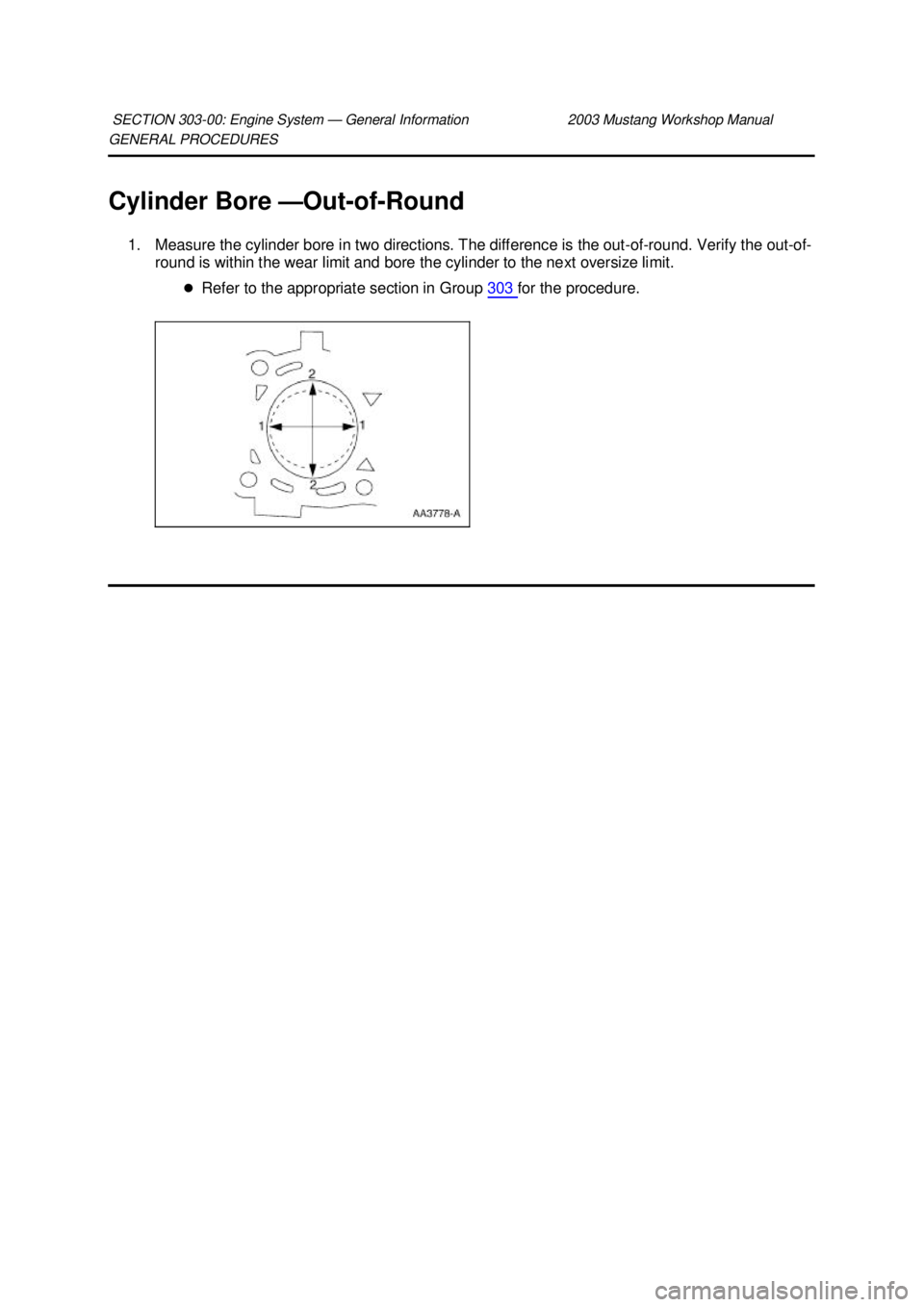

Cylinder Bore —
Out-of-Round
1. Measure the cylinder bore in two directions. The difference is the out-of- round. Verify the out-of-
round is within the wear limit and bore the cylinder to the next oversize limit.
zRefer to the appropriate section in Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Piston Inspection
CAUTION: Do not use a caustic cleaning solution or a wire brush to clean the pistons or
damage can occur.
1. Clean and inspect the (1) ring lands, (2) skirts, (3) pin bosses, and the (4) tops of the pistons. If wear marks, scores or glazing is found on the piston skirt, check for a bent or twisted
connecting rod.
2. Use the Piston Ring Groove Scraper to clean the piston ring grooves. zMake sure the oil ring holes are clean.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Special Tool(s)
Scraper, Piston Ring Groove
303-
D033 (D81L-6002- D) or
equivalent Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Piston —
Pin to Bore Diameter
1. WARNING: Cover the end of the pin bore with a hand or shop rag when removing
the retainer ring, since it has a tendency to spring out. Wear eye protection.
NOTE: Piston and piston pins are a matched set and should not be interchanged.
Measure the piston pin bore diameter in two directions on each side. Verify the diameter is
within specification. zIf out of specification, install new components as necessary. Refer to the appropriate
section in Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Piston —
Diameter
1. Measure the piston diameter 90 degrees from the piston pin at the point indicated. Refer to the appropriate section in Group 303 for the procedure.
z If out of specification, install new components as necessary. Refer to the appropriate
section in Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
