2003 FORD MUSTANG engine coolant

REMOVAL AND INSTALLATION

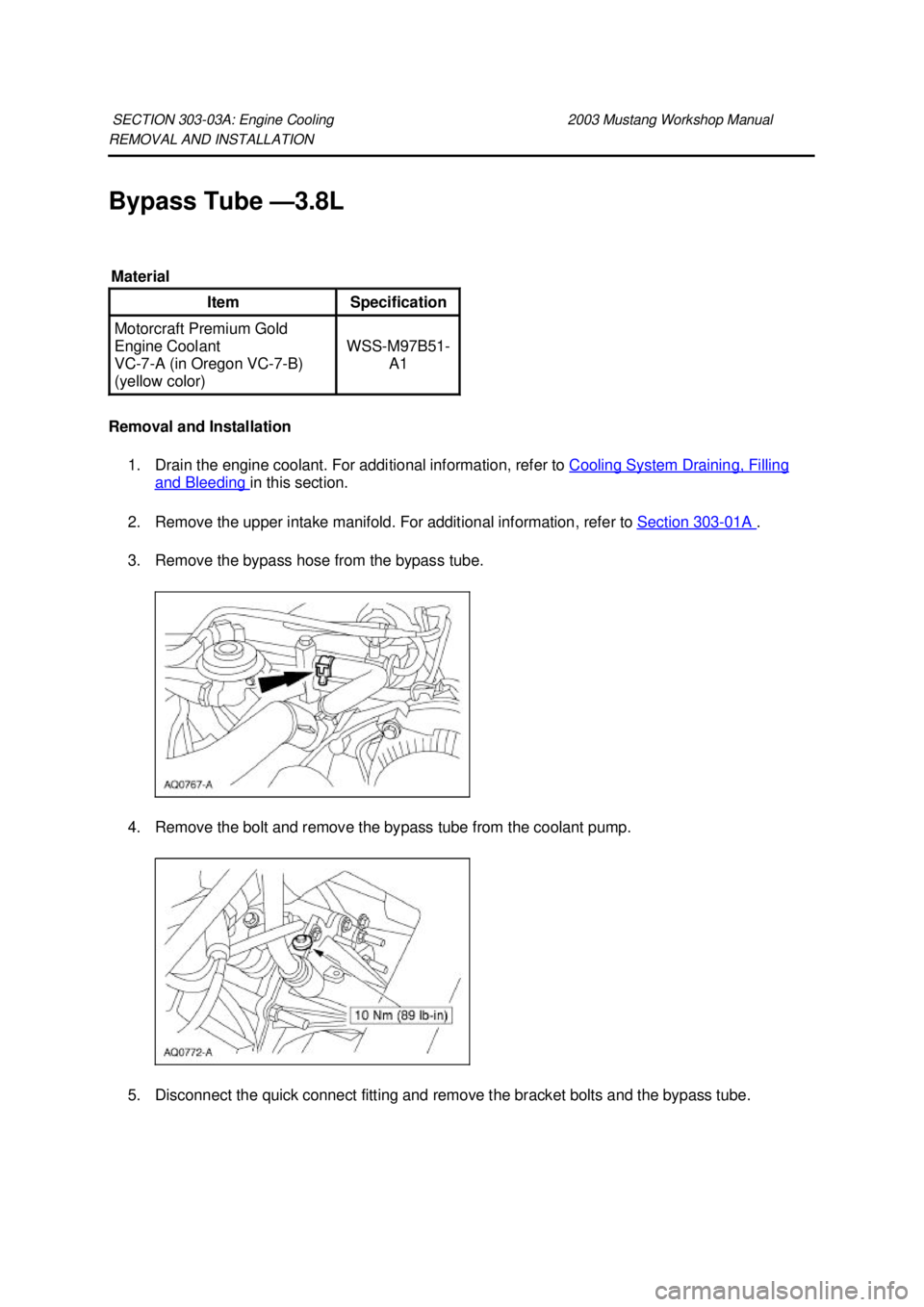

Bypass Tube —
3.8L
Removal and Installation 1. Drain the engine coolant. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
2. Remove the upper intake manifold. For additional information, refer to Section 303 - 01A .
3. Remove the bypass hose from the bypass tube.
4. Remove the bolt and remove the bypass tube from the coolant pump.
5. Disconnect the quick connect fitting and remove the bracket bolts and the bypass tube.
SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Material
Item Specification
Motorcraft Premium Gold
Engine Coolant
VC
-7-A (in Oregon VC-7- B)
(yellow color) WSS-
M97B51-
A1 Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

6. Install a new O-
ring seal on the coolant bypass tube.
7. CAUTION: Do not cut the O- ring seal during tube installation or engine coolant
leakage may occur.
Clean the O- ring sealing surface on the cylinder heads and lubricate the O- ring seal. Use
premium engine coolant.
8. To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Bypass Tube —
Cobra
Removal and Installation 1. Drain the engine coolant. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
2. Disconnect the radiator upper hose and the radiator lower hose.
3. Remove the supercharger belt. For additional information, refer to Section 303 - 05 .
4. Disconnect the engine coolant temperature sensor electrical connector and unclip the wiring harness from the stud.
5. NOTE: LH is shown, RH is similar.
Remove the coolant bypass nuts.
SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Material
Item Specification
Motorcraft Premium Gold
Engine Coolant
VC
-7-A (in Oregon VC-7- B)
(yellow color) WSS-
M97B51-
A1 Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

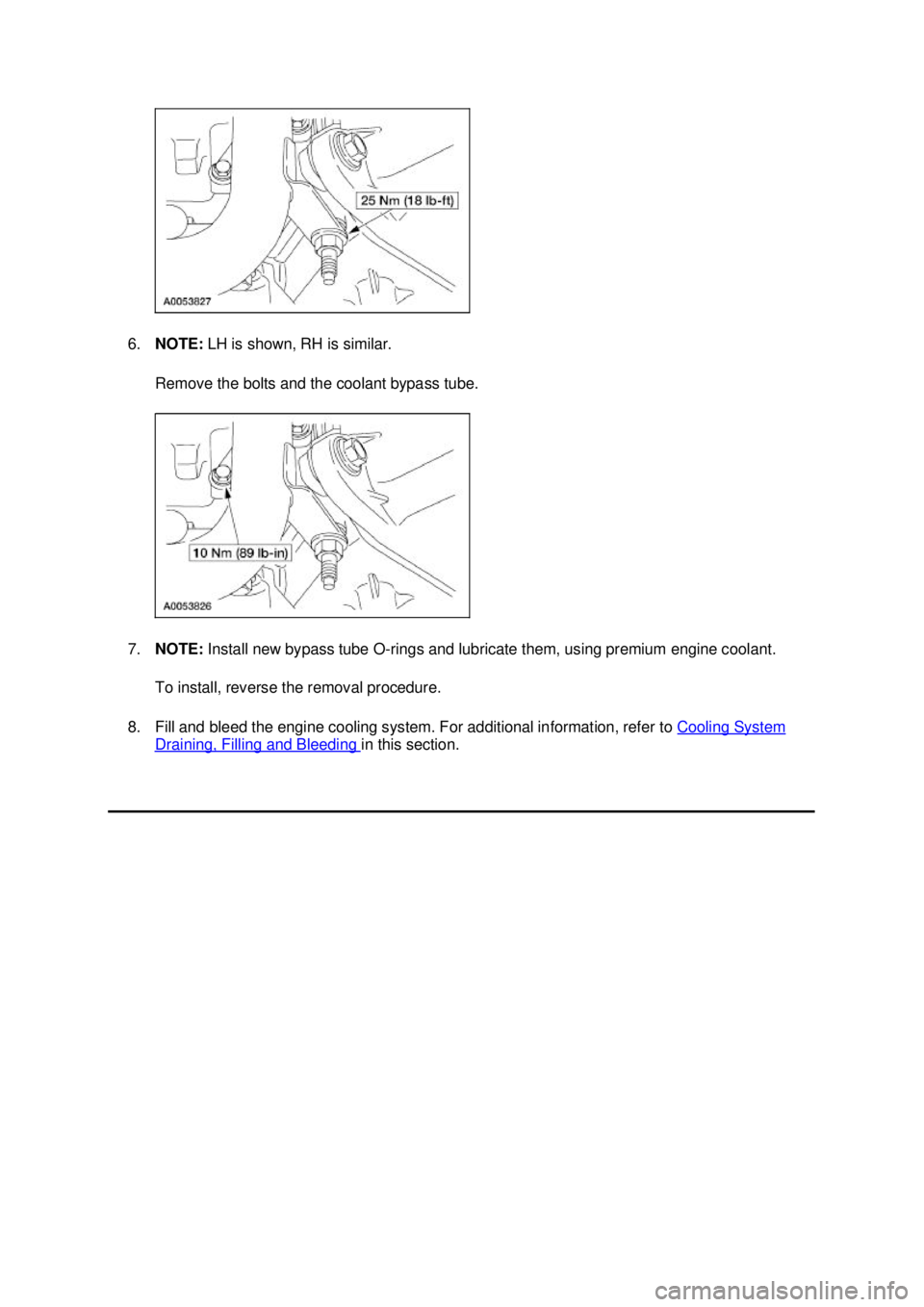

6.
NOTE: LH is shown, RH is similar.
Remove the bolts and the coolant bypass tube.
7. NOTE: Install new bypass tube O- rings and lubricate them, using premium engine coolant.
To install, reverse the removal procedure.
8. Fill and bleed the engine cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Bypass Tube —
Mach I
Removal and Installation 1. Remove the air intake scoop and bracket. For additional information, refer to Section 303 - 12 .
2. Drain the engine coolant. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
3. Disconnect the upper radiator hose from the bypass tube.
4. Disconnect the lower radiator hose. 5. Disconnect the engine temperature control (ECT) sensor electrical connector. SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Material
Item Specification
Motorcraft Premium Gold
Engine Coolant
VC
-7-A (in Oregon VC-7- B)
(yellow color) WSS-
M97B51-
A1 Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

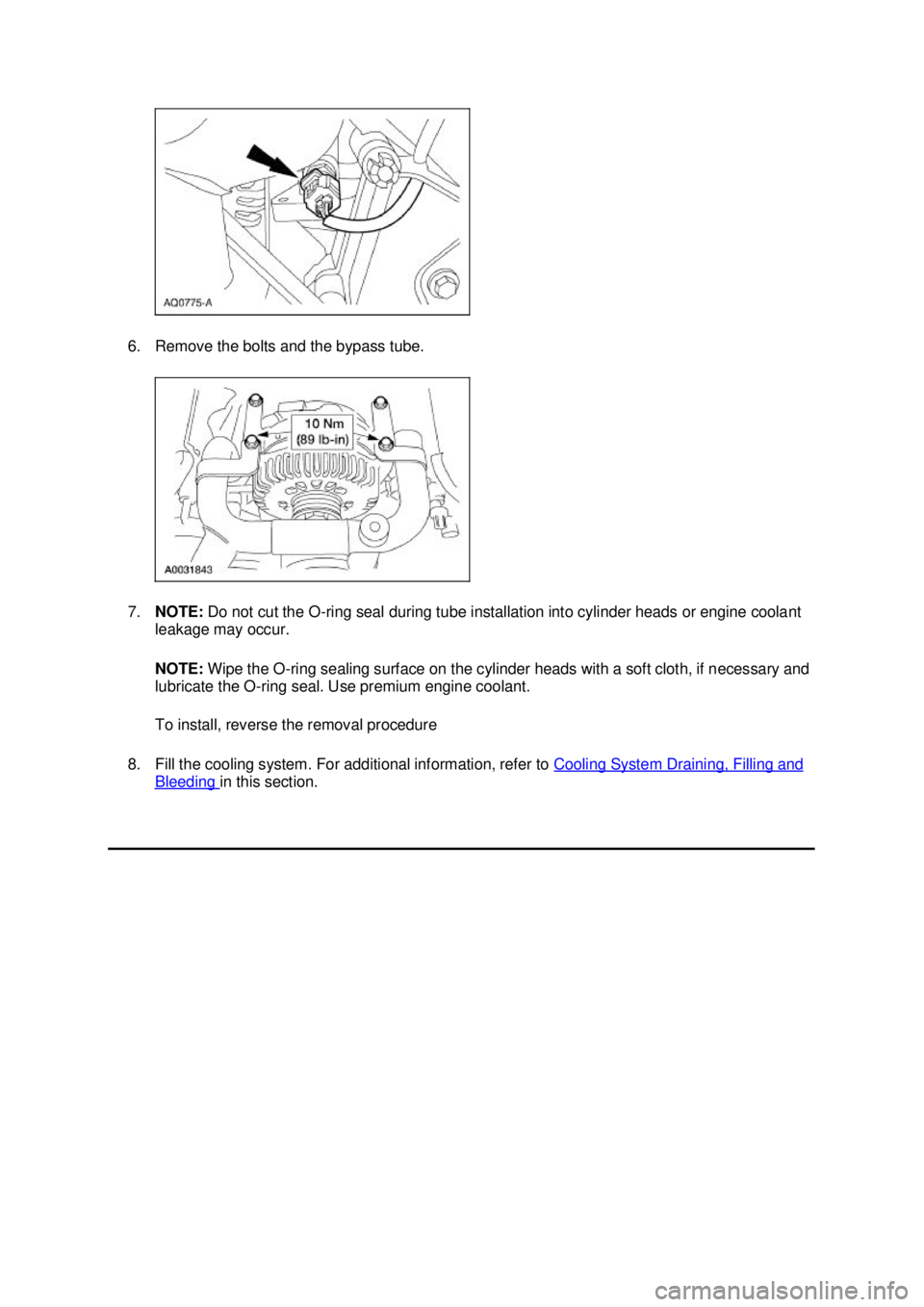

6. Remove the bolts and the bypass tube.
7.
NOTE: Do not cut the O- ring seal during tube installation into cylinder heads or engine coolant
leakage may occur.
NOTE: Wipe the O- ring sealing surface on the cylinder heads with a soft cloth, if necessary and
lubricate the O- ring seal. Use premium engine coolant.
To install, reverse the removal procedure
8. Fill the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Water Pump —
3.8L
Removal and Installation 1. Drain the engine coolant. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
2. Loosen the coolant pump pulley bolts.
3. Remove the power steering (PS) pump pulley. For additional information, refer to Section 211 -
02 .
4. Remove the bolts and the coolant pump pulley.
5. Remove the PS bracket. zRemove the bolts.
z Remove the nuts. 6. Disconnect the lower radiator hose from the coolant pump. SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Material
Item Specification
Motorcraft Premium Gold
Engine Coolant
VC
-7-A (in Oregon VC-7- B)
(yellow color) WSS-
M97B51-
A1 Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Water Pump —

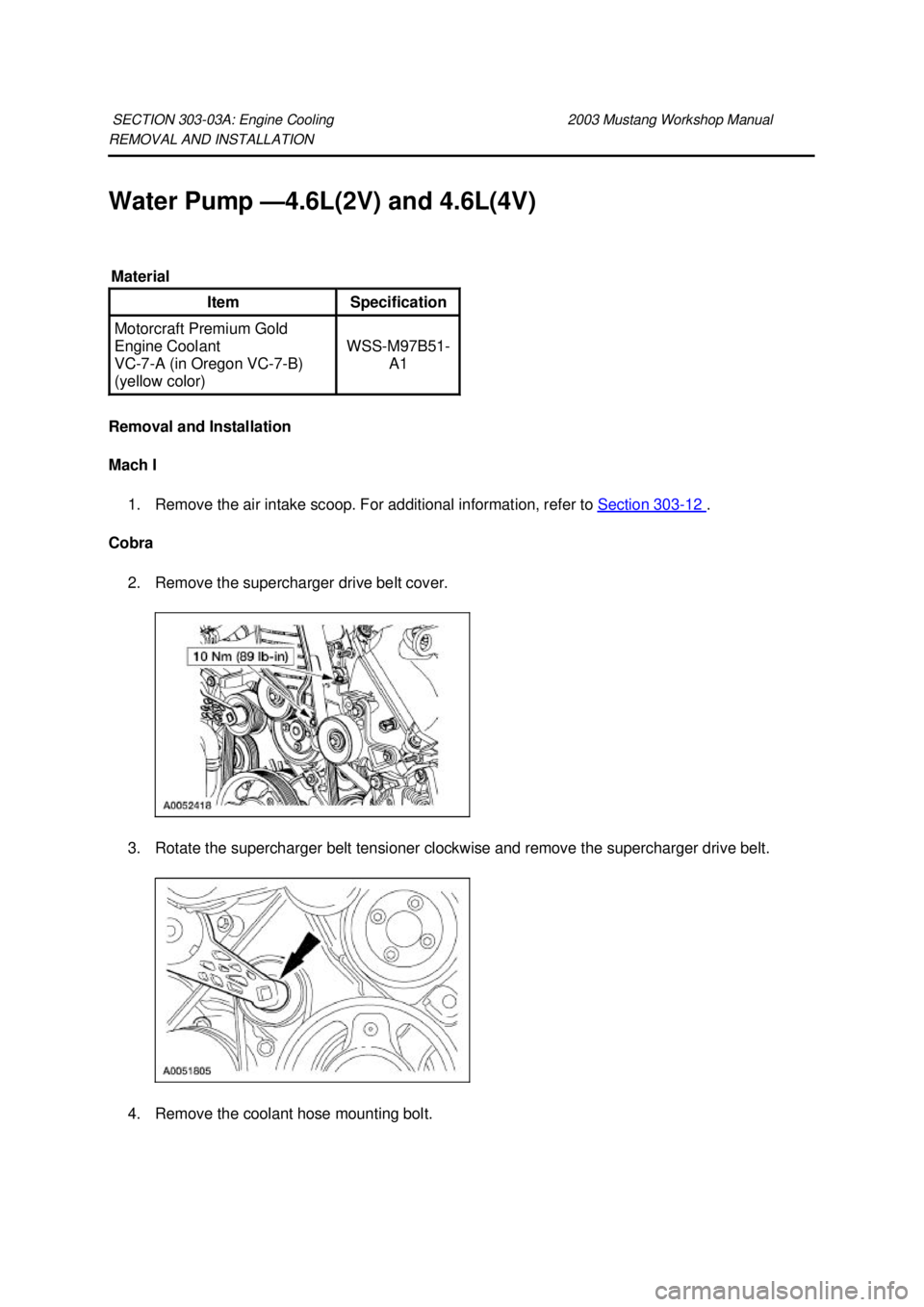

4.6L(2V) and 4.6L(4V)
Removal and Installation
Mach I 1. Remove the air intake scoop. For additional information, refer to Section 303 - 12 .
Cobra
2. Remove the supercharger drive belt cover.
3. Rotate the supercharger belt tensioner clockwise and remove the supercharger drive belt.
4. Remove the coolant hose mounting bolt.
SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Material
Item Specification
Motorcraft Premium Gold
Engine Coolant
VC
-7-A (in Oregon VC-7- B)
(yellow color) WSS-
M97B51-
A1 Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
