2003 FORD MUSTANG fuse

Pinpoint Tests
PINPOINT TEST J: THE TURN SIGNAL LAMPS ARE NEVER ON z
Electronic flasher.
z The hazard
flasher lamps are
never on z
Central junction
box (CJB) fuse 13
(15A).
z Circuitry.
z Multifunction
switch.
z Electronic flasher. z
Go To Pinpoint Test K .
z One turn
signal/hazard
lamp is never on z
Turn
signal/hazard
flasher lamp.
z Circuitry. z
REPAIR inoperative turn
signal/hazard flasher lamp
circuit
„LF Circuit 3 (LG/WH).
„ RF Circuit 2 (WH/LB).
„ LR Circuit 9 (LG/OG).
„ RR Circuit 5 (OG/LB).
z The turn signal
lamps are always
on z
Multifunction
switch. z
INSTALL a new multifunction
switch; REFER to Section 211 -
05 . TEST the system for
normal operation.
z The hazard
flasher lamps are
always on z
Multifunction
switch. z
INSTALL a new multifunction
switch; REFER to Section 211 -
05 . TEST the system for
normal operation. Test Step Result / Action to
Take J1 CHECK THE VOLTAGE TO THE ELECTRONIC FLASHER
z
Disconnect: Electronic Flasher C2141.
z Key in ON position.
z Measure the voltage between the following electronic flasher
C2141 circuits, harness side and ground.
„Pin 2, Circuit 1039 (BK/YE).
„ Pin 3, Circuit 383 (RD/WH).
z Are the voltages greater than 10 volts? Yes
GO to
J2 .
No
REPAIR the circuit in
question. TEST the
system for normal
operation. J2 CHECK CIRCUIT 44 (LB)
z
Key in OFF position. Yes Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Parking, Rear and License Lamps
Refer to Wiring Diagrams Cell
92 , Exterior for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the parking lamps.
2. Visually inspect for the following obvious signs of mechanical and electrical damage.
3. If the concern is not visually evident, determine the symptom and proceed to Symptom Chart.
Symptom Chart SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Special Tool(s)
73 III Automotive Meter or
equivalent
105-
R0057
Visual Inspection Chart Mechanical Electrical
z
Damaged multifunction switch
(13K359)
z Damaged headlamp switch (11654) z
Blown battery junction box (BJB) Fuse 2
(30A)
z Damaged wiring harness
z Loose or corroded connections
z Damaged parking, rear or license lamp
Symptom Chart Condition
Possible Sources Action
z The parking, rear or license
lamps are inoperative z
BJB Fuse 2 (30A).
z Circuitry.
z Headlamp switch. z
GO to Pinpoint Test L .
z One or more parking, rear or
license bulbs(s) is inoperative z
Parking, rear or
license bulb(s).
z Circuitry. z
GO to Pinpoint Test M .
z The parking, rear or license
lamps are on continuously z
Headlamp switch.
z Circuitry. z
GO to Pinpoint Test N . Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Fog Lamps
Refer to Wiring Diagrams Cell
86 , Fog Lamps for schematic and connector information.
Principles of Operation
The fog lamps will only illuminate when the low beam or parking lamps are illuminated. Voltage from
the parking lamp circuit is used to activate the fog lamp relay when the fog lamp switch is ON. Voltage
from the high beam headlamp circuit will activate the fog lamp interrupt relay. When the fog lamp
interrupt relay is active, the ground path is removed from the fog lamp relay, turning off the fog lamps.
Inspection and Verification 1. Verify the customer concern by operating the fog lamps.
2. Visually inspect for the following obvious signs of mechanical and electrical damage.
3. If the concern is not visually evident, determine the symptom and proceed to Symptom Chart.
Symptom Chart SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Special Tool(s)
73 III Automotive Meter or
equivalent
105-
R0057
Visual Inspection Chart Mechanical Electrical
z
Damaged headlamp switch (11654)
z Damaged fog lamp switch
z Damaged multifunction switch
(13K359) z
Blown battery junction box (BJB) Fuse 27
(20A)
z Blown central junction box (CJB) Fuse 38
(20A)
z Damaged wiring harness
z Loose or corroded connections
z Damaged fog lamp relay
z Damaged fog lamp interrupt relay
z Damaged fog lamp
Symptom Chart Klj . 1 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Tests
PINPOINT TEST O: THE FOG LAMPS ARE INOPERATIVE Condition
Possible Sources Action
z The fog lamps are
inoperative z
BJB Fuse 27 (20A).
z CJB Fuse 38 (20A).
z Circuitry.
z Fog lamp relay.
z Fog lamp interrupt
relay.
z Headlamp switch.
z Fog lamp switch.
z Multifunction switch. z
GO to Pinpoint Test O .
z The individual fog lamp is
inoperative z
Fog lamp bulb.
z Circuitry. z
GO to Pinpoint Test P .
z The fog lamps are on
continuously z
Fog lamp relay.
z Circuitry.
z Fog lamp switch. z
GO to Pinpoint Test Q .
Test Step Result / Action
to Take O1 CHECK THE PARK LAMPS
z
Place the headlamp switch in the PARK position.
z Place the multifunction switch in low beam position.
z Do the park lamps illuminate? Yes
Turn off the
headlamp switch.
GO to
O2 .
No
GO to Pinpoint Test L .
O2 CHECK THE FOG LAMP RELAYS
z
Disconnect: Fog Lamp Relay.
z Disconnect: Fog Lamp Interrupt Relay.
z Check the fog lamp relay and fog lamp interrupt relay; refer to Wiring
Diagrams Cell 149.
z Are the relays OK? Yes
GO to
O3 .
No
INSTALL new
relay(s). TEST
the system for
normal
operation. O3 CHECK THE CIRCUIT 12 (LG/BK)
z
Measure the voltage between fog lamp interrupt relay connector Pin 1,
Circuit 12 (LG/BK), harness side and ground. Yes
GO to
O4 .
No
REPAIR the
circuit. TEST the
system for
normal
operation. Klj . 2 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Reversing Lamps
Refer to Wiring Diagrams Cell
93 , Backup Lamps for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the reversing lamps.
2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the following chart:
3. If the concern is not visually evident, determine the symptom and proceed to Symptom Chart.
Symptom Chart SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter or
equivalent
105-
R0057
Visual Inspection Chart Mechanical Electrical
z
Damaged digital transmission range (DTR)
sensor (automatic transmission [A/T])
z Damaged reversing lamp switch (manual
transmission [M/T]) z
Blown central junction box (CJB)
Fuse 11 (15A)
z Damaged wiring harness
z Loose or corroded connections
z Damaged reversing lamp
z Damaged DTR sensor (automatic
transmission [A/T])
z Damaged reversing lamp switch
(manual transmission [M/T])
Symptom Chart Condition
Possible Sources Action
z The reversing lamps are
inoperative z
CJB Fuse 11 (15A).
z Bulbs.
z Circuitry.
z DTR sensor (A/T).
z Reversing lamp
switch (M/T). z
GO to Pinpoint Test R . Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

4. If the concern remains after the inspection, connect the scan tool to the data link connector
(DLC) located beneath the instrument panel and select the vehicle to be tested from the scan
tool menu. If the scan tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
z check the connections to the vehicle.
z check the ignition switch position.
5. If the scan tool still does not communicate with the vehicle, refer to the scan tool manual.
6. Carry out the DATA LINK DIAGNOSTIC TEST. If the scan tool responds with: zCKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESP/NOT EQUIP for GEM, go to Pinpoint Test A.
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out self- test diagnostics for the GEM.
7. If the DTCs retrieved are related to the concern, go to GEM Diagnostic Trouble Code (DTC) Index to continue diagnostics.
8. If no DTCs related to the concern are retrieved, proceed to Symptom Chart to continue diagnostics.
GEM Diagnostic Trouble Code (DTC) Index Visual Inspection Chart Mechanical Electrical
z
Switch(es) z
CJB Fuses:
„7 (20A)
„ 32 (15A)
„ 39 (5A)
z Wiring harness
z Connections
z Lamps
z Circuitry
GEM Diagnostic Trouble Code (DTC) Index DTC Description Source Action
B1322 Driver Door Ajar Circuit
Short to Ground GEM REFER to
Section 417 - 02 .
B1330 Passenger Door Ajar Circuit
Short to Ground GEM REFER to
Section 417 - 02 .
B1334 Decklid Ajar Rear Door
Circuit Short to Ground GEM REFER to
Section 417 - 02 .
B1342 ECU Is Defective GEM CLEAR the DTC. Retrieve the DTCs. If DTC B1342 is
retrieved, INSTALL a new GEM. For additional information, REFER to Section 419 - 10 .
B1397 Power Door unlock Circuit
Short to Battery GEM REFER to
Section 501 - 14B .
B1405 Driver Power Window Down
Circuit Short to Battery GEM REFER to
Section 501 - 11 . Klj . 3 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Symptom Chart
Pinpoint Tests
CAUTION: Before removing and installing the GEM or its connectors, disconnect the Output Circuit Failure
B2488 RF Side Repeater Lamp
Output Circuit Failure GEM REFER to
Section 417 - 01 .
C1189 Brake Fluid Level Sensor
Input Short Circuit to Ground GEM REFER to
Section 413 - 01 .
C1223 Lamp Brake Warning
Output Circuit Failure GEM REFER to
Section 413 - 01 .
C1225 Lamp Brake Warning
Output Circuit Short to
Battery GEM REFER to
Section 413 - 01 .
Symptom Chart Condition
Possible Sources Action
z No communication with the generic
electronic module z
CJB Fuse 39
(5A)
z GEM.
z Circuitry. z
GO to
Pinpoint Test A .
z The courtesy lamps are inoperative zCJB Fuse 7
(20A).
z Door ajar switch
(es).
z Courtesy lamp
assemblies.
z Circuitry.
z GEM.
z Ignition Switch.
z Headlamp
Switch. z
GO to
Pinpoint Test B .
z The demand lighting is inoperative zCJB Fuse 7
(20A).
z Circuitry.
z GEM.
z Door ajar switch
(es).
z Demand lamp
assemblies.
z Ignition Switch.
z Headlamp
Switch. z
GO to
Pinpoint Test C .
z The illuminated entry is inoperative
when using the remote transmitter z
Remote
transmitter.
z GEM. z
GO to
Pinpoint Test D .
z The battery saver does not
deactivate after timeout z
Circuitry.
z GEM. z
GO to
Pinpoint Test E . Klj . 5 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

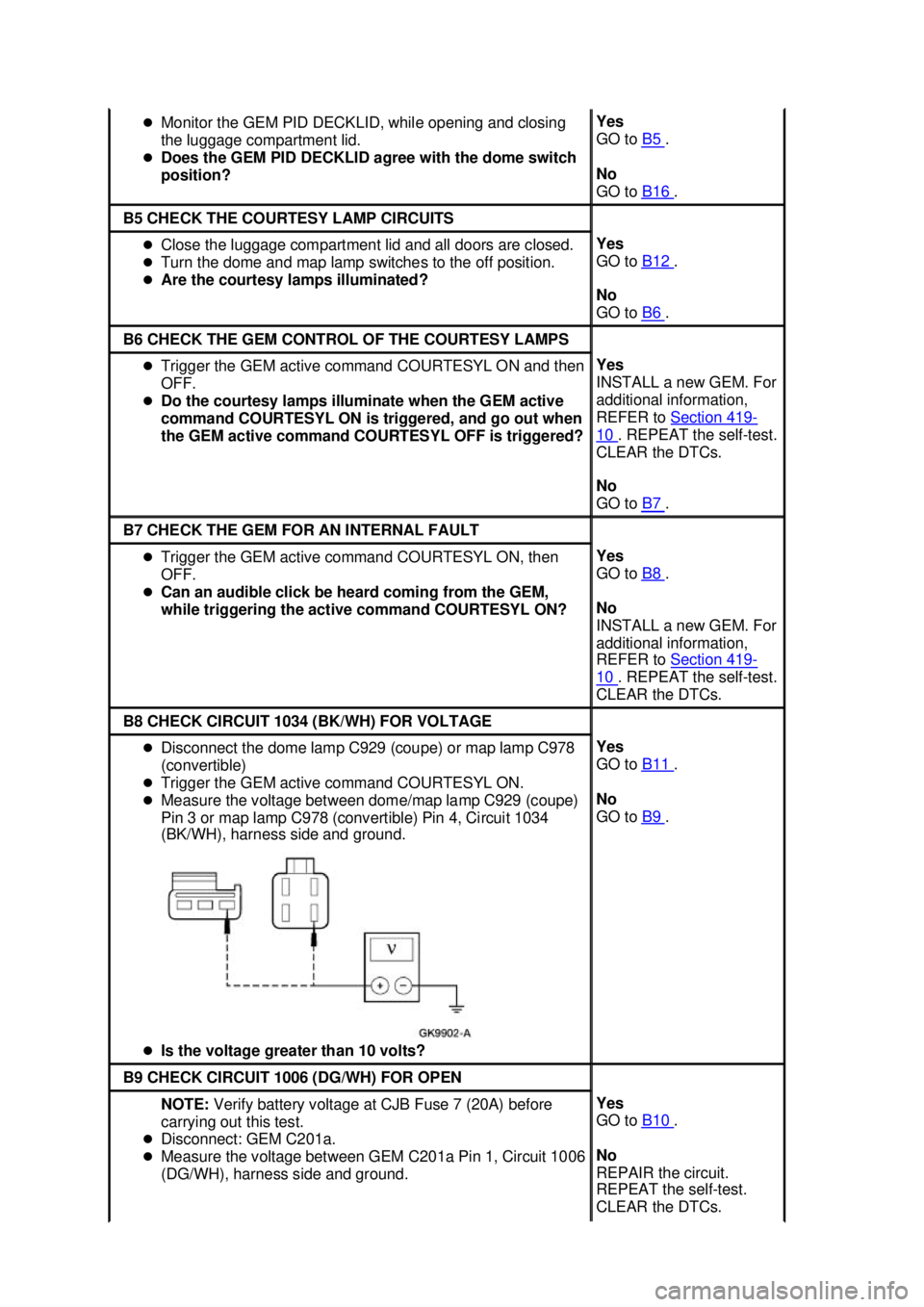

z
Monitor the GEM PID DECKLID, while opening and closing
the luggage compartment lid.
z Does the GEM PID DECKLID agree with the dome switch
position? Yes
GO to
B5 .
No
GO to B16 .
B5 CHECK THE COURTESY LAMP CIRCUITS
z
Close the luggage compartment lid and all doors are closed.
z Turn the dome and map lamp switches to the off position.
z Are the courtesy lamps illuminated? Yes
GO to
B12 .
No
GO to B6 .
B6 CHECK THE GEM CONTROL OF THE COURTESY LAMPS
z
Trigger the GEM active command COURTESYL ON and then
OFF.
z Do the courtesy lamps illuminate when the GEM active
command COURTESYL ON is triggered, and go out when
the GEM active command COURTESYL OFF is triggered? Yes
INSTALL a new GEM. For
additional information,
REFER to
Section 419 -
10 . REPEAT the self-
test.
CLEAR the DTCs.
No
GO to B7 .
B7 CHECK THE GEM FOR AN INTERNAL FAULT
z
Trigger the GEM active command COURTESYL ON, then
OFF.
z Can an audible click be heard coming from the GEM,
while triggering the active command COURTESYL ON? Yes
GO to
B8 .
No
INSTALL a new GEM. For
additional information,
REFER to Section 419 -
10 . REPEAT the self-
test.
CLEAR the DTCs. B8 CHECK CIRCUIT 1034 (BK/WH) FOR VOLTAGE
z
Disconnect the dome lamp C929 (coupe) or map lamp C978
(convertible)
z Trigger the GEM active command COURTESYL ON.
z Measure the voltage between dome/map lamp C929 (coupe)
Pin 3 or map lamp C978 (convertible) Pin 4, Circuit 1034
(BK/WH), harness side and ground.
z Is the voltage greater than 10 volts? Yes
GO to
B11 .
No
GO to B9 .
B9 CHECK CIRCUIT 1006 (DG/WH) FOR OPEN
NOTE:
Verify battery voltage at CJB Fuse 7 (20A) before
carrying out this test.
z Disconnect: GEM C201a.
z Measure the voltage between GEM C201a Pin 1, Circuit 1006
(DG/WH), harness side and ground. Yes
GO to
B10 .
No
REPAIR the circuit.
REPEAT the self- test.
CLEAR the DTCs. Klj . 8 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
