2003 FORD MUSTANG fuse

z
Are the resistances less than 5 ohms? E8 CHECK CIRCUIT 400 (LB/BK) FOR AN OPEN
z
Key in OFF position.
z Disconnect: CJB Circuit Breaker 43 (20A).
z Measure the resistance between driver window regulator control
switch C508 pin 10, circuit 400 (LB/BK), harness side and CJB
circuit breaker 43 (20A) output pin, circuit 400 (LB/BK).
z Is the resistance less than 5 ohms? Yes
REPAIR the power
supply to CJB circuit
breaker 43 (20A). TEST
the system for normal
operation.
No
REPAIR the circuit.
TEST the system for
normal operation.
E9 CHECK THE GEM CONTROL OF THE DRIVER POWER
WINDOW z
Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool: GEM
Active Command FRONT WINDOW CONTROL.
z Trigger DR DOWN ON.
z Did the driver window move down? Yes
INSTALL a new GEM.
REFER to
Section 419 -
10 . TEST the system
for normal operation.
No
GO to E10 .
E10 CHECK THE WINDOW REGULATOR MOTOR OPERATION
z
Disconnect: Driver Window Regulator Motor C518.
z Connect a 20 amp fused jumper wire between battery positive
and one pin of the window regulator motor (component side).
z Momentarily connect a jumper wire between the second pin of Yes
GO to
E11 .
No Klj . 16 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

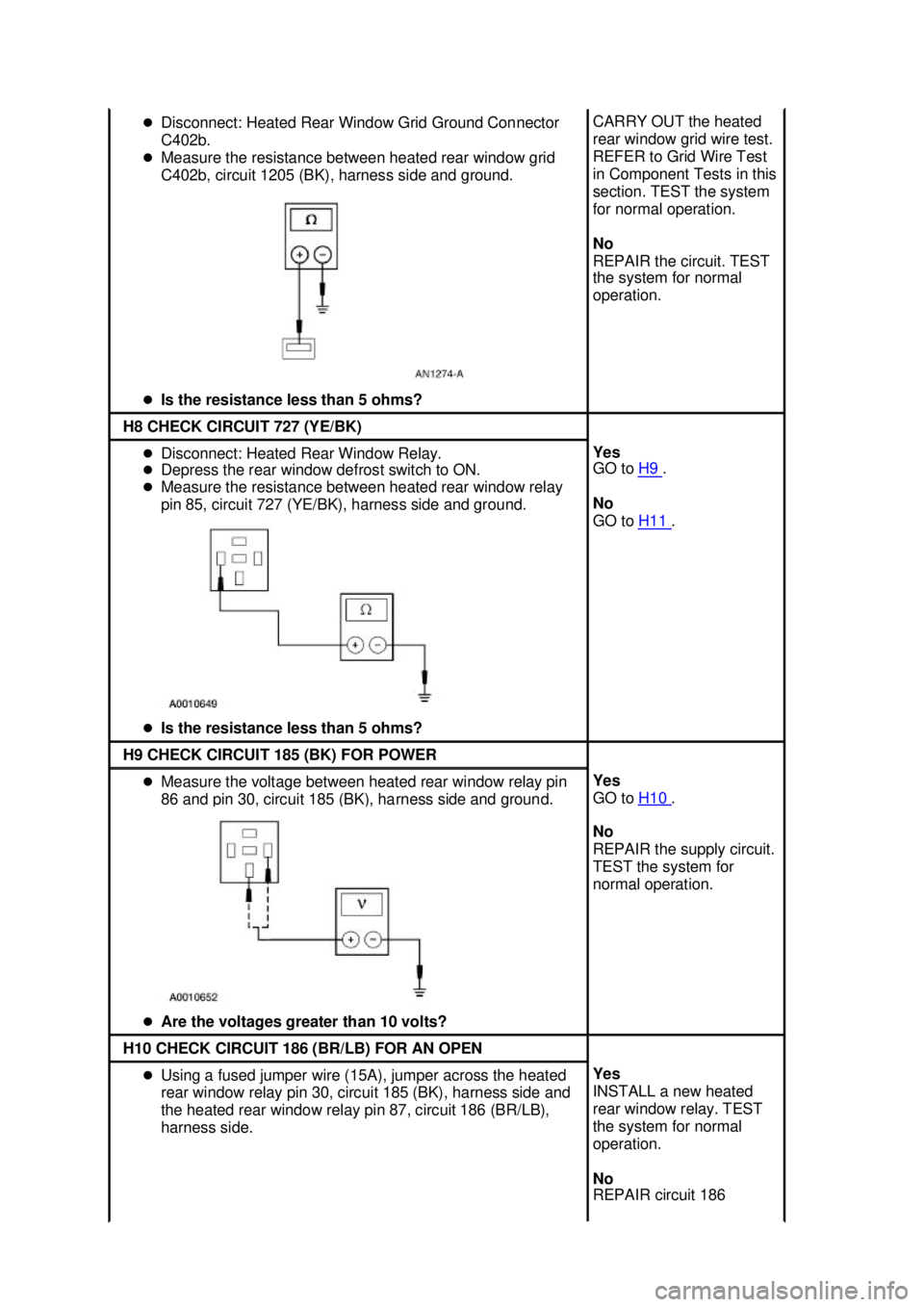

z
Disconnect: Heated Rear Window Grid Ground Connector
C402b.
z Measure the resistance between heated rear window grid
C402b, circuit 1205 (BK), harness side and ground.
z Is the resistance less than 5 ohms? CARRY OUT the heated
rear window grid wire test.
REFER to Grid Wire Test
in Component Tests in this
section. TEST the system
for normal operation.
No
REPAIR the circuit. TEST
the system for normal
operation.
H8 CHECK CIRCUIT 727 (YE/BK)
z
Disconnect: Heated Rear Window Relay.
z Depress the rear window defrost switch to ON.
z Measure the resistance between heated rear window relay
pin 85, circuit 727 (YE/BK), harness side and ground.
z Is the resistance less than 5 ohms? Yes
GO to
H9 .
No
GO to H11 .
H9 CHECK CIRCUIT 185 (BK) FOR POWER
z
Measure the voltage between heated rear window relay pin
86 and pin 30, circuit 185 (BK), harness side and ground.
z Are the voltages greater than 10 volts? Yes
GO to
H10 .
No
REPAIR the supply circuit.
TEST the system for
normal operation. H10 CHECK CIRCUIT 186 (BR/LB) FOR AN OPEN
z
Using a fused jumper wire (15A), jumper across the heated
rear window relay pin 30, circuit 185 (BK), harness side and
the heated rear window relay pin 87, circuit 186 (BR/LB),
harness side. Yes
INSTALL a new heated
rear window relay. TEST
the system for normal
operation.
No
REPAIR circuit 186 Klj . 27 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

4. If the concern remains after the inspection, connect the scan tool to the data link connector
(DLC) located beneath the instrument panel and select the vehicle to be tested from the scan
tool menu. If the scan tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
z check the connections to the vehicle.
z check the ignition switch position.
5. If the scan tool still does not communicate with the vehicle, refer to the scan tool manual.
6. Carry out the DATA LINK DIAGNOSTIC TEST. If the scan tool responds with: zCKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESP/NOT EQUIP for GEM, go to Pinpoint Test A.
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs, and carry out the self- test diagnostics for the GEM.
7. If the DTCs retrieved are related to the concern, go to the GEM Diagnostic Trouble Code (DTC) Index to continue diagnostics.
8. If no DTCs related to the concern are retrieved, proceed to Symptom Chart to continue diagnostics.
GEM Diagnostic Trouble Code (DTC) Index Mechanical Electrical
z
Binding latches z
CJB Fuses:
„39 (5A)
„ 19 (15A)
„ 25 (25A)
z BJB Fuse POWER WINDOWS (40A)
z Damaged wiring harness
z Loose or corroded connector(s)
z Circuitry open/shorted
z Damaged relays
z Remote transmitter
z Remote transmitter batteries DTC Description Source Action
B1217 Horn Relay Coil Circuit Failure GEM GO to
Pinpoint Test E .
B1218 Horn Relay Coil Circuit Short to
Vbatt GEM GO to
Pinpoint Test E .
B1312 Lamp Headlamp Input Circuit
Short to Battery GEM REFER to
Section 417 - 01 .
B1317 Battery Voltage High GEM REFER to
Section 414 - 00 .
B1318 Battery Voltage Low GEM REFER to
Section 414 - 00 .
B1322 Driver Door Ajar Circuit Short to
Ground GEM REFER to
Section 417 - 02 .
B1330 Passenger Door Ajar Circuit
Short to Ground GEM REFER to
Section 417 - 02 .
B1334 Decklid Ajar Rear Door Circuit GEM REFER to
Section 417 - 02 . Klj . 3 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Symptom Chart B1458 Wiper Washer Pump Motor
Relay Circuit Failure GEM REFER to
Section 501 - 16 .
B1460 Wiper Washer Pump Motor
Relay Coil Circuit Short to Battery GEM REFER to
Section 501 - 16 .
B1462 Safety Belt Switch Circuit
Failure GEM REFER to
Section 413 - 09 .
B1466 Wiper Hi/Low Speed Not
Switching GEM REFER to
Section 501 - 16 .
B1473 Wiper Low Speed Circuit Motor
Failure GEM REFER to
Section 501 - 16 .
B1476 Wiper High Speed Circuit Motor
Failure GEM REFER to
Section 501 - 16 .
B1551 Decklid Release Circuit Failure GEM GO to
Pinpoint Test D .
B1553 Decklid Release Circuit Short
to Battery GEM GO to
Pinpoint Test D .
B1555 Ignition Run/Start Circuit
Failure GEM REFER to
Section 211 - 05 .
B1687 Lamp Dome Input Circuit Short
to Battery GEM REFER to
Section 417 - 02 .
B2486 LF Side Repeater Lamp Output
Circuit Failure GEM REFER to
Section 417 - 01 .
B1605 Lamp Anti-
Theft Indicator
Circuit Short to Battery GEM REFER to
Section 501 - 16 .
B2488 RF Side Repeater Lamp Output
Circuit Failure GEM REFER to
Section 417 - 01 .
C1189 Brake Fluid Level Sensor Input
Short Circuit to Ground GEM REFER to
Section 413 - 01 .
C1223 Lamp Brake Warning Output
Circuit Failure GEM REFER to
Section 413 - 01 .
C1225 Lamp Brake Warning Output
Circuit Short to Battery GEM REFER to
Section 413 - 01 .
Symptom Chart Condition
Possible Sources Action
z No communication with the
generic electronic module z
Circuitry.
z CJB Fuse 39 (5A).
z GEM. z
GO to
Pinpoint Test A .
z All door locks are inoperative zCJB Fuse 19 (15A).
z BJB Fuse POWER
WINDOWS (40A).
z Circuitry.
z GEM.
z Switches.
z Lock actuators. z
GO to
Pinpoint Test B .
z The doors do not lock/unlock
using the remote transmitter z
Ignition switch.
z GEM. z
GO to
Pinpoint Klj . 5 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Tests
PINPOINT TEST A: NO COMMUNICATION WITH THE GENERIC
ELECTRONIC MODULE z
Remote transmitter.
z Remote transmitter
batteries. Test C .
z The luggage compartment door
is inoperative using the remote
transmitter z
CJB Fuse 25 (25A).
z Remote transmitter
batteries.
z Remote transmitter.
z GEM.
z Circuitry.
z Luggage
compartment lid
release relay. z
GO to
Pinpoint Test D .
z Panic function does not operate
correctly z
GEM.
z Driver door unlock
relay.
z Circuitry.
z Remote transmitter
and batteries.
z Courtesy lamps.
z Horn relay.
z Horn.
z Parklamps. z
GO to
Pinpoint Test E .
Test Step Result / Action to Take
CAUTION: Use the correct probe adapter(s) when making measurements. Failure to
use the correct probe adapter(s) may damage the connector. A1 CHECK THE GENERIC ELECTRONIC MODULE (GEM)
POWER SUPPLY z
Key in OFF position.
z Disconnect: Generic Electronic Module (GEM) C201a.
z Disconnect: GEM C201b.
z Key in ON position.
z Using the following table, measure the voltage between the
GEM, harness side and ground.
z Are the voltages greater than 10 volts? Connector Pin Circuit
C201a 4 400 (LB/BK)
C201a 1 1006 (DG/WH)
C201b 2 1001 (WH/YE)
C201b 3 193 (YE/LG) Yes
GO to
A2 .
No
REPAIR the circuit(s) in
question. TEST the system
for normal operation. A2 CHECK THE GEM GROUND CIRCUIT 397 (BK/WH) FOR
OPEN z
Key in OFF position. Yes Klj . 6 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

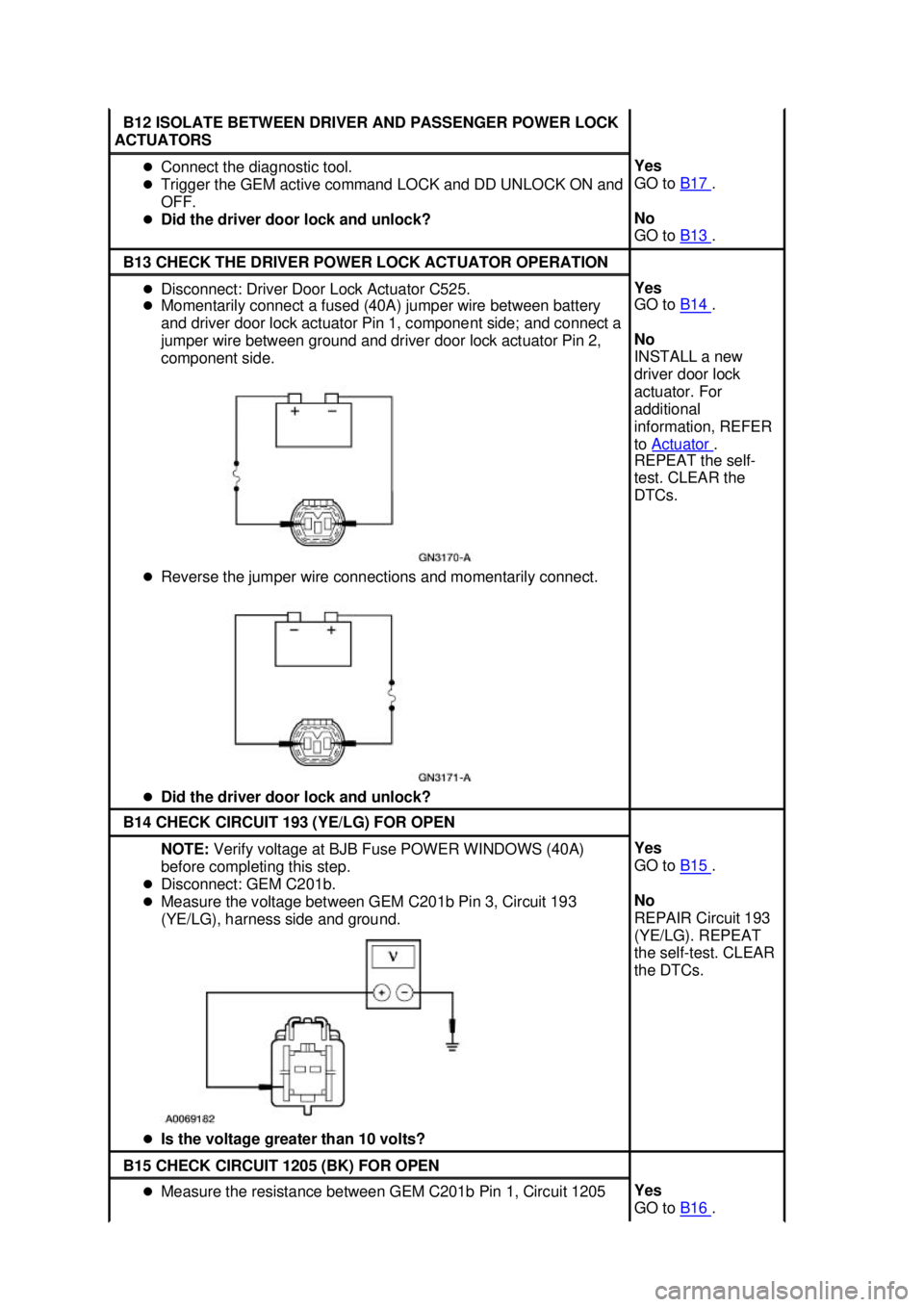

B12 ISOLATE BETWEEN DRIVER AND PASSENGER POWER LOCK
ACTUATORS z
Connect the diagnostic tool.
z Trigger the GEM active command LOCK and DD UNLOCK ON and
OFF.
z Did the driver door lock and unlock? Yes
GO to
B17 .
No
GO to B13 .
B13 CHECK THE DRIVER POWER LOCK ACTUATOR OPERATION
z
Disconnect: Driver Door Lock Actuator C525.
z Momentarily connect a fused (40A) jumper wire between battery
and driver door lock actuator Pin 1, component side; and connect a
jumper wire between ground and driver door lock actuator Pin 2,
component side.
z Reverse the jumper wire connections and momentarily connect.
z Did the driver door lock and unlock? Yes
GO to
B14 .
No
INSTALL a new
driver door lock
actuator. For
additional
information, REFER
to Actuator .
REPEAT the self-
test. CLEAR the
DTCs. B14 CHECK CIRCUIT 193 (YE/LG) FOR OPEN
NOTE:
Verify voltage at BJB Fuse POWER WINDOWS (40A)
before completing this step.
z Disconnect: GEM C201b.
z Measure the voltage between GEM C201b Pin 3, Circuit 193
(YE/LG), harness side and ground.
z Is the voltage greater than 10 volts? Yes
GO to
B15 .
No
REPAIR Circuit 193
(YE/LG). REPEAT
the self- test. CLEAR
the DTCs. B15 CHECK CIRCUIT 1205 (BK) FOR OPEN
z
Measure the resistance between GEM C201b Pin 1, Circuit 1205 Yes
GO to
B16 . Klj . 11 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

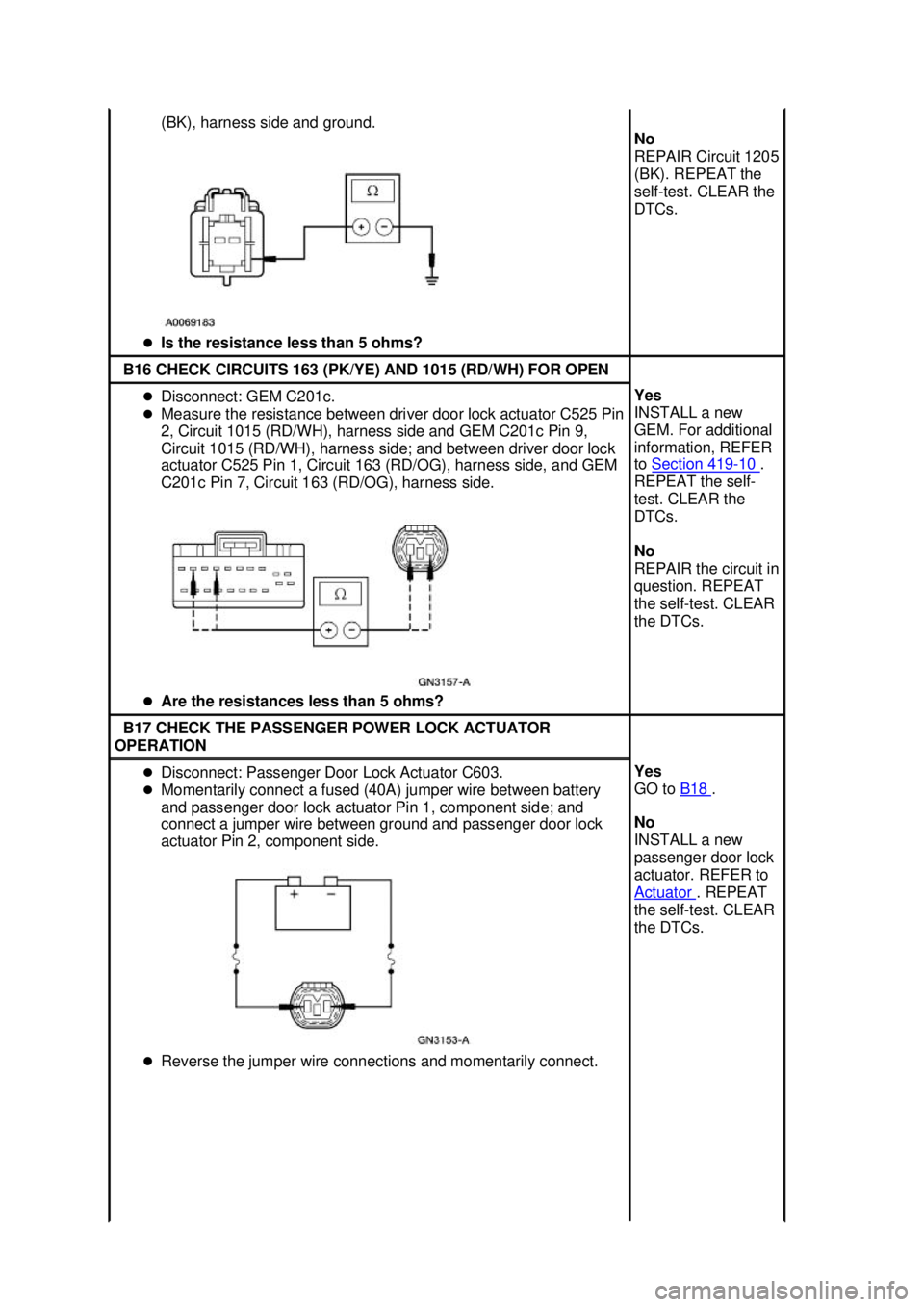

(BK), harness side and ground.
z Is the resistance less than 5 ohms? No
REPAIR Circuit 1205
(BK). REPEAT the
self-
test. CLEAR the
DTCs. B16 CHECK CIRCUITS 163 (PK/YE) AND 1015 (RD/WH) FOR OPEN
z
Disconnect: GEM C201c.
z Measure the resistance between driver door lock actuator C525 Pin
2, Circuit 1015 (RD/WH), harness side and GEM C201c Pin 9,
Circuit 1015 (RD/WH), harness side; and between driver door lock
actuator C525 Pin 1, Circuit 163 (RD/OG), harness side, and GEM
C201c Pin 7, Circuit 163 (RD/OG), harness side.
z Are the resistances less than 5 ohms? Yes
INSTALL a new
GEM. For additional
information, REFER
to
Section 419 - 10 .
REPEAT the self-
test. CLEAR the
DTCs.
No
REPAIR the circuit in
question. REPEAT
the self- test. CLEAR
the DTCs. B17 CHECK THE PASSENGER POWER LOCK ACTUATOR
OPERATION z
Disconnect: Passenger Door Lock Actuator C603.
z Momentarily connect a fused (40A) jumper wire between battery
and passenger door lock actuator Pin 1, component side; and
connect a jumper wire between ground and passenger door lock
actuator Pin 2, component side.
z Reverse the jumper wire connections and momentarily connect. Yes
GO to
B18 .
No
INSTALL a new
passenger door lock
actuator. REFER to
Actuator . REPEAT
the self- test. CLEAR
the DTCs. Klj . 12 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Washers
When the GEM detects the ignition switch circuits are in RUN or ACC states, and the GEM detects a
WASH request from the wiper delay/wash circuits, the GEM will activate the washer pump relay circuit
for as long as the request is present up to 10 seconds.
Activation of the washer pump when in INTERVAL or OFF is delayed until a wash request is active for
a minimum amount of time. In this scenario, the wash request must be present continuously for at least
210 ms. This allows a wash request that is present for less than 210 ms, to provide additional
functionality by initiating a single wipe, called "mist wipe". The mist wipe function is a single wipe at low
speed without activating the washer motor.
When in LOW or HIGH, any WASH request, regardless of the length of time it is present, will activate
the washer pump. When in INTERVAL or OFF mode, upon deactivation of the washer motor, this
feature shall provide two wipes at low speed before returning to the INTERVAL or OFF state as
defined by the inputs. These additional wipes are provided to clear residual washer fluid from the front
windshield.
Inspection and Verification
1. Verify the customer concern by operating the wiper/washer system.
2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the
diagnostic tool menu. If diagnostic tool does not communicate with the vehicle:
zCheck that the program card is correctly installed.
z Check the connections to the vehicle.
z Check the ignition switch position.
4. If diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool manual.
5. Carry out the DATA LINK DIAGNOSTIC TEST. If diagnostic tool responds with: zCKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESPONSE/NOT EQUIPPED for GEM, go to Pinpoint Test A.
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out self- test diagnostics for the GEM.
Visual Inspection Chart Mechanical Electrical
z
Hoses to windshield washer pump
z Wiper linkage z
CJB Fuse 39 (5A)
z CJB Fuse 26 (30A)
z Wiring harness
z Loose or corroded connector(s)
z Relays
z Motors
z Multifunction switch
z GEM Klj . 2 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
