2003 FORD MUSTANG Owners Manual

Item Ford part
nameFord part
numberFord
specification
Engine coolant Motorcraft
Premium
Engine Coolant
(green-colored)VC-4–A(US)
or CXC-10
(Canada)ESE-M97B44-A
Motorcraft
Premium Gold
Engine Coolant
(yellow-
colored)VC-7–A
WSS-M97B51–A1
Engine oil Motorcraft SAE
5W-20 Super
Premium Motor
OilXO-5W20-QSP WSS-M2C153-H
with API
Certification
Mark
Lock cylinders Penetrating
and Lock
LubricantMotorcraft
XL-1none
Power steering
fluid and
convertible top
fluid (if
equipped)Motorcraft
MERCONAT FXT-2-QM MERCON
Rear Axle
LubricantMotorcraft SAE
80W-90
Premium Rear
Axle Lubricant
1
XY-80W90-QL WSP-M2C197-A
Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140-QL WSP-M2C192-A
Automatic
transmission
fluidMotorcraft
MERCONV
AT F
2
XT-5-QM MERCONV
3.8L Manual
transmission
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
4.6L Manual
transmission
fluidMotorcraft
Synthetic
MERCONAT FXT-2–QSM
MERCONand
ESR-M2C163–A2
Disc brake
caliper railsMotorcraft
Silicone Brake
Caliper Grease
and Dielectric
CompoundXG-3 ESE-M1C171-A
Windshield
washer fluidUltra-clear
Windshield
Washer
ConcentrateC9AZ-19550-AC ESR-M17P5-A
Maintenance and Specifications
241

1Add 118 ml (4 oz.) of Additive Friction Modifier
C8AZ-19B546-A or equivalent meeting Ford
specification EST-M2C118-A for complete refill of
Traction-Lok axles.
Ford design rear axles contain a synthetic lubricant
that does not require changing unless the axle has
been submerged in water.
2Ensure the correct automatic transmission fluid is
used. Transmission fluid requirements are indicated
on the dipstick or on the dipstick handle. MERCON
and MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to your
scheduled maintenance guide to determine the
correct service interval.
ENGINE DATA
Engine 3.8L OHV V6
engine4.6L SOHC V8
engine
Cubic inches 232 281
Required fuel 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8
Spark plug gap 1.3-1.4 mm
(0.052-00.056
inch)1.3-1.4 mm
(0.052-00.056
inch)
Ignition system EDIS Coil on plug
Compression ratio 9.4:1 9.4:1

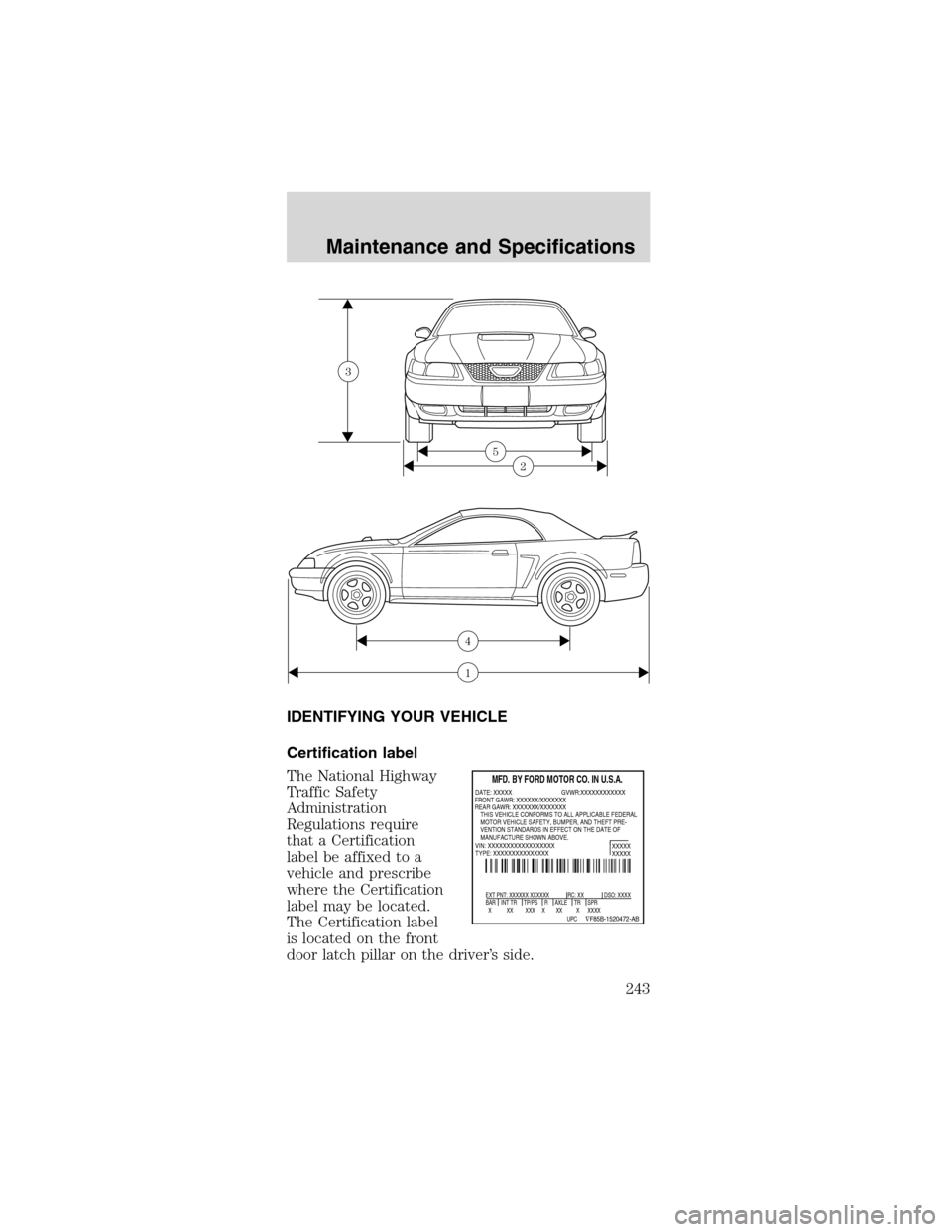

VEHICLE DIMENSIONS
Vehicle
dimensionsCoupe mm (in) Convertible mm
(in)
(1) Overall length 4653.3 (183.2) 4653.3 (183.2)
(2) Overall width 1856.7 (73.1) 1856.7 (73.1)
(3) Overall height 1348.7 (53.1) 1351.3 (53.2)
(4) Wheelbase 2573.0 (101.3) 2573.0 (101.3)
(5) Track - Front 1534.2 (60.4)
11534.2 (60.4)1
(5) Track - Rear 1539.2 (60.6)21539.2 (60.6)2
11521.5 mm (59.9 in) for Mustang GT
21526.5 mm (60.1 in) for Mustang GT
Maintenance and Specifications
242

IDENTIFYINGYOURVEHICLE
Certification label
The National Highway
Traffic Safety
Administration
Regulations require
that a Certification
label be affixed to a
vehicle and prescribe
where the Certification
label may be located.
The Certification label
is located on the front
door latch pillar on the driver’s side.
25
3
4
1
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT: XXXXXX XXXXXX RC: XX DSO: XXXX
BAR INT TR TP/PS R AXLE TR SPR
X XX XXX X XX X XXXX
XXXXX
XXXXX
UPC ∇F85B-1520472-AB
DATE: XXXXX GVWR:XXXXXXXXXXXX
VIN: XXXXXXXXXXXXXXXXXX
TYPE: XXXXXXXXXXXXXXX FRONT GAWR: XXXXXX/XXXXXXX
REAR GAWR: XXXXXXX/XXXXXXX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL
MOTOR VEHICLE SAFETY, BUMPER, AND THEFT PRE-
VENTION STANDARDS IN EFFECT ON THE DATE OF
MANUFACTURE SHOWN ABOVE.
Maintenance and Specifications
243

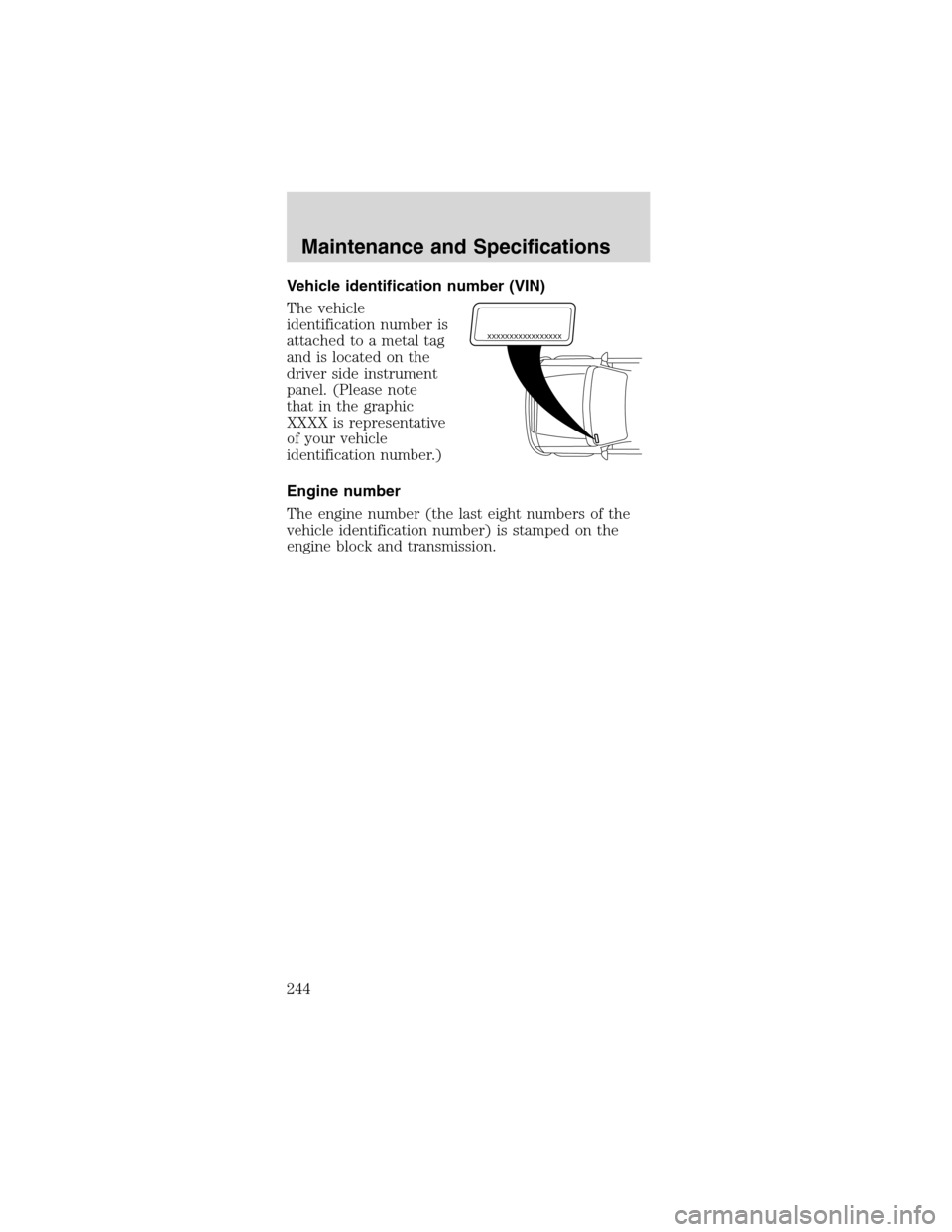

Vehicle identification number (VIN)
The vehicle
identification number is
attached to a metal tag
and is located on the
driver side instrument
panel. (Please note
that in the graphic
XXXX is representative
of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the
vehicle identification number) is stamped on the
engine block and transmission.
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
244

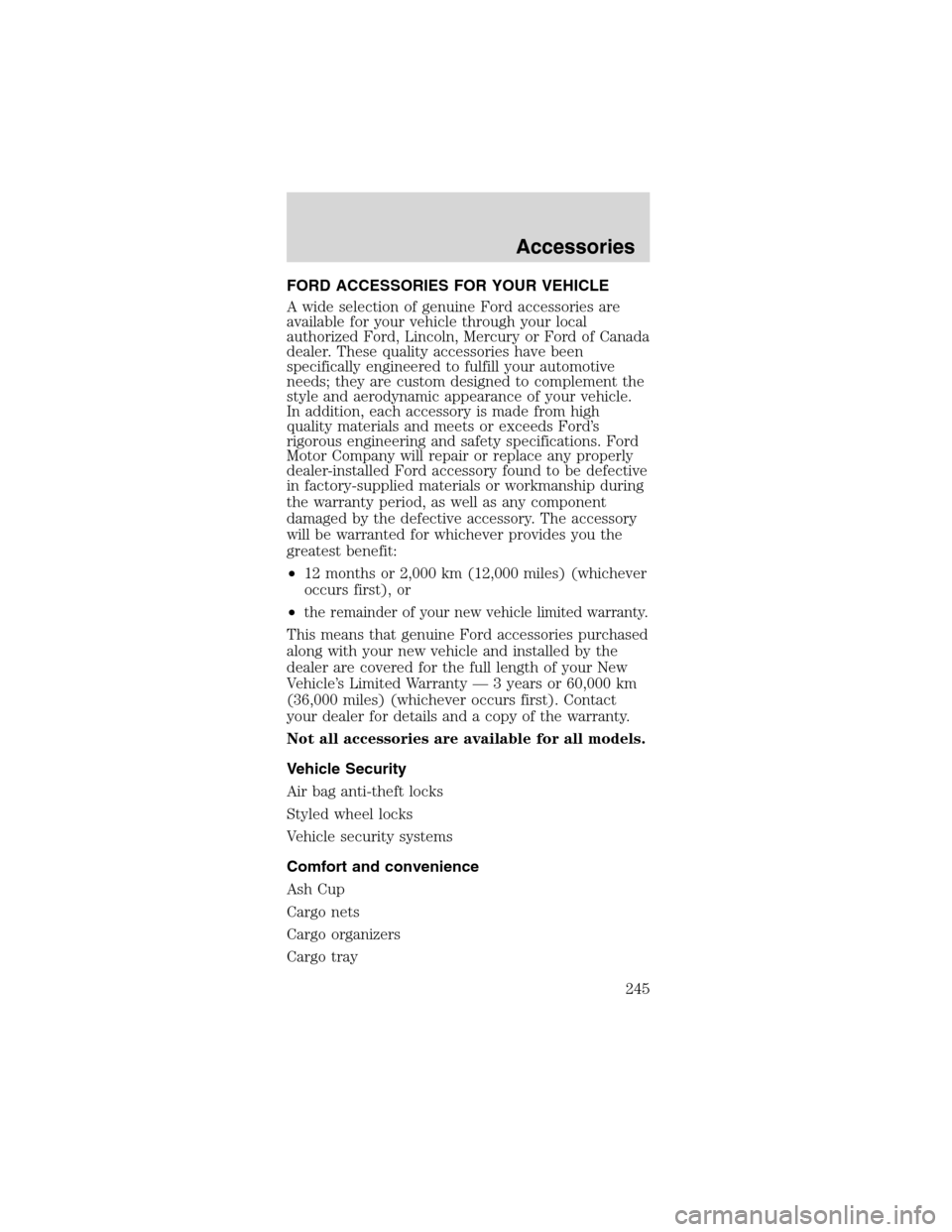

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are
available for your vehicle through your local
authorized Ford, Lincoln, Mercury or Ford of Canada
dealer. These quality accessories have been
specifically engineered to fulfill your automotive
needs; they are custom designed to complement the
style and aerodynamic appearance of your vehicle.
In addition, each accessory is made from high
quality materials and meets or exceeds Ford’s
rigorous engineering and safety specifications. Ford
Motor Company will repair or replace any properly
dealer-installed Ford accessory found to be defective
in factory-supplied materials or workmanship during
the warranty period, as well as any component
damaged by the defective accessory. The accessory
will be warranted for whichever provides you the
greatest benefit:
•12 months or 2,000 km (12,000 miles) (whichever
occurs first), or
•
the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased
along with your new vehicle and installed by the
dealer are covered for the full length of your New
Vehicle’s Limited Warranty—3 years or 60,000 km
(36,000 miles) (whichever occurs first). Contact
your dealer for details and a copy of the warranty.
Not all accessories are available for all models.
Vehicle Security
Air bag anti-theft locks
Styled wheel locks
Vehicle security systems
Comfort and convenience
Ash Cup
Cargo nets
Cargo organizers
Cargo tray
Accessories
245

Dash trim
Electrochromic mirror with compass
Electrochromic mirror with compass and
temperature display
Engine block heaters
Remote keyless entry system
Remote start system
Travel equipment
Auto headlamps with daytime running lights (DRL)
Daytime running lights (DRL)
First aid kit
Fog lights
Highway safety kit
Removable luggage rack
Removable luggage rack adapters (Bike, ski,
snowboard)
Speed control
Protection and appearance equipment
All-weather vinyl floor mats
Car cover
Cargo liners, interior
Carpet floor mats
Door edge guards
Door sill scuff plates, stainless
Flat splash guards
Front end covers (full and mini)
Gearshift knob
Leather steering wheel
Molded splash guards
Pedal covers
Seat belt extenders
Accessories
246

Sideair deflector
Spoiler
Styled hood deflector
Tonneau cover (mini, for convertible top)
Universal floor mats
Wheels (chrome and painted)
For maximum vehicle performance, keep the
following information in mind when adding
accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers
and luggage to your vehicle, do not exceed the
total weight capacity of the vehicle or of the front
or rear axle (GVWR or GAWR as indicated on the
Safety compliance certification label). Consult
your dealer for specific weight information.
•The Federal Communications Commission (FCC)
and Canadian Radio Telecommunications
Commission (CRTC) regulate the use of mobile
communications systems - such as two-way
radios, telephones and theft alarms - that are
equipped with radio transmitters. Any such
equipment installed in your vehicle should comply
with FCC or CRTC regulations and should be
installed only by a qualified service technician.
•Mobile communications systems may harm the
operation of your vehicle, particularly if they are
not properly designed for automotive use or are
not properly installed. When operated, such
systems may cause the engine to stumble or stall
or cause the transmission to be damaged or
operate improperly. In addition, such systems may
be damaged or their performance may be affected
by operating your vehicle. (Citizens band [CB]
transceivers, garage door openers and other
transmitters with outputs of five watts or less will
not ordinarily affect your vehicle’s operation.)
•Ford cannot assume responsibility for any adverse
effects or damage that may result from the use of
such equipment.
Accessories
247

A
ABS (see Brakes) ... 140
Air bag supplemental
restraint
system .............. 114–115
and child safety
seats ....................... 116
description ............ 115
disposal .................. 119
driver air bag ........ 117
indicator
light .................. 11, 119
operation ............... 117
passenger
air bag .................... 117
Air cleaner filter ..... 237
Air conditioning
manual heating
and air conditioning
system ..................... 63
Antifreeze
(see Engine
coolant) ................... 206
Anti-lock brake system
(see Brakes) .... 140–141
Anti-theft system
warning light ........... 11
Audio system
(see Radio) .......... 19, 43
Automatic
transmission ............ 144
driving an automatic
overdrive ............... 146
fluid, adding .......... 228
fluid, checking ...... 228
fluid, refill
capacities ............... 238
fluid,
specification .......... 242Auxiliary power
point ........................... 78
Axle
lubricant
specifications... 240, 242
refill capacities ...... 238
traction lok ............ 144
B
Battery ..................... 203
acid, treating
emergencies .......... 203
charging system
warning light ........... 11
jumping a disabled
battery ................... 170
maintenance-free .. 203
replacement,
specifications ........ 237
servicing ................ 203
voltage gauge .......... 16
BeltMinder ............... 109
Brakes .............. 138, 141
anti-lock ......... 140–141
anti-lock brake
system (ABS)
warning light ... 13, 141
brake warning
light .......................... 14
fluid, checking
and adding ............ 226
fluid, refill
capacities ............... 238
fluid,
specifications... 240, 242
lubricant
specifications... 240, 242
parking .................. 139
shift interlock ........ 144
Break-in period ........... 5
Bulbs .......................... 71
