2003 FORD MUSTANG Owners Manual

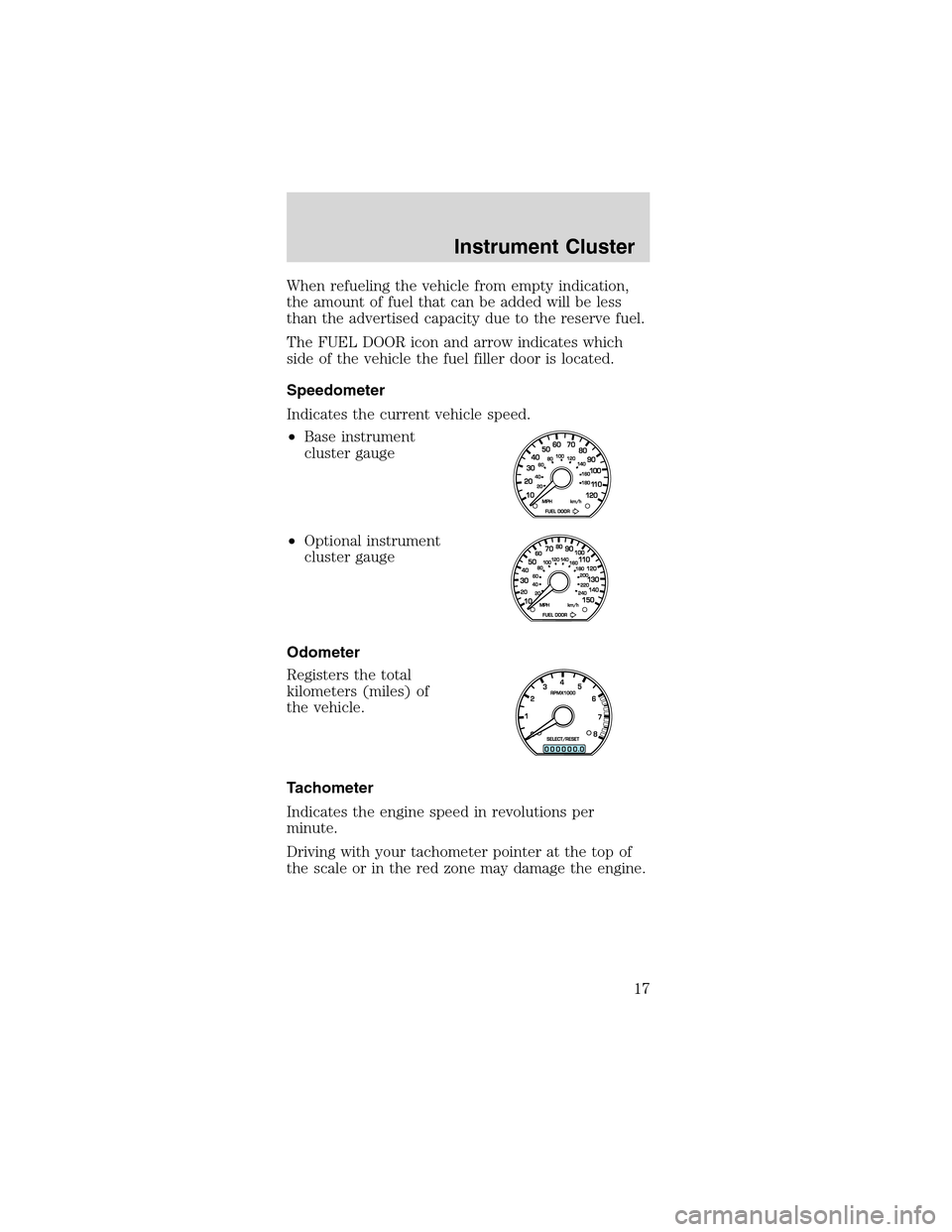

When refueling the vehicle from empty indication,
the amount of fuel that can be added will be less
than the advertised capacity due to the reserve fuel.
The FUEL DOOR icon and arrow indicates which
side of the vehicle the fuel filler door is located.
Speedometer
Indicates the current vehicle speed.
•Base instrument
cluster gauge
•Optional instrument
cluster gauge
Odometer
Registers the total
kilometers (miles) of
the vehicle.
Tachometer
Indicates the engine speed in revolutions per
minute.
Driving with your tachometer pointer at the top of
the scale or in the red zone may damage the engine.
Instrument Cluster
17

•Base instrument
cluster gauge
•Optional instrument
cluster gauge
Trip odometer
Registers the
kilometers (miles) of
individual journeys.
Press and release the
reset button until a’T’
appears in the display
(this represents the
trip mode). Press and hold the button for three
seconds to reset.
0
00000 00
4
5
6
7
8 3
2
1RPMX1000
SELECT/RESET
.
Instrument Cluster
18

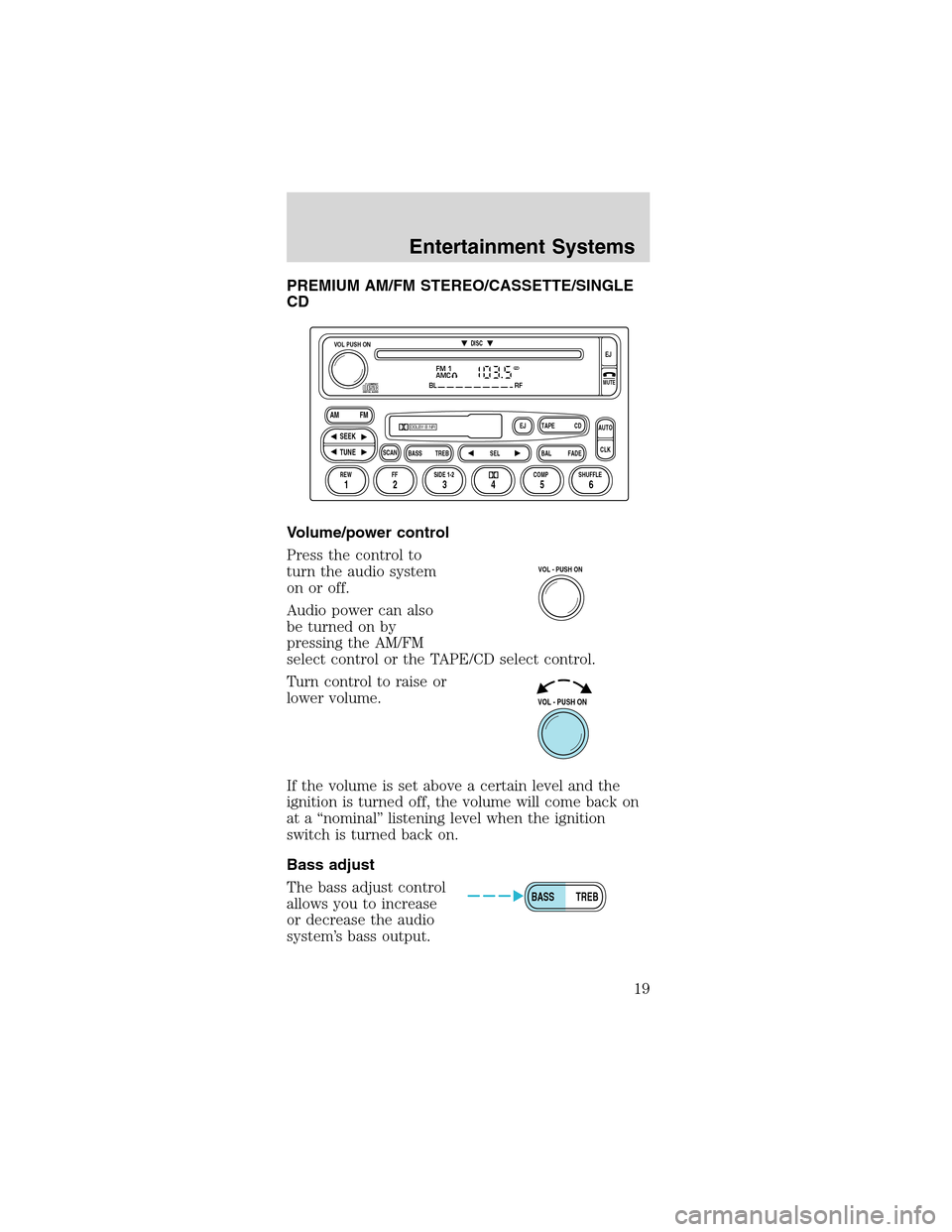

PREMIUM AM/FM STEREO/CASSETTE/SINGLE
CD
Volume/power control
Press the control to
turn the audio system
on or off.
Audio power can also
be turned on by
pressing the AM/FM
select control or the TAPE/CD select control.
Turn control to raise or
lower volume.
If the volume is set above a certain level and the
ignition is turned off, the volume will come back on
at a“nominal”listening level when the ignition
switch is turned back on.
Bass adjust
The bass adjust control
allows you to increase
or decrease the audio
system’s bass output.
FM 1
AMC
BL RF
REW FFSCAN
BASS TREB SEL BALTAPE DISC
EJ CD
FADEAUTO
CLK
SIDE 1-2 COMP SHUFFLEEJ
MUTE
VOL PUSH ON
SEEK
TUNE AM FM
12 3456
DOLBY B NR
ST
VOL - PUSH ON
VOL - PUSH ON
BASS TREB
Entertainment Systems
19

Press the BASS control then press:
•
to decrease the
bass output and
•
to increase the
bass output.
Treble adjust
The treble adjust
control allows you to
increase or decrease
the audio system’s treble output.
Press the TREB control then press:
•
to decrease the
treble output and
•
to increase the
treble output.
Speaker balance adjust
Speaker sound
distribution can be
adjusted between the
right and left speakers.
Press the BAL control then press:
•
to shift sound to
the left and
•
to shift sound to
the right.
Speaker fade adjust
Speaker sound can be
adjusted between the
front and rear
speakers.
BASS TREB
BAL FADE
BAL FADE
Entertainment Systems
20

Press the FADE control then press:
•
to shift the
sound to the front
and
•
to shift the sound to the rear.
Seek function
The seek function control works in radio, tape or CD
mode.
Seek function in radio mode
•Press
to find the
next listenable
station down the
frequency band.
•Press
to find the next listenable station up
the frequency band.
Seek function in tape mode
•Press
to listen to the previous selection on
the tape.
•Press
to listen to the next selection on the
tape.
Seek function for CD or CD changer
(if equipped)
•Press
to seek to
the previous track of
the current disc. If a
selection has been playing for three seconds or
more and you press
, the CD changer will
replay that selection from the beginning.
•Press
to seek forward to the next track of the
current disc. After the last track has been
completed, the first track of the current disc will
automatically replay.
Entertainment Systems
21

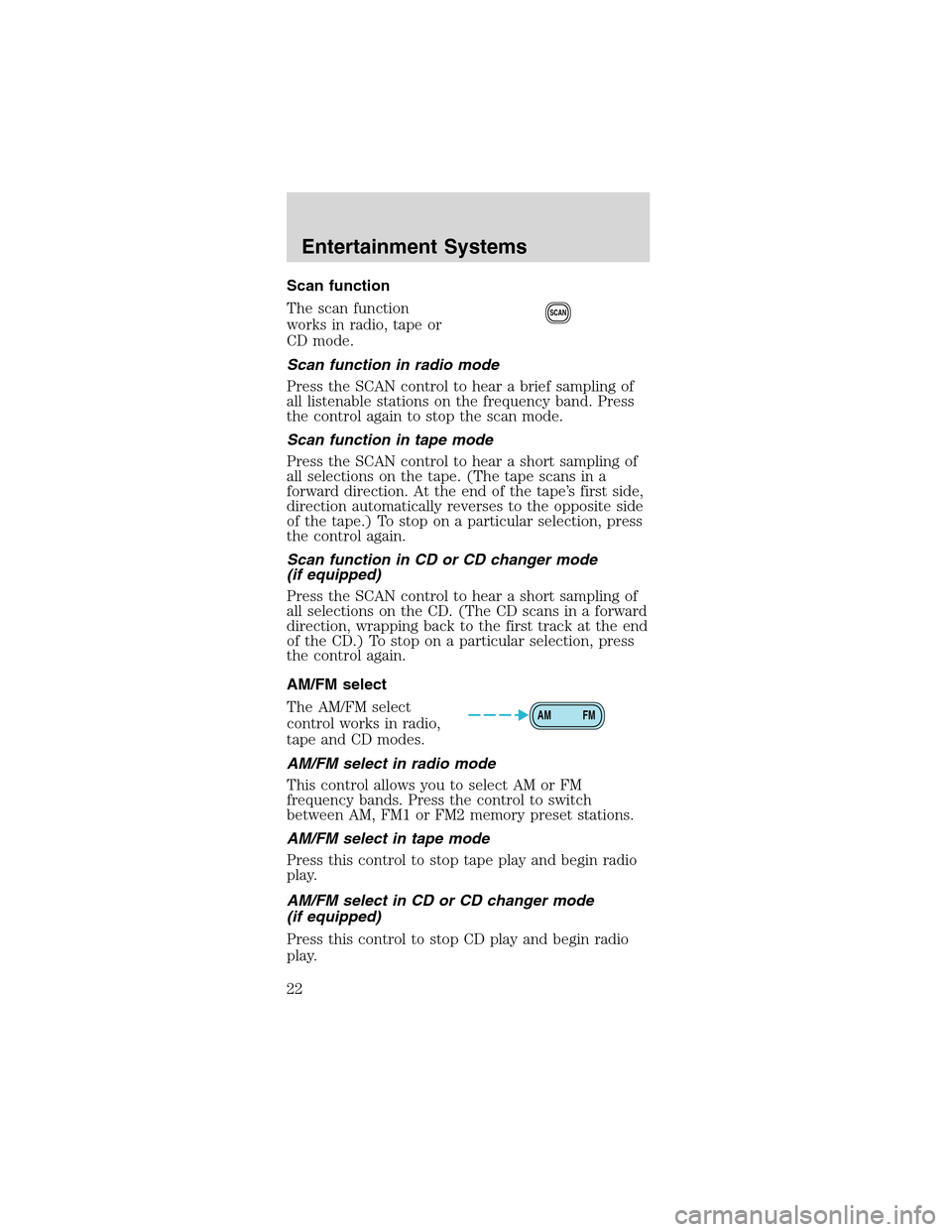

Scan function
The scan function
works in radio, tape or
CD mode.
Scan function in radio mode
Press the SCAN control to hear a brief sampling of
all listenable stations on the frequency band. Press
the control again to stop the scan mode.
Scan function in tape mode
Press the SCAN control to hear a short sampling of
all selections on the tape. (The tape scans in a
forward direction. At the end of the tape’s first side,
direction automatically reverses to the opposite side
of the tape.) To stop on a particular selection, press
the control again.
Scan function in CD or CD changer mode
(if equipped)
Press the SCAN control to hear a short sampling of
all selections on the CD. (The CD scans in a forward
direction, wrapping back to the first track at the end
of the CD.) To stop on a particular selection, press
the control again.
AM/FM select
The AM/FM select
control works in radio,
tape and CD modes.
AM/FM select in radio mode
This control allows you to select AM or FM
frequency bands. Press the control to switch
between AM, FM1 or FM2 memory preset stations.
AM/FM select in tape mode
Press this control to stop tape play and begin radio
play.
AM/FM select in CD or CD changer mode
(if equipped)
Press this control to stop CD play and begin radio
play.
SCAN
AM FM
Entertainment Systems
22

Radio station memory preset
The radio is equipped with six station memory
preset controls. These controls can be used to select
up to six preset AM stations and twelve FM stations
(six in FM1 and six in FM2).
Setting memory preset stations
1. Select the frequency
band with the AM/FM
select control.
2. Select a station. Refer toTune adjustorSeek
functionfor more information on selecting a station.
3. Press and hold a memory preset control until the
sound returns, indicating the station is held in
memory of the control you selected.
Autoset memory preset
Autoset allows you to set strong radio stations
without losing your original manually set preset
stations. This feature is helpful on trips when you
travel between cities with different radio stations.
Starting autoset memory preset
1. Select a frequency using the AM/FM select
controls.
2. Press the control.
3. When the first six
strong stations are
filled, the station stored
in memory preset
control 1 will start
playing.
If there are less than six strong stations available on
the frequency band, the remaining memory preset
controls will all store the last strong station
available.
AM FM
AUTO
CLK
Entertainment Systems
23

These stations are temporarily stored in the memory
preset controls (until deactivated) and are accessed
in the same manner as your original presets.
To deactivate autoset and return to your audio
system’s manually set memory stations, press the
AUTO control again.
Setting the clock
To set the hour, press
and hold the CLK
control and press
SEEK:
•
to decrease
hours and
•
to increase
hours.
To set the minute,
press and hold the CLK
control and press
TUNE:
•
to decrease
minutes and
•
to increase
minutes.
If your vehicle has a separate clock, (other than the
digital radio display), the CLK control will not
function in the above manner.
The CLK control will
allow you to switch
between media display
mode (radio station,
stereo information,
etc.) and clock display
mode (time). When in
AUTO
CLK
AUTO
CLK
AUTO
CLK
Entertainment Systems
24
