1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATA
Engine 4.6L V8 engine 5.4L V8 engine
Cubic inches 281 330
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Spark plug gap 1.3-1.4 mm
(0.052-0.056 inch)1.3-1.4 mm
(0.052-0.056 inch)
Ignition system Coil on plug Coil on plug
Compression ratio 9.37:1 9.0:1
VEHICLE DIMENSIONS
Vehicle dimensions 4x2 mm (in) 4x4 mm (in)
(1) Overall length 5228
(205.8)5228
(205.8)
(2) Vehicle width
(Body)2000
(78.7)2000
(78.7)
(2) Vehicle width
including mirrors2390
(94.1)2390
(94.1)
Maintenance and Specifications
305

Vehicle dimensions 4x2 mm (in) 4x4 mm (in)
(2) Vehicle width
with mirrors folded2029
(79.9)2029
(79.9)
(2) Vehicle width
with optional
running boards2074
(81.7)2074
(81.7)
(3) Overall height
(with roof rack)1971
(77.6)1966
(77.4)
(4) Wheelbase 3023
(119.0)3023
(119.0)
(5) Track - Front 1701
(67.0)1701
(67.0)
(5) Track - Rear 1708
(67.3)1708
(67.3)
1
4
Maintenance and Specifications
306

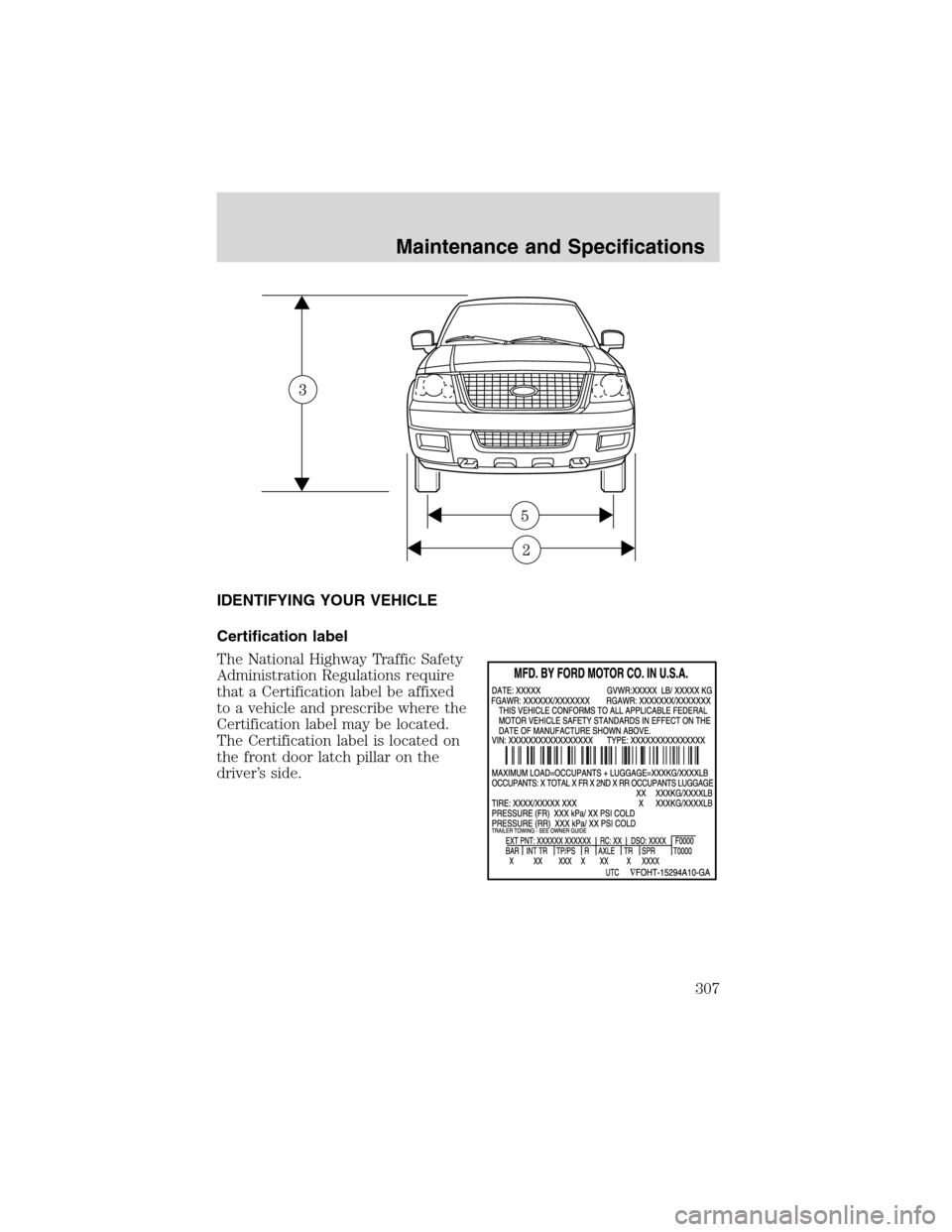

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
Maintenance and Specifications
307

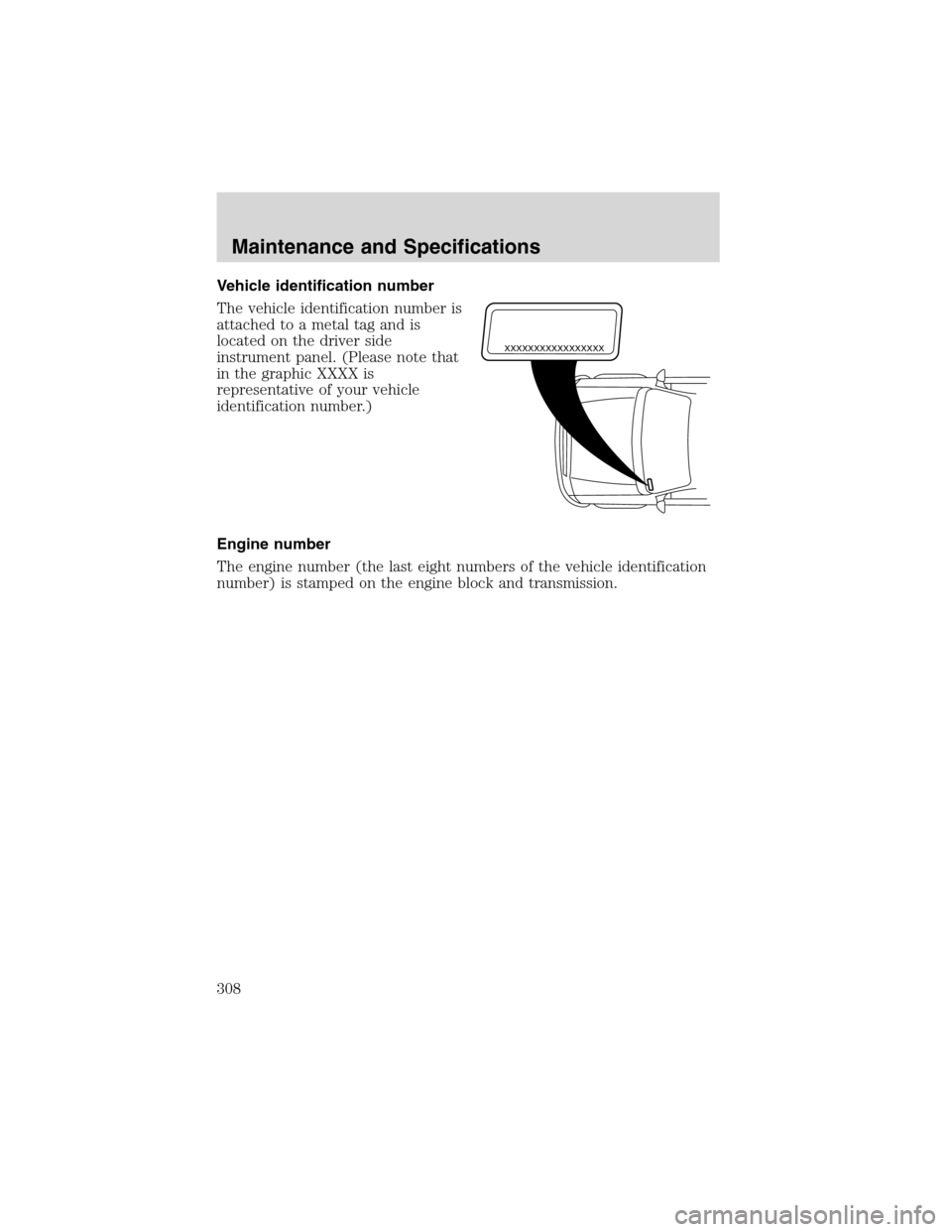

Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transmission.
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
308

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford, Lincoln, Mercury or Ford of
Canada dealer. These quality accessories have been specifically
engineered to fulfill your automotive needs; they are custom designed to
complement the style and aerodynamic appearance of your vehicle. In
addition, each accessory is made from high quality materials and meets
or exceeds Ford’s rigorous engineering and safety specifications. Ford
Motor Company will repair or replace any properly dealer-installed Ford
accessory found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessory. The accessory will be warranted for
whichever provides you the greatest benefit:
•12 months or 20 000 km (12 000 miles) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—3 years or 60 000 km (36 000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
Vehicle Security
Wheel protector locks
Vehicle security systems
Comfort and convenience
Battery warmer
Cargo organizers
Cargo trays
Carpeted cargo mat
Chrome running boards
Dash trim (wood grain)
Door edge edge guards
Engine block heaters
Rear seat entertainment system–DVD
Remote Start System
Accessories
309

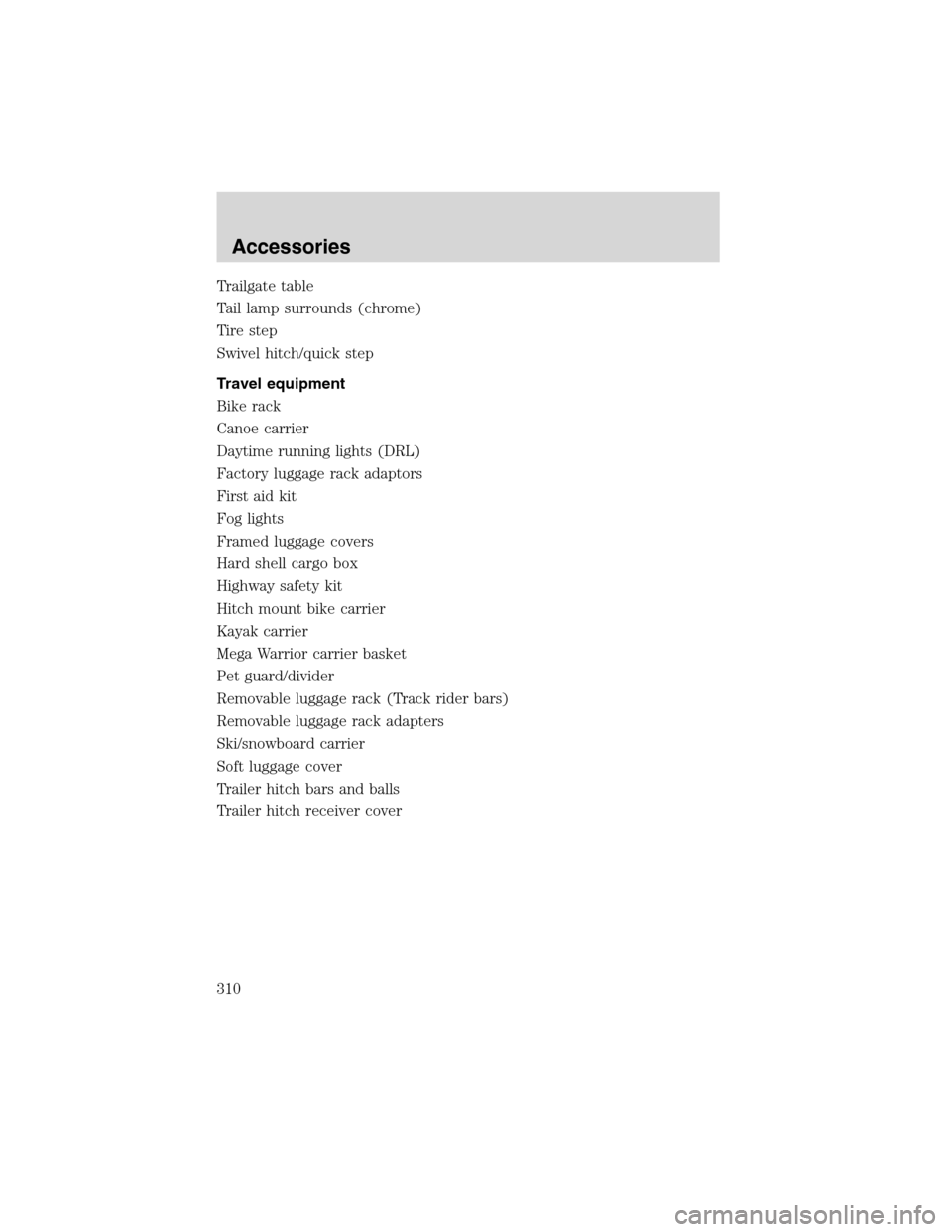

Trailgate table
Tail lamp surrounds (chrome)
Tire step
Swivel hitch/quick step
Travel equipment
Bike rack
Canoe carrier
Daytime running lights (DRL)
Factory luggage rack adaptors
First aid kit
Fog lights
Framed luggage covers
Hard shell cargo box
Highway safety kit
Hitch mount bike carrier
Kayak carrier
Mega Warrior carrier basket
Pet guard/divider
Removable luggage rack (Track rider bars)
Removable luggage rack adapters
Ski/snowboard carrier
Soft luggage cover
Trailer hitch bars and balls
Trailer hitch receiver cover
Accessories
310

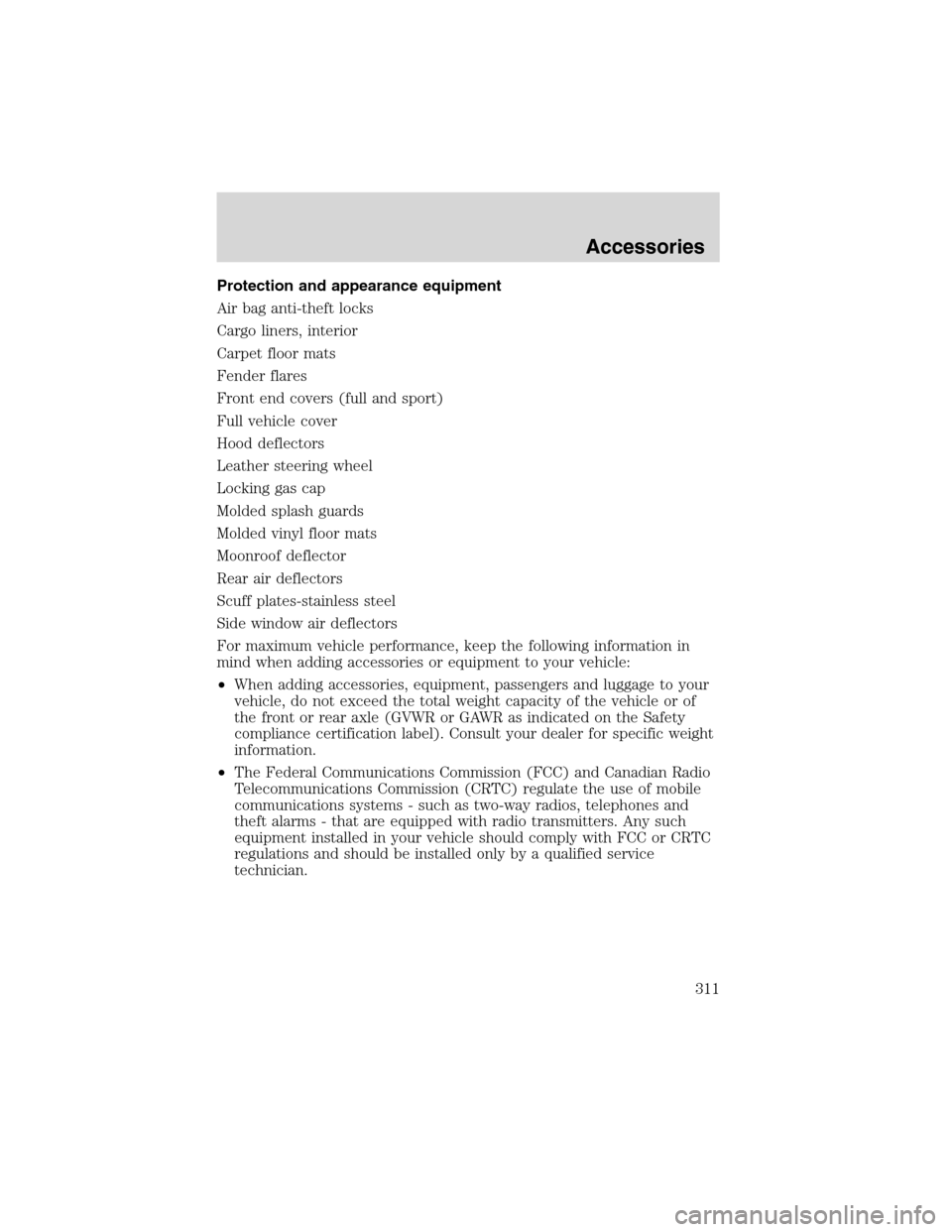

Protection and appearance equipment
Air bag anti-theft locks
Cargo liners, interior
Carpet floor mats
Fender flares
Front end covers (full and sport)
Full vehicle cover
Hood deflectors
Leather steering wheel
Locking gas cap
Molded splash guards
Molded vinyl floor mats
Moonroof deflector
Rear air deflectors
Scuff plates-stainless steel
Side window air deflectors
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
compliance certification label). Consult your dealer for specific weight
information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems - such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
Accessories
311

•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use or are not properly installed. When operated, such systems may
cause the engine to stumble or stall or cause the transmission to be
damaged or operate improperly. In addition, such systems may be
damaged or their performance may be affected by operating your
vehicle. (Citizens band [CB] transceivers, garage door openers and
other transmitters with outputs of five watts or less will not ordinarily
affect your vehicle’s operation.)
•Ford cannot assume responsibility for any adverse effects or damage
that may result from the use of such equipment.
•Do not install equipment which modifies the vehicles suspension or
steering. Such modifications can cause adverse effects to the
AdvanceTrac system.
•Do not install a loudspeaker in the area of the front floor console or
under the front driver or passenger seats. The speaker vibrations can
adversely effect the AdvanceTrac sensors.
Accessories
