2003 FORD EXPEDITION Owners Manual

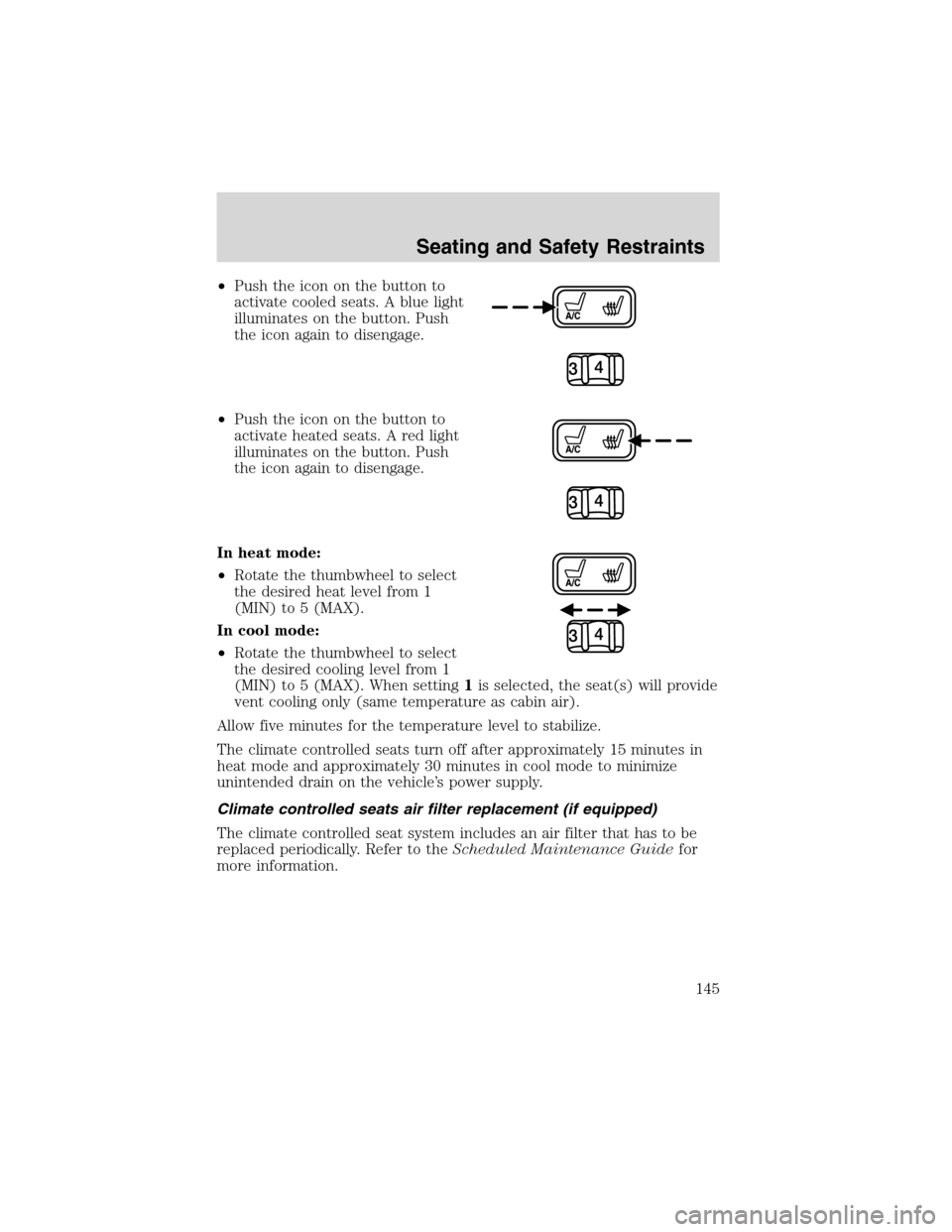

•Push the icon on the button to
activate cooled seats. A blue light
illuminates on the button. Push
the icon again to disengage.
•Push the icon on the button to
activate heated seats. A red light
illuminates on the button. Push
the icon again to disengage.
In heat mode:
•Rotate the thumbwheel to select
the desired heat level from 1
(MIN) to 5 (MAX).
In cool mode:
•Rotate the thumbwheel to select
the desired cooling level from 1
(MIN) to 5 (MAX). When setting1is selected, the seat(s) will provide
vent cooling only (same temperature as cabin air).
Allow five minutes for the temperature level to stabilize.
The climate controlled seats turn off after approximately 15 minutes in
heat mode and approximately 30 minutes in cool mode to minimize
unintended drain on the vehicle’s power supply.
Climate controlled seats air filter replacement (if equipped)
The climate controlled seat system includes an air filter that has to be
replaced periodically. Refer to theScheduled Maintenance Guidefor
more information.
Seating and Safety Restraints
145

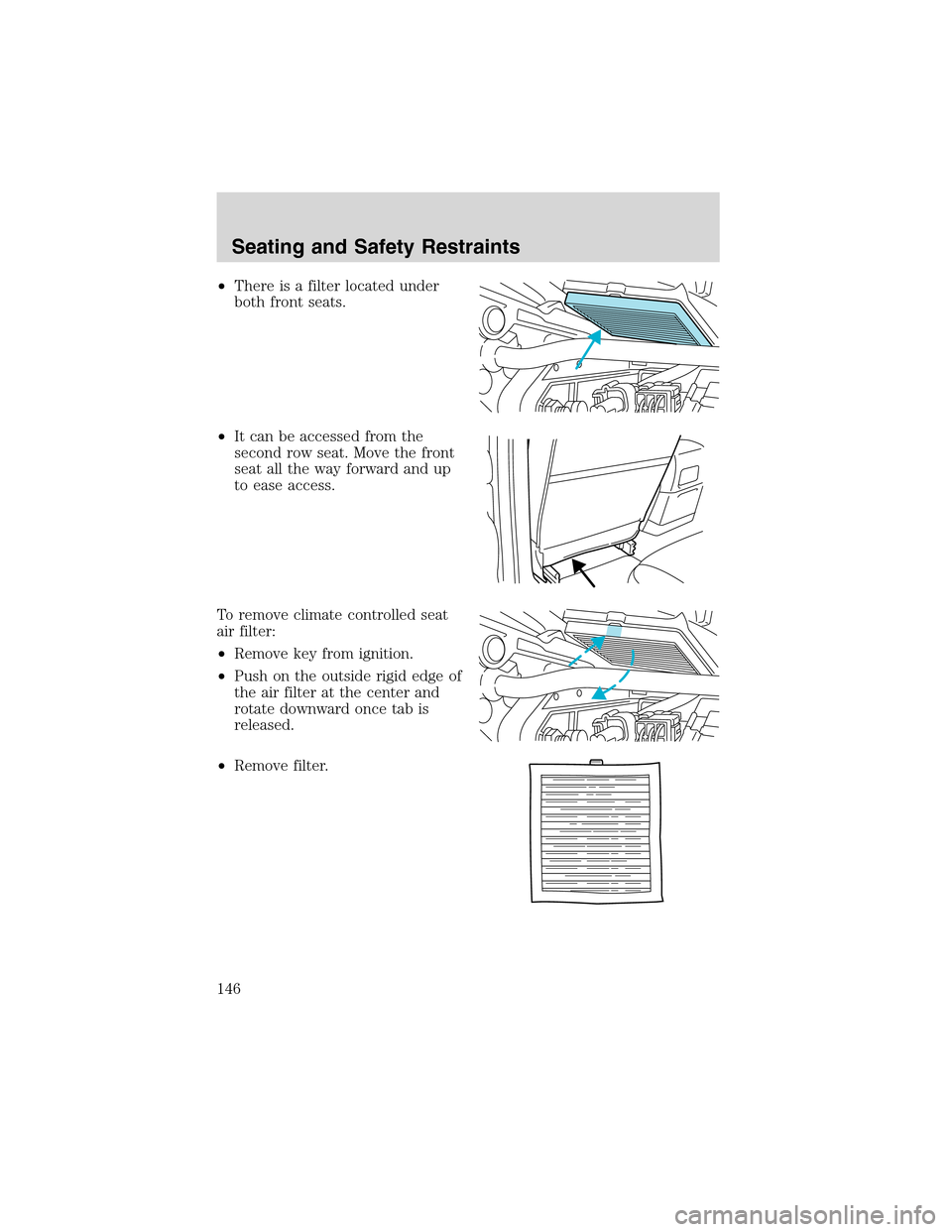

•There is a filter located under
both front seats.
•It can be accessed from the
second row seat. Move the front
seat all the way forward and up
to ease access.
To remove climate controlled seat
air filter:
•Remove key from ignition.
•Push on the outside rigid edge of
the air filter at the center and
rotate downward once tab is
released.
•Remove filter.


Seating and Safety Restraints
146

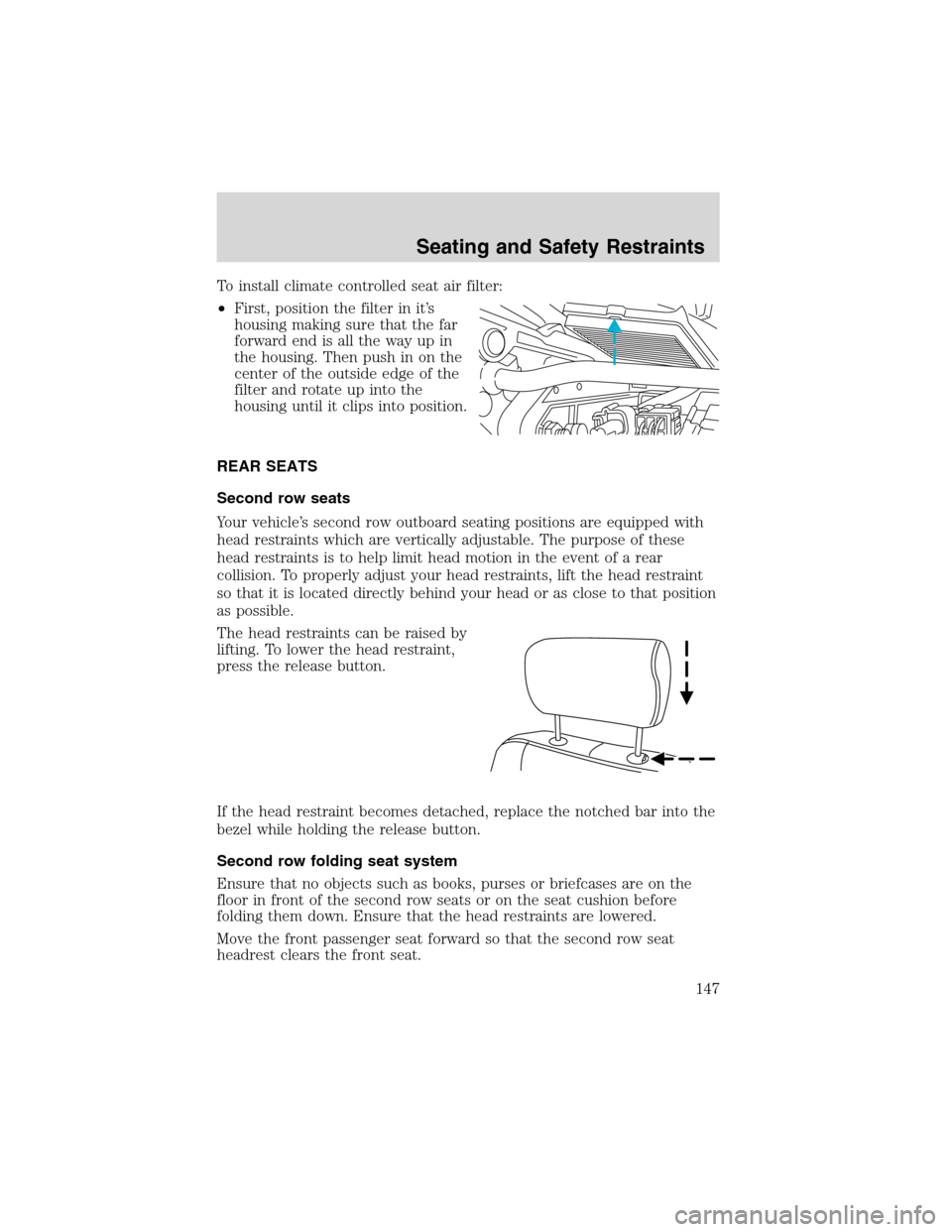

To install climate controlled seat air filter:
•First, position the filter in it’s
housing making sure that the far
forward end is all the way up in
the housing. Then push in on the
center of the outside edge of the
filter and rotate up into the
housing until it clips into position.
REAR SEATS
Second row seats
Your vehicle’s second row outboard seating positions are equipped with
head restraints which are vertically adjustable. The purpose of these
head restraints is to help limit head motion in the event of a rear
collision. To properly adjust your head restraints, lift the head restraint
so that it is located directly behind your head or as close to that position
as possible.
The head restraints can be raised by
lifting. To lower the head restraint,
press the release button.
If the head restraint becomes detached, replace the notched bar into the
bezel while holding the release button.
Second row folding seat system
Ensure that no objects such as books, purses or briefcases are on the
floor in front of the second row seats or on the seat cushion before
folding them down. Ensure that the head restraints are lowered.
Move the front passenger seat forward so that the second row seat
headrest clears the front seat.
Seating and Safety Restraints
147

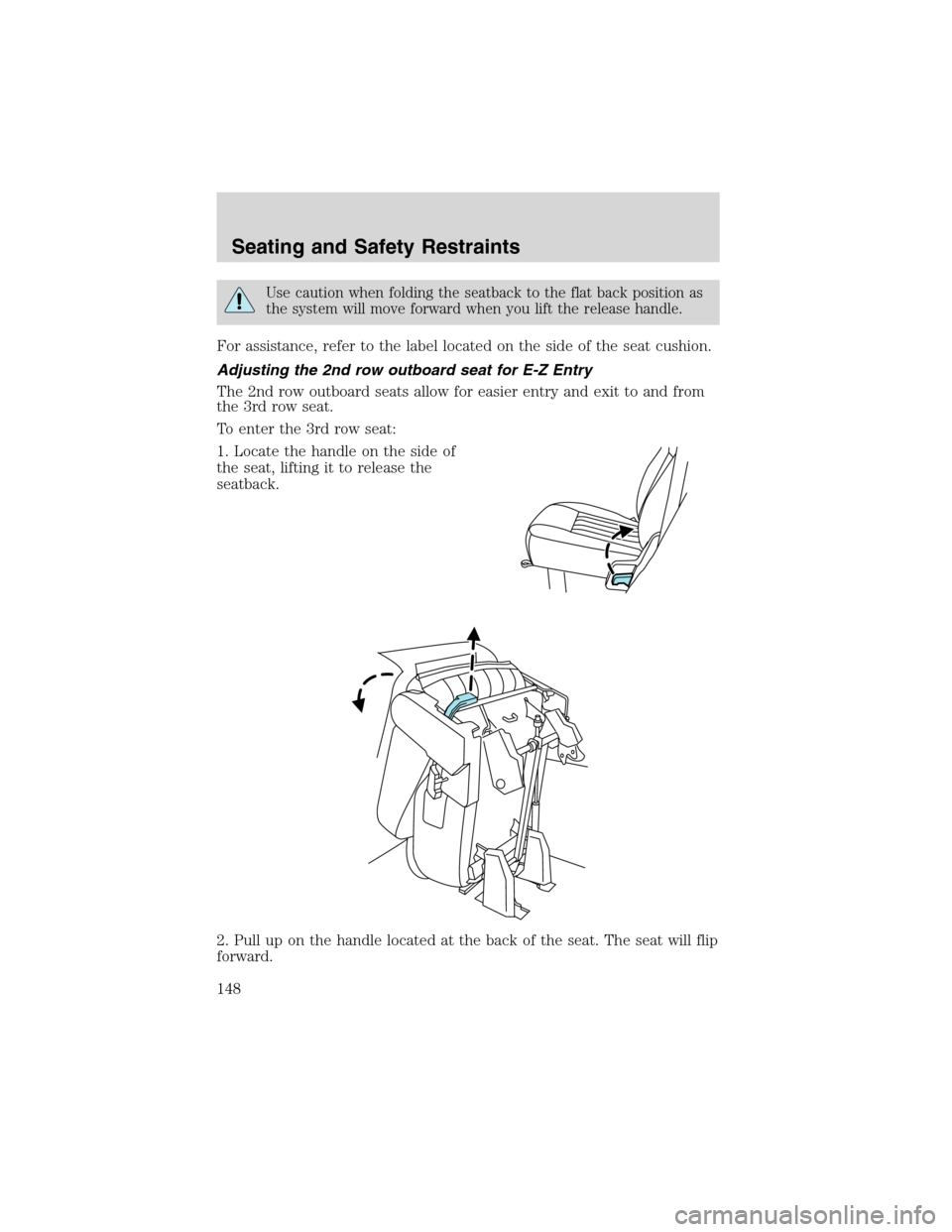

Use caution when folding the seatback to the flat back position as
the system will move forward when you lift the release handle.
For assistance, refer to the label located on the side of the seat cushion.
Adjusting the 2nd row outboard seat for E-Z Entry
The 2nd row outboard seats allow for easier entry and exit to and from
the 3rd row seat.
To enter the 3rd row seat:
1. Locate the handle on the side of
the seat, lifting it to release the
seatback.
2. Pull up on the handle located at the back of the seat. The seat will flip
forward.
Seating and Safety Restraints
148

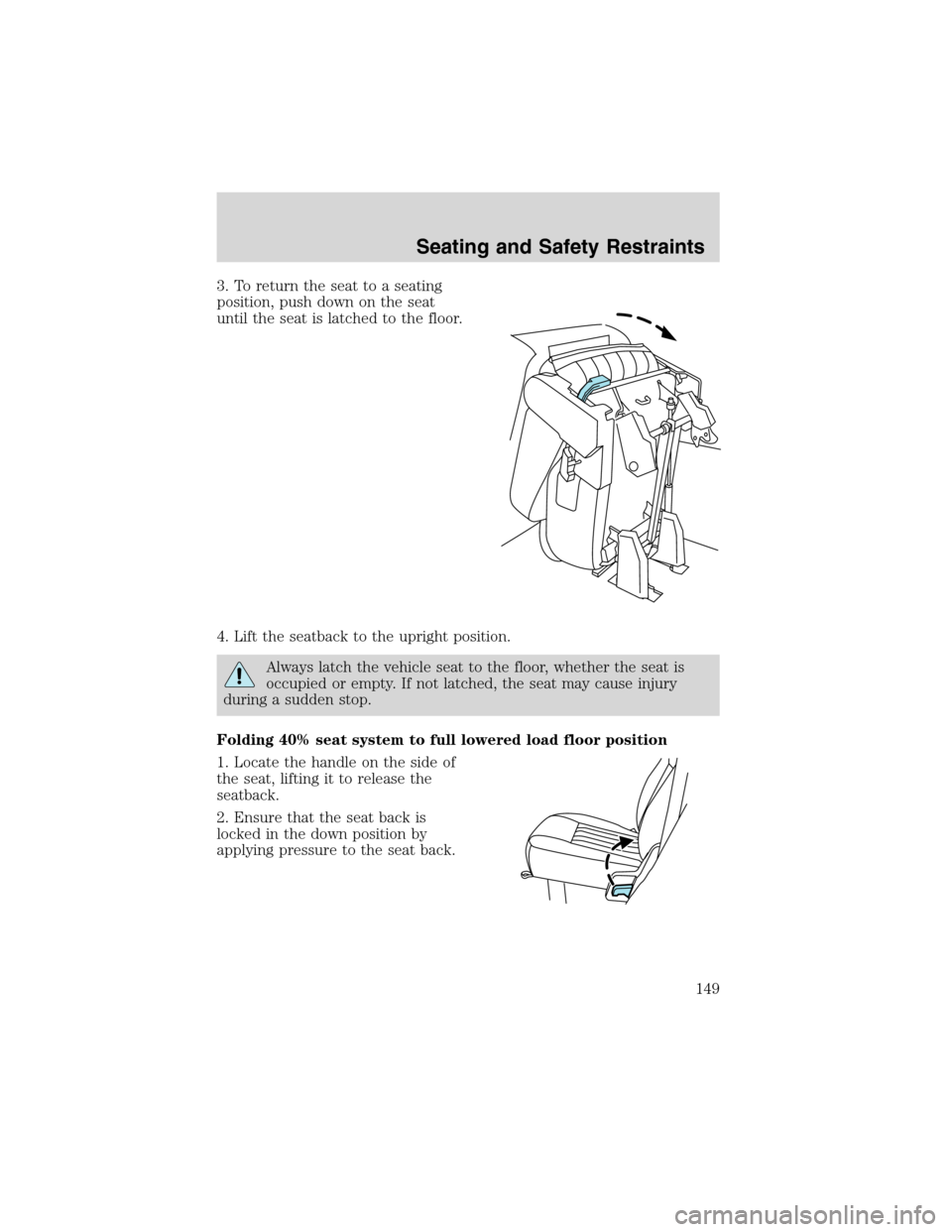

3. To return the seat to a seating
position, push down on the seat
until the seat is latched to the floor.
4. Lift the seatback to the upright position.
Always latch the vehicle seat to the floor, whether the seat is
occupied or empty. If not latched, the seat may cause injury
during a sudden stop.
Folding 40% seat system to full lowered load floor position
1. Locate the handle on the side of
the seat, lifting it to release the
seatback.
2. Ensure that the seat back is
locked in the down position by
applying pressure to the seat back.
Seating and Safety Restraints
149

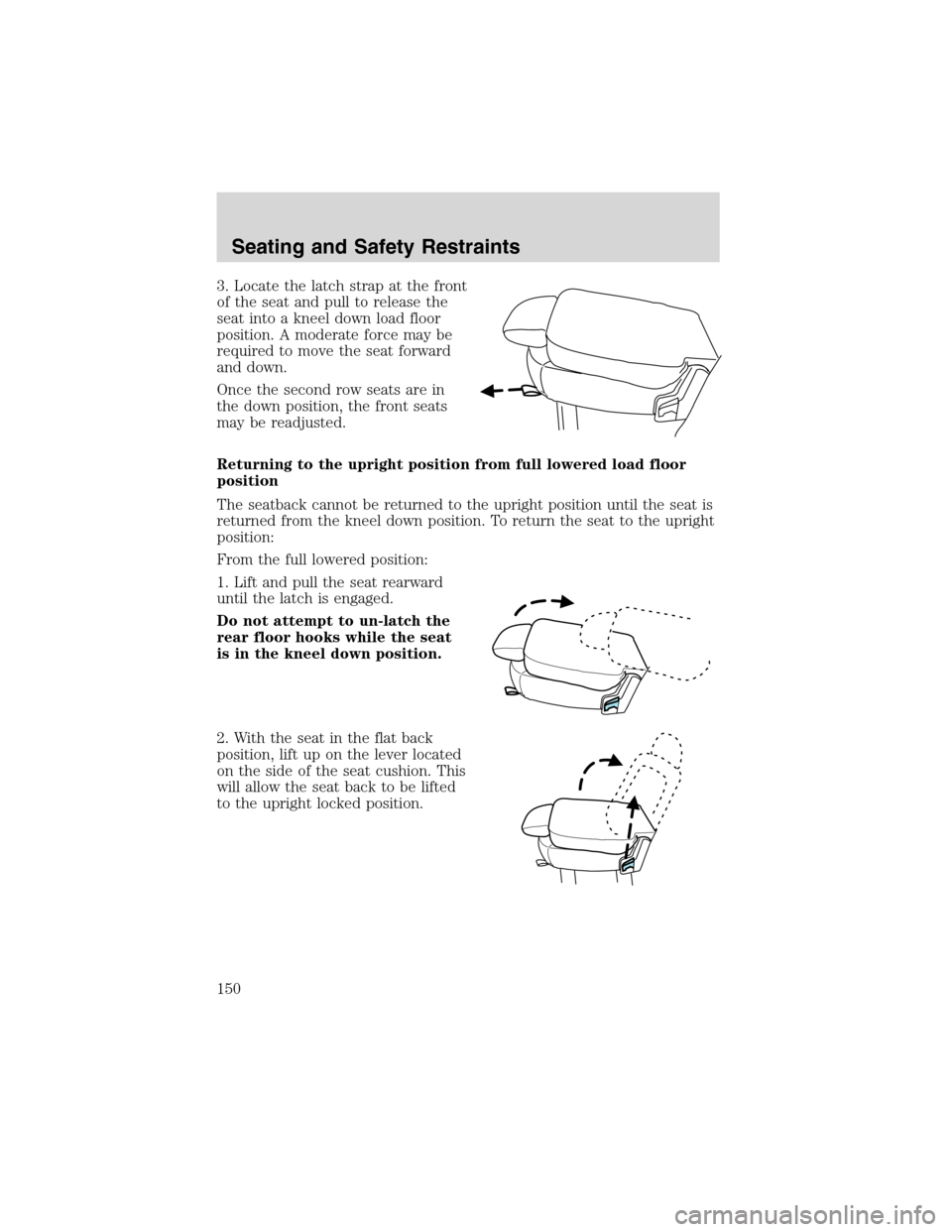

3. Locate the latch strap at the front
of the seat and pull to release the
seat into a kneel down load floor
position. A moderate force may be
required to move the seat forward
and down.
Once the second row seats are in
the down position, the front seats
may be readjusted.
Returning to the upright position from full lowered load floor
position
The seatback cannot be returned to the upright position until the seat is
returned from the kneel down position. To return the seat to the upright
position:
From the full lowered position:
1. Lift and pull the seat rearward
until the latch is engaged.
Do not attempt to un-latch the
rear floor hooks while the seat
is in the kneel down position.
2. With the seat in the flat back
position, lift up on the lever located
on the side of the seat cushion. This
will allow the seat back to be lifted
to the upright locked position.
Seating and Safety Restraints
150

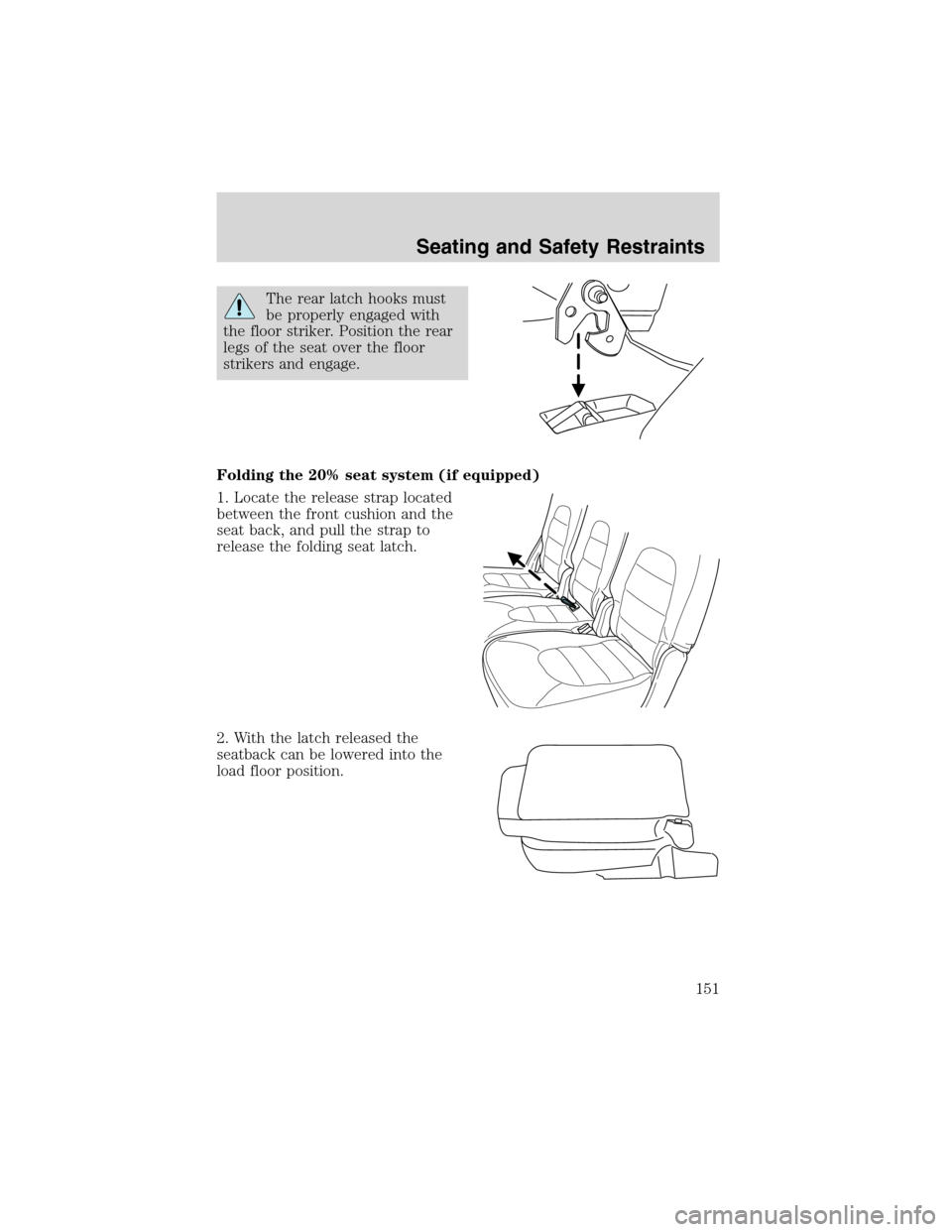

The rear latch hooks must
be properly engaged with
the floor striker. Position the rear
legs of the seat over the floor
strikers and engage.
Folding the 20% seat system (if equipped)
1. Locate the release strap located
between the front cushion and the
seat back, and pull the strap to
release the folding seat latch.
2. With the latch released the
seatback can be lowered into the
load floor position.
Seating and Safety Restraints
151

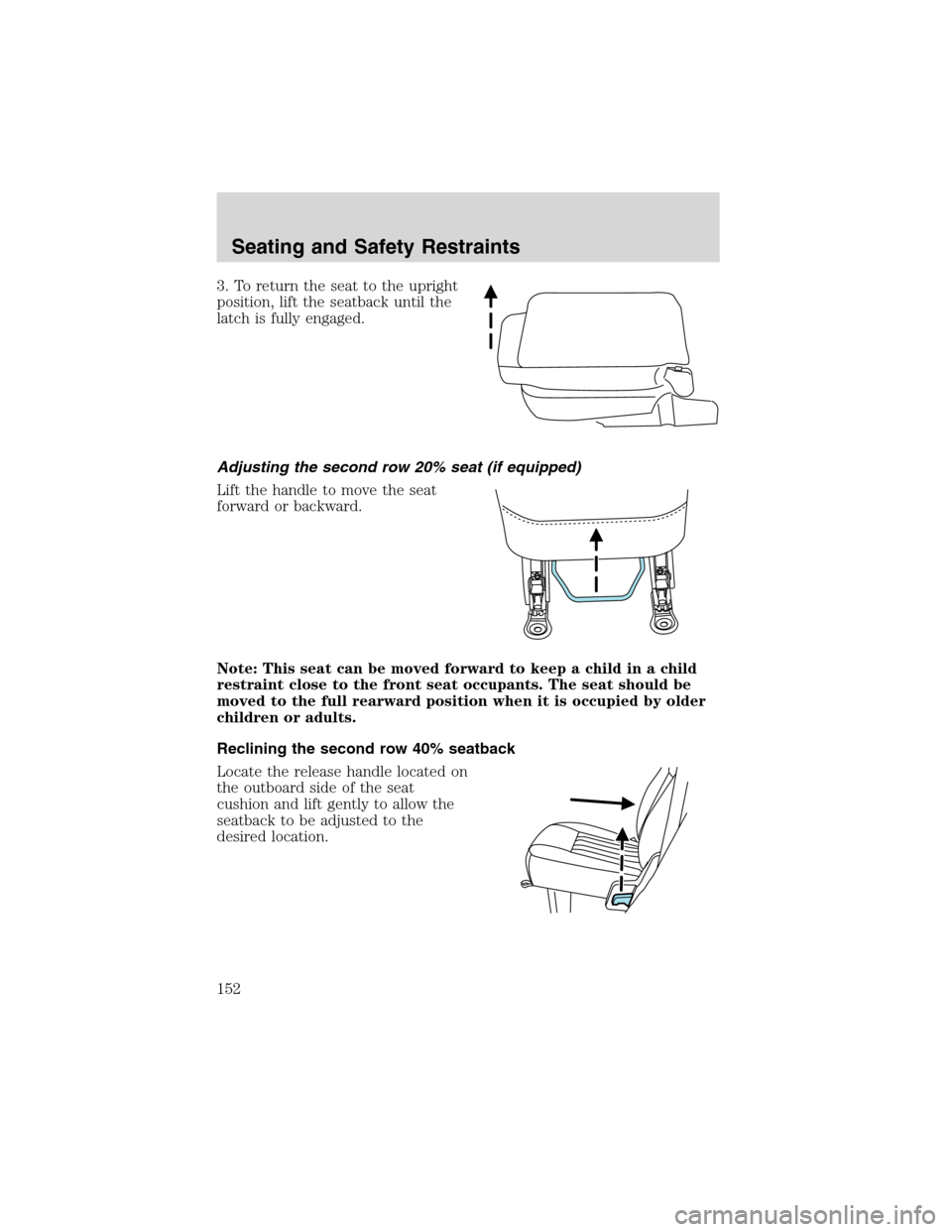

3. To return the seat to the upright
position, lift the seatback until the
latch is fully engaged.
Adjusting the second row 20% seat (if equipped)
Lift the handle to move the seat
forward or backward.
Note: This seat can be moved forward to keep a child in a child
restraint close to the front seat occupants. The seat should be
moved to the full rearward position when it is occupied by older
children or adults.
Reclining the second row 40% seatback
Locate the release handle located on
the outboard side of the seat
cushion and lift gently to allow the
seatback to be adjusted to the
desired location.
Seating and Safety Restraints
152
