2003 BUICK RANDEZVOUS Owner's Manual

Lower Anchorages and Top Tethers
for Children (LATCH System)
Your vehicle has the LATCH system. You’llfind
anchors (A) in the second row outside passenger
positions.
To assist you in locating the lower anchors for this child
restraint system, each seating position with the
LATCH system will have latches between the seatback

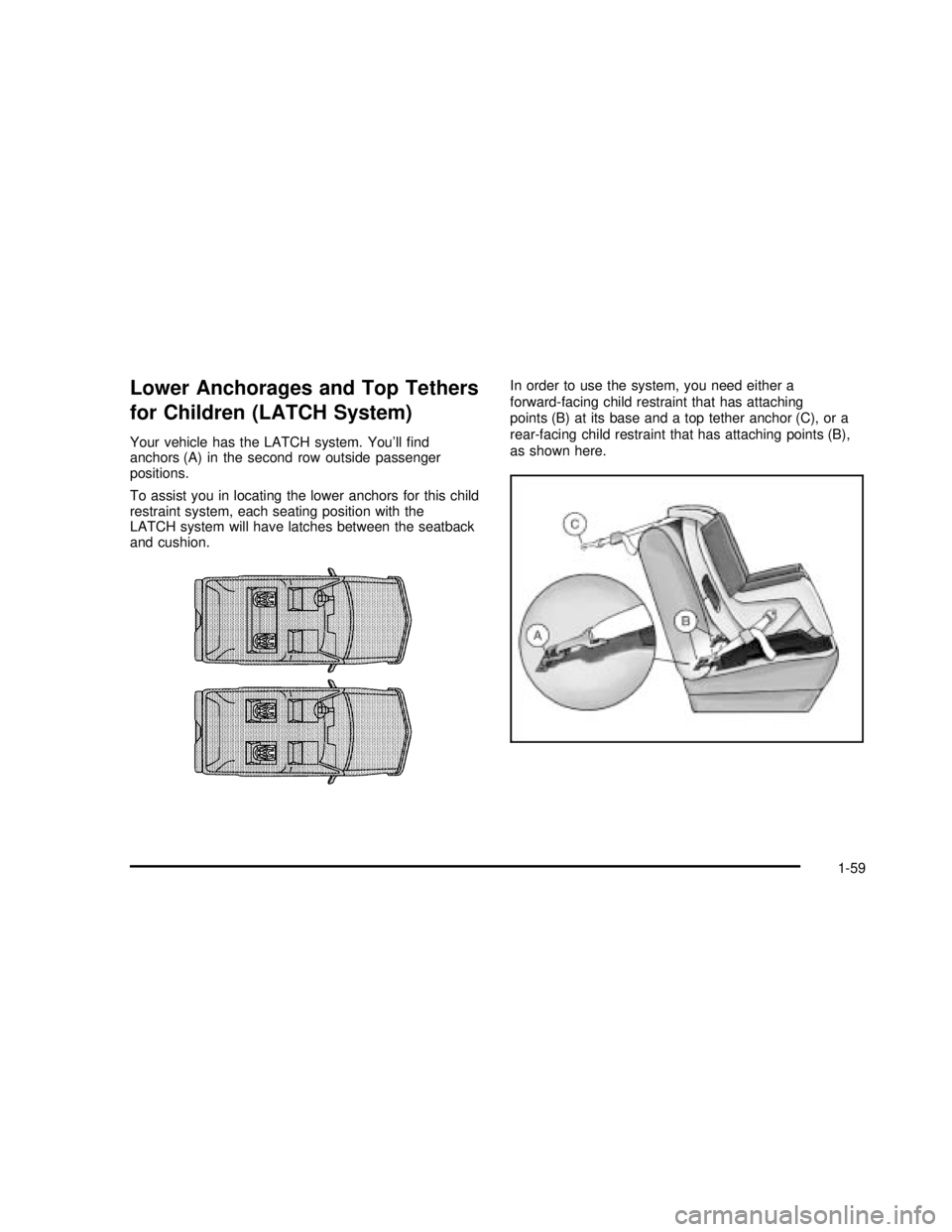

and cushion.In order to use the system, you need either a
forward-facing child restraint that has attaching
points (B) at its base and a top tether anchor (C), or a
rear-facing child restraint that has attaching points (B),
as shown here.
1-59
2003 - Rendezvous OM

With this system, use the LATCH system instead of the
vehicle’s safety belts to secure a child restraint.
{CAUTION:
If a LATCH-type child restraint isn’t attached to
its anchorage points, the restraint won’t be
able to protect a child sitting there. In a crash,
the child could be seriously injured or killed.
Make sure that a LATCH-type child restraint is
properly installed using the anchorage points,
or use the vehicle’s safety belts to secure the
restraint. See″Securing a Child Restraint in a
Rear Outside Seat Position″in the Index for
information on how to secure a child restraint
in your vehicle using the vehicle’s safety belts.
1-60
2003 - Rendezvous OM

Securing a Child Restraint Designed
for the LATCH System
1. Find the anchors for the seating position you want
to use, where the bottom of the seatback meets the
back of the seat cushion.
2. Put the child restraint on the seat.
3. Attach the anchor points on the child restraint to the
anchors in the vehicle. The child restraint
instructions will show you how.
4. If the child restraint is forward-facing, attach the top
strap to the top strap anchor. SeeTop Strap on
page 1-54. Tighten the top strap according to
the child restraint instructions.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
strap from the top tether anchor and then disconnect the
anchor points.
Securing a Child Restraint in a Rear
Outside Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-59.
1-61
2003 - Rendezvous OM

You’ll be using the lap-shoulder belt. SeeTop Strap on
page 1-54if the child restraint has one. Be sure to
follow the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.

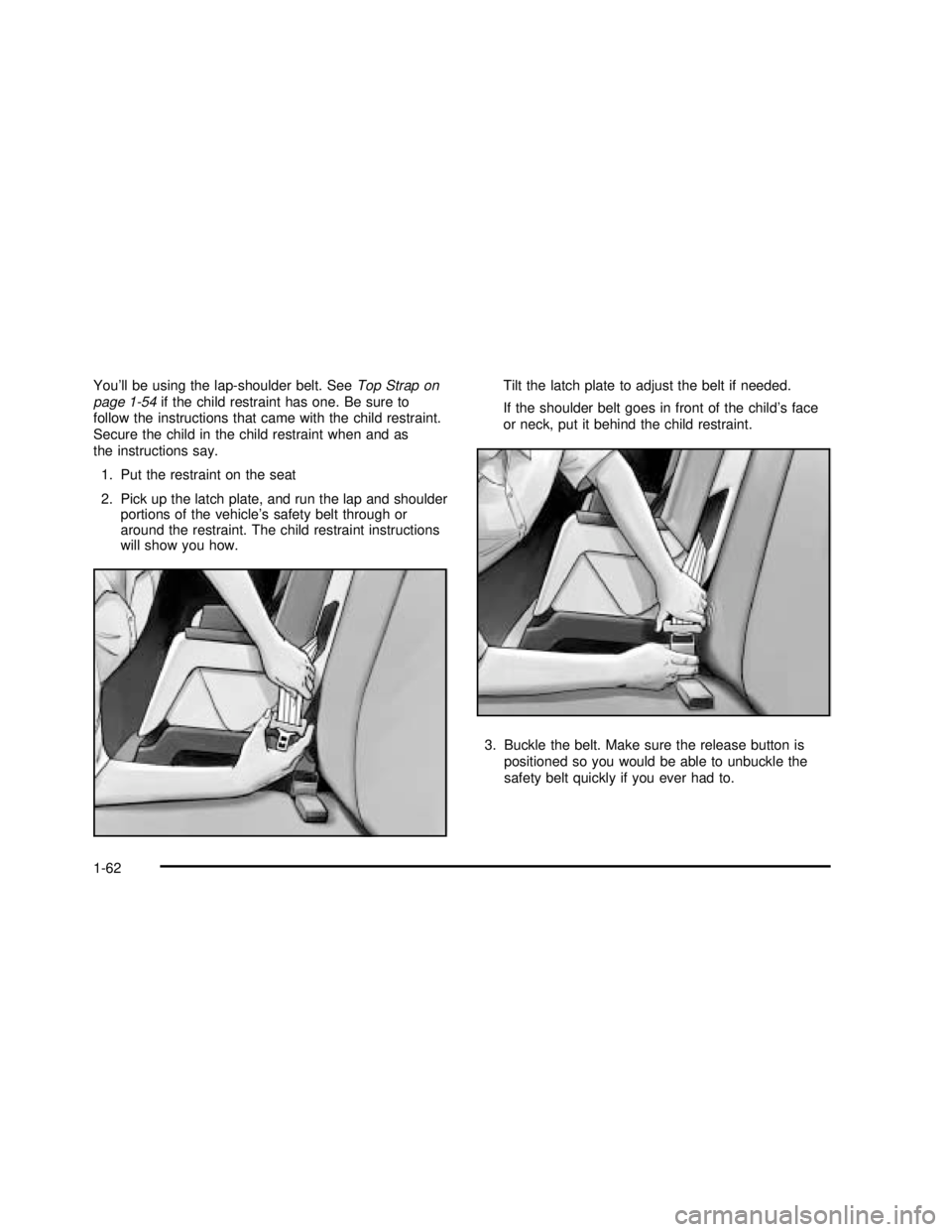

1. Put the restraint on the seat
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.Tilt the latch plate to adjust the belt if needed.
If the shoulder belt goes in front of the child’s face
or neck, put it behind the child restraint.
3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-62
2003 - Rendezvous OM

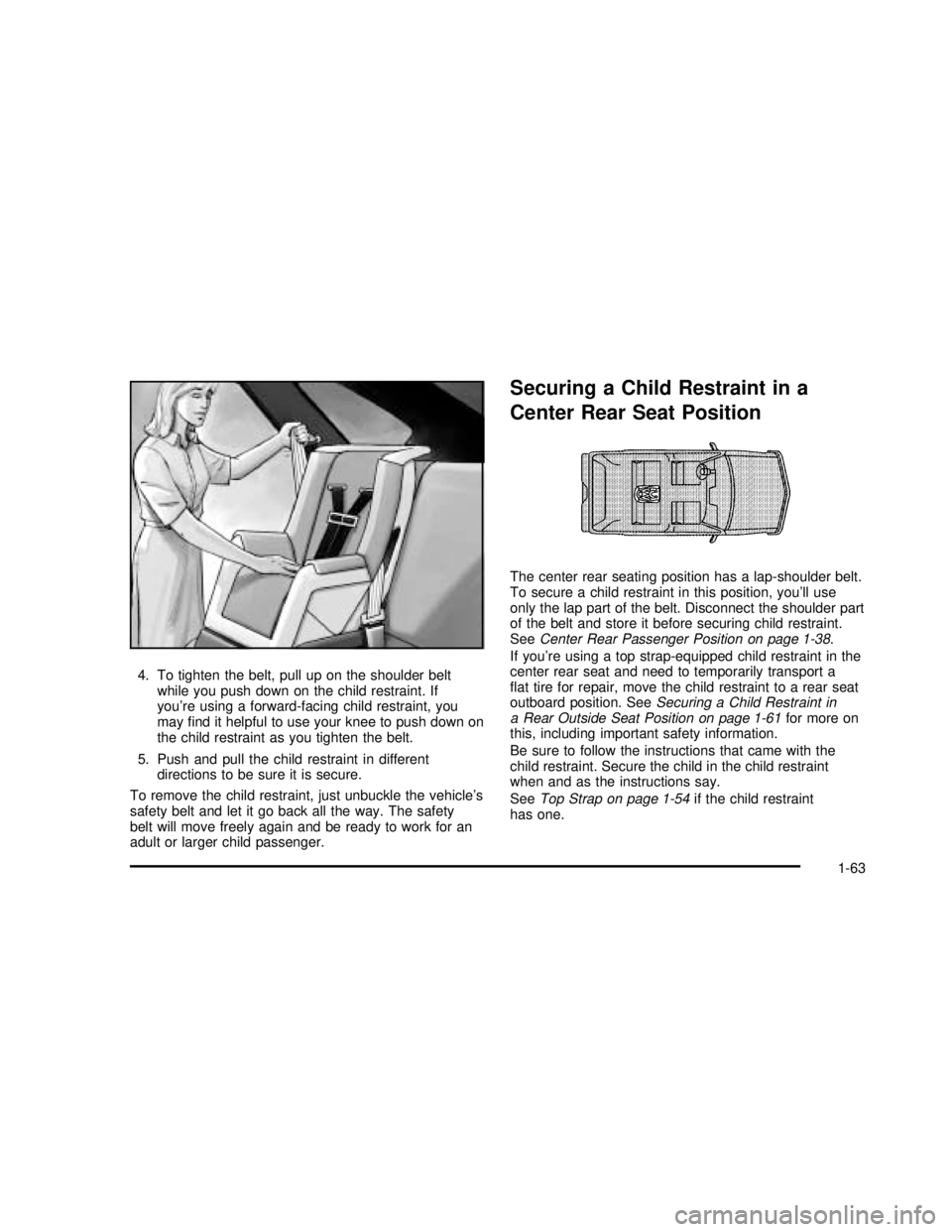

4. To tighten the belt, pull up on the shoulder belt
while you push down on the child restraint. If
you’re using a forward-facing child restraint, you
mayfind it helpful to use your knee to push down on
the child restraint as you tighten the belt.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
Securing a Child Restraint in a
Center Rear Seat Position
The center rear seating position has a lap-shoulder belt.
To secure a child restraint in this position, you’ll use
only the lap part of the belt. Disconnect the shoulder part
of the belt and store it before securing child restraint.
SeeCenter Rear Passenger Position on page 1-38.
If you’re using a top strap-equipped child restraint in the
center rear seat and need to temporarily transport a
flat tire for repair, move the child restraint to a rear seat
outboard position. SeeSecuring a Child Restraint in
a Rear Outside Seat Position on page 1-61for more on
this, including important safety information.
Be sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.
SeeTop Strap on page 1-54if the child restraint
has one.
1-63
2003 - Rendezvous OM

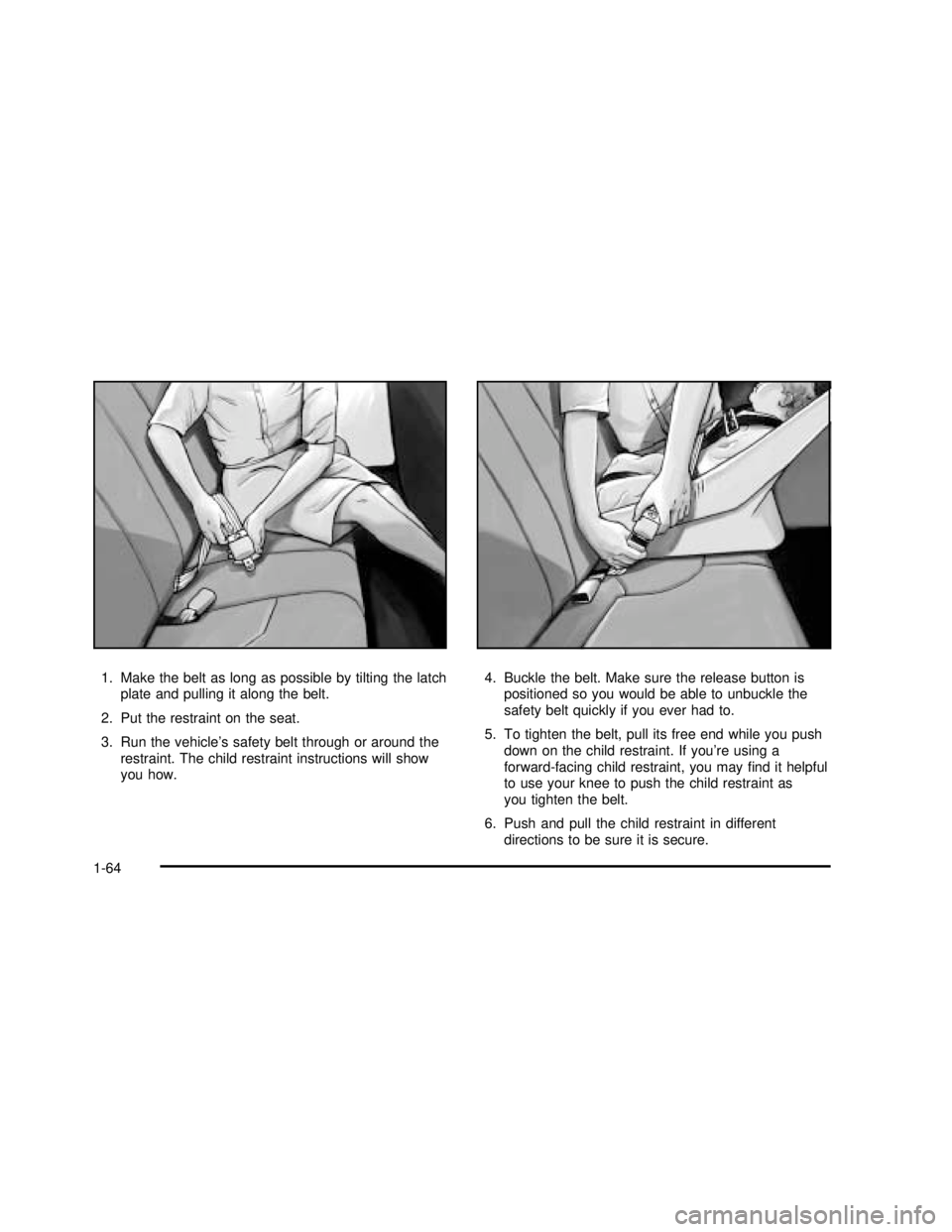

1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the restraint on the seat.
3. Run the vehicle’s safety belt through or around the
restraint. The child restraint instructions will show
you how.4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
5. To tighten the belt, pull its free end while you push
down on the child restraint. If you’re using a
forward-facing child restraint, you mayfind it helpful
to use your knee to push the child restraint as
you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
1-64
2003 - Rendezvous OM

To remove the child restraint, just unbuckle the vehicle’s
safety belt. When you remove the child restraint, be
sure to reconnect the lap and shoulder parts of the belt
so they will be ready to work for an adult or larger
child passenger.
Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has a front passenger air bag.Neverput a
rear facing child restraint in this seat. Here’s why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the front
passenger’s air bag inflates. This is because
the back of the rear-facing child restraint
would be very close to the inflating air bag.
Always secure a rear-facing child restraint in a
rear seat.
Although a rear seat is a safer place, you can secure a
forward-facing child restraint in the right front seat.
You’ll be using the lap-shoulder belt. SeeTop Strap on
page 1-54if the child restraint has one. Be sure to
follow the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.

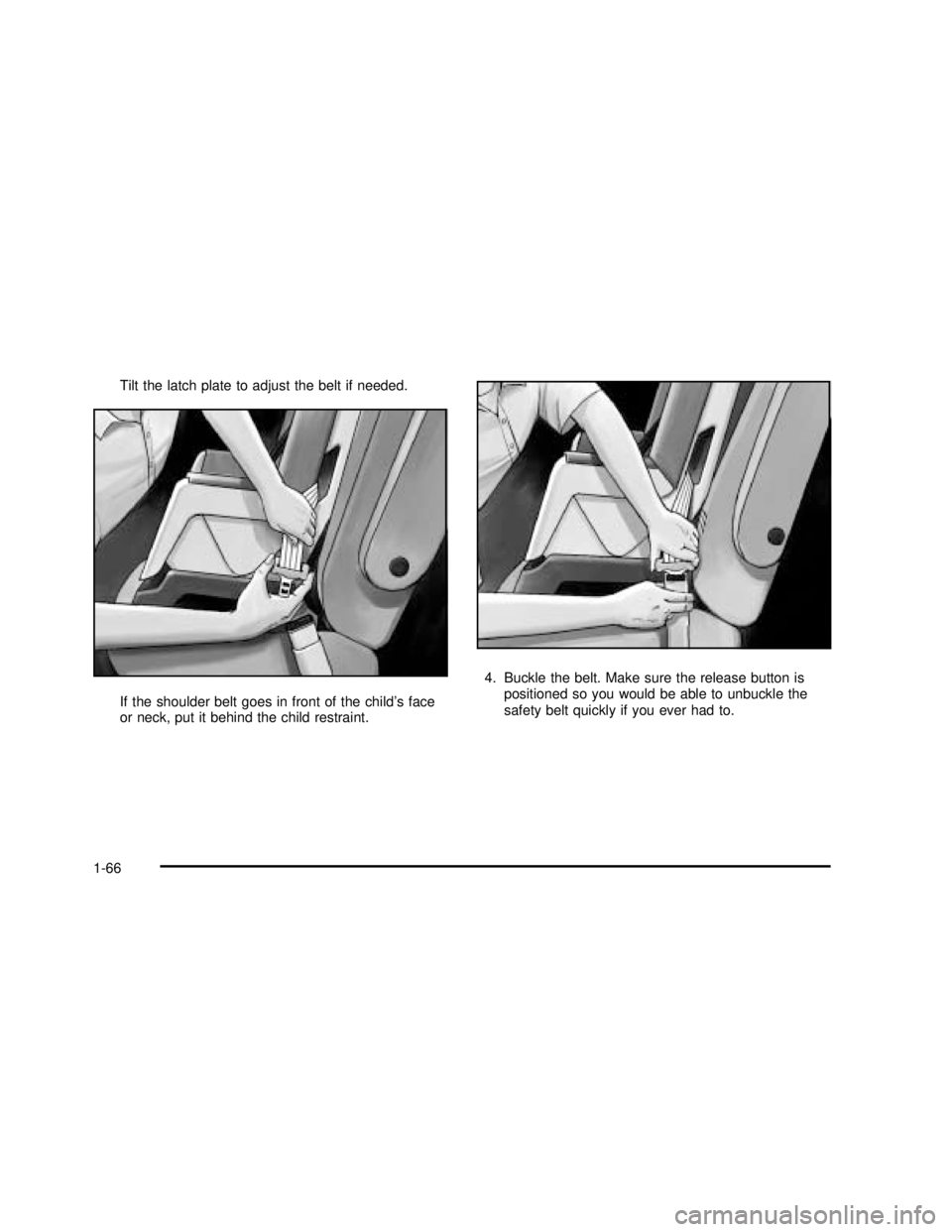

1. Because your vehicle has a right front passenger’s
air bag, always move the seat as far back as it will
go before securing a forward-facing child restraint.
SeeManual Passenger Seat on page 1-2.
2. Put the restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-65
2003 - Rendezvous OM

Tilt the latch plate to adjust the belt if needed.
If the shoulder belt goes in front of the child’s face
or neck, put it behind the child restraint.4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-66
