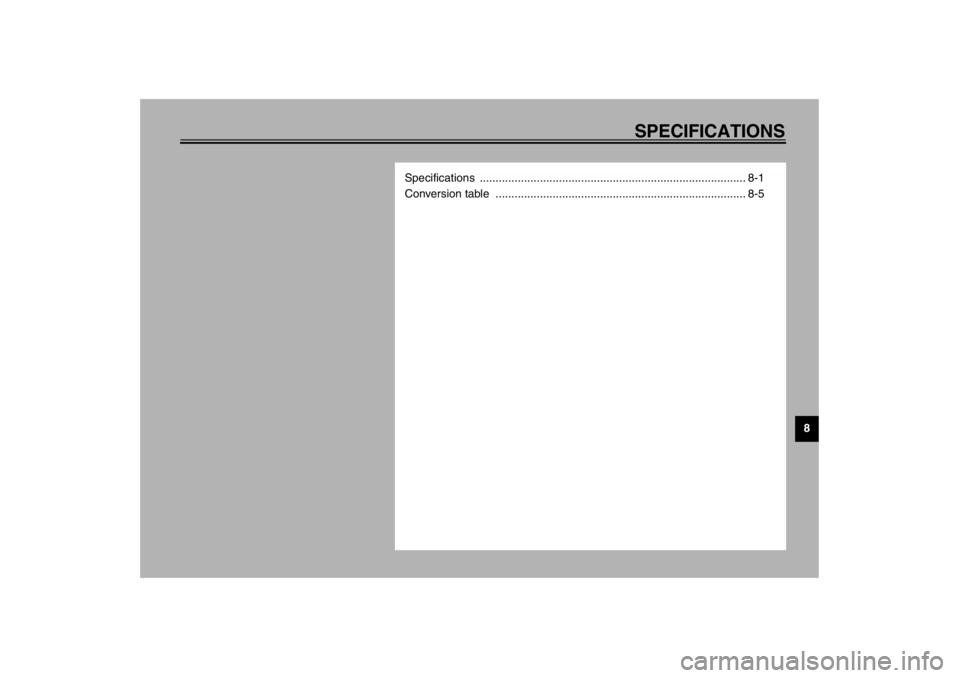

SPECIFICATIONS
8
Specifications .................................................................................... 8-1
Conversion table ............................................................................... 8-5
U5PSE0.book Page 1 Thursday, December 13, 2001 4:29 PM

8-1
8
EAU01038
8-SPECIFICATIONSSpecifications CS-01E
CS-01EModel TDM900
Dimensions
Overall length 2,180 mm
Overall width 800 mm
Overall height 1,290 mm
Seat height 825 mm
Wheelbase 1,485 mm
Ground clearance 160 mm
Minimum turning radius 2,900 mm
Basic weight (with oil and full
fuel tank)
221 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
2-cylinder
Displacement 897 cm
3
Bore × stroke 92.0 × 67.5 mm
Compression ratio 10.4:1
Starting system Electric starter
Lubrication system Dry sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG or
higher
Quantity
Without oil filter element
replacement 3.8 L
With oil filter element
replacement 3.9 L
Total amount (dry engine) 4.7 L
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
CAUTION:Be sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled
“ENERGY CONSERVING II”) contain anti-friction additives
which will cause clutch and/or starter clutch slippage, result-
ing in reduced component life and poor engine performance.
U5PSE0.book Page 1 Thursday, December 13, 2001 4:29 PM

SPECIFICATIONS
8-2
8
Cooling system capacity
(total amount)
1.7 L
Air filterWet type element
Fuel
Type REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity 20 L
Fuel reserve amount 3.5 L
Spark plug
Manufacturer/model NGK / DPR8EA-9 or
DENSO / X24EPR-U9
Gap 0.8–0.9 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.718
Secondary reduction system Chain drive
Secondary reduction ratio 2.625
Number of drive chain
sprocket teeth (front/rear) 16/42
Transmission type Constant-mesh 6-speedOperation Left foot
Gear ratio
1st 2.750
2nd 1.947
3rd 1.545
4th 1.240
5th 1.040
6th 0.923
Chassis
Frame type Diamond
Caster angle 25.5°
Trail 114 mm
Tires
Front
Type Tubeless tire
Size 120/70 ZR18 (59W)
120/70 ZR18 M/C (59W)
Manufacturer/model Dunlop / D220FSTJ
Metzeler / MEZ4J
Rear
Type Tubeless tire
Size 160/60 ZR17 (69W)
160/60 ZR17 M/C (69W)
Manufacturer/model Dunlop / D220STJ
Metzeler / MEZ4J
U5PSE0.book Page 2 Thursday, December 13, 2001 4:29 PM

SPECIFICATIONS
8-3
8
Maximum load* 203 kg
Tire air pressure
(measured on cold tires)
Up to 90 kg*
Front 250 kPa (2.50 kgf/cm
2, 2.50 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
90 kg–maximum*
Front 250 kPa (2.50 kgf/cm2, 2.50 bar)
Rear 290 kPa (2.90 kgf/cm2, 2.90 bar)
High-speed riding
Front 250 kPa (2.50 kgf/cm2, 2.50 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 18 × MT 3.50
18 M/C × MT 3.50
Rear
Type Cast wheel
Size 17 × MT 5.00
17 M/C × MT 5.00Brakes
Front
Type Dual disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4
Suspension
Front Telescopic fork
Rear Swingarm (monocross)
Spring/shock absorber
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 150 mm
Rear 133 mm
U5PSE0.book Page 3 Thursday, December 13, 2001 4:29 PM

SPECIFICATIONS
8-4
8
Electrical system
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 31.5 A @ 5,000 r/min
Battery
Model GT12B-4
Voltage, capacity 12 V, 10 Ah
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage × quantity
Headlight 12 V, 55 W × 2
Auxiliary light 12 V, 5 W × 1
Tail/brake light 12 V, 5/21 W × 2
Turn signal light 12 V, 10 W × 4
Meter lighting 12 V, 2 W × 2
Neutral indicator light 14 V, 1.2 W × 1
High beam indicator light 14 V, 1.4 W × 1
Turn signal indicator light 14 V, 1.2 W × 2
Oil level warning light L.E.D.
Engine trouble warning light 14 V, 1.4 W × 1Fuses
Main fuse 40 A
Headlight fuse 15 A
Signaling system fuse 7.5 A
Ignition fuse 10 A
Parking lighting fuse 5 A
Turn signal and hazard light
fuse 10 A
Backup fuse (odometer and
clock) 5 A
Radiator fan fuse 20 A
Electronic Fuel Injection
System fuse 10 A
U5PSE0.book Page 4 Thursday, December 13, 2001 4:29 PM

SPECIFICATIONS
8-5
8
EAU03941
Conversion table CS-03EAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit values to IMPERIAL
unit values.
Example:METRIC VALUE CONVERSION
FACTORIMPERIAL VALUE
2 mm× 0.03937 = 0.08 in
Conversion table
METRIC SYSTEM TO IMPERIAL SYSTEM
Metric unit Conversion factor Imperial unit
Torquem·kgf
m·kgf
cm·kgf
cm·kgf
× 7.233× 86.794× 0.0723× 0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g× 2.205× 0.03527lb
oz
Speed km/h× 0.6214 mi/h
Distancekm
m
m
cm
mm× 0.6214× 3.281× 1.094× 0.3937× 0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm
3)
cc (cm3)
L (liter)
L (liter)
× 0.03527× 0.06102× 0.8799× 0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskg/mm
kgf/cm
2
°
C
× 55.997× 14.2234× 1.8 + 32 lb/in
psi (lb/in
2)
°
F
