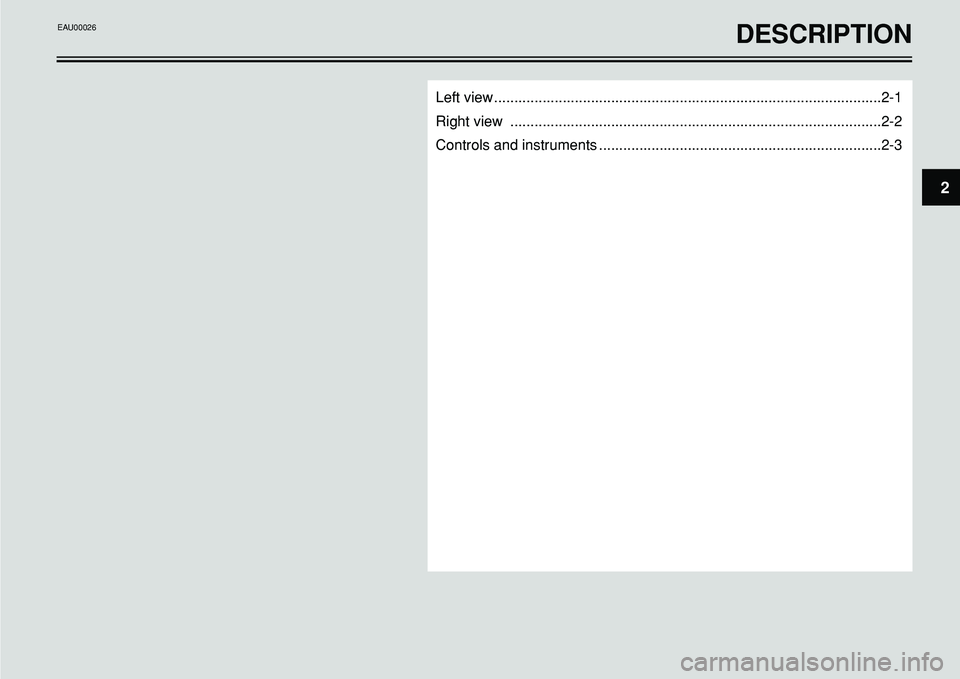

Left view ................................................................................................2-1
Right view ............................................................................................2-2
Controls and instruments ......................................................................2-3
DESCRIPTIONEAU00026

12
3
456
1. Starter (choke) lever(page 3-12)
2. Storage compartment(page 3-14)
3. Tool kit(page 6-1)
4. Spring preload adjusting ring (shock absorber assembly) (page 3-15)
5. Shift pedal(page 3-10)
6. Engine oil level window (page 6-6)
DESCRIPTION
Left view
EAU00026
2-1
2

78910
1211
DESCRIPTIONEAU00026
2-2
2
7. Fuse box (page 6-28)
8. Battery (page 6-26)
9. Helmet holders (page 3-14)
10. Air filter element (page 6-10)
11. Engine oil filter element (page 6-6)
12. Brake pedal (page 3-10)
Right view

22
0 20
01
80 160 14
0
12
0
1
0080
604020k
m
/
h345
6
7
2
1
0
3456721
8
DESCRIPTIONEAU00026
2-3
2
1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-8)
3. Instruments and warning lights (page 3-2)
4. Main switch and steering lock (page 3-1)
5. Right handlebar switches (page 3-9)
6. Throttle grip (page 6-13)
7. Front brake lever (page 3-10)
8. Fuel tank cap (page 3-11)
Controls and instruments

3
Main switch/steering lock .................................................................... 3-1
Indicator and warning lights ................................................................ 3-2
Speedometer unit ................................................................................ 3-3
Tachometer ........................................................................................ 3-6
Self-diagnosis device .......................................................................... 3-6
Anti-theft alarm (optional) .................................................................... 3-8
Handlebar switches ............................................................................ 3-8
Clutch lever ........................................................................................ 3-9
Shift pedal ........................................................................................ 3-10
Brake lever ........................................................................................ 3-10
Brake pedal ...................................................................................... 3-10
Fuel tank cap .................................................................................... 3-11
Fuel .................................................................................................. 3-11
Fuel tank breather hose .................................................................... 3-12
Starter (choke) lever ........................................................................ 3-12
Seat .................................................................................................. 3-13
Helmet holders .................................................................................. 3-14
Storage compartment ...................................................................... 3-14
Adjusting the front fork ...................................................................... 3-15
Adjusting the shock absorber assembly .......................................... 3-15
Sidestand .......................................................................................... 3-16
Ignition circuit cut-off system ............................................................ 3-17
INSTRUMENT AND CONTROL FUNCTIONSEAU00027

LOCK
POFF
ON PUSH
12
EAU00029
Main switch/steering lock
The main switch/steering lock controls the
ignition and lighting systems, and is used
to lock the steering. The various positions
are described below.
EAU00036
ION
All electrical systems are supplied with
power, and the engine can be started. The
key cannot be removed.
EAU00038
BOFF
All electrical systems are off. The key can
be removed.
EAU00040
DLOCK
The steering is locked, and all electrical
systems are off. The key can be removed.
To lock the steering
1. Turn the handlebars all the way to the
left.
2. Push the key in from the
B(OFF) po-
sition, and then turn it to
D(LOCK)
while still pushing it.
3. Remove the key.
To unlock the steering
Push the key in, and then turn it to
B
(OFF) while still pushing it.
1. Push
2. Turn
EAU00027
3-1
3
INSTRUMENT AND CONTROL FUNCTIONS
EW000016WARNING0
Never turn the key to B(OFF) or D
(LOCK) while the motorcycle is mov-
ing, otherwise the electrical systems
will be switched off, which may result
in loss of control or an accident. Make
sure that the motorcycle is stopped
before turning the key to
B(OFF) orD
(LOCK).
LOCKOFF (Premere)
Bloccare Sbloccare

LOCK
(Premere)OFF

Lock
(push)
Unlock
(push)

INSTRUMENT AND CONTROL FUNCTIONS
220 200 180 160 140 120
100
80
60
40
20
km/h345
6
7
2
1
0
N
34 512EAU01590
F(Parking)
The steering is locked, and the taillight and
auxiliary light are on, but all other electrical
systems are off. The key can be removed.
The steering must be locked before the
key can be turned to “
F”.
ECA00043
Do not use the parking position for an
extended length of time, otherwise the
battery may discharge.
CAUTION:
EAU03034
Indicator and warning lights
EAUB0001
Oil level warning light “v”
This warning light comes on when the en-
gine oil level is low.
The electrical circuit of the warning light
can be checked according to the following
procedure.
1. Turn the key to “
I” (ON). The warn-
ing light should come on for a few
seconds.
1. Oil level warning light “v”
2. Turn signal indicator light “y
y”
3. Neutral indicator light “N”
4. High beam indicator light “
1”
5. Fuel level warning light “K”
2. If the warning light does not come on,
have a Yamaha dealer check the
electrical circuit.
NOTE:
Even if the oil level is sufficient, the warn-
ing light may flicker when riding on a slope
or during sudden acceleration or decelera-
tion, but this is not a malfunction.
NOTE:
This model is equipped with a self-diagno-
sis device for the oil level warning light cir-
cuit. (See page 3-6 for an explanation of
the self-diagnosis device).
EAU00057
Turn signal indicator light “y
y”
This indicator light flashes when the turn
signal switch is pushed to the left or right.
EAU00061
Neutral indicator light “N”
This indicator light comes on when the
transmission is in the neutral position.
3-2
3
EAU00027

INSTRUMENT AND CONTROL FUNCTIONS
2
1
54 3
1
2
6 5 4
3
EAU00063
High beam indicator light “1”
This indicator light comes on when the
high beam of the headlight is switched on.
EAUB0002
Fuel level warning light “K”
This warning light comes on when the fuel
level drops below approximately 5.8 L.
When this occurs, refuel as soon as possi-
ble.
The electrical circuit of the warning light
can be checked according to the following
procedure.
1. Turn the key to “
I” (ON).
2. If the warning light does not come on,
have a Yamaha dealer check the
electrical circuit.
NOTE:
This model is equipped with a self-diagno-
sis device for the fuel level warning light
circuit. (See page 3-6 for an explanation of
the self-diagnosis device).
EAUB0003
Speedometer unit
The speedometer unit is equipped with the
following:
•a speedometer (which shows riding
speed)
•a tachometer (which shows engine
r/min)
•an odometer (which shows the total
distance traveled)
1. Speedometer set to km/h
2. Tachometer
3. Odometer/ tripmeter/ fuel reserve tripmeter/
clock display
4. “SET” button
5. “RESET” button
•two tripmeters (which show the dis-
tance traveled since they were last
set to zero)
•a fuel reserve tripmeter (which shows
the distance traveled on the fuel re-
serve)
•an oil change indicator (which is dis-
played when the oil needs to be
changed)
•a clock.
1. Speedometer set to km/h
2. Speedometer set to mph
3. Tachometer
4. Odometer/ tripmeter/ fuel reserve tripmeter/
clock display
5. “SET” button
6. “RESET” button
EAU00027
3-3
3
