2002 YAMAHA BT1100 Owners Manual

SPECIFICATIONS
8-4
8
EAU01038
Battery
Model GT14B-4
Voltage, capacity 12 V, 12 Ah
Headlight typeQuartz bulb (halogen)
Bulb voltage, wattage x quantity
Headlight 12 V 60 W / 55 W x 1
Auxiliary light 12 V 5 W x 1
Tail/brake light 12 V 5 W / 21 W
Turn signal indicator light 12 V 10 W x 4
Meter lighting 14 V - 1.2 W x 4
Oil level warning light LED x 1
Neutral indicator light LED x 1
Turn signal light LED x 1
High beam indicator light LED x 1
Fuel level warning light LED x 1
Fuses
Main fuse 30 A
Backup fuse (odometer) 5 A
Ignition fuse 10 A
Headlight fuse 15 A
Carburetor heater fuse 15 A
Signaling system fuse 10 A

SPECIFICATIONSEAU01038
8-5
EAU01064
Conversion table
All specification data in this manual are
listed in SI and METRIC UNITS.
Use this table to convert METRIC unit da-
ta to IMPERIAL unit data.
Example
METRIC MULTIPLIER IMPERIAL
** mm x 0.03937 = ** in
2 mm x 0.03937 = 0. 08 in
Conversion table
METRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
m
·kg 7.233 ft·lb
Torque m·kg 86.794 in·lb
cm·kg 0.0723 ft·lbcm·kg 0.8679 in·lb
Weight kg 2.205 lb
g 0.03527 oz
Speed km/h 0.6214 mi/h
km 0.6214 mi
m 3.281 ft
Distance m 1.094 yd
cm 0.3937 in
mm 0.03937 in
cc (cm3) 0.03527 oz (IMP liq.)
Volume, cc (cm3) 0.06102 cu·in
Capacity L (liter) 0.8799 qt (IMP liq.)
L (liter) 0.2199 gal (IMP liq.)
kg/mm 55.997 lb/in
Miscellaneous kg/cm
214.2234 psi (lb/in2)
Centigrade (°C) 9/5 + 32 Fahrenheit (°F)
8

9
Identification numbers ..........................................................................9-1
Key identification number......................................................................9-1
Vehicle identification number ................................................................9-1
Model label............................................................................................9-2
CONSUMER INFORMATIONEAU01039

1. Key identification number
CONSUMER INFORMATION
11
EAU02944

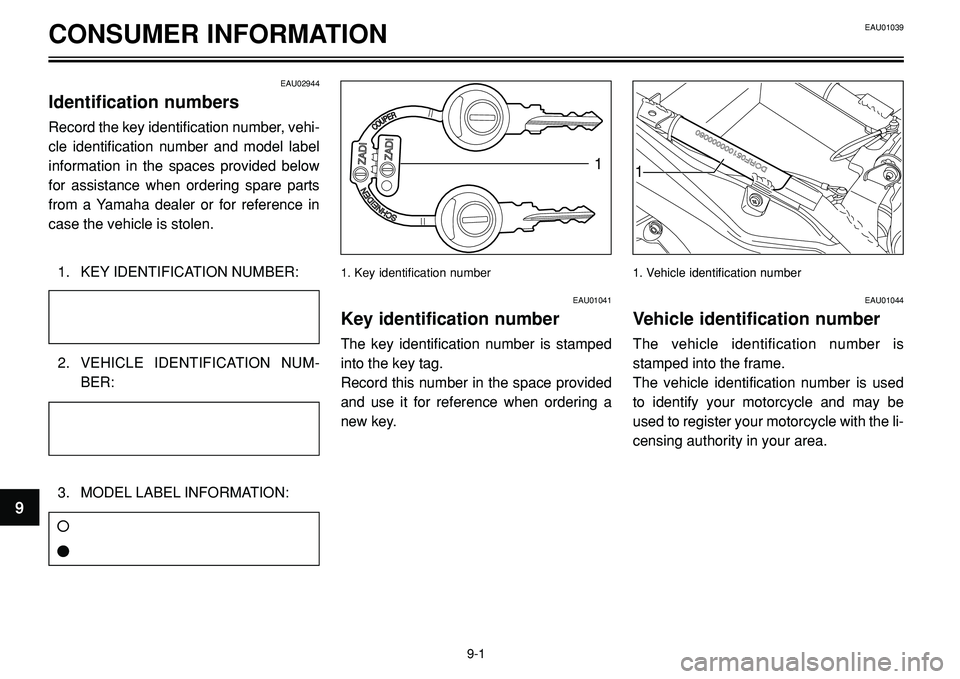

Identification numbers
Record the key identification number, vehi-
cle identification number and model label
information in the spaces provided below
for assistance when ordering spare parts
from a Yamaha dealer or for reference in
case the vehicle is stolen.
1. KEY IDENTIFICATION NUMBER:
2. VEHICLE IDENTIFICATION NUM-
BER:
3. MODEL LABEL INFORMATION:
EAU01041
Key identification number
The key identification number is stamped
into the key tag.
Record this number in the space provided
and use it for reference when ordering a
new key.
EAU01044
Vehicle identification number
The vehicle identification number is
stamped into the frame.
The vehicle identification number is used
to identify your motorcycle and may be
used to register your motorcycle with the li-
censing authority in your area.
9-1
9
å
ç
1. Vehicle identification number
EAU01039

1. Model label
CONSUMER INFORMATION
1
EAU01050

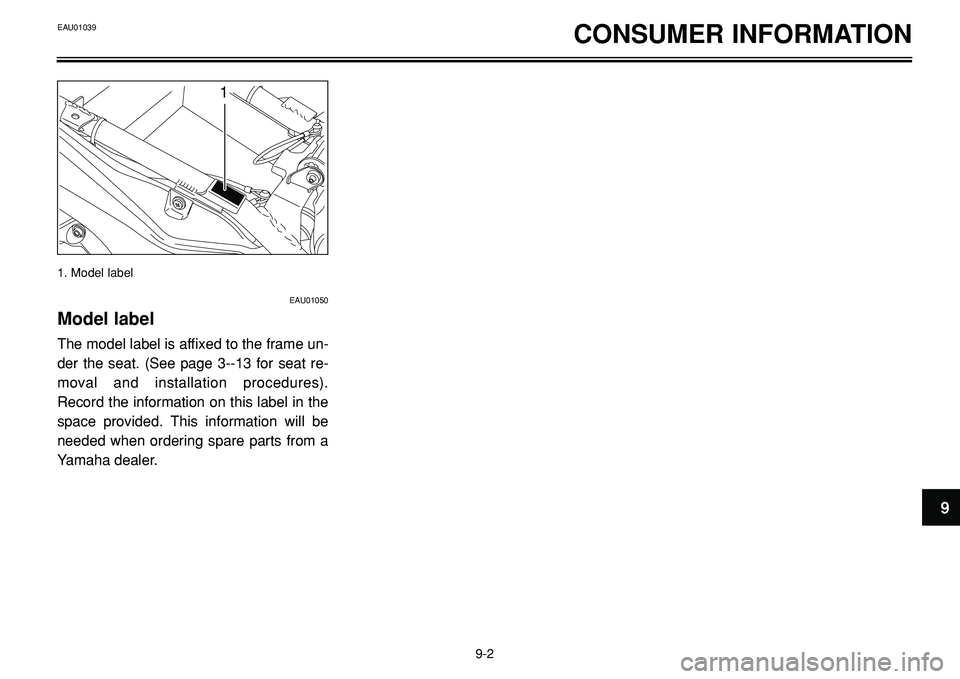

Model label
The model label is affixed to the frame un-
der the seat. (See page 3--13 for seat re-
moval and installation procedures).
Record the information on this label in the
space provided. This information will be
needed when ordering spare parts from a
Yamaha dealer.
9-2
9
EAU01039

INDEX
A
Air filter element, cleaning ....................6-10
Anti-theft alarm (optional) ......................3-8
Auxiliary light bulb, replacing ................6-29
B
Battery ..................................................6-26
Brake and clutch levers, checking
and Lubricating ..................................6-23
Brake and shift pedals, checking
and Lubricating ..................................6-23
Brake fluid, changing ............................6-21
Brake fluid level, checking ....................6-19
Brake lever ..........................................3-10
Brake pads, checking ..........................6-19
Brake pedal ..........................................3-10
Brake pedal position, adjusting ............6-18
C
Cables, checking and lubricating..........6-22
Carburetors, adjusting ..........................6-12
Care ........................................................7-1
Clock ......................................................3-5
Clutch lever ............................................3-9
Clutch lever free play, adjusting ..........6-17
Consumer information ............................9-1
Controls ..................................................2-3
Conversion table ....................................8-5
D
Description ..............................................2-1
Controls and instrument ......................2-3Left view ..............................................2-1
Right view ............................................2-2
E
Engine break-in ......................................5-4
Engine idling speed, adjusting..............6-12
Engine oil and oil filter element ..............6-7
Engine stop switch..................................3-9
F
Final gear oil ..........................................6-9
Front fork
Adjusting ............................................3-15
Checking ............................................6-24
Front wheel
Installing ............................................6-33
Removing ..........................................6-32
Fuel ......................................................3-11
Fuel consumption, tips for reducing ......5-4
Fuel level warning light ..........................3-3
Fuel tank breather hose ......................3-12
Fuel tank cap ........................................3-11
Fuses, replacing ..................................6-28
H
Handlebar switches ................................3-8
Headlight bulb, replacing ......................6-29
Helmet holders ....................................3-14
High beam indicator light ........................3-3
Horn switch ............................................3-8I
Identification numbers ............................9-1
Idling speed, adjusting ..........................6-12
Ignition circuit cut-off system ................3-17
Instrument and control functions ............2-3
Instruments ............................................2-3
K
Key identification number ......................9-1
L
License plate light bulb, replacing ........6-32
Light switch ............................................3-9
M
Main switch/steering lock ..........................3-1
Model label ................................................9-2
N
Neutral indicator light ..............................3-2
O
Oil level warning light ............................3-2
Operation and important riding points ....5-1
P
Panels, removing and installing..............6-5
Parking....................................................5-5
Pass switch ............................................3-8
Periodic maintenance and lubrication
chart ....................................................6-2

INDEX
Periodic maintenance
and minor repair ..................................6-1
Pre-operation check list ..........................4-1
Pre-operation checks..............................4-1
R
Rear wheel
Installing ............................................6-34
Removing ..........................................6-33
S
Safety information ..................................1-1
Seat ......................................................3-13
Self-diagnosis device..............................3-6
Shift pedal ............................................3-10
Adjusting the pedal position ..............6-21
Shifting ....................................................5-3
Shock absorber assembly
adjusting ............................................3-15
Sidestand ..............................................3-16
Sidestand, checking
and lubricating ....................................6-24
Spark plugs, checking ............................6-5
Specifications..........................................8-1
Conversion table ..................................8-5
Speedometer unit ..................................3-3
Starter (choke) lever ............................3-12
Starting a cold engine ............................5-1
Starting a warm engine ..........................5-3
Start switch ............................................3-9
Steering, checking ................................6-25
Steering lock ..........................................3-1Storage ..................................................7-4
Storage compartment ..........................3-14
T
Tachometer ............................................3-6
Tail/brake light bulb, replacing ..............6-31
Throttle cable free play, adjusting ........6-13
Throttle grip and cable, checking and
lubricating ..........................................6-22
Tires ......................................................6-14
Air pressure ........................................6-14
Tool kit ....................................................6-1
Troubleshooting ....................................6-35
Troubleshooting chart ..........................6-36
Turn signal indicator light........................3-2
Turn signal light bulb, replacing............6-31
Turn signal switch ..................................3-8
V
Valve clearance, adjusting ....................6-13
Vehicle identification number ..................9-1
W
Wheel bearings, checking ....................6-25
Wheels, cast ........................................6-16

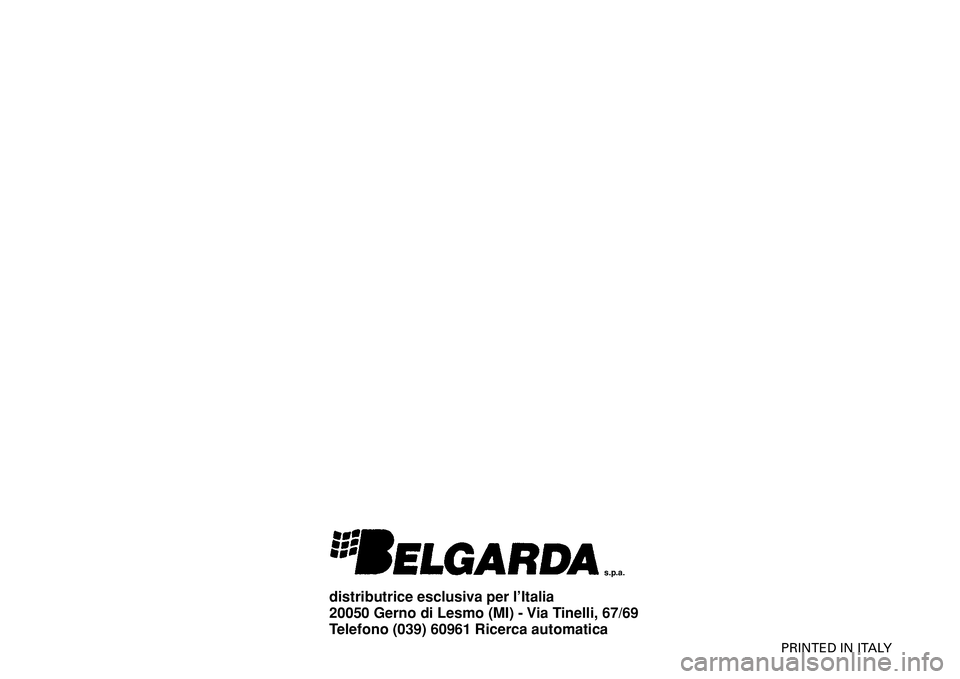

PRINTED IN ITALY
distributrice esclusiva per l’Italia
20050 Gerno di Lesmo (MI) - Via Tinelli, 67/69
Telefono (039) 60961 Ricerca automatica
s.p.a.
