2002 TOYOTA 4RUNNER Owners Manual

’02 4Runner_U (L/O 0108)
352002 MY 4RUNNER_U (OM 35787U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Folddown rear seats 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Flattening seatbacks 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Seat heaters 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Head restraints 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Seat belts 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver airbag and front passenger airbag 52
. . . . . . . . . . . . . . . . . . .
Child restraint 59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Tilt steering wheel 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Outside rear view mirrors 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Antiglare inside rear view mirror 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 3

’02 4Runner_U (L/O 0108)
362002 MY 4RUNNER_U (OM 35787U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
foldeddown seatback, or in the
luggage compartment or cargo area.
Persons not properly seated and/or
properly restrained by seat belts
can be severely injured in the event
of emergency braking or a collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
that the seat does not hit a passen-
ger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
Do not put objects under the seats
as they may interfere with the seat
lock mechanism or unexpectedly
push up the seat position adjusting
lever; the seat may suddenly move,
causing the driver to lose control of
the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may catch
and injure your hands or fingers.
Seats Front seats—
—Seat adjustment precautions

’02 4Runner_U (L/O 0108)
372002 MY 4RUNNER_U (OM 35787U)

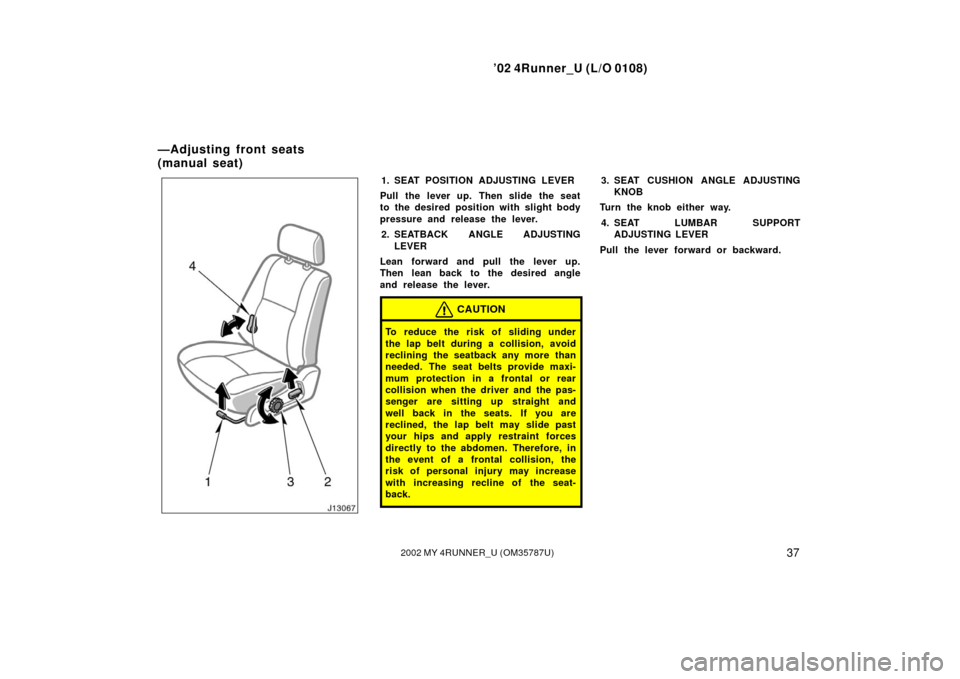

1. SEAT POSITION ADJUSTING LEVER
Pull the lever up. Then slide the seat
to the desired position with slight body
pressure and release the lever. 2. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
3. SEAT CUSHION ANGLE ADJUSTING KNOB
Turn the knob either way.
4. SEAT LUMBAR SUPPORT ADJUSTING LEVER
Pull the lever forward or backward.
—Adjusting front seats
(manual seat)

’02 4Runner_U (L/O 0108)
382002 MY 4RUNNER_U (OM 35787U)
1. SEAT POSITION AND SEAT CUSHION
ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats. It might interfere with the seatlock
mechanism. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
3. SEAT LUMBAR SUPPORT ADJUSTING SWITCH
Push the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front seats (power
seat)

’02 4Runner_U (L/O 0108)
392002 MY 4RUNNER_U (OM 35787U)
BEFORE FOLDDOWN REAR SEAT
Stow the rear seat belt and buckles as
shown in the illustration.
This prevents the belt and buckles from
falling out when you fold the seatback.
NOTICE
The seat belt and buckles must be
stowed before you fold the seatback.
1. Swing the bottom cushion up by
pulling the lock rel ease strap, and
remove the head restraint.
It is hinged at the front edge, so just lift
it up.
If desired, each bottom cushion may be
swung up separately.2. Store the head restraints in the head restraint retaining holes in the bot-
tom cushion.
Folddown rear seats

’02 4Runner_U (L/O 0108)
402002 MY 4RUNNER_U (OM 35787U)
3. Unlock the seatback and fold it
down.
This will enlarge the luggage compartment
as far as the raised seat cushion. See
“Luggage stowage precautions” in Section
2 for precautions in loading luggage.
If desired, each seatback may be folded
separately.
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Be certain to replace the head re-
straints.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the cushion near the
lock release straps.
Do not forget to pull out the buckle
of the side seatbelts and center
seatbelt and arranged them in their
proper position and are ready to
use.
To flatten the seatback, do the follow-
ings. 1. Remove the head restraint and slide the seat further forward than the
frontmost lock position.
Flattening seatbacks
(manual seat)

’02 4Runner_U (L/O 0108)
412002 MY 4RUNNER_U (OM 35787U)
2. Pull the lock release lever up, then
push down the seatback.
When returning the seatback upright, be
careful not to make yourself hit by the
seatback which will bound with consid-
erable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After putting back the seat, try
pushing the seat and seatback for-
ward and rearward to make sure it
is secured in place. Be certain to
replace head restraint.
To turn on the seat heater, push the
switch.
The key must be in the “ON” position.
Push the switch once again to turn the
seat heater off.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or handicapped
persons
Seat heaters

’02 4Runner_U (L/O 0108)
422002 MY 4RUNNER_U (OM 35787U)
Persons who have delicate skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
NOTICE
 Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharged, turn the switch on
when the engine is running.Front
Rear

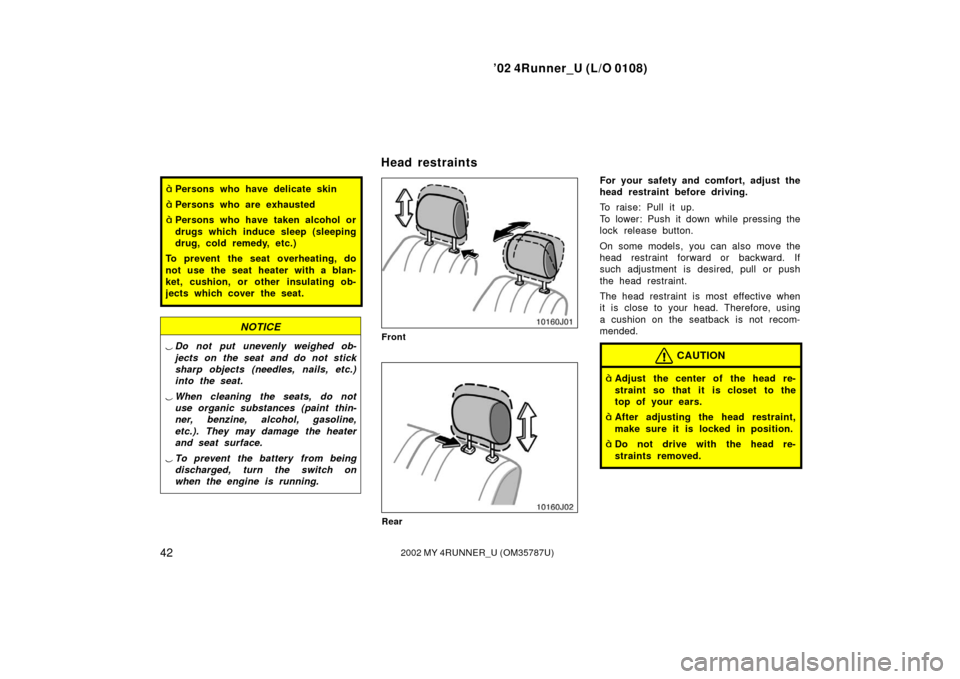

For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
On some models, you can also move the
head restraint forward or backward. If
such adjustment is desired, pull or push
the head restraint.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closet to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Head restraints
