Either of the following conditions may
occur, but do not indicate the malfunc-
tion:
The light may stay on for about 60
seconds after the ignition key is turned
to the “ON” position. It is normal if it
turns off after a while.
Depressing the brake pedal repeatedly
may turn on the light. It is normal if it
turns off after a few seconds.
(i) “VSC TRAC” Warning Light
The light warns that there is a problem
somewhere in the vehicle skid control sys-
tem and traction control system (two
wheel drive models) or active traction con-
trol system (fourwheel drive models).
The light will come on when the ignition
key turned to “ON”, and will go off after
a few seconds.
The light may come on for 60 seconds
after the ignition key is turned to the “ON”
position. It is normal if they go out after
a while.
Depressing the brake pedal repeatedly
may turn on the lights. It is normal if they
go out after a few seconds. There is no problem when the “VSC
TRAC” warning light comes on when the
brake actuator temperature becomes high.
(For details, see “Traction control system”
and “Active traction control” in Section
16.)
If the light comes on while driving, the
vehicle skid system and/or traction control
system (twow
heel drive models) or active
traction control system (fourwheel drive
models) do not work. However, as conven-
tional braking operates when applied,
there is no problem to continue your driv-
ing.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
(j) Open Door Warning Light
This light remains on until all the doors
and back door are completely closed. (k) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ON” position.
After about 6 seconds, the light will go
off. This means the system of the air-
bag and front seat belt pretensioner are
operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, front seat belt pretensioner assem-
blies, inflators, warning light,
interconnecting wiring and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on.
The light comes on or flashes while
driving.
(l) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver ’s door with
the ignition key in the “ACC” or “LOCK”
position.

’02 4Runner_U (L/O 0108)
1002002 MY 4RUNNER_U (OM 35787U)
(m) Unengaged “Park” Warning
Light
( fourwheel drive vehicles)
This light warns that the transmission
“Park” mechanism is not engaged. If the
front drive control lever is in the “N” posi-
tion while the selector lever is in the “P”
position, the transmission will disengage
and the wheels will not lock.
CAUTION
To restore the park function, shift the
front drive control lever out of “N”,
or the vehicle can move.
(n) Automatic Transmission Fluid Temperature Warning Light
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in “P”. With the engine id-
ling, wait until the light goes off. If the
light goes off, you may start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance.
NOTICE
Continued driving with the warning
light on may damage the automatic
transmission.
(o) Low Windshield Washer Fluid Level Warning Light (Canada)
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” in Section 73.) CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the side doors or back door.
The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on. The “ABS” and “VSC TRAC”
warning lights, “TRAC OFF” (twowheel
drive models) or “VSC OFF” (four
wheel drive models) indicator light and
slip indicator light go off after a few
seconds. The SRS warning light goes
off after about 6 seconds.

’02 4Runner_U (L/O 0108)
1012002 MY 4RUNNER_U (OM 35787U)
There may be the case that the “ABS”
warning light (brake assist system
warning light), “VSC TRAC” warning
light and “TRAC OFF” (twowheel drive
models) or “VSC OFF” (fourwheel
drive models) indicator light stay on for
about 60 seconds after the ignition key
is turned to the “ON” position. It is
normal if they go out after a while.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, either the bulb is burned out or the
circuit is in need of repair. Have it
checked by your Toyota dealer as soon as
possible.

’02 4Runner_U (L/O 0108)
1022002 MY 4RUNNER_U (OM 35787U)

’02 4Runner_U (L/O 0108)
1032002 MY 4RUNNER_U (OM 35787U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock 104
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 105
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Fourwheel drive system 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Traction control system 11 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Active traction control system 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle skid control system 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Cruise control 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 6

’02 4Runner_U (L/O 0108)
1042002 MY 4RUNNER_U (OM 35787U)

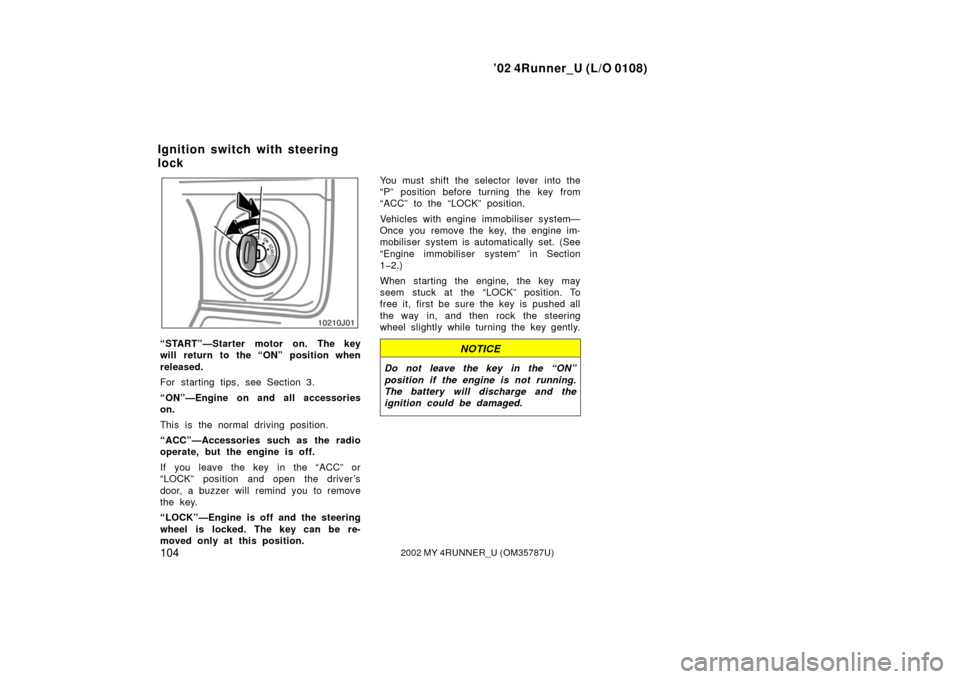

“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see Section 3.
“ON”—Engine on and all accessories
on.
This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.
“LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position. You must shift the selector lever into the
“P” position before turning the key from
“ACC” to the “LOCK” position.
Vehicles with engine immobiliser system—
Once you remove the key, the engine im-
mobiliser system is automatically set. (See
“Engine immobiliser system” in Section
12.)
When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.NOTICE
Do not leave the key in the “ON”
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch with steering
lock

’02 4Runner_U (L/O 0108)
1052002 MY 4RUNNER_U (OM 35787U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in “ON” position and the lock re-
lease button depressed).

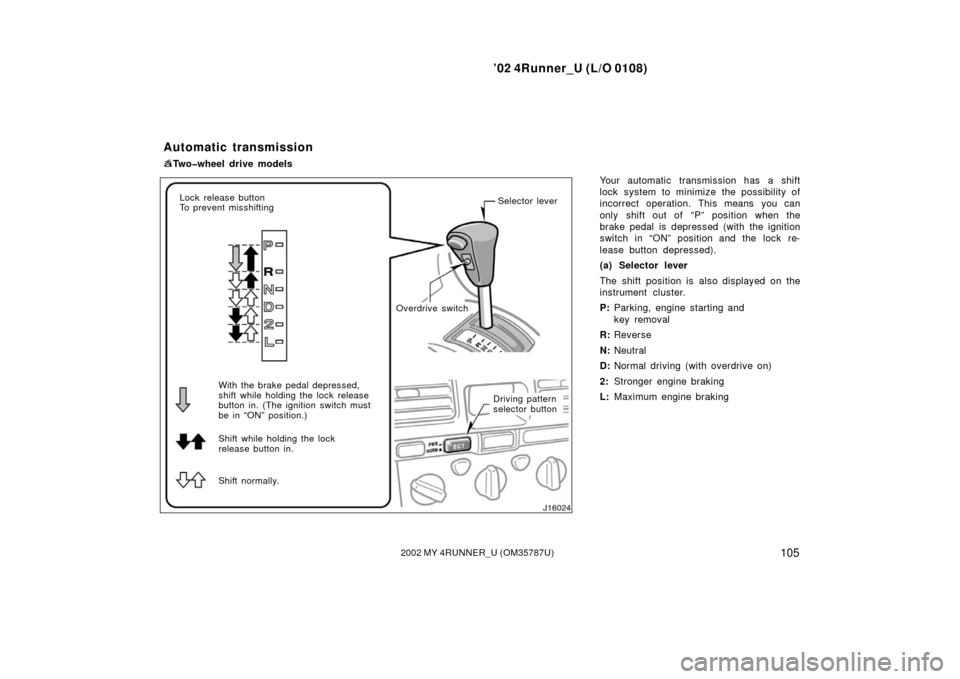

(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, engine starting and
key removal
R: Reverse
N: Neutral
D: Normal driving (with overdrive on)
2: Stronger engine braking
L: Maximum engine braking
Automatic transmission
Twowheel drive models
Lock release button
To prevent misshifting
With the brake pedal depressed,
shift while holding the lock release
button in. (The ignition switch must
be in “ON” position.)
Shift while holding the lock
release button in.
Shift normally. Selector lever
Overdrive switch Driving pattern
selector button

’02 4Runner_U (L/O 0108)
1062002 MY 4RUNNER_U (OM 35787U)
(b) Overdrive switch
You can select either third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The “O/D OFF” indicator light should come
on. To turn the overdrive on again, push
the switch again. The “O/D OFF” indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will be on automatically. Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” in this section.
(c) Normal driving
1. Start the engine as instructed in “How to start the engine” in Section 3. The
transmission must be in “P” or “N”.
2. With your foot holding down the brake pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low, the
transmission will not shift into the over-
drive gear even with the overdrive on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The “O/D
OFF” indicator light will come on and
the transmission will downshift to third
gear.
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than 119 km/h (73 mph), and
stronger engine braking will be en-
abled.
Shift into the “L” position. The trans-
mission will downshift to first gear
When the vehicle speed drops down to
or lower than 58 km/h (36 mph), and
maximum engine braking will be en-
abled.
