2002 TOYOTA 4RUNNER Owners Manual

’02 4Runner_U (L/O 0108)
2832002 MY 4RUNNER_U (OM 35787U)

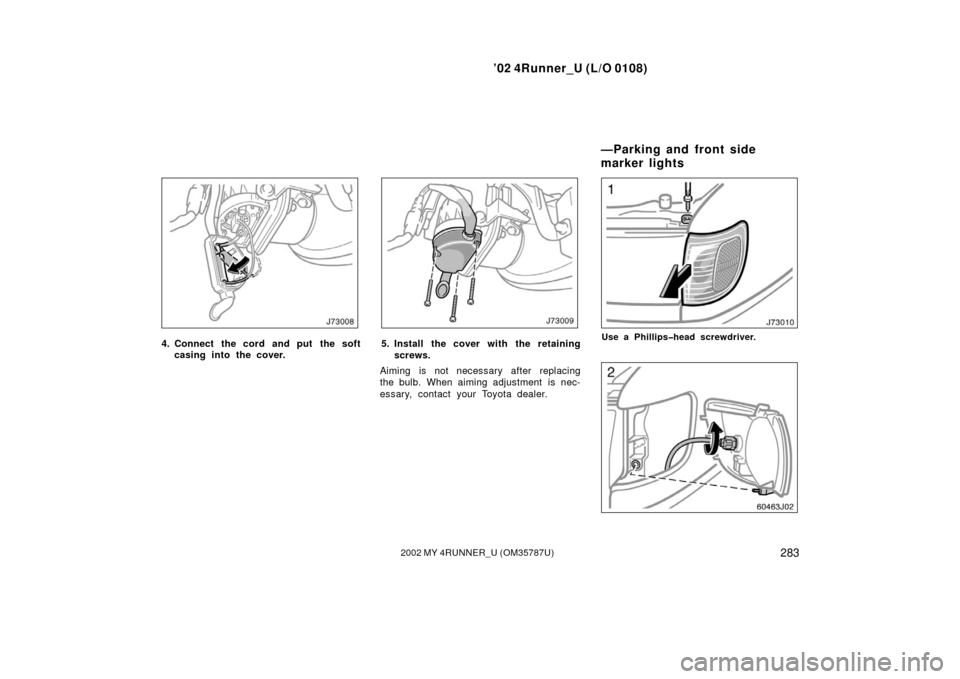

4. Connect the cord and put the soft
casing into the cover.5. Install the cover with the retaining
screws.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.Use a Phillipshead screwdriver.
—Parking and front side
marker lights

’02 4Runner_U (L/O 0108)
2842002 MY 4RUNNER_U (OM 35787U)
Use a Phillipshead screwdriver.

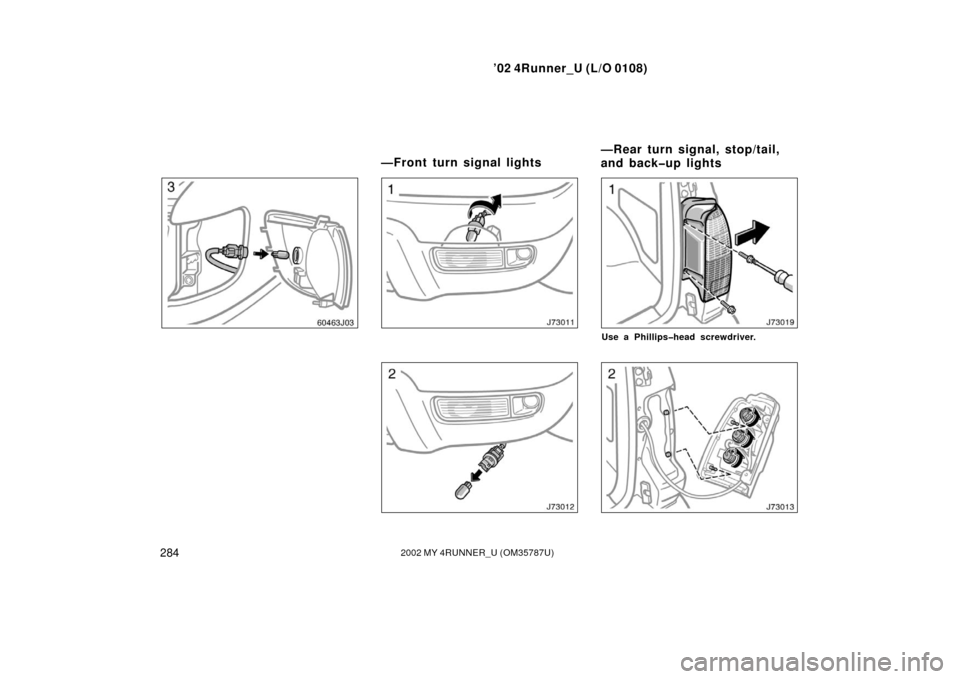

—Front turn signal lights —Rear turn signal, stop/tail,
and backup lights

’02 4Runner_U (L/O 0108)
2852002 MY 4RUNNER_U (OM 35787U)

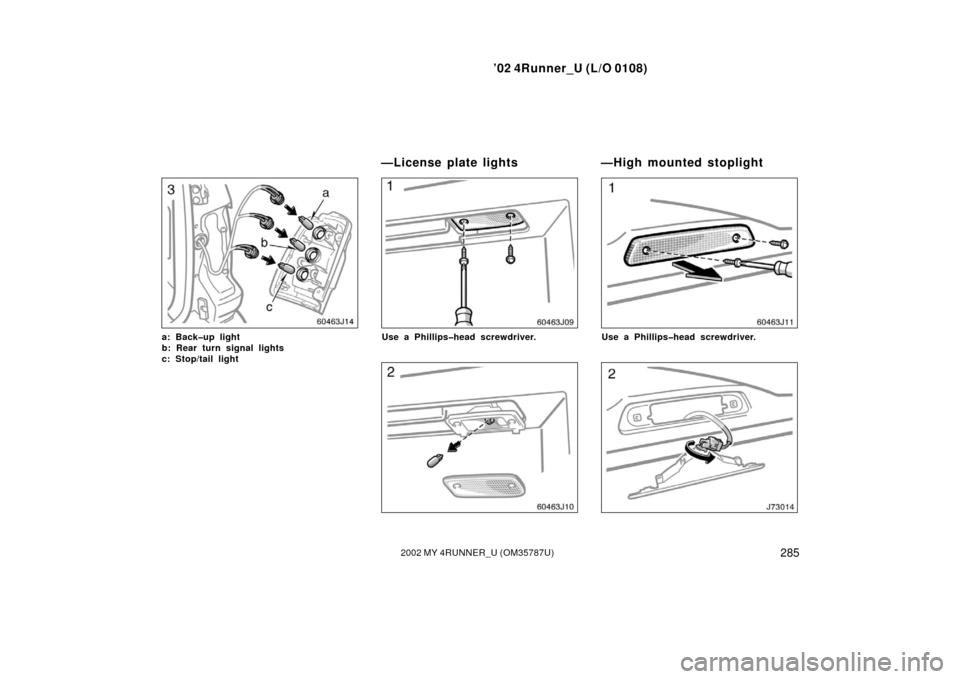

a: Backup light
b: Rear turn signal lights
c: Stop/tail lightUse a Phillipshead screwdriver.Use a Phillipshead screwdriver.
—License plate lights —High mounted stoplight

’02 4Runner_U (L/O 0108)
2862002 MY 4RUNNER_U (OM 35787U)

’02 4Runner_U (L/O 0108)
2872002 MY 4RUNNER_U (OM 35787U)
SPECIFICATIONS
Dimensions and weight 288
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 288
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 292
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 292
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’02 4Runner_U (L/O 0108)
2882002 MY 4RUNNER_U (OM 35787U)
Model: 5VZFE
Type:
6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.):
93.5 82.0 (3.68 3.23)
Displacement, cm
3 (cu. in.):
3378 (206.1)
Dimensions and weight
mm (in.)
P265/70R 16 tire
Without wheel
opening extension With wheel
opening extension
P225/75R 15 tire
Overall length 4655 (183.3) 4655 (183.3) 4655 (183.3)
Overall width 1690 (66.5) 1730 (68.1) 1800 (70.9)
Overall height 1715 (67.5)∗1740 (68.5)∗1740 (68.5)∗
Wheelbase2675 (105.3) 2675 (105.3) 2675 (105.3)
Front tread1505 (59.3) 1505 (59.3) 1505 (59.3)
Rear tread1495 (58.9) 1510 (59.5) 1510 (59.5)
Vehicle capacity weight (occupants + luggage) kg (lb.): 454 (1000)
∗: Unladen vehicle
Engine

’02 4Runner_U (L/O 0108)
2892002 MY 4RUNNER_U (OM 35787U)
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 70 (18.5, 15.4) ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.13—0.23 (0.006—0.009)
Exhaust 0.27—0.37 (0.011—0.014)
Spark plug type:
DENSO K16TR11
NGK BKR5EKB11
Spark plug gap, mm (in.): 1.1 (0.043)
Drive belt tension measured with Bor-
roughs drive belt tension gauge No.
BT3373F (used belt), Ibf: Generator belt100 20
Air conditioning compressor belt 100 20
Power steering pump belt
100
+20
15
ENGINE LUBRICATION
Oil capacity (drain and ref ill),
L (qt., Imp. qt.):
With filter 5.2 (5.5, 4.6)
Without filter 4.9 (5.2, 4.3) Oil grade:
API grade SJ “EnergyConserving”, SL
“EnergyConserving” or ILSAC multi-
grade engine oil is recommended.
Recommended oil viscosity (SAE):
5W-30 Preferred
Temperature range anticipated before
next oil change
Fuel Service specifications

’02 4Runner_U (L/O 0108)
2902002 MY 4RUNNER_U (OM 35787U)
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
With rear heater 9.0 (9.5, 7.9)
Without rear heater 8.0 (8.5, 7.0)
Coolant type:
“TOYOTA Long Life Coolant” or equiva-
lent
With ethyleneglycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af- ter the key is removed with all the
lights turned off
Charging rates: 5 A max. AUTOMATIC TRANSMISSION
Fluid capacity (drain and ref
ill),
L (qt., Imp. qt.):
Twowheel drive modelsUp to 1.6 (1.7, 1.4)
Fourwheel drive models Up to 2.0 (2.1, 1.8)
Fluid type: Automatic transmission fluid DII or
DEXRON III (DEXRON II)
TRANSFER
Oil capacity, L (qt., Imp. qt.): 1.2 (1.3, 1.1)
Oil type: Gear oil API GL4 or GL5
Recommended oil viscosity: SAE 75W90 DIFFERENTIAL
Oil capacity, L (qt., Imp. qt.):
Twowheel drive models2.75 (2.9, 2.4)
Fourwheel drive models Front1.15 (1.2, 1.0)
Rear
With center differential lock system2.75 (2.9, 2.4)
Without center differential lock sys-
tem 2.45 (2.6, 2.2)
Oil type: Hypoid gear oil API GL5
Recommended oil viscosity:
FrontSAE 75W90
Rear Above 18 C (0 F)
SAE 90
Below 18 C (0 F)
SAE 80W or 80W90
