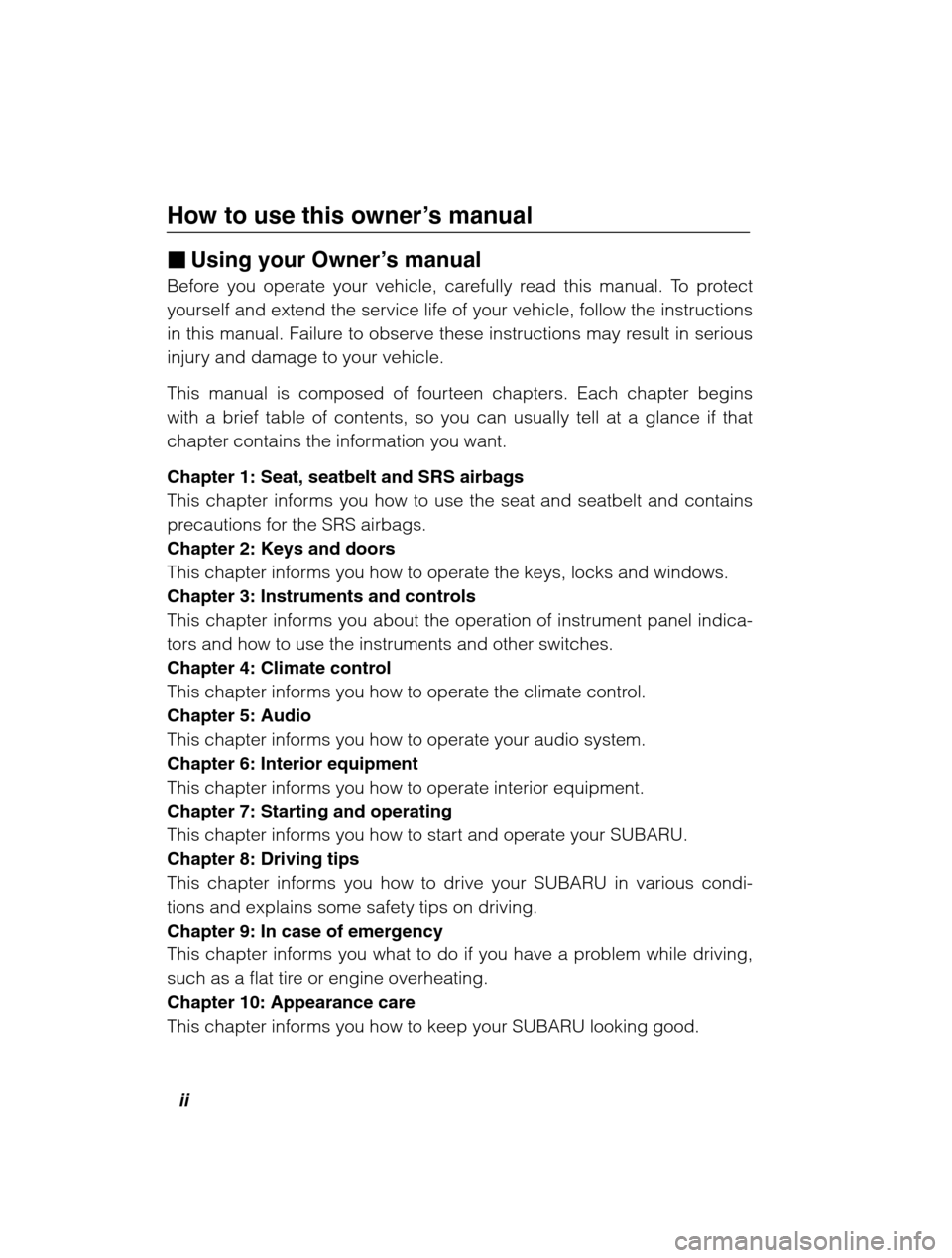

How to use this owner’s manual
Using your Owner ’s manual
Before you operate your vehicle, carefully read this manual. To protect yourself and extend the service life of your vehicle, follow the instructions
in this manual. Failure to observe these instructions may result in serious
injury and damage to your vehicle.
This manual is composed of fourteen chapters. Each chapter begins with a brief table of contents, so you can usually tell at a glance if that
chapter contains the information you want. Chapter 1: Seat, seatbelt and SRS airbags
This chapter informs you how to use the seat and seatbelt and contains
precautions for the SRS airbags.Chapter 2: Keys and doors
This chapter informs you how to operate the keys, locks and windows.Chapter 3: Instruments and controls
This chapter informs you about the operation of instrument panel indica-tors and how to use the instruments and other switches.Chapter 4: Climate control
This chapter informs you how to operate the climate control.Chapter 5: Audio
This chapter informs you how to operate your audio system.Chapter 6: Interior equipment
This chapter informs you how to operate interior equipment.Chapter 7: Starting and operating
This chapter informs you how to start and operate your SUBARU.Chapter 8: Driving tips
This chapter informs you how to drive your SUBARU in various condi-tions and explains some safety tips on driving.Chapter 9: In case of emergency
This chapter informs you what to do if you have a problem while driving,
such as a flat tire or engine overheating.Chapter 10: Appearance care
This chapter informs you how to keep your SUBARU looking good.

vi
CLOSE TO THE SRS AIRBAG. Always use the child safety locks whenever a child rides in the
rear seat. Serious injury could result if a child accidentallyopened the door and fell out. Refer to the “Door locks ” section in
chapter 2. Always lock the passenger ’s windows using the lock switch
when children are riding in the vehicle. Failure to follow this pro-cedure could result in injury to a child operating the power win-
dow. Refer to the “Power windows ” section in chapter 2.
Never leave unattended children in the vehicle. They could ac-
cidentally injure themselves or others through inadvertent opera-
tion of the vehicle. Also, on hot or sunny days, temperature in a
closed vehicle could quickly become high enough to cause se-vere or possibly fatal injuries to them. Help prevent young children from locking themselves in the
trunk. When leaving the vehicle, either close all windows and lockall doors or cancel the inside trunk lid release. Also make certainthat the trunk is closed. On hot or sunny days, the temperature ina trunk could quickly become high enough to cause death or seri-ous heat-related injuries including brain damage, particularly for
small children.
Carefully read the sections “Child restraint systems ”, “SRS airbag ”, and
“Seatbelts” in chapter 1 of this owner ’s manual for instructions and pre-
cautions concerning the child restraint system, seatbelt system and SRSairbag system. ENGINE EXHAUST GAS (CARBON MONOXIDE)
WARNING
Never inhale engine exhaust gas. Engine exhaust gas contains
carbon monoxide, a colorless and odorless gas which is danger- ous, or even lethal, if inhaled. Always properly maintain the engine exhaust system to pre-
vent engine exhaust gas from entering the vehicle.

vii
–
CONTINUED –
Never run the engine in a closed space, such as a garage, ex-
cept for the brief time needed to drive the vehicle in or out of it. Avoid remaining in a parked vehicle for a lengthy time while
the engine is running. If that is unavoidable, then use the ventila-tion fan to force fresh air into the vehicle. Always keep the front ventilator inlet grille free from snow,
leaves or other obstructions to ensure that the ventilation system
always works properly. If at any time you suspect that exhaust fumes are entering the
vehicle, have the problem checked and corrected as soon as pos-
sible. If you must drive under these conditions, drive only with allwindows fully open. Keep the trunk lid or rear gate closed while driving to prevent
exhaust gas from entering the vehicle.
DRINKING AND DRIVING WARNING
Drinking and then driving is very dangerous. Alcohol in the
bloodstream delays your reaction and impairs your perception,judgment and attentiveness. If you drive after drinking – even if
you drink just a little – it will increase the risk of being involved in
a serious or fatal accident, injuring or killing yourself, your pas-sengers and others. In addition, if you are injured in the accident,
alcohol may increase the severity of that injury. Please don ’t drink and drive.
Drunken driving is one of the most frequent causes of accidents. Since
alcohol affects all people differently, you may have consumed too much
alcohol to drive safely even if the level of alcohol in your blood is belowthe legal limit. The safest thing you can do is never drink and drive. How-ever if you have no choice but to drive, stop drinking and sober up com-
pletely before getting behind the wheel.

x

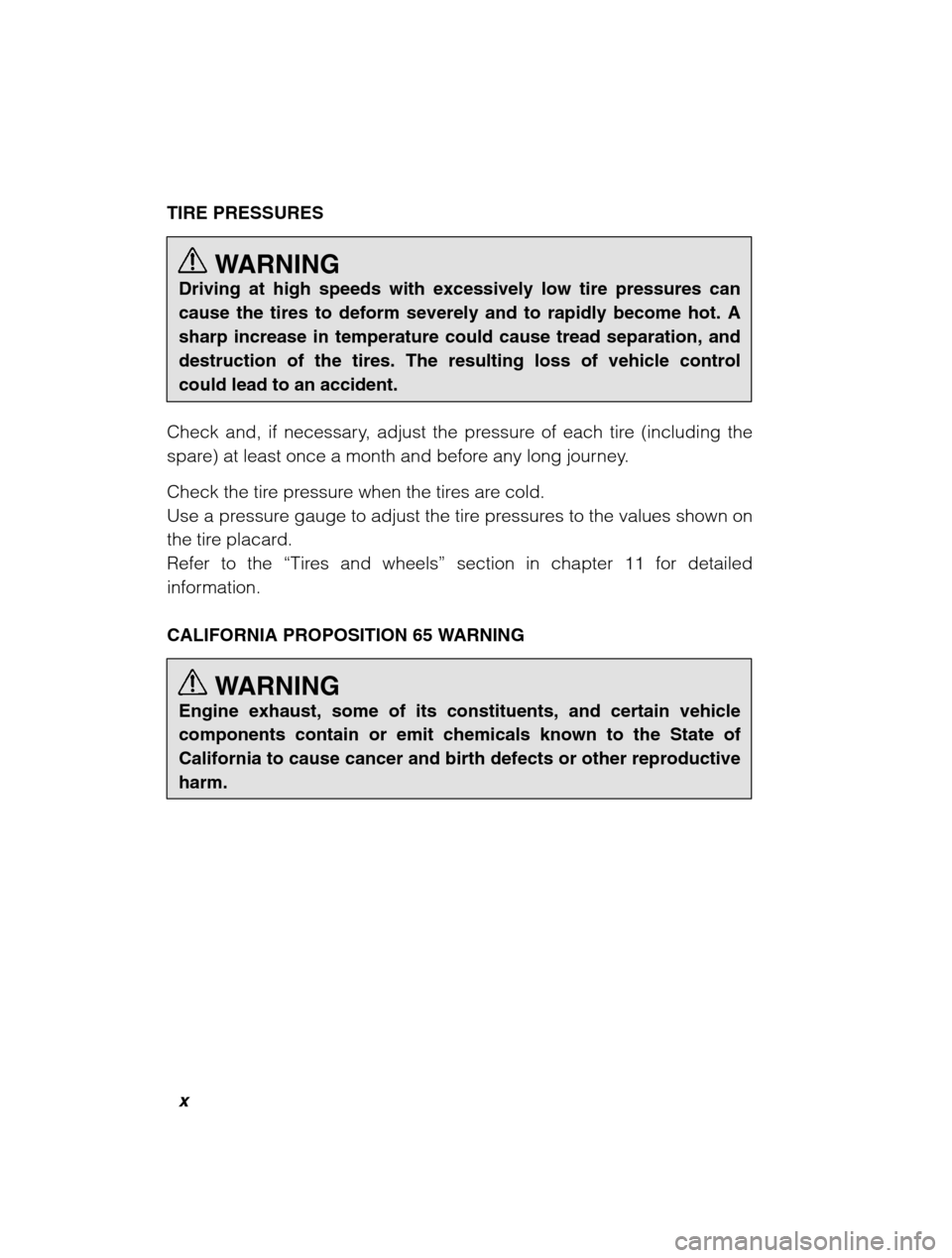

TIRE PRESSURESWARNING
Driving at high speeds with excessively low tire pressures can
cause the tires to deform severely and to rapidly become hot. Asharp increase in temperature could cause tread separation, and
destruction of the tires. The resulting loss of vehicle controlcould lead to an accident.
Check and, if necessary, adjust the pressure of each tire (including the
spare) at least once a month and before any long journey.
Check the tire pressure when the tires are cold.
Use a pressure gauge to adjust the tire pressures to the values shown on
the tire placard.Refer to the “Tires and wheels ” section in chapter 11 for detailed
information.
CALIFORNIA PROPOSITION 65 WARNING
WARNING
Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State ofCalifornia to cause cancer and birth defects or other reproductiveharm.

Seat, seatbelt and SRS airbags1-9
–
CONTINUED –
Seat heater (if equipped)
CAUTION
Use of the seat heater for a long period of time while the
engine is not running can cause battery discharge. Do not put anything on the seat which insulates against heat,
such as a blanket, cushion, or similar items. This may cause theseat heater to overheat. When cleaning the seat, do not use benzine, paint thinner, or
any similar materials.
The seat heater operates when the ignition switch is either in the “ACC”
or “ON” position.
HB1073BB
HB1093BB
To turn on the seat heater, push the “LO” or “HI” position on the switch,
as desired, depending on the temperature. LO: Normal heating
HI: Rapid heating
The indicator located on the switch comes on when the seat heater is in
operation. When the vehicle ’s interior is warmed enough or before you
leave the vehicle, be sure to turn the switch off.

2-14
and alarm. In warning mode, the alarm detects lower level vibrations
and triggers 2 warning chirps on the horn and two flashes on the
lights as a deterrent to would be vandals. In alarm mode, higher lev-
els of shock are detected and the system will go into full alarm.Ignition switch being turned on while in armed state.
NOTE
With the valet mode selected, the security system does not oper-
ate and the parking lights do not flash when the remote transmit-ter is used for locking and unlocking.The security system indicator light in the combination meter
flashes twice per second to show that the valet mode is selected.For details, refer to “Valet mode ” in this section.
Arming the system
n To arm the system using remote transmitter
HB2033BB
Press to Arm the system. Press to Disarm the system.
HB1000EB
1. Close all windows and moonroofs (if so equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood (and the trunk lid) are locked.
5. Close all doors (and the rear gate on the station wagon).
6. Briefly press the “LOCK/ARM” button (for less than two seconds).
All doors (and the rear gate on the station wagon) will lock, the hornwill sound one time, the parking lights will flash one time and the indi-
cator light starts flashing slowly (approximately once every two

Keys and doors2-15
–
CONTINUED –
seconds).
If any of the doors, (rear gate or trunk lid) is not fully closed, the horn
sounds three times, the parking lights flash three times and the indi-
cator light flashes rapidly to alert you that the doors (or the rear gate)
are not properly closed. When you close the door, the system will au-
tomatically arm and doors will automatically lock. nTo arm the system using power door locking switches
HB2024CC
1. Close all windows and moonroofs (if so equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood (and the trunk lid) are locked.
5. Close the doors (and the rear gate on the station wagon) but leaveonly the driver ’s door or the front passenger ’s door open.
6. Push the power door locking switch forward ( “LOCK” side) to set
the door locks.
7. Close the door. The horn will sound one time, the parking lights will
flash one time and the indicator light will start flashing slowly (approxi-
mately once every two seconds) to inform you that the system has
armed. NOTE The system can be armed even if the engine hood, the windows and/or moonroofs are opened. Always make sure that they arefully closed before arming the system.

3

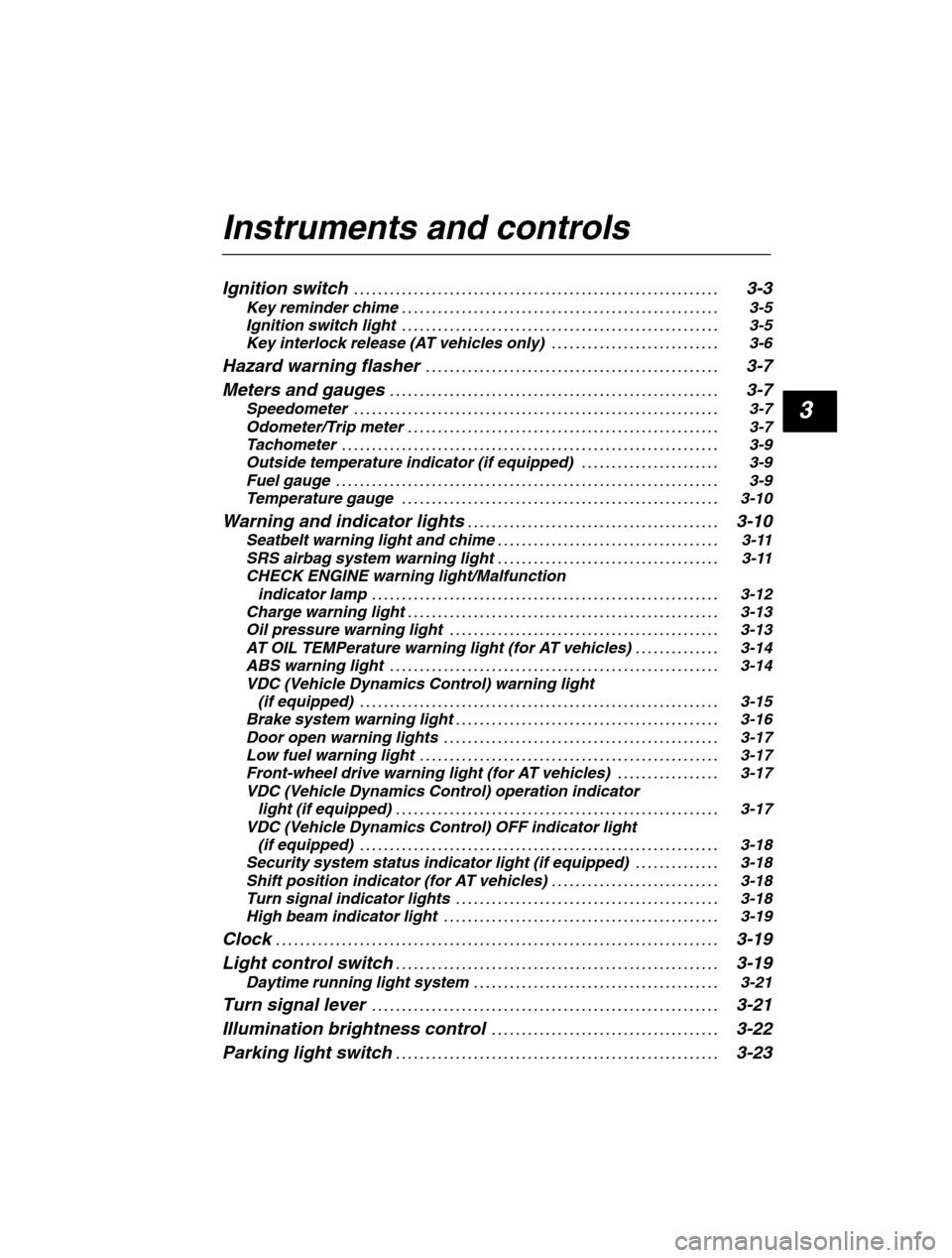

Instruments and controls Ignition switch3-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key reminder chime 3-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 3-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key interlock release (AT vehicles only) 3-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard warning flasher 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Meters and gauges 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speedometer 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer/Trip meter 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 3-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature indicator (if equipped) 3-9 . . . . . . . . . . . . . . . . . . . . . . .
Fuel gauge 3-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature gauge 3-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning and indicator lights 3-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seatbelt warning light and chime 3-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS airbag system warning light 3-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECK ENGINE warning light/Malfunction indicator lamp 3-12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Charge warning light 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil pressure warning light 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AT OIL TEMPerature warning light (for AT vehicles) 3-14 . . . . . . . . . . . . . .
ABS warning light 3-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) warning light (if equipped) 3-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system warning light 3-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door open warning lights 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low fuel warning light 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front-wheel drive warning light (for AT vehicles) 3-17 . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) operation indicator light (if equipped) 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) OFF indicator light (if equipped) 3-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security system status indicator light (if equipped) 3-18 . . . . . . . . . . . . . .
Shift position indicator (for AT vehicles) 3-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal indicator lights 3-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High beam indicator light 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light control switch 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Daytime running light system 3-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal lever 3-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illumination brightness control 3-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking light switch 3-23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
