2002 SUBARU OUTBACK engine

Starting and operating7-7
–
CONTINUED –
If the fuel filler cap is not tightened until it clicks or if the tether
is caught under the cap, the CHECK ENGINE warning light may come on. Refer to the “Warning and indicator lights ” section lo-
cated in chapter 3.
State emission testing (U.S. only)
WARNING
Testing of an All-Wheel Drive vehicle must NEVER be performed
on a single two-wheel dynamometer. Attempting to do so willresult in uncontrolled vehicle movement and may cause an acci-
dent or injuries to persons nearby.
CAUTION
Resultant vehicle damage due to improper testing is not covered
under the SUBARU Limited Warranty and is the responsibility ofthe state inspection program or its contractors or licensees.
At state inspection time, remember to tell your inspection or service
station in advance not to place your Subaru AWD vehicle on a two-
wheel dynamometer. Otherwise, serious transmission damage willresult.
Some states have started using dynamometers in their state inspection
programs in order to meet their obligation under federal law to implement
stricter vehicle emission standards to reduce air pollution from cars. A
dynamometer is a treadmill or roller-like testing device that allows your
car’ s wheels to turn while the car remains in one place. Depending on
the severity of a state ’s air pollution problems, the states must adopt
either a “basic” or “enhanced” vehicle emission inspection test. Nor-
mally, a portion of the basic emission test consists of an emission
inspector inserting an analyzer probe into the exhaust pipe of an idling
vehicle for a short period of time. States with more severe air pollution
problems are required to adopt an enhanced vehicle emission test. This
test simulates actual driving conditions on a dynamometer and permits

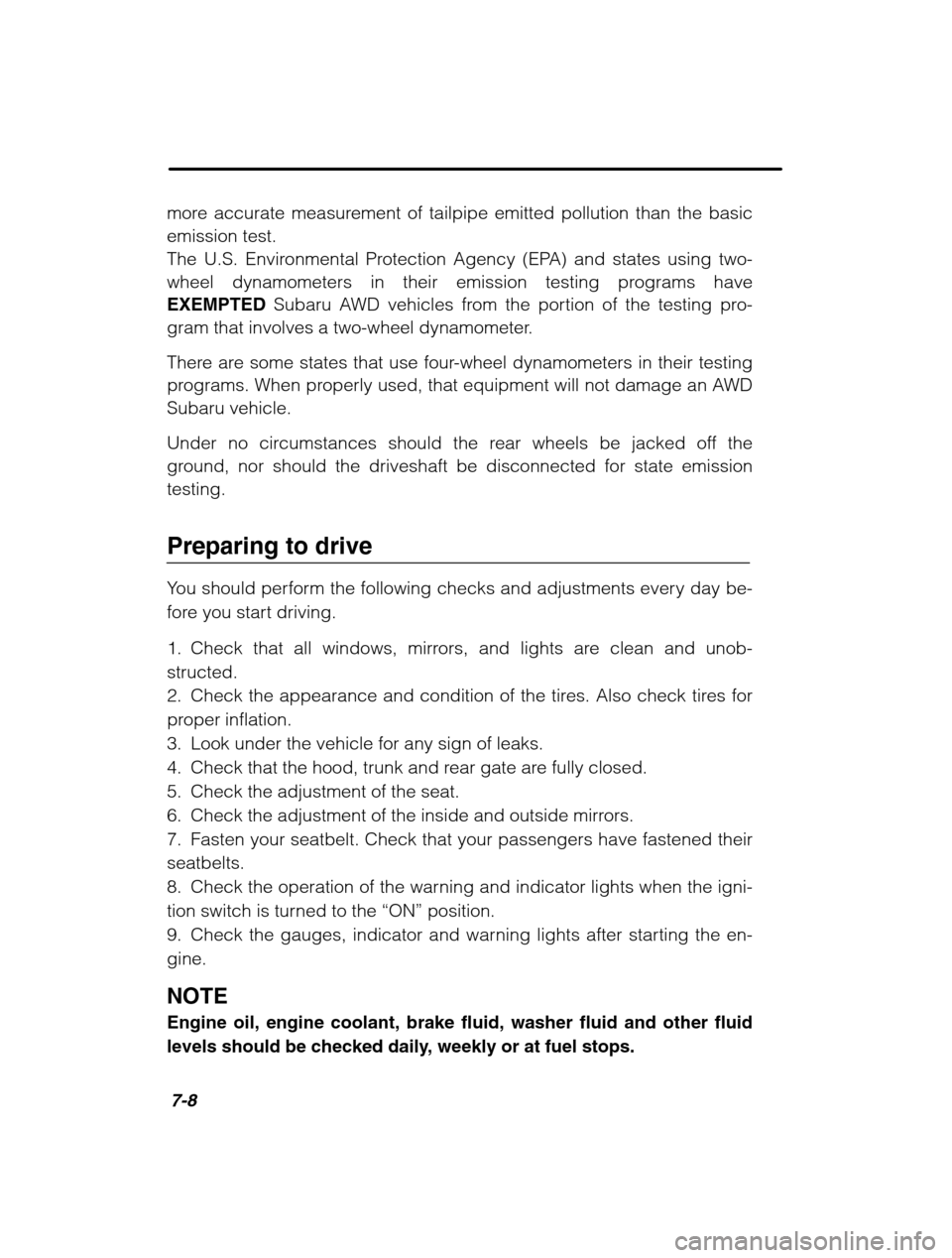

7-8
more accurate measurement of tailpipe emitted pollution than the basic emission test.
The U.S. Environmental Protection Agency (EPA) and states using two-
wheel dynamometers in their emission testing programs haveEXEMPTED Subaru AWD vehicles from the portion of the testing pro-
gram that involves a two-wheel dynamometer.
There are some states that use four-wheel dynamometers in their testing
programs. When properly used, that equipment will not damage an AWD Subaru vehicle.
Under no circumstances should the rear wheels be jacked off the
ground, nor should the driveshaft be disconnected for state emission testing.
Preparing to drive
You should perform the following checks and adjustments every day be-
fore you start driving.
1. Check that all windows, mirrors, and lights are clean and unob- structed.
2. Check the appearance and condition of the tires. Also check tires for
proper inflation.
3. Look under the vehicle for any sign of leaks.
4. Check that the hood, trunk and rear gate are fully closed.
5. Check the adjustment of the seat.
6. Check the adjustment of the inside and outside mirrors.
7. Fasten your seatbelt. Check that your passengers have fastened theirseatbelts.
8. Check the operation of the warning and indicator lights when the igni-
tion switch is turned to the “ON” position.
9. Check the gauges, indicator and warning lights after starting the en-gine. NOTE Engine oil, engine coolant, brake fluid, washer fluid and other fluid
levels should be checked daily, weekly or at fuel stops.

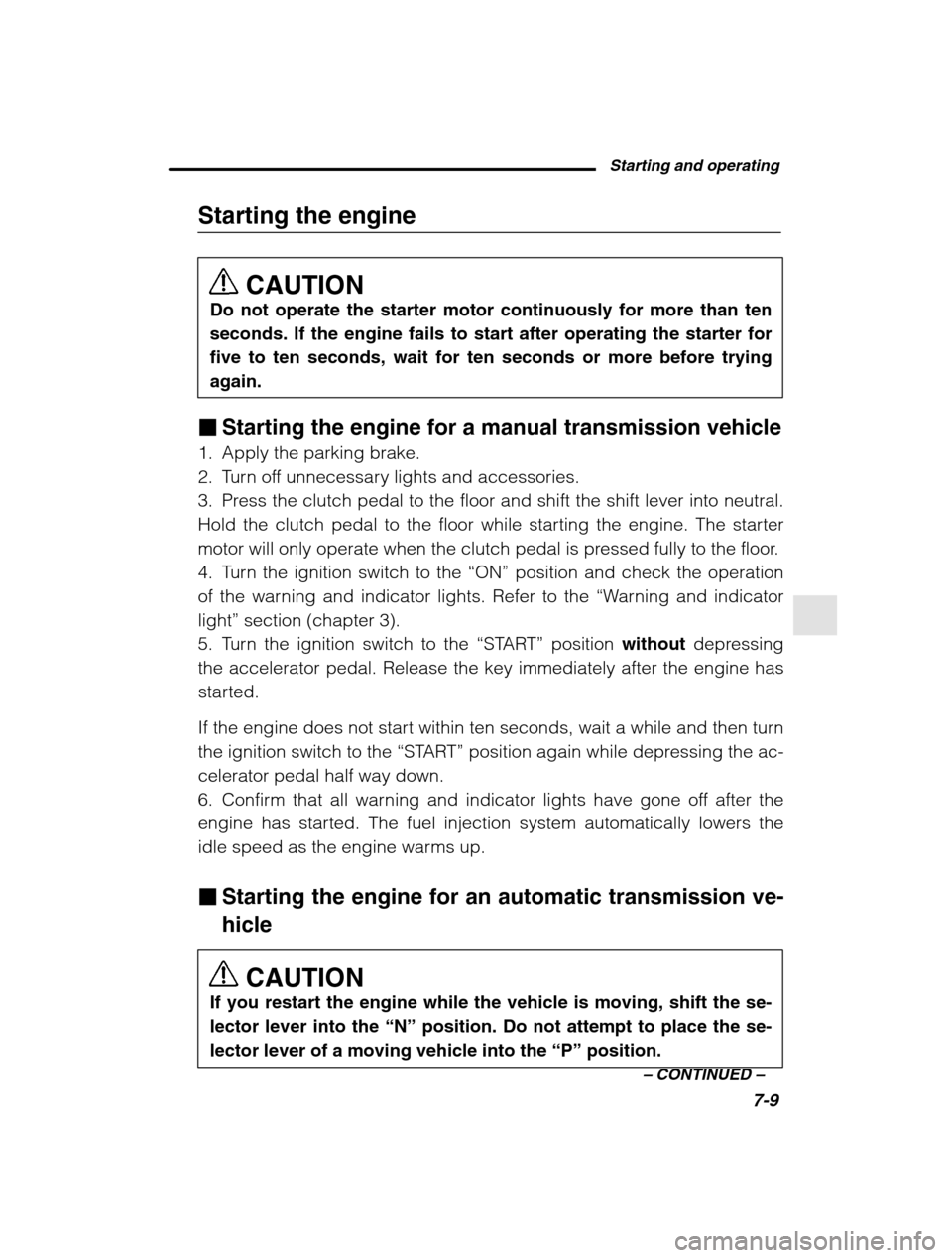

Starting and operating7-9
–
CONTINUED –
Starting the engine
CAUTION
Do not operate the starter motor continuously for more than ten
seconds. If the engine fails to start after operating the starter forfive to ten seconds, wait for ten seconds or more before tryingagain.
Starting the engine for a manual transmission vehicle
1. Apply the parking brake.
2. Turn off unnecessary lights and accessories.
3. Press the clutch pedal to the floor and shift the shift lever into neutral.
Hold the clutch pedal to the floor while starting the engine. The starter
motor will only operate when the clutch pedal is pressed fully to the floor.
4. Turn the ignition switch to the “ON” position and check the operation
of the warning and indicator lights. Refer to the “Warning and indicator
light” section (chapter 3).
5. Turn the ignition switch to the “START” position without depressing
the accelerator pedal. Release the key immediately after the engine has
started.
If the engine does not start within ten seconds, wait a while and then turn the ignition switch to the “START” position again while depressing the ac-
celerator pedal half way down.
6. Confirm that all warning and indicator lights have gone off after the
engine has started. The fuel injection system automatically lowers the
idle speed as the engine warms up.
Starting the engine for an automatic transmission ve- hicle
CAUTION
If you restart the engine while the vehicle is moving, shift the se- lector lever into the “N” position. Do not attempt to place the se-
lector lever of a moving vehicle into the “P” position.

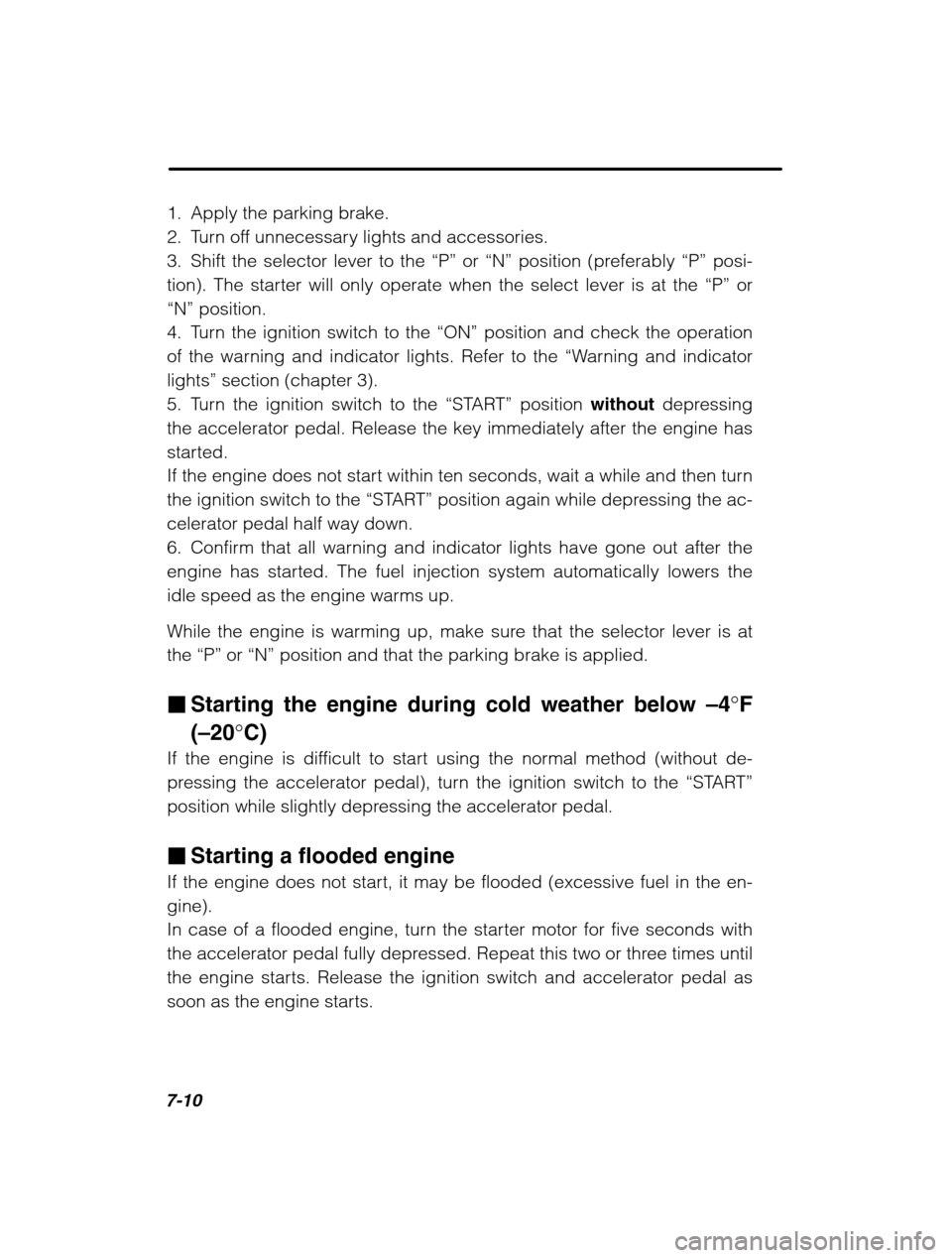

7-10
1. Apply the parking brake.
2. Turn off unnecessary lights and accessories.
3. Shift the selector lever to the “P” or “N” position (preferably “P” posi-
tion). The starter will only operate when the select lever is at the “P” or
“N” position.
4. Turn the ignition switch to the “ON” position and check the operation
of the warning and indicator lights. Refer to the “Warning and indicator
lights” section (chapter 3).
5. Turn the ignition switch to the “START” position without depressing
the accelerator pedal. Release the key immediately after the engine has
started.
If the engine does not start within ten seconds, wait a while and then turnthe ignition switch to the “START” position again while depressing the ac-
celerator pedal half way down.
6. Confirm that all warning and indicator lights have gone out after the
engine has started. The fuel injection system automatically lowers the
idle speed as the engine warms up.
While the engine is warming up, make sure that the selector lever is at the “P” or “N” position and that the parking brake is applied.
Starting the engine during cold weather below –4°F
(–20 °C)
If the engine is difficult to start using the normal method (without de-
pressing the accelerator pedal), turn the ignition switch to the “START”
position while slightly depressing the accelerator pedal.
Starting a flooded engine
If the engine does not start, it may be flooded (excessive fuel in the en-gine).
In case of a flooded engine, turn the starter motor for five seconds with
the accelerator pedal fully depressed. Repeat this two or three times until
the engine starts. Release the ignition switch and accelerator pedal as
soon as the engine starts.

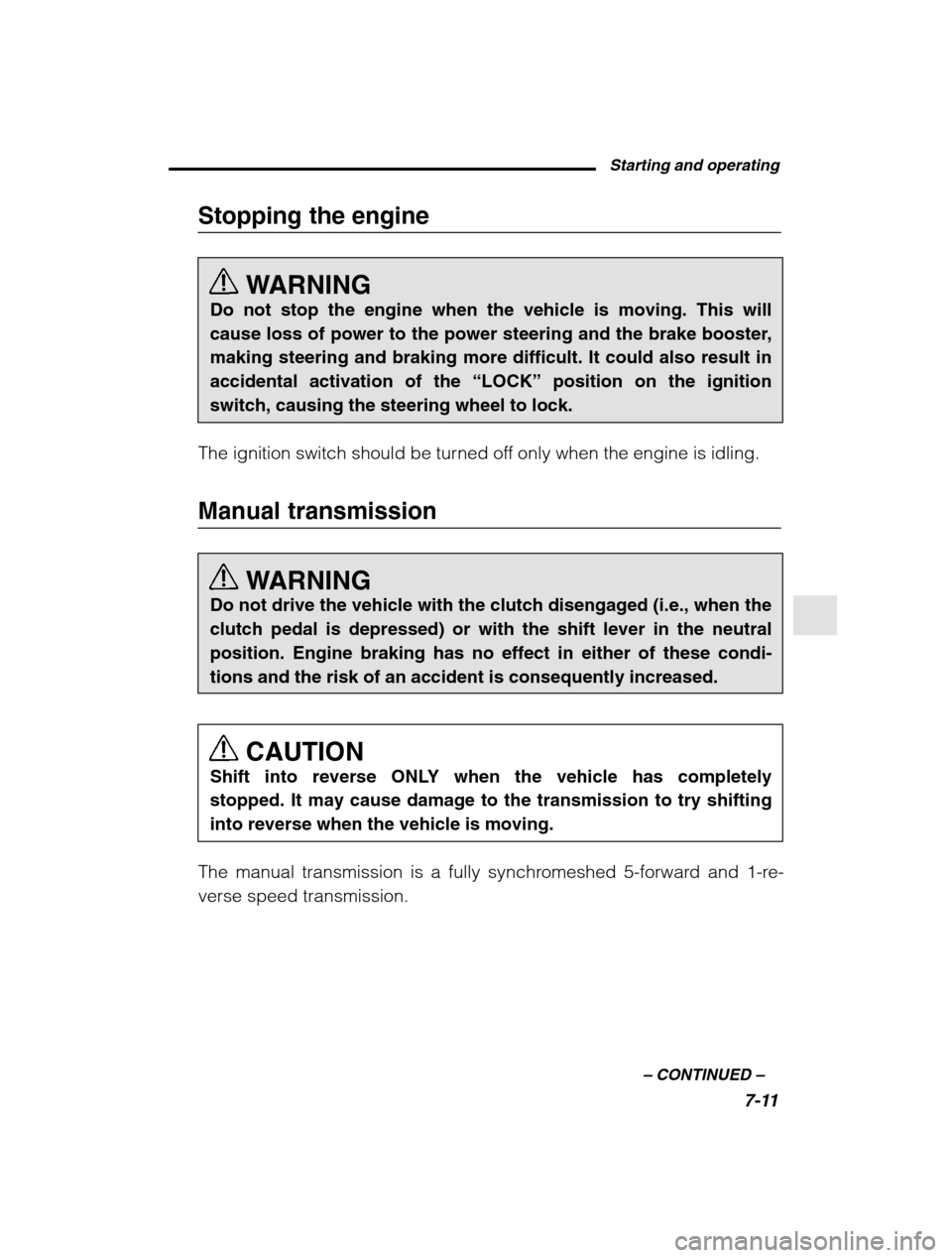

Starting and operating7-11
–
CONTINUED –
Stopping the engine
WARNING
Do not stop the engine when the vehicle is moving. This will
cause loss of power to the power steering and the brake booster,making steering and braking more difficult. It could also result in
accidental activation of the “LOCK” position on the ignition
switch, causing the steering wheel to lock.
The ignition switch should be turned off only when the engine is idling.
Manual transmission
WARNING
Do not drive the vehicle with the clutch disengaged (i.e., when the clutch pedal is depressed) or with the shift lever in the neutralposition. Engine braking has no effect in either of these condi-tions and the risk of an accident is consequently increased.
CAUTION
Shift into reverse ONLY when the vehicle has completelystopped. It may cause damage to the transmission to try shiftinginto reverse when the vehicle is moving.
The manual transmission is a fully synchromeshed 5-forward and 1-re-
verse speed transmission.

Starting and operating7-13
–
CONTINUED –
nMaximum allowable speeds
WARNING
When shifting down a gear, ensure that the vehicle is not travel- ling at a speed exceeding the Maximum Allowable Speed for thegear which is about to be selected. Failure to observe this pre-caution can lead to engine over-revving and this in turn canresult in engine damage.In addition, sudden application of engine brakes when the vehicleis travelling on a slippery surface can lead to wheel locking; as a
consequence, control of the vehicle may be lost and the risk ofan accident increased.
The following table shows the maximum speeds that are possible with
each different gear. Never exceed the speed limit below for each gear position except for
brief acceleration in an emergency. The tachometer ’s needle (if so
equipped) will enter the red area if these speeds are exceeded. Fail-
ure to observe this precaution can lead to excessive engine wear and
poor fuel economy.
mph (km/h)
Vehicle type
GearBrightonLGTOUT-
BACK
1st30 (48)30 (49)29 (47)31 (50)
2nd50 (81)51 (82)49 (79)52 (84)
3rd71 (115)73 (117)70 (112)74 (119)
Driving tips
Do not drive with your foot resting on the clutch pedal and do not use the clutch to hold your vehicle at a standstill on an upgrade. Either ofthose actions may cause clutch damage.
Do not drive with your hand resting on the shift lever. This may causewear on the transmission components.

7-14
When it is necessary to reduce vehicle speed due to slow traffic, turn-
ing corners, or driving up steep hills, downshift to a lower gear before
the engine starts to labor.
On steep downgrades, downshift the transmission to 4th, 3rd or 2nd
gear as necessary; this helps to maintain a safe speed and to extendbrake pad life.
In this way, the engine provides a braking effect. Remember, if you
“ride” (over use) the brakes while descending a hill, they may over-
heat and not work properly.
Automatic transmission
WARNING
Do not shift from the “P” or “N” position into the “D”, “3”, “2”,
“1” or “R” position while depressing the accelerator pedal. This
may cause the vehicle to jump forward or backward.
CAUTION
Shift into the “P” or “R” position only after the vehicle is com-
pletely stopped. Shifting while the vehicle is moving may cause
damage to the transmission. Do not race the engine for more than five seconds in any posi-
tion except the “N” or “P” position when the brake is set or the
tires are on blocks. This may cause the automatic transmissionfluid to overheat. Avoid shifting from one of the forward driving positions into
the “R” position or vice versa until the vehicle has completely
stopped. Such shifting may cause damage to the transmission.
The automatic transmission is electronically controlled with 4-forward
speeds and 1-reverse speed.

Starting and operating7-15
–
CONTINUED –
NOTE
Immediately after a disconnected battery is reconnected or ATF (au- tomatic transmission fluid) is replaced, you may feel that the auto-matic transmission operation is somewhat unusual.This results from erasure or invalidation of data the on-board com-puter has collected and stored in memory to allow the transmissionto shift at the most appropriate times for the current condition ofyour vehicle. Optimized shifting will be restored as the vehicle con-tinues to be driven for a while. Selector lever for automatic transmission
HB7021BB
HB7010AA
The selector lever has seven positions.
P (Park)
This position is for parking the vehicle and starting the engine.
In this position, the transmission is mechanically locked to prevent the
vehicle from rolling freely.
When you park the vehicle, first set the parking brake fully, then shift
into the “P” position. Do not hold the vehicle with only the transmis-
sion. A shift interlock function is employed in the automatic transmission
system to ensure safe starting of the vehicle.
