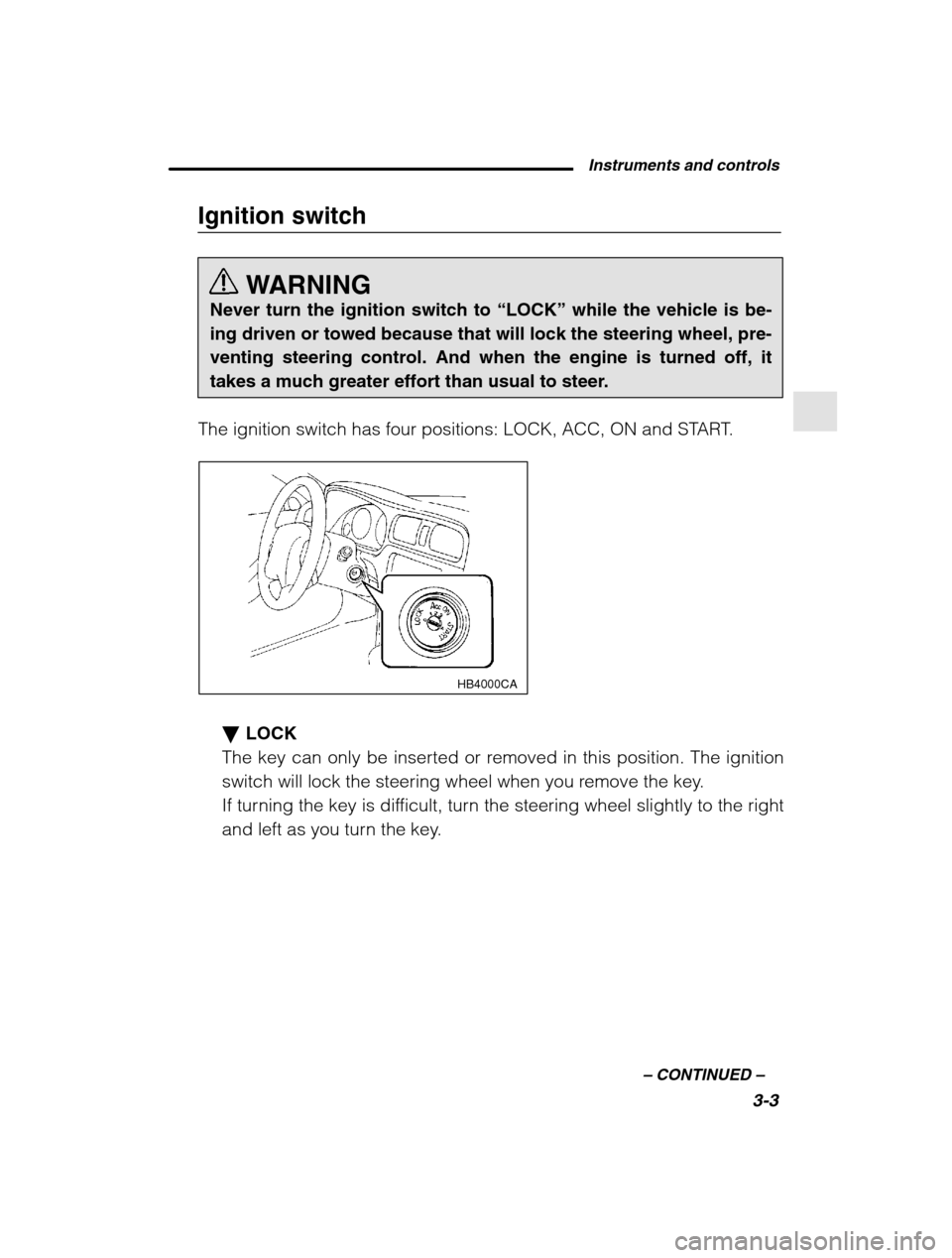

Ignition switch
WARNING
Never turn the ignition switch to “LOCK” while the vehicle is be-
ing driven or towed because that will lock the steering wheel, pre- venting steering control. And when the engine is turned off, it
takes a much greater effort than usual to steer.
The ignition switch has four positions: LOCK, ACC, ON and START.
HB4000CA
LOCK
The key can only be inserted or removed in this position. The ignition
switch will lock the steering wheel when you remove the key.
If turning the key is difficult, turn the steering wheel slightly to the right
and left as you turn the key.

3-4

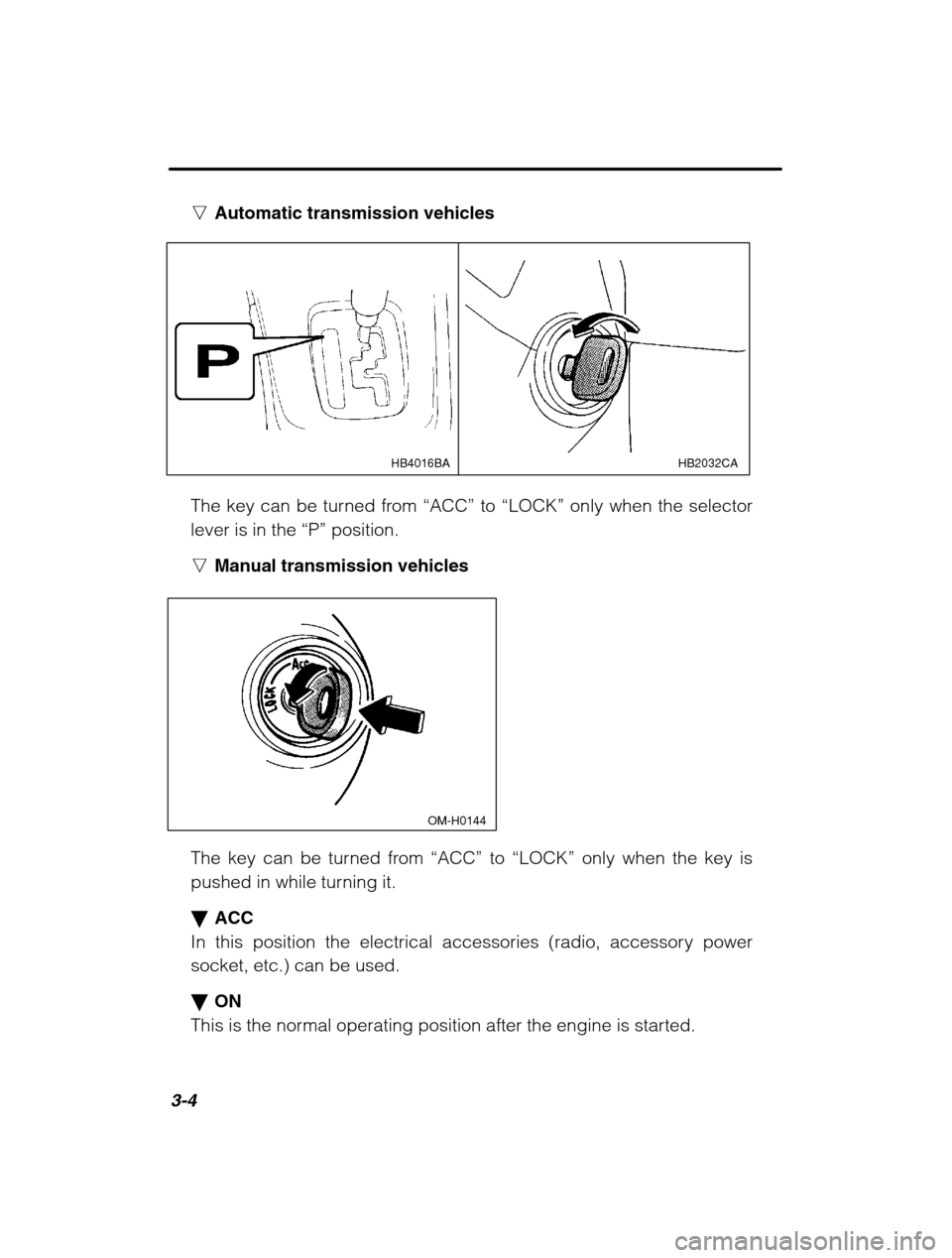

nAutomatic transmission vehicles
HB2032CA
HB4016BA
The key can be turned from “ACC” to “LOCK” only when the selector
lever is in the “P” position.
n Manual transmission vehicles
OM-H0144
The key can be turned from “ACC” to “LOCK” only when the key is
pushed in while turning it. ACC
In this position the electrical accessories (radio, accessory power socket, etc.) can be used. ON
This is the normal operating position after the engine is started.

Instruments and controls3-5
–
CONTINUED –
START CAUTION
Do not turn the ignition switch to the “START” position while the
engine is running.
The engine is started in this position. The starter cranks the engine to
start it. When the key is released (after the engine has started), the
key automatically returns to the “ON” position.
Key reminder chime
The reminder chime sounds when the driver ’s door opens and the key is
in the “LOCK” or “ACC” positions. The chime stops when the key is re-
moved from the ignition switch.
Ignition switch light
For easy access to the ignition switch in the dark, the ignition switch light
comes on when any of the doors (or the rear gate on the wagon) is
opened. The light remains on for a several seconds and gradually goes
out after all doors (and the rear gate on the wagon) are closed or if the
key is inserted in the ignition switch.
The ignition switch light also can be turned on by use of the keyless
entry transmitter. See the “Keyless entry system ” in chapter 2 for detailed
information.

Instruments and controls3-9
–
CONTINUED –
Tachometer
CAUTION
Do not operate the engine with the pointer of the tachometer in
the red zone. In this range, fuel injection will be cut by the enginecontrol module to protect the engine from overrevving. Theengine will resume running normally after the engine speed isreduced below the red zone.
The tachometer shows the engine speed in thousands of revolutions perminute. Outside temperature indicator (if equipped)
The outside temperature indicator shows the outside temperature in a
range from –22°F to 122 °F ( –30 °C to 50 °C).
The indicator can give a false reading under any of the following condi-tions: When there is too much sun.
During idling; while running at low speeds in a traffic jam; when the
engine is restarted immediately following a shutdown. When the actual outside temperature falls outside the specified indi-
cator range. For vehicles with an automatic climate control, outside temperature can be displayed on the climate control display panel. Refer to the“ Automatic climate control system ” in chapter 4.
Fuel gauge
The fuel gauge shows the approximate amount of fuel remaining in thetank.
The gauge does not return to “E” even though the ignition switch is in the
“ACC” or “LOCK” position.
The gauge may move slightly during braking, turning or acceleration dueto fuel level movement in the tank.

3-10

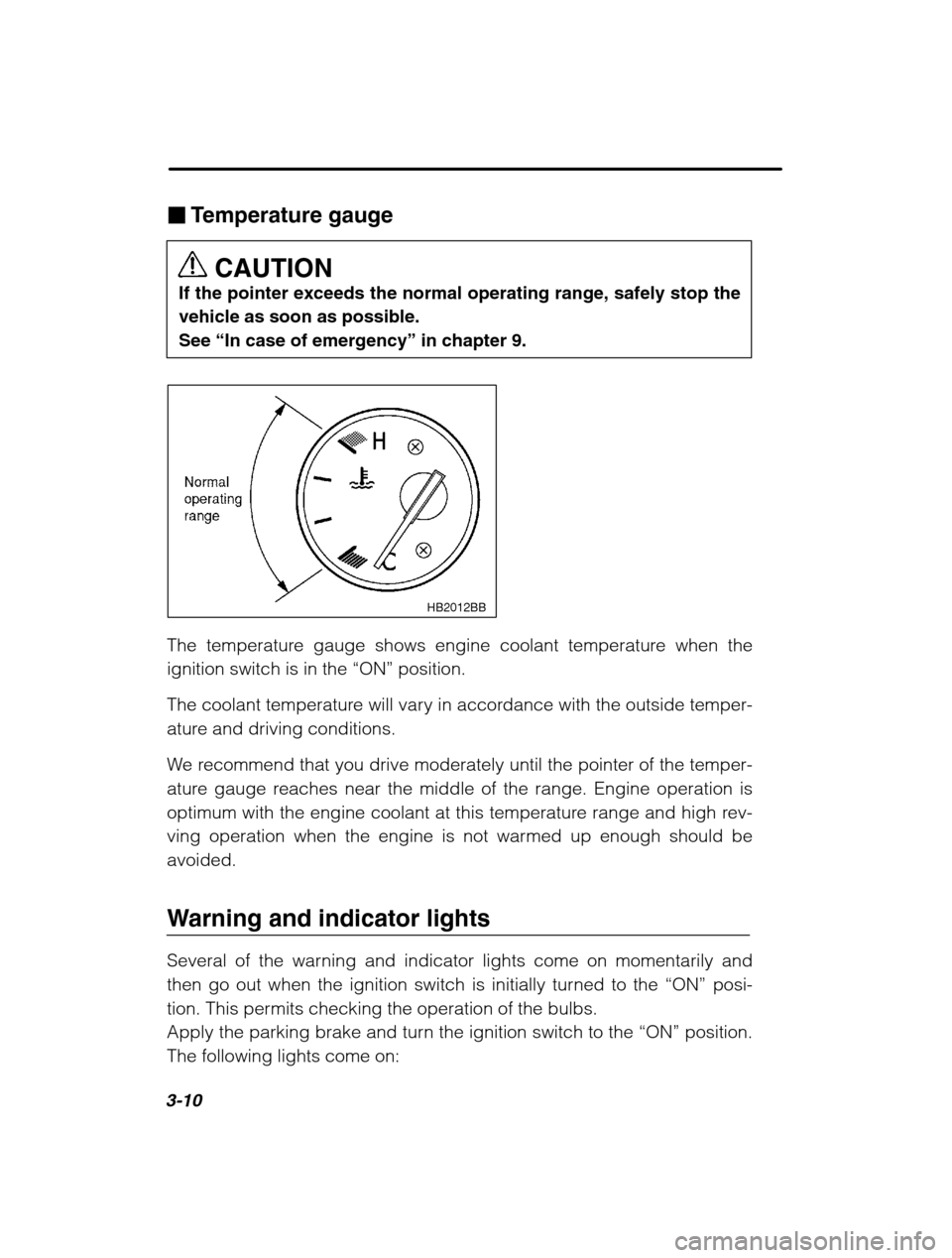

Temperature gauge
CAUTION
If the pointer exceeds the normal operating range, safely stop the
vehicle as soon as possible.
See “ In case of emergency ” in chapter 9.
HB2012BB
The temperature gauge shows engine coolant temperature when the
ignition switch is in the “ON” position.
The coolant temperature will vary in accordance with the outside temper-
ature and driving conditions.
We recommend that you drive moderately until the pointer of the temper-
ature gauge reaches near the middle of the range. Engine operation is
optimum with the engine coolant at this temperature range and high rev-
ving operation when the engine is not warmed up enough should beavoided.
Warning and indicator lights
Several of the warning and indicator lights come on momentarily and
then go out when the ignition switch is initially turned to the “ON” posi-
tion. This permits checking the operation of the bulbs.
Apply the parking brake and turn the ignition switch to the “ON” position.
The following lights come on:

Instruments and controls3-11
–
CONTINUED –

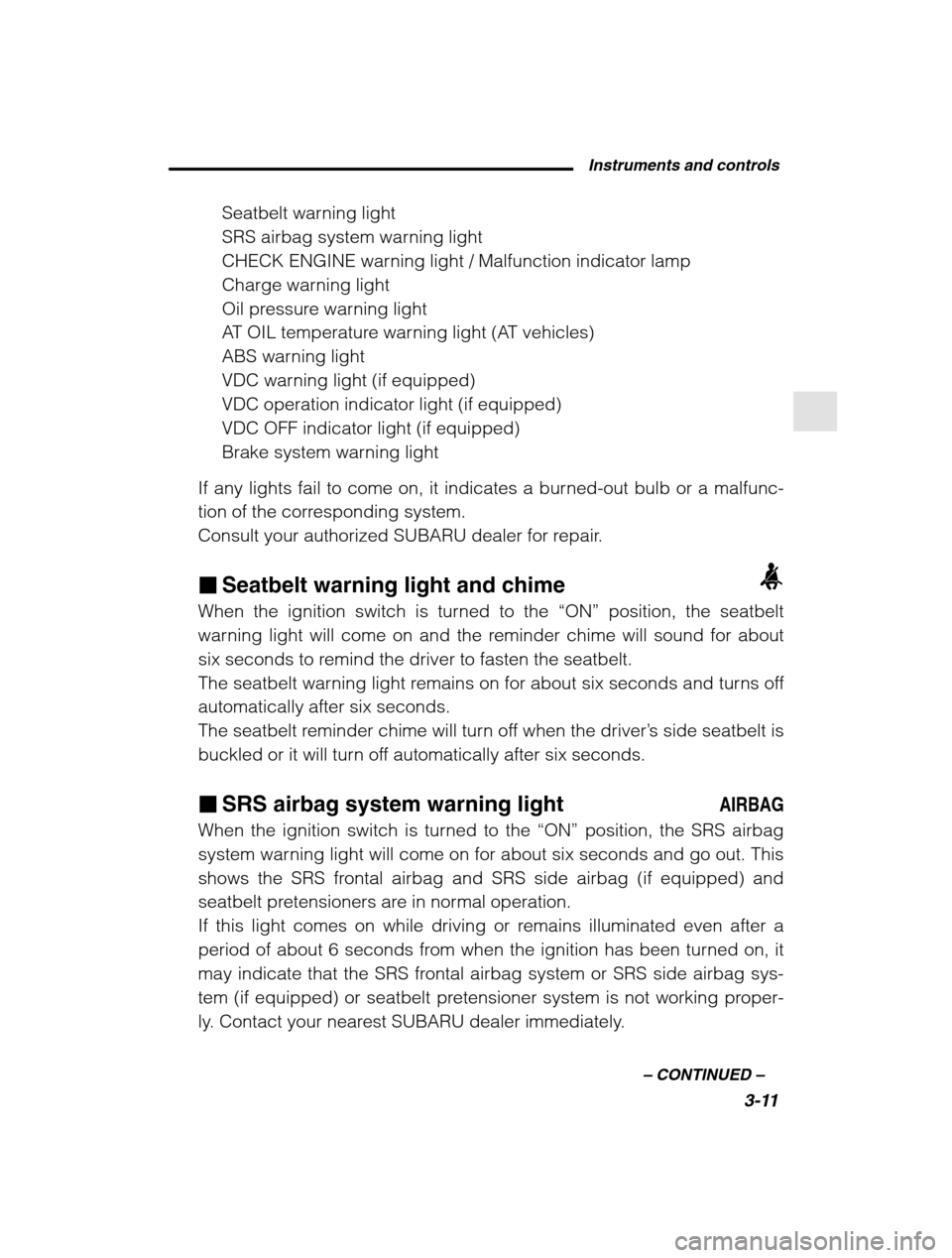

Seatbelt warning light
SRS airbag system warning light
CHECK ENGINE warning light / Malfunction indicator lamp
Charge warning light
Oil pressure warning light
AT OIL temperature warning light (AT vehicles)
ABS warning light
VDC warning light (if equipped)VDC operation indicator light (if equipped)VDC OFF indicator light (if equipped)
Brake system warning light
If any lights fail to come on, it indicates a burned-out bulb or a malfunc-
tion of the corresponding system.
Consult your authorized SUBARU dealer for repair. Seatbelt warning light and chime
When the ignition switch is turned to the “ON” position, the seatbelt
warning light will come on and the reminder chime will sound for about
six seconds to remind the driver to fasten the seatbelt.
The seatbelt warning light remains on for about six seconds and turns off
automatically after six seconds.
The seatbelt reminder chime will turn off when the driver ’s side seatbelt is
buckled or it will turn off automatically after six seconds. SRS airbag system warning light AIRBAG
When the ignition switch is turned to the “ON” position, the SRS airbag
system warning light will come on for about six seconds and go out. This
shows the SRS frontal airbag and SRS side airbag (if equipped) and
seatbelt pretensioners are in normal operation.
If this light comes on while driving or remains illuminated even after a
period of about 6 seconds from when the ignition has been turned on, it
may indicate that the SRS frontal airbag system or SRS side airbag sys-
tem (if equipped) or seatbelt pretensioner system is not working proper-
ly. Contact your nearest SUBARU dealer immediately.

3-12
CHECK ENGINE warning light/Malfunction indicator lamp
CAUTION
If the CHECK ENGINE light comes on while you are driving, have
your vehicle checked/repaired by your SUBARU dealer as soonas possible. Continued vehicle operation without having the
emission control system checked and repaired as necessarycould cause serious damage, which may not be covered by your
vehicle’ s warranty.
If this light comes on steadily or blinks while the engine is running, it may
indicate that there is a problem or potential problem somewhere in the
emission control system. If the light comes on steadily:
If the light comes on steadily while driving or does not go out after the
engine starts, an emission control system malfunction has been de-tected.
You should have your vehicle checked by an authorized SUBARU
dealer immediately. NOTE This light also comes on when the fuel filler cap is not tightened until it clicks.
If you have recently refueled your vehicle, the cause of the CHECK
ENGINE warning light/malfunction indicator lamp coming on could be a
loose or missing fuel filler cap. Remove the cap and retighten it until it
clicks. Make sure nothing is interfering with the sealing of the cap.
Tightening the cap will not make the CHECK ENGINE warning light
turn off immediately. It may take several driving trips. If the light does
not go out, take your vehicle to your authorized SUBARU dealer
immediately. If the light is blinking:
If the light is blinking while driving, an engine misfire condition has

Instruments and controls3-13
–
CONTINUED –
been detected which may damage the emission control system.
To prevent serious damage to the emission control system, youshould do the following:Reduce vehicle speed.
Avoid hard acceleration.
Avoid steep uphill grades.
Reduce the amount of cargo, if possible.
Stop towing a trailer as soon as possible.
The CHECK ENGINE warning light may stop blinking and come on
steadily after several driving trips. You should have your vehicle
checked by an authorized SUBARU dealer immediately.

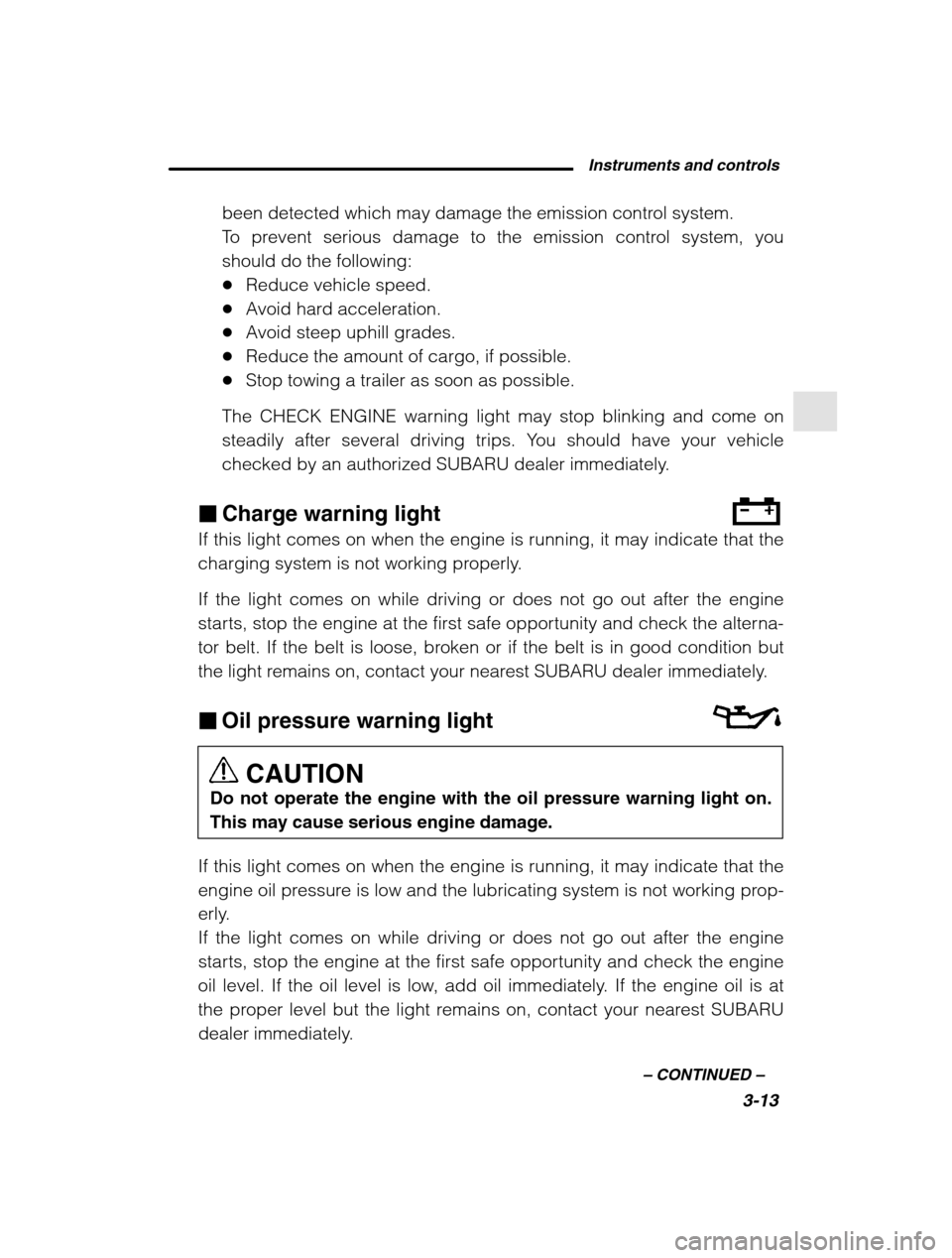

Charge warning light
If this light comes on when the engine is running, it may indicate that the
charging system is not working properly. If the light comes on while driving or does not go out after the engine
starts, stop the engine at the first safe opportunity and check the alterna-
tor belt. If the belt is loose, broken or if the belt is in good condition but
the light remains on, contact your nearest SUBARU dealer immediately. Oil pressure warning light
CAUTION
Do not operate the engine with the oil pressure warning light on. This may cause serious engine damage.
If this light comes on when the engine is running, it may indicate that the
engine oil pressure is low and the lubricating system is not working prop-
erly.If the light comes on while driving or does not go out after the engine
starts, stop the engine at the first safe opportunity and check the engine
oil level. If the oil level is low, add oil immediately. If the engine oil is at
the proper level but the light remains on, contact your nearest SUBARU
dealer immediately.
