AT OIL TEMPerature warning light
(for AT vehicles)
If this light comes on when the engine is running, it may indicate that the
automatic transmission fluid temperature is too hot.
If the light comes on while driving, it is unnecessary to stop the vehicle,
but avoid driving up steep grades or in stop and go traffic.
Automatic transmission control system warning
If the light flashes after the engine starts, it may indicate that the auto-
matic transmission control system is not working properly. Contact
your nearest SUBARU dealer for service immediately.
ABS warning light
The ABS warning light comes on when the ignition switch is turned to the
“ON” position and goes out after about two seconds.
This is an indication that the ABS system is working properly.
CAUTION
If the warning light behaves as follows, the ABS system may not
work properly.When the warning light is on, the ABS function shuts down; how-
ever, the conventional brake system continues to operate normal-
ly. The warning light does not come on when the ignition switch
is turned to the “ON” position.
The warning light comes on when the ignition switch is turned
to the “ON” position, but it does not go out even when the vehicle
speed exceeds approximately 8 mph (12 km/h). The warning light comes on during driving.
If these occur, have the ABS system repaired at the first available
opportunity by your SUBARU dealer.
NOTE
If the warning light behavior is as shown below, the ABS system may be considered normal.
(U.S.) (Canada)

Instruments and controls3-15
–
CONTINUED –
The warning light comes on right after the engine is started but
goes out immediately, remaining off. The warning light remains on after the engine has been started,
but it goes out when the vehicle speed reaches about 8 mph (12km/h). The warning light comes on during driving, but it goes out
immediately and remains off.
When driving with an insufficient battery voltage such as when the en-
gine is jump started, the ABS warning light may come on. This is due to
the low battery voltage and does not indicate a malfunction. When the
battery becomes fully charged, the light will go out. VDC (Vehicle Dynamics Control) warning light (if equipped)
This warning light comes on when the ignition switch is turned to the
“ON” position and goes out after the engine has started. It indicates that
the VDC system is operational.
The VDC system is probably inoperative under any of the following
conditions. Immediately have your vehicle checked at a SUBARU dealer. The VDC warning light does not come on when the ignition switch is
turned to the “ON” position.
The VDC warning light remains on after the engine has started and
stays lit even when the vehicle speed reaches about 8 mph (12 km/h). The VDC warning light comes on while the vehicle is running.
If the electrical circuit of the VDC system itself becomes faulty, the
VDC warning light only comes on. At this time, the ABS (Anti-lock Brake
System) remains fully operational. The warning light comes on when the electronic control system of the
ABS/VDC system becomes faulty.
The VDC system provides its ABS control through the electrical circuit of
the ABS system. Accordingly, if the ABS is inoperative, the VDC system
also becomes unable to provide ABS control. As a result, the VDC sys-
tem becomes inoperative, causing the VDC warning light to come on.
Though both the VDC and ABS systems are inoperative in this case, the
ordinary functions of the brake system are still available. You will be safe

3-16
while driving with this condition, but you should have your vehicle checked at a SUBARU dealer as soon as possible. NOTE
If the warning light behavior is as shown below, the VDC system may be considered normal.The warning light comes on right after the engine is started but
goes out immediately, remaining off. The warning light remains on after the engine has been started,
but it goes out when the vehicle speed reaches 8 mph about (12km/h). The warning light comes on during driving, but it goes out im-
mediately and remains off. Brake system warning light
WARNING
Driving with the brake system warning light on is dangerous.
This indicates your brake system may not be working properly. If the light remains on, have the brakes inspected by a SUBARU
dealer immediately. If at all in doubt about whether the brakes are operating prop-
erly, do not drive the vehicle. Have your vehicle towed to the
nearest SUBARU dealer for repair.
This light has the following two functions: Parking brake warning
The light comes on with the parking brake applied while the ignition switch is in the “ON” position. It goes out when the parking brake is
fully released. Brake fluid level warning
This light comes on when the brake fluid level has dropped to near the “MIN” level of the brake fluid reservoir with the ignition switch in
the “ON” position and with the parking brake fully released.
If the brake system warning light should come on while driving (with
the parking brake fully released and with the ignition switch posi- (U.S.)
(Canada)

3-18
VDC (Vehicle Dynamics Control) OFF indicator light (if equipped)
This indicator light comes on when the ignition switch is turned ON
and goes out about 6 seconds after the engine has started. It comes on when the VDC system is deactivated (by operating “VDC
OFF” switch or in the standby state).
NOTE The light may stay on for a while after the engine has been
started, especially in cold weather. This does not indicate the exis- tence of a problem. The light should go out as soon as the enginehas warmed up. The “VDC OFF ” indicator light comes on when the engine has de-
veloped a problem and the CHECK ENGINE warning light is on.
The VDC system is probably faulty under any of the following conditions. Have your vehicle checked at a SUBARU dealer as soon as possible. The VDC OFF indicator light does not come on when the ignition
switch is turned to the “ON” position.
The light does not go out even after several minutes have passed (the
engine has warmed up) after the engine has been started. Security system status indicator light (if equipped)
This light is found at the bottom center of the combination meter panel. On vehicles equipped with a security system, it blinks to show the driver
the operational status of the security system. For detailed information, re-fer to the “Security system ” in Chapter 2.
Shift position indicator (for AT vehicles)
This indicator shows the position of the shift lever. Turn signal indicator lights
These lights show the operation of the turn signal or lane change signal.
If the indicator lights do not blink or blink rapidly, the turn signal bulb
may be burned out. Replace the bulb as soon as possible. Refer to the

Instruments and controls3-21
–
CONTINUED –

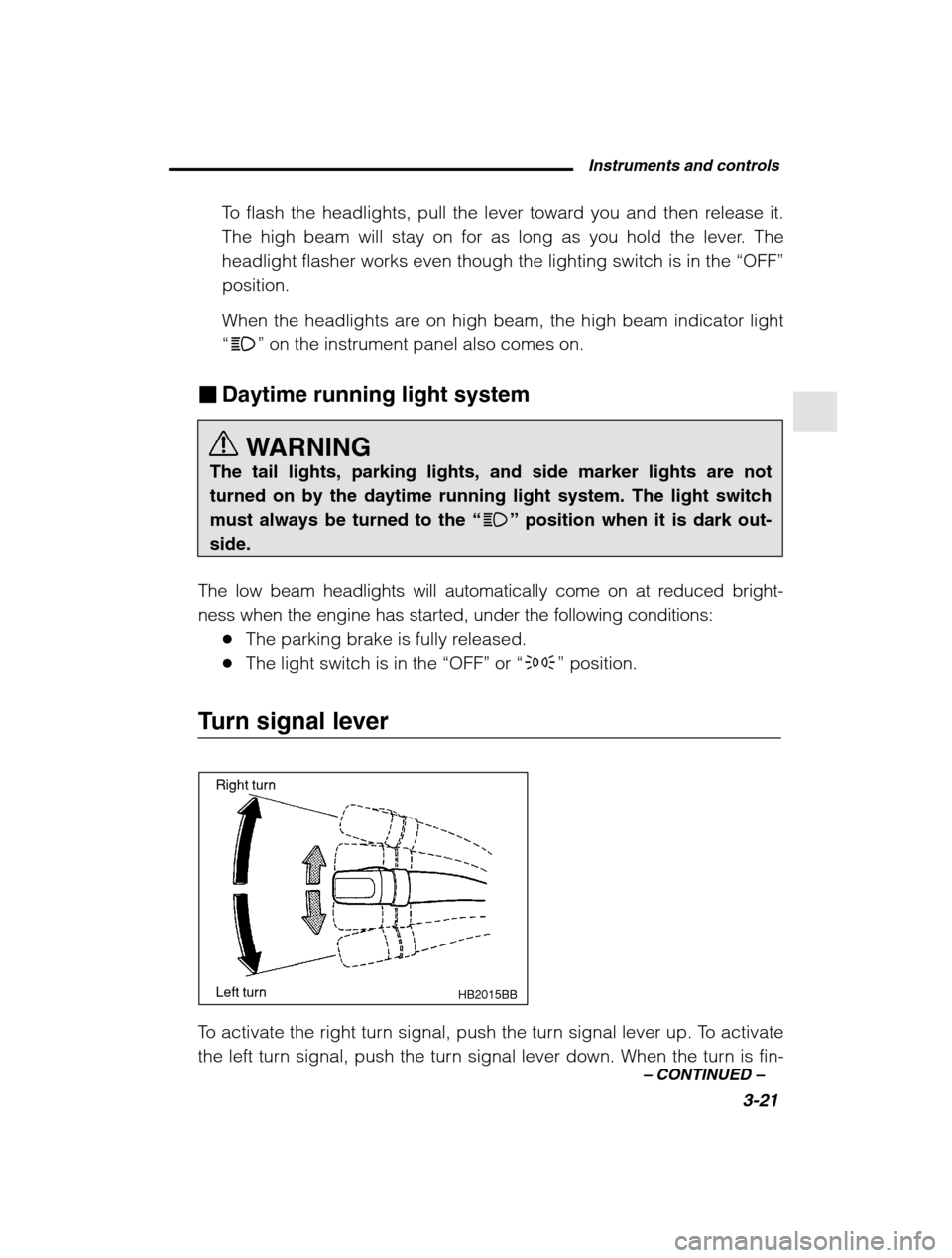

To flash the headlights, pull the lever toward you and then release it.
The high beam will stay on for as long as you hold the lever. The
headlight flasher works even though the lighting switch is in the “OFF”
position.
When the headlights are on high beam, the high beam indicator light “ a ” on the instrument panel also comes on.
Daytime running light system
WARNING
The tail lights, parking lights, and side marker lights are notturned on by the daytime running light system. The light switchmust always be turned to the “a ” position when it is dark out-
side.
The low beam headlights will automatically come on at reduced bright-
ness when the engine has started, under the following conditions: The parking brake is fully released.
The light switch is in the “OFF” or “p ” position.
Turn signal lever
HB2015BB
Right turn Left turn
To activate the right turn signal, push the turn signal lever up. To activate
the left turn signal, push the turn signal lever down. When the turn is fin-

Climate control4-5
–
CONTINUED –

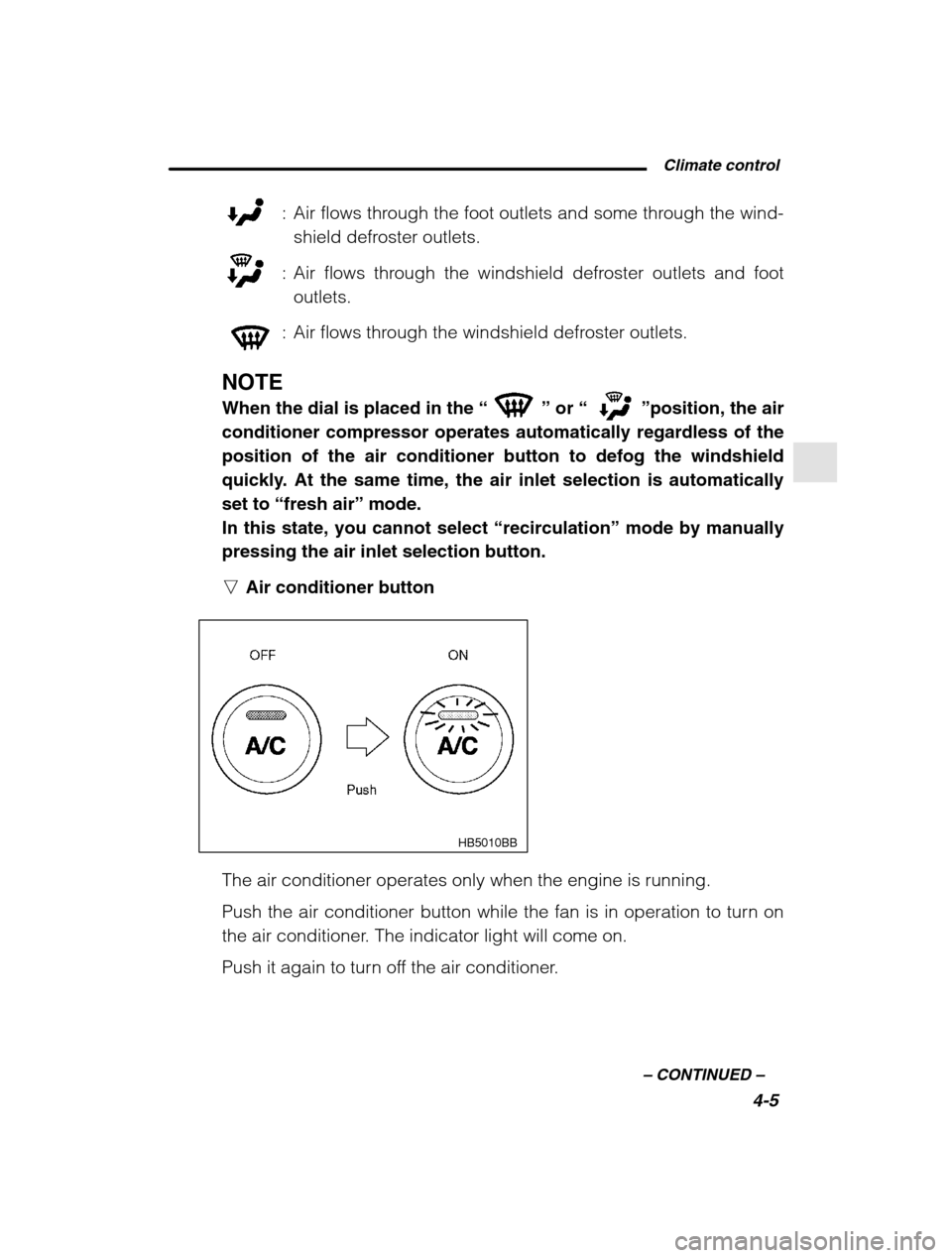

: Air flows through the foot outlets and some through the wind-
shield defroster outlets.
: Air flows through the windshield defroster outlets and foot outlets.
: Air flows through the windshield defroster outlets.
NOTE When the dial is placed in the “
” or “”position, the air
conditioner compressor operates automatically regardless of the position of the air conditioner button to defog the windshield
quickly. At the same time, the air inlet selection is automaticallyset to “fresh air ” mode.
In this state, you cannot select “recirculation” mode by manually
pressing the air inlet selection button. n Air conditioner button
HB5010BB
The air conditioner operates only when the engine is running.
Push the air conditioner button while the fan is in operation to turn on
the air conditioner. The indicator light will come on.
Push it again to turn off the air conditioner.

4-12
Automatic climate control system (if equipped) NOTE Operate the automatic climate control system when the engine is
running. When the engine coolant is cold, for instance in cold weather, the
air flows through the windshield defroster outlets and the blowerruns at the lowest speed to prevent cold air from blowing directly
against the driver and front passenger. In the “AUTO” mode, if the air temperature in the passenger
compartment is cooled down to the specified temperature, the air
conditioner compressor stops automatically. For efficient defogging
or dehumidifying in cold weather, press the “A/C” switch on.
Even when cooling is not necessary, setting the temperature
much lower than the current outlet air temperature turns on the airconditioner compressor automatically and the “A/C” indicator light
on the control panel comes on.
The automatic climate control system automatically controls outlet air
temperature, fan speed, air flow distribution air-inlet control, and air con-
ditioner compressor operation. It activates when the “AUTO” switch is
pressed, and is used in conjunction with the Temperature control dial to
maintain a constant, comfortable climate within the passenger compart-ment.
The temperature can be set within a range of 65 – 85 °F (18 – 32 °C).
NOTE
The temperature is shown in units of Fahrenheit for US model and in Centigrade for Canadian model.

Climate control4-15
–
CONTINUED –
nOUT.TEMP switch
To check the outside air temperature, push the “OUT.TEMP” switch.
The outside air temperature will be displayed for five seconds, and
then the display automatically changes back to the inside air temper-
ature.
The display changes over from the inside air temperature to the out-
side air temperature as its normal indication if you keep the switch
pressed for more than 2 seconds. NOTE You can check the outside air temperature even when the Au-
tomatic Climate Control is off. (The ignition switch should be in the “ON” position.)
In the following cases, the display can indicate a higher tem-
perature than the actual outside air temperature: – In direct sunlight
– When the vehicle is parked for a long period of time with the
engine kept running.– During stop and go driving
n
— Defroster switch
To defrost or dehumidify the windshield and side window, push the
defroster switch “
”. When the “” switch is pushed, re-
gardless whether the air conditioner is operating or not, outside air is
drawn into the passenger compartment, the air conditioner compres-
sor turns on, air flow is directed towards the windshield and side win-dows, and the indicator light “
” on the control panel comes on.
After eliminating the fogging from the windshield, set the air condition- er back in the AUTO mode by pushing the “AUTO” switch or turn off
by pushing the “OFF” switch or “
” switch.
