2002 SUBARU OUTBACK horn

2-8

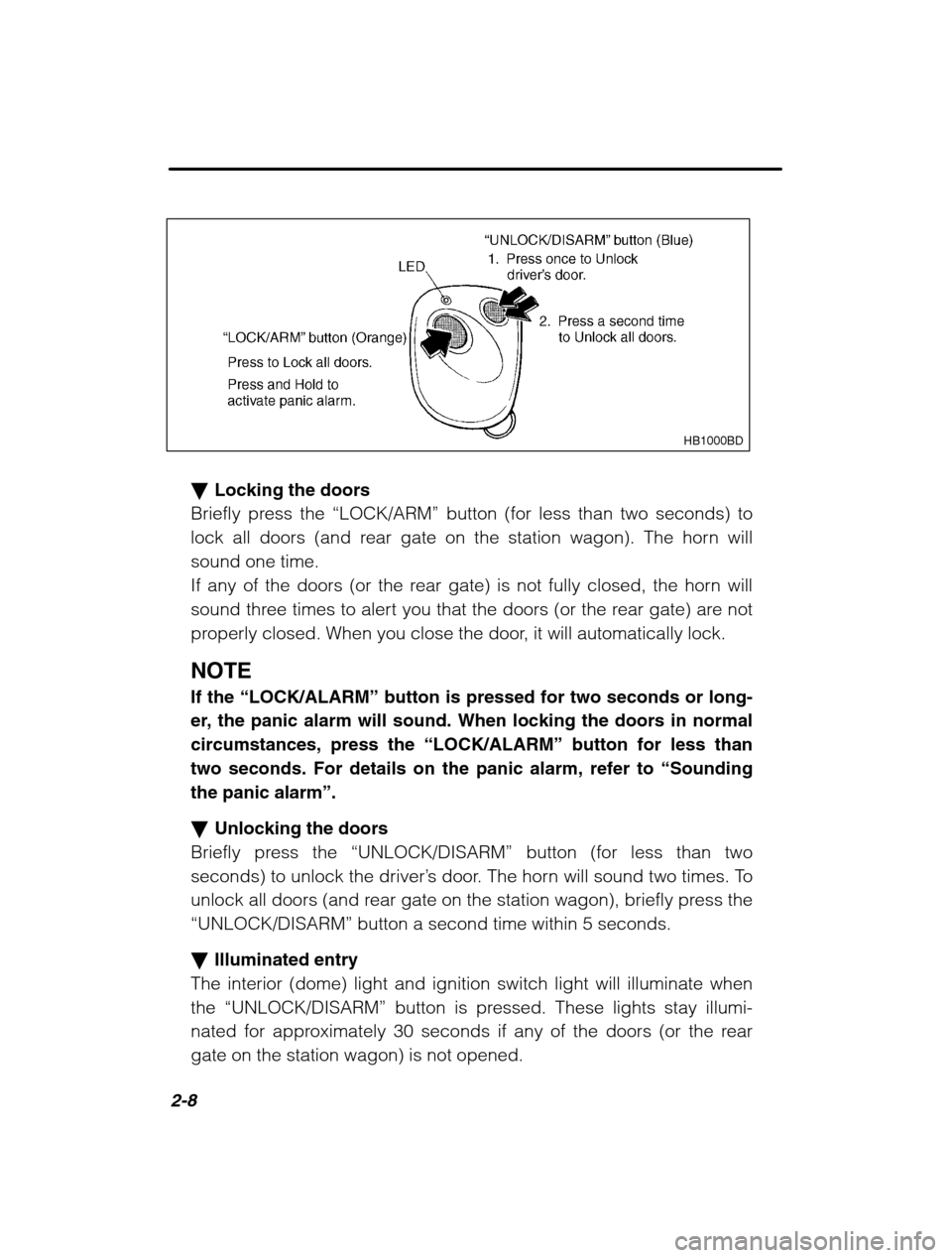

HB1000BD
Locking the doors
Briefly press the “LOCK/ARM” button (for less than two seconds) to
lock all doors (and rear gate on the station wagon). The horn will sound one time.
If any of the doors (or the rear gate) is not fully closed, the horn will
sound three times to alert you that the doors (or the rear gate) are not
properly closed. When you close the door, it will automatically lock.
NOTE If the “LOCK/ALARM” button is pressed for two seconds or long-
er, the panic alarm will sound. When locking the doors in normal
circumstances, press the “LOCK/ALARM” button for less than
two seconds. For details on the panic alarm, refer to “Sounding
the panic alarm ”.
Unlocking the doors
Briefly press the “UNLOCK/DISARM” button (for less than two
seconds) to unlock the driver ’s door. The horn will sound two times. To
unlock all doors (and rear gate on the station wagon), briefly press the
“UNLOCK/DISARM” button a second time within 5 seconds.
Illuminated entry
The interior (dome) light and ignition switch light will illuminate whenthe “UNLOCK/DISARM” button is pressed. These lights stay illumi-
nated for approximately 30 seconds if any of the doors (or the reargate on the station wagon) is not opened.

Keys and doors2-9
–
CONTINUED –

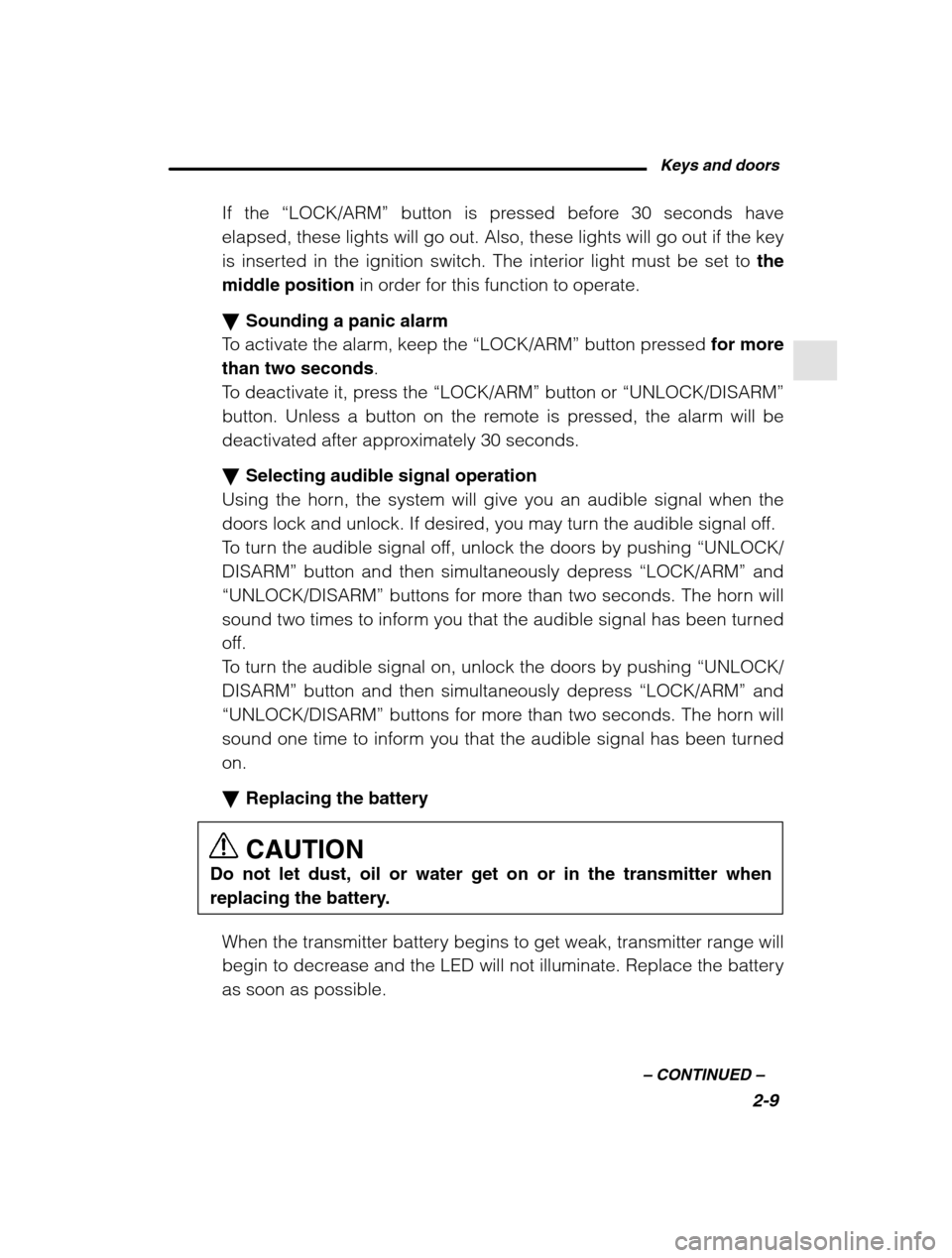

If the “LOCK/ARM” button is pressed before 30 seconds have
elapsed, these lights will go out. Also, these lights will go out if the key
is inserted in the ignition switch. The interior light must be set to the
middle position in order for this function to operate.
Sounding a panic alarm
To activate the alarm, keep the “LOCK/ARM” button pressed for more
than two seconds .
To deactivate it, press the “LOCK/ARM” button or “UNLOCK/DISARM”
button. Unless a button on the remote is pressed, the alarm will be
deactivated after approximately 30 seconds. Selecting audible signal operation
Using the horn, the system will give you an audible signal when the
doors lock and unlock. If desired, you may turn the audible signal off.
To turn the audible signal off, unlock the doors by pushing “UNLOCK/
DISARM” button and then simultaneously depress “LOCK/ARM” and
“UNLOCK/DISARM” buttons for more than two seconds. The horn will
sound two times to inform you that the audible signal has been turned
off.
To turn the audible signal on, unlock the doors by pushing “UNLOCK/
DISARM” button and then simultaneously depress “LOCK/ARM” and
“UNLOCK/DISARM” buttons for more than two seconds. The horn will
sound one time to inform you that the audible signal has been turnedon. Replacing the battery
CAUTION
Do not let dust, oil or water get on or in the transmitter when
replacing the battery.
When the transmitter battery begins to get weak, transmitter range will
begin to decrease and the LED will not illuminate. Replace the batteryas soon as possible.

Keys and doors2-11
–
CONTINUED –

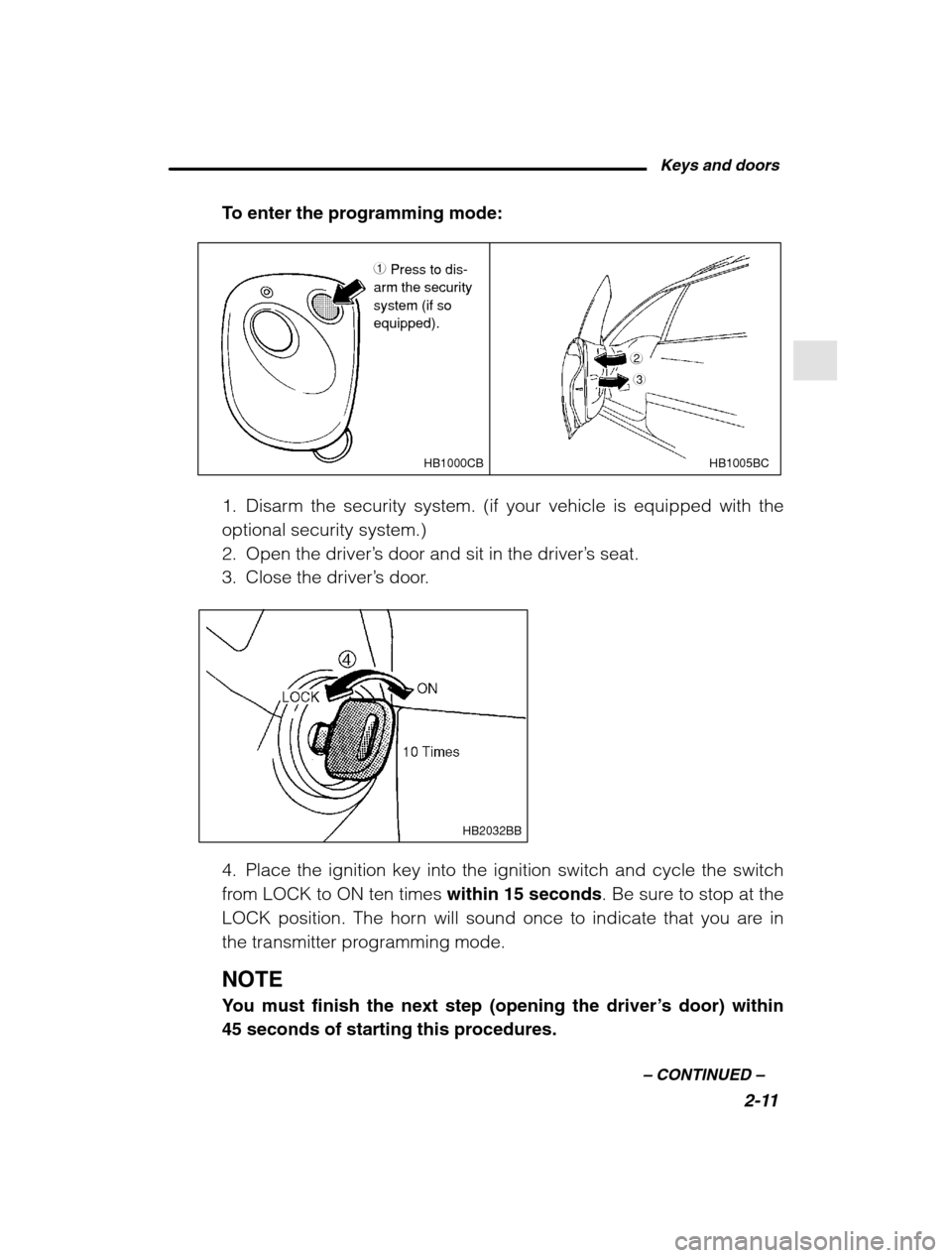

To enter the programming mode:
HB1005BC
HB1000CB
1 Press to dis-
arm the security system (if so equipped).
2
3
1. Disarm the security system. (if your vehicle is equipped with the
optional security system.)
2. Open the driver ’s door and sit in the driver ’s seat.
3. Close the driver ’s door.
HB2032BB
4. Place the ignition key into the ignition switch and cycle the switch
from LOCK to ON ten times within 15 seconds. Be sure to stop at the
LOCK position. The horn will sound once to indicate that you are in
the transmitter programming mode.
NOTE
You must finish the next step (opening the driver ’s door) within
45 seconds of starting this procedures.

2-12
To program the transmitters:
HB1000DB
1
2HB1005BB3 Press any button.
1. Open the driver ’s door.
2. Close the driver ’s door.
3. Press and release any button on the transmitter that you wish to
program into the system. The horn will sound two times to indicate
that the transmitter has been programmed.
Any additional transmitters can also be programmed at this time.
Repeat steps 1 through 3 for an additional transmitter.
To exit the programming mode:
1. After all of your transmitters are programmed, remove the key fromthe ignition switch.
The horn will sound three times to indicate that the system has exited
the programming mode.
2. Make sure that the keyless entry system properly operates by
operating each transmitter. n Deleting old transmitter codes
The control unit of the keyless entry system has four memory loca-
tions to store transmitter codes, giving it the ability to operate with up
to four transmitters. When you lose a transmitter, the lost transmitter ’s
code remains in the memory. For security reasons, lost transmitter
codes should be deleted from the memory.
To delete old transmitter codes, program four transmitter codes into
the system. If you have only one current transmitter, program it four

Keys and doors2-13
–
CONTINUED –
times. If you have two current transmitters, program each one twice. If
you have three current transmitters, program two of them once and
the third one twice. This process will leave only current transmittercodes in the system ’s memory.
NOTE
Make sure no one else is operating their keyless entry system within range of your vehicle when programming transmitters. If
someone else were to operate their remote transmitter while youare programming your transmitters, it is possible that their trans-mitter code will be programmed into your system, allowing themunauthorized access to your vehicle.
Security system (if equipped)
The security system helps to protect your vehicle and valuables from
theft. The horn sounds and the parking lights flash if someone attempts
to break into your vehicle. The starter motor is also interrupted to prevent
starting the vehicle without a key.
The system can be armed and disarmed with the remote transmitter.
The system does not operate when the key is inserted into the ignitionswitch. System operation
The security system will give the following alarm indications when trig-
gered: The parking lights will flash and the horn will sound intermittently.
In addition, the starter motor will not operate. The alarm automatically resets after 30 seconds; however, the
alarm will reactivate if the vehicle is tampered with again. The alarmwill continue for six times if any sensor continues to be activated.
The alarm is triggered by: Opening a door, the rear gate or trunk lid.
Application of physical shock to the vehicle (e.g. breaking glass or
forced entry). Note that there are two alarm levels for shock: warning

2-14
and alarm. In warning mode, the alarm detects lower level vibrations
and triggers 2 warning chirps on the horn and two flashes on the
lights as a deterrent to would be vandals. In alarm mode, higher lev-
els of shock are detected and the system will go into full alarm.Ignition switch being turned on while in armed state.
NOTE
With the valet mode selected, the security system does not oper-
ate and the parking lights do not flash when the remote transmit-ter is used for locking and unlocking.The security system indicator light in the combination meter
flashes twice per second to show that the valet mode is selected.For details, refer to “Valet mode ” in this section.
Arming the system
n To arm the system using remote transmitter
HB2033BB
Press to Arm the system. Press to Disarm the system.
HB1000EB
1. Close all windows and moonroofs (if so equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood (and the trunk lid) are locked.
5. Close all doors (and the rear gate on the station wagon).
6. Briefly press the “LOCK/ARM” button (for less than two seconds).
All doors (and the rear gate on the station wagon) will lock, the hornwill sound one time, the parking lights will flash one time and the indi-
cator light starts flashing slowly (approximately once every two

Keys and doors2-15
–
CONTINUED –
seconds).
If any of the doors, (rear gate or trunk lid) is not fully closed, the horn
sounds three times, the parking lights flash three times and the indi-
cator light flashes rapidly to alert you that the doors (or the rear gate)
are not properly closed. When you close the door, the system will au-
tomatically arm and doors will automatically lock. nTo arm the system using power door locking switches
HB2024CC
1. Close all windows and moonroofs (if so equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood (and the trunk lid) are locked.
5. Close the doors (and the rear gate on the station wagon) but leaveonly the driver ’s door or the front passenger ’s door open.
6. Push the power door locking switch forward ( “LOCK” side) to set
the door locks.
7. Close the door. The horn will sound one time, the parking lights will
flash one time and the indicator light will start flashing slowly (approxi-
mately once every two seconds) to inform you that the system has
armed. NOTE The system can be armed even if the engine hood, the windows and/or moonroofs are opened. Always make sure that they arefully closed before arming the system.

2-16

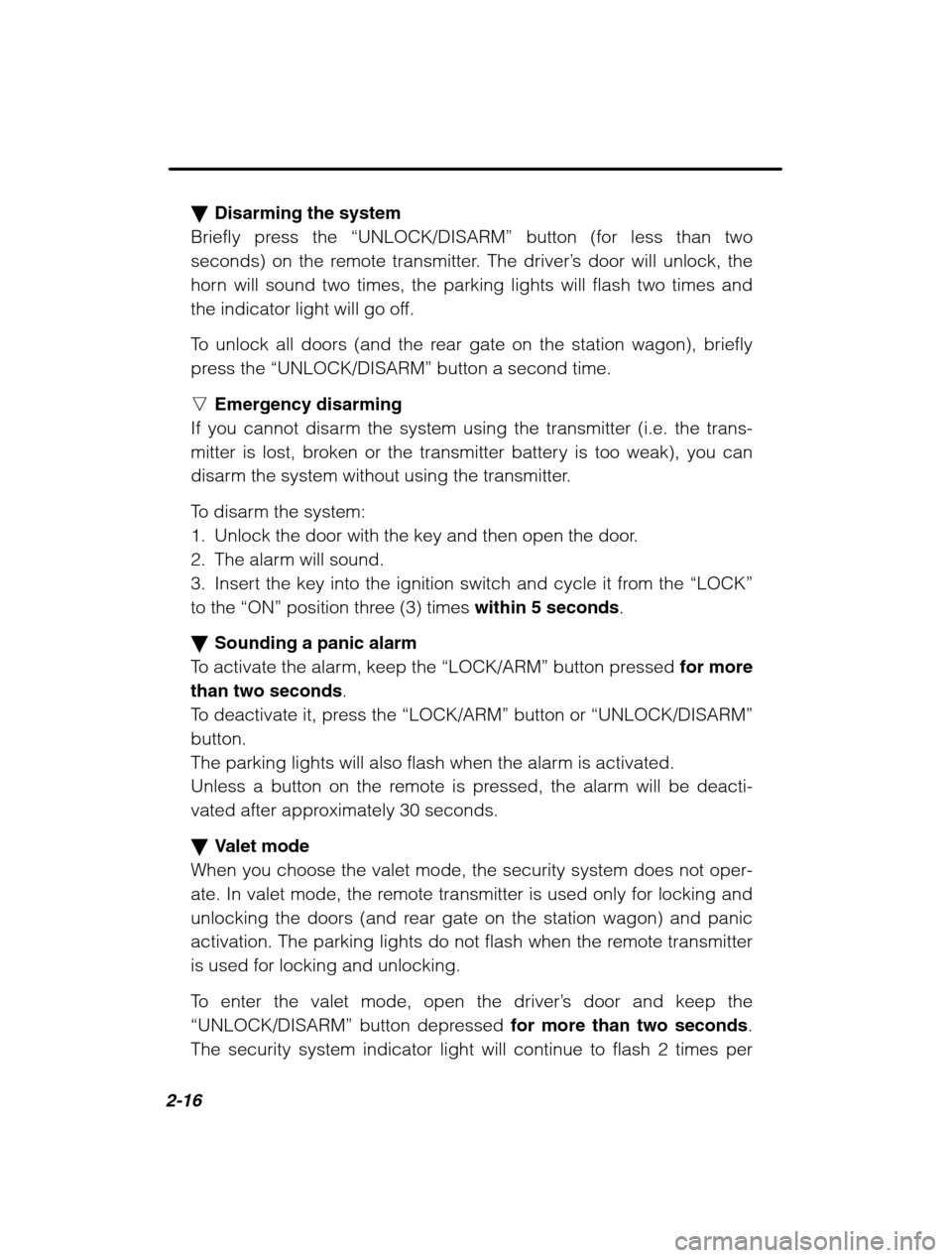

Disarming the system
Briefly press the “UNLOCK/DISARM” button (for less than two
seconds) on the remote transmitter. The driver ’s door will unlock, the
horn will sound two times, the parking lights will flash two times and
the indicator light will go off.
To unlock all doors (and the rear gate on the station wagon), briefly
press the “UNLOCK/DISARM” button a second time.
n Emergency disarming
If you cannot disarm the system using the transmitter (i.e. the trans-
mitter is lost, broken or the transmitter battery is too weak), you can
disarm the system without using the transmitter.
To disarm the system:
1. Unlock the door with the key and then open the door.
2. The alarm will sound.
3. Insert the key into the ignition switch and cycle it from the “LOCK”
to the “ON” position three (3) times within 5 seconds.
Sounding a panic alarm
To activate the alarm, keep the “LOCK/ARM” button pressed for more
than two seconds .
To deactivate it, press the “LOCK/ARM” button or “UNLOCK/DISARM”
button.
The parking lights will also flash when the alarm is activated.
Unless a button on the remote is pressed, the alarm will be deacti-
vated after approximately 30 seconds. Valet mode
When you choose the valet mode, the security system does not oper-
ate. In valet mode, the remote transmitter is used only for locking and
unlocking the doors (and rear gate on the station wagon) and panic
activation. The parking lights do not flash when the remote transmitteris used for locking and unlocking.
To enter the valet mode, open the driver ’s door and keep the
“UNLOCK/DISARM” button depressed for more than two seconds .
The security system indicator light will continue to flash 2 times per
