2002 SUBARU OUTBACK horn

Keys and doors2-19
–
CONTINUED –
In the passive mode, the system can also be armed with the remote
transmitter or with the power door locking switches. If the remote
transmitter or power door lock switch is used to lock the vehicle, arm-
ing will take place immediately regardless of whether or not the pas-sive mode has been selected. Disarming the system
To disarm the system, briefly press the “UNLOCK/DISARM” button on
the transmitter. Tripped sensor identification
If the horn sounds four times and the parking lights flash four times
when you disarm the system, this indicates that the alarm was trig-
gered. The number of times the indicator light flashes indicates what
sensor caused the alarm condition.
To enter identification mode:
1. Open the driver ’s door and leave it open.
2. Turn the ignition switch to the “ON” position two times. ( “LOCK”
“ON” “LOCK” “ON” “LOCK”)
3. The indicator light will start flashing.
The indicator light provides the following indications. Flashing one time: Any door, the rear gate or the trunk lid has been
opened.
Flashing three times: The impact sensor in the system ’s unit has
been activated. This may indicate that your vehicle has been shocked
or tampered with by some outside force and/or unauthorized person.Flashing four times: The ignition switch has been turned on or the
battery has been disconnected.
NOTE The battery must be reconnected before the indicator light will flash.
To exit this mode, close the door and turn the ignition switch to the
“ON” position.

3-2Fog light switch (if equipped) 3-24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper and washer 3-24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switches 3-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer switch (if equipped) 3-28 . . . . . . . . . . . . .
Rear window defogger switch 3-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper deicer (if equipped) 3-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mirrors 3-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside mirror 3-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside mirrors 3-34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel 3-36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 3-37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

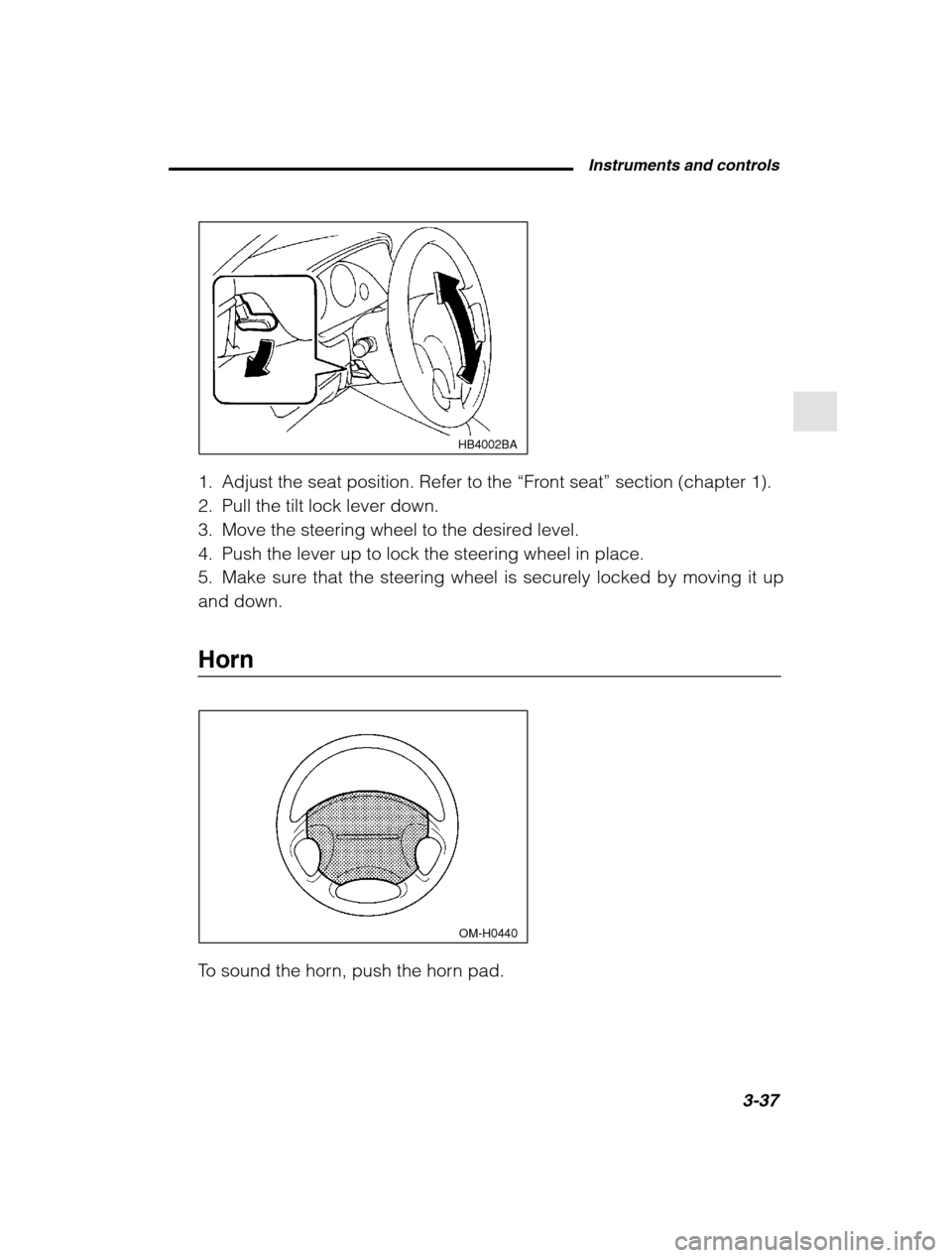

Instruments and controls3-37
–
CONTINUED –
HB4002BA
1. Adjust the seat position. Refer to the “Front seat ” section (chapter 1).
2. Pull the tilt lock lever down.
3. Move the steering wheel to the desired level.
4. Push the lever up to lock the steering wheel in place.
5. Make sure that the steering wheel is securely locked by moving it upand down.
Horn
OM-H0440
To sound the horn, push the horn pad.

12-10
Fuse panel located in the engine compartment 2.5 liter models
HBC003BB
Fuse panelFuse ratingCircuit
120ARadiator cooling fan (Main)
220ARadiator cooling fan (Sub)
350AABS motor
420ARear window defogger
515AHazard warning flasher
Horn
615AMeter
SRS airbag system warning light
710AAutomatic transmission control unit
ABS UNIT
810AAlternator
915AHeadlight (right side)

12-12
3.0 liter models
HBC004BC
Fuse panelFuse ratingCircuit
130ARadiator cooling fan (Main)
230ARadiator cooling fan (Sub)
350AABS (VDC) motor
430AMcIntosh audio amp (if equipped)
520ARear window defogger
615AHazard warning flasher
Horn
715AMeter
SRS airbag system warning light
810AAutomatic transmission control unit
ABS UNIT
910AAlternator
1015AHeadlight (right side)

Index14-5
Headlight 11-57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headrest adjustment —
Rear center seating position on Station wagon 1-12 . . . . . . . . . . . . . . . . . . . . . .
Heater operation 4-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High beam indicator light 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High mount stop light 11-67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 3-37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I
If you park your vehicle in an emergency 9-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 3-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 3-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illumination brightness control 3-22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
In-dash 6 CD auto changer (if equipped) 5-65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside mirror 3-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation of accessories 5-3, 11-54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light 6-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Internal trunk lid release handle 2-26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
JJack and jack handle 9-27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump starting 9-11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
K
Key interlock release (AT vehicles only) 3-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keyless entry system (if equipped) 2-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key reminder chime 3-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keys 2-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
L
License plate light 11-64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light control switch 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading your vehicle 8-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low fuel warning light 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage cover (if equipped) 6-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
