2002 SUBARU OUTBACK engine

8
Driving tips New vehicle break-in driving –
the first 1,000 miles (1,600 km) 8-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel economy hints 8-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust gas (Carbon monoxide) 8-3 . . . . . . . . . . . . . . . . . . . . . . . . . .
Catalytic converter 8-4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Periodic inspections 8-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving in foreign countries 8-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving tips for AWD vehicles 8-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Off road driving 8-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Winter driving 8-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Snow tires 8-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire chains 8-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rocking the vehicle 8-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading your vehicle 8-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle capacity weight 8-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GVWR and GAWR (Gross Vehicle Weight Rating and Gross Axle Weight Rating) 8-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof rail and crossbar (if equipped) 8-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trailer hitch (if equipped) 8-24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trailer towing 8-28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-2

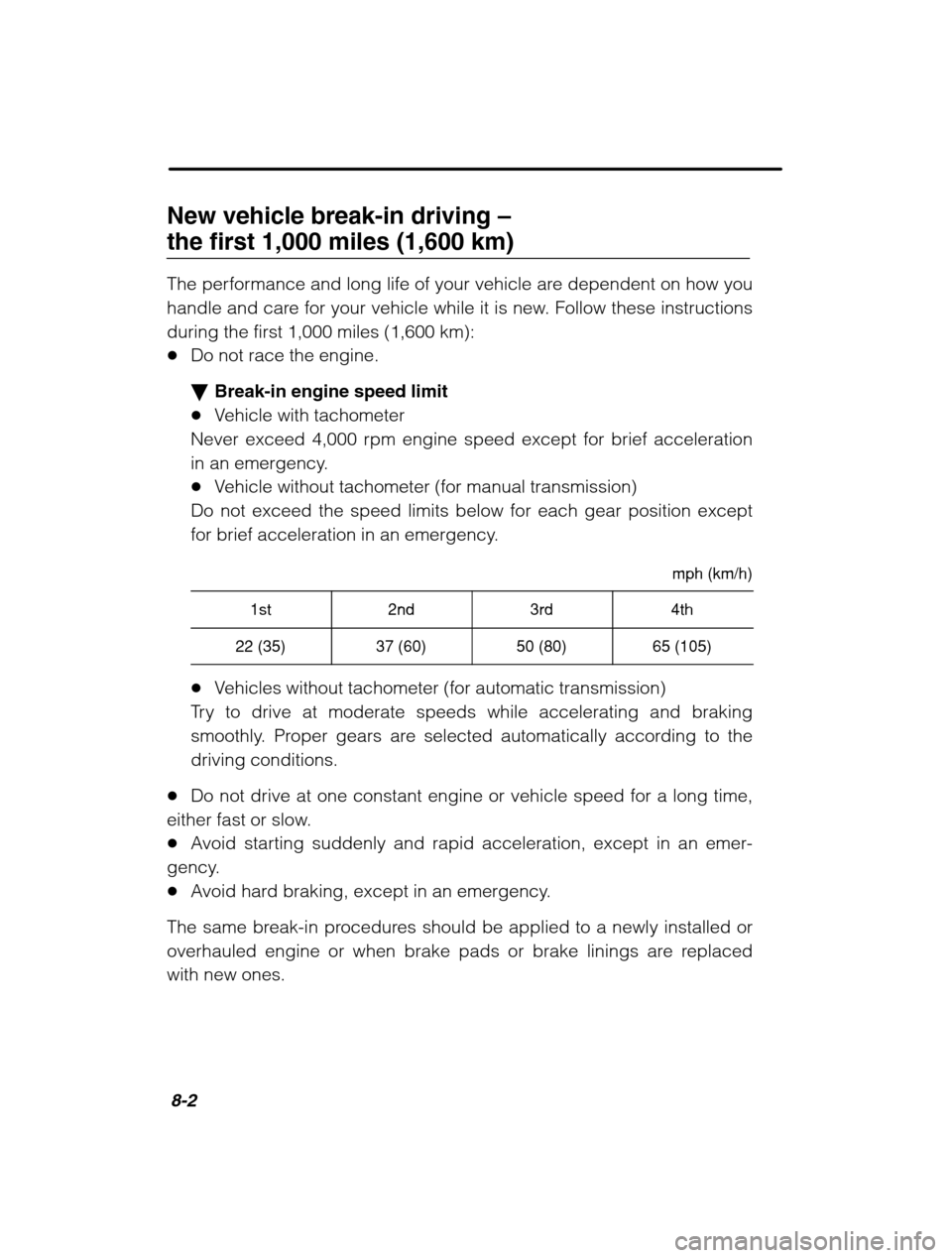

New vehicle break-in driving –
the first 1,000 miles (1,600 km)
The performance and long life of your vehicle are dependent on how you
handle and care for your vehicle while it is new. Follow these instructionsduring the first 1,000 miles (1,600 km): Do not race the engine. Break-in engine speed limit
Vehicle with tachometer
Never exceed 4,000 rpm engine speed except for brief acceleration
in an emergency. Vehicle without tachometer (for manual transmission)
Do not exceed the speed limits below for each gear position except
for brief acceleration in an emergency.
mph (km/h)
1st
2nd3rd4th
22 (35)37 (60)50 (80)65 (105)
Vehicles without tachometer (for automatic transmission)
Try to drive at moderate speeds while accelerating and braking
smoothly. Proper gears are selected automatically according to thedriving conditions.
Do not drive at one constant engine or vehicle speed for a long time,
either fast or slow. Avoid starting suddenly and rapid acceleration, except in an emer-
gency. Avoid hard braking, except in an emergency.
The same break-in procedures should be applied to a newly installed or
overhauled engine or when brake pads or brake linings are replacedwith new ones.

Driving tips8-3
–
CONTINUED –
Fuel economy hints The following suggestions will help to save your fuel. Select the proper gear position for the speed and road conditions.
Avoid sudden acceleration or deceleration. Always accelerate gently
until you reach the desired speed. Then try to maintain that speed for as long as possible. Do not pump the accelerator and avoid racing the engine.
Avoid unnecessary engine idling.
Keep the engine properly tuned.
Keep the tires inflated to the correct pressure shown on the tire plac-
ard, which is located under the door latch on the driver ’s side. Low pres-
sure will increase tire wear and fuel consumption. Use the air conditioner only when necessary.
Keep the front and rear wheels in proper alignment.
Avoid carrying unnecessary luggage or cargo.
Engine exhaust gas (Carbon monoxide)
WARNING
Never inhale engine exhaust gas. Engine exhaust gas contains
carbon monoxide, a colorless and odorless gas which is danger-ous, or even lethal, if inhaled. Always properly maintain the engine exhaust system to pre-
vent engine exhaust gas from entering the vehicle. Never run the engine in a closed space, such as a garage, ex-
cept for the brief time needed to drive the vehicle in or out of it. Avoid remaining in a parked vehicle for a lengthy time while
the engine is running. If that is unavoidable, then use the ventila-tion fan to force fresh air into the vehicle. Always keep the front ventilator inlet grille free from snow,
leaves or other obstructions to ensure that the ventilation system
always works properly.

8-4
If at any time you suspect that exhaust fumes are entering the
vehicle, have the problem checked and corrected as soon as pos-
sible. If you must drive under these conditions, drive only with allwindows fully open. Keep the trunk lid or rear gate closed while driving to prevent
exhaust gas from entering the vehicle.
NOTE Due to the expansion and contraction of the metals used in the
manufacture of the exhaust system, you may hear a crackling soundcoming from the exhaust system for a short time after the enginehas been shut off. This sound is normal.
Catalytic converter
WARNING
Avoid fire hazards. Do not drive or park the vehicle anywhere
near flammable materials (e.g. grass, paper, rags or leaves), be-
cause the catalytic converter operates at very high temperatures. Keep everyone and flammable materials away from the ex-
haust pipe while the engine is running. The exhaust gas is veryhot.
HB8029BA
HB3003BA

Driving tips8-5
–
CONTINUED –
The catalytic converter is installed in the exhaust system. It serves as
catalyst to reduce HC, CO and NOx in exhaust gases, thus providing
cleaner exhaust.
To avoid damage to the catalytic converter: Use only unleaded gasoline. Even a small amount of leaded gasoline
will damage the catalytic converter. Never start the engine by pushing or pulling the vehicle.
Avoid racing the engine.
Never turn off the ignition switch while the vehicle is moving.
Keep your engine tuned-up. If you feel the engine running rough (mis-
firing, backfiring or incomplete combustion), have your vehicle checked
and repaired by an authorized SUBARU dealer. Do not apply undercoating or rust prevention treatment to the heat
shield of catalytic converter and the exhaust system.
Periodic inspections
To keep your vehicle in the best condition at all times, always have the
recommended maintenance services listed in the maintenance schedulein the “Warranty and Maintenance Booklet ” performed at the specified
time or mileage intervals.
Driving in foreign countries
When planning to use your vehicle in another country: Confirm the availability of the correct fuel. (Refer to the “Fuel require-
ment” section in chapter 7.)
Comply with all regulations and requirements of each country.

8-6

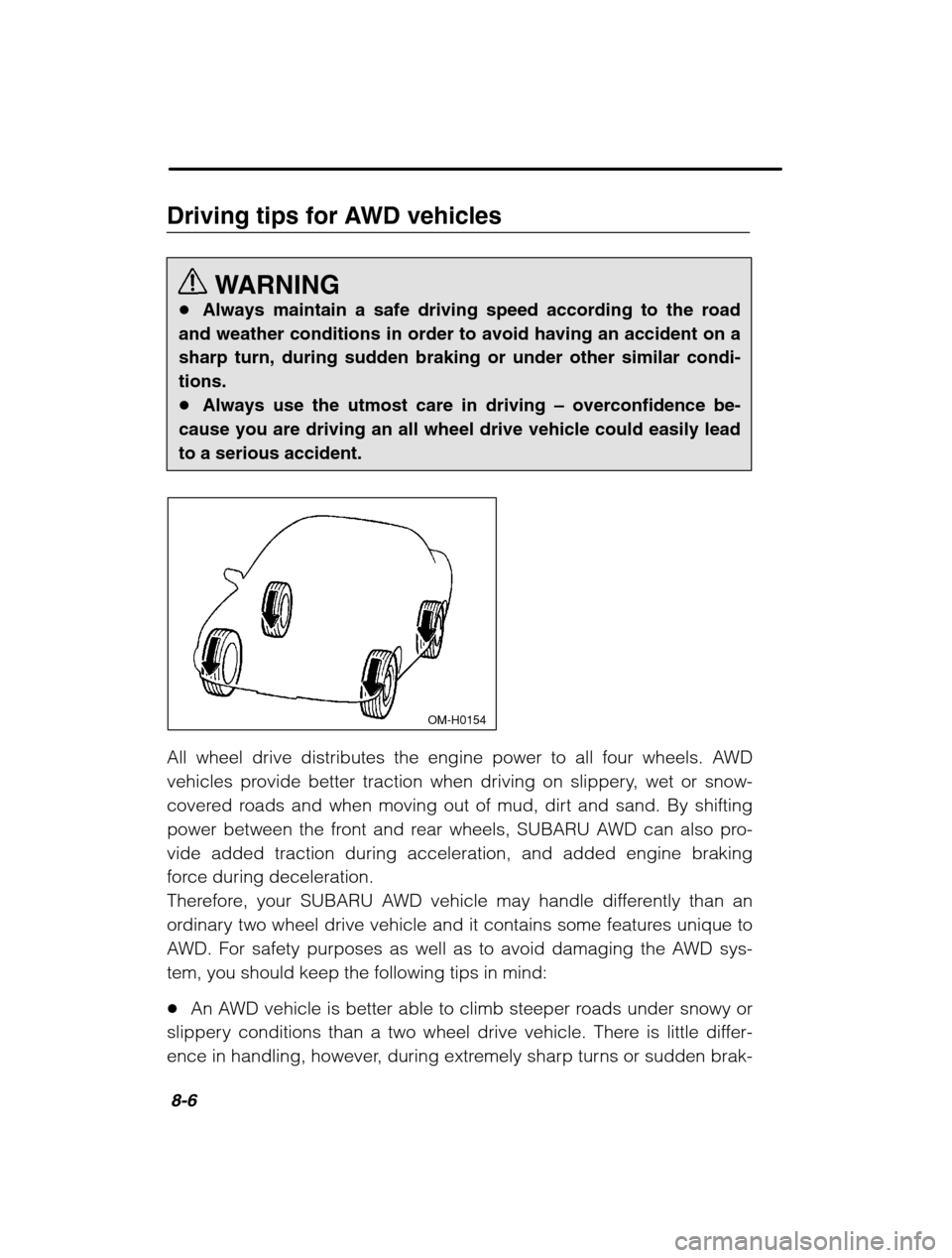

Driving tips for AWD vehiclesWARNING
Always maintain a safe driving speed according to the road
and weather conditions in order to avoid having an accident on a sharp turn, during sudden braking or under other similar condi-tions. Always use the utmost care in driving – overconfidence be-
cause you are driving an all wheel drive vehicle could easily leadto a serious accident.
OM-H0154
All wheel drive distributes the engine power to all four wheels. AWD
vehicles provide better traction when driving on slippery, wet or snow-
covered roads and when moving out of mud, dirt and sand. By shifting
power between the front and rear wheels, SUBARU AWD can also pro-vide added traction during acceleration, and added engine braking
force during deceleration.
Therefore, your SUBARU AWD vehicle may handle differently than an
ordinary two wheel drive vehicle and it contains some features unique to
AWD. For safety purposes as well as to avoid damaging the AWD sys-tem, you should keep the following tips in mind: An AWD vehicle is better able to climb steeper roads under snowy or
slippery conditions than a two wheel drive vehicle. There is little differ-
ence in handling, however, during extremely sharp turns or sudden brak-

8-8

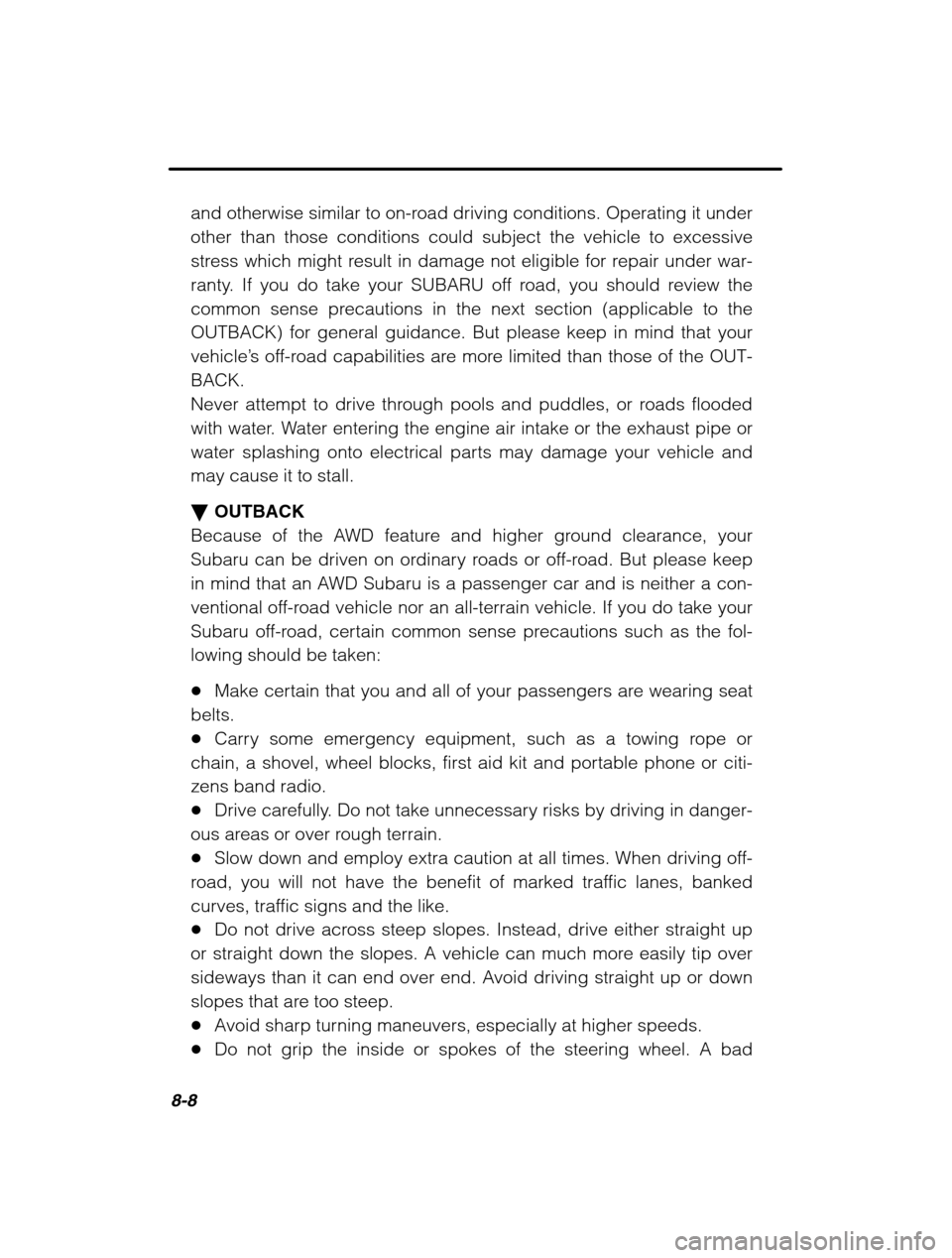

and otherwise similar to on-road driving conditions. Operating it under other than those conditions could subject the vehicle to excessive
stress which might result in damage not eligible for repair under war-
ranty. If you do take your SUBARU off road, you should review the
common sense precautions in the next section (applicable to the
OUTBACK) for general guidance. But please keep in mind that your
vehicle’s off-road capabilities are more limited than those of the OUT-
BACK.
Never attempt to drive through pools and puddles, or roads flooded
with water. Water entering the engine air intake or the exhaust pipe or
water splashing onto electrical parts may damage your vehicle andmay cause it to stall. OUTBACK
Because of the AWD feature and higher ground clearance, your
Subaru can be driven on ordinary roads or off-road. But please keep
in mind that an AWD Subaru is a passenger car and is neither a con-
ventional off-road vehicle nor an all-terrain vehicle. If you do take your
Subaru off-road, certain common sense precautions such as the fol-lowing should be taken: Make certain that you and all of your passengers are wearing seat
belts. Carry some emergency equipment, such as a towing rope or
chain, a shovel, wheel blocks, first aid kit and portable phone or citi-zens band radio. Drive carefully. Do not take unnecessary risks by driving in danger-
ous areas or over rough terrain. Slow down and employ extra caution at all times. When driving off-
road, you will not have the benefit of marked traffic lanes, banked
curves, traffic signs and the like. Do not drive across steep slopes. Instead, drive either straight up
or straight down the slopes. A vehicle can much more easily tip over
sideways than it can end over end. Avoid driving straight up or down
slopes that are too steep. Avoid sharp turning maneuvers, especially at higher speeds.
Do not grip the inside or spokes of the steering wheel. A bad

Driving tips8-9
–
CONTINUED –

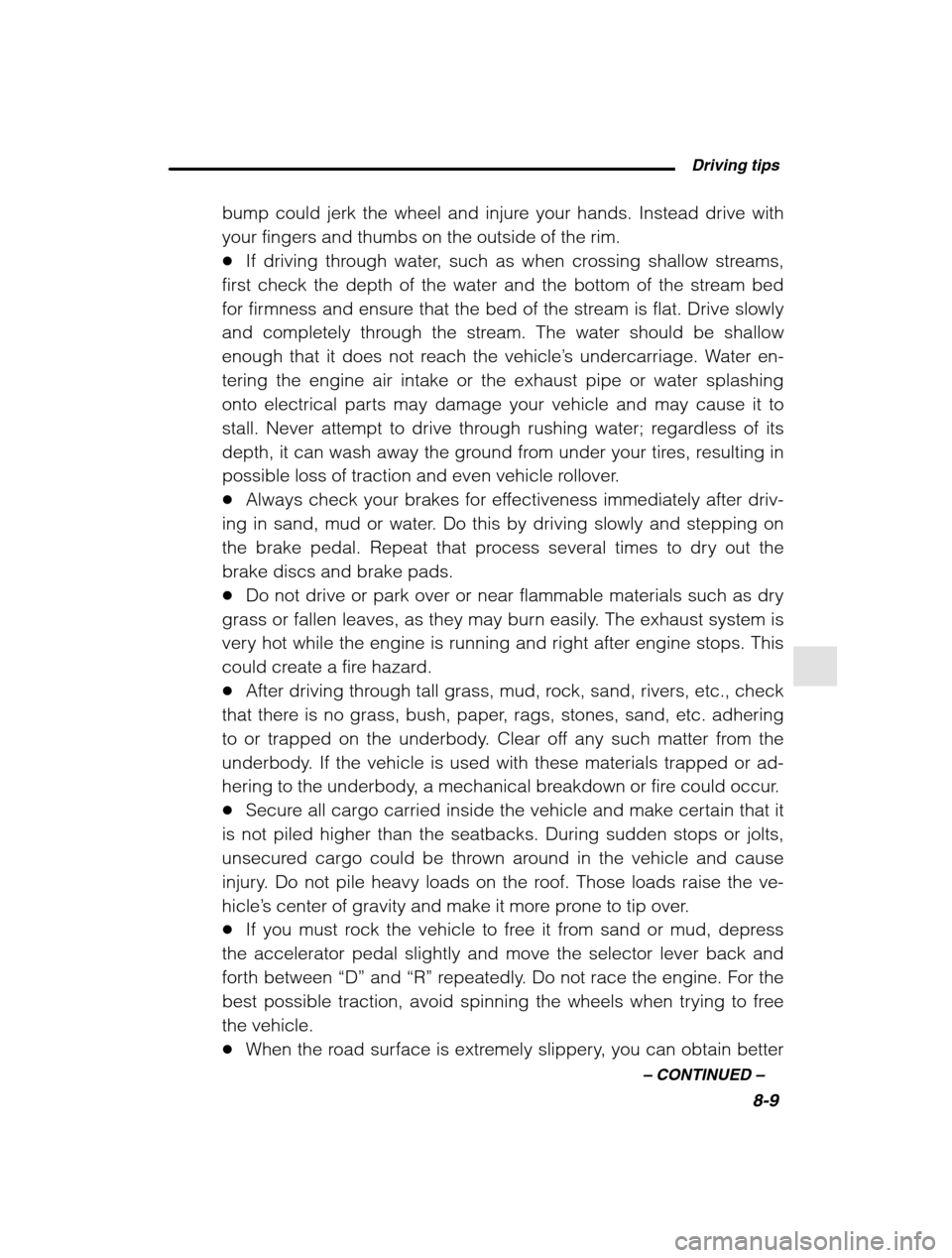

bump could jerk the wheel and injure your hands. Instead drive with your fingers and thumbs on the outside of the rim.If driving through water, such as when crossing shallow streams,
first check the depth of the water and the bottom of the stream bed
for firmness and ensure that the bed of the stream is flat. Drive slowly
and completely through the stream. The water should be shallow
enough that it does not reach the vehicle ’s undercarriage. Water en-
tering the engine air intake or the exhaust pipe or water splashing
onto electrical parts may damage your vehicle and may cause it to
stall. Never attempt to drive through rushing water; regardless of its
depth, it can wash away the ground from under your tires, resulting in
possible loss of traction and even vehicle rollover. Always check your brakes for effectiveness immediately after driv-
ing in sand, mud or water. Do this by driving slowly and stepping on
the brake pedal. Repeat that process several times to dry out thebrake discs and brake pads. Do not drive or park over or near flammable materials such as dry
grass or fallen leaves, as they may burn easily. The exhaust system is
very hot while the engine is running and right after engine stops. This
could create a fire hazard. After driving through tall grass, mud, rock, sand, rivers, etc., check
that there is no grass, bush, paper, rags, stones, sand, etc. adhering
to or trapped on the underbody. Clear off any such matter from the
underbody. If the vehicle is used with these materials trapped or ad-
hering to the underbody, a mechanical breakdown or fire could occur. Secure all cargo carried inside the vehicle and make certain that it
is not piled higher than the seatbacks. During sudden stops or jolts,
unsecured cargo could be thrown around in the vehicle and cause
injury. Do not pile heavy loads on the roof. Those loads raise the ve-
hicle’ s center of gravity and make it more prone to tip over.
If you must rock the vehicle to free it from sand or mud, depress
the accelerator pedal slightly and move the selector lever back and
forth between “D” and “R” repeatedly. Do not race the engine. For the
best possible traction, avoid spinning the wheels when trying to freethe vehicle. When the road surface is extremely slippery, you can obtain better
