2002 SUBARU OUTBACK engine

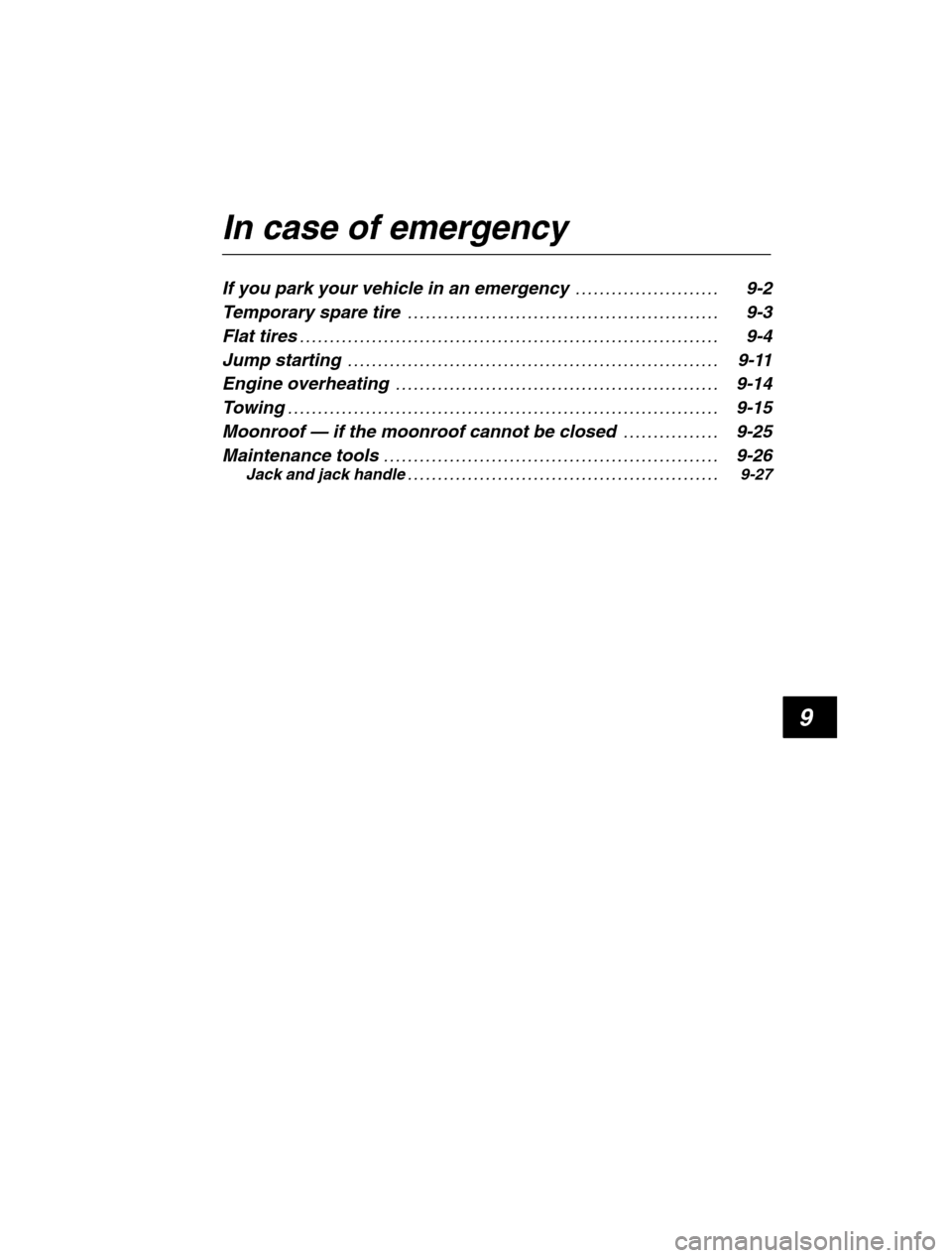

9
In case of emergency
If you park your vehicle in an emergency 9-2. . . . . . . . . . . . . . . . . . . . . . . .
Temporary spare tire 9-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flat tires 9-4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump starting 9-11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine overheating 9-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Towing 9-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moonroof — if the moonroof cannot be closed 9-25 . . . . . . . . . . . . . . . .
Maintenance tools 9-26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jack and jack handle 9-27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

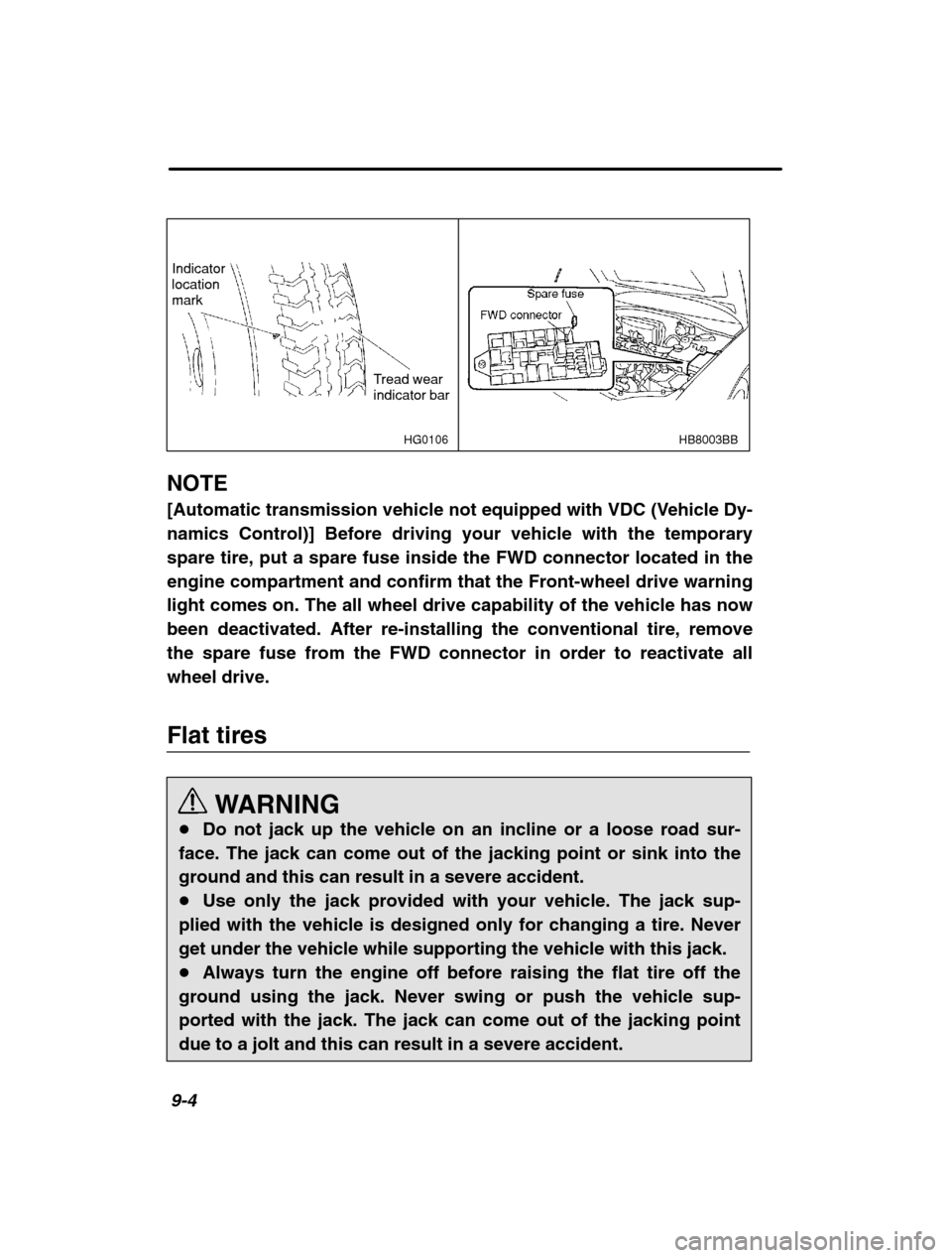

9-4
HB8003BB
HG0106
Indicator location mark
Tread wear indicator bar
NOTE
[Automatic transmission vehicle not equipped with VDC (Vehicle Dy-
namics Control)] Before driving your vehicle with the temporaryspare tire, put a spare fuse inside the FWD connector located in theengine compartment and confirm that the Front-wheel drive warninglight comes on. The all wheel drive capability of the vehicle has now
been deactivated. After re-installing the conventional tire, removethe spare fuse from the FWD connector in order to reactivate allwheel drive.
Flat tires
WARNING
Do not jack up the vehicle on an incline or a loose road sur-
face. The jack can come out of the jacking point or sink into the ground and this can result in a severe accident. Use only the jack provided with your vehicle. The jack sup-
plied with the vehicle is designed only for changing a tire. Neverget under the vehicle while supporting the vehicle with this jack. Always turn the engine off before raising the flat tire off the
ground using the jack. Never swing or push the vehicle sup-ported with the jack. The jack can come out of the jacking pointdue to a jolt and this can result in a severe accident.

In case of emergency9-11
–
CONTINUED –
Jump starting
WARNING
Battery fluid is SULFURIC ACID. Do not let it come in contact
with the eyes, skin, clothing or the vehicle. If battery fluid gets on you, thoroughly flush the exposed area
with water immediately. Get medical help if the fluid has enteredyour eyes. If battery fluid is accidentally swallowed, immediately drink a
large amount of milk or water, and obtain immediate medicalhelp.
Keep everyone including children away from the battery. The gas generated by a battery explodes if a flame or spark is
brought near it. Do not smoke or light a match while jump start-ing. Never attempt jump starting if the discharged battery is frozen.
It could cause the battery to burst or explode. Whenever working on or around a battery, always wear suit-
able eye protectors, and remove metal objects such as rings,
bands or other metal jewelry. Be sure the jumper cables and clamps on them do not have
loose or missing insulation.Do not jump start unless cables in suitable condition are avail-able. A running engine can be dangerous. Keep your fingers, hands,
clothing, hair and tools away from the cooling fan, belts and anyother moving engine parts. Removing rings, watches and ties isadvisable.
When your vehicle does not start due to a run down (discharged) bat-
tery, the vehicle may be jump started by connecting your battery to
another battery (called the booster battery) with jumper cables.
Jump starting is dangerous if it done incorrectly. If you are unsure about
the proper procedure for jump starting, consult a competent mechanic.

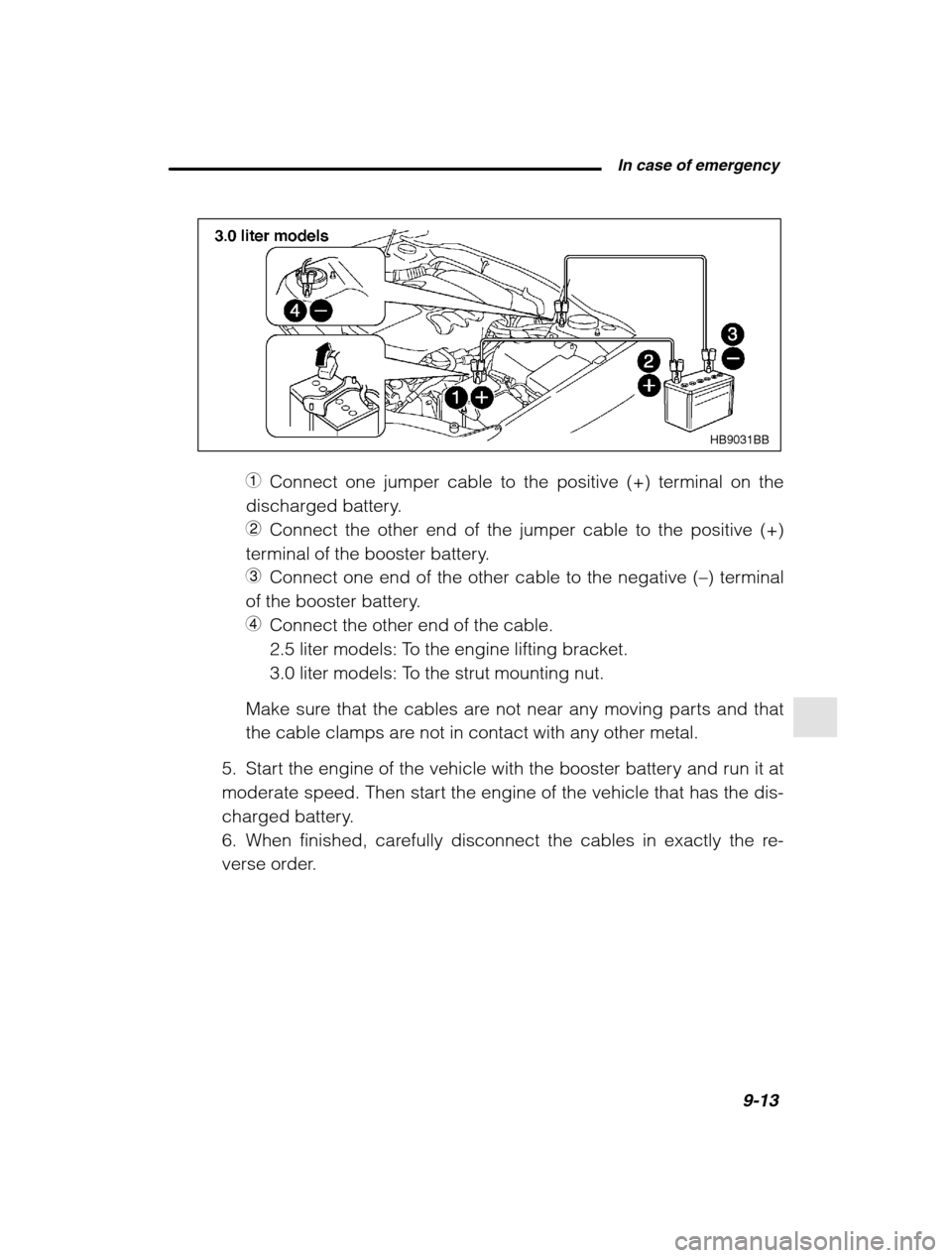

In case of emergency9-13
–
CONTINUED –
HB9031BB
1Connect one jumper cable to the positive (+) terminal on the
discharged battery. 2 Connect the other end of the jumper cable to the positive (+)
terminal of the booster battery.3 Connect one end of the other cable to the negative ( –) terminal
of the booster battery.4 Connect the other end of the cable.
2.5 liter models: To the engine lifting bracket.
3.0 liter models: To the strut mounting nut.
Make sure that the cables are not near any moving parts and that
the cable clamps are not in contact with any other metal.
5. Start the engine of the vehicle with the booster battery and run it at
moderate speed. Then start the engine of the vehicle that has the dis-
charged battery.
6. When finished, carefully disconnect the cables in exactly the re-
verse order.

9-14
Engine overheatingWARNING
Never attempt to remove the radiator cap until the engine has been shut off and has fully cooled down. When the engine is hot,the coolant is under pressure. Removing the cap while the engineis still hot could release a spray of boiling hot coolant, which
could burn you very seriously.
If the engine overheats, safely pull off the road and stop the vehicle in asafe place. If steam is coming from the engine compartment
Turn the engine off and get everyone away from the vehicle until itcools down. If no steam is coming from the engine compartment
1. Keep the engine running at idling speed.
2. Open the hood to ventilate the engine compartment.
Confirm that the cooling fan is turning. If the fan is not turning, im-
mediately turn the engine off and contact your authorized dealer for
repair.
3. After the engine coolant temperature has dropped, turn off the en-gine.
If the temperature gauge stays at the overheated zone, turn the en-
gine off.
4. After the engine has fully cooled down, check the coolant level in
the reserve tank.If the coolant level is below the “MIN” mark, add coolant up to the
“MAX” mark.
5. If there is no coolant in the reserve tank, add coolant to the reserve
tank. Then remove the radiator cap and fill the radiator with coolant.
If you remove the radiator cap from a hot radiator, first wrap a thick
cloth around the radiator cap, then turn the cap counterclockwise
slowly without pressing down until it stops. Release the pressure from

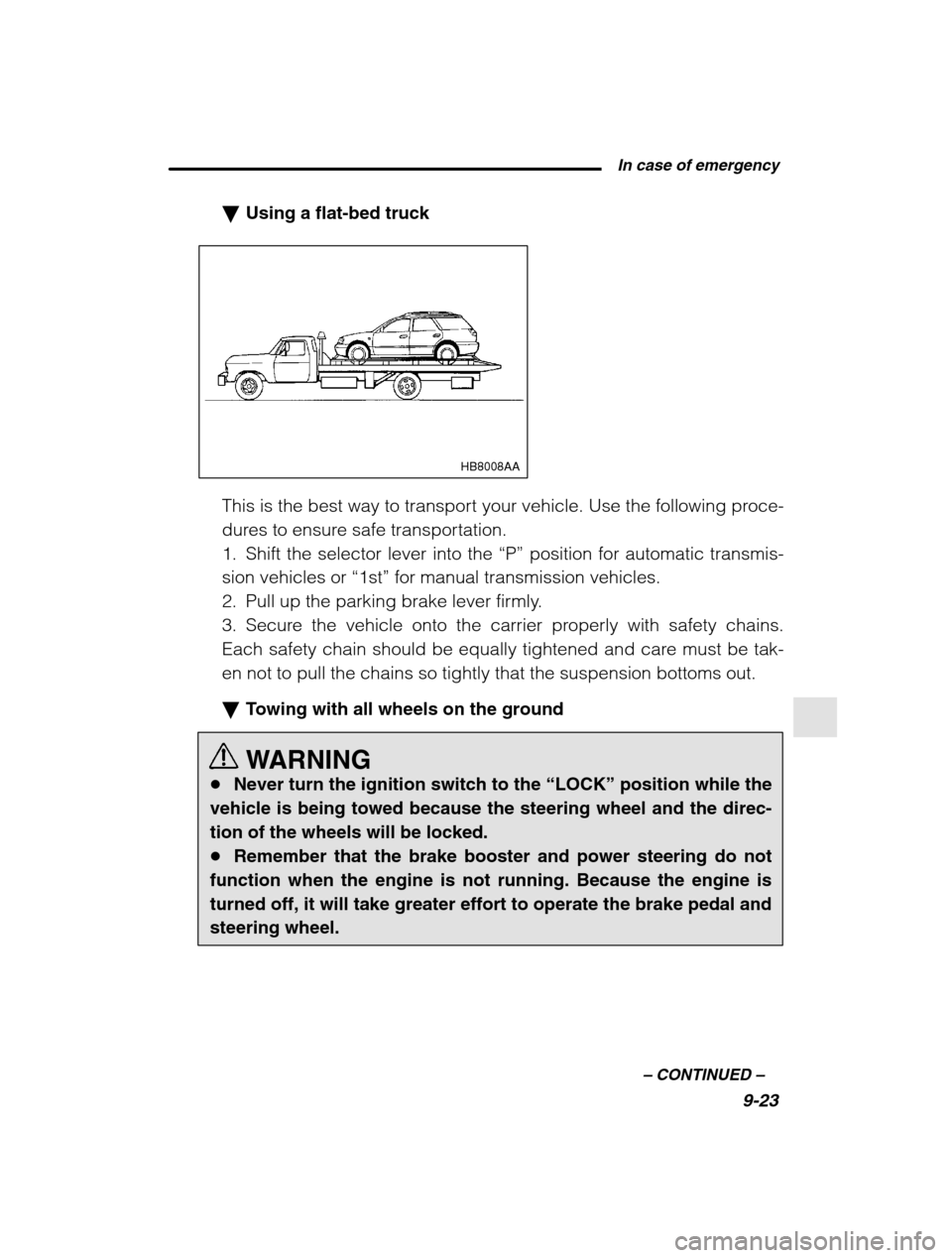

In case of emergency9-23
–
CONTINUED –
Using a flat-bed truck
HB8008AA
This is the best way to transport your vehicle. Use the following proce-
dures to ensure safe transportation.
1. Shift the selector lever into the “P” position for automatic transmis-
sion vehicles or “1st” for manual transmission vehicles.
2. Pull up the parking brake lever firmly.
3. Secure the vehicle onto the carrier properly with safety chains.
Each safety chain should be equally tightened and care must be tak-en not to pull the chains so tightly that the suspension bottoms out. Towing with all wheels on the ground
WARNING
Never turn the ignition switch to the “LOCK” position while the
vehicle is being towed because the steering wheel and the direc- tion of the wheels will be locked. Remember that the brake booster and power steering do not
function when the engine is not running. Because the engine isturned off, it will take greater effort to operate the brake pedal andsteering wheel.

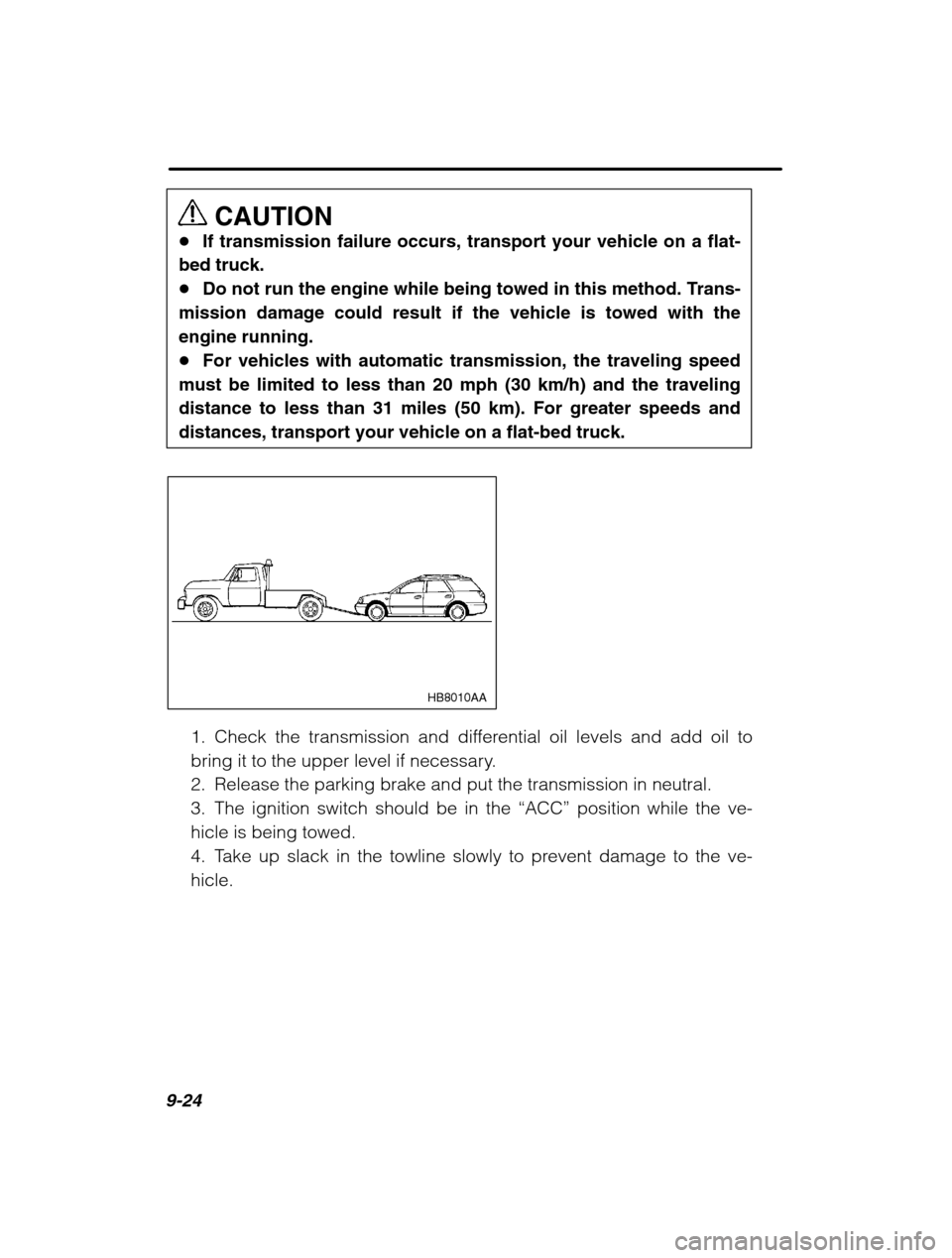

9-24
CAUTION
If transmission failure occurs, transport your vehicle on a flat-
bed truck. Do not run the engine while being towed in this method. Trans-
mission damage could result if the vehicle is towed with theengine running. For vehicles with automatic transmission, the traveling speed
must be limited to less than 20 mph (30 km/h) and the traveling
distance to less than 31 miles (50 km). For greater speeds and
distances, transport your vehicle on a flat-bed truck.
HB8010AA
1. Check the transmission and differential oil levels and add oil to
bring it to the upper level if necessary.
2. Release the parking brake and put the transmission in neutral.
3. The ignition switch should be in the “ACC” position while the ve-
hicle is being towed.
4. Take up slack in the towline slowly to prevent damage to the ve-hicle.

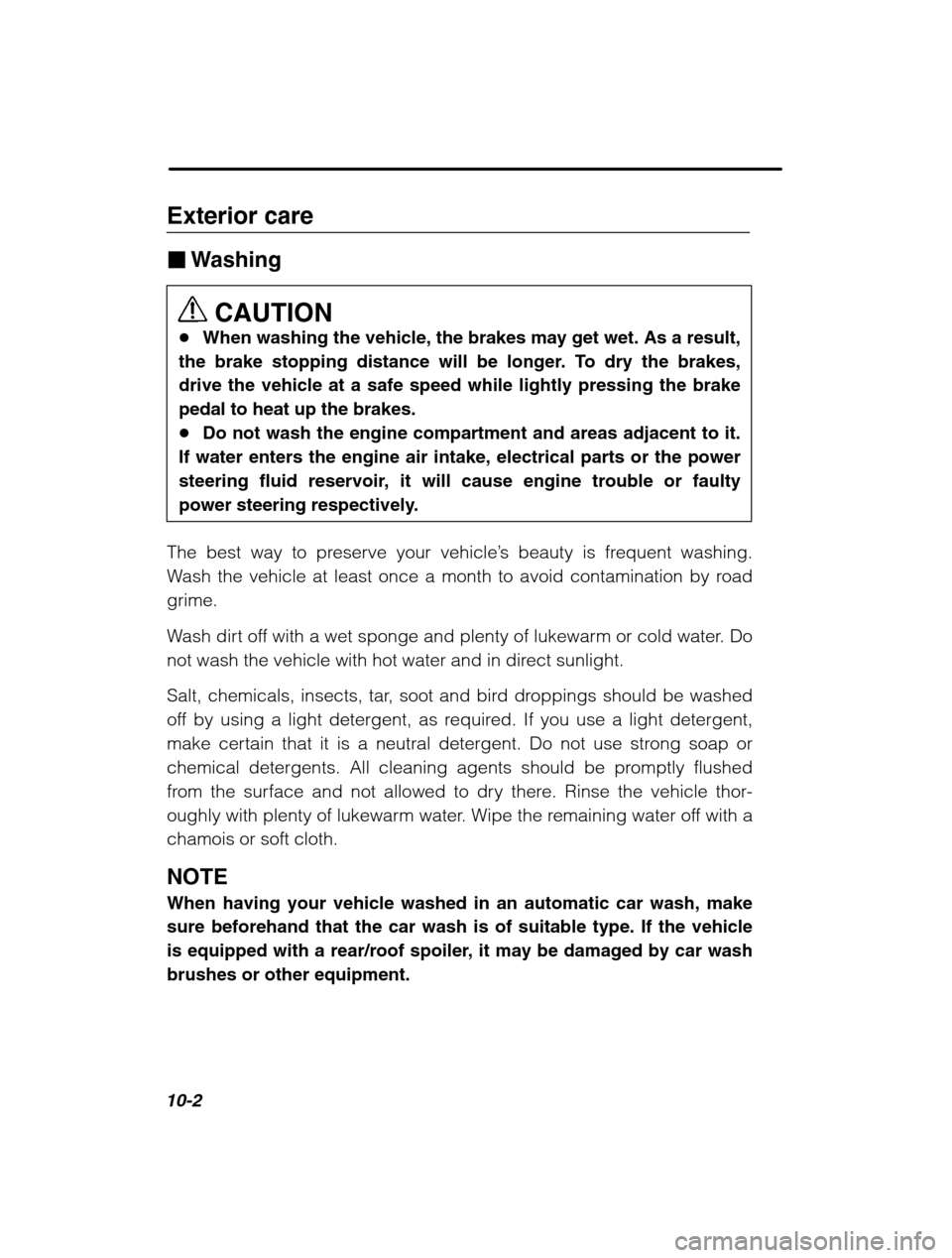

10-2
Exterior care Washing
CAUTION
When washing the vehicle, the brakes may get wet. As a result,
the brake stopping distance will be longer. To dry the brakes, drive the vehicle at a safe speed while lightly pressing the brakepedal to heat up the brakes. Do not wash the engine compartment and areas adjacent to it.
If water enters the engine air intake, electrical parts or the power
steering fluid reservoir, it will cause engine trouble or faulty
power steering respectively.
The best way to preserve your vehicle ’s beauty is frequent washing.
Wash the vehicle at least once a month to avoid contamination by roadgrime.
Wash dirt off with a wet sponge and plenty of lukewarm or cold water. Do
not wash the vehicle with hot water and in direct sunlight.
Salt, chemicals, insects, tar, soot and bird droppings should be washed
off by using a light detergent, as required. If you use a light detergent,
make certain that it is a neutral detergent. Do not use strong soap or
chemical detergents. All cleaning agents should be promptly flushed
from the surface and not allowed to dry there. Rinse the vehicle thor-
oughly with plenty of lukewarm water. Wipe the remaining water off with a
chamois or soft cloth. NOTE When having your vehicle washed in an automatic car wash, make
sure beforehand that the car wash is of suitable type. If the vehicle
is equipped with a rear/roof spoiler, it may be damaged by car washbrushes or other equipment.
