2002 SUBARU OUTBACK engine

Maintenance and service11-47
–
CONTINUED –

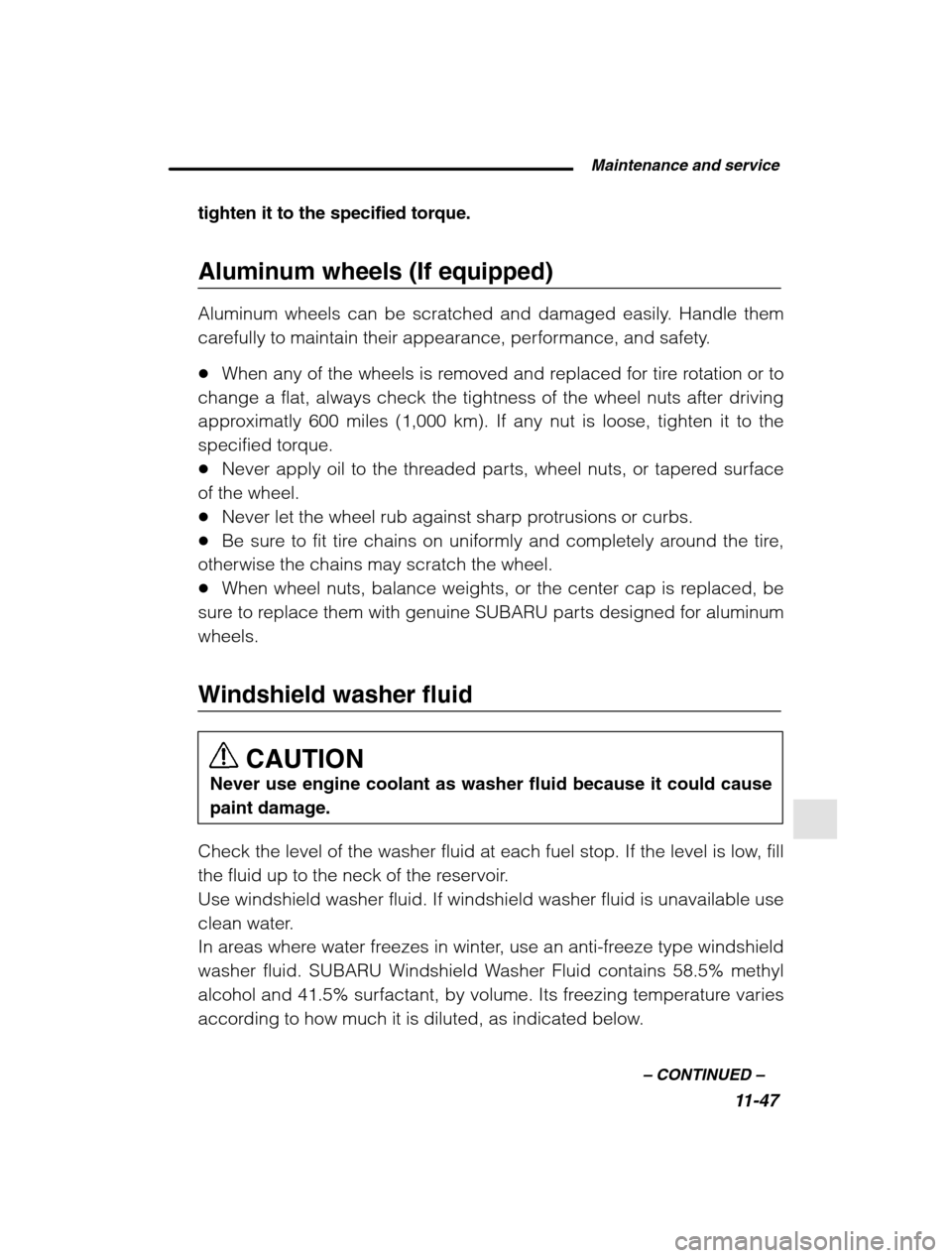

tighten it to the specified torque.
Aluminum wheels (If equipped)
Aluminum wheels can be scratched and damaged easily. Handle them
carefully to maintain their appearance, performance, and safety. When any of the wheels is removed and replaced for tire rotation or to
change a flat, always check the tightness of the wheel nuts after driving
approximatly 600 miles (1,000 km). If any nut is loose, tighten it to the
specified torque. Never apply oil to the threaded parts, wheel nuts, or tapered surface
of the wheel. Never let the wheel rub against sharp protrusions or curbs.
Be sure to fit tire chains on uniformly and completely around the tire,
otherwise the chains may scratch the wheel. When wheel nuts, balance weights, or the center cap is replaced, be
sure to replace them with genuine SUBARU parts designed for aluminumwheels.
Windshield washer fluid
CAUTION
Never use engine coolant as washer fluid because it could cause paint damage.
Check the level of the washer fluid at each fuel stop. If the level is low, fill
the fluid up to the neck of the reservoir.Use windshield washer fluid. If windshield washer fluid is unavailable use
clean water.
In areas where water freezes in winter, use an anti-freeze type windshield
washer fluid. SUBARU Windshield Washer Fluid contains 58.5% methyl
alcohol and 41.5% surfactant, by volume. Its freezing temperature varies
according to how much it is diluted, as indicated below.

11-52
It is unnecessary to periodically check the battery fluid level or periodi-
cally refill with distilled water. FusesCAUTION
Never replace a fuse with one having a higher rating or with mate-
rial other than a fuse because serious damage or a fire could re-sult.
HBB008DA HB8003CA
The fuses are designed to melt during an overload to prevent damage to
the wiring harness and electrical equipment. The fuses are located intwo fuse boxes. One is located under the instrument panel behind the
coin tray on the driver’s seat side. The other one is housed in the engine
compartment. The fuse puller and spare fuses are stored in the main
fuse box cover in the engine compartment.
If any lights, accessories or other electrical controls do not operate, in-
spect the corresponding fuse. If a fuse has blown, replace it.

12
Specifications Specifications12-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions 12-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 12-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical system 12-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Capacities 12-4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires 12-4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel alignment 12-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses and circuits 12-6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse panel located behind the coin tray 12-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse panel located in the engine compartment 12-10 . . . . . . . . . . . . . . . . . . .
Bulb chart 12-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle identification 12-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications12-3
–
CONTINUED –
Overall height 62.2 in (1,580 mm)
Ground clearance
2.5 liter models 7.3 in (185 mm)
3.0 liter models 7.9 in (200 mm)
Front tread 57.9 in (1,470 mm)
Rear tread 57.7 in (1,465 mm)
Wheelbase 104.3 in (2,650 mm)
Engine 2.5 liter
Engine model EJ251
Engine type Horizontally opposed, liquid cooled
4 cylinder, 4 stroke gasoline engine
Engine displacement 2,457 cc (150 cu in.)
Bore 3.92 in (99.5 mm)
Stroke 3.11 in (79.0 mm)
Compression ratio 10.0 : 1
Firing order 1 - 3 - 2 - 4 3.0 liter
Engine model EZ30D
Engine type Horizontally opposed, liquid cooled 6 cylinder, 4 stroke gasoline engine
Engine displacement 3,000 cc (183.0 cu in.)
Bore 3.51 in (89.2 mm)
Stroke 3.15 in (80.0 mm)
Compression ratio 10.7 : 1
Firing order 1 - 6 - 3 - 2 - 5 - 4
Electrical system 2.5 liter
Battery type and capacity
MT: 55D23L
AT: 75D23L
Alternator 12V-90A

12-4
Spark plugs type RC10YC4 (Champion)BKR6E-11 (NGK) BKR5E-11 (NGK)
3.0 liter
Battery type and capacity 75D23L
Alternator 12V-100A
Spark plugs type PLFR6A-11 (NGK)
Capacities
Fuel tank 16.9 US gal (64 liters, 14.1 Imp gal)
Engine oil 2.5 liter 4.2 US qt (4.0 liters, 3.5 Imp qt)
3.0 liter 6.0 US qt (5.7 liters, 5.0 Imp qt)
Transmission oil (MT) 3.7 US qt (3.5 liters, 3.1 Imp qt)
Transmission fluid (AT) 9.8 US qt (9.3 liters, 8.2 Imp qt)
AT differential gear oil 1.3 US qt (1.2 liters, 1.1 Imp qt)
Rear differential gear oil Brighton, L (AT) 0.9 US qt (0.9 liter, 0.8 Imp qt)
Others 0.8 US qt (0.8 liter, 0.7 Imp qt)
Power steering gear fluid 0.7 US qt (0.7 liter, 0.6 Imp qt)
Engine coolant 2.5 liter MT 7.2 US qt (6.8 liters, 6.0 Imp qt) AT 7.1 US qt (6.7 liters, 5.9 Imp qt)
3.0 liter 8.4 US qt (7.9 liters, 7.0 Imp qt)
Tires Legacy
Type Steel belted radial, Tubeless
Size Brighton P195/60R15 87H L P205/60R15 90H
GT P205/55R16 89H
Temporary spare T135/70D16
Pressure Front Brighton 33 psi (230 kPa, 2.3 kg/cm 2
)
GT, L 32 psi (220 kPa, 2.2 kg/cm 2
)
Rear Brighton 32 psi (220 kPa, 2.2 kg/cm 2
)
GT, L 30 psi (210 kPa, 2.1 kg/cm 2
)

Specifications12-7
–
CONTINUED –

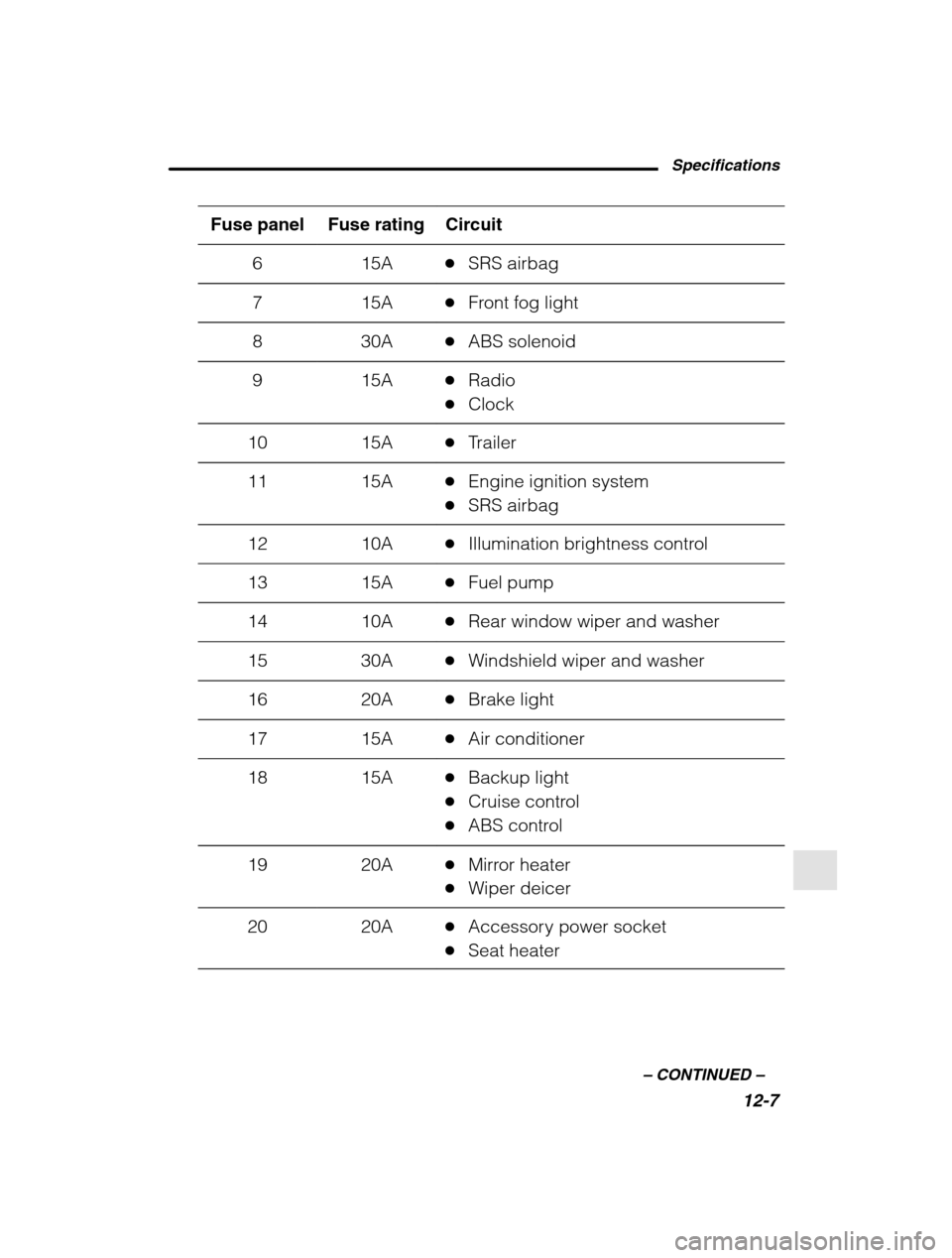

Fuse panel Circuit Fuse rating
615ASRS airbag
715AFront fog light
830AABS solenoid
915ARadio
Clock
1015ATrailer
1115AEngine ignition system
SRS airbag
1210AIllumination brightness control
1315AFuel pump
1410ARear window wiper and washer
1530AWindshield wiper and washer
1620ABrake light
1715AAir conditioner
1815ABackup light
Cruise control
ABS control
1920AMirror heater
Wiper deicer
2020AAccessory power socket
Seat heater

Specifications12-9
–
CONTINUED –

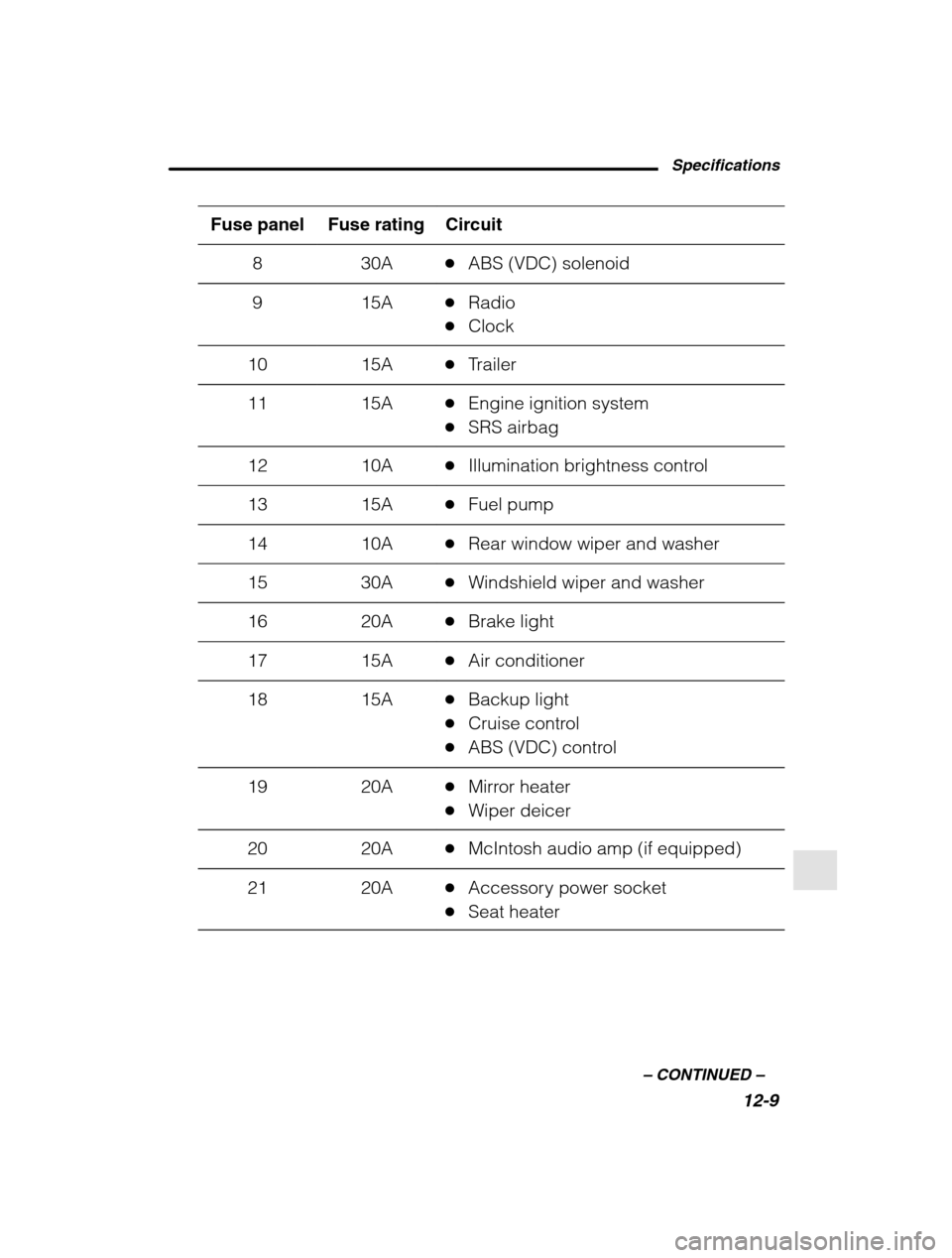

Fuse panel Circuit Fuse rating
830AABS (VDC) solenoid
915ARadio
Clock
1015ATrailer
1115AEngine ignition system
SRS airbag
1210AIllumination brightness control
1315AFuel pump
1410ARear window wiper and washer
1530AWindshield wiper and washer
1620ABrake light
1715AAir conditioner
1815ABackup light
Cruise control
ABS (VDC) control
1920AMirror heater
Wiper deicer
2020AMcIntosh audio amp (if equipped)
2120AAccessory power socket
Seat heater

12-10

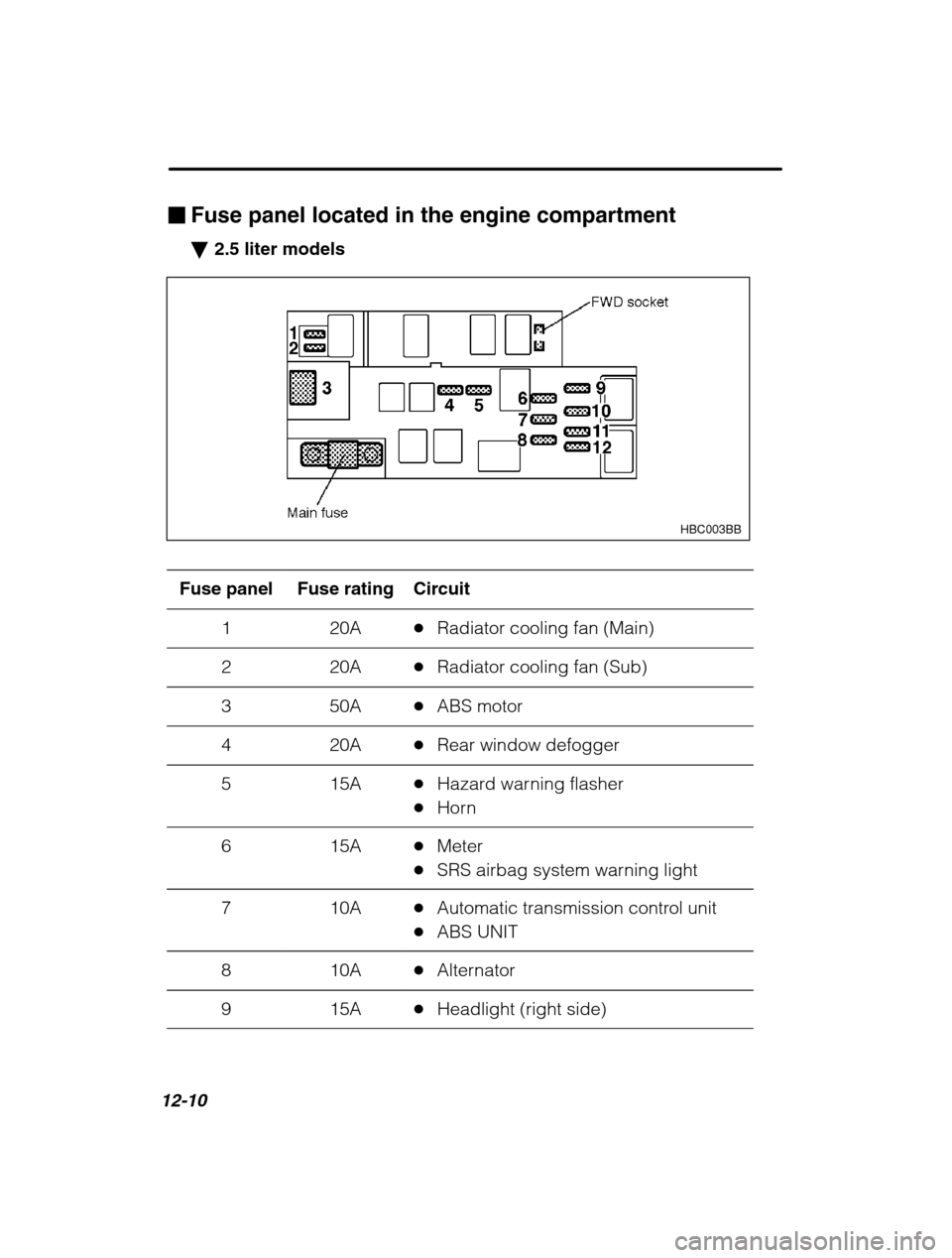

Fuse panel located in the engine compartment 2.5 liter models
HBC003BB
Fuse panelFuse ratingCircuit
120ARadiator cooling fan (Main)
220ARadiator cooling fan (Sub)
350AABS motor
420ARear window defogger
515AHazard warning flasher
Horn
615AMeter
SRS airbag system warning light
710AAutomatic transmission control unit
ABS UNIT
810AAlternator
915AHeadlight (right side)
