GENERAL INFORMATION
03-22
Rotary coupler
Always follow the Repair procedure for fitting the
rotary coupler.
Comply with all safety and installation procedures to
ensure the system functions correctly. Observe the
following precautions:
lDo not install a rotary coupler if it is suspected to
be defective.
lDo not attempt to service, modify or repair a
rotary coupler.
lDo not cut, splice or modify the wires attached
to yellow SRS connector and lead.
lAlways ensure the rotary coupler connectors
are mated correctly and securely fastened.
lAlways ensure the battery is disconnected
before working on the rotary coupler.
lAlways ensure the rotary coupler is removed
and installed in its centered position and with the
front road wheels in the straight ahead position.
lIf a new rotary coupler is being installed, ensure
the locking tab holding the coupler's rotational
position is not broken; units with a broken
locking tab should not be used.
Warning labels
Warning symbols are displayed at various positions
in the vehicle (either in a suitable prominent position
such as driver and passenger side glass, or attached
to the component itself) to indicate SRS items which
must be treated with particular care. Exact positions
of SRS warning labels may vary dependent on
legislation and market trends.
WARNING: It is imperative that before any work
is undertaken on the SRS system the appropriate
information is read thoroughly.
Side window label
aThe need for caution when working in close
proximity to SRS components.
bRefer to the publication where the procedures,
instructions and advice can be found (usually
the Workshop Manual) for working on the SRS
system.
cDo not use rear facing child seats in the front
passenger seat if the vehicle is fitted with a
passenger airbag.Rotary coupler label
aRefer to the Workshop Manual for detailed
instructions
bEnsure wheels are in the straight ahead
position before removal and refitting
cPart number/Bar code. The code must be
recorded and quoted for ordering purposes

GENERAL INFORMATION
03-23
Airbag and pretensioner deployment
Deployment procedures and precautions as detailed
in this manual should be strictly adhered to. Only
personnel who have undergone the appropriate
training should undertake deployment of airbag and
pretensioner modules. The following precautions
must be complied with:
lOnly use deployment equipment approved for
the intended purpose.
lBefore beginning deployment procedure,
ensure deployment tool functions properly by
performing the self test procedure detailed in
SRS section of this manual.
lDeployment of airbag/ pretensioner modules
should be performed in a well ventilated area
which has been designated for the purpose.
lEnsure airbag/pretensioner modules are not
damaged or ruptured before attempting to
deploy.
lNotify the relevant authorities of intention to
deploy airbag and pretensioner units.
lWhen deploying airbag pretensioner units,
ensure that all personnel are at least 15 metres
(45 feet) away from the deployment zone.
lEnsure deployment tool is connected correctly,
in compliance with the instructions detailed in
the SRS section of this manual. In particular,
ensure deployment tool is NOT connected to
battery supply before connecting to airbag
module connector.
lWhen deploying seat belt pretensioners, ensure
pretensioner unit is secured correctly to the
seat.
lWhen removing deployed airbag modules and
pretensioner units, wear protective clothing.
Use gloves and seal deployed units in a plastic
bag.
lFollowing deployment of any component of the
SRS system within the vehicle, all SRS
components must be replaced. DO NOT re-use
or salvage any parts of the SRS system.
lDo not lean over airbag module when
connecting deployment equipment.
If a vehicle is to be scrapped, undeployed airbag
modules and pretensioner units must be manually
deployed. In this case airbags can be deployed in the
vehicle; before deployment, ensure the airbag
module is secure within its correct mounting position.
Deployment of the driver's airbag in the vehicle may
damage the steering wheel; if the vehicle is not being
scrapped, deploy the module outside of the vehicle.
WARNING: During deployment parts of the
airbag module become hot enough to burn you.
Wait 30 minutes after deployment before
touching the airbag module.
SRS Component Replacement Policy
The following information details the policy for
replacement of SRS components; either as a result
of a vehicle accident or as a result of vehicle age.
Impacts which do not deploy the airbags or pre-
tensioners
Check for structural damage in the area of the
impact, paying particular attention to bumper
armatures, longitudinals, crash cans and bracketry.
Impacts which deploy the airbags or pre-
tensioners
The replacement and inspection policy is dependent
on the type and severity of of the crash condition.
The following guidelines are the minimum that
should be exercised as a result of the deployment of
specific SRS components.
If the front airbags or seat belt pre-tensioners are
deployed, the following parts must be replaced:
lSRS DCU.
lDriver airbag module
lPassenger airbag module
lFront seat belt buckle pre-tensioners
lRotary coupler
lDriver's seat belt retractor
lFlyleads (where applicable) connecting airbags
and seat belt pre-tensioners to SRS harness
In addition, the following should be inspected for
damage and replaced as necessary:
lFront passenger's seat belt retractor (webbing,
tongue latching, 'D' loop, body anchorage point)
lRear seat belt buckles (webbing, buckle covers,
body anchorage and tongue latching function)
lFascia moulding adjacent to passenger airbag
module
lSteering wheel (if damage is evident)
lFront seat frames and head restraints (if there is
evidence of damage to the seat frame or
cushion pan)
lSteering column (if adjustment is lost or there
are signs of collapse)
lThird row seats, seat belts and head restraints
(where fitted). Check third row seat latching
mechanism operates correctly.
Periodic replacement of SRS components
The performance of the propellants within airbags
and pre-tensioners will deteriorate over a period of
time. As a result, it is essential that the airbags are
replaced after 10 years and seat belt pre-tensioners
are replaced after 15 years in order to maintain
occupant safety.

TORQUE WRENCH SETTINGS
06-14
Body
TORQUE DESCRIPTION METRIC IMPERIAL
Front and rear door hinges 30 Nm (22 lbf.ft)
Tail door hinge bolts 34 Nm (25 lbf.ft)
Door frames10 Nm (7 lbf.ft)
Regulator to glass 6 Nm (4.4 lbf.ft)
Chassis cross member 25 Nm (18 lbf.ft)
Bulkhead to chassis bolts 45 Nm (33 lbf.ft)
Body to chassis bolts 45 Nm (33 lbf.ft)
Quarter light glass to frame 10 Nm (7 lbf.ft)
Glass lift motor to regulator 5 Nm (3.7 lbf.ft)
Tail door hand rail 10 Nm (7 lbf.ft)
Latch and motor assembly 7 Nm (5.2 lbf.ft)
Door handle7 Nm (5.2 lbf.ft)
Damper to step17 Nm (13 lbf.ft)
Throttle pedal assembly 13 Nm (10 lbf.ft)
Step assembly to chassis 45 Nm (33 lbf.ft)
Wing to sill finisher bracket 17 Nm (13 lbf.ft)
Front wing to body 17 Nm (13 lbf.ft)
Door mirror4 Nm (3 lbf.ft)
Roof bars32 Nm (24 lbf.ft)
Bonnet release lever 10 Nm (7 lbf.ft)
Front bumper to crash cans 13 Nm (10 lbf.ft)
Front bumper to side mountings 13 Nm (10 lbf.ft)
Mudshield10 Nm (7 lbf.ft)
Rear bumper45 Nm (33 lbf.ft)
Grab handle to body 3 Nm (2.2 lbf.ft)
Fascia26 Nm (19 lbf.ft)
Fascia to steering column bracket 11 Nm (8 lbf.ft)
Front seat to floor 45 Nm (33 lbf.ft)
Second row seats to floor 45 Nm (33 lbf.ft)
Third row seats to lower rear quarter 22 Nm (16 lbf.ft)
Sunroof tray to frame 2 Nm (1.5 lbf.ft)
Solenoid securing cap 11 Nm (8 lbf.ft)
Support stay to alternator 25 Nm (18 lbf.ft)
Sunroof glass3 Nm (2.2 lbf.ft)
Motor to sunroof tray 2 Nm (1.5 lbf.ft)
Drive cable assembly to frame 2.5 Nm (1.8 lbf.ft)
Front and rear door striker bolts 26 Nm (19 lbf.ft)
Tail door striker bolts 26 Nm (19 lbf.ft)

LIFTING AND TOWING
08-1
LIFTING AND TOWING
LIFTING
The following instructions must be carried out before
raising the vehicle off the ground.
lUse a solid level ground surface.
lApply hand brake.
lSelect 'P' (Automatic gearbox) or 1st gear
(Manual gearbox) in main gearbox.
lSelect Low range in transfer gearbox.
To avoid damage occurring to the under body
components of the vehicle the following jacking
procedures must be adhered to.
DO NOT POSITION JACKS OR AXLE STANDS
UNDER THE FOLLOWING COMPONENTS:
lBody structure
lBumpers
lFuel lines
lBrake lines
lFront radius arms
lPanhard rod
lSteering linkage
lRear trailing arms
lFuel tank
lEngine sump
lGearbox bell housing
Vehicle jack
The jack provided with the vehicle is only intended for
use in an emergency, for changing a tyre. DO NOT
use the jack for any other purpose. Refer to Owner's
Handbook for vehicle jack location points and
procedure. Never work under a vehicle supported
solely by the vehicle jack.
Hydraulic jack
A hydraulic jack with a minimum 1500 kg, 3,300 lbs
load capacity must be used. Do not commence
work on the underside of the vehicle until
suitable axle stands have been positioned under
the axle.
WARNING: Always chock the wheels when
jacking. The hand brake acts on the
transmission, not the rear wheels, and may be
ineffective when the wheels are off the ground.Raising and supporting the vehicle
Position cup of hydraulic arm under differential
casing (1).The differential casing is not central to
the axle. Care should be taken when raising the
front road wheels off the ground as the rear axle
has less sway stiffness.
Raise vehicle to enable an axle stand to be installed
under left hand axle tube (2).
Position an axle stand under right hand axle tube (4).
Carefully lower jack until vehicle sits securely on both
axle stands, remove jack.
Alternatively, the axle stands can be positioned
under the chassis longitudinals at the front and/or
rear of the vehicle.
Before commencing work on underside of vehicle re-
check security of vehicle on stands.
WARNING: Always chock the wheels when
jacking. The hand brake acts on the the
transmission, not the rear wheels, and may be
ineffective when the wheels are off the ground.

LIFTING AND TOWING
08-2
Reverse procedure when removing vehicle from
stands.
Hydraulic ramps
Use only a 'drive on' type ramp which supports a
vehicle by it's own road wheels. If a 'wheel free'
condition is required, use a 'drive on' ramp
incorporating a 'wheel free' system that supports
under axle casings. Alternatively, place vehicle on a
firm, flat floor and support on axle stands.
TOWING
Towing
The vehicle has permanent four wheel drive. The
following towing instructions must be adhered
to:
Towing on 4 wheels with driver
Turn ignition key to position '1' to release steering
lock.
Select neutral in main gearbox and transfer gearbox.
Secure tow rope, chain or cable to towing eye.
Release the handbrake.
The brake servo and power assisted steering
system will not be functional without the engine
running. Greater pedal pressure will be required
to apply the brakes, the steering system will
require greater effort to turn the front road
wheels. The vehicle tow connection should be
used only in normal road conditions, 'snatch'
recovery should be avoided.Suspended tow
To prevent vehicle damage, front or rear
propeller shaft MUST BE removed, dependent
upon which axle is being trailed.
Mark propeller shaft drive flanges at transfer box and
axles with identification lines to enable the propeller
shaft to be refitted in its original position.
Remove the propeller shaft fixings, remove the shaft
from the vehicle.
If the front axle is to be trailed turn ignition key to
position '1' to release steering lock.
The steering wheel and/or linkage must be
secured in a straight ahead position. DO NOT use
the steering lock mechanism for this purpose.
Towing eyes
The towing eyes at the front and rear of the vehicle
are designed for vehicle recovery purposes only and
must NOT be used to tow a trailer or caravan.
Front:A single towing eye, set behind a removable
panel in the front spoiler. DO NOT use the front
lashing rings for towing.

LIFTING AND TOWING
08-4
DO NOT secure lashing hooks or trailer fixings to
any other part of the vehicle.
Position the vehicle on the trailer and apply the
handbrake. Select neutral in the manual gearbox ('N'
on automatic gearbox). Selecting 'N' will prevent
damage to the parking pawl in the automatic
gearbox.

MAINTENANCE
PROCEDURES 10-3

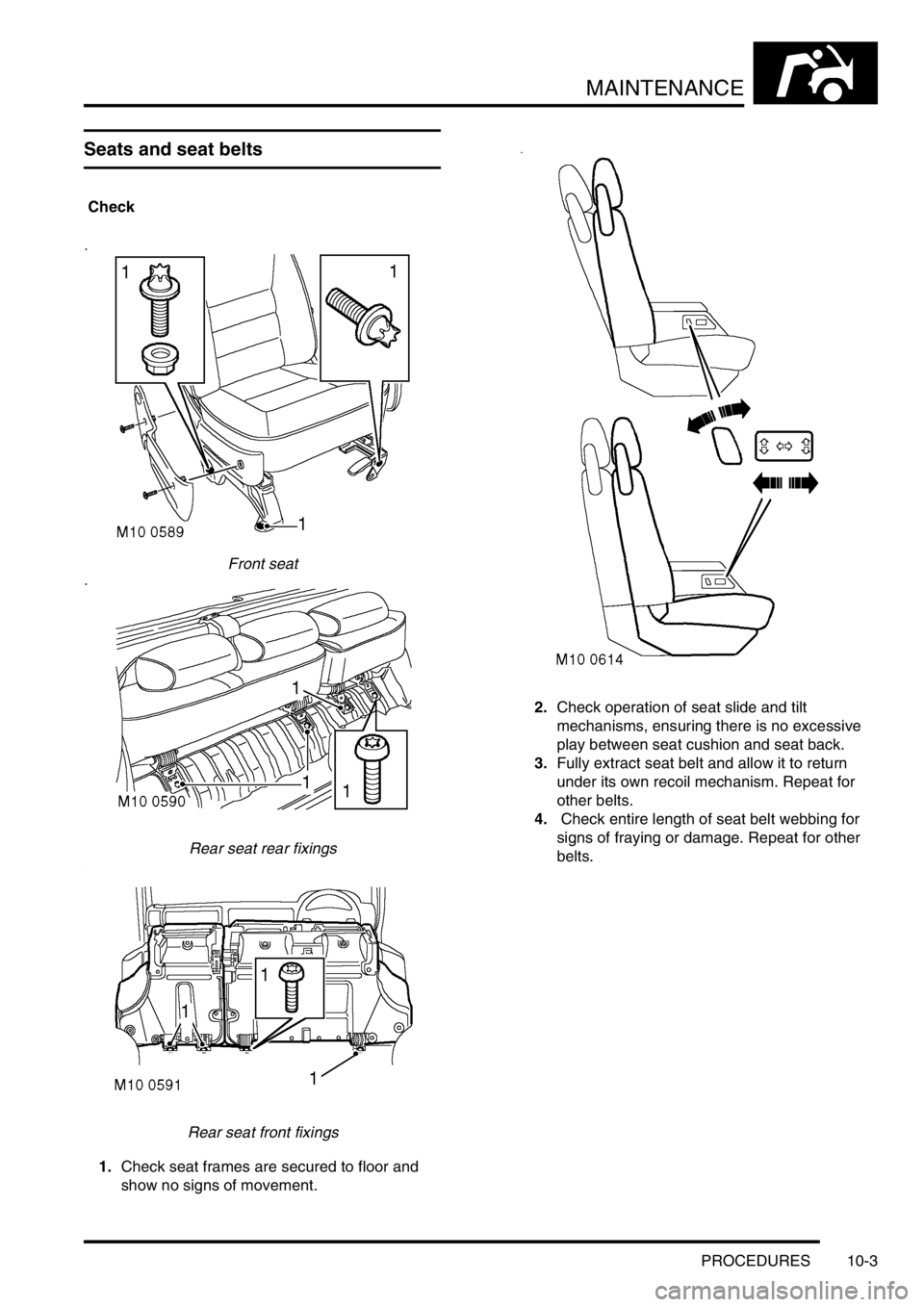

Seats and seat belts
Check
Front seat
Rear seat rear fixings
Rear seat front fixings
1.Check seat frames are secured to floor and
show no signs of movement.2.Check operation of seat slide and tilt
mechanisms, ensuring there is no excessive
play between seat cushion and seat back.
3.Fully extract seat belt and allow it to return
under its own recoil mechanism. Repeat for
other belts.
4. Check entire length of seat belt webbing for
signs of fraying or damage. Repeat for other
belts.

MAINTENANCE
10-4 PROCEDURES
5. Check security of seat belt upper mountings.
6. Check for correct operation of seat belt height
adjusters.
7.Check security of seat belt buckle mountings.
8.Connect each belt to the correct buckle, check
seat buckle and tongue are secure. Release
seat belt buckle and check for correct
operation.9.Check tightness of accessible seat belt fixings.
10.Check tightness of accessible seat belt
mountings.
