6E±485
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
moving connectors and wiring harnesses related to the
sensor.
A change in the display will indicate the location of
the fault. If DTC P1515 cannot be duplicated, the
information included in the Failure Records data canbe useful in determing vehicle mileage since the
DTC was last set.
If it is determined that the DTC occurs intermittently,
performing the DTC P1515 Diagnostic Chart may
isolate the cause of the fault.

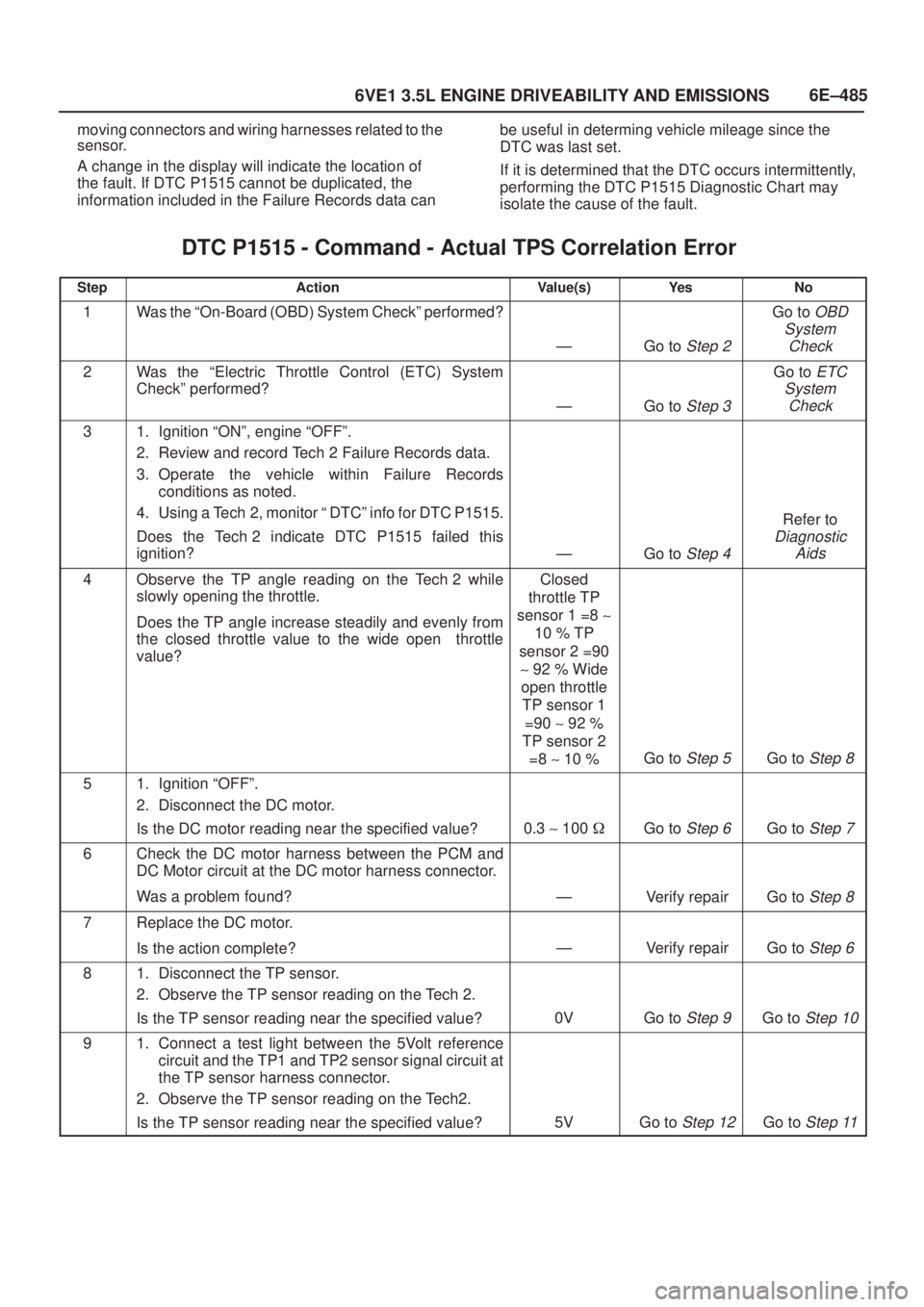

DTC P1515 - Command - Actual TPS Correlation Error

StepActionValue(s)Ye sNo
1Was the ªOn-Board (OBD) System Checkº performed?
ÐGo to Step 2
Go to OBD
System
Check
2Was the ªElectric Throttle Control (ETC) System
Checkº performed?
ÐGo to Step 3
Go to ETC
System
Check
31. Ignition ªONº, engine ªOFFº.
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records
conditions as noted.
4. Using a Tech 2, monitor ª DTCº info for DTC P1515.
Does the Tech 2 indicate DTC P1515 failed this
ignition?
ÐGo to Step 4
Refer to
Diagnostic
Aids
4Observe the TP angle reading on the Tech 2 while
slowly opening the throttle.
Does the TP angle increase steadily and evenly from
the closed throttle value to the wide open throttle
value?Closed
throttle TP
sensor 1 =8 ~
10 % TP
sensor 2 =90
~ 92 % Wide
open throttle
TP sensor 1
=90 ~ 92 %
TP sensor 2
=8 ~ 10 %
Go to Step 5Go to Step 8
51. Ignition ªOFFº.
2. Disconnect the DC motor.
Is the DC motor reading near the specified value?
0.3 ~ 100
Go to Step 6Go to Step 7
6Check the DC motor harness between the PCM and
DC Motor circuit at the DC motor harness connector.
Was a problem found?
ÐVerify repairGo to Step 8
7Replace the DC motor.
Is the action complete?
ÐVerify repairGo to Step 6
81. Disconnect the TP sensor.
2. Observe the TP sensor reading on the Tech 2.
Is the TP sensor reading near the specified value?
0VGo to Step 9Go to Step 10
91. Connect a test light between the 5Volt reference
circuit and the TP1 and TP2 sensor signal circuit at
the TP sensor harness connector.
2. Observe the TP sensor reading on the Tech2.
Is the TP sensor reading near the specified value?
5VGo to Step 12Go to Step 11

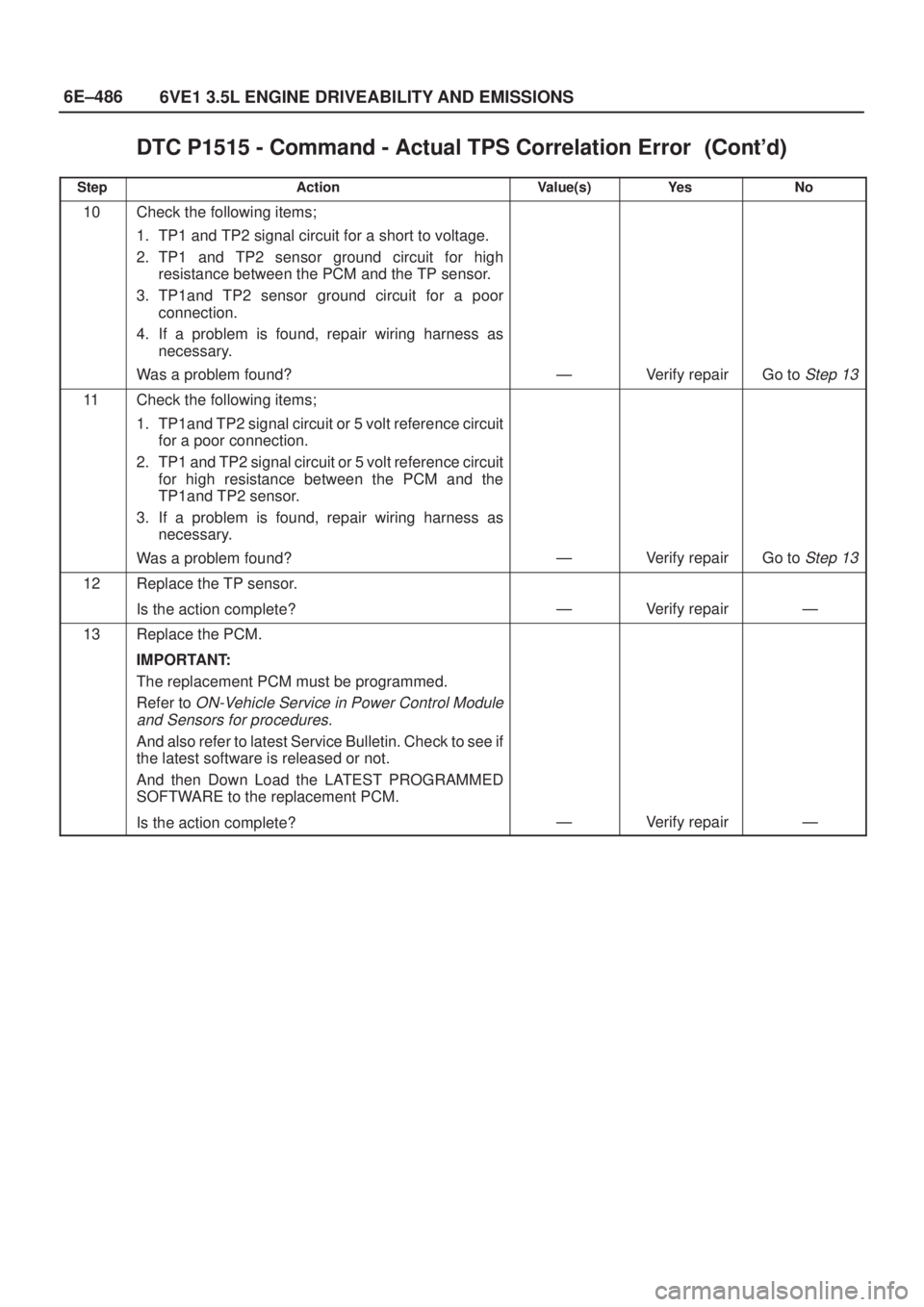

6E±486
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P1515 - Command - Actual TPS Correlation Error


StepNo Ye s Value(s) Action
10Check the following items;
1. TP1 and TP2 signal circuit for a short to voltage.
2. TP1 and TP2 sensor ground circuit for high
resistance between the PCM and the TP sensor.
3. TP1and TP2 sensor ground circuit for a poor
connection.
4. If a problem is found, repair wiring harness as
necessary.
Was a problem found?
ÐVerify repairGo to Step 13
11Check the following items;
1. TP1and TP2 signal circuit or 5 volt reference circuit
for a poor connection.
2. TP1 and TP2 signal circuit or 5 volt reference circuit
for high resistance between the PCM and the
TP1and TP2 sensor.
3. If a problem is found, repair wiring harness as
necessary.
Was a problem found?
ÐVerify repairGo to Step 13
12Replace the TP sensor.
Is the action complete?
ÐVerify repairÐ
13Replace the PCM.
IMPORTANT:
The replacement PCM must be programmed.
Refer to
ON-Vehicle Service in Power Control Module
and Sensors for procedures.
And also refer to latest Service Bulletin. Check to see if
the latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±487
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

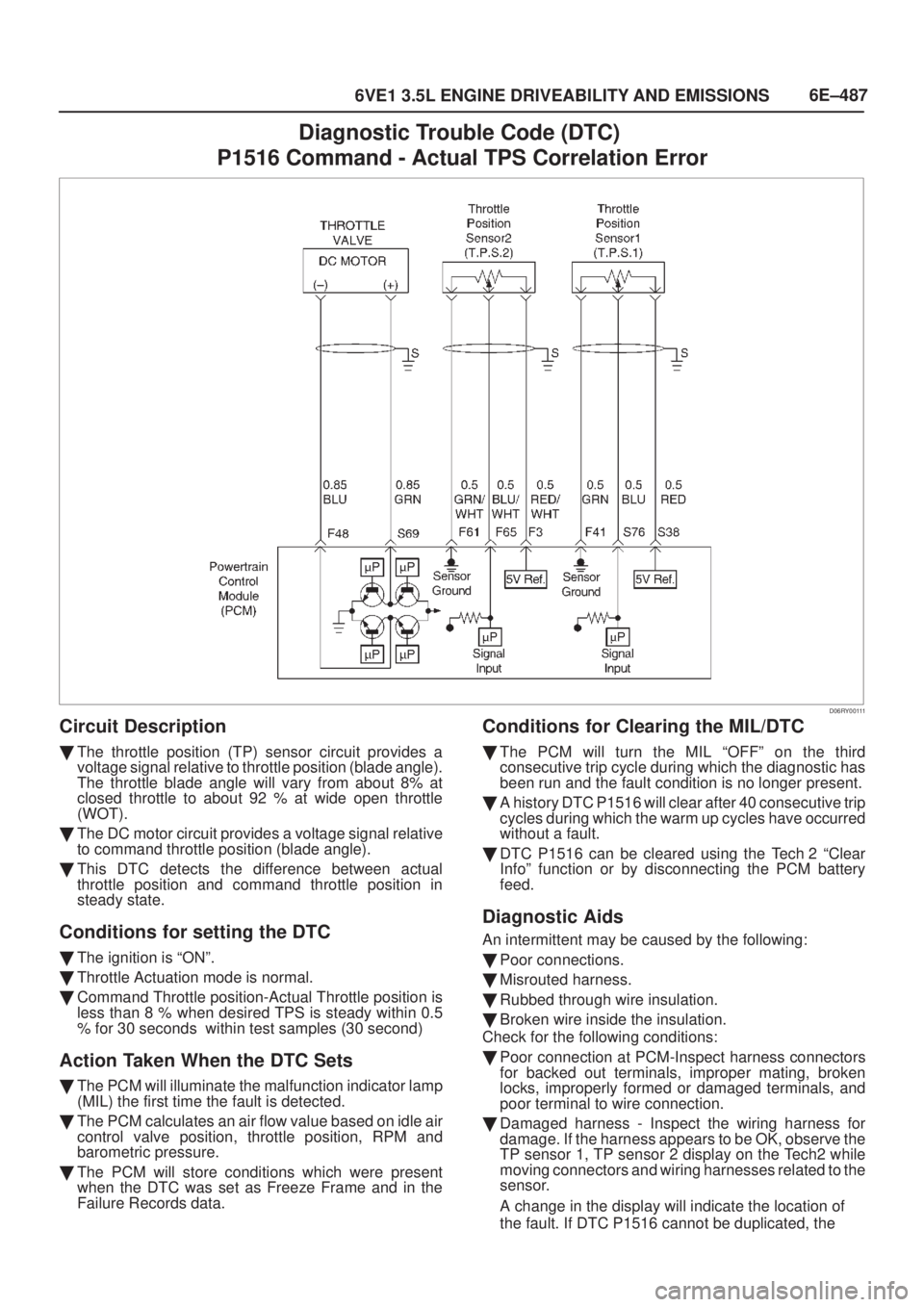

Diagnostic Trouble Code (DTC)
P1516 Command - Actual TPS Correlation Error
D06RY00111
Circuit Description

The throttle position (TP) sensor circuit provides a
voltage signal relative to throttle position (blade angle).
The throttle blade angle will vary from about 8% at
closed throttle to about 92 % at wide open throttle
(WOT).

The DC motor circuit provides a voltage signal relative
to command throttle position (blade angle).

This DTC detects the difference between actual
throttle position and command throttle position in
steady state.
Conditions for setting the DTC

The ignition is ªONº.

Throttle Actuation mode is normal.

Command Throttle position-Actual Throttle position is
less than 8 % when desired TPS is steady within 0.5
% for 30 seconds within test samples (30 second)
Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

The PCM calculates an air flow value based on idle air
control valve position, throttle position, RPM and
barometric pressure.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

A history DTC P1516 will clear after 40 consecutive trip
cycles during which the warm up cycles have occurred
without a fault.

DTC P1516 can be cleared using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
An intermittent may be caused by the following:

Poor connections.

Misrouted harness.

Rubbed through wire insulation.

Broken wire inside the insulation.
Check for the following conditions:

Poor connection at PCM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.

Damaged harness - Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
TP sensor 1, TP sensor 2 display on the Tech2 while
moving connectors and wiring harnesses related to the
sensor.
A change in the display will indicate the location of
the fault. If DTC P1516 cannot be duplicated, the

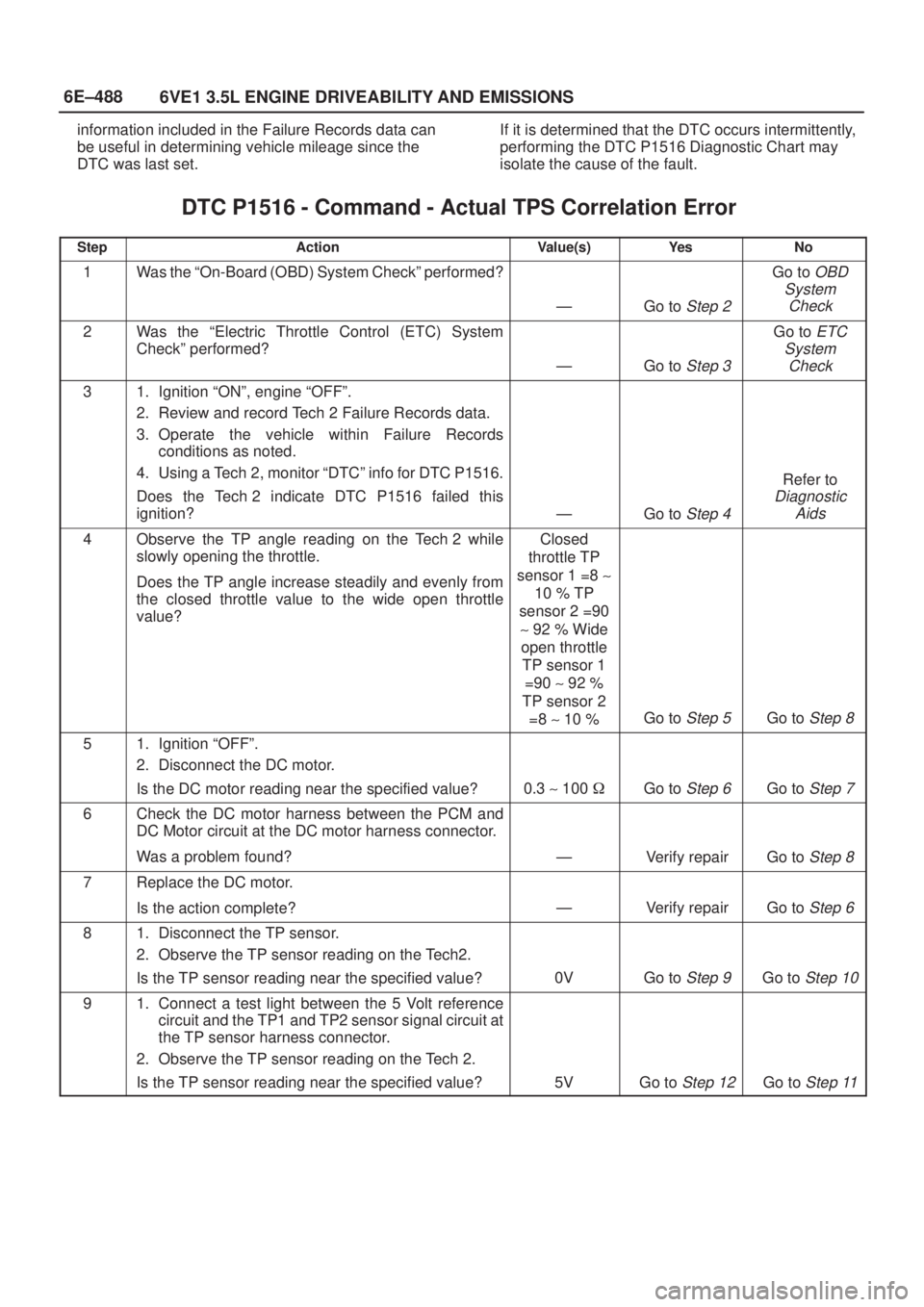

6E±488
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
information included in the Failure Records data can
be useful in determining vehicle mileage since the
DTC was last set.If it is determined that the DTC occurs intermittently,
performing the DTC P1516 Diagnostic Chart may
isolate the cause of the fault.
DTC P1516 - Command - Actual TPS Correlation Error

StepActionValue(s)Ye sNo
1Was the ªOn-Board (OBD) System Checkº performed?
ÐGo to Step 2
Go to OBD
System
Check
2Was the ªElectric Throttle Control (ETC) System
Checkº performed?
ÐGo to Step 3
Go to ETC
System
Check
31. Ignition ªONº, engine ªOFFº.
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records
conditions as noted.
4. Using a Tech 2, monitor ªDTCº info for DTC P1516.
Does the Tech 2 indicate DTC P1516 failed this
ignition?
ÐGo to Step 4
Refer to
Diagnostic
Aids
4Observe the TP angle reading on the Tech 2 while
slowly opening the throttle.
Does the TP angle increase steadily and evenly from
the closed throttle value to the wide open throttle
value?Closed
throttle TP
sensor 1 =8 ~
10 % TP
sensor 2 =90
~ 92 % Wide
open throttle
TP sensor 1
=90 ~ 92 %
TP sensor 2
=8 ~ 10 %
Go to Step 5Go to Step 8
51. Ignition ªOFFº.
2. Disconnect the DC motor.
Is the DC motor reading near the specified value?
0.3 ~ 100
Go to Step 6Go to Step 7
6Check the DC motor harness between the PCM and
DC Motor circuit at the DC motor harness connector.
Was a problem found?
ÐVerify repairGo to Step 8
7Replace the DC motor.
Is the action complete?
ÐVerify repairGo to Step 6
81. Disconnect the TP sensor.
2. Observe the TP sensor reading on the Tech2.
Is the TP sensor reading near the specified value?
0VGo to Step 9Go to Step 10
91. Connect a test light between the 5 Volt reference
circuit and the TP1 and TP2 sensor signal circuit at
the TP sensor harness connector.
2. Observe the TP sensor reading on the Tech 2.
Is the TP sensor reading near the specified value?
5VGo to Step 12Go to Step 11

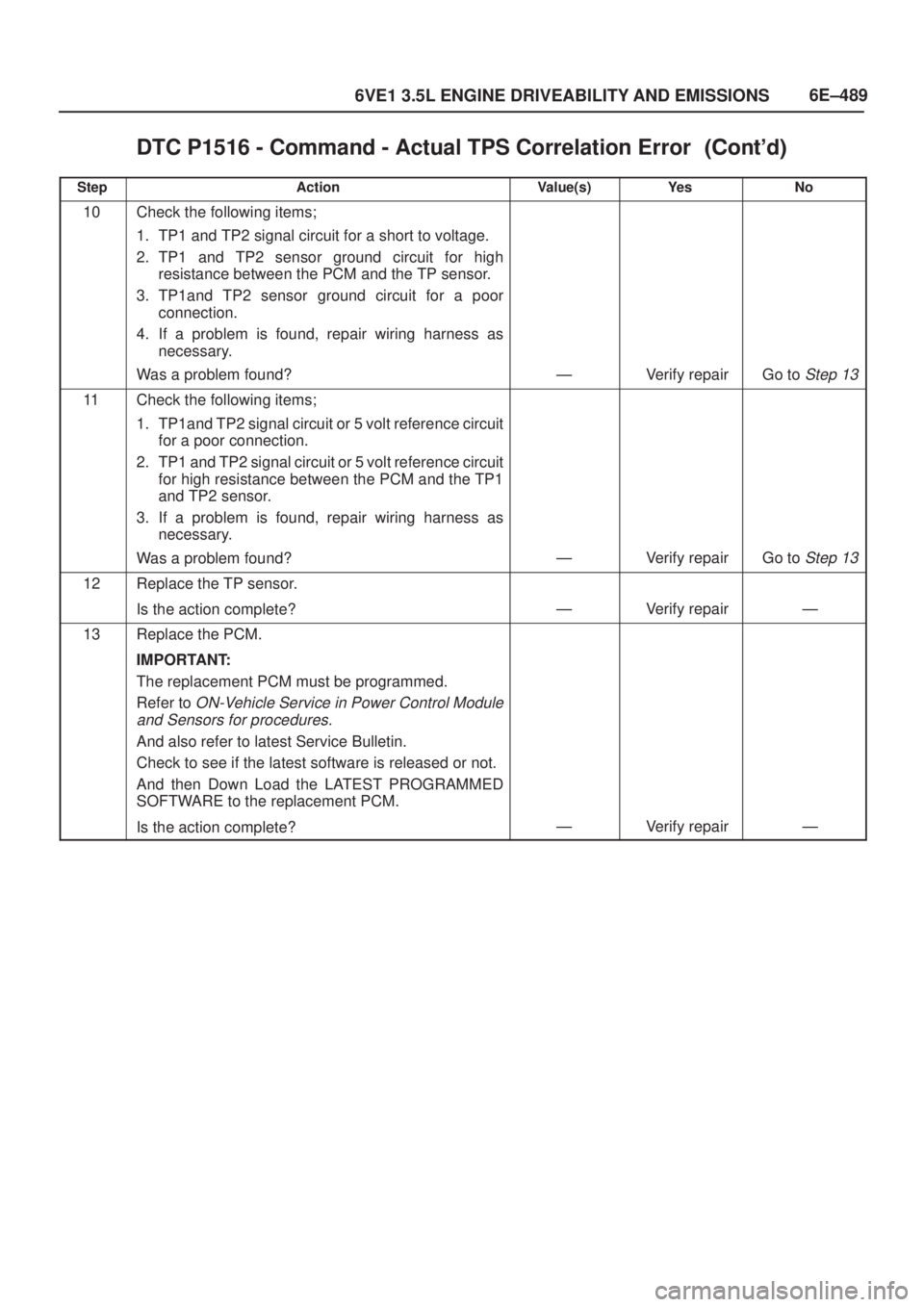

6E±489
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P1516 - Command - Actual TPS Correlation Error


StepNo Ye s Value(s) Action
10Check the following items;
1. TP1 and TP2 signal circuit for a short to voltage.
2. TP1 and TP2 sensor ground circuit for high
resistance between the PCM and the TP sensor.
3. TP1and TP2 sensor ground circuit for a poor
connection.
4. If a problem is found, repair wiring harness as
necessary.
Was a problem found?
ÐVerify repairGo to Step 13
11Check the following items;
1. TP1and TP2 signal circuit or 5 volt reference circuit
for a poor connection.
2. TP1 and TP2 signal circuit or 5 volt reference circuit
for high resistance between the PCM and the TP1
and TP2 sensor.
3. If a problem is found, repair wiring harness as
necessary.
Was a problem found?
ÐVerify repairGo to Step 13
12Replace the TP sensor.
Is the action complete?
ÐVerify repairÐ
13Replace the PCM.
IMPORTANT:
The replacement PCM must be programmed.
Refer to
ON-Vehicle Service in Power Control Module
and Sensors for procedures.
And also refer to latest Service Bulletin.
Check to see if the latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±490
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

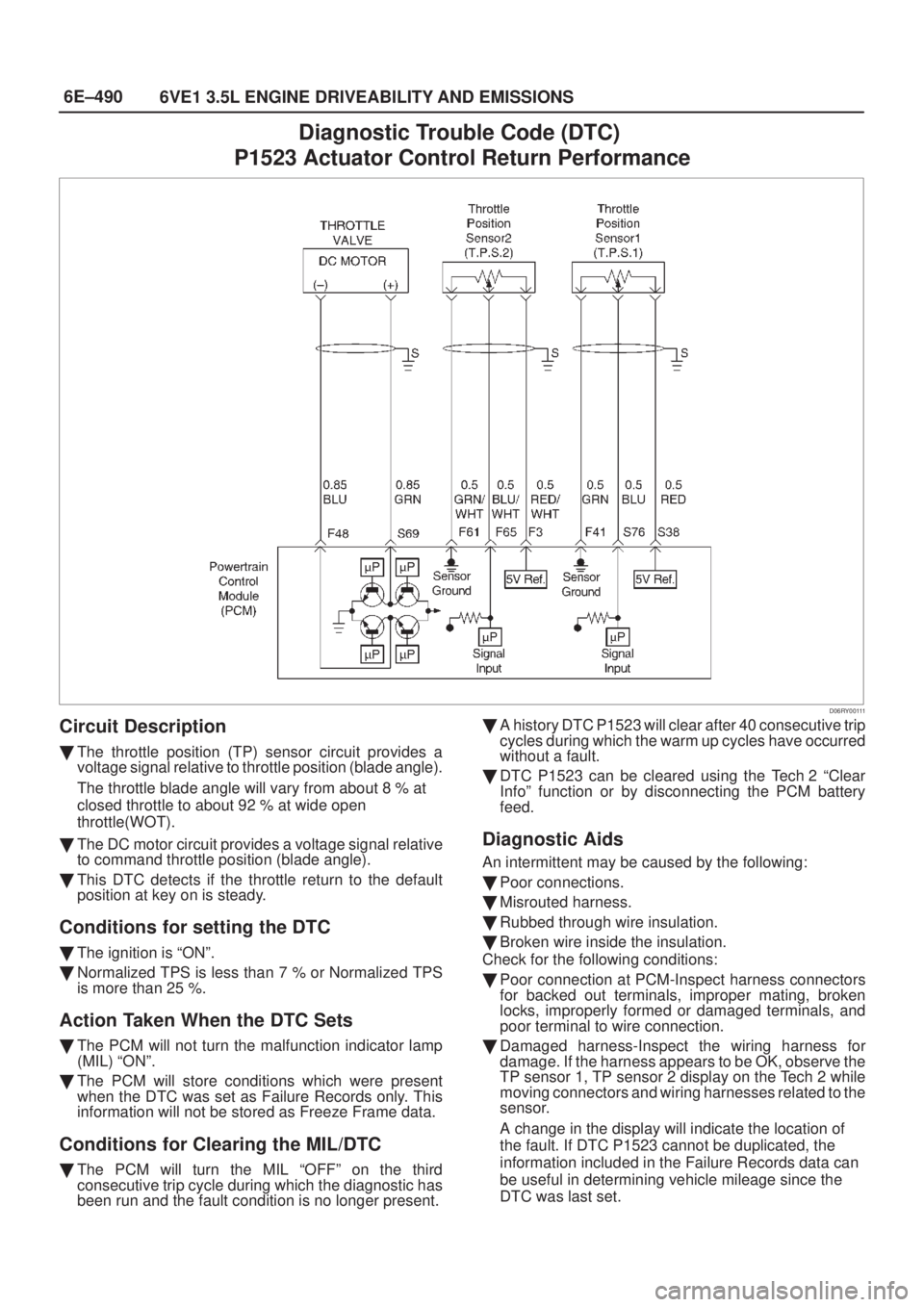

Diagnostic Trouble Code (DTC)
P1523 Actuator Control Return Performance
D06RY00111
Circuit Description

The throttle position (TP) sensor circuit provides a
voltage signal relative to throttle position (blade angle).
The throttle blade angle will vary from about 8 % at
closed throttle to about 92 % at wide open
throttle(WOT).

The DC motor circuit provides a voltage signal relative
to command throttle position (blade angle).

This DTC detects if the throttle return to the default
position at key on is steady.
Conditions for setting the DTC

The ignition is ªONº.

Normalized TPS is less than 7 % or Normalized TPS
is more than 25 %.
Action Taken When the DTC Sets

The PCM will not turn the malfunction indicator lamp
(MIL) ªONº.

The PCM will store conditions which were present
when the DTC was set as Failure Records only. This
information will not be stored as Freeze Frame data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.
A history DTC P1523 will clear after 40 consecutive trip
cycles during which the warm up cycles have occurred
without a fault.

DTC P1523 can be cleared using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
An intermittent may be caused by the following:

Poor connections.

Misrouted harness.

Rubbed through wire insulation.

Broken wire inside the insulation.
Check for the following conditions:

Poor connection at PCM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.

Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
TP sensor 1, TP sensor 2 display on the Tech 2 while
moving connectors and wiring harnesses related to the
sensor.
A change in the display will indicate the location of
the fault. If DTC P1523 cannot be duplicated, the
information included in the Failure Records data can
be useful in determining vehicle mileage since the
DTC was last set.

6E±491
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
If it is determined that the DTC occurs intermittently,
performing the DTC P1523 Diagnostic Chart may
isolate the cause of the fault.

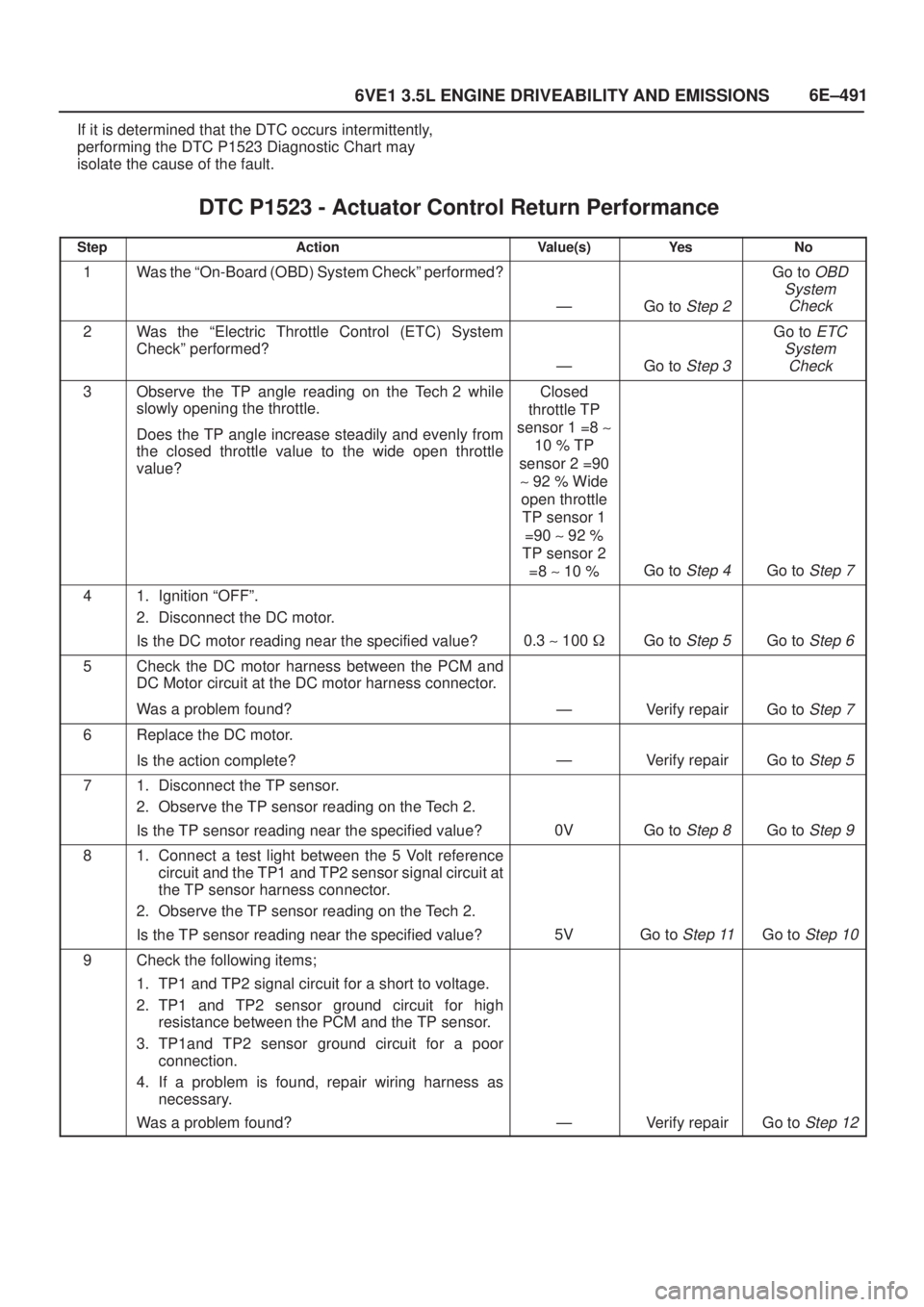

DTC P1523 - Actuator Control Return Performance

StepActionValue(s)Ye sNo
1Was the ªOn-Board (OBD) System Checkº performed?
ÐGo to Step 2
Go to OBD
System
Check
2Was the ªElectric Throttle Control (ETC) System
Checkº performed?
ÐGo to Step 3
Go to ETC
System
Check
3Observe the TP angle reading on the Tech 2 while
slowly opening the throttle.
Does the TP angle increase steadily and evenly from
the closed throttle value to the wide open throttle
value?Closed
throttle TP
sensor 1 =8 ~
10 % TP
sensor 2 =90
~ 92 % Wide
open throttle
TP sensor 1
=90 ~ 92 %
TP sensor 2
=8 ~ 10 %
Go to Step 4Go to Step 7
41. Ignition ªOFFº.
2. Disconnect the DC motor.
Is the DC motor reading near the specified value?
0.3 ~ 100
Go to Step 5Go to Step 6
5Check the DC motor harness between the PCM and
DC Motor circuit at the DC motor harness connector.
Was a problem found?
ÐVerify repairGo to Step 7
6Replace the DC motor.
Is the action complete?
ÐVerify repairGo to Step 5
71. Disconnect the TP sensor.
2. Observe the TP sensor reading on the Tech 2.
Is the TP sensor reading near the specified value?
0VGo to Step 8Go to Step 9
81. Connect a test light between the 5 Volt reference
circuit and the TP1 and TP2 sensor signal circuit at
the TP sensor harness connector.
2. Observe the TP sensor reading on the Tech 2.
Is the TP sensor reading near the specified value?
5VGo to Step 11Go to Step 10
9Check the following items;
1. TP1 and TP2 signal circuit for a short to voltage.
2. TP1 and TP2 sensor ground circuit for high
resistance between the PCM and the TP sensor.
3. TP1and TP2 sensor ground circuit for a poor
connection.
4. If a problem is found, repair wiring harness as
necessary.
Was a problem found?
ÐVerify repairGo to Step 12

6E±492
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

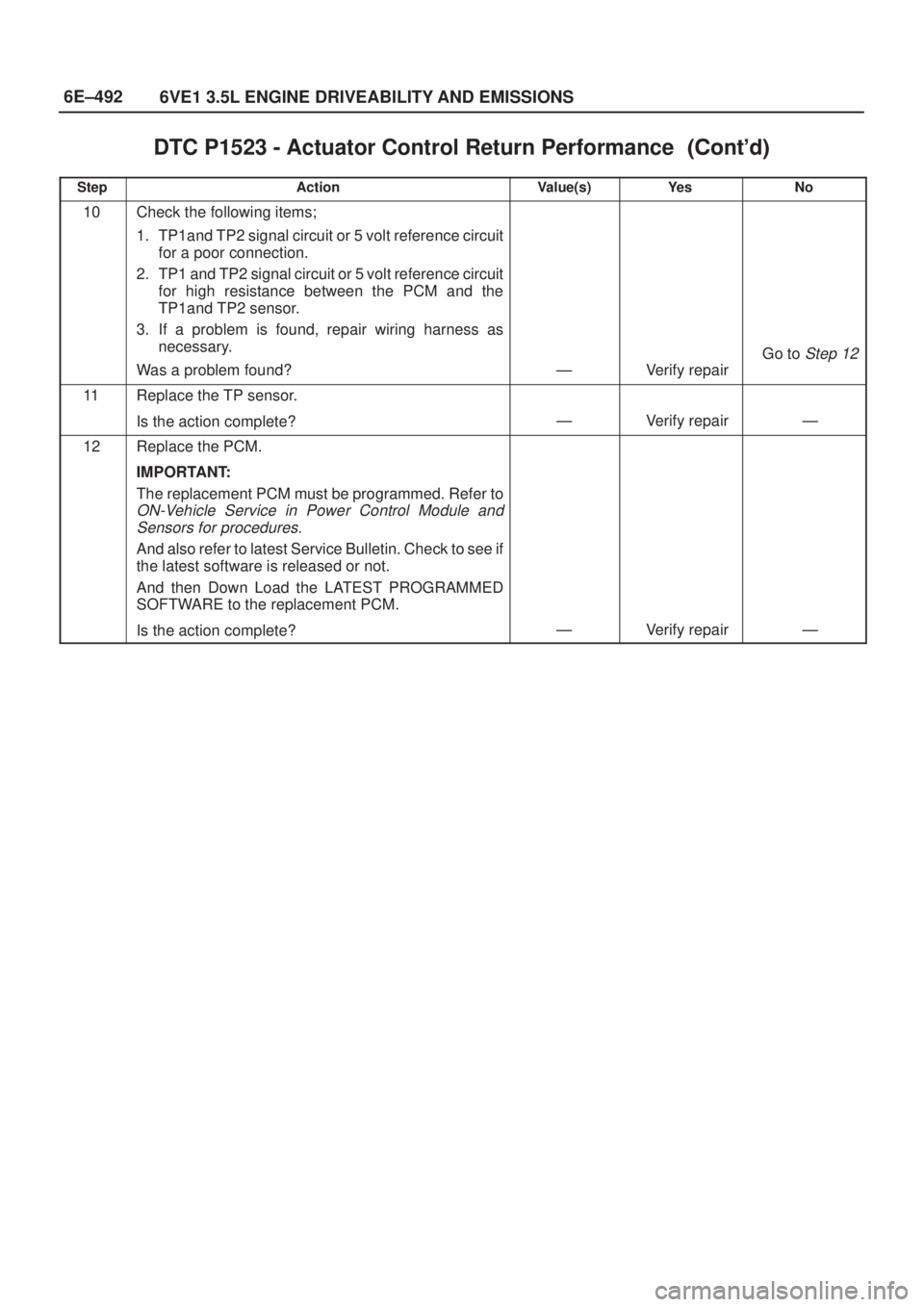

DTC P1523 - Actuator Control Return Performance


StepNo Ye s Value(s) Action
10Check the following items;
1. TP1and TP2 signal circuit or 5 volt reference circuit
for a poor connection.
2. TP1 and TP2 signal circuit or 5 volt reference circuit
for high resistance between the PCM and the
TP1and TP2 sensor.
3. If a problem is found, repair wiring harness as
necessary.
Was a problem found?
ÐVerify repair
Go to Step 12
11Replace the TP sensor.
Is the action complete?
ÐVerify repairÐ
12Replace the PCM.
IMPORTANT:
The replacement PCM must be programmed. Refer to
ON-Vehicle Service in Power Control Module and
Sensors for procedures.
And also refer to latest Service Bulletin. Check to see if
the latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ
