5A±12BRAKE CONTROL SYSTEM
circuit. The symptom diagnosis chart may also be useful
in isolating the failure. Most intermittent problems are
caused by faulty electrical connections or wiring. When
an intermittent failure is encountered, check suspected
circuits for damage:

Suspected harness damage.

Poor mating of connector halves or terminals not fully
seated in the connector body (backed out).

Improperly formed or damaged terminals.
Test Driving ABS Complaint Vehicles
In case of an intermittent ABS lamp illumination, see
ªDiagnosis by ABS Warning Light illumination Patternº or
go to 5A±37. In some cases, the vehicle may need to be
test driven by following the test procedure below.
1. Start the engine and make sure that the ªABSº W/L
goes OFF. If the W/L remains ON, it means that the
Diagnostic Trouble Code (DTC) is stored. Therefore,
read the code and locate the fault.
NOTE: The DTC cannot be cleared if the vehicle speed
does not exceed 12 km/h (8 mph) at DTC, even though
the repair operation is completed.
2. Start the vehicle and accelerate to about 30 km/h (19
mph) or more.
3. Slowly brake and stop the vehicle completely.
4. Then restart the vehicle and accelerate to about 40
km/h (25 mph) or more.
5. Brake at a time so as to actuate the ABS and stop the
vehicle.
6. Be cautious of abnormality during the test. If the W/L
is actuated while driving, read the DTC and locate the
fault.
7. If the abnormality is not reproduced by the test, make
best efforts to reproduce the situation reported by the
customer.
8. If the abnormality has been detected, repair in
accordance with the ªSYMPTOM DIAGNOSISº .
NOTE:

Be sure to give a test drive on a wide, even road with a
small traffic.

If an abnormality is detected, be sure to suspend the
test and start trouble diagnosis at once.
ªABSº Warning Light
When ABS trouble occurs to actuate ªABSº warning light,
the trouble code corresponding to the trouble is stored in
the EHCU. Only ordinary brake is available with ABS
being unactuated. Even when ªABSº warning light is
actuated, if the starter switch is set ON after setting it OFF
once, the EHCU checks up on the entire system and, if
there is no abnormality, judges ABS to work currently and
the warning light is lit normally even though the trouble
code is stored.
NOTE: Illumination of the ªABSº warning light indicates
that anti-lock braking is no longer available. Power
assisted braking without anti-lock control is still available.
Normal Operation
ªABSº Warning Light
When the ignition is first moved from ªOFFº to ªRUNº , the
amber ªABSº warning light will turn ªONº . The ªABSº
warning light will turn ªONº during engine starting and will
usually stay ªONº for approximately three seconds after
the ignition switch is returned to the ªONº position. The
warning light should remain ªOFFº at all other times.

5A±16BRAKE CONTROL SYSTEM
DATA LIST
The data displayed by DATA LIST are as follows:
Display
ContentOK/NG Criteria for Data
Front Left Wheel Speed
Front Right Wheel Speed
Rear Wheel Speedskm/h (MPH)
Start the vehicle and make sure of linear change in
each wheel speed.

Turn each wheel by hand and make sure that each
speed data change.
Warning LampON/OFF
To be OFF usually
ABS StateON/OFF
To be OFF usually
ABS RelayActive/Inactive
To be Active usually
4 Wheel DriveActive/Inactive
2WD: Inactive

4WD: Active
Brake SwitchActive/Inactive
Inactive (Released)

Active (Pressed)
Brake Fluid LevelNormal or not
To be Normal usually
Return PumpActive/Inactive
To be Inactive usually
DRP (Dynamic Rear
Proportioning)Active/Inactive
To be Inactive usually
Rear Dump Valve CommandedActive/Inactive
To be Inactive usually
Rear Dump Valve Feedback
Rear Isolation Valve
Commanded
Rear Isolation Valve Feedback
FL Dump Valve CommandedActive/Inactive
To be Inactive usually
FL Dump Valve Feedback
FL Isolation Valve Commanded
FL Isolation Valve Feedback
FR Dump Valve CommandedActive/Inactive
To be Inactive usually
FR Dump Valve Feedback
FR Isolation Valve
Commanded
FR Isolation Valve Feedback
G±SensorVoltage
2.50V when vehicle is stopped
Battery VoltageVoltage
Between 10±16.9V

5A±17
BRAKE CONTROL SYSTEM
ACTUATOR TEST
This mode is used to exercise the ABS actuators and
make sure they operate normally. Prior to the test, pay
attention to the cautions below. (When checking the
solenoid valve system, be sure to jack up the vehicle.)
CAUTION:

Before testing, be sure that the brakes work normally.

Make sure that the battery is fully charged.Conduct
the test by two persons (A TECH 2 operator and a
vehicle checker).

Be sure to start ACTUATOR TEST with the engine
stopped.

Before testing, make sure that electrical trouble, if
any, has been completely repaired. Conducting tests
of ABS solenoid with electrical circuit problem
remaining uncorrected could damage the control unit.
F05R200001

5A±37
BRAKE CONTROL SYSTEM
Diagnostic Trouble Codes (DTCs)
When the warning light in the meter remains ON, the
EHCU stores the fault identification and disables the
ABS.
How to display and erase DTCs:
NOTE:

DTCs can be displayed also by TECH 2. Use
ªDiagnostic Trouble Codesº mode.1. How to start DTC display:

Confirm that the vehicle has come to a complete
stop (with the wheels standing still) and that the
brake pedal is not depressed. (Unless these two
condition are satisfied, DTC display cannot be
started.)

With IGN OFF, connect #12 terminal with #4
terminal or # 5 terminal (GND) . Then turn IGN ON.
The DLC is located behind the driver side kick panel
350R200001

Keep #12 terminal connected with #4 terminal or # 5
terminal (GND) during DTC display. (If #12 terminal
is separated from #4 terminal or # 5 terminal (GND)
during display, display will stop.)
2. DTC display:

DTC is displayed by blinking warning light.

Double-digit display.

First, normal DTC 12 is displayed three times and
then any other DTCs are displayed three times. (If
no other DTCs have been stored, the display of DTC
12 will be repeated.)3. How to erase code:

Conduct brake switch ON/OFF operation 6 or more
times within 3 seconds of self-diagnosis startup.

The code cannot be erased if more than 3 seconds
have passed since self-diagnosis startup, or if
self-diagnosis has started with brake switched on
(brake pedaled).
B05RW005

5C±6
POWER±ASSISTED BRAKE SYSTEM
Diagnosis
Road Testing The Brakes
Brake Test
Brakes should be tested on a dry, clean, reasonably
smooth and level roadway. A true test of brake
performance cannot be made if the roadway is wet,
greasy or covered with loose dirt where all tires do not grip
the road equally. Testing will also be adversely affected if
the roadway is crowned so as to throw the weight of the
vehicle toward wheels on one side or if the roadway is so
rough that wheels tend to bounce. Test the brakes at
different vehicle speeds with both light and heavy pedal
pressure; however, avoid locking the wheels and sliding
the tires. Braking without locking the tires will stop the
vehicle in less distance than braking to a skid (which has
no brake efficiency). More tire to road friction is present
while braking without locking the tires than braking to a
skid.
The standard brake system is designed and balanced to
avoid locking the wheels except at very high deceleration
levels.
It is designed this way because the shortest stopping
distance and best control is achieved without brake
lock±up.
Because of high deceleration capability, a firmer pedal
may be felt at higher deceleration levels.
External Conditions That Affect Brake Performance
1. Tires: Tires having unequal contact and grip on the
road will cause unequal braking. Tires must be
equally inflated, identical in size, and the thread
pattern of right and left tires must be approximately
equal.
2. Vehicle Loading: A heavily loaded vehicle requires
more braking effort.
3. Wheel Alignment: Misalignment of the wheels,
particularly in regard to excessive camber and caster,
will cause the brakes to pull to one side.
Brake Fluid Leaks
With engine running at idle and the transmission in
ªNeutralº, depress the brake pedal and hold a constant
foot pressure on the pedal. If pedal gradually falls away
with the constant pressure, the hydraulic system may be
leaking.
Check the master cylinder fluid level. While a slight drop in
the reservoir level will result from normal lining wear, an
abnormally low level in reservoir indicates a leak in the
system. The hydraulic system may be leaking internally
as well as externally. Refer to
Master Cylinder Inspection.
Also, the system may appear to pass this test but still
have slight leakage. If fluid level is normal, check the
vacuum booster push rod length. If an incorrect length
push rod is found, adjust or replace the push rod. Check
the brake pedal travel and the parking brake adjustment.
When checking the fluid level, the master cylinder fluid
level may be lower than the ªMAXº mark if the front and
rear linings are worn. This is normal.
Warning Light Operation
When the ignition switch is in the START position, the
ªBRAKEº warning light should turn on and go off when the
ignition switch returns to the ON position.
The following conditions will activate the ªBRAKEº light:
1. Parking brake applied. The light should be on
whenever the parking brake is applied and the ignition
switch is on.
2. Low fluid level. A low fluid level in the master cylinder
will turn the ªBRAKEº light on.
3. During engine cranking the ªBRAKEº light should
remain on. This notifies the driver that the warning
circuit is operating properly.

5C±17 POWER±ASSISTED BRAKE SYSTEM

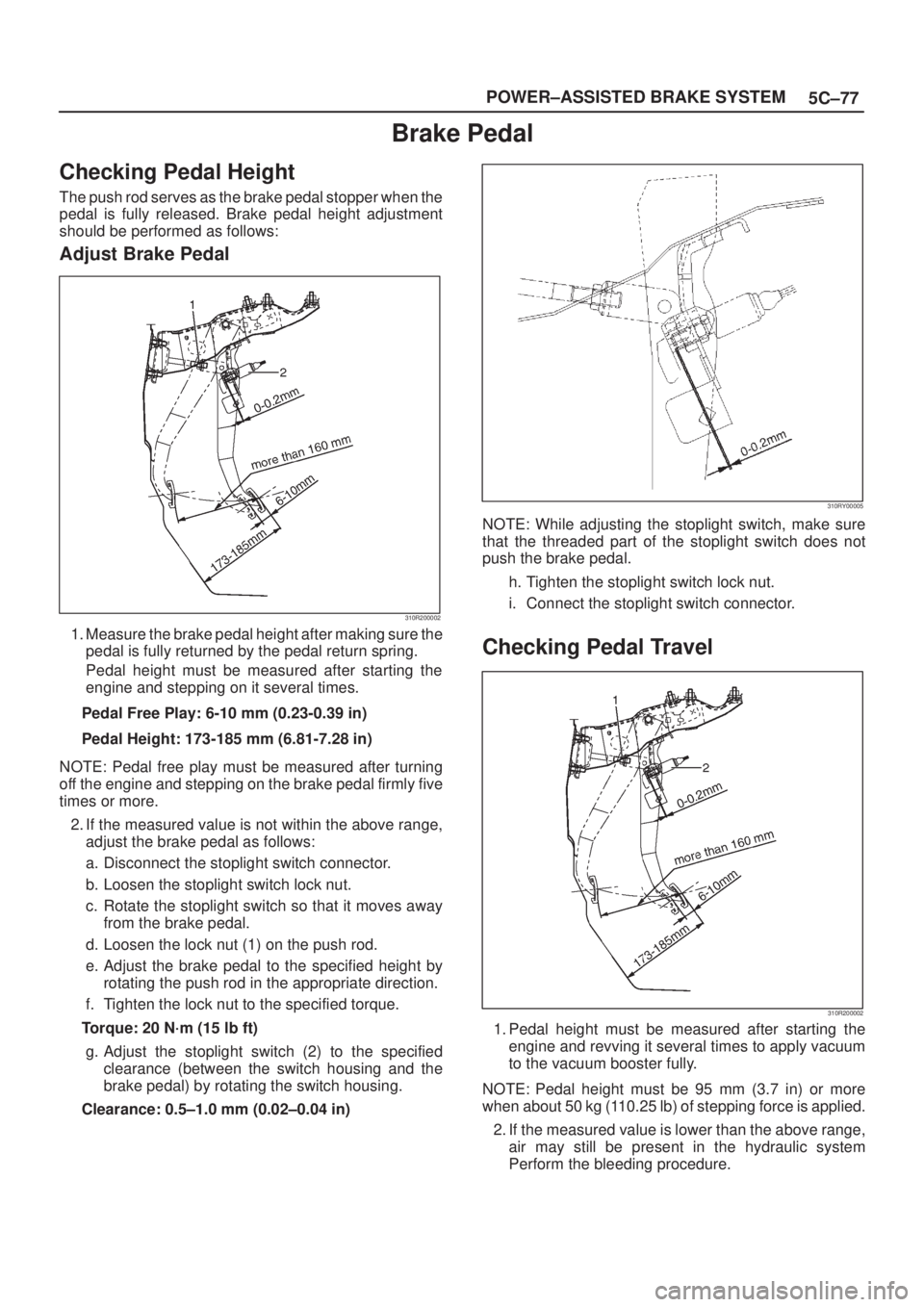

Brake Pedal
Checking Pedal Height
The push rod serves as the brake pedal stopper when the
pedal is fully released. Brake pedal height adjustment
should be performed as follows:
Adjust Brake Pedal
310RY00004
1. Measure the brake pedal height after making sure the
pedal is fully returned by the pedal return spring.
Pedal height must be measured after starting the
engine and receiving it several times.
Pedal Free Play: 6-10 mm (0.23-0.39 in)
Pedal Free Play: 173-185 mm (6.81-7.28 in)
NOTE: Pedal free play must be measured after turning
off the engine and stepping on the brake pedal firmly five
times or more.
2. If the measured value is not within the above range,
adjust the brake pedal as follows:
a. Disconnect the stoplight switch connector.
b. Loosen the stoplight switch lock nut.
c. Rotate the stoplight switch so that it moves away
from the brake pedal.
d. Loosen the lock nut (1) on the push rod.
e. Adjust the brake pedal to the specified height by
rotating the push rod in the appropriate direction.
f. Tighten the lock nut to the specified torque.
Torque: 20 N´m (15 lb ft)
g. Adjust the stoplight switch (2) to the specified
clearance (between the switch housing and the
brake pedal) by rotating the switch housing.
Clearance: 0.5±1.0 mm (0.02±0.04 in)
310RY00005
NOTE: While adjusting the stoplight switch, make sure
that the threaded part of the stoplight switch does not
push the brake pedal.
h. Tighten the stoplight switch lock nut.
i. Connect the stoplight switch connector.
Checking Pedal Travel
310RY00004
1. Pedal height must be measured after starting the
engine and revving it several times to apply vacuum
to the vacuum booster fully.
NOTE: Pedal height must be 95 mm (3.7 in) or more
when about 50 kg (110.25 lb) of stepping force is applied.
2. If the measured value is lower than the above range,
air may still be present in the hydraulic system
Perform the bleeding procedure.

5C±66
POWER±ASSISTED BRAKE SYSTEM
Diagnosis
Road Testing The Brakes
Brake Test
Brakes should be tested on a dry, clean, reasonably
smooth and level roadway. A true test of brake
performance cannot be made if the roadway is wet,
greasy or covered with loose dirt where all tires do not grip
the road equally. Testing will also be adversely affected if
the roadway is crowned so as to throw the weight of the
vehicle toward wheels on one side or if the roadway is so
rough that wheels tend to bounce. Test the brakes at
different vehicle speeds with both light and heavy pedal
pressure; however, avoid locking the wheels and sliding
the tires. Braking without locking the tires will stop the
vehicle in less distance than braking to a skid (which has
no brake efficiency). More tire to road friction is present
while braking without locking the tires than braking to a
skid.
The standard brake system is designed and balanced to
avoid locking the wheels except at very high deceleration
levels.
It is designed this way because the shortest stopping
distance and best control is achieved without brake
lock±up.
Because of high deceleration capability, a firmer pedal
may be felt at higher deceleration levels.
External Conditions That Affect Brake Performance
1. Tires: Tires having unequal contact and grip on the
road will cause unequal braking. Tires must be
equally inflated, identical in size, and the thread
pattern of right and left tires must be approximately
equal.
2. Vehicle Loading: A heavily loaded vehicle requires
more braking effort.
3. Wheel Alignment: Misalignment of the wheels,
particularly in regard to excessive camber and caster,
will cause the brakes to pull to one side.
Brake Fluid Leaks
With engine running at idle and the transmission in
ªNeutralº, depress the brake pedal and hold a constant
foot pressure on the pedal. If pedal gradually falls away
with the constant pressure, the hydraulic system may be
leaking.
Check the master cylinder fluid level. While a slight drop in
the reservoir level will result from normal lining wear, an
abnormally low level in reservoir indicates a leak in the
system. The hydraulic system may be leaking internally
as well as externally. Refer to
Master Cylinder Inspection.
Also, the system may appear to pass this test but still
have slight leakage. If fluid level is normal, check the
vacuum booster push rod length. If an incorrect length
push rod is found, adjust or replace the push rod. Check
the brake pedal travel and the parking brake adjustment.
When checking the fluid level, the master cylinder fluid
level may be lower than the ªMAXº mark if the front and
rear linings are worn. This is normal.
Warning Light Operation
When the ignition switch is in the START position, the
ªBRAKEº warning light should turn on and go off when the
ignition switch returns to the ON position.
The following conditions will activate the ªBRAKEº light:
1. Parking brake applied. The light should be on
whenever the parking brake is applied and the ignition
switch is on.
2. Low fluid level. A low fluid level in the master cylinder
will turn the ªBRAKEº light on.
3. During engine cranking the ªBRAKEº light should
remain on. This notifies the driver that the warning
circuit is operating properly.

5C±77 POWER±ASSISTED BRAKE SYSTEM
Brake Pedal
Checking Pedal Height
The push rod serves as the brake pedal stopper when the
pedal is fully released. Brake pedal height adjustment
should be performed as follows:
Adjust Brake Pedal
310R200002
1. Measure the brake pedal height after making sure the
pedal is fully returned by the pedal return spring.
Pedal height must be measured after starting the
engine and stepping on it several times.
Pedal Free Play: 6-10 mm (0.23-0.39 in)
Pedal Height: 173-185 mm (6.81-7.28 in)
NOTE: Pedal free play must be measured after turning
off the engine and stepping on the brake pedal firmly five
times or more.
2. If the measured value is not within the above range,
adjust the brake pedal as follows:
a. Disconnect the stoplight switch connector.
b. Loosen the stoplight switch lock nut.
c. Rotate the stoplight switch so that it moves away
from the brake pedal.
d. Loosen the lock nut (1) on the push rod.
e. Adjust the brake pedal to the specified height by
rotating the push rod in the appropriate direction.
f. Tighten the lock nut to the specified torque.
Torque: 20 N´m (15 lb ft)
g. Adjust the stoplight switch (2) to the specified
clearance (between the switch housing and the
brake pedal) by rotating the switch housing.
Clearance: 0.5±1.0 mm (0.02±0.04 in)
310RY00005
NOTE: While adjusting the stoplight switch, make sure
that the threaded part of the stoplight switch does not
push the brake pedal.
h. Tighten the stoplight switch lock nut.
i. Connect the stoplight switch connector.
Checking Pedal Travel
310R200002
1. Pedal height must be measured after starting the
engine and revving it several times to apply vacuum
to the vacuum booster fully.
NOTE: Pedal height must be 95 mm (3.7 in) or more
when about 50 kg (110.25 lb) of stepping force is applied.
2. If the measured value is lower than the above range,
air may still be present in the hydraulic system
Perform the bleeding procedure.
