6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
On-Board Diagnostic (OBD II) System Check


StepNo Ye s Value(s) Action
12Compare PCM data values displayed on the Tech 2 to
the typical engine scan data values.
Are the displayed values normal or close to the typical
values?
Ð
Go to
Symptom
Refer to
indicated
Component
System
Checks
131. Ignition ªOFFº, disconnect the PCM.
2. Ignition ªONº, engine ªOFFº.
3. Check the Class 2 data circuit for an open, short to
ground, or short to voltage. Also, check the DLC
ignition feed circuit for an open or short to ground
and the DLC ground circuit for an open.
4. If a problem is found, repair as necessary.
Was a problem found?
ÐGo to Step 2Go to Step 14
141. Attempt to reprogram the PCM. Refer to Powertrain
Control Module (PCM) in On-Vehicle Service.
2. Attempt to display PCM data with the Tech 2.
Does the Tech 2 display PCM engine data?
ÐGo to Step 2Go to Step 15
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
ON-Vehicle Service in Power
Control Module and Sensors for procedures.
And also refer to latest Service Bulletin. Check to see
if the latest software is released or not. And then Down
Load the LATEST PROGRAMMED SOFTWARE to the
replacement PCM.
Is the action complete?
ÐGo to Step 2Ð

6E±64
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

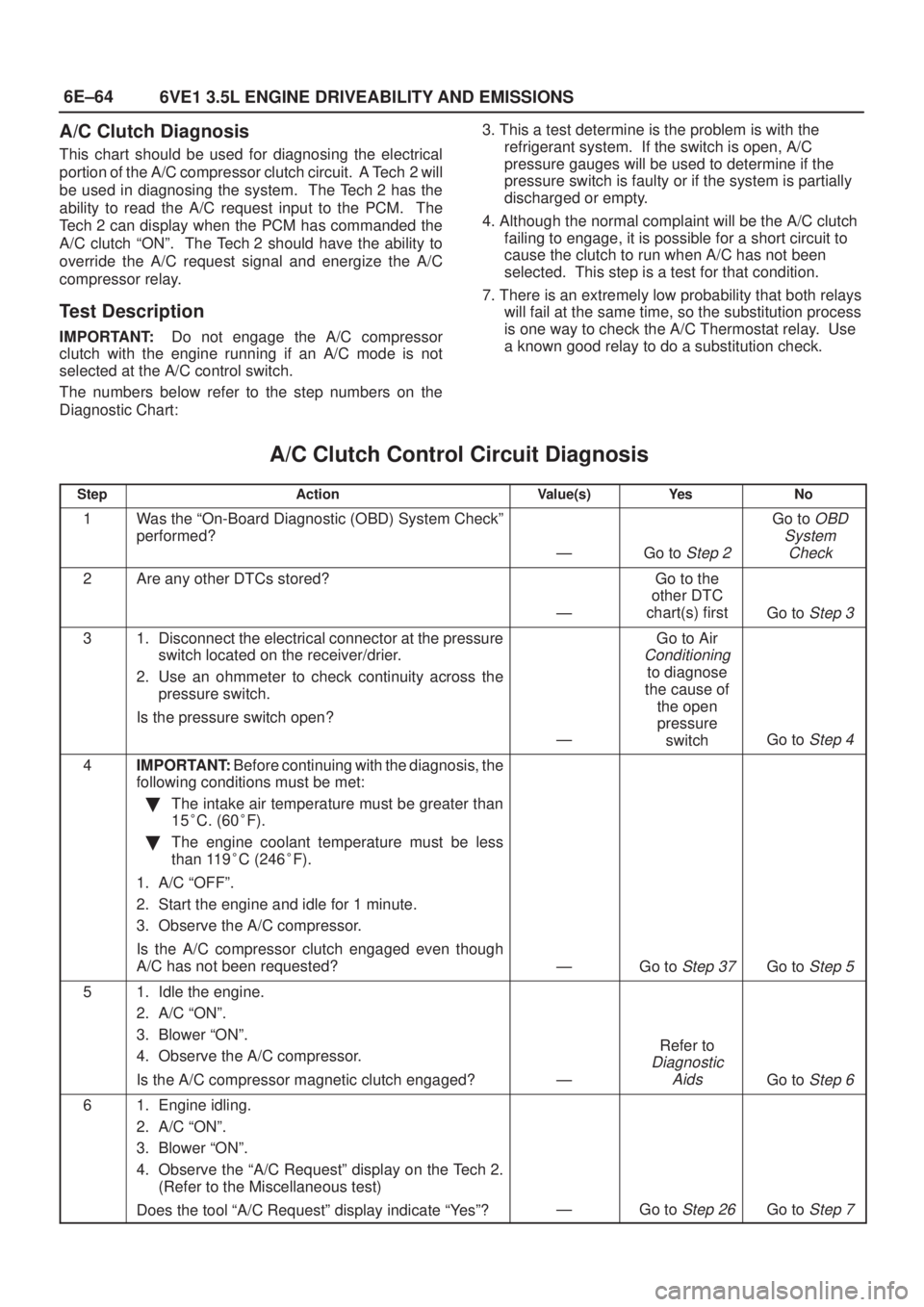

A/C Clutch Diagnosis
This chart should be used for diagnosing the electrical
portion of the A/C compressor clutch circuit. A Tech 2 will
be used in diagnosing the system. The Tech 2 has the
ability to read the A/C request input to the PCM. The
Tech 2 can display when the PCM has commanded the
A/C clutch ªONº. The Tech 2 should have the ability to
override the A/C request signal and energize the A/C
compressor relay.
Test Description
IMPORTANT:Do not engage the A/C compressor
clutch with the engine running if an A/C mode is not
selected at the A/C control switch.
The numbers below refer to the step numbers on the
Diagnostic Chart:3. This a test determine is the problem is with the
refrigerant system. If the switch is open, A/C
pressure gauges will be used to determine if the
pressure switch is faulty or if the system is partially
discharged or empty.
4. Although the normal complaint will be the A/C clutch
failing to engage, it is possible for a short circuit to
cause the clutch to run when A/C has not been
selected. This step is a test for that condition.
7. There is an extremely low probability that both relays
will fail at the same time, so the substitution process
is one way to check the A/C Thermostat relay. Use
a known good relay to do a substitution check.
A/C Clutch Control Circuit Diagnosis

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Are any other DTCs stored?
Ð
Go to the
other DTC
chart(s) first
Go to Step 3
31. Disconnect the electrical connector at the pressure
switch located on the receiver/drier.
2. Use an ohmmeter to check continuity across the
pressure switch.
Is the pressure switch open?
Ð
Go to Air
Conditioning
to diagnose
the cause of
the open
pressure
switch
Go to Step 4
4IMPORTANT:Before continuing with the diagnosis, the
following conditions must be met:

The intake air temperature must be greater than
15
C. (60
F).

The engine coolant temperature must be less
than 119
C (246
F).
1. A/C ªOFFº.
2. Start the engine and idle for 1 minute.
3. Observe the A/C compressor.
Is the A/C compressor clutch engaged even though
A/C has not been requested?
ÐGo to Step 37Go to Step 5
51. Idle the engine.
2. A/C ªONº.
3. Blower ªONº.
4. Observe the A/C compressor.
Is the A/C compressor magnetic clutch engaged?
Ð
Refer to
Diagnostic
Aids
Go to Step 6
61. Engine idling.
2. A/C ªONº.
3. Blower ªONº.
4. Observe the ªA/C Requestº display on the Tech 2.
(Refer to the Miscellaneous test)
Does the tool ªA/C Requestº display indicate ªYesº?
ÐGo to Step 26Go to Step 7

6E±70
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

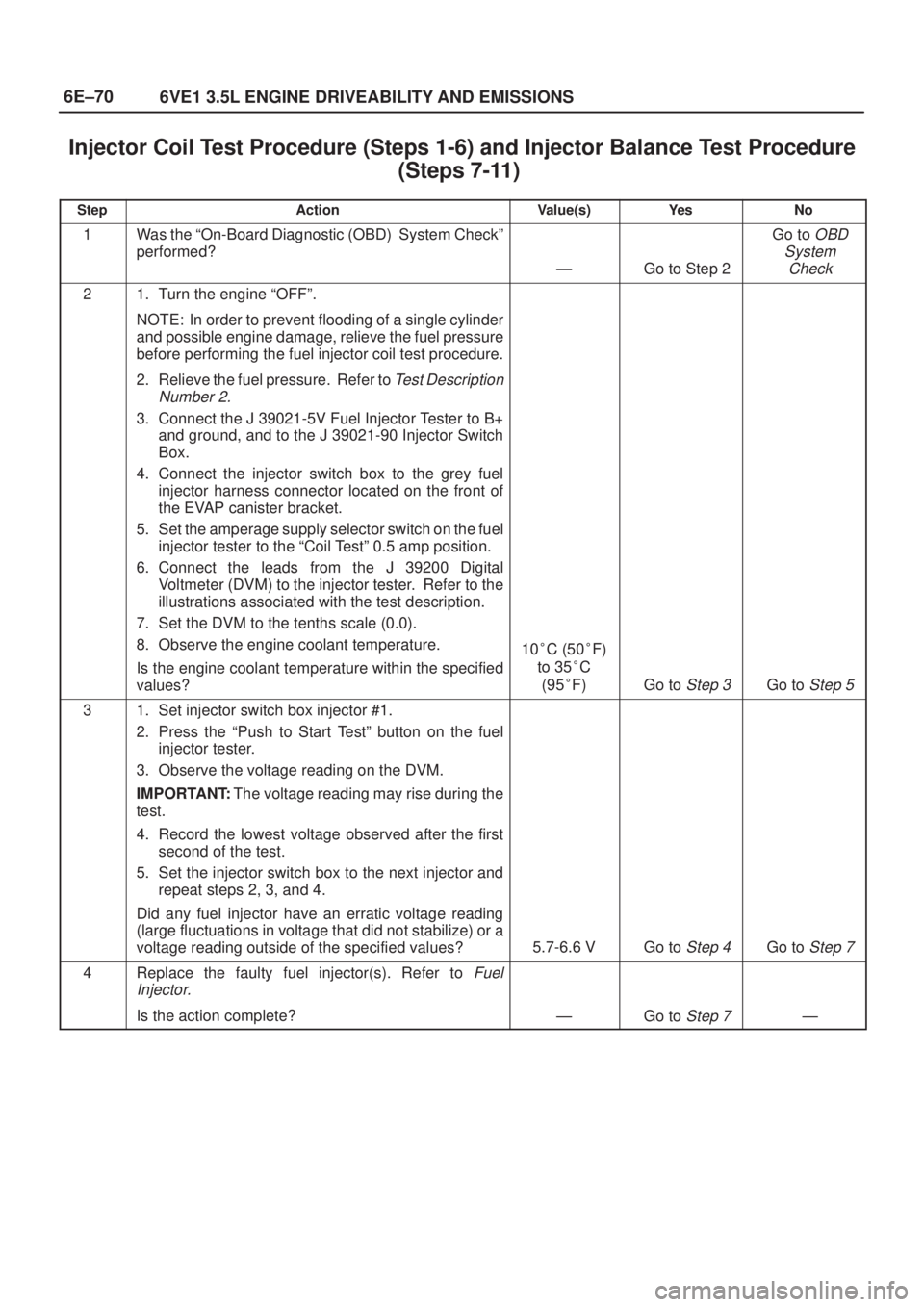

Injector Coil Test Procedure (Steps 1-6) and Injector Balance Test Procedure
(Steps 7-11)

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Turn the engine ªOFFº.
NOTE: In order to prevent flooding of a single cylinder
and possible engine damage, relieve the fuel pressure
before performing the fuel injector coil test procedure.
2. Relieve the fuel pressure. Refer to
Test Description
Number 2.
3. Connect the J 39021-5V Fuel Injector Tester to B+
and ground, and to the J 39021-90 Injector Switch
Box.
4. Connect the injector switch box to the grey fuel
injector harness connector located on the front of
the EVAP canister bracket.
5. Set the amperage supply selector switch on the fuel
injector tester to the ªCoil Testº 0.5 amp position.
6. Connect the leads from the J 39200 Digital
Voltmeter (DVM) to the injector tester. Refer to the
illustrations associated with the test description.
7. Set the DVM to the tenths scale (0.0).
8. Observe the engine coolant temperature.
Is the engine coolant temperature within the specified
values?
10
C (50
F)
to 35
C
(95
F)
Go to Step 3Go to Step 5
31. Set injector switch box injector #1.
2. Press the ªPush to Start Testº button on the fuel
injector tester.
3. Observe the voltage reading on the DVM.
IMPORTANT:The voltage reading may rise during the
test.
4. Record the lowest voltage observed after the first
second of the test.
5. Set the injector switch box to the next injector and
repeat steps 2, 3, and 4.
Did any fuel injector have an erratic voltage reading
(large fluctuations in voltage that did not stabilize) or a
voltage reading outside of the specified values?
5.7-6.6 VGo to Step 4Go to Step 7
4Replace the faulty fuel injector(s). Refer to Fuel
Injector.
Is the action complete?ÐGo to Step 7Ð

6E±72
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

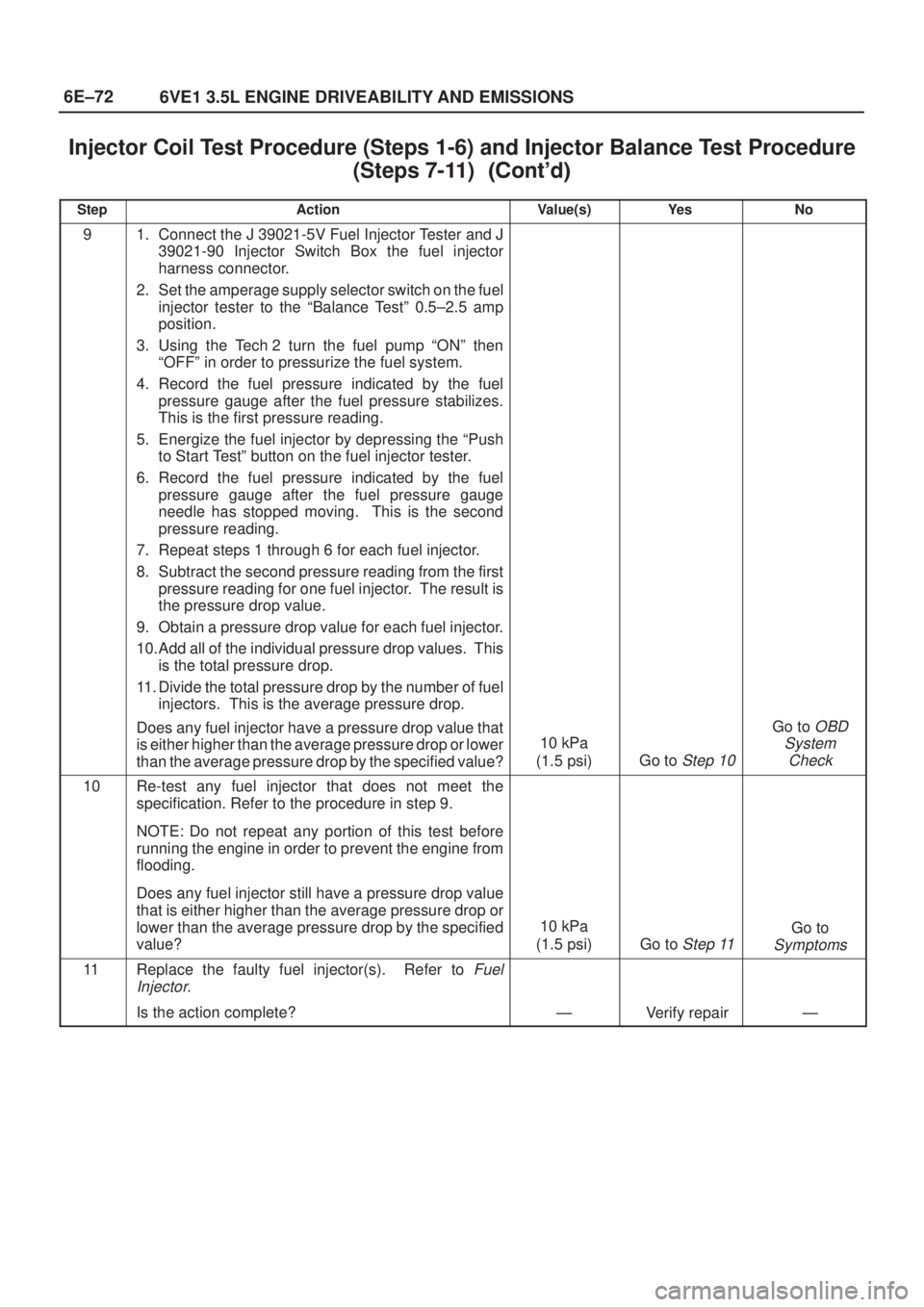

Injector Coil Test Procedure (Steps 1-6) and Injector Balance Test Procedure
(Steps 7-11)


StepNo Ye s Value(s) Action
91. Connect the J 39021-5V Fuel Injector Tester and J
39021-90 Injector Switch Box the fuel injector
harness connector.
2. Set the amperage supply selector switch on the fuel
injector tester to the ªBalance Testº 0.5±2.5 amp
position.
3. Using the Tech 2 turn the fuel pump ªONº then
ªOFFº in order to pressurize the fuel system.
4. Record the fuel pressure indicated by the fuel
pressure gauge after the fuel pressure stabilizes.
This is the first pressure reading.
5. Energize the fuel injector by depressing the ªPush
to Start Testº button on the fuel injector tester.
6. Record the fuel pressure indicated by the fuel
pressure gauge after the fuel pressure gauge
needle has stopped moving. This is the second
pressure reading.
7. Repeat steps 1 through 6 for each fuel injector.
8. Subtract the second pressure reading from the first
pressure reading for one fuel injector. The result is
the pressure drop value.
9. Obtain a pressure drop value for each fuel injector.
10.Add all of the individual pressure drop values. This
is the total pressure drop.
11. Divide the total pressure drop by the number of fuel
injectors. This is the average pressure drop.
Does any fuel injector have a pressure drop value that
is either higher than the average pressure drop or lower
than the average pressure drop by the specified value?
10 kPa
(1.5 psi)
Go to Step 10
Go to OBD
System
Check
10Re-test any fuel injector that does not meet the
specification. Refer to the procedure in step 9.
NOTE: Do not repeat any portion of this test before
running the engine in order to prevent the engine from
flooding.
Does any fuel injector still have a pressure drop value
that is either higher than the average pressure drop or
lower than the average pressure drop by the specified
value?
10 kPa
(1.5 psi)
Go to Step 11
Go to
Symptoms
11Replace the faulty fuel injector(s). Refer to Fuel
Injector.
Is the action complete?ÐVerify repairÐ

6E±88
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Malfunction Indicator Lamp (MIL) ªONº Steady

StepActionValue(s)Ye sNo
1Was the ªOn-Board diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªOFFº, disconnect PCM.
2. Ignition ªONº, observe the MIL (Service Engine
Soon lamp).
Is the MIL ªONº?
ÐGo to Step 3Go to Step 5
31. Ignition ªOFFº, disconnect the instrument panel
cluster.
2. Check the MIL driver circuit between the PCM and
the instrument panel cluster for a short to ground.
3. If a problem is found, repair as necessary.
Was the MIL driver circuit shorted to ground?
Ð
Go to OBD
System
Check
Go to Step 4
4Replace the instrument panel cluster.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
51. Ignition ªOFFº, reconnect the PCM.
2. Ignition ªONº, reprogram the EEPROM. Refer to
On-Vehicle Service in Powertrain Control Module
and Sensors
for procedures.
3. Using the Tech 2 output controls function, select
MIL dash lamp control and command the MIL
ªOFFº. (Refer to the Miscellaneous test)
Did the MIL turn ªOFFº?
Ð
Go to OBD
System
Check
Go to Step 6
6Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
Ð
Go to OBD
System
Check
Ð

6E±95
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

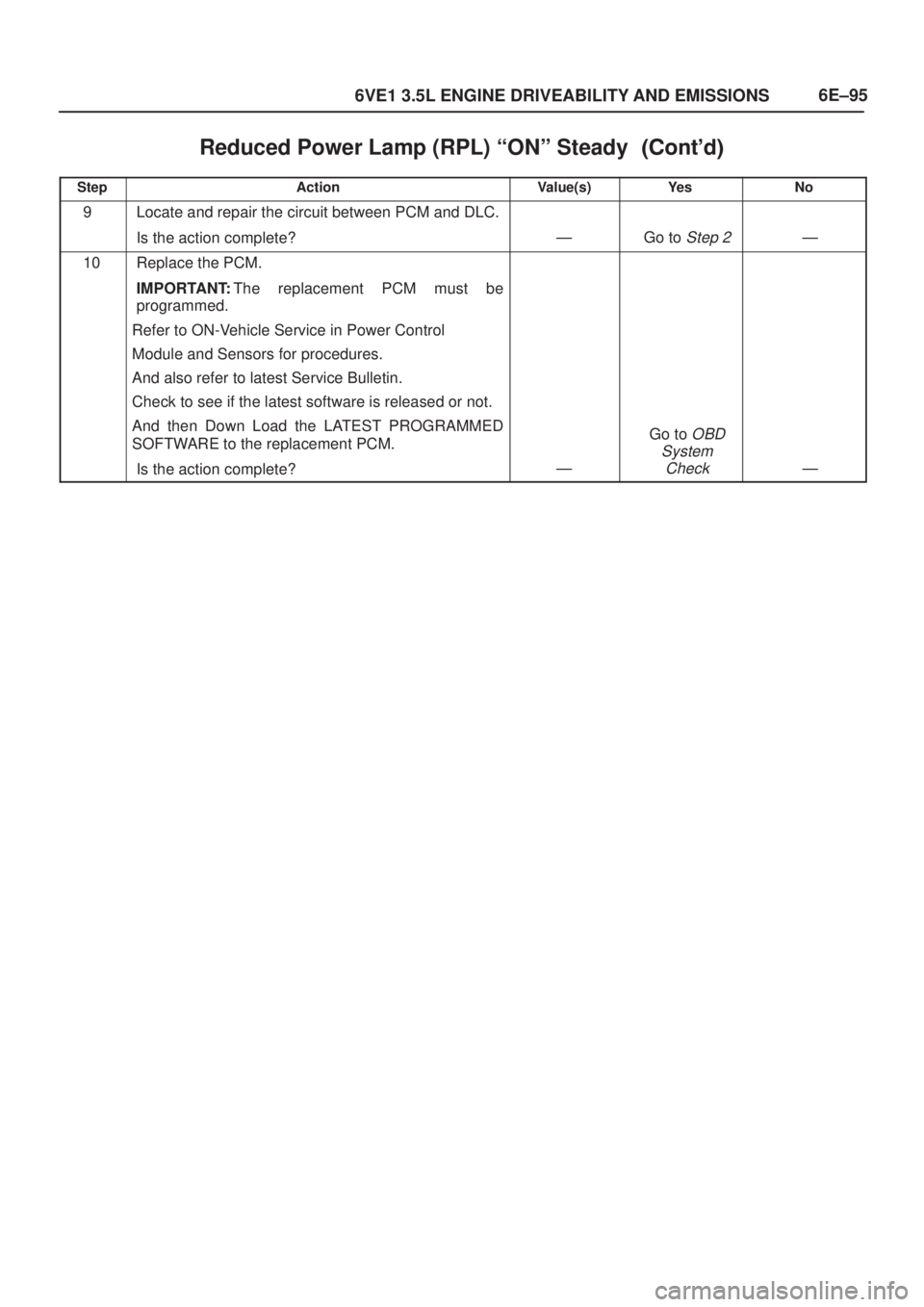

Reduced Power Lamp (RPL) ªONº Steady


StepNo Ye s Value(s) Action
9Locate and repair the circuit between PCM and DLC.
Is the action complete?
ÐGo to Step 2Ð
10Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed.
Refer to ON-Vehicle Service in Power Control
Module and Sensors for procedures.
And also refer to latest Service Bulletin.
Check to see if the latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
Ð
Go to OBD
System
Check
Ð

6E±139
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

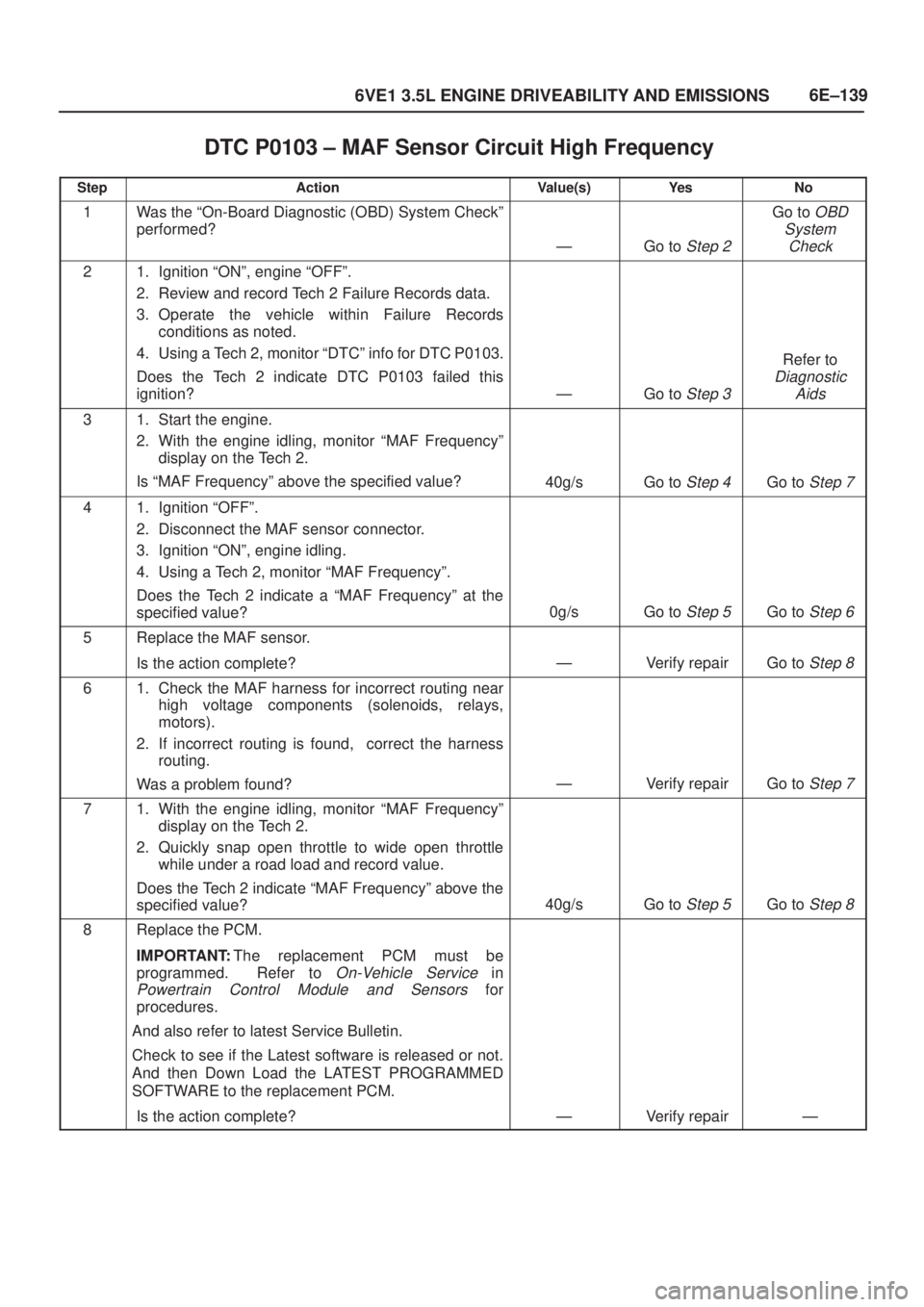

DTC P0103 ± MAF Sensor Circuit High Frequency

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªONº, engine ªOFFº.
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records
conditions as noted.
4. Using a Tech 2, monitor ªDTCº info for DTC P0103.
Does the Tech 2 indicate DTC P0103 failed this
ignition?
ÐGo to Step 3
Refer to
Diagnostic
Aids
31. Start the engine.
2. With the engine idling, monitor ªMAF Frequencyº
display on the Tech 2.
Is ªMAF Frequencyº above the specified value?
40g/sGo to Step 4Go to Step 7
41. Ignition ªOFFº.
2. Disconnect the MAF sensor connector.
3. Ignition ªONº, engine idling.
4. Using a Tech 2, monitor ªMAF Frequencyº.
Does the Tech 2 indicate a ªMAF Frequencyº at the
specified value?
0g/sGo to Step 5Go to Step 6
5Replace the MAF sensor.
Is the action complete?
ÐVerify repairGo to Step 8
61. Check the MAF harness for incorrect routing near
high voltage components (solenoids, relays,
motors).
2. If incorrect routing is found, correct the harness
routing.
Was a problem found?
ÐVerify repairGo to Step 7
71. With the engine idling, monitor ªMAF Frequencyº
display on the Tech 2.
2. Quickly snap open throttle to wide open throttle
while under a road load and record value.
Does the Tech 2 indicate ªMAF Frequencyº above the
specified value?
40g/sGo to Step 5Go to Step 8
8Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±151
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0112±IAT Sensor Circuit Low Voltage

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªONº, engine ªOFFº.
2. Using a Tech 2, monitor the intake air temperature
(IAT).
Is the intake air temperature greater than the specified
value?
148
C
(283
F)
Go to Step 4Go to Step 3
31. Ignition ªONº, engine ªOFFº. Review and record
Tech 2 Failure Records data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using a Tech 2, monitor the ªDTCº info for DTC
P0112.
Does the Tech 2 indicate DTC P0112 failed this
ignition?
Ð
Refer to Test
Description
Refer to
Diagnostic
Aids
41. Ignition ªOFFº.
2. Disconnect the IAT sensor electrical connector.
3. Ignition ªONº.
4. Observe the intake air temperature on the Tech 2.
Is the intake air temperature below the specified value?
±38
C
(±36
F)
Go to Step 6Go to Step 5
51. Ignition ªOFFº.
2. Disconnect the PCM electrical connectors.
3. Check the IAT sensor signal circuit for a short to
ground.
Is the IAT sensor signal circuit shorted to ground?
ÐVerify repairGo to Step 7
6Replace the IAT sensor.
Is the action complete?
ÐVerify repairÐ
7Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ
