CONSUMER INFORMATION 8-1

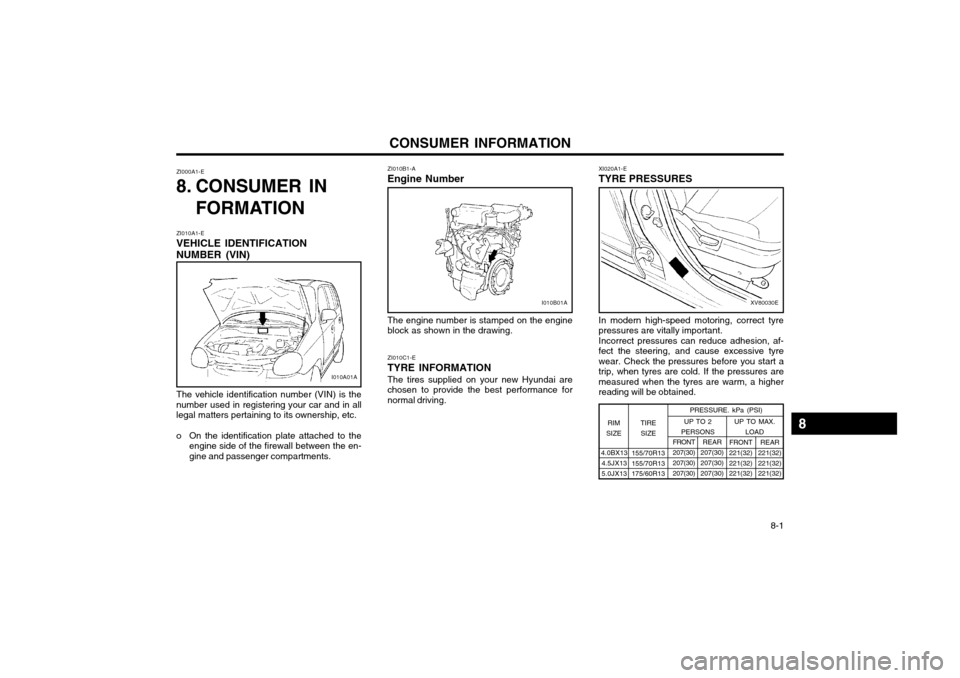

ZI010B1-A Engine Number
ZI010A1-E VEHICLE IDENTIFICATIONNUMBER (VIN)
ZI000A1-E
8. CONSUMER IN
FORMATION
I010A01A
The vehicle identification number (VIN) is the number used in registering your car and in alllegal matters pertaining to its ownership, etc.
o On the identification plate attached to theengine side of the firewall between the en- gine and passenger compartments.
I010B01A
The engine number is stamped on the engine block as shown in the drawing. ZI010C1-E TYRE INFORMATIONThe tires supplied on your new Hyundai are chosen to provide the best performance fornormal driving. XI020A1-E TYRE PRESSURES
XV80030E
In modern high-speed motoring, correct tyre pressures are vitally important.Incorrect pressures can reduce adhesion, af-fect the steering, and cause excessive tyrewear. Check the pressures before you start atrip, when tyres are cold. If the pressures aremeasured when the tyres are warm, a higherreading will be obtained.
8
4.0BX13 4.5JX13 5.0JX13 TIRE
SIZE PRESSURE. kPa (PSI)
155/70R13155/70R13 175/60R13 REAR
207(30) 207(30)207(30) FRONT
221(32)221(32) 221(32)
UP TO 2
PERSONS UP TO MAX.
LOAD
REAR
221(32) 221(32) 221(32)
FRONT 207(30)207(30)207(30)
RIM
SIZE

CONSUMER INFORMATION
8-2
SI040A1-E

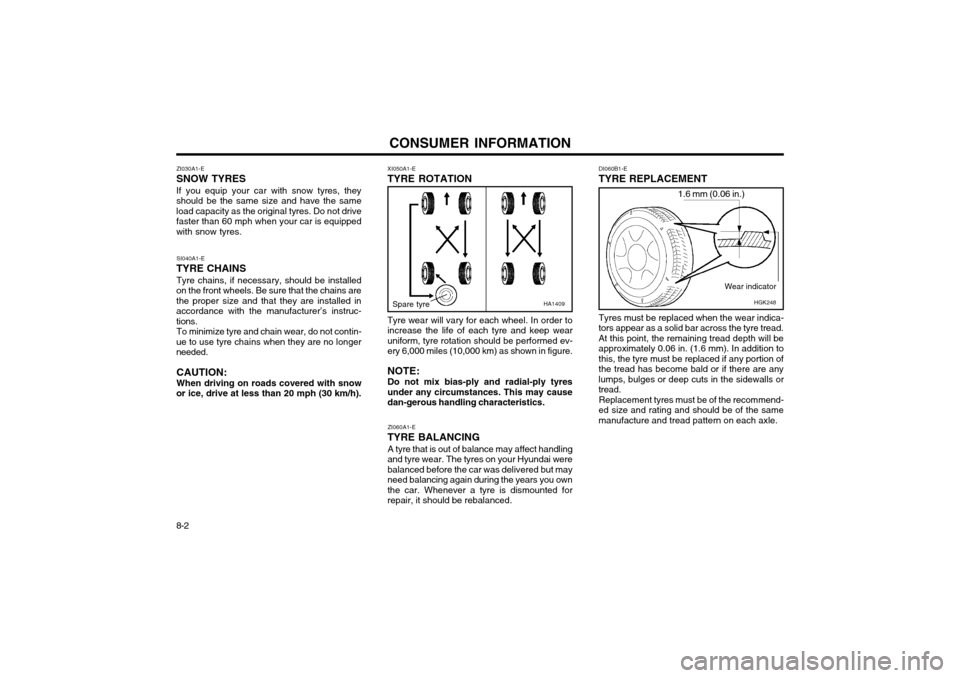

TYRE CHAINS Tyre chains, if necessary, should be installed
on the front wheels. Be sure that the chains are the proper size and that they are installed inaccordance with the manufacturer’s instruc-tions. To minimize tyre and chain wear, do not contin-
ue to use tyre chains when they are no longerneeded.
CAUTION: When driving on roads covered with snow
or ice, drive at less than 20 mph (30 km/h). XI050A1-E TYRE ROTATION Tyre wear will vary for each wheel. In order to increase the life of each tyre and keep wearuniform, tyre rotation should be performed ev-ery 6,000 miles (10,000 km) as shown in figure. NOTE: Do not mix bias-ply and radial-ply tyres under any circumstances. This may causedan-gerous handling characteristics.
ZI060A1-E
TYRE BALANCING A tyre that is out of balance may affect handling
and tyre wear. The tyres on your Hyundai werebalanced before the car was delivered but mayneed balancing again during the years you ownthe car. Whenever a tyre is dismounted forrepair, it should be rebalanced. Wear indicator
DI060B1-E
TYRE REPLACEMENT
Tyres must be replaced when the wear indica-
tors appear as a solid bar across the tyre tread.At this point, the remaining tread depth will beapproximately 0.06 in. (1.6 mm). In addition tothis, the tyre must be replaced if any portion ofthe tread has become bald or if there are anylumps, bulges or deep cuts in the sidewalls ortread. Replacement tyres must be of the recommend-
ed size and rating and should be of the samemanufacture and tread pattern on each axle.
ZI030A1-E SNOW TYRES If you equip your car with snow tyres, they should be the same size and have the sameload capacity as the original tyres. Do not drivefaster than 60 mph when your car is equippedwith snow tyres.
HA1409Spare tyre
1.6 mm (0.06 in.)
HGK248

CONSUMER INFORMATION 8-3

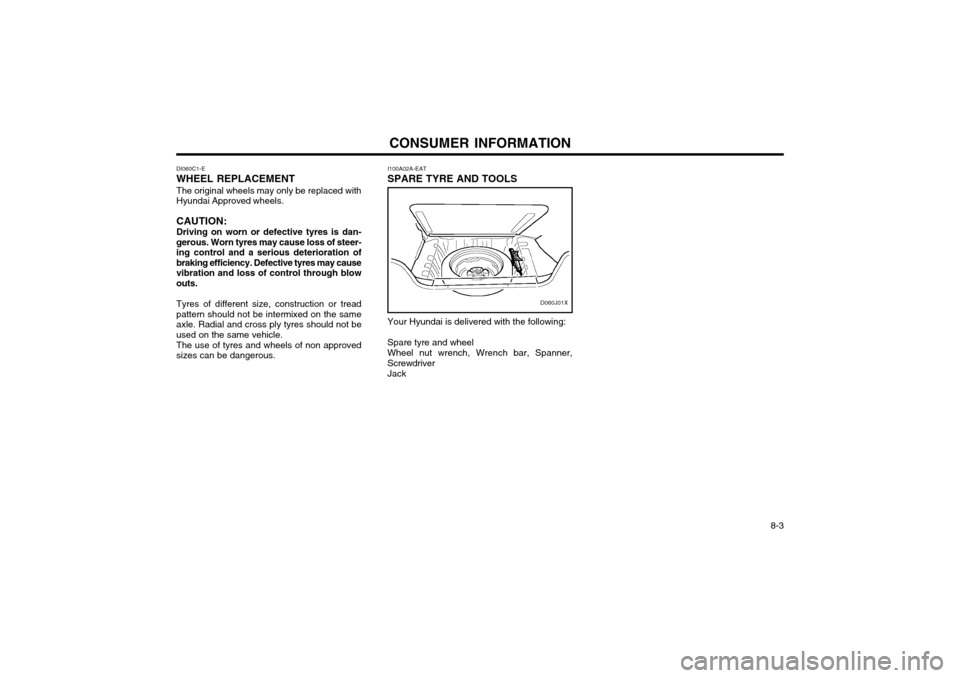

DI060C1-E WHEEL REPLACEMENT The original wheels may only be replaced with Hyundai Approved wheels. CAUTION: Driving on worn or defective tyres is dan- gerous. Worn tyres may cause loss of steer-ing control and a serious deterioration ofbraking efficiency. Defective tyres may causevibration and loss of control through blowouts. Tyres of different size, construction or tread pattern should not be intermixed on the sameaxle. Radial and cross ply tyres should not beused on the same vehicle. The use of tyres and wheels of non approved sizes can be dangerous.
I100A02A-EAT SPARE TYRE AND TOOLS Your Hyundai is delivered with the following: Spare tyre and wheel Wheel nut wrench, Wrench bar, Spanner, Screwdriver Jack
D060J01X

VEHICLE SPECIFICATIONS 9-1
Litres
35 J040A01X-GAT ELECTRICAL
Battery Alternator Starting motor
MF 12V 40AH
13.5V 60A
0.8 KW
J050A02X-GAT BRAKE
Dual hydraulic with brake booster Ventilated disc Drum Cable operated on rear wheel
J060A01X-EAT FUEL SYSTEM
lmp.gal 7.7
J020A01X-EAT POWER STEERING
Type Wheel free play Rack stroke Oil pump type Rack and pinion0 ~ 1.181 in. (0 ~ 30 mm) 5.354 in. (136 mm) Vane type
ZJ000A1-A
9. VEHICLE SPECIFICATIONS J030A02X-EAT TYRE
155/70 R 13 175/60 R 13 Full size spare
Standard Option Spare
J010A02X-EAT MEASUREMENT
137.6 (3495)58.9 (1495) 63.6 (1615) 62.2 (1580) 93.7 (2380) 51.8 (1315) 51.2 (1300)Overall length Overall width Overall height (unladen) Wheel base Wheel tread
in. (mm)
ATOZ AMICA
Front Rear
Fuel tank Capacity Type Front brake type Rear brake type Parking brake
9

VEHICLE SPECIFICATIONS

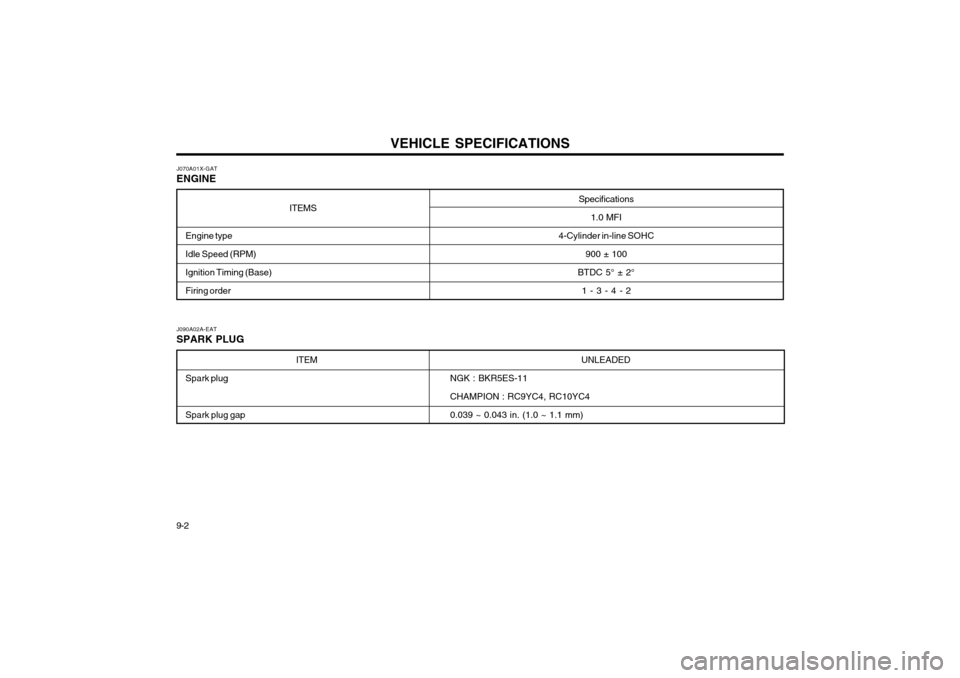

9-2 J070A01X-GAT ENGINE
ITEMS
Engine type Idle Speed (RPM)Ignition Timing (Base)Firing order Specifications
1.0 MFI
4-Cylinder in-line SOHC 900 ± 100
BTDC 5° ± 2°
1 - 3 - 4 - 2
J090A02A-EAT SPARK PLUG
ITEM
Spark plug Spark plug gap UNLEADED
NGK : BKR5ES-11 CHAMPION : RC9YC4, RC10YC40.039 ~ 0.043 in. (1.0 ~ 1.1 mm)

VEHICLE SPECIFICATIONS 9-3
Oil & Coolant Standard
SAE 20W-40, 20W-50 (ABOVE -14°F)
API SG SAE 15W-40, 15W-50 (ABOVE 5°F)
OR SAE 10W-30 (-13°F ~ 104°F)
ABOVE SAE 10W-40, 10W-50 (ABOVE -13°F) SAE 5W-20 *1, *2 (BELOW 14°F)SAE 5W-30 *1 (BELOW 50°F)SAE 5W-40 *1 (BELOW 68°F)
*1. Restricted by driving condition and dealing area
*2. Not recommended for sustained high speed vehicle operation Normal driving conditionSevere driving conditionHYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4)ESSO JWS3314PSF-3 DOT 3, DOT 4 or equivalent Ethylene glycol base for aluminum radiator
Item
Engine Oil Engine oil consumption Transaxle Power steering Brake fluidEngine coolant Q'ty
2.72 lmp.qts (3.26 us-qts, 3.1 litres)
MAX. 1L / 1500 Km
MAX. 1L / 1000 Km
2.15 lmp.qts (2.58 us-qts, 2.45 litres)
4.56 lmp.qts (5.48 us-qts, 5.2 litres)As required As required
3.95 lmp.qts (4.74 us-qts, 4.5 litres)

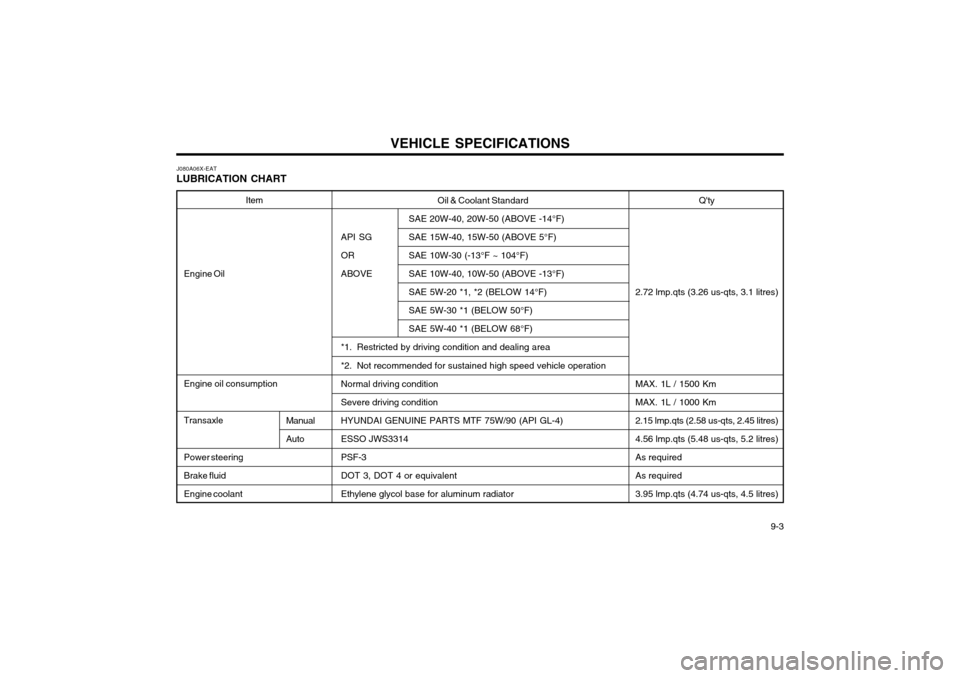

J080A06X-EAT LUBRICATION CHART
