2002 HONDA CIVIC HATCHBACK Owners Manual

The spark plugs in your car should
be replaced according to the time
and distance recommendations in
the maintenance schedule.Loosen the two holding clips by
turning the heads one-quarter turn
counterclockwise with a f lat-tipped
screwdriver. Remove the cover on
the f ront cylinder bank by pulling
it straight up. Disconnect the wire connector
f rom the ignition coil by pushing
on the lock tab and pulling on the
connector. Pull on the plastic
connector, not the wires.
Remove the spark plug with
a f ive-eighths inch (16 mm) spark
plug socket.
Use a wrench to remove the
hexagonsocketheadcapbolt
holding the ignition coil. Remove
the ignition coil by pulling it
straight out.
Clean up any dirt and oil that have
collected around the ignition coils.
1. 2. 3.
4. 5.
Replacement
Spark Plugs (6-cylinder Models)
Maint enance274
HHOOLLDDIINNGGCCLLIIPP
HHEEXXAAGGOONNSSOOCCKKEETTHHEEAADDCCAAPPBBOOLLTT

´ µ
Torque the spark plug. (If you do
not have a torque wrench, tighten
the spark plug two-thirds of a turn
af ter it contacts the cylinder head.)
Tightening torque:
Put the new spark plug into the
socket; then screw it into the hole.
Screw it in by hand so you do not
crossthread it.
Install the ignition coil. Reinstall
the hexagon socket head cap bolt.Push the wire connector onto the
ignition coil. Make sure it locks in
place.
Spark Plug Gap: Reinstall the cover on the front
cylinder bank while putting its
mounting clip in the hole on the
passenger’s side. Secure the cover
by turning the heads of the two
holding clips one-quarter turn
clockwise with a f lat-tipped
screwdriver.
Repeat this procedure f or the
other f ive spark plugs.
NGK:
DENSO:
6. 7.
8.9.
10. 11.
Specif ications:
Spark Plugs (6-cylinder Models)
Maint enance275
13 lbf·ft (18 N·m , 1.8 kgf·m) 0.04 in (1.1 mm)PKJ16CR-L11
PZFR5F-11
0
0.1 mm
Tighten the spark plugs caref ully. A
spark plug that is too loose can
overheat and damage the engine.
Overtightening can cause damage to
the threads in the cylinder head.

µIf you need to connect the battery to
a charger, disconnect both cables to
prevent damage to the car’s
electrical system.
If the terminals are severely cor-
roded, clean them with baking soda
and water. Then use a wrench to
loosen and remove the cables f rom
the terminals. Always disconnect the
negative ( ) cable f irst and recon-
nect it last. Clean the battery termi-
nals with a terminal cleaning tool or
wire brush. Reconnect and tighten
the cables, then coat the terminals
with grease.
Battery posts,
terminals and related accessories
contain lead and lead compounds.
CONT INUED
Battery
Maint enance
WARNING:
Wash hands af ter handling.
277
44--ccyylliinnddeerrmmooddeellss66--ccyylliinnddeerrmmooddeellss

If your car’s battery is disconnected
or goes dead, the audio system will
disableitself.Thenexttimeyouturn
on the radio you will see ‘‘Code’’ in
the f requency display. Use the
Preset buttons to enter the five-digit
code (see page ).183
OnEX,EXV-6,SE,andU.S.Value
Package models
Battery
Maint enance278
The battery gives off explosive
hydrogen gas during normaloperation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the batterymaintenance. Charging the battery with the cables
connected can seriously damage your
car’s electronic controls. Detach the
battery cables bef ore connecting the
battery to a charger.

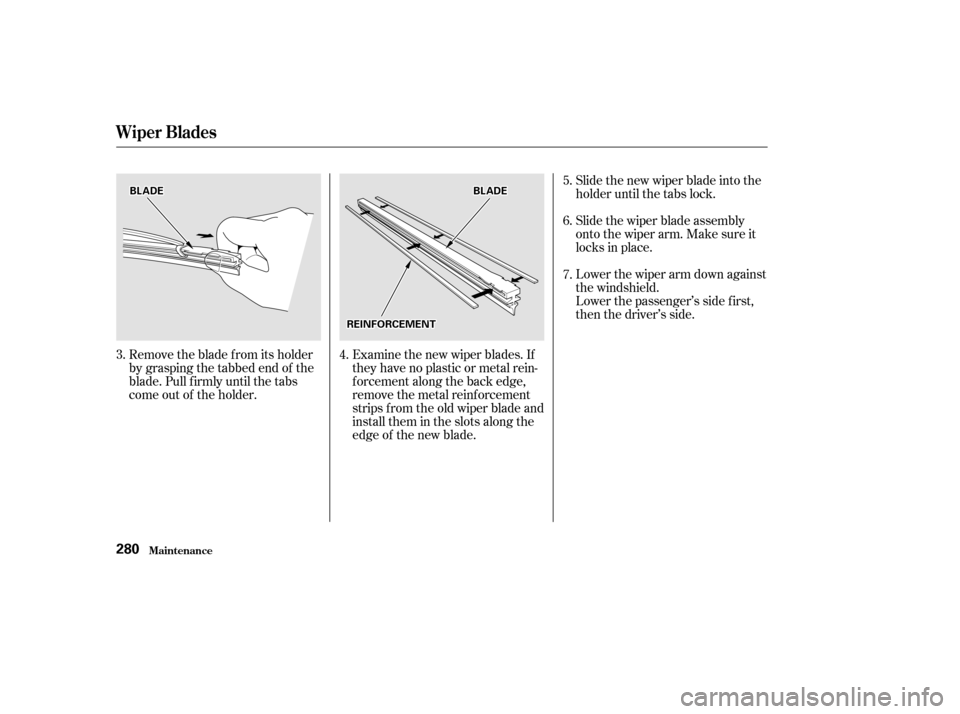

Remove the blade f rom its holder
by grasping the tabbed end of the
blade. Pull f irmly until the tabs
come out of the holder.Examine the new wiper blades. If
they have no plastic or metal rein-
f orcement along the back edge,
remove the metal reinf orcement
strips f rom the old wiper blade and
install them in the slots along the
edge of the new blade.Slide the new wiper blade into the
holder until the tabs lock.
Lower the wiper arm down against
the windshield.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the passenger’s side f irst,
then the driver’s side.
3. 4. 5. 6.
7.
Wiper Blades
Maint enance280
RREEIINNFFOORRCCEEMMEENNTT
BBLLAADDEEBBLLAADDEE

Tubeless tires have some ability to
self -seal if they are punctured.
However, because leakage is of ten
very slow, you should look closely
for punctures if a tire starts losing
pressure.
The following chart shows the
recommended cold tire pressures f or
most normal driving conditions and
speeds. Tire pressures f or high
speed driving are the same as f or
normal driving.
These pressures are also given on
thetireinformationlabelonthe
driver’s doorjamb.
Thecompactsparetirepressureis:
U.S. DX, and Value Package U.S. : LX V-6, EX V-6
Canada : EX V-6, SE V-6
U.S.:LX,EX,andSE
Canada : LX 4-cylinder, SE 4-cylinder and EX-L
Tire Size Cold Tire Pressure for Normal Driving
Tire Size Cold Tire Pressure for Normal Driving Tire Size Cold Tire Pressure
for Normal Driving
Recommended T ire Pressures f or
Normal Driving
Tires
Maint enance285
P195/70R14 90S 29 psi (200 kPa , 2.0 kgf/cm
)
P195/65R15 89H 30 psi (210 kPa , 2.1 kgf/cm
)P205/65R15 92V 30 psi (210 kPa ,
2.1 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)

Check the f ollowing:Headlights (low and high beam)
Parking lights
Taillights
Brake lights
High-mount brake light
Turn signals
Back-up lights
Hazard light f unction
License plate light
Side marker lights
Daytime running lights
(Canadian models)
If you f ind any bulbs are burned out,
replace them as soon as possible.
Refer to the chart on page to
determine what type of replacement
bulb is needed. 343
Lights
Maint enance291
SSTTOOPP//TTAAIILLLLIIGGHHTTTTUURRNNSSIIGGNNAALLLLIIGGHHTT
HHIIGGHH--MMOOUUNNTTBBRRAAKKEELLIIGGHHTT
TTAAIILLLLIIGGHHTT
BBAACCKK--UUPPLLIIGGHHTT

Testthelightstomakesurethe
new bulb is working.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Remove the burned out bulb f rom
thesocketbypushingitinand
turning the bulb counterclockwise
until it unlocks.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left.
Use a f lat-tipped screwdriver to
remove the holding clip f rom the
inner f ender.
Pull the inner f ender cover away
f rom the f ender and bumper.
Put the inner f ender cover in place.
Install the holding clip. Lock it in
place by pushing on the center.
1.
3.
2. 4. 5. 6. 7. 8. 9.
Replacing Front Turn Signal and
Side Marker L ight Bulbs
Lights
Maint enance293
HHOOLLDDIINNGGCCLLIIPP
