2002 CHEVROLET VENTURE Owners Manual

2-29
Lock either sliding door from inside the vehicle by
moving the manual lever down. Unlock it by moving
the lever up.
With power door locks, the sliding door lock has a delay
feature. See ªPower Door Locksº and ªMultifunction
Alarm Locks and Lighting Choicesº in the Index.
Power Sliding Door (Option)
With this option, you can open and close the sliding
door(s) using the switches inside of your vehicle. You
can also operate the power sliding door(s) with your
optional remote keyless entry transmitter. See ªRemote
Keyless Entry Systemº in the Index.
CAUTION:
Leaving young children or pets unattended in
your vehicle can be dangerous. They could
operate the power sliding door. A child or others
could be injured. Do not leave children or pets
unattended in your vehicle.
To help avoid accidental operation of the sliding door(s),
turn the power to the sliding door off by pressing the
part of the power sliding door override switch with the
symbol. If you have the optional dual power sliding
doors, press the part of both power sliding door
switches with the symbol to turn off the power to
both sliding doors.

2-30
If you have the optional
power sliding door,
this switch is located
in the overhead
console switchbank.
These switches are located
in the overhead console
switchbank, if you have
the optional dual power
sliding doors.If you have the optional dual sliding doors, the left
switch is for the driver's side power sliding door and the
right switch is for the passenger's side sliding door. The
power sliding door and the power sliding door override
is one switch.
Pressing the part of the switch(es) with the symbol turns
the power to the sliding door(s) off. When the power
sliding door(s) is off, you will not be able to open the
door(s) in the following ways:

When using the power sliding door switch(es)
located on the overhead console switchbank,

when using the switch in front of the driver's or
passenger's side sliding door, or

when using the optional remote keyless
entry transmitter.
NOTICE:
When your vehicle goes through an automatic
car wash, be sure the power sliding door is
turned off. If it isn't, the power sliding door may
open accidentally.

2-31
To open or close the sliding door(s), press and release
one of the following power door switches.
This switch(es) is located in the overhead
console switchbank.
This switch is located in
front of the driver's or
the passenger's side
sliding door.
The power sliding door override switch(es) will also
stop the door(s) immediately, while the door(s) is
opening or closing, when the override switch(es) is
turned on.
The power sliding door(s) will only open if the transaxle
is in PARK (P). The transaxle does not have to be in
PARK (P) to close the door.
If the power sliding door(s) is open or in the process of
closing when you shift out of PARK (P), a buzzer will
sound. This is a warning that the sliding door(s) is not
completely closed.
If the power to the sliding door(s) is turned off, the
buzzer will not sound indicating the door(s) is not
completely closed.

2-32

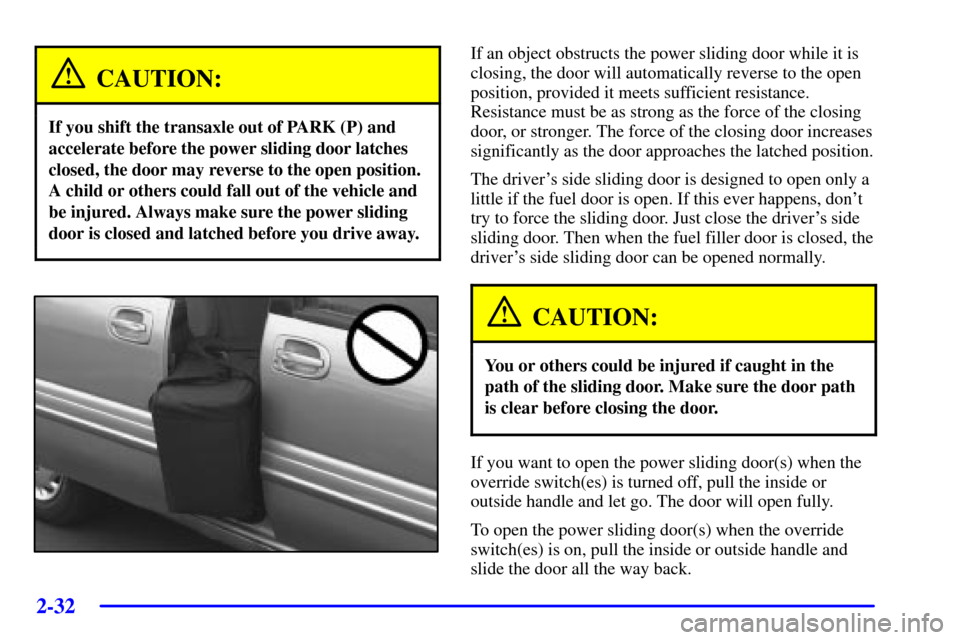

CAUTION:
If you shift the transaxle out of PARK (P) and
accelerate before the power sliding door latches
closed, the door may reverse to the open position.
A child or others could fall out of the vehicle and
be injured. Always make sure the power sliding
door is closed and latched before you drive away.
If an object obstructs the power sliding door while it is
closing, the door will automatically reverse to the open
position, provided it meets sufficient resistance.
Resistance must be as strong as the force of the closing
door, or stronger. The force of the closing door increases
significantly as the door approaches the latched position.
The driver's side sliding door is designed to open only a
little if the fuel door is open. If this ever happens, don't
try to force the sliding door. Just close the driver's side
sliding door. Then when the fuel filler door is closed, the
driver's side sliding door can be opened normally.
CAUTION:
You or others could be injured if caught in the
path of the sliding door. Make sure the door path
is clear before closing the door.
If you want to open the power sliding door(s) when the
override switch(es) is turned off, pull the inside or
outside handle and let go. The door will open fully.
To open the power sliding door(s) when the override
switch(es) is on, pull the inside or outside handle and
slide the door all the way back.

2-33
CAUTION:
If your vehicle is facing downward on a steep
grade (15 percent or more), the door may not
stay open and could slam shut, possibly injuring
someone. To make sure the door does not slam
shut, turn on the power sliding door feature.
Then if the door closes, it will close under the
control of the power door system.
If you want to close the power sliding door(s) when
the override switch(es) is turned off, pull the inside
or outside handle or the edge of the door. Move the
door about 4 inches (10 cm) toward the closed position
and release. The door will close completely and latch
for you.
To close the power sliding door(s) when the override
switch(es) is turned on, pull the inside or outside
handle and slide the door all the way forward to the
latched position.

2-34 Sliding Door Security Lock
Your vehicle is equipped with a sliding door security
lock that helps prevent young children or other
passengers from opening the sliding door(s) using the
inside door handle.
The security lock lever is
located on the inside of each
sliding door, on the front
edge of the door.
To access the lever, open the sliding door. Use the
security lock label on the edge of the door as a guide.To use the security lock, move the security lock lever all
the way up and close the door from the outside.
If your vehicle has the optional power sliding door(s),
you can override the security lock by pressing either
power door switch when the power sliding door override
switch is off. When the override switch(es) is turned on,
the power sliding door(s) cannot be opened from the
inside when the sliding door security lock is in use.
If you want to open the sliding door(s) when the security
lock is on, unlock and open the door from the outside.
You should let adults and older children know how the
security lock works, and how to cancel the lock. If you
don't, adults or older children who ride in the rear won't
be able to open the sliding door from the inside when
the security lock feature is in use.

2-35
Resetting the Power Sliding Door
The power sliding door may operate incorrectly or not at
all because of the following conditions:

A low voltage or dead battery,

disconnecting the battery, or

if the instrument panel PWR/HEATED SEAT PSD
fuse or an underhood fuse 5, 27 or 29 is removed
or blown.
See ªFuses and Circuit Breakersº in the Index for more
information about your fuse panel.
If any of these conditions occur, the power sliding door
will need to be reset. If your vehicle has the optional
dual power sliding doors, both doors will have to be
reset. To do this, follow the directions listed here.
It will be easier if you read through them once before
beginning this procedure.
1. Check to be sure the power sliding door is unlocked
and securely closed.
2. Turn the ignition key to OFF.
3. If on, turn the power sliding door override
switch off.4. Remove fuse 29 from the underhood fuse block.
Leave it out for 30 seconds.
5. Reinstall the fuse and wait 10 seconds.
6. Turn the power sliding door override switch on.
7. Press either of the power door buttons to open the
power sliding door.
8. Open the door.
9. Wait five seconds and close the door by pressing
either power door button.
10. Wait five seconds and repeat Steps 7 through 9.
If the door does not rest in the fully open position after
repeating Step 7, repeat Steps 7 through 9 again. If the
door still does not operate correctly, see your dealer
for service.
Canceling the Sliding Door Security Lock
1. Unlock the sliding door and open the door from
the outside.
2. Move the security lock lever all the way down.
The sliding door lock will now work normally.

2-36
Liftgate
To unlock the liftgate from the outside, turn the key in
the cylinder clockwise or use the optional remote
keyless entry. To lock the liftgate using the key, turn the
key counterclockwise.
Open the liftgate using the handle located above the
license plate. Once slightly opened, the liftgate will rise
by itself. Lamps in the rear of the vehicle will come on,
illuminating the rear cargo area. See ªInterior Lampsº in
the Index.
NOTICE:
Be sure there are no overhead obstructions, such
as a garage door, before you open the liftgate.
You could slam the liftgate into something and
break the glass.
CAUTION:
It can be dangerous to drive with the liftgate
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the liftgate open or if
electrical wiring or other cable connections
must pass through the seal between the body
and the liftgate:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on vent and the outside air button pressed.
That will force outside air into your vehicle.
See ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
