2002 CHEVROLET VENTURE Owners Manual

1-3
To raise the seat, pull up on
the lever located on the
front right side of the seat.
To lower the seat, push the lever down. Adjust the seat
and release the lever.
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.
Manual Front Passenger Seat
To move the seat, pull up
the lever located on the
front of the seat to unlock it.
Slide the seat to where you want it and release the lever.
To make sure the seat is locked into place try to move
the seat back and forth with your body.

1-4 Six-Way Power Seat (Option)
If your vehicle has this
option, the six
-way power
seat control is located
on the outboard side of
the driver's seat.

Move the front of the control up or down to adjust
the front portion of the cushion up or down.

Move the rear of the control up or down to adjust the
rear portion of the cushion up or down.

Lift up or push down on the whole control to move
the entire seat up or down.

To move the whole seat forward or rearward, slide
the control toward the front or rear of the vehicle.
Reclining Front Seatbacks
All front seats recline.
To adjust the seatback, pull up on the lever located on
the outboard sides of both the driver's and the front
passenger's seats. It is easier to recline the seat if you
lean forward, taking your weight off the seatback.

1-5
But don't have a seatback reclined if your vehicle
is moving.

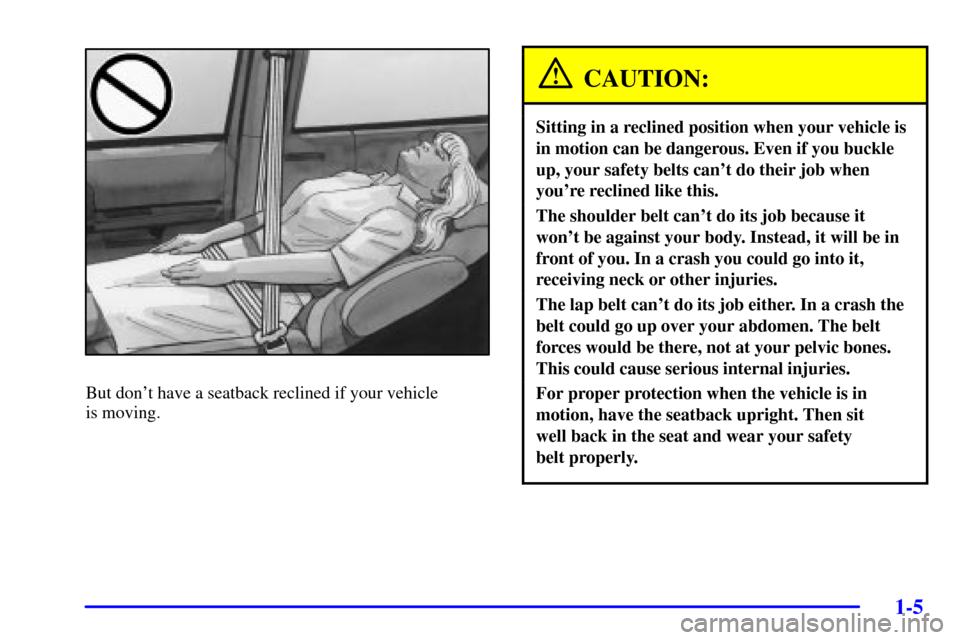

CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be in
front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.

1-6 Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position reduces
the chance of a neck injury in a crash.
Head restraints are fixed on some models and adjustable
on others. To adjust a head restraint, slide it up or down.
Rear Seats
Seat Controls
The rear seats in your vehicle have levers and straps
used to adjust, remove and reinstall the seats. By using
the levers and straps, in the correct order, you can easily
remove the seats from your vehicle.
When you put the seats back in the vehicle, be sure
to follow the label on the back of the seat for
proper location.
Second Row Safety Belt Stowage
If your vehicle has a split bench seat in the second row,
use the clip on the safety belt to secure the belt after it is
disconnected from the mini
-buckle. When removing the
second row split bench seat, secure the loose end of the
safety belt in this clip. This will keep the safety belt
from dangling and possibly striking something.
Do not have the second row outside safety belt stored if
someone is sitting in the second row outside position.

1-7
Flip and Fold Feature
The rear seats in your vehicle can be folded forward.
Use this feature for exiting and entering third row seats.
1. If the seats have the adjustable head restraints, push
them fully down.
2. Fold the seatback flat on the seat, by either pulling
on the nylon strap on the rear of the seat or lifting up
on the lever located on the front of the seatback. If
the seat adjusts forward, slide it all the way back.
3. Release the rear set of hooks from the floor pins by
pulling the nylon strap located at the base of the seat;
hang on to the strap as the seat folds forward.To return the seat(s) to their normal position, do
the following:
1. Push the seat back and firmly push the rear hooks
onto the rear floor pins by pushing down on the rear
of the seat.
2. Try to raise the seat to check that it is locked down.
3. Lift the seatback recliner lever or pull the nylon strap
on the back of the seat and raise the seatback until it
locks upright.
4. Push and pull on the seatback to check that it
is locked.
Split Bench Seats (If Equipped)
If you have the split bench seat (50/50 or 40/60), the
seatbacks can be folded down individually and the
sections can be removed individually. The second row
(40/60) sections can also be adjusted forward or
rearward individually.
The second row (40/60) split bench may be equipped
with a built
-in child restraint. See ªBuilt-In Child
Restraintº in the Index.

1-8
Folding or Reclining the Seatbacks
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
The seatbacks on each section of the split bench seat
can be either folded forward or reclined. The following
explains how to use the nylon strap to fold or recline
the seatbacks.
To fold the seatback
forward, pull this nylon
strap located on the rear of
the seat. The seatback will
lock into place.
To raise a seatback, pull the nylon strap while raising the
seatback until it locks upright. Push and pull on the
seatback to check that it is locked into place.
To recline the seatback, pull the nylon strap. Press back
on the seatback until you reach the desired position then
let go of the nylon strap.
To return the seatback to an upright position, pull on the
nylon strap without putting any pressure on the
seatback. Push and pull on the seatback to be sure it is
locked into place.

1-9
The following explains how to use the recliner lever to
fold or recline the seatbacks.
To fold the seatback
forward, lift up on the
recliner lever located on
the front of the seatback.
The seatback will lock
into place.
To raise a seatback, lift the recliner lever while raising
the seatback until it locks upright. Push and pull on the
seatback to check that it is locked into place.
To recline the seatback, lift the recliner lever. Press back
on the seatback until you reach the desired position then
let go of the recliner lever.
To return the seatback to an upright position, lift the
recliner lever without putting any pressure on the
seatback. Push and pull on the seatback to be sure it is
locked into place.Adjusting the Split Bench Seats (Second Row)
The second row bench seats are adjustable. There are
two adjustment levers on each section of the split bench
seats to adjust the seat forward or rearward.
One is located below the center, in the front of each
section of the split bench.

1-10
The other lever is located on
the rear of the seat.
Lift up either lever and slide the seat forward or
rearward. Release the lever. Push and pull on the seat to
make sure it is locked into place.Removing the Split Bench Seat
Make sure the seatback is in the upright position.
1. For the second row split bench, with the seatback in
the upright position, unhook the side attachment for
the safety belt. This mini
-buckle is located on the
right side of the seat.
2. Push the red center of the
buckle up with a small
pointed object
-- like a
key or a pen
-- to
remove the seat belt,
if needed.
3. Lift the seatback recliner lever or pull the nylon strap
on the back of the seat to fold the seatback forward.
4. Slide the seat all the way back by lifting one of the
adjustment levers and sliding the seat fully rearward.
