2002 CADILLAC DEVILLE display

2-125
Mirror to Curb In Reverse (If Equipped)
This feature will move the passenger's outside rearview
mirror to a curb view position when the shift lever is
placed in REVERSE (R), and it will return the mirror to
the last known driving position when the shift lever is
moved out of REVERSE (R). See ªCurb View Assist
Mirrorº in the Index for more information.
Programmable Modes
Mode 1: ON
Mode 2: OFFBefore your vehicle was shipped from the factory, it was
programmed to Mode 2. The mode to which the vehicle
was programmed may have been changed since it left
the factory. To determine the mode to which the vehicle
is programmed or to program the vehicle to a different
mode, do the following:
1. Enter FEATURE PROGRAMMING following the
instructions listed previously.
2. Press the down arrow on the INFO button until
MIRROR TO CURB IN REV appears on the
DIC display.
3. To turn on the feature, press the ON/OFF button
until ON appears on the DIC display. To turn it off,
press the ON/OFF button until OFF appears on
the display.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.

2-126
Tire Pressure Display (If Equipped)
This feature will allow the individual tire pressure
readings to be displayed when using the INFO button to
scroll through the DIC displays. Even with this feature
programmed to be turned off, a low or high tire pressure
condition will still cause the CHECK TIRE PRESSURE
message to be displayed on the DIC. See ªDriver
Information Center (DIC) Messagesº in the Index for
more information.
Programmable Modes
Mode 1: ON
Mode 2: OFFBefore your vehicle was shipped from the factory, it was
programmed to Mode 1. The mode to which the vehicle
was programmed may have been changed since it left
the factory. To determine the mode to which the vehicle
is programmed or to program the vehicle to a different
mode, do the following:
1. Enter FEATURE PROGRAMMING following the
instructions listed previously.
2. Press the down arrow on the INFO button until TIRE
PRESSURE DISPLAY appears on the DIC display.
3. To turn on the feature, press the ON/OFF button
until ON appears on the DIC display. To turn it off,
press the ON/OFF button until OFF appears on
the display.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.

2-127
Driver's Names Set/Recall (If Equipped)
This feature allows individual driver's names to be
displayed in the DIC when the ignition is turned to ON.
This feature only works when the remote keyless entry
transmitter is used to unlock the vehicle or when
buttons 1 or 2 on the driver's door are pressed. See your
dealer for assistance in programming this feature.
Exiting Feature Programming
To exit FEATURE PROGRAMMING, press the INFO
RESET or INFO button.Comfort Controls and Radio System
Personalization
These features allow both drivers to personalize their
own climate control settings as well as their radio
settings. For more information, see ªClimate Control
Personalizationº and ªRadio Personalizationº in
the Index.
Continuous Variable Road Sensing
Suspension (CVRSS) (If Equipped)
The CVRSS automatically adjusts the ride of your
vehicle. Automatic ride control is achieved through a
computer used to control and monitor the suspension
system. The controller receives input from various
sensors to determine the proper system response. If the
controller detects a problem within the system, the DIC
will display a SERVICE SUSPENSION SYS message.
If this message appears, have your vehicle serviced at
your dealership.

2-128
Oil Life Indicator
This feature lets you know when to change the engine
oil. It's based on the engine oil temperatures and your
driving patterns.To see the display, press the INFO button several times until
ENGINE OIL LIFE appears. If you see 99% ENGINE OIL
LIFE, 99 percent of your current oil life remains.
The DIC may display a CHANGE ENGINE OIL
message. Always keep a written record of the mileage and
date when you changed your oil. For more information,
see ªMaintenance Scheduleº in the Index. If you see
CHANGE ENGINE OIL, it means the oil life is gone and
you should change the oil right away. The system doesn't
check how much oil you have, so you'll still have to check
for that. To see how, see ªEngine Oilº in the Index.
When the oil is changed, you'll need to reset the system.
See ªOil Life Indicator, How to Resetº in the Index.

2-129
Navigation (Option)
Navigation Display Controls
The display screen is located in the center on the
instrument panel. There are ªhardº buttons and a touch
sensitive screen.Your vehicle may be equipped with a turn by turn
navigation guidance system that includes a CD ROM
map media covering nine regional areas throughout the
contiguous United States and Canada. In addition, the
system includes intersection and freeway entrances,
route planning, a programmable address book, points of
interest, a list of restaurants, emergency phone numbers,
and a list of hotels and motels for all of the major cities
on the CD. The navigation system can also
communicate with the radio data system to receive
broadcast announcements on traffic, weather
information and emergency alert communications.
For more information on how to use this system, see
ªNavigationº supplement.

2-131

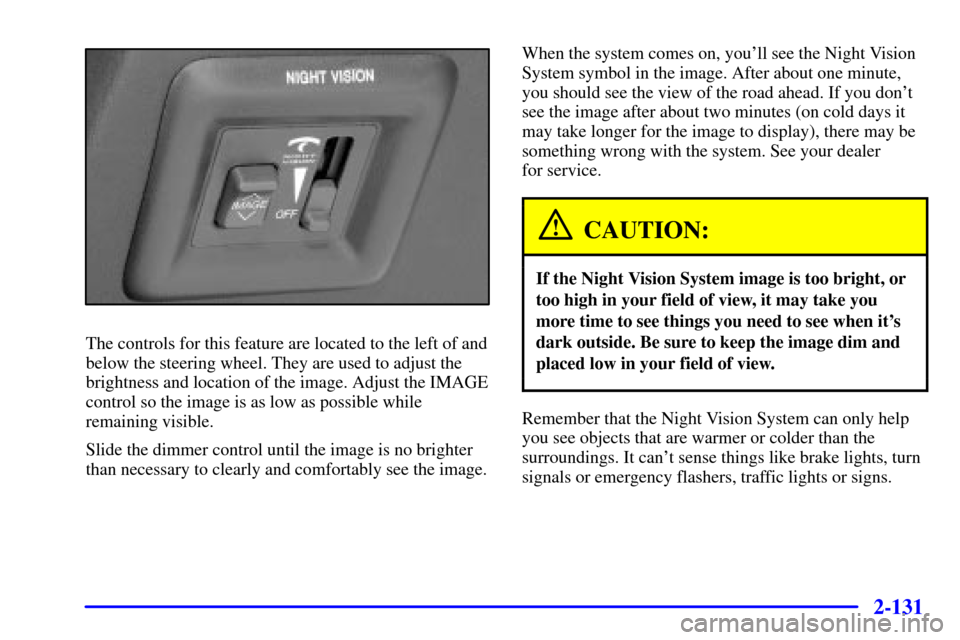

The controls for this feature are located to the left of and
below the steering wheel. They are used to adjust the
brightness and location of the image. Adjust the IMAGE
control so the image is as low as possible while
remaining visible.
Slide the dimmer control until the image is no brighter
than necessary to clearly and comfortably see the image.When the system comes on, you'll see the Night Vision
System symbol in the image. After about one minute,
you should see the view of the road ahead. If you don't
see the image after about two minutes (on cold days it
may take longer for the image to display), there may be
something wrong with the system. See your dealer
for service.
CAUTION:
If the Night Vision System image is too bright, or
too high in your field of view, it may take you
more time to see things you need to see when it's
dark outside. Be sure to keep the image dim and
placed low in your field of view.
Remember that the Night Vision System can only help
you see objects that are warmer or colder than the
surroundings. It can't sense things like brake lights, turn
signals or emergency flashers, traffic lights or signs.

2-132
In dry, clear weather, the system can see pedestrians,
animals and the direction of the road ahead. In light rain,
light snow or light fog the image may not be as clear
and you may not be able to see the direction of the road
ahead. In more severe weather conditions, the image
may be unclear and not usable.

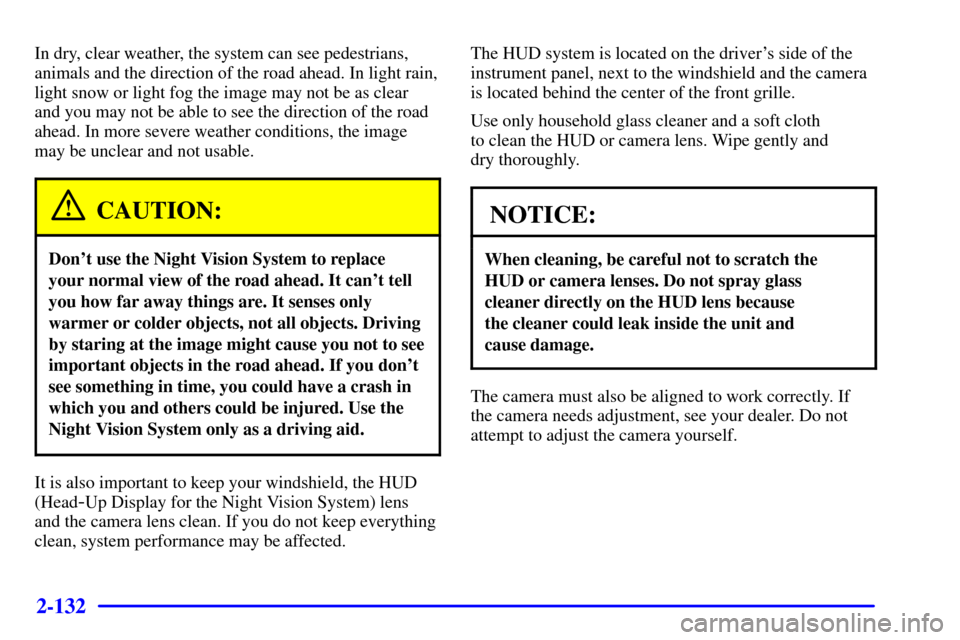

CAUTION:
Don't use the Night Vision System to replace
your normal view of the road ahead. It can't tell
you how far away things are. It senses only
warmer or colder objects, not all objects. Driving
by staring at the image might cause you not to see
important objects in the road ahead. If you don't
see something in time, you could have a crash in
which you and others could be injured. Use the
Night Vision System only as a driving aid.
It is also important to keep your windshield, the HUD
(Head
-Up Display for the Night Vision System) lens
and the camera lens clean. If you do not keep everything
clean, system performance may be affected.The HUD system is located on the driver's side of the
instrument panel, next to the windshield and the camera
is located behind the center of the front grille.
Use only household glass cleaner and a soft cloth
to clean the HUD or camera lens. Wipe gently and
dry thoroughly.
NOTICE:
When cleaning, be careful not to scratch the
HUD or camera lenses. Do not spray glass
cleaner directly on the HUD lens because
the cleaner could leak inside the unit and
cause damage.
The camera must also be aligned to work correctly. If
the camera needs adjustment, see your dealer. Do not
attempt to adjust the camera yourself.

2-133
Ultrasonic Rear Parking Assist
(URPA) (Option)
Ultrasonic Rear Parking Assist can help you to
determine how close an object is to your rear bumper
within a given area, making parking easier.
The URPA display is
located inside the vehicle,
above the rear window. It
has three color
-coded lights
that can be seen through the
rearview mirror or by
turning around.
How the System Works
URPA comes on automatically when the shift lever is
moved into REVERSE (R) and the vehicle speed is less
than 3 mph (5 km/h). When the system comes on, the
three lights on the display will illuminate to let you
know that the system is working. URPA senses how
close your vehicle is to an object. The distance is
determined by the four ultrasonic sensors located on the
rear bumper. When you shift into REVERSE (R) and an
object is detected, the following will occur in sequence
depending on the distance from the object:

At 5 feet (1.5 m) a chime will sound and one amber
light will be lit;

at 40 inches (1.0 m) both amber lights will be lit;

at 20 inches (0.5 m) a continuous chime will sound
and all three lights (amber/amber/red) will be lit; and

at 1 foot (0.3 m) a continuous chime will sound and
all three lights (amber/amber/red) will flash.
