2002 BUICK RANDEZVOUS keyless entry

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-9 Remote Keyless Entry System (Option)
2
-14 Vehicle Customization
2
-21 Liftgate
2
-22 Theft
2
-23 Content Theft-Deterrent (Option)
2
-25 PASS-Key III
2
-28 New Vehicle ªBreak-Inº
2
-28 Ignition Positions
2
-30 Starting Your Engine
2
-31 Engine Coolant Heater (If Equipped)
2
-32 Automatic Transaxle Operation
2
-37 Parking Brake
2
-38 Shifting Into PARK (P)
2
-40 Shifting Out of PARK (P)
2
-41 Parking Over Things That Burn
2
-41 Engine Exhaust2
-42 Running Your Engine While You're Parked
2
-43 Turn Signal/Multifunction Lever
2
-50 Exterior Lamps
2
-52 Interior Lamps
2
-59 Storage Compartments
2
-70 Accessory Inflator System (Option)
2
-71 Accessory Power Outlets
2
-72 OnStar System (Option)
2
-77 HomeLink Transmitter (Option)
2
-80 The Instrument Panel -- Your
Information System
2
-85 Warning Lights, Gages, Messages
and Indicators
2
-95 Message Center
2
-105 Driver Information Center (DIC)
(If Equipped)
2
-122 Head-Up Display (Option)
2
-125 Rear Parking Assist (Option)

2-6

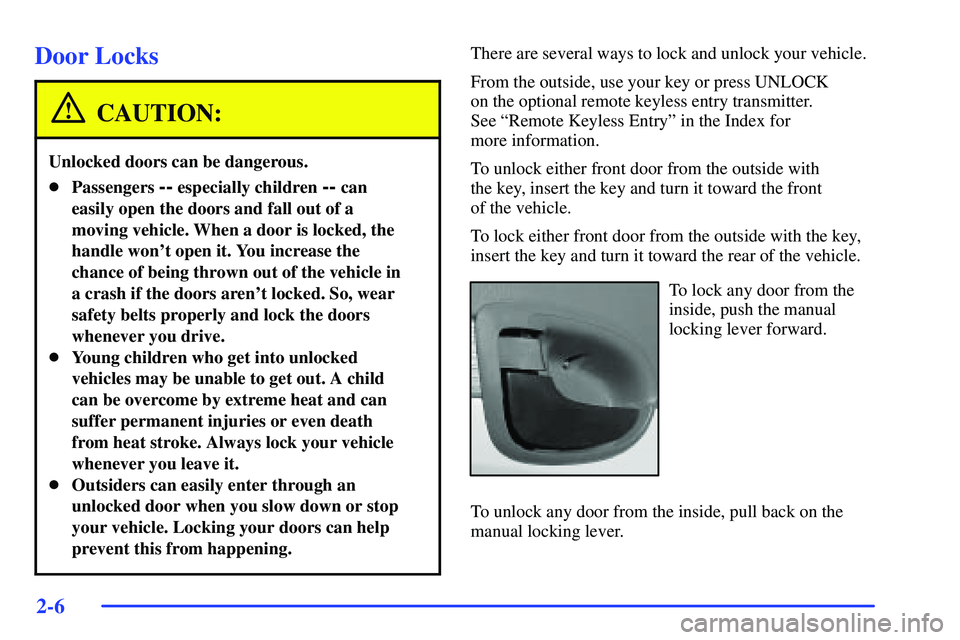

Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use your key or press UNLOCK
on the optional remote keyless entry transmitter.
See ªRemote Keyless Entryº in the Index for
more information.
To unlock either front door from the outside with
the key, insert the key and turn it toward the front
of the vehicle.
To lock either front door from the outside with the key,
insert the key and turn it toward the rear of the vehicle.
To lock any door from the
inside, push the manual
locking lever forward.
To unlock any door from the inside, pull back on the
manual locking lever.

2-7 Power Door Locks
The power door lock switch
is located on the driver's
and front passenger's doors
next to the door handle.
Press the front of the switch to lock all doors, or press
the back of the switch to unlock all doors.
The rear doors do not have power door lock switches.
Instead, each rear door has a manual lever that works
only that door's lock.
If your vehicle has the optional content theft
-deterrent
system, the power door lock switch may cause the
system to arm. See ªContent Theft
-Deterrent Systemº
in the Index for more information.
Delayed Locking
With the delayed locking feature, the doors will not
lock immediately when locking the doors using the
power door lock switch or when LOCK on the optional
remote keyless entry transmitter is pressed while any
door is open. Instead, three chimes will be heard to
indicate that the delayed locking feature is in operation.
Five seconds, after all doors are closed, the doors will
then lock automatically.
If the ignition is in ON or ACCESSORY, this feature
will not lock the doors.
To program the delayed locking feature, see ªVehicle
Customizationº in the Index. If your vehicle is equipped
with the Driver Information Center (DIC), see ªDriver
Information Centerº in the Index.

2-8
Automatic Door Lock/Unlock
All of the doors will automatically lock when all
doors are closed, the engine is running and the shift
lever is shifted out of PARK (P). All of the doors will
automatically unlock when the shift lever is shifted
into PARK (P).
With the automatic door lock feature, you can still
lock or unlock the doors at any time, either manually,
with the power door lock switches or by pressing
LOCK on the optional remote keyless entry transmitter.
See ªRemote Keyless Entryº in the Index for
more information.
To program the automatic door lock feature, see
ªVehicle Customizationº in the Index. If your vehicle
is equipped with the Driver Information Center (DIC),
see ªDriver Information Centerº in the Index.
Rear Door Child Security Locks
Your vehicle is equipped with rear door security locks
that help prevent passengers from opening the rear doors
on your vehicle from the inside. To use one of these
locks do the following:
1. Open one of the rear doors.
2. On the inside of the rear
door will be a lock. Push
the lever up to engage
the safety lock.
3. Close the door.
4. Repeat Steps 1 through 3 for the other rear door lock.
The rear doors on your vehicle cannot be opened from
inside the vehicle when this feature is in use. If you
want to open the rear door when the security lock is on,
unlock the door from the inside and then open the door
from the outside.

2-9

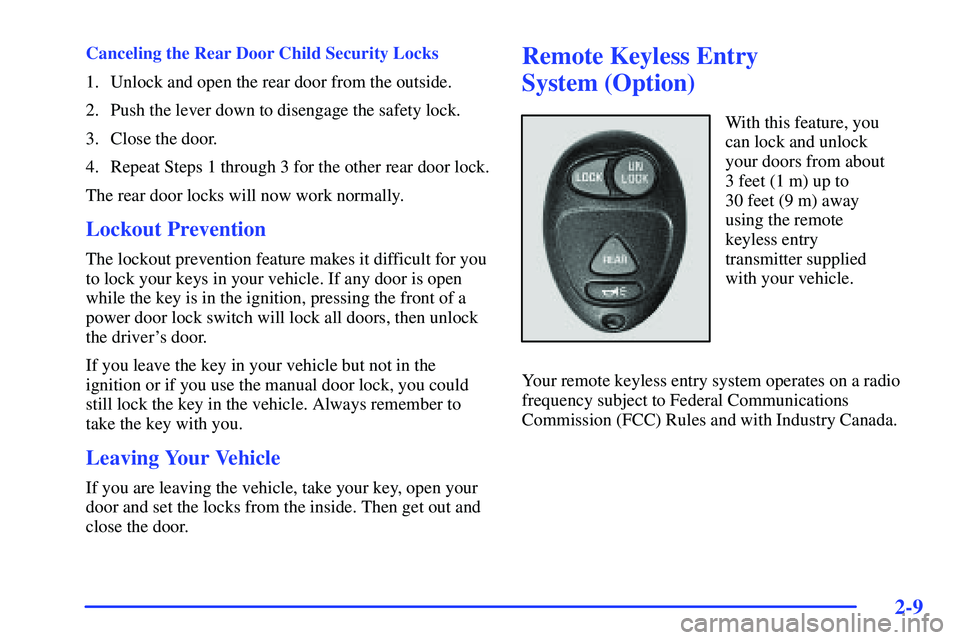

Canceling the Rear Door Child Security Locks
1. Unlock and open the rear door from the outside.
2. Push the lever down to disengage the safety lock.
3. Close the door.
4. Repeat Steps 1 through 3 for the other rear door lock.
The rear door locks will now work normally.
Lockout Prevention
The lockout prevention feature makes it difficult for you
to lock your keys in your vehicle. If any door is open
while the key is in the ignition, pressing the front of a
power door lock switch will lock all doors, then unlock
the driver's door.
If you leave the key in your vehicle but not in the
ignition or if you use the manual door lock, you could
still lock the key in the vehicle. Always remember to
take the key with you.
Leaving Your Vehicle
If you are leaving the vehicle, take your key, open your
door and set the locks from the inside. Then get out and
close the door.
Remote Keyless Entry
System (Option)
With this feature, you
can lock and unlock
your doors from about
3 feet (1 m) up to
30 feet (9 m) away
using the remote
keyless entry
transmitter supplied
with your vehicle.
Your remote keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.

2-10
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization
to use this equipment.At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the left
or right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-11 Operation
Remote Driver Door Unlock
When you press UNLOCK on the remote keyless entry
transmitter, only the driver's door will unlock. If you
press UNLOCK again within five seconds, the
passenger's doors will unlock.
If you would like all the doors to unlock the first time you
press UNLOCK, see ªVehicle Customizationº in the Index.
The UNLOCK button on the remote keyless entry transmitter
will disarm the optional content theft
-deterrent system. See
ªContent Theft
-Deterrentº in the Index for more information.
Remote All Door Lock
To lock all doors, press LOCK on the remote keyless
entry transmitter.
The LOCK button on the remote keyless entry
transmitter will arm the optional content theft
-deterrent
system. See ªContent Theft
-Deterrentº in the Index for
more information.
Remote Liftgate Unlock
To unlock the liftgate, press REAR on the remote
keyless entry transmitter. See ªLiftgateº in the Index for
more information.Remote Lock Confirmation
When you use the remote keyless entry transmitter to
lock your vehicle, the headlamps and parking lamps will
flash briefly to let you know the command has been
received. If you press the LOCK button again, within
five seconds, the horn will sound briefly to let you know
the vehicle is already locked.
If you would like to change the way the headlamps,
parking lamps and horn operate with remote lock
confirmation, see ªVehicle Customizationº in the Index.
If your vehicle is equipped with the Driver Information
Center (DIC), see ªDriver Information Centerº in
the Index.
Remote Unlock Confirmation
When you use your remote keyless entry transmitter to
unlock your vehicle, the headlamps and parking lamps
will flash briefly during the day or the perimeter lighting
will flash briefly at night to let you know the command
was received.
If you would like to change the way the headlamps and
parking lamps operate with remote unlock confirmation,
see ªVehicle Customizationº in the Index. If your
vehicle is equipped with the Driver Information Center
(DIC), see ªDriver Information Centerº in the Index.

2-12
Remote Alarm
When you press the button with the horn symbol on
the remote keyless entry transmitter, the headlamps and
the parking lamps will flash and the horn will sound.
This will allow you to attract attention, if needed.
Press the horn symbol button again to stop the
alarm from sounding or the alarm will turn off
after 90 seconds.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have a maximum of four
transmitters matched to it.
See your dealer to match transmitters to another vehicle.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about three years.
United States Canada
You can tell the battery is weak if the KEY FOB
BATTERY LOW message appears in the message
center. If you get this message, the battery in the key fob
needs to be replaced.
