2001 YAMAHA MAJESTY 250 turn signal

6-36
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
1
3.Remove the socket (together
with the turn signal light bulb) by
turning it counterclockwise.
4.Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
5.Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6.Install the socket (together with
the bulb) by turning it clockwise.
7.Install the panel.1.Socket
EAU03618
Replacing a rear turn signal
light bulb1.Place the scooter on the center-
stand.
2.Remove cowling C. (See page
6-10 for cowling removal and
installation procedures.)
1
1.Socket3.Remove the socket (together
with the bulb) by turning it coun-
terclockwise.
4.Remove the defective bulb by
pulling it out.
5.Insert a new bulb into the socket.
6.Install the socket (together with
the bulb) by turning it clockwise.
7.Install the cowling.
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 79

Wheels
Front
TypeCast wheel
Size12 ´MT2.75
Rear
TypeCast wheel
Size12 ´MT3.50
Brakes
Front
TypeSingle disc brake
OperationRight hand
FluidDOT 4
Rear
TypeSingle disc brake
OperationLeft hand
FluidDOT 4
Suspension
FrontTelescopic fork
RearUnit swingSpring/shock absorbers
FrontCoil spring/oil damper
RearCoil spring/oil damper
Wheel travel
Front100 mm
Rear90 mm
Electrical
Ignition systemTransistorized coil ignition
(digital)
Charging system
TypeA.C. magneto
Standard output14 V, 19.5 A @ 5,000 r/min
Battery
TypeGT7B-4
Voltage, capacity12 V, 6.5 AH
Headlight bulb typeHalogen bulb
Bulb voltage, wattage ´quantity
Headlight12 V, 60/55 W ´1
12 V, 55 W ´1
Tail/brake light12 V, 5/21 W ´2
Front turn signal light12 V, 21 W ´2
Rear turn signal light12 V, 16 W ´2
SPECIFICATIONS
1
2
3
4
5
6
78
9
8-3
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 94

8-4
SPECIFICATIONS
1
2
3
4
5
6
78
9
Auxiliary light12 V, 5 W ´1
License plate light12 V, 5 W ´1
Meter lighting12 V, 1.7 W ´3
High beam indicator light12 V, 1.7 W ´1
Turn indicator light12 V, 3.4 W ´2
Oil change indicator light12 V, 1.7 W ´1
Fuses
Main fuse30 A
Headlight fuse15 A
Signaling system fuse15 A
Ignition fuse7.5 A
Radiator fan fuse4 A
Clock fuse (back up)10 A
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 95

INDEX
F
Final gear oil..........................................6-17
Front and rear brake lever free play,
adjusting.............................................6-25
Front and rear brake pads, checking.....6-26
Front fork, checking...............................6-29
Fuel.......................................................3-10
Fuel consumption, tips for reducing........5-4
Fuel gauge..............................................3-4
Fuel tank cap...........................................3-9
Fuses, replacing....................................6-33
H
Handlebar switches.................................3-5
Pass switch.........................................3-5
Dimmer switch....................................3-5
Turn signal switch...............................3-6
Horn switch.........................................3-6
Light switch.........................................3-6
Headlight variations............................3-7
Engine stop switch..............................3-8
Start switch.........................................3-8
Headlight bulb, replacing.......................6-34
I
Identification numbers.............................9-1
Ignition circuit cut-off system.................3-15
Indicator lights.........................................3-2
Oil change indicator light....................3-2
High beam indicator light....................3-2
Turn signal indicator lights..................3-2
K
Key identification number........................9-1
L
License plate light bulb, replacing.........6-37
M
Main switch/steering lock........................3-1
Model label..............................................9-2
P
Parking....................................................5-5
Part locations...........................................2-1
Periodic maintenance and lubrication
chart......................................................6-3
Pre-operation check list...........................4-1
R
Rider seat..............................................3-11
Rider seat, adjusting..............................3-12
S
Safe-riding points....................................1-2
Self-diagnosis device..............................3-3
Shock absorber assemblies, adjusting..3-14
Sidestand..............................................3-15
Spark plug, checking.............................6-12
Specifications..........................................8-1
Speedometer unit....................................3-3
Starting off...............................................5-2
Starting the engine..................................5-1
Steering, checking.................................6-30
Storage....................................................7-4
A
Acceleration and deceleration.................5-3
Air filter and V-belt case air filter
elements, cleaning..............................6-20
Air flow louver........................................6-22
Anti-theft alarm (optional)........................3-4
B
Battery...................................................6-31
Battery cover, removing........................6-31
Brake fluid level, checking.....................6-27
Brake fluid, changing.............................6-28
Brake lever (front)....................................3-8
Brake lever (rear)....................................3-8
Brake levers, lubricating........................6-28
Braking....................................................5-3
C
Cables, checking and lubricating...........6-28
Care.........................................................7-1
Catalytic converter.................................3-10
Centerstand and sidestand, checking
and lubricating....................................6-29
Clock.......................................................3-5
Conversion table.....................................8-5
Coolant..................................................6-18
Coolant temperature gauge.....................3-4
Cowlings and panel, removing and
installing................................................6-6
E
Engine break-in.......................................5-4
Engine oil...............................................6-14
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 100

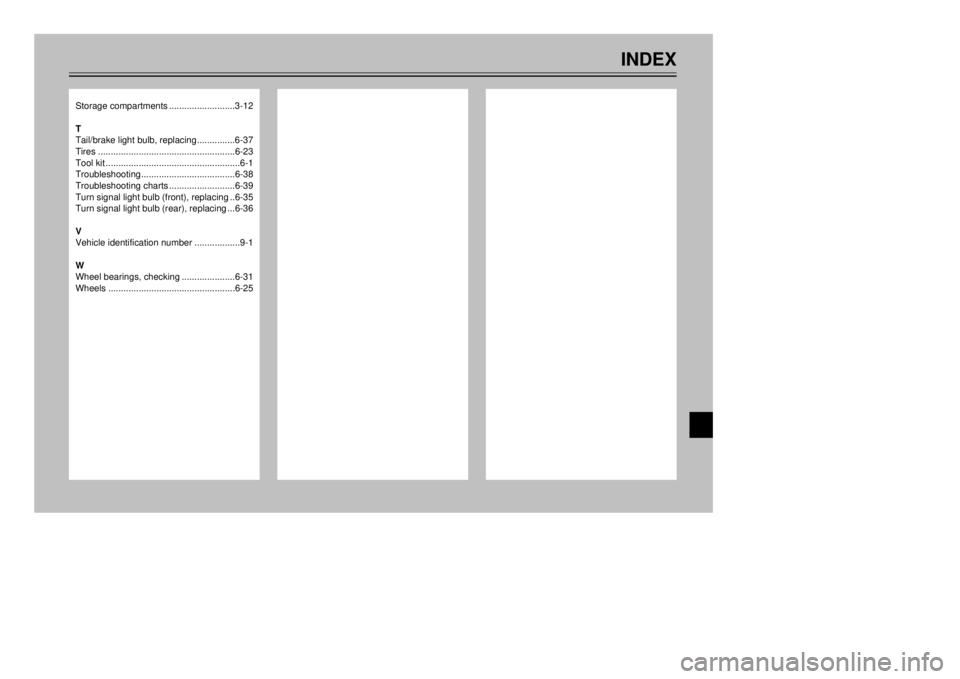

Storage compartments..........................3-12
T
Tail/brake light bulb, replacing...............6-37
Tires......................................................6-23
Tool kit.....................................................6-1
Troubleshooting.....................................6-38
Troubleshooting charts..........................6-39
Turn signal light bulb (front), replacing..6-35
Turn signal light bulb (rear), replacing...6-36
V
Vehicle identification number..................9-1
