2001 NISSAN X-TRAIL sensor

HO2S1 HEATER
EC-1307
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
HO2S1 HEATERPFP:22690
DescriptionEBS00N8I
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the heated oxygen sensor 1 heater corresponding to the engine
speed and engine coolant temperature. The duty percent varies with engine coolant temperature when engine
is started.
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS00N8J
Specification data are reference values.
ECM Terminals and Reference ValueEBS00N8K
Specification data are reference values and are measured between each terminal and body ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)Engine speed
Heated oxygen sensor 1
heater controlHeated oxygen sensor 1 heater
Engine coolant temperature sensorEngine coolant tempera-
ture
Engine speed rpm Heated oxygen sensor 1 heater
Above 3,600 OFF
Below 3,600 ON
MONITOR ITEM CONDITION SPECIFICATION
HO2S1 HTR (B1)
●Engine: After warming up
●Engine speed: Below 3,600 rpmON
●Engine speed: Above 3,600 rpm OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
2P/LHeated oxygen sen-
sor 1 heater[Engine is running]
●Warm-up condition
●Engine speed is below 3,600 rpm.Approximately 7.0V
[Engine is running]
●Engine speed is above 3,600 rpm.BATTERY VOLTAGE
(11 - 14V)
PBIB0519E

HO2S1 HEATER
EC-1309
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00N8M
1.CHECK OVERALL FUNCTION CHECK
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Turn ignition switch “ON”.
4. Set the tester probe between ECM terminals 2 (HO2S1 heater signal) and ground.
5. Start engine and let it idle.
6. Check the voltage under the following conditions.
Verify that the oscilloscope screen shows the signal wave as
shown below.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
OK or NG
OK >>INSPECTION END.
NG >> GO TO 2.
2.CHECK HO2S1 POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect heated oxygen sensor 1 harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between HO2S1 terminal 4 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
Conditions Voltage
At idleApproximately 7.0V
Engine speed is above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
PBIB0673EPBIB0519E
PBIB0500E
Voltage: Battery voltage
PBIB0541E

EC-1310
[QR20(WITHOUT EURO-OBD)]
HO2S1 HEATER
3. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E60, F36
●Fuse block (J/B) connector E103
●10A fuse
●Harness for open or short between heated oxygen sensor 1 and fuse
>> Repair harness or connectors.
4. CHECK HO2S1 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 2 and HO2S1 terminal 1.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK HEATED OXYGEN SENSOR 1 HEATER
Refer to EC-1311, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace heated oxygen sensor 1.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1192, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.

HO2S1 HEATER
EC-1311
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Component InspectionEBS00N8N
HEATED OXYGEN SENSOR 1 HEATER
1. Check resistance between HO2S1 terminals as follows.
2. If NG, replace heated oxygen sensor 1.
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
Removal and InstallationEBS00N8O
HEATED OXYGEN SENSOR 1
Refer to EM-24, "EXHAUST MANIFOLD AND THREE WAY CATALYST" .
Terminal No. Resistance
1 and 4 2.3 - 4.3 Ω at 25°C (77°F)
2 and 3, 4
∞Ω
(Continuity should not exist)
3 and 1, 2, 4
PBIB0542E

EC-1312
[QR20(WITHOUT EURO-OBD)]
HO2S2 HEATER
HO2S2 HEATER
PFP:226A0
DescriptionEBS00N8P
SYSTEM DESCRIPTION
The ECM performs ON/OFF control of the heated oxygen sensor 2 heater corresponding to the engine speed.
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS00N8Q
Specification data are reference values.
ECM Terminals and Reference ValueEBS00N8R
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Engine speedHeated oxygen sensor 2
heater controlHeated oxygen sensor 2 heater
Crankshaft position sensor (POS)
Engine speed rpm Heated oxygen sensor 2 heater
Above 3,800 OFF
Below 3,800 ON
MONITOR ITEM CONDITION SPECIFICATION
HO2S2 HTR (B1)
●Engine speed: Below 3,800 rpm [After driving for 2 minutes at a speed
of 70 km/h (43 MPH) or more]ON
●Engine speed: Above 3,800 rpm OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
4PU/RHeated oxygen sen-
sor 2 heater[Engine is running]
●Engine speed is below 3,800 rpm.
●After driving for 2 minutes at a speed of 70 km/h
(43 MPH) or more.0 - 1.0V
[Ignition switch “ON”]
●Engine stopped
[Engine is running]
●Engine speed is above 3,800 rpm.BATTERY VOLTAGE
(11 - 14V)

EC-1314
[QR20(WITHOUT EURO-OBD)]
HO2S2 HEATER
Diagnostic Procedure
EBS00N8T
1. CHECK OVERALL FUNCTION CHECK
1. Start engine and drive the vehicle at over 70 km/h (43 MPH) for 2 consecutive minutes.
2. Stop vehicle and keep the engine running.
3. Set the voltmeter probe between ECM terminal 4 (HO2S2 heater signal) and ground.
4. Check the voltage under the following conditions.
OK or NG
OK >>INSPECTION END.
NG >> GO TO 2.
2. CHECK HO2S2 POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between HO2S2 terminal 4 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E60, F36
●Fuse block (J/B) connector E103
●10A fuse
●Harness for open or short between heated oxygen sensor 2 and fuse
>> Repair harness or connectors.
Conditions Voltage
At idle 0 - 1V
Engine speed is above
3,800 rpmBattery voltage
PBIB0672E
PBIB0500E
Voltage: Battery voltage
PBIB0541E

HO2S2 HEATER
EC-1315
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.CHECK HO2S2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 4 and HO2S2 terminal 1.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connectors.
5.CHECK HEATED OXYGEN SENSOR 2 HEATER
Refer to EC-1315, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace heated oxygen sensor 2.
6.CHECK INTERMITTENT INCIDENT
Refer to EC-1192, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00N8U
HEATED OXYGEN SENSOR 2 HEATER
1. Check resistance between HO2S2 terminals as follows.
2. If NG, replace heated oxygen sensor 2.
CAUTION:
●Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard sur-
face such as a concrete floor; use a new one.
●Before installing new oxygen sensor, clean exhaust system
threads using Oxygen Sensor Thread Cleaner tool J-43897-
18 or J-43897-12 and approved anti-seize lubricant.
Removal and InstallationEBS00N8V
HEATED OXYGEN SENSOR 2
Refer to EX-2, "EXHAUST SYSTEM" . Continuity should exist.
Terminal No. Resistance
1 and 4 2.3 - 4.3 Ω at 25°C (77°F)
2 and 1, 3, 4
∞Ω
(Continuity should not exist)
3 and 1, 2, 4
PBIB0542E

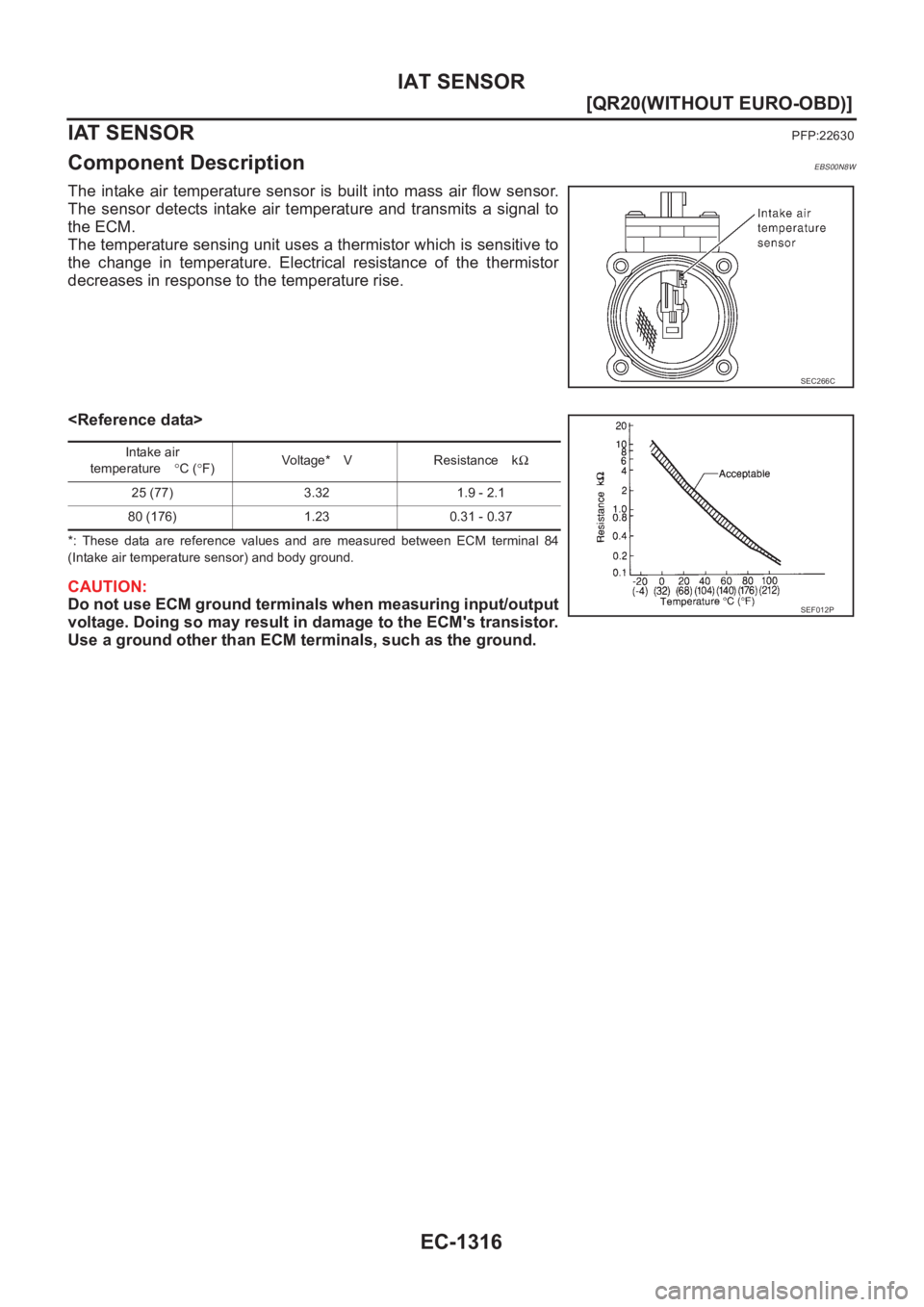

EC-1316
[QR20(WITHOUT EURO-OBD)]
IAT SENSOR
IAT SENSOR
PFP:22630
Component DescriptionEBS00N8W
The intake air temperature sensor is built into mass air flow sensor.
The sensor detects intake air temperature and transmits a signal to
the ECM.
The temperature sensing unit uses a thermistor which is sensitive to
the change in temperature. Electrical resistance of the thermistor
decreases in response to the temperature rise.

*: These data are reference values and are measured between ECM terminal 84
(Intake air temperature sensor) and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.
SEC266C
Intake air
temperature°C (°F)Vo lta g e * V R e s i s ta n c e kΩ
25 (77) 3.32 1.9 - 2.1
80 (176) 1.23 0.31 - 0.37
SEF012P
