2001 NISSAN X-TRAIL check engine

IGNITION SIGNAL
EC-1079
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
8.DETECT MALFUNCTIONING PART
Check the following.
●20A fuse
●Harness or connectors E61, F38
●Harness for open and short between ECM relay and fuse
>> Repair or replace harness or connectors.
9.CHECK ECM RELAY
Refer to EC-853, "
Component Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Replace ECM relay.
10.CHECK CONDENSER CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Check harness continuity between ECM terminal 12 and con-
denser terminal 1, condenser terminal 2 and engine ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
11 . CHECK CONDENSER
Refer to EC-1081, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> Replace condenser.Continuity should exist.
PBIB0509E

EC-1080
[QR20(WITH EURO-OBD)]
IGNITION SIGNAL
12. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect ignition coil harness connector.
4. Turn ignition switch ON.
5. Check voltage between ignition coil terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.
●Harness for open or short between ignition coil and ECM relay
●Harness for open or short between ignition coil and ECM
>> Repair or replace harness or connectors.
14. CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ignition coil terminal 2 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 15.
NG >> Repair open circuit or short to power in harness or connectors.
PBIB0509E
Voltage: Battery voltage
SEF107S
Continuity should exist.

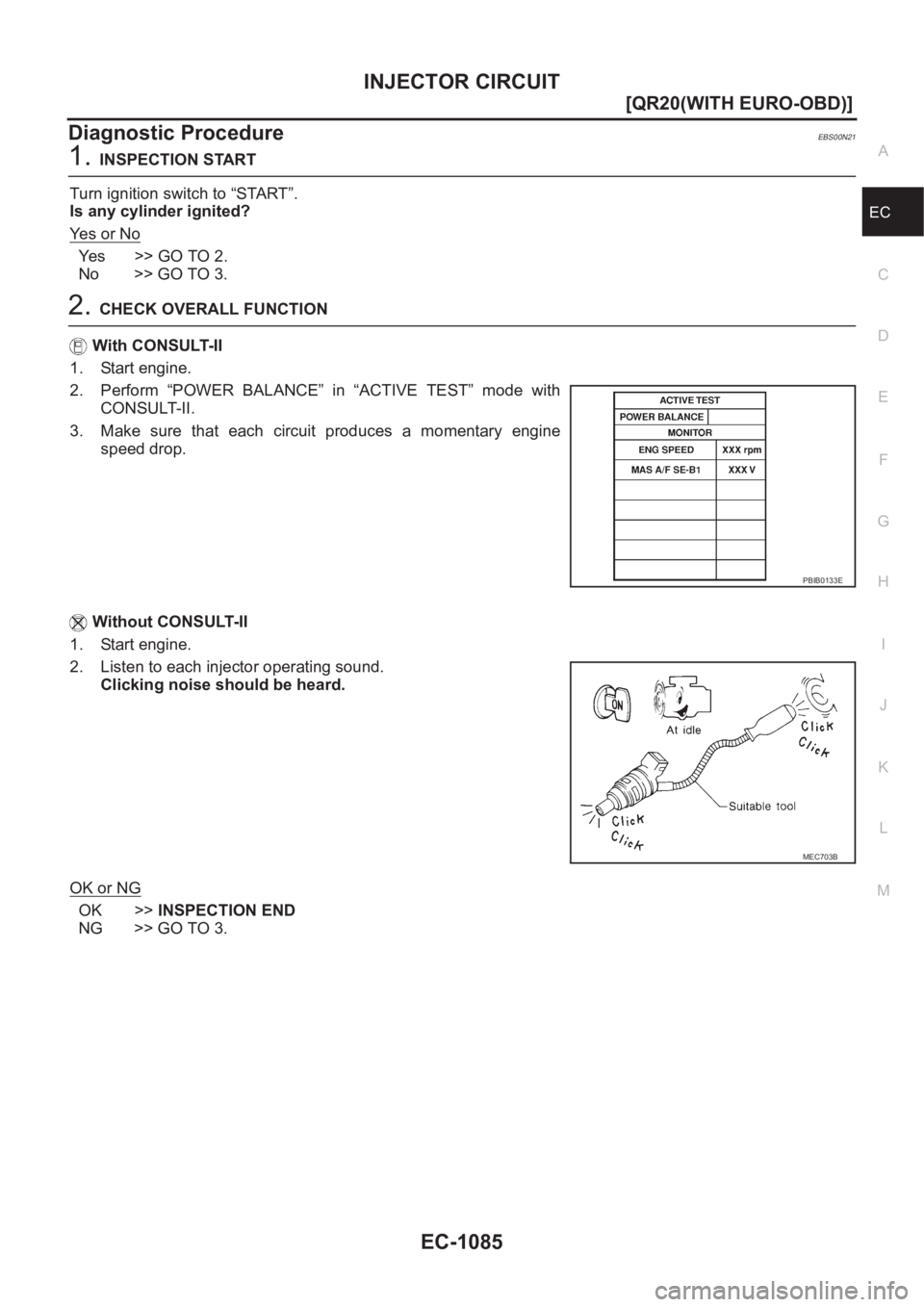

INJECTOR CIRCUIT
EC-1085
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00N21
1.INSPECTION START
Turn ignition switch to “START”.
Is any cylinder ignited?
Ye s o r N o
Ye s > > G O T O 2 .
No >> GO TO 3.
2.CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.
3. Make sure that each circuit produces a momentary engine
speed drop.
Without CONSULT-II
1. Start engine.
2. Listen to each injector operating sound.
Clicking noise should be heard.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
PBIB0133E
MEC703B

REFRIGERANT PRESSURE SENSOR
EC-1101
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00N2I
1.CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower switch “ON”.
3. Check voltage between ECM terminal 83 and ground with CON-
SULT-II or tester.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2.CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn A/C switch and blower switch “OFF”.
2. Stop engine.
3. Disconnect refrigerant pressure sensor harness connector.
4. Turn ignition switch “ON”.
5. Check voltage between refrigerant pressure sensor terminal 3
and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E61, F38
●Harness for open or short between ECM and refrigerant pressure sensor
>> Repair harness or connectors. Voltage: 1.0 - 4.0V
PBIB0659E
PBIB0503E
Voltage: Approximately 5V
SEF479Y

EC-1102
[QR20(WITH EURO-OBD)]
REFRIGERANT PRESSURE SENSOR
4. CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between refrigerant pressure sensor terminal 1 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E61, F38
●Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 83 and refrigerant pressure sensor terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E61, F38
●Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-847, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace refrigerant pressure sensor.
NG >> Repair or replace.
Removal and InstallationEBS00N2J
REFRIGERANT PRESSURE SENSOR
Refer to ATC-129, "REFRIGERANT LINES" . Continuity should exist.
Continuity should exist.

ELECTRICAL LOAD SIGNAL
EC-1107
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
5.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 52 and ground under the
following conditions.
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 53 and ground under the
following conditions.
OK or NG
OK >> GO TO 7.
NG >> GO TO 12.
7.CHECK HEATER FAN CONTROL CIRCUIT OVERALL FUNCTION
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 55 and ground under the
following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 16.
8.CHECK REAR WINDOW DEFOGGER FUNCTION
1. Start engine.
2. Turn “ON” the rear window defogger switch.
3. Check the rear windshield. Is the rear windshield heated up?
Ye s o r N o
Ye s > > G O T O 9 .
No >> Refer to GW-10, "
REAR WINDOW DEFOGGER" .
Condition Voltage
Rear window defogger switch “ON” BATTERY VOLTAGE
Rear window defogger switch “OFF” 0V
PBIB0660E
Condition Voltage
Lighting switch “ON” at 2nd position BATTERY VOLTAGE
Lighting switch “OFF” 0V
PBIB0070E
Condition Voltage
Heater fan control switch “ON” 0V
heater fan control switch “OFF” Approximately 5V
PBIB0661E

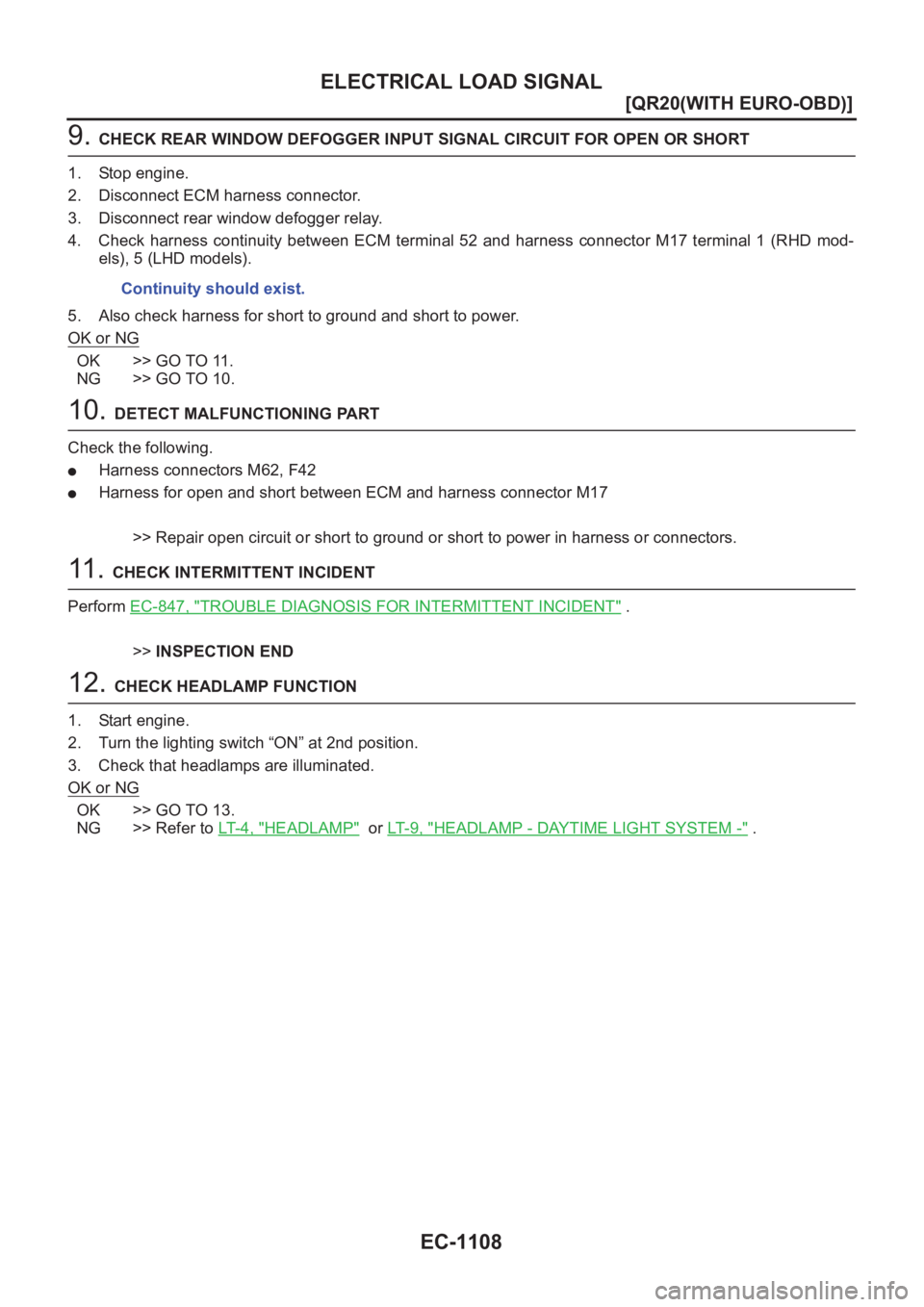

EC-1108
[QR20(WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL
9. CHECK REAR WINDOW DEFOGGER INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect rear window defogger relay.
4. Check harness continuity between ECM terminal 52 and harness connector M17 terminal 1 (RHD mod-
els), 5 (LHD models).
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M62, F42
●Harness for open and short between ECM and harness connector M17
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK INTERMITTENT INCIDENT
Perform EC-847, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
12. CHECK HEADLAMP FUNCTION
1. Start engine.
2. Turn the lighting switch “ON” at 2nd position.
3. Check that headlamps are illuminated.
OK or NG
OK >> GO TO 13.
NG >> Refer to LT-4, "
HEADLAMP" or LT- 9 , "HEADLAMP - DAYTIME LIGHT SYSTEM -" . Continuity should exist.

ELECTRICAL LOAD SIGNAL
EC-1109
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
13.CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect lighting switch harness connectors.
4. Check harness continuity between ECM terminal 53 and lighting switch terminal 9, 10 under the following
conditions.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 15.
NG >> GO TO 14.
14.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E60, F36
●Diode E123, E124
●Harness for open and short between ECM and lighting switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
15.CHECK INTERMITTENT INCIDENT
Perform EC-847, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
16.CHECK HEATER FAN CONTROL FUNCTION
1. Start engine.
2. Turn “ON” the fan control switch.
3. Check the blower fan motor. Does the blower fan motor activate?
Ye s o r N o
Ye s > > G O T O 1 7 .
No >> Refer to AT C - 3 3 , "
TROUBLE DIAGNOSIS" .
Condition Continuity
1 Should exist
2 Should not exist
PBIB0662E
